3-02 — FRONT DISC BRAKE CALIPER (#40599) — 64 parça

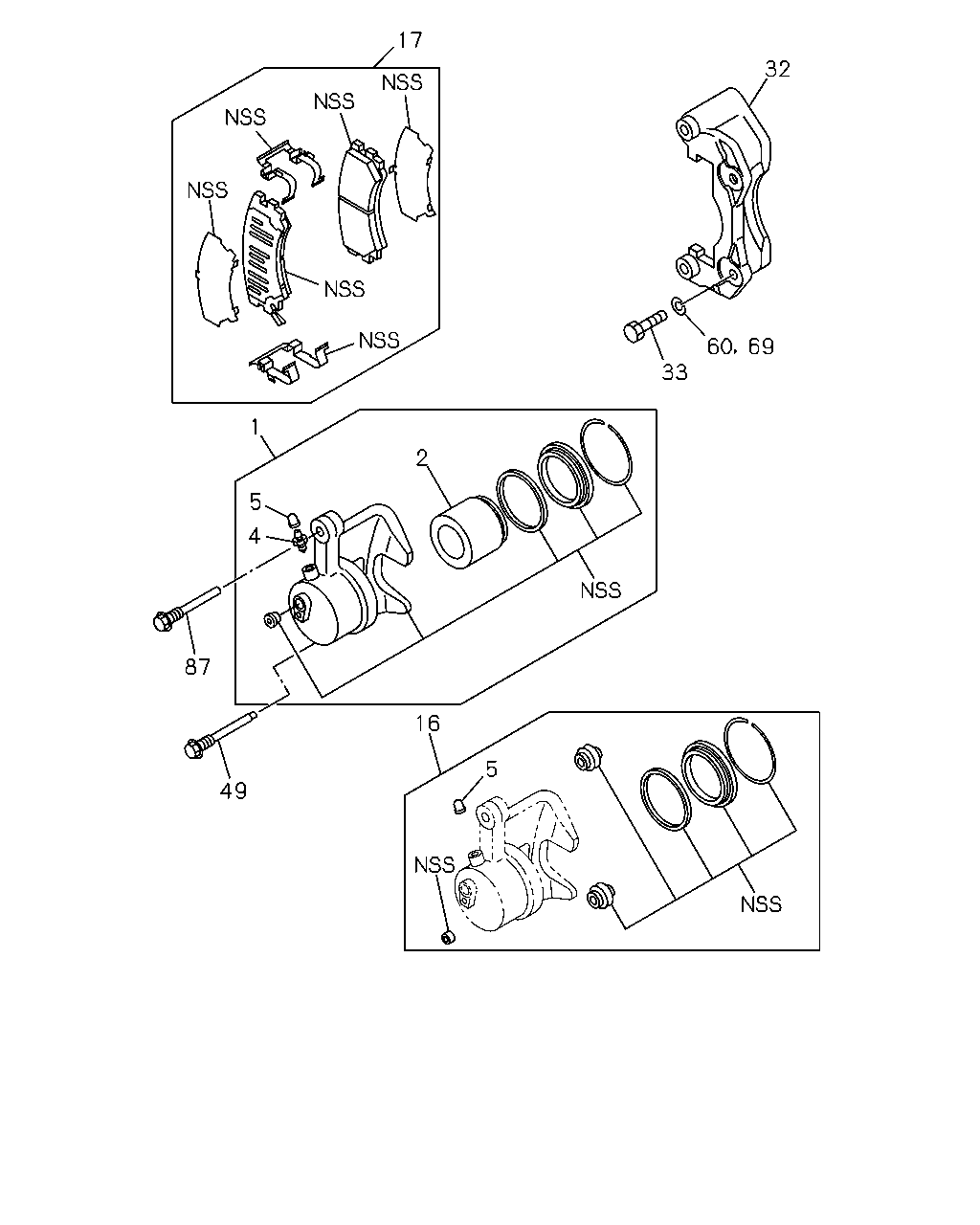

çizim 70355
17 32 69 60 33 2 1 5 4 87 49 16 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-013-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-012-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 9712- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 9712- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-017-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-016-0 01 1 9611- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94438-713-0 01 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665 		8-97113-867-0 01 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 9712- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		1-47619-009-0 01 1 9611- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-47619-007-2 01 1 9611- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 9712- ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-715-0 01 1 9611- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 9712- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 9611- ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9611- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97035-257-1 01 1 9712- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94438-690-0 02 1 9611- ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 9712- ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M10X59.5 		8-94438-712-0 02 1 9611- ● ● ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9712- ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 9712- ● ● ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9611- ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2 		9-09150-814-0 02 1 9611- ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9712- ● ● ● ● ● ●
87 04.665 PIN; LOCK
6VD1 ENG(RLV) 		8-97035-255-0 02 1 9712- ● ● ● ● ● ●

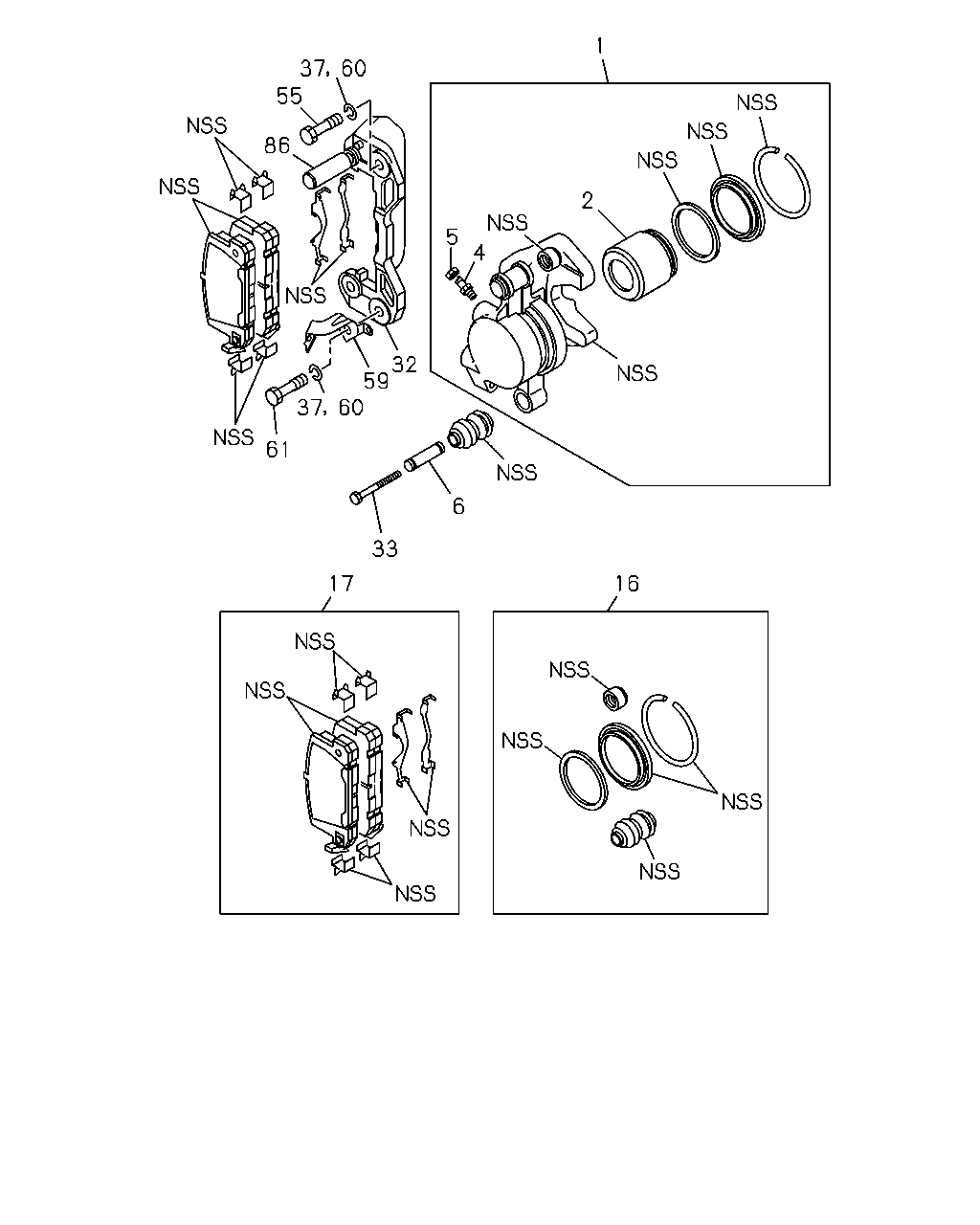

çizim 70762
16 17 33 6 60 59 32 37 61 4 5 2 1 60 37 55 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-013-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-012-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 9712- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 9712- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-017-0 01 1 9611- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94388-016-0 01 1 9611- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94438-713-0 01 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665 		8-97113-867-0 01 1 9611- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 9712- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		1-47619-009-0 01 1 9611- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-47619-007-2 01 1 9611- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 9712- ● ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94136-644-0 02 1 9611- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-715-0 01 1 9611- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 9712- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 9611- ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9611- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97035-257-1 01 1 9712- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94438-690-0 02 1 9611- ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 9712- ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M10X59.5 		8-94438-712-0 02 1 9611- ● ● ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9712- ● ● ● ● ● ●
37 04.665 WASHER; LK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.422 ID=14.2 		9-09150-814-0 04 1 9611- ● ● ● ●
37 04.665 WASHER; LK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. MANUAL LOCKING HUB(ED2), AUSTRALIA EQUIPMENT(RR3) 05.422 ID=14.2 		9-09150-814-0 04 1 9611- ● ● ● ●
37 04.665 WASHER; LK
4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) AUTO LOCKING HUB(S1Y) 05.422 ID=14.2 		9-09150-814-0 04 1 9611- ● ● ●
37 04.665 WASHER; LK
MANUAL LOCKING HUB(ED2) 05.422 ID=14.2 		9-09150-814-0 02 1 9611- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.665 M14X29 		8-97126-347-0 02 1 9611- ● ● ● ● ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94433-667-0 01 1 9611- ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94433-666-0 01 1 9611- ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9611- ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2 		9-09150-814-0 02 1 9611- ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X29 		8-97126-347-0 02 1 9611- ● ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94438-694-0 02 1 9611- ● ● ● ●
86 04.665 PIN; GUIDE
4ZD1 ENG(LW3),4JA1 ENG(RLE) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9611- ● ● ● ●
86 04.665 PIN; GUIDE
4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9611- ● ● ● ●
86 04.665 PIN; GUIDE
4JB1 ENG(RLF),4ZE1 ENG(RLJ) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-694-0 02 1 9611- ● ● ●
