Sayfa 2-62 - Isuzu EPC

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#40597) — 168 parça

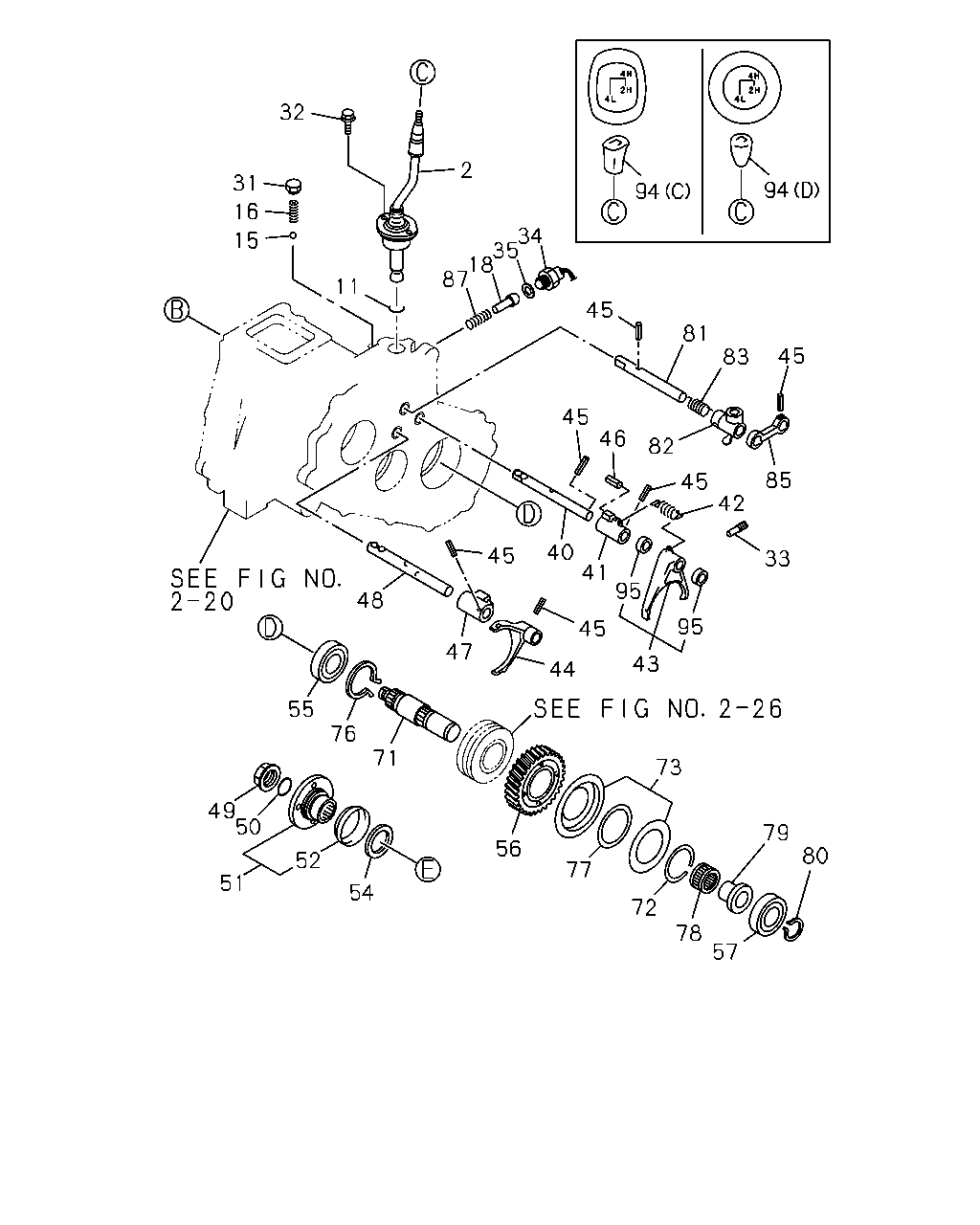

57 78 72 77 73 79 80 56 71 76 55 49 50 51 54 52 47 48 45 40 45 44 43 95 41 95 45 82 46 45 45 83 45 81 85 33 42 94 94 34 35 18 87 2 11 15 16 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9611-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN)	8-97031-493-2	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN)	8-97182-130-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN)	8-94441-917-3	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN)	8-97182-132-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97182-126-0	01	1	9712-			●	●
11	04.570 GASKET; CHANGE LEVER ID=35.2	9-09561-235-0	01	1	9611-9802	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9803-	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9803-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9712-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9611-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9712-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9611-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9611-	●	●	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M/T MUA 5 SPEED(RMN) M12X9	9-99202-312-0	02	1	9611-	●	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER M/T MUA 5 SPEED(RMN) M6X18	8-94448-812-1	01	1	9611-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9712-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9611-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9712-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9712-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9611-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9712-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9611-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9712-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9611-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9712-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9611-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9712-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9611-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9712-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9611-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9712-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9611-	●	●	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-883-1	01	1	9611-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9712-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-882-1	01	1	9611-9708	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9709-	●	●	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M/T MUA 5 SPEED(RMN) M27 FLANGE	8-94422-073-0	01	1	9611-	●	●	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP M/T MUA 5 SPEED(RMN) ID=29.7 OD=36.1	8-94483-035-0	01	1	9611-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9712-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9611-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9712-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9712-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9611-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9712-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9611-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9712-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9611-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9712-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9611-	●	●	●	●
71	05.555 SHAFT; TRANSFER OUTPUT M/T MUA 5 SPEED(RMN)	8-94377-437-5	01	1	9611-	●	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9611-	●	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9611-	●	●	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER M/T MUA 5 SPEED(RMN) OD=77.0	8-94422-092-0	01	1	9611-	●	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9611-	●	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE M/T MUA 5 SPEED(RMN) 04.419 NSK	8-94422-064-0	01	1	9611-	●	●	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER M/T MUA 5 SPEED(RMN) 04.419	8-94422-076-1	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.55 WHITE	8-94422-180-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.60 YELLOW	8-94422-181-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.65 BLUE	8-94422-182-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.70 PINK	8-94422-183-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.75 GREEN	8-94422-184-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.80 BROWN	8-94422-185-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.85 RED	8-94422-186-0	01	1	9611-	●	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.90 ORANGE	8-94422-187-0	01	1	9611-	●	●	●	●
81	04.309 ROD; TRANSFER SELECT M/T MUA 5 SPEED(RMN)	8-94370-499-2	01	1	9611-	●	●	●	●
82	04.555 BLOCK; TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-092-1	01	1	9611-	●	●	●	●
83	04.515 SPRING; SELECT M/T MUA 5 SPEED(RMN)	8-94462-235-0	01	1	9611-	●	●	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-97128-522-0	01	1	9611-	●	●	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER M/T MUA 5 SPEED(RMN)	8-94461-897-0	01	1	9611-	●	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9611-	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9611-			●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (D)	8-94473-779-0	01	1	9611-		●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9611-			●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9611-		●	●	●
95	04.570 BUSHING M/T MUA 5 SPEED(RMN)	8-97103-115-0	02	1	9611-	●	●	●	●

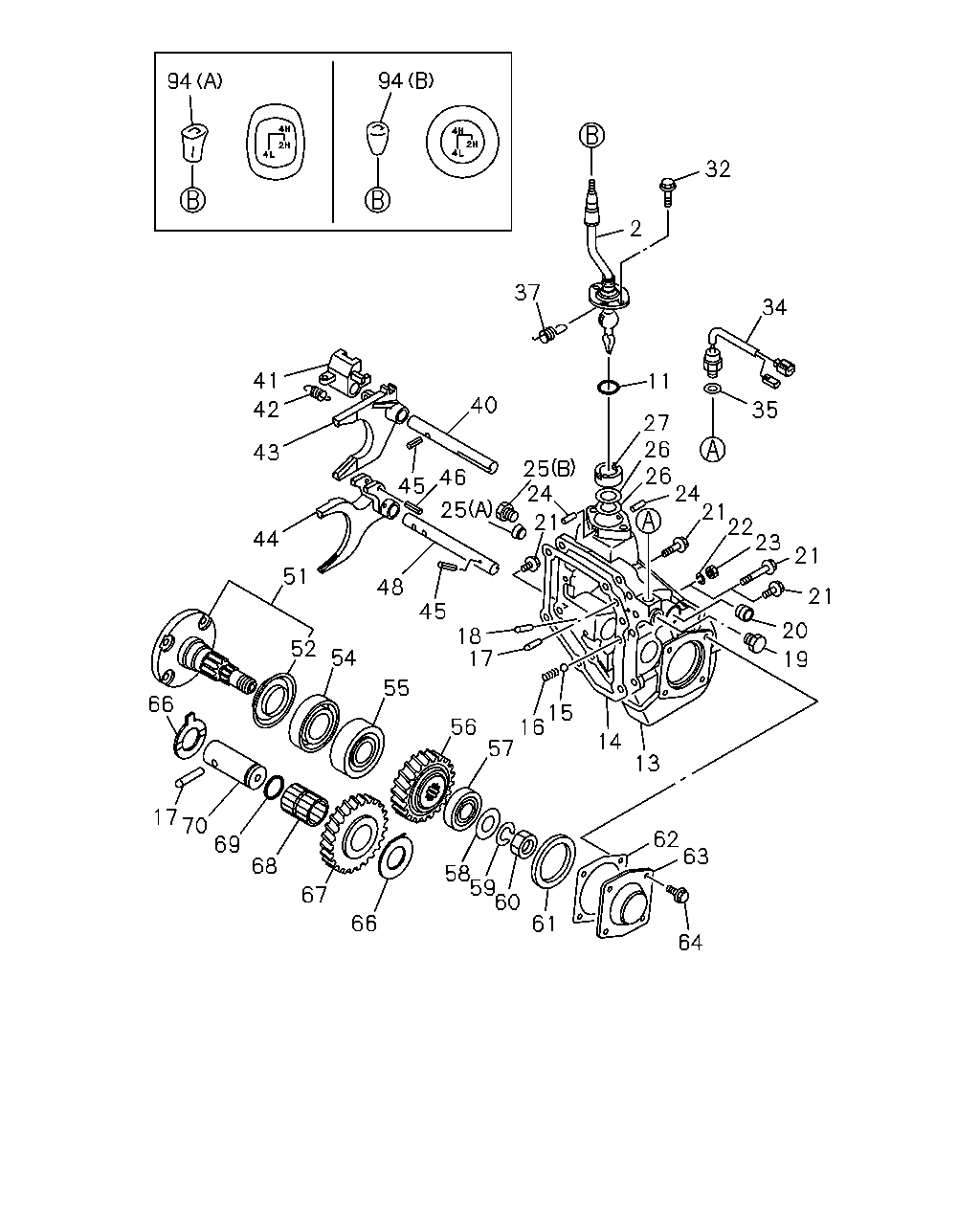

94 94 32 2 37 40 41 43 42 44 45 46 25 27 11 26 35 34 26 23 22 21 24 21 21 19 20 21 24 25 48 51 45 15 17 18 16 14 13 62 63 64 61 60 59 58 57 56 55 54 52 66 17 70 69 68 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9611-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN)	8-97031-493-2	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN)	8-97182-130-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN)	8-94441-917-3	01	1	9611-9707	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN)	8-97182-132-0	01	1	9708-	●	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97182-126-0	01	1	9712-			●	●
11	04.570 GASKET; CHANGE LEVER ID=35.2	9-09561-235-0	01	1	9611-9802	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9803-	●	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9803-	●	●	●	●
13	04.510 CASE; SIDE,TRANSFER M/T MSG 5 SPEED(M75)	5-36131-009-3	01	1	9712-	●	●	●	●
14	04.515 GASKET; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75)	8-94482-497-0	01	1	9611-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9712-	●	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9611-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9712-	●	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9611-	●	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=20	9-08160-820-0	01	1	9712-	●	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=45	9-08160-845-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9712-	●	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9611-	●	●	●	●
19	04.520 PLUG; 2-4 SHIFT ROD,RR,TRANSFER M/T MSG 5 SPEED(M75) M16X8 PLUG	9-09661-005-0	01	1	9712-	●	●	●	●
20	04.520 PLUG; HIGH-LOW SHIFT ROD,RR,TRAN M/T MSG 5 SPEED(M75)	9-33545-601-0	01	1	9712-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X25 FLANGE	0-28181-025-0	01	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X30 FLANGE	0-28181-030-0	02	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9611-	●	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X75	8-94473-960-1	01	1	9611-	●	●	●	●
22	04.525 WASHER; LK,TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 ID=10.2	9-09150-510-0	01	1	9611-	●	●	●	●
23	04.525 NUT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 M10	9-09110-510-0	01	1	9611-	●	●	●	●
24	04.105 PIN; BALL SEAT,CHANGE LEVER,TRAN M/T MSG 5 SPEED(M75)	9-09878-094-0	02	1	9712-	●	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) 04.309 (A) OD=14	5-09609-004-0	01	1	9712-	●	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) (B) M16X8 PLUG	9-09661-005-0	01	1	9712-	●	●	●	●
26	04.570 SPRING; BALL SEAT,CHANGE LEVER,T M/T MSG 5 SPEED(M75)	9-33619-632-0	02	1	9712-	●	●	●	●
27	04.570 SEAT; BALL,CHANGE LEVER,TRANSFER M/T MSG 5 SPEED(M75)	5-33619-042-0	01	1	9712-	●	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9712-	●	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9611-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9712-	●	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-	●	●	●	●
37	04.570 SPRING; SELECT RETURN,CHANGE LEV M/T MSG 5 SPEED(M75)	8-97104-789-0	01	1	9611-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9712-	●	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9611-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9712-	●	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9611-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9712-	●	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9611-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9712-	●	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9611-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9712-	●	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9611-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9712-	●	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9611-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9712-	●	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9611-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9712-	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-882-1	01	1	9611-9708	●	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9709-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9712-	●	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9611-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9712-	●	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9712-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9611-	●	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9611-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9712-	●	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9611-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9712-	●	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9611-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9712-	●	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9611-	●	●	●	●
58	04.525 WASHER; PL,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.929 ID=21	9-09160-520-0	01	1	9712-	●	●	●	●
59	04.525 WASHER; LK,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.931 ID=20.2	9-09150-520-0	01	1	9712-	●	●	●	●
60	04.525 NUT; OUTPUT GEAR,TRANSFER FLANGE M/T MSG 5 SPEED(M75) 08.915 M20	9-99111-520-0	01	1	9712-	●	●	●	●
61	04.540 PIECE; DIST,OUTPUT GEAR BRG M/T MSG 5 SPEED(M75) 04.525	5-36315-001-0	01	1	9712-	●	●	●	●
62	04.515 GASKET; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	5-36152-003-0	01	1	9712-	●	●	●	●
63	04.510 COVER; OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75)	5-36151-001-0	01	1	9712-	●	●	●	●
64	04.525 BOLT; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	8-94318-919-0	04	1	9712-	●	●	●	●
66	04.525 WASHER; THRUST,IDLE GEAR,TRANSFE M/T MSG 5 SPEED(M75)	5-36279-002-0	02	1	9712-	●	●	●	●
67	04.535 GEAR; IDLE,TRANSFER M/T MSG 5 SPEED(M75) Z=33	8-94435-147-1	01	1	9712-	●	●	●	●
68	04.520 BEARING; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75)	9-00096-606-0	02	1	9712-	●	●	●	●
69	04.515 GASKET; IDLE GEAR SHAFT,TRANSFER M/T MSG 5 SPEED(M75) ID=20.8	9-09565-221-0	01	1	9712-	●	●	●	●
70	04.439 SHAFT; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75) 04.530	5-36251-007-0	01	1	9712-	●	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9611-	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9611-			●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9611-	●		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (D)	8-94473-779-0	01	1	9611-		●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9611-			●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9611-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
