2-56 — AUTO TRANS CONTROL LINK (#40596) — 44 parça

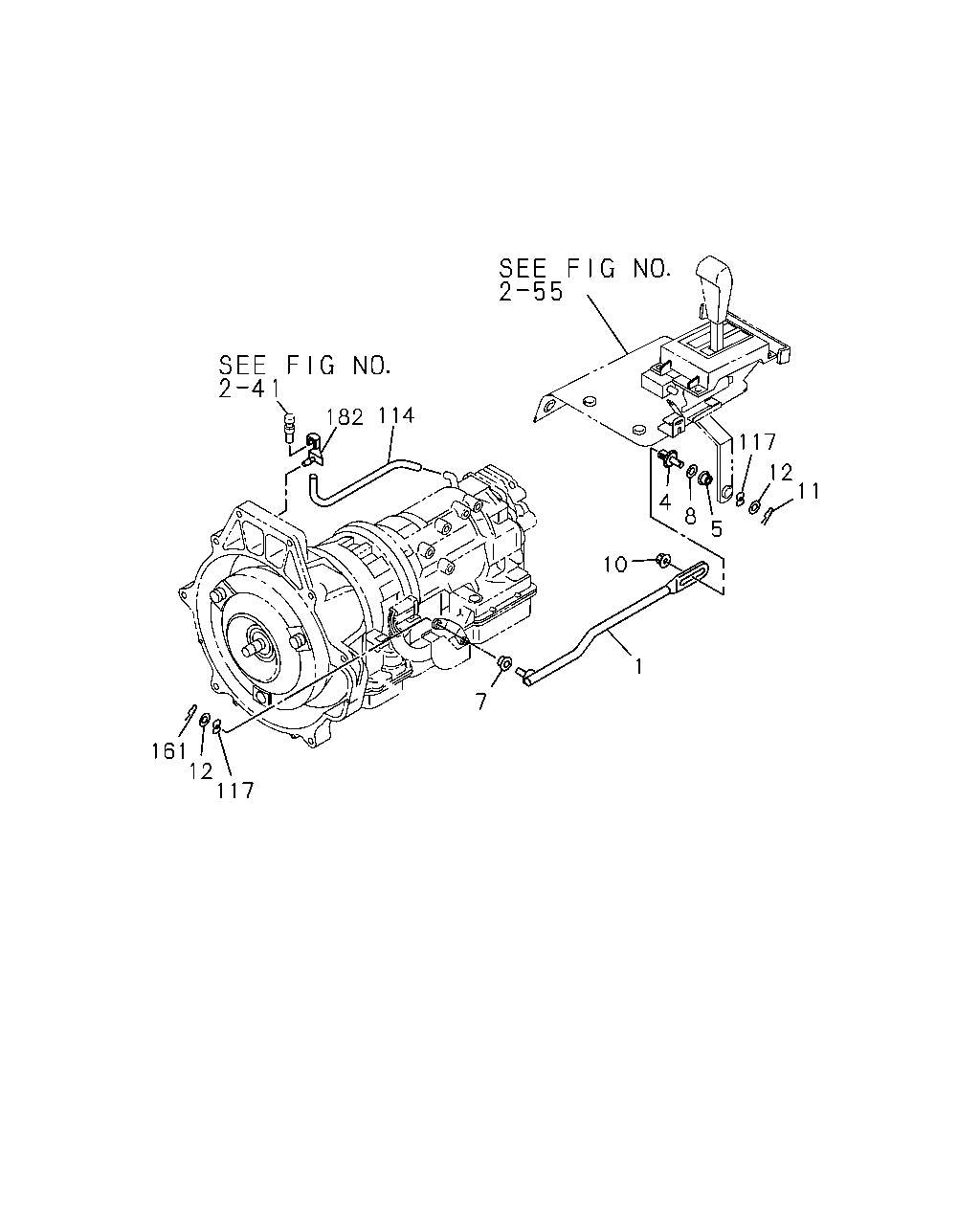

çizim 68867
7 1 10 4 8 5 12 11 117 114 182 161 12 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.035 ROD; LINK,SELECT CONT 8-97096-450-0 01 1 9611- ●
1 04.035 ROD; LINK,SELECT CONT 8-97124-685-2 01 1 9712- ●
4 04.037 BOSS; SELECT LEVER 8-94341-788-0 01 1 9611- ●
4 04.037 BOSS; SELECT LEVER 8-97124-639-0 01 1 9712- ●
5 04.037 BUSHING; LINK ROD TO SELECT LEVE 8-97038-937-0 01 1 9611- ● ●
7 04.037 BUSHING; JOINT,A/T CONT 8-97038-937-0 01 1 9611- ● ●
8 04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9611- ● ●
10 04.037 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ●
10 04.037 NUT; CLIP
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ●
11 04.047 PIN; SNAP,A/T CONT
04.004 L=27.7 		8-94210-407-0 01 1 9611- ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 03 1 9611-9711 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9712-9802 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9803- ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9712-9802 ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9712-9802 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9803- ● ●
114 08.962 HOSE; BREATHER
04.104 L=640 SERVICED BY L=3000 		0-02857-300-0 01 1 9712- ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 02 1 9611-9711 ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9712- ● ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9712- ● ●
161 04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7 		8-94210-407-0 01 1 9611- ● ●
182 04.104 CLIP; BREATHER HOSE 8-97164-817-1 01 1 9712- ●
çizim 70108
117 12 161 12 11 117 12 7 1 10 9 6 8 5 6 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.035 ROD; LINK,SELECT CONT 8-97096-450-0 01 1 9611- ●
1 04.035 ROD; LINK,SELECT CONT 8-97124-685-2 01 1 9712- ●
4 04.037 BOSS; SELECT LEVER 8-94341-788-0 01 1 9611- ●
4 04.037 BOSS; SELECT LEVER 8-97124-639-0 01 1 9712- ●
5 04.037 BUSHING; LINK ROD TO SELECT LEVE 8-97038-937-0 01 1 9611- ● ●
6 04.012 NUT; SELECT CONT
06.822 M10 		9-09111-410-0 02 1 9611- ●
7 04.037 BUSHING; JOINT,A/T CONT 8-97038-937-0 01 1 9611- ● ●
8 04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9611- ● ●
9 04.047 CLIP; NUT STOPPER 8-94124-163-0 01 1 9611- ●
10 04.037 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9611- ●
10 04.037 NUT; CLIP
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ●
11 04.047 PIN; SNAP,A/T CONT
04.004 L=27.7 		8-94210-407-0 01 1 9611- ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 03 1 9611-9711 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9712-9802 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9803- ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9712-9802 ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9712-9802 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9803- ● ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 02 1 9611-9711 ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9712- ● ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9712- ● ●
161 04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7 		8-94210-407-0 01 1 9611- ● ●
