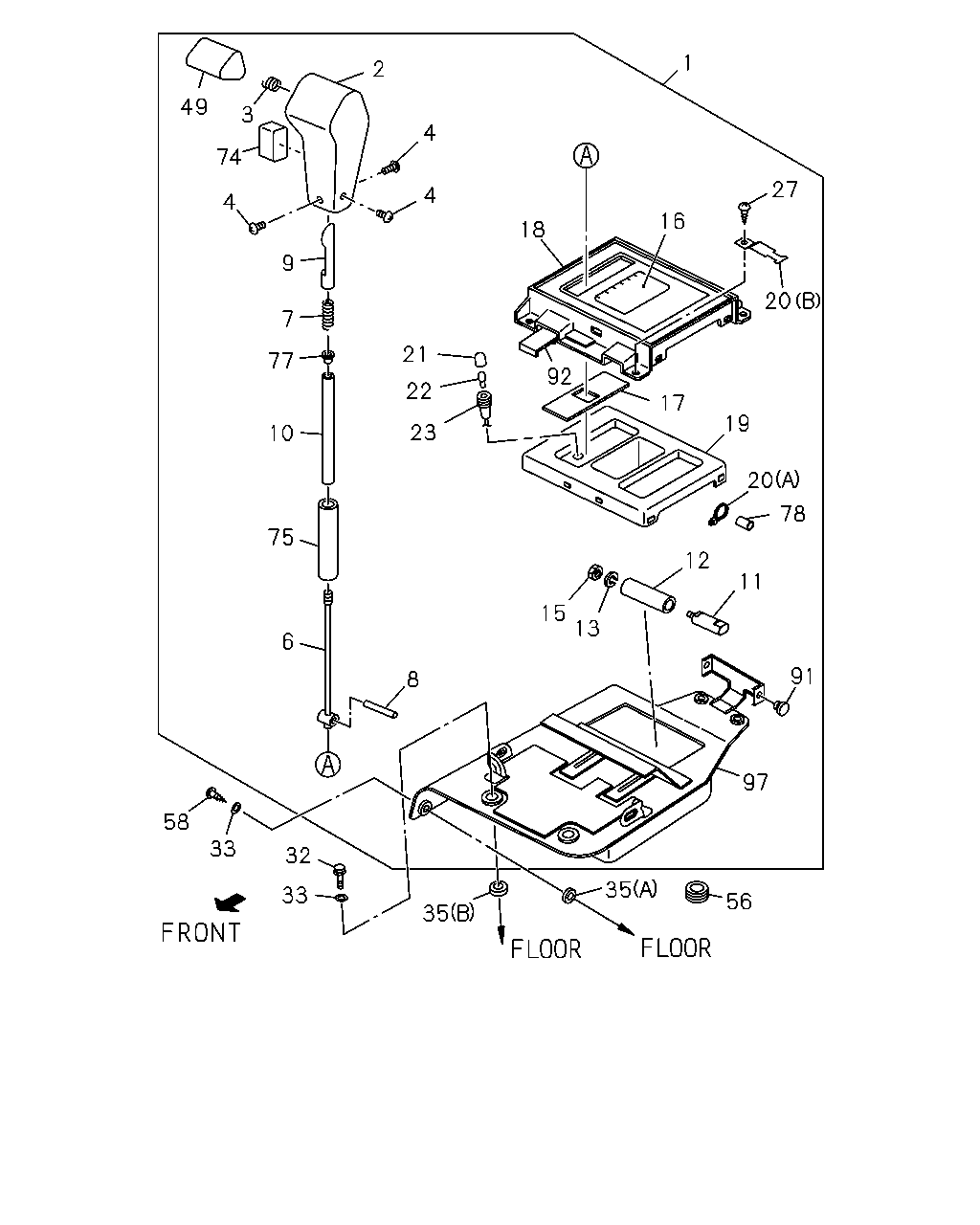

2-55 — AUTO TRANS SHIFT CONTROL LEVER (#40595) — 49 parça

56 35 35 32 33 33 58 6 8 15 13 12 91 97 11 78 20 19 17 92 23 22 21 18 16 27 1 2 4 4 4 74 49 3 9 7 77 10 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T BLACK	8-97154-753-0	01	1	9611-	●
1	04.006 LEVER; SHIFT,A/T	8-97159-195-1	01	1	9712-9801		●
1	04.006 LEVER; SHIFT,A/T BLACK	8-97198-130-0	01	1	9802-		●
2	04.006 KNOB ASM; AUTO CONT LEVER BLACK	8-94389-630-0	01	1	9611-	●
3	04.008 SPRING; RETURN,KNOB	8-94370-126-0	01	1	9611-	●
4	04.006 SCREW; KNOB TO LEVER	8-94370-128-0	03	1	9611-	●
6	04.006 ROD; A/T SHIFT LEVER	8-94370-313-0	01	1	9611-	●
7	04.008 SPRING; RETURN,ROD	8-94370-302-0	01	1	9611-	●
8	04.008 PIN; SELECT GATE	8-94152-194-0	01	1	9611-	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-94370-129-0	01	1	9611-	●
10	04.006 LEVER; A/T CONT	8-94370-315-0	01	1	9611-	●
11	04.040 LEVER; A/T SHIFT LEVER TO LINK	8-94389-730-0	01	1	9611-	●
12	04.008 BUSHING; SELECT LEVER	8-94389-737-0	02	1	9611-	●
13	04.042 WASHER; LEVER TO SHAFT 00.002 ID=8.2	9-09150-608-0	01	1	9611-	●
15	04.042 NUT; LEVER TO SHAFT 00.787 M8	9-09111-408-0	01	1	9611-	●
16	04.020 LENS; INDICATOR	8-97123-318-0	01	1	9611-	●
17	04.020 PLATE; INDICATOR	8-94370-138-0	01	1	9611-	●
18	04.020 COVER; INDICATOR,UPR	8-94389-728-0	01	1	9611-	●
19	04.020 COVER; INDICATOR,LWR	8-94370-310-0	01	1	9611-	●
20	04.022 CLIP; INHIBITOR SW (A)	8-94389-647-0	03	1	9611-	●
20	04.022 CLIP; INHIBITOR SW (B)	8-97010-035-0	01	1	9611-	●
21	04.020 CAP; BULB	8-94389-654-0	01	1	9611-	●
22	08.991 BULB; INDICATOR	8-94370-143-0	01	1	9611-	●
23	04.022 SOCKET; INDICATOR	8-94370-142-0	01	1	9611-	●
27	04.022 SCREW; INDICATOR TO BRKT 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9611-	●
32	04.008 BOLT; CONT LEVER TO BODY 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9611-9711	●
32	04.008 BOLT; CONT LEVER TO BODY 04.570 M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9712-	●	●
33	04.008 WASHER; PL,CONT LEVER TO BODY 07.633 ID=8.4 OD=22	9-09164-708-0	06	1	9611-	●	●
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV 04.012 (A) OD=13 T=4.5	8-94230-464-1	02	1	9611-	●	●
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV (B) OD=15 T=6.8	8-94437-495-0	04	1	9611-	●	●
49	04.006 BUTTON; PUSH,KNOB BLACK	8-94389-615-0	01	1	9611-	●
56	04.008 PLUG EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.073 PT3/8	5-09605-005-0	01	1	9611-	●
58	04.008 SCREW; BRKT 03.483	8-94220-277-0	02	1	9611-	●	●
74	04.057 SWITCH; OVERDRIVE,A/T CONT LEVER BLACK	8-97158-339-0	01	1	9611-	●
75	04.006 PIPE; SHIFT LEVER,A/T CONT	8-94370-314-0	01	1	9611-	●
77	04.010 SUPPORT; SPRING,A/T CONT LEVER	8-94370-130-0	01	1	9611-	●
78	04.057 PROTECTOR; LAMP CABLE,A/T CONT L 04.010 BLACK	8-94389-656-0	01	1	9611-	●
91	04.020 GROMMET 09.743	8-94203-326-0	02	1	9611-	●
92	04.030 GUIDE; SLIDER	8-94389-738-0	01	1	9611-	●
97	04.008 BOOT	8-94366-570-0	01	1	9611-	●

32 33 35 35 33 58 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T BLACK	8-97154-753-0	01	1	9611-	●
1	04.006 LEVER; SHIFT,A/T	8-97159-195-1	01	1	9712-9801		●
1	04.006 LEVER; SHIFT,A/T BLACK	8-97198-130-0	01	1	9802-		●
32	04.008 BOLT; CONT LEVER TO BODY 00.780 M8X30 W/LK WASHER	0-50040-830-0	04	1	9611-9711	●
32	04.008 BOLT; CONT LEVER TO BODY 04.570 M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9712-	●	●
33	04.008 WASHER; PL,CONT LEVER TO BODY 07.633 ID=8.4 OD=22	9-09164-708-0	06	1	9611-	●	●
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV 04.012 (A) OD=13 T=4.5	8-94230-464-1	02	1	9611-	●	●
35	04.008 SPACER; BRKT TO FLOOR,SELECT LEV (B) OD=15 T=6.8	8-94437-495-0	04	1	9611-	●	●
58	04.008 SCREW; BRKT 03.483	8-94220-277-0	02	1	9611-	●	●
