2-52 — AUTO TRANS OVERDRIVE GEAR (#40593) — 102 parça

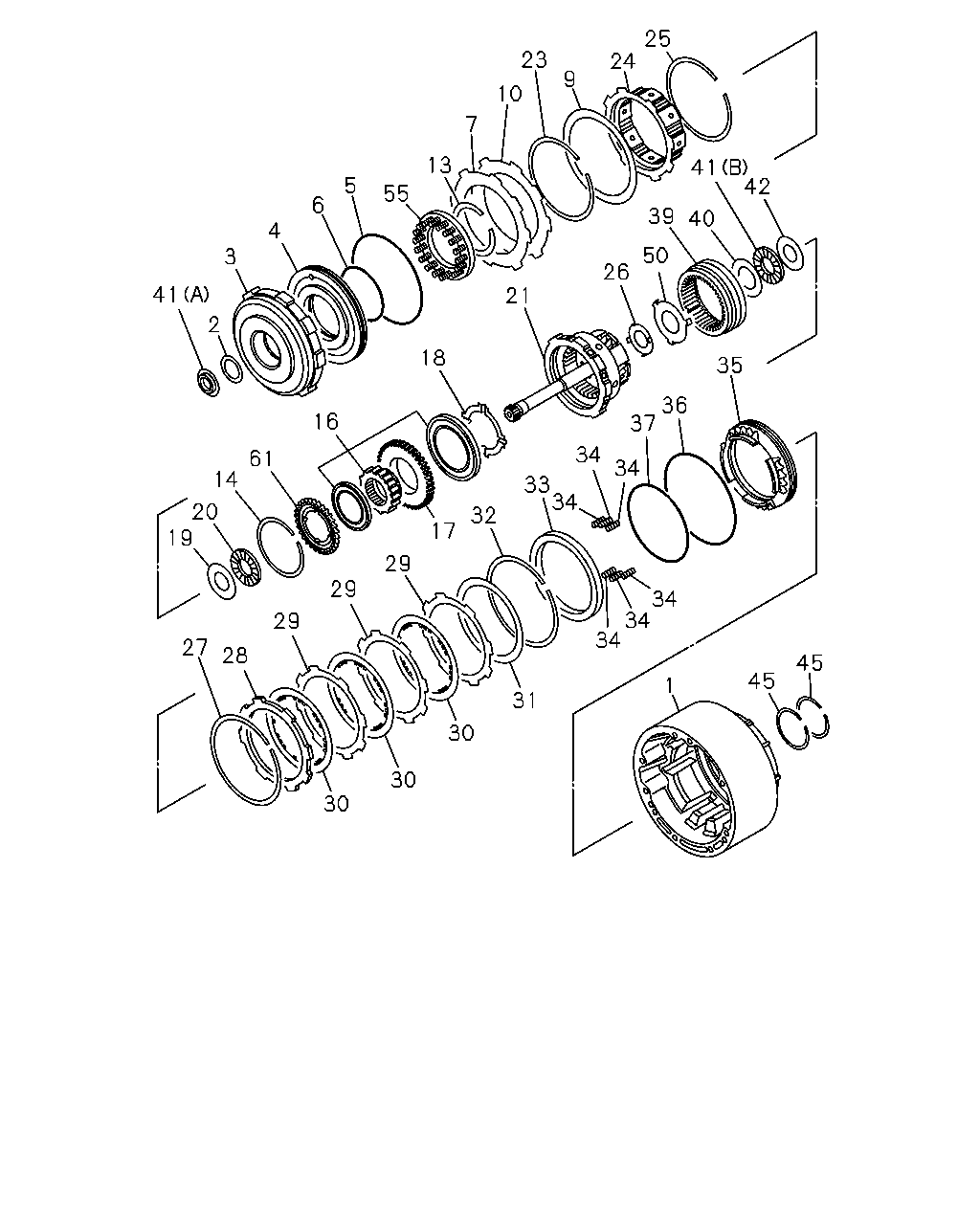

çizim 18239
30 30 30 31 34 34 34 1 45 45 34 34 34 33 37 36 35 32 17 29 29 29 28 27 19 20 14 61 16 18 21 26 50 39 40 42 41 24 25 9 23 10 7 13 55 5 6 4 3 2 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.455 CASE ASM; OVERDRIVE,A/T 8-94165-954-0 01 1 9611- ●
2 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
04.226 		8-94165-958-0 01 1 9611- ●
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-94165-964-0 01 1 9611- ●
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9712- ●
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-97200-274-0 01 1 9611- ●
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9712- ●
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-94257-064-0 01 1 9611- ●
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-96017-561-0 01 1 9712- ●
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI
04.166 		5-34218-003-0 01 1 9611- ●
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI 8-96014-321-0 01 1 9712- ●
7 04.468 PLATE; CLU CUSHION 8-97200-275-0 01 1 9611- ●
7 04.468 PLATE; CLU CUSHION 8-96014-983-0 01 1 9712- ●
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE
04.163 		8-97128-816-0 01 1 9611- ●
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-187-0 04 1 9712- ●
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
04.163 H=3.95 		5-34256-002-0 01 1 9611- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T 5-34268-006-0 01 1 9611- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9712- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9712- ●
14 04.472 RING; RET,OVERDRIVE,A/T 8-94165-963-0 01 1 9611- ●
16 04.455 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 8-94165-961-0 01 1 9611- ●
17 04.468 RACE; ONEWAY CLU,A/T 8-94165-960-0 01 1 9611- ●
18 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94405-304-0 01 1 9611- ●
19 04.472 RACE; THRUST BEARING 8-94165-968-0 01 1 9611- ●
20 04.472 BEARING; THRUST 8-94165-969-0 01 1 9611- ●
21 04.161 SHAFT ASM; INPUT,OVERDRIVE,A/T 8-94405-303-0 01 1 9611- ●
23 04.472 RING; RET,OVERDRIVE,A/T
04.164 		5-34258-001-0 01 1 9611- ●
24 04.468 HUB; OVERDRIVE BRK,A/T 8-94473-603-0 01 1 9611- ●
25 04.472 RING; RET,OVERDRIVE,A/T
04.164 		8-94250-342-0 01 1 9611- ●
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94250-344-0 01 1 9611- ●
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-96014-390-0 01 1 9712- ●
27 04.472 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 9611- ●
27 04.472 RING; RET,OVERDRIVE,A/T 8-08634-023-0 01 1 9712- ●
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 8-94165-979-0 01 1 9611- ●
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9712- ●
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-94165-978-0 03 1 9611- ●
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-902-0 01 1 9712- ●
30 04.455 DISC; CLU,OVERDRIVE,A/T
04.472 T=2.0 		8-94165-977-0 03 1 9611- ●
30 04.455 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9712- ●
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-94165-976-0 01 1 9611- ●
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9712- ●
32 04.472 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 9611- ●
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-94165-974-0 01 1 9611- ●
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-96015-601-0 01 1 9712- ●
34 04.467 SPRING; BRK RETURN,OVERDRIVE,A/T 5-34265-002-0 12 1 9611- ●
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-94165-971-0 01 1 9611- ●
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9712- ●
36 04.460 GASKET; PISTON,OUTER,A/T 8-94165-973-0 01 1 9611- ●
37 04.460 GASKET; PISTON,INNER,A/T 8-94165-972-0 01 1 9611- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T 8-94165-970-0 01 1 9611- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9712- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9712- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9712- ●
40 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 8-94250-346-0 01 1 9611- ●
41 04.472 BEARING; THRUST,OVERDRIVE,A/T
04.164 (B) 		5-34258-004-0 01 1 9611- ●
41 04.472 BEARING; THRUST,OVERDRIVE,A/T
04.226 (A) 		8-94165-957-0 01 1 9611- ●
42 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 5-34258-005-0 01 1 9611- ●
45 04.472 RING; SEAL,OVERDRIVE,A/T
04.226 		8-94257-061-0 02 1 9611- ●
50 04.472 RACE; THRUST BRG,OVERDRIVE SUPPO 8-94473-601-0 01 1 9611- ●
55 04.468 SPRING ASM; CLU RETURN,O/D 8-97128-813-0 01 1 9611- ●
61 04.485 RETAINER; ONEWAY CLU,A/T
04.468 		8-94165-962-0 01 1 9611- ●

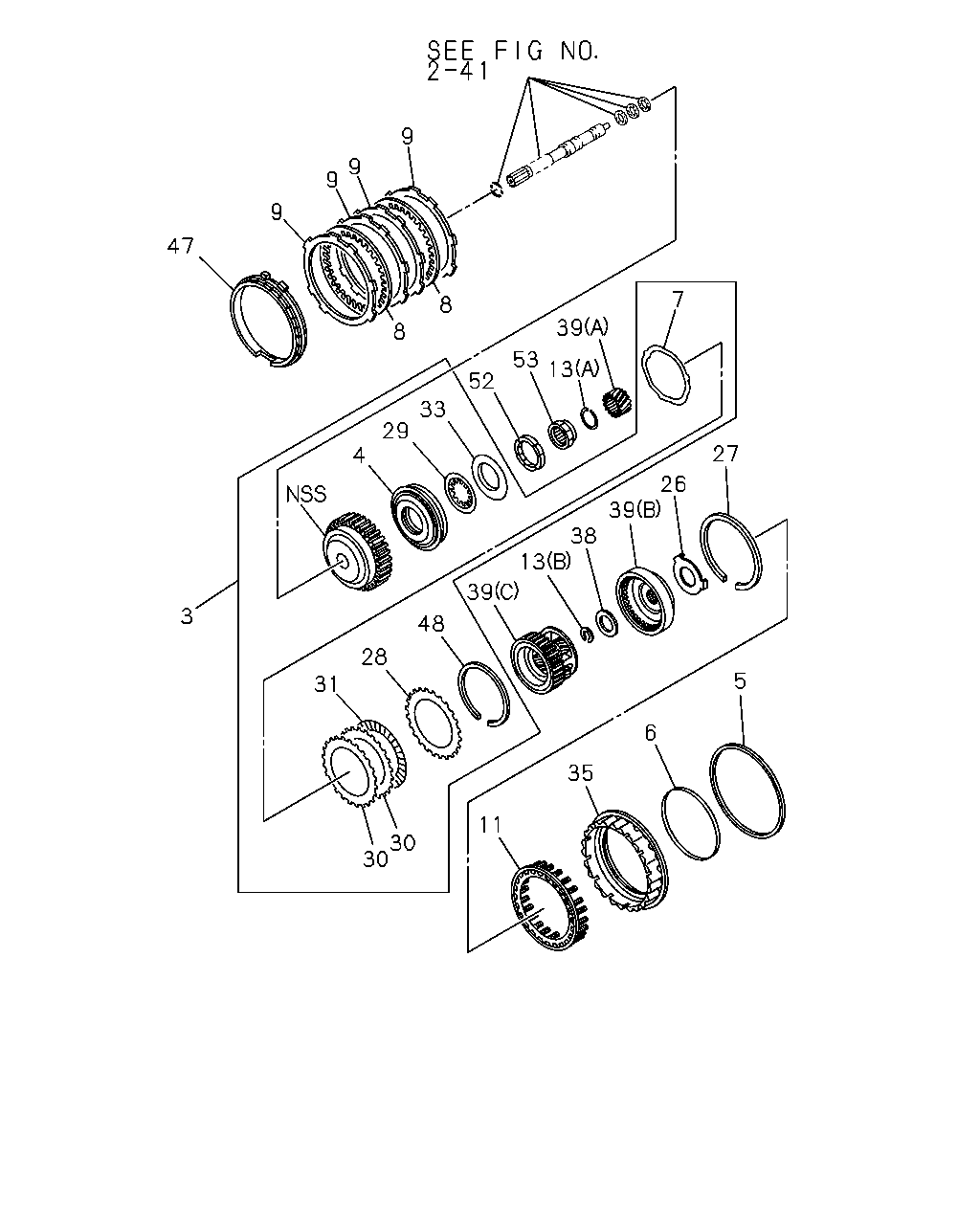

çizim 68930
47 9 9 9 9 8 8 53 13 39 7 52 33 29 4 3 31 48 28 39 13 38 39 26 27 5 6 35 11 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-94165-964-0 01 1 9611- ●
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9712- ●
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-97200-274-0 01 1 9611- ●
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9712- ●
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-94257-064-0 01 1 9611- ●
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-96017-561-0 01 1 9712- ●
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI
04.166 		5-34218-003-0 01 1 9611- ●
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI 8-96014-321-0 01 1 9712- ●
7 04.468 PLATE; CLU CUSHION 8-97200-275-0 01 1 9611- ●
7 04.468 PLATE; CLU CUSHION 8-96014-983-0 01 1 9712- ●
8 04.455 DISC; CLU,OVERDRIVE,A/T 8-96014-459-0 02 1 9712- ●
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE
04.163 		8-97128-816-0 01 1 9611- ●
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-187-0 04 1 9712- ●
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 8-08635-244-0 01 1 9712- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T 5-34268-006-0 01 1 9611- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9712- ●
13 04.472 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9712- ●
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94250-344-0 01 1 9611- ●
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-96014-390-0 01 1 9712- ●
27 04.472 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 9611- ●
27 04.472 RING; RET,OVERDRIVE,A/T 8-08634-023-0 01 1 9712- ●
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 8-94165-979-0 01 1 9611- ●
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9712- ●
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-94165-978-0 03 1 9611- ●
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-96014-902-0 01 1 9712- ●
30 04.455 DISC; CLU,OVERDRIVE,A/T
04.472 T=2.0 		8-94165-977-0 03 1 9611- ●
30 04.455 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9712- ●
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-94165-976-0 01 1 9611- ●
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9712- ●
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-94165-974-0 01 1 9611- ●
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-96015-601-0 01 1 9712- ●
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-94165-971-0 01 1 9611- ●
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9712- ●
38 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-08634-035-0 01 1 9712- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T 8-94165-970-0 01 1 9611- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9712- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9712- ●
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9712- ●
47 04.467 FLANGE; OVERDRIVE BRK,A/T 8-96015-385-0 01 1 9712- ●
48 04.472 RING; SNAP,PLANETARY RING GEAR,O 8-08634-056-0 01 1 9712- ●
52 04.180 ROLLER; OVERDRIVE CLU 8-00930-660-0 01 1 9712- ●
53 04.180 CAM; OVERDRIVE ROLLER CLU 8-08634-038-0 01 1 9712- ●
