2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#40592) — 16 parça

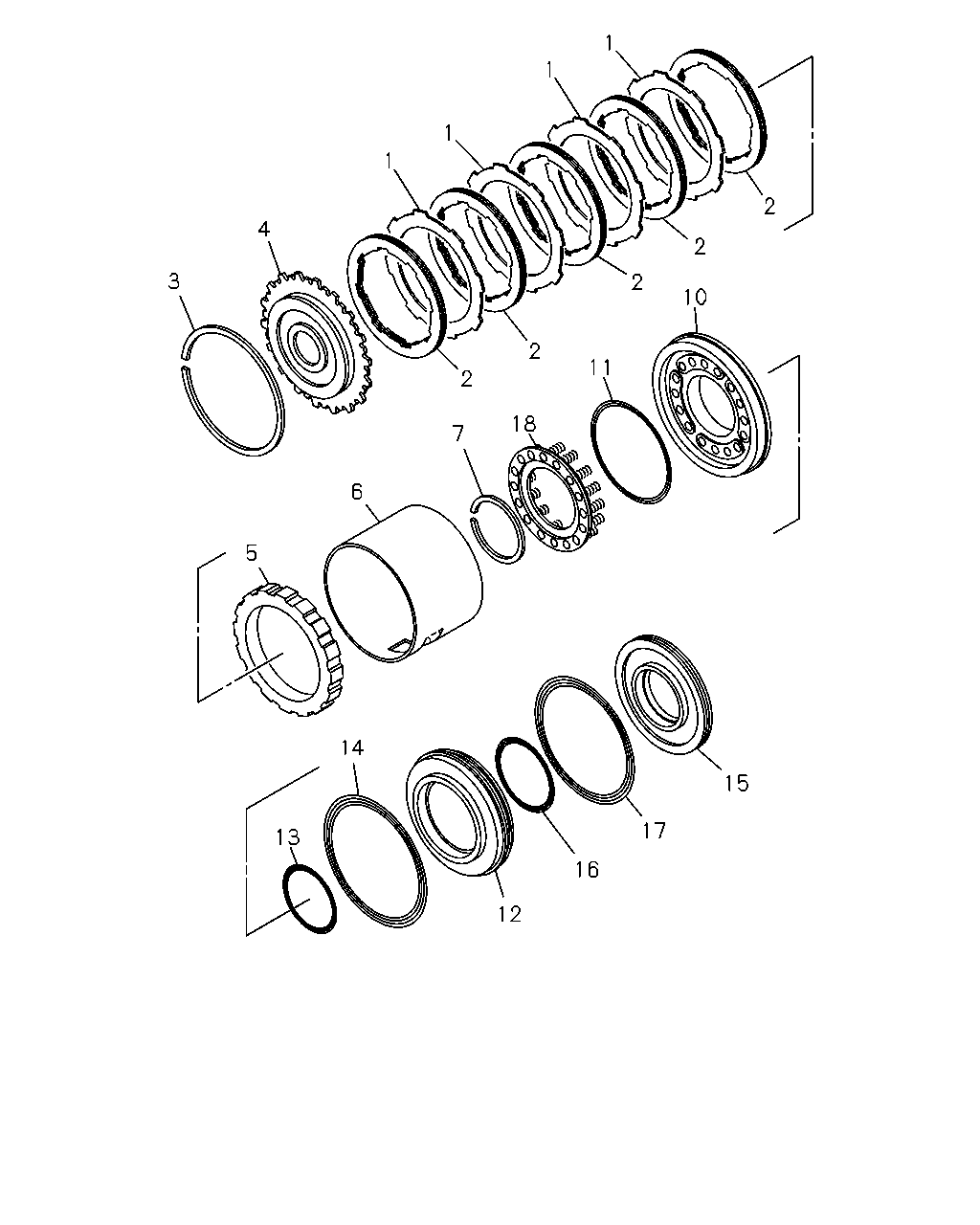

çizim 70113
1 1 1 2 2 2 2 2 1 4 3 6 5 7 18 11 10 14 13 12 17 16 15
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 DISC; CLU,BRK,A/T 8-94324-521-0 04 1 9611-
2 04.164 DISC ASM; CLU & FACING,A/T 8-94324-791-0 05 1 9611-
3 04.164 RING; RET,DISC CLU,A/T 5-34318-001-0 01 1 9611-
4 04.164 PLATE ASM; INNER RACE,DISC CLU,A 8-94405-310-0 01 1 9611-
5 04.164 PLATE; CLU BACKING,A/T 5-34256-003-0 01 1 9611-
6 04.164 TUBE; BRK APPLY,DISC CLU,A/T 8-94239-559-0 01 1 9611-
7 04.164 RING; SNAP,DISC CLU,A/T
04.472 		5-34268-006-0 01 1 9611-
10 04.164 PISTON; DISC CLU,A/T 5-34261-009-0 01 1 9611-
11 04.164 GASKET; PISTON,DISC CLU,A/T
04.166 		5-34218-004-0 01 1 9611-
12 04.164 SLEEVE; REACTION,DISC CLU,A/T 5-34261-008-0 01 1 9611-
13 04.164 GASKET; INNER,DISC CLU,A/T
04.166 		5-34378-003-0 01 1 9611-
14 04.164 GASKET; OUTER,DISC CLU,A/T 5-34378-004-0 01 1 9611-
15 04.164 PISTON; DISC CLU,A/T 5-34261-007-0 01 1 9611-
16 04.164 GASKET; INNER,DISC CLU,A/T
04.166 		5-34218-003-0 01 1 9611-
17 04.164 GASKET; OUTER,DISC CLU,A/T
04.166 		5-34378-002-0 01 1 9611-
18 04.164 SPRING ASM; BRK RETURN,DISC CLU 8-97065-701-0 01 1 9611-
