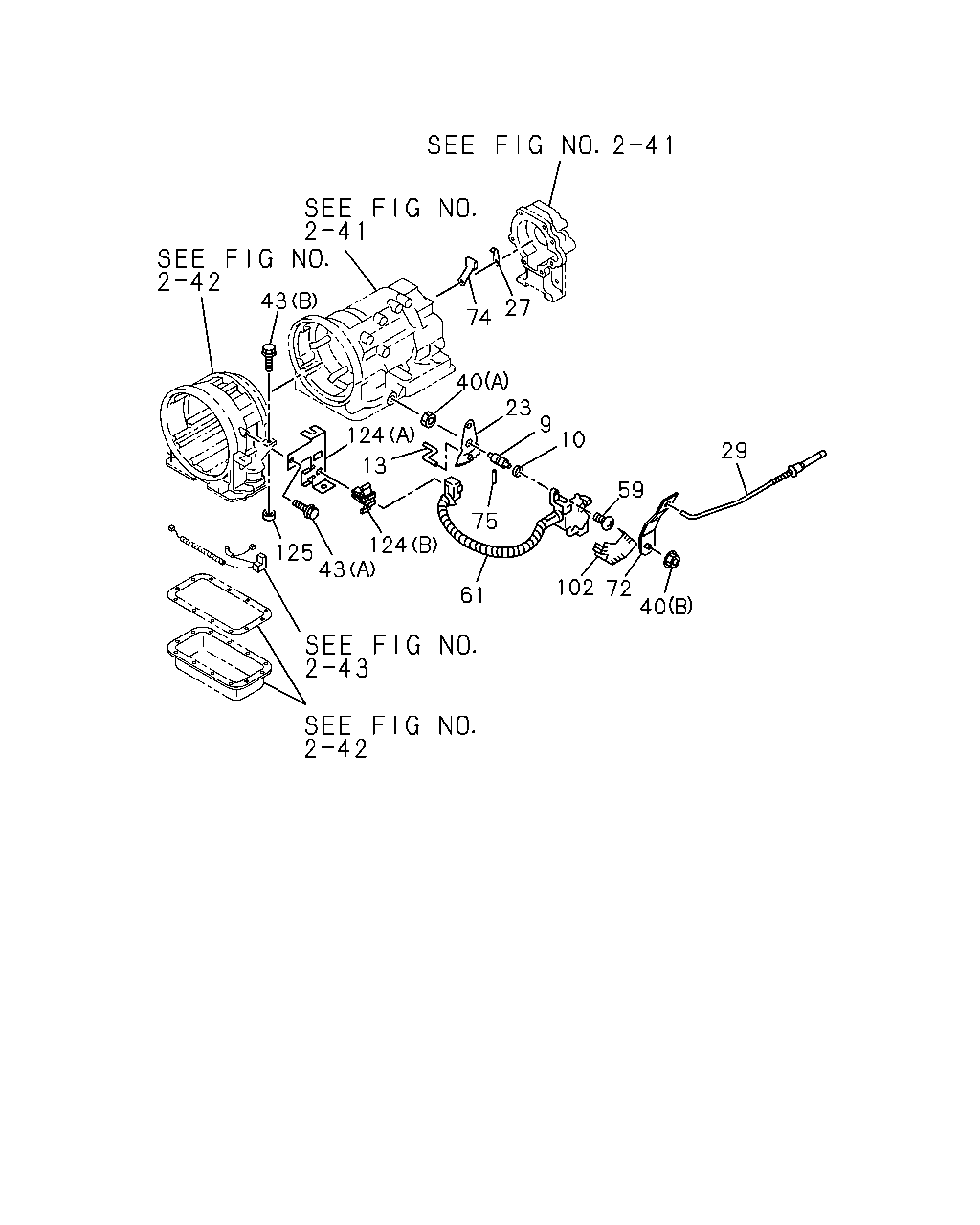

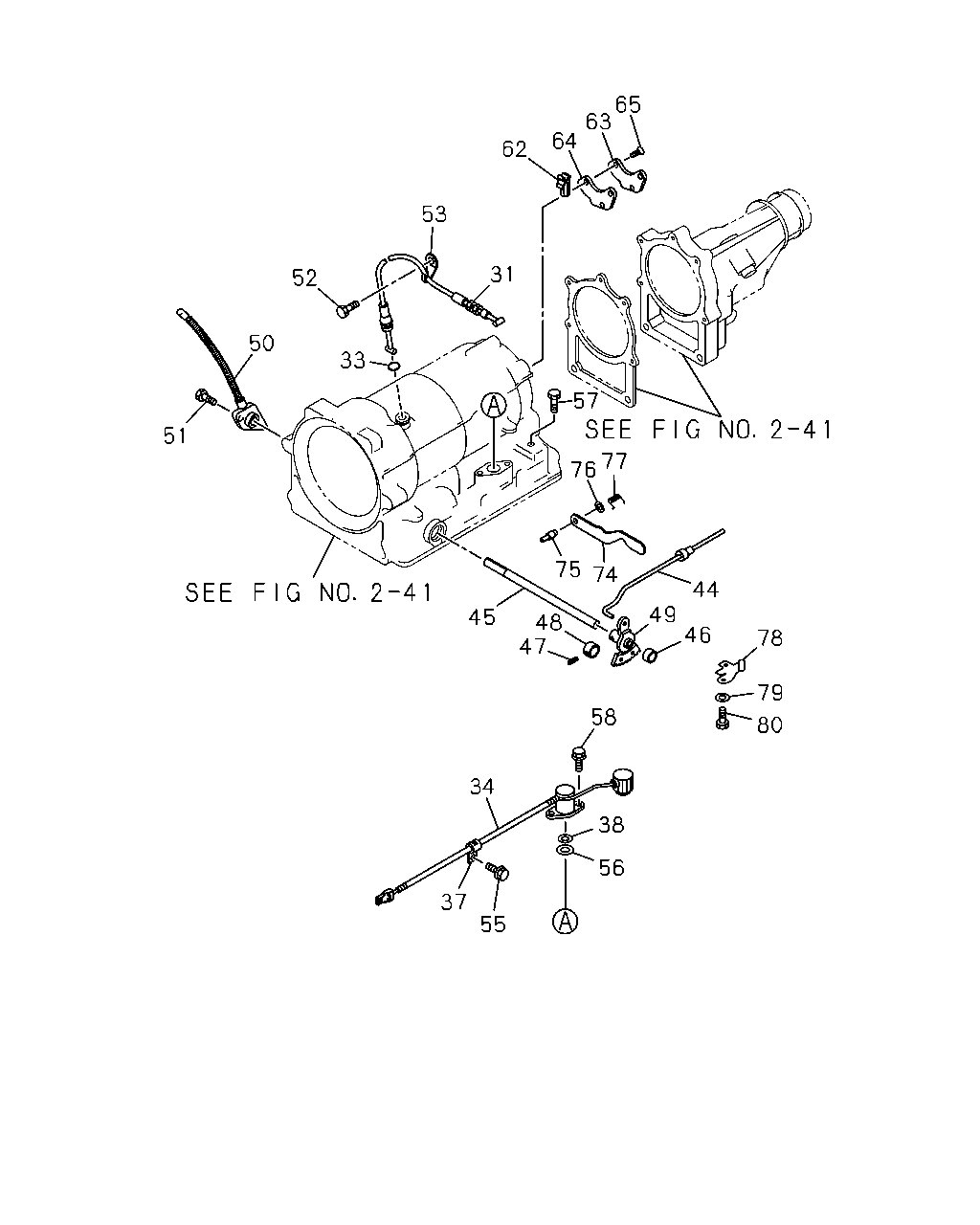

2-49 — AUTO TRANS INHIBITOR SWITCH (#40591) — 60 parça

40 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	04.037 NUT; LEVER TO SHAFT 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-	●
40	04.037 NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9712-		●
72	04.035 LEVER; SELECT CONT	8-94474-060-1	01	1	9611-	●
72	04.035 LEVER; SELECT CONT	8-97013-518-1	01	1	9712-		●

55 37 34 56 38 58 46 49 74 75 48 47 45 78 79 80 44 76 77 57 31 53 33 52 50 51 62 64 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	04.050 CABLE; THROTTLE,A/T	8-94480-525-0	01	1	9611-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	9611-	●
34	04.265 SOLENOID ASM; A/T	8-97039-489-0	01	1	9611-	●
37	04.275 CLAMP; SOLENOID,A/T	8-94244-564-0	01	1	9611-	●
38	04.265 GASKET; SOLENOID INNER	8-94244-566-0	01	1	9611-	●
44	04.290 ROD ASM; PARKING PAWL	8-94473-589-0	01	1	9611-	●
45	04.275 SHAFT; VALVE LEVER	8-94255-675-0	01	1	9611-	●
46	04.282 SEAL; OIL	8-97065-695-0	02	1	9611-	●
47	04.275 PIN; ROLL SHAFT 04.052 D=4	8-94257-081-0	01	1	9611-	●
48	04.008 COVER; SLEEVE	5-34125-002-0	01	1	9611-	●
49	04.279 LEVER ASM; CAM	8-94165-980-0	01	1	9611-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-94323-517-0	01	1	9611-	●
51	04.052 SCREW; NEUTRAL SW,A/T	8-97200-272-0	01	1	9611-	●
52	04.256 BOLT; DOWN SHIFT CABLE 04.050 M6X10	8-94252-680-0	01	1	9611-	●
53	04.275 CLIP; DOWN SHIFT CABLE	8-94252-679-0	01	1	9611-	●
55	04.260 BOLT; SOLENOID TO HSG,A/T 04.265	8-94244-565-0	01	1	9611-	●
56	04.262 GASKET; SOLENOID OUTER 04.220	8-94244-567-0	01	1	9611-	●
57	04.275 PLUG; BOOSTER	8-94319-583-0	01	1	9611-	●
58	04.260 BOLT; SOLENOID TO A/T	8-94244-568-0	02	1	9611-	●
62	04.262 STRAINER; GOV VALVE 04.338	8-94250-353-0	01	1	9611-	●
63	04.256 COVER; OIL GALLERY	5-34125-001-0	01	1	9611-	●
64	04.262 GASKET; OIL GALLERY COVER	8-97032-926-0	01	1	9611-	●
65	04.256 SCREW; COVER TO CASE	5-34128-001-0	03	1	9611-	●
74	04.294 PAWL; PARKING BRK LK,A/T	8-97200-273-0	01	1	9611-	●
74	04.294 PAWL; PARKING BRK LK,A/T	8-96016-620-0	01	1	9712-		●
75	04.290 PIN; PARKING BRK LK,A/T	8-94473-587-0	01	1	9611-	●
75	04.290 PIN; PARKING BRK LK,A/T	8-05259-654-0	01	1	9712-		●
76	04.290 RING; SNAP,PARKING BRK LK,A/T	5-34488-002-0	01	1	9611-	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94473-588-0	01	1	9611-	●
78	04.290 PLATE; CAM,PARKING BRK LK,A/T	8-94323-522-0	01	1	9611-	●
79	04.290 WASHER; PARKING BRK LK,A/T 04.226	5-34169-002-0	02	1	9611-	●
80	04.290 BOLT; PARKING BRK LK,A/T	8-94323-523-0	02	1	9611-	●

29 59 10 9 23 40 74 27 75 61 102 72 124 43 125 13 124 43 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	04.275 SHAFT; MANUAL,A/T	8-96014-268-0	01	1	9712-		●
10	04.265 GASKET; MANUAL SHIFT,A/T	8-08644-709-0	01	1	9712-		●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T	8-05258-243-0	01	1	9712-		●
23	04.290 LEVER; PARKING ROD,A/T	8-96018-274-0	01	1	9712-		●
27	04.295 SPRING; PAWL RETURN,A/T	8-05258-076-0	01	1	9712-		●
29	04.290 ROD ASM; CONT,A/T	8-96014-271-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-	●
40	04.037 NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9712-		●
43	04.290 BOLT; BRKT (A)	8-11041-238-0	01	1	9712-		●
43	04.290 BOLT; BRKT (B)	8-96017-499-0	01	1	9712-		●
59	04.265 SCREW; SW,A/T	8-96014-453-0	02	1	9712-		●
61	04.265 SWITCH ASM; MODE	8-96017-511-0	01	1	9712-		●
72	04.035 LEVER; SELECT CONT	8-94474-060-1	01	1	9611-	●
72	04.035 LEVER; SELECT CONT	8-97013-518-1	01	1	9712-		●
74	04.294 PAWL; PARKING BRK LK,A/T	8-97200-273-0	01	1	9611-	●
74	04.294 PAWL; PARKING BRK LK,A/T	8-96016-620-0	01	1	9712-		●
75	04.290 PIN; PARKING BRK LK,A/T	8-94473-587-0	01	1	9611-	●
75	04.290 PIN; PARKING BRK LK,A/T	8-05259-654-0	01	1	9712-		●
102	04.265 SHIELD; MODE SWITCH,A/T	8-96014-454-0	01	1	9712-		●
124	04.057 BRACKET; MODE SWITCH (B)	8-90414-915-0	01	1	9712-		●
124	04.057 BRACKET; MODE SWITCH (A)	8-96018-450-0	01	1	9712-		●
125	04.057 NUT; BRKT	8-96017-663-0	01	1	9712-		●
