2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#40590) — 66 parça

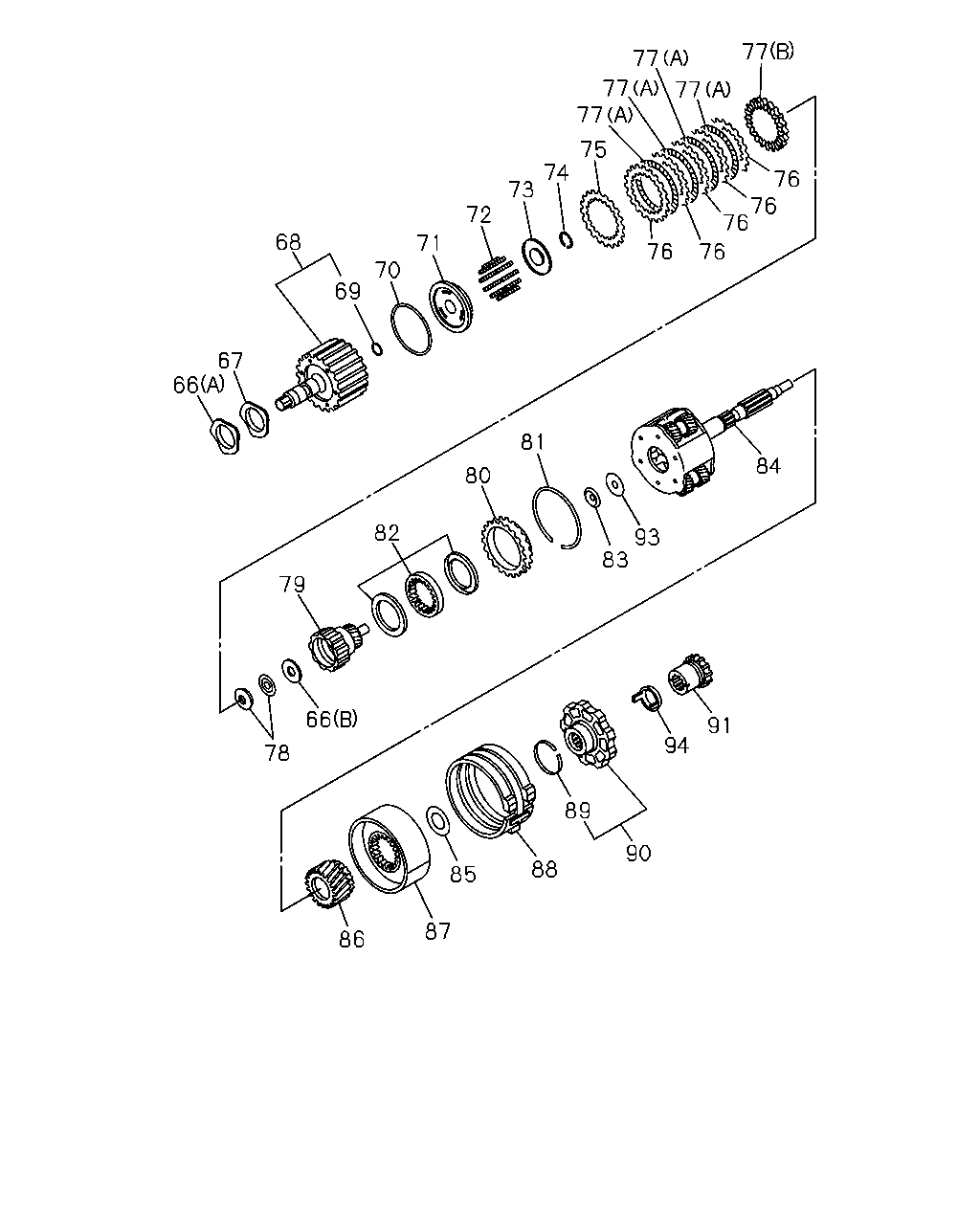

68 71 72 73 74 75 77 77 77 77 77 76 76 76 76 76 70 69 67 66 79 82 80 81 93 83 84 66 78 86 87 88 85 89 90 94 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.169 WASHER; THRUST,3RD CLU (A)	8-96013-403-0	01	1	9712-	●
66	04.169 WASHER; THRUST,3RD CLU 04.158 (B)	8-96015-459-0	01	1	9712-	●
67	04.169 WASHER; THRUST,CLU HUB	8-05258-945-0	01	1	9712-	●
68	04.169 DRUM; 3RD CLU	8-96041-095-0	01	1	9712-	●
69	04.262 SEAL; 3RD CLU PISTON INNER	8-96018-543-0	01	1	9712-	●
70	04.262 SEAL; 3RD CLU PISTON OUTER	8-96014-296-0	01	1	9712-	●
71	04.262 PISTON; 3RD CLU 04.116	8-96016-223-0	01	1	9712-	●
72	04.262 SPRING; PISTON CLU	8-08958-719-0	12	1	9712-	●
73	04.262 SEAT; SPR,3RD CLU	8-05258-039-0	01	1	9712-	●
74	04.262 RING; RET	8-05258-094-0	01	1	9712-	●
75	04.262 PLATE; SPR,CLU	8-96017-603-0	01	1	9712-	●
76	04.262 PLATE; 3RD CLU	8-05258-955-0	05	1	9712-	●
77	04.262 PLATE ASM; 3RD CLU (A)	8-96014-297-0	04	1	9712-	●
77	04.262 PLATE ASM; 3RD CLU (B)	8-96014-946-0	01	1	9712-	●
78	04.262 WASHER & THRUST BEARING KIT	8-96040-078-0	01	1	9712-	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94405-308-0	01	1	9611-		●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-	●
80	04.262 RACE; SPRAG 04.116	8-96016-209-0	01	1	9712-	●
81	04.262 RING; RET,SPRAG	8-08958-684-0	01	1	9712-	●
82	04.256 SPRAG KIT	8-96017-149-0	01	1	9712-	●
83	04.256 BEARING; OUTPUT SHAFT	8-96014-602-0	01	1	9712-	●
84	04.256 CARRIER ASM; PLANETARY	8-96017-349-0	01	1	9712-	●
85	04.256 THRUST BEARING & WASHER KIT	8-96016-084-0	01	1	9712-	●
86	04.256 GEAR; REACTION SUN	8-96015-037-0	01	1	9712-	●
87	04.256 DRUM; REACTION SUN	8-96018-009-0	01	1	9712-	●
88	04.256 BAND; BRAKE	8-96014-805-0	01	1	9712-	●
89	04.256 SEAL; RING,PARKING LOCK	8-05258-837-0	01	1	9712-	●
90	04.256 WHEEL; PARKING LOCK	8-96016-669-0	01	1	9712-	●
91	04.256 WHEEL; SPD	8-96014-286-0	01	1	9712-	●
93	04.008 WASHER; OUTPUT SHAFT 04.262	8-96014-607-0	01	1	9712-	●
94	04.256 GEAR; SPD WHEEL	8-96018-449-0	01	1	9712-9801	●
94	04.256 GEAR; SPD WHEEL	8-96014-287-0	01	1	9802-	●

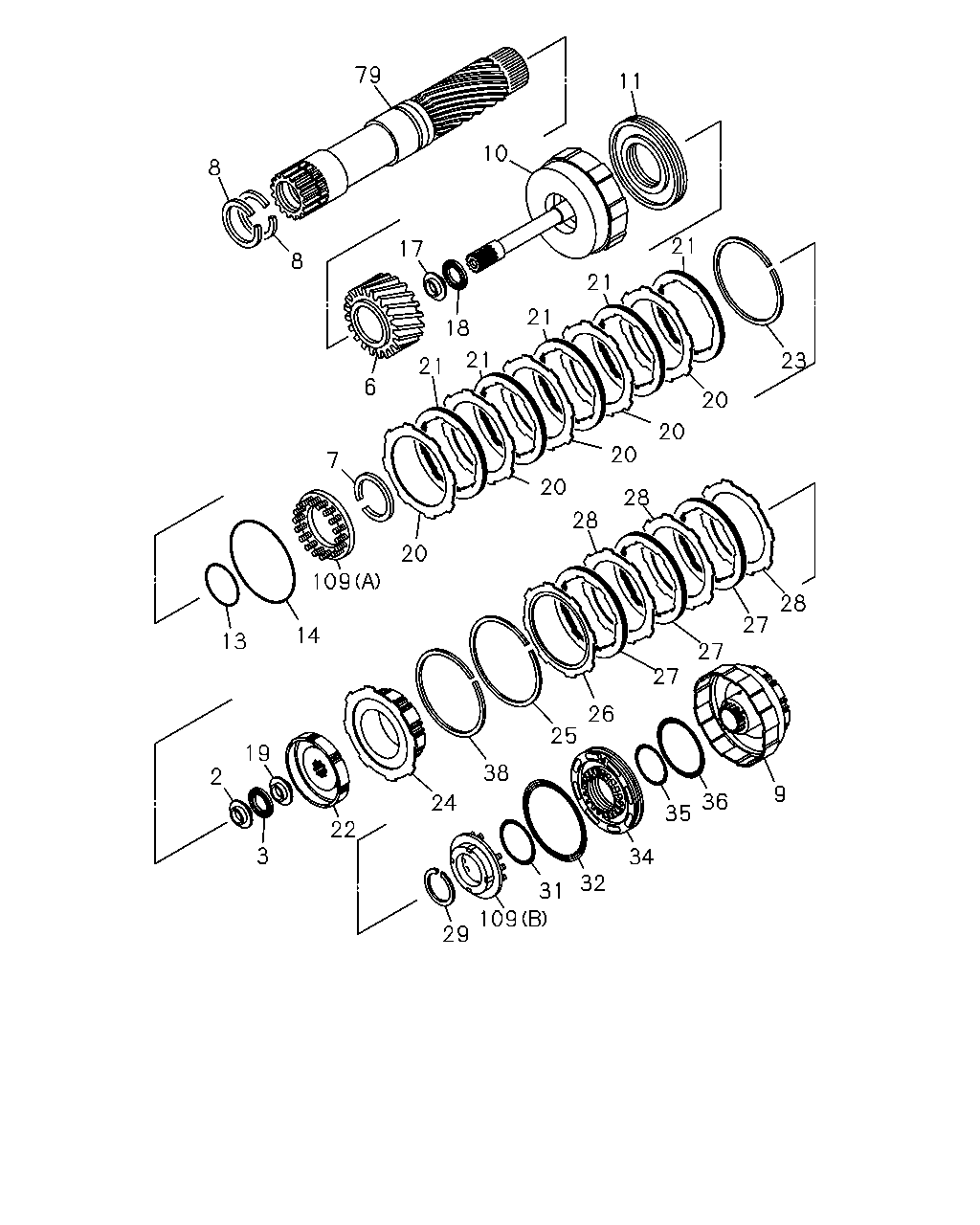

79 10 11 8 8 17 18 21 6 21 21 21 21 23 20 20 20 20 20 7 109 14 13 28 28 28 27 26 25 38 24 22 3 2 19 27 27 9 36 35 34 32 31 109 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.164 RACE; THRUST BRG,A/T 04.226	5-34218-001-0	01	1	9611-		●
3	04.164 BEARING; THRUST,A/T 04.226	5-34218-002-0	01	1	9611-		●
6	04.159 GEAR; PLANETARY SUN,RR A/T	8-94405-309-0	01	1	9611-		●
7	04.159 RING; RET,PLANETARY GEAR,A/T 04.166	5-34268-004-0	01	1	9611-		●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T	5-34314-001-0	02	1	9611-		●
9	04.164 HUB SUB ASM; DIRECT CLU & BRK,A/	8-94165-991-0	01	1	9611-		●
10	04.166 CYLINDER ASM; INPUT SHAFT & FWD	8-97200-227-0	01	1	9611-		●
11	04.166 PISTON ASM; CLU,A/T	8-94165-984-0	01	1	9611-		●
13	04.166 GASKET; INNER,CLU,A/T	5-34218-003-0	01	1	9611-		●
14	04.166 GASKET; OUTER,CLU,A/T 04.460	8-94257-064-0	01	1	9611-		●
17	04.164 RACE; THRUST BRG,CLU,A/T 04.226	5-34218-001-0	01	1	9611-		●
18	04.164 BEARING; THRUST,CLU,A/T 04.226	5-34218-002-0	01	1	9611-		●
19	04.164 RACE; THRUST BRG,CLU,A/T 04.167	5-34218-005-0	01	1	9611-		●
20	04.163 DISC; CLU,A/T T=1.4	8-94165-986-0	01	1	9611-		●
20	04.163 DISC; CLU,A/T T=1.8	8-94473-590-0	04	1	9611-		●
21	04.163 DISC ASM; CLU & FACING,A/T	8-97200-264-0	05	1	9611-		●
22	04.164 HUB; FWD CLU,A/T	8-94165-988-0	01	1	9611-		●
23	04.164 RING; RET,CLU,A/T	8-97128-818-0	01	1	9611-		●
24	04.164 HUB; DIRECT CLU INPUT,A/T	8-94239-555-0	01	1	9611-		●
25	04.164 RING; RET,BACKING PLATE,A/T	5-34258-002-0	01	1	9611-		●
26	04.163 PLATE; CLU,BACKING,A/T 04.164	8-94165-995-0	01	1	9611-		●
27	04.163 DISC ASM; CLU & FACING,A/T	8-97128-816-0	03	1	9611-		●
28	04.163 DISC; CLU,A/T T=2.0	8-94250-338-0	03	1	9611-		●
29	04.164 RING; SNAP,CLU,A/T 04.166	5-34268-004-0	01	1	9611-		●
31	04.166 GASKET; CLU,INNER,A/T	5-34218-003-0	01	1	9611-		●
32	04.166 GASKET; CLU,OUTER,A/T 04.460	8-94257-064-0	01	1	9611-		●
34	04.166 PISTON ASM; CLU,A/T	8-94165-992-0	01	1	9611-		●
35	04.166 GASKET; PISTON,INNER,DIRECT CLU,	5-34218-003-0	01	1	9611-		●
36	04.166 GASKET; PISTON,OUTER,DIRECT CLU,	5-34268-005-0	01	1	9611-		●
38	04.164 RING; RET,CLU,A/T	8-94165-989-0	01	1	9611-		●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94405-308-0	01	1	9611-		●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-	●
109	04.164 SPRING ASM; RETURN,DISC CLU (A)	8-97065-696-0	01	1	9611-		●
109	04.164 SPRING ASM; RETURN,DISC CLU (B)	8-97065-697-0	01	1	9611-		●
