◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#40589) — 55 parça

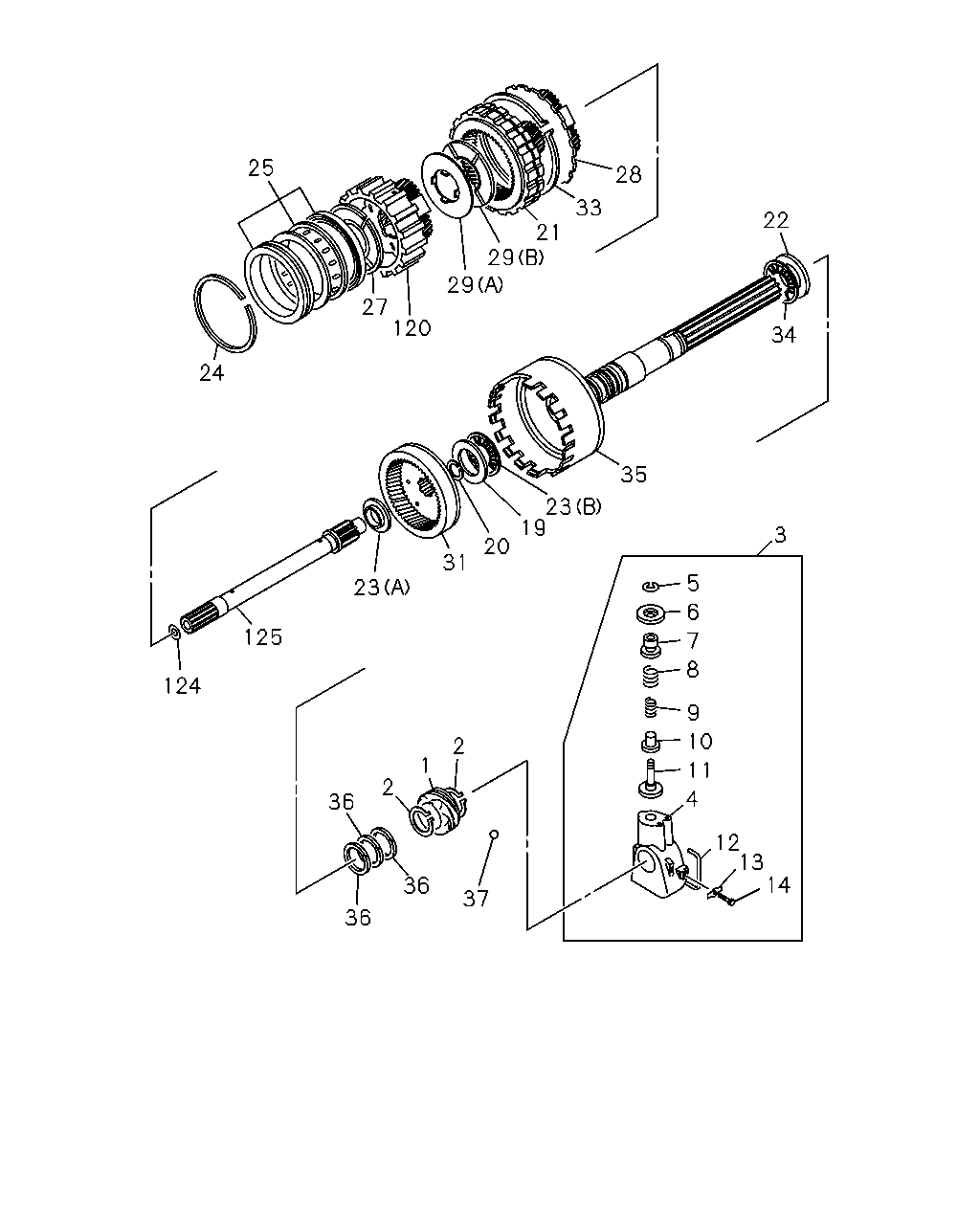

çizim 19470
14 4 12 13 11 9 7 8 10 6 5 3 35 23 19 20 31 23 125 124 36 2 36 36 37 2 1 120 27 24 25 29 29 21 33 28 22 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
Z=6 		8-94474-053-0 01 1 9611- ●
2 04.256 RING; SNAP,SPEEDOMETER DRIVE
04.416 ID=27.9 		9-09180-030-0 02 1 9611- ●
3 04.256 GOVERNOR ASM; A/T 8-94473-658-0 01 1 9611- ●
4 04.256 BODY ASM; GOV,A/T 8-94100-643-0 01 1 9611- ●
5 04.256 RING; RET,GOV 5-34518-005-0 01 1 9611- ●
6 04.256 WEIGHT; GOV,CONV 5-34518-004-0 01 1 9611- ●
7 04.256 VALVE; GOV,A/T 8-94473-660-0 01 1 9611- ●
8 04.256 SPRING; GOV VALVE 8-94473-659-0 01 1 9611- ●
9 04.256 SPRING; GOV INNER 8-94405-319-0 01 1 9611- ●
10 04.256 WEIGHT; GOV SECONDARY 8-94414-856-0 01 1 9611- ●
11 04.256 SHAFT; GOV WEIGHT 8-94405-318-0 01 1 9611- ●
12 04.256 RING; RET & DRIVE 5-34518-006-0 01 1 9611- ●
13 04.256 WASHER; GOV
04.265 		8-94244-561-0 01 1 9611- ●
14 04.256 SCREW; CAP,GOV
M5X22 		5-34539-010-0 01 1 9611- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 5-34258-003-0 01 1 9611- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T 5-34318-007-0 01 1 9611- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94166-011-0 01 1 9611- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 5-34379-003-0 01 1 9611- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
(B) 		5-34258-004-0 01 1 9611- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
04.167 (A) 		8-94405-315-0 01 1 9611- ●
24 04.164 RING; RET,FRT PLANETARY,A/T 5-34368-003-0 01 1 9611- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94405-368-0 01 1 9611- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94405-313-0 01 1 9611- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-94405-314-0 01 1 9611- ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
(A) 		5-34365-004-0 01 1 9611- ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 (B) 		8-94405-369-0 01 1 9611- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94166-014-0 01 1 9611- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T 5-34368-004-0 01 1 9611- ●
34 04.164 BEARING; THRUST,FRT PLANETARY SH 5-34379-002-0 01 1 9611- ●
35 04.175 SHAFT ASM; FRT PLANETARY,A/T 8-94155-666-1 01 1 9611- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF 5-34378-001-0 03 1 9611- ●
37 04.256 BALL; SPD DRIVE 8-94167-674-0 01 1 9611- ●
120 04.256 GEAR SET; FRT PLANETARY,A/T 8-94405-312-0 01 1 9611- ●
124 04.164 RING; SLEEVE,OIL SEAL,RR PLANETA 8-94250-373-0 01 1 9611- ●
125 04.175 SHAFT ASM; INTERMEDIATE,PLANETAR 8-94166-013-0 01 1 9611- ●

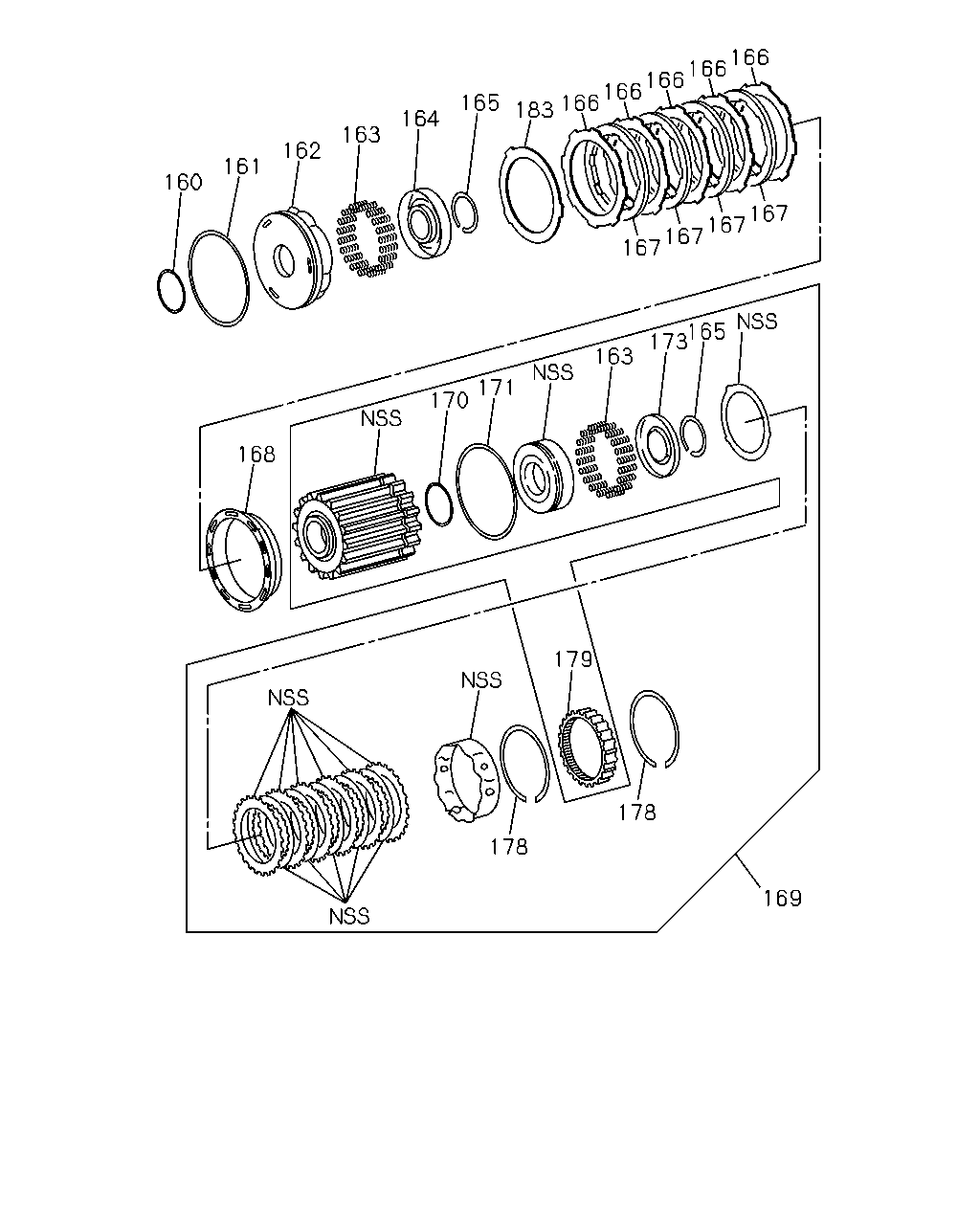

çizim 72468
160 161 162 163 164 165 183 166 166 166 166 166 167 167 167 167 165 173 163 171 170 168 178 179 178 169
BalonParca AdiParca NoAdetTipApplied Date A B
160 04.167 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9712- ●
161 04.167 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9712- ●
162 04.167 PISTON; REV CLU 8-96014-964-0 01 1 9712- ●
163 04.176 SPRING; PISTON CLU
04.262 		8-08958-719-0 46 1 9712- ●
164 04.176 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9712- ●
165 04.176 RING; RET 8-05258-093-0 02 1 9712- ●
166 04.176 PLATE; REV CLU 8-96017-283-0 05 1 9712- ●
167 04.176 PLATE ASM; REV CLU 8-96014-269-0 04 1 9712- ●
168 04.176 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9712- ●
168 04.176 PLATE; REV CLU PRESS
T=6.64 		8-96014-623-0 01 1 9712- ●
168 04.176 PLATE; REV CLU PRESS
T=6.93 		8-96014-624-0 01 1 9712- ●
168 04.176 PLATE; REV CLU PRESS
T=7.22 		8-96014-625-0 01 1 9712- ●
168 04.176 PLATE; REV CLU PRESS
T=7.51 		8-96014-626-0 01 1 9712- ●
169 04.169 DRUM; 2ND CLU 8-96041-122-0 01 1 9712- ●
170 04.169 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9712- ●
171 04.169 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9712- ●
173 04.169 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9712- ●
178 04.187 RING; RET 8-08958-619-0 02 1 9712- ●
179 04.190 GEAR; RING 8-96014-576-0 01 1 9712- ●
183 04.176 PLATE; REV CLU 8-96017-451-0 01 1 9712- ●
