2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#40588) — 26 parça

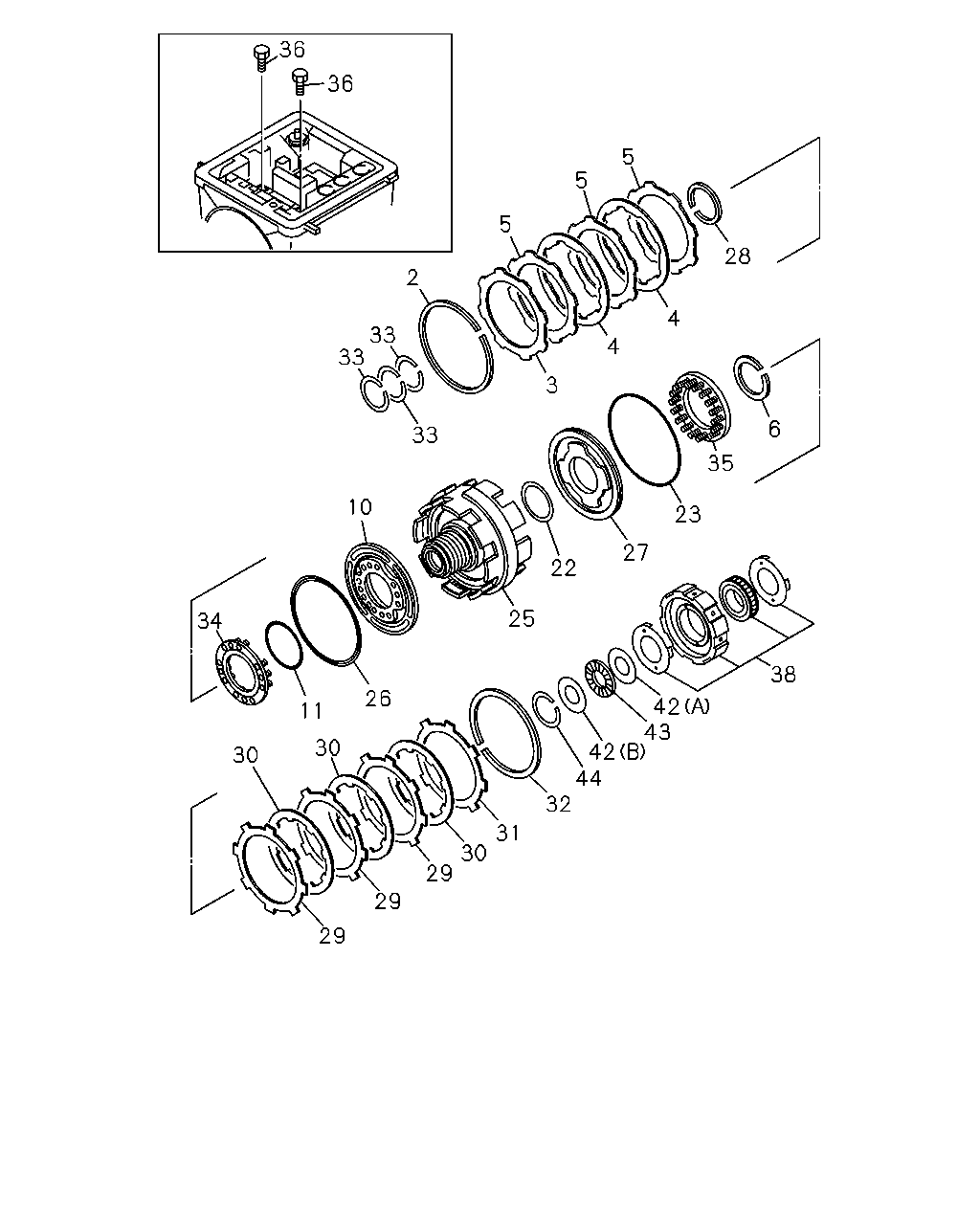

çizim 19474
36 36 2 33 33 33 3 5 5 5 28 4 4 6 23 35 27 22 25 26 11 34 10 30 30 29 29 29 31 42 43 44 32 30 42 38
BalonParca AdiParca NoAdetTipApplied Date
2 04.166 RING; RET,FRT BRK,2ND BRK,A/T
04.164 		5-34258-002-0 01 1 9611-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
04.163 H=3.95 		5-34256-002-0 01 1 9611-
4 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-94473-592-0 02 1 9611-
5 04.163 DISC; CLU,2ND BRK,A/T
T=1.8 		5-34252-003-0 03 1 9611-
6 04.166 RING; SNAP,FRT BRK,A/T
04.472 		5-34268-006-0 01 1 9611-
10 04.166 PISTON; BRK,FRT,2ND BRK,A/T 5-34261-006-1 01 1 9611-
11 04.166 GASKET; BRK PISTON,FRT,INNER,A/T 5-34218-003-0 01 1 9611-
22 04.166 GASKET; BRK PISTON,RR,INNER,A/T 5-34218-003-0 01 1 9611-
23 04.166 GASKET; BRK PISTON,RR,OUTER,A/T 8-94250-367-0 01 1 9611-
25 04.162 SUPPORT; CENTER,2ND BRK,A/T 8-94165-997-0 01 1 9611-
26 04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 5-34218-004-0 01 1 9611-
27 04.166 PISTON; BRK,RR,2ND BRK,A/T 8-94250-366-0 01 1 9611-
28 04.163 RING; SNAP,RR BRK,A/T
04.472 		5-34268-006-0 01 1 9611-
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T 8-94165-998-0 03 1 9611-
30 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-97128-816-0 03 1 9611-
31 04.163 PLATE; CLU BACKING,2ND BRK,A/T 8-94250-351-0 01 1 9611-
32 04.164 RING; RET,RR BRK,2ND BRK,A/T 5-34258-002-0 01 1 9611-
33 04.164 RING; SEALING,2ND BRK,A/T
04.226 		8-94257-061-0 03 1 9611-
34 04.166 SPRING ASM; RETURN,FRT BRK
04.163 		8-97065-698-0 01 1 9611-
35 04.166 SPRING ASM; RETURN,RR BRK
04.163 		8-97065-699-0 01 1 9611-
36 04.162 BOLT; SHOULDER SUPPORT TO CASE,A 8-97065-700-0 02 1 9611-
38 04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 8-94166-001-0 01 1 9611-
42 04.265 RACE; THRUST BRG,A/T
04.167 (A) 		5-34258-003-0 01 1 9611-
42 04.265 RACE; THRUST BRG,A/T
04.470 (B) 		5-34258-005-0 01 1 9611-
43 04.265 BEARING; THRUST,A/T
04.164 		5-34258-004-0 01 1 9611-
44 04.265 RING; RET
04.159 		8-94166-000-0 01 1 9611-
