2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#40587) — 150 parça

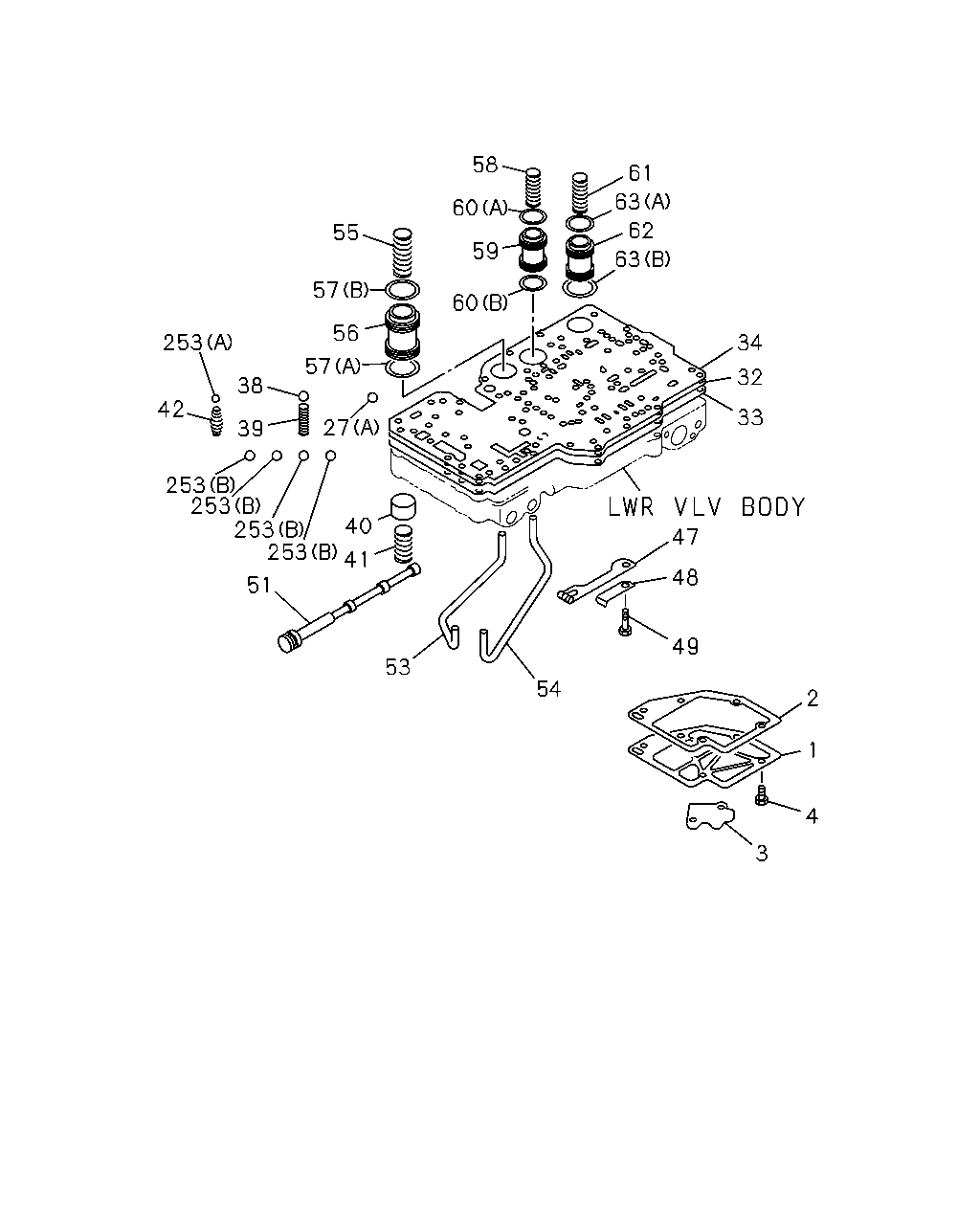

çizim 19467
3 4 1 2 49 48 47 33 32 34 63 62 63 61 58 60 60 59 55 57 57 27 56 38 253 42 253 39 40 41 253 253 253 51 53 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.197 STRAINER ASM; OIL,A/T 8-94405-362-0 01 1 9611- ●
1 04.197 STRAINER ASM; OIL,A/T 8-96015-062-0 01 1 9712- ●
2 04.197 GASKET; OIL STRAINER,A/T 8-97032-927-0 01 1 9611- ●
3 04.197 PLATE; OIL STRAINER 8-94405-361-0 01 1 9611- ●
4 04.197 BOLT; OIL STRAINER,A/T
M5X12 		8-94405-335-0 06 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T
(A) OD=5.56 		5-34535-002-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T
(B) OD=6.35 		8-94364-913-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T 8-11066-201-0 05 1 9712- ●
32 04.265 PLATE; SEPARATOR,VLV BODY,A/T 8-94319-589-0 01 1 9611- ●
33 04.265 GASKET; LWR,VLV BODY,A/T 8-94405-349-0 01 1 9611- ●
33 04.265 GASKET; LWR,VLV BODY,A/T 8-96015-417-0 01 1 9712- ●
34 04.265 GASKET; UPR,VLV BODY,A/T 8-94405-348-0 01 1 9611- ●
34 04.265 GASKET; UPR,VLV BODY,A/T 8-96018-338-0 01 1 9712- ●
38 04.265 BALL; BALL VALVE
OD=3/8" 		8-94405-352-0 01 1 9611- ●
39 04.265 SPRING; BALL VALVE
OD=3/8" 		8-94405-353-0 01 1 9611- ●
40 04.265 VALVE; BYPASS,A/T 5-34531-016-0 01 1 9611- ●
41 04.265 SPRING; BYPASS VLV,A/T 8-94473-622-0 01 1 9611- ●
42 04.265 SPRING; PRIMARY,A/T 5-34533-016-0 01 1 9611- ●
47 04.050 SPRING; DETENT,A/T 5-34543-001-0 01 1 9611- ●
48 04.052 PLATE; DETENT SPR,A/T 5-34548-011-0 01 1 9611- ●
49 04.052 BOLT; DETENT SPR PLATE,A/T
04.265 M5X40 		8-94473-621-0 01 1 9611- ●
51 04.265 VALVE; MANUAL,A/T 5-34531-017-0 01 1 9611- ●
51 04.265 VALVE; MANUAL,A/T 8-96014-445-0 01 1 9712- ●
53 04.164 TUBE; FWD CLU,A/T 8-94405-356-0 01 1 9611- ●
54 04.164 TUBE; OVERDRIVE BRK,A/T 8-97200-226-0 01 1 9611- ●
55 04.246 SPRING; ACCUMLATOR PISTON 8-94105-483-0 01 1 9611- ●
56 04.241 PISTON; ACCUMLATOR 8-94405-358-0 01 1 9611- ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
04.229 (A) 		5-34462-001-0 01 1 9611- ●
57 04.241 GASKET; 2ND SPD PISTON,A/T
04.167 (B) 		5-34462-002-0 01 1 9611- ●
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 8-94323-519-0 01 1 9611- ●
59 04.166 PISTON; DIRECT CLU,A/T 8-94250-411-0 01 1 9611- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
(A) 		5-34462-003-0 01 1 9611- ●
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.167 (B) 		5-34462-004-0 01 1 9611- ●
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-94166-029-0 01 1 9611- ●
62 04.166 PISTON; FWD CLU,A/T 5-34461-003-0 01 1 9611- ●
63 04.167 GASKET; FWD CLU,A/T
(B) 		5-34462-004-0 01 1 9611- ●
63 04.167 GASKET; FWD CLU,A/T
(A) 		5-34462-005-0 01 1 9611- ●
253 04.265 BALL; CHECK,VLV LWR,A/T
(A) OD=6.35 		8-94364-913-0 01 1 9611- ●
253 04.265 BALL; CHECK,VLV LWR,A/T
04.262 (B) OD=5.595 		8-94473-576-0 07 1 9611- ●

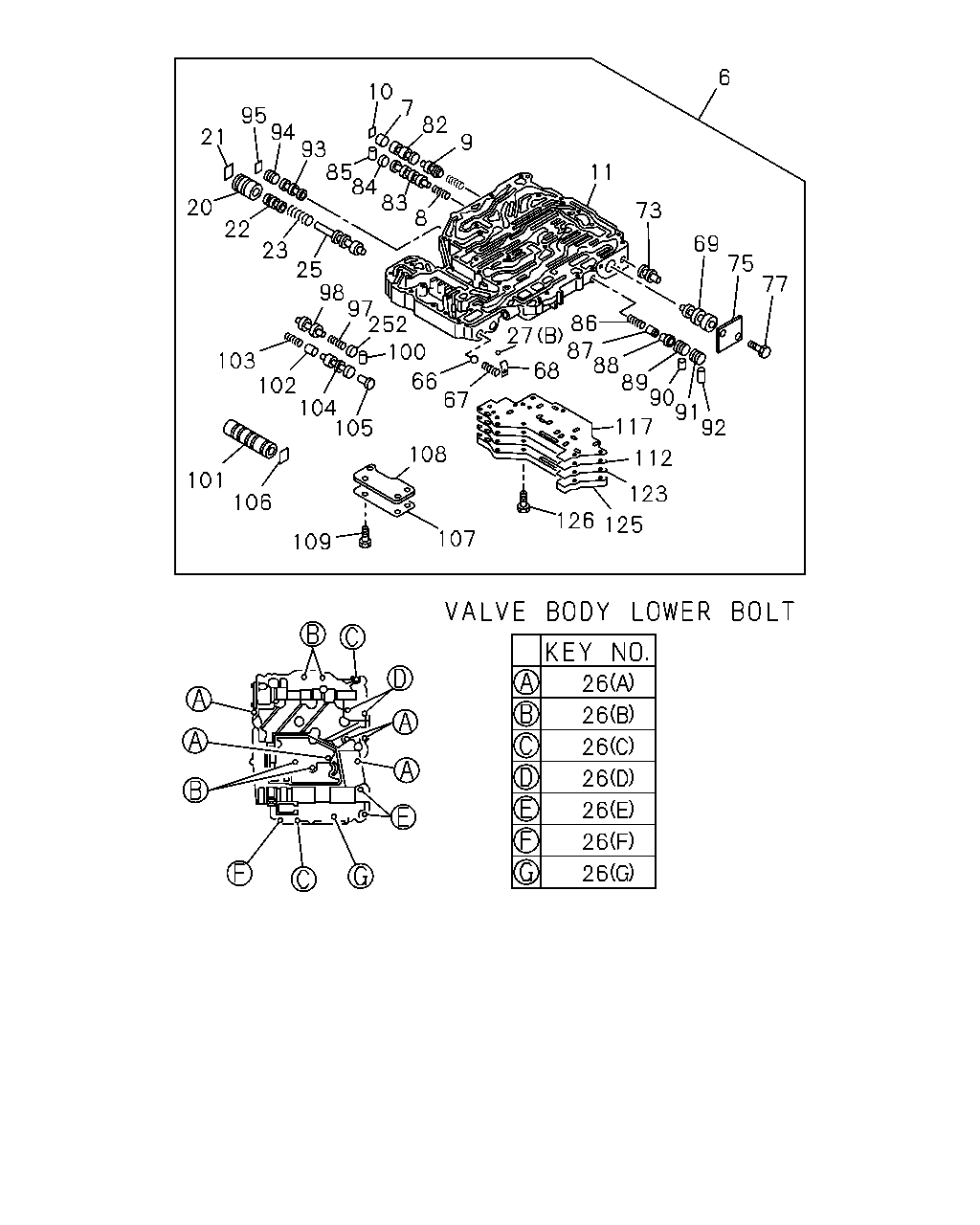

çizim 19468
95 10 21 94 7 85 93 82 84 9 83 8 11 6 73 77 75 69 91 90 89 88 87 86 92 112 117 68 27 123 125 126 107 108 67 66 100 252 97 98 25 23 22 20 103 105 104 102 106 101 109 26 26 26 26 26 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
6 04.265 BODY ASM; VLV LWR,A/T 8-94323-520-0 01 1 9611- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-96017-636-0 01 1 9712- ●
7 04.265 PLUG; VLV,1-2 SHIFT,VLV LWR,A/T 5-34538-002-0 01 1 9611- ●
8 04.265 SPRING; 1ST VALVE 5-34533-004-0 01 1 9611- ●
9 04.262 VALVE; 1-2 SHIFT UPR,VLV LWR,A/T
04.265 		8-94100-645-0 01 1 9611- ●
10 04.265 RETAINER; 1-2 SHIFT VLV,VLV LWR, 5-34538-003-0 01 1 9611- ●
11 04.265 BODY; VLV LWR,A/T 8-94473-643-0 01 1 9611- ●
20 04.265 SLEEVE; REG VLV,VLV LWR,A/T 8-94105-481-0 01 1 9611- ●
21 04.265 RETAINER; SLEEVE,VLV LWR,A/T 8-97065-704-0 01 1 9611- ●
22 04.265 PLUNGER; REG VLV,VLV LWR,A/T 8-94105-480-0 01 1 9611- ●
23 04.265 SPRING; REG VLV,VLV LWR,A/T 8-97065-703-0 01 1 9611- ●
25 04.265 VALVE; REG,PRIMARY,VLV LWR,A/T 8-97065-702-0 01 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X30 		8-94473-623-0 04 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X25 		8-94473-624-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X40 		8-94473-625-0 01 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X36 		8-94473-630-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(G) M6X64 		8-94473-663-0 01 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X55 		8-94473-664-0 05 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X20 		8-94479-922-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T 8-00179-826-0 12 1 9712- ●
27 04.265 BALL; STEEL,VLV,A/T
(A) OD=5.56 		5-34535-002-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T
(B) OD=6.35 		8-94364-913-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T 8-11066-201-0 05 1 9712- ●
66 04.265 BALL; STEEL,RELIEF VLV,A/T 5-34538-001-0 01 1 9611- ●
67 04.265 SPRING; PRESSURE,RELIEF VLV,A/T 5-34533-001-0 01 1 9611- ●
68 04.265 RETAINER; RELIEF VLV,A/T 5-34534-001-0 01 1 9611- ●
69 04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A 8-94250-378-0 01 1 9611- ●
73 04.265 PLUG; REV,VLV LWR,A/T 8-94116-576-0 01 1 9611- ●
75 04.265 COVER; VLV,LWR COAST SHIFT,VLV L 5-34521-001-0 01 1 9611- ●
77 04.265 BOLT; SHIFT CVR,VLV LWR,A/T
04.197 M5X12 		8-94405-335-0 02 1 9611- ●
82 04.262 VALVE; 1ST
04.265 		8-94100-644-0 01 1 9611- ●
83 04.262 VALVE; 3-4 SHIFT,VLV LWR,A/T 8-94250-379-0 01 1 9611- ●
84 04.262 PLUG; 3-4 SHIFT VLV,VLV LWR,A/T 8-94250-383-0 01 1 9611- ●
85 04.262 ROLLER; NEEDLE,3-4 SHIFT VLV,VLV 8-94250-384-0 01 1 9611- ●
86 04.265 SPRING; 3-4 SHIFT VLV,VLV LWR,A/ 8-94473-644-0 01 1 9611- ●
87 04.262 VALVE; 3-4 SHIFT CONT,VLV LWR,A/ 8-94250-381-0 01 1 9611- ●
88 04.262 VALVE; 3RD,COAST SHIFT,VLV LWR,A 8-94250-382-0 01 1 9611- ●
89 04.262 PLUG; 3RD,COAST SHIFT VLV,VLV LW 8-94250-385-0 01 1 9611- ●
90 04.262 PIN; LOCATING,PLUG,VLV LWR,A/T 8-94250-386-0 01 1 9611- ●
91 04.262 PLUG; MANUAL,VLV LWR,A/T 8-94250-387-0 01 1 9611- ●
92 04.262 PIN; LOCATING,MANUAL PLUG,VLV LW 8-94250-386-0 01 1 9611- ●
93 04.262 VALVE; D-2 DOWN TIMING,VLV LWR,A 8-94250-389-0 01 1 9611- ●
94 04.262 PLUG; D-2 DOWN TIMING VLV,VLV LW 8-94250-390-0 01 1 9611- ●
95 04.262 RETAINER; D-2 DOWN TIMING VLV,VL
04.265 		8-94250-391-0 01 1 9611- ●
97 04.265 SPRING; LOCKUP SIGNAL VALVE 8-94405-323-0 01 1 9611- ●
98 04.265 VALVE; LOCKUP SIGNAL 8-94405-324-0 01 1 9611- ●
100 04.265 PIN; LOCATING 8-94405-326-0 01 1 9611- ●
101 04.265 SLEEVE; LOCKUP RELAY VALVE 8-94405-327-0 01 1 9611- ●
102 04.265 VALVE; LOCKUP RELAY VALVE SLEEVE 8-94405-328-0 01 1 9611- ●
103 04.265 SPRING; LOCKUP RELAY VALVE 8-94405-329-0 01 1 9611- ●
104 04.265 VALVE ASM; LOCKUP RELAY 8-94405-330-0 01 1 9611- ●
105 04.265 PLUG; LOCKUP RELAY VALVE 8-94405-331-0 01 1 9611- ●
106 04.265 RETAINER; LOCKUP RELAY VALVE 8-94405-332-0 01 1 9611- ●
107 04.265 GASKET; LOCKUP RELAY VALVE 8-94405-333-0 01 1 9611- ●
108 04.265 PLATE; LOCKUP RELAY VALVE 8-94405-334-0 01 1 9611- ●
109 04.265 SCREW; LOCKUP PLATE
04.197 M5X12 		8-94405-335-0 04 1 9611- ●
112 04.265 PLATE; VLV BODY CVR,VLV LWR,A/T 8-94473-645-0 01 1 9611- ●
112 04.265 PLATE; VLV BODY CVR,VLV LWR,A/T 8-96017-628-0 01 1 9712- ●
117 04.265 GASKET; VLV BODY CVR,UPR,VLV LWR 8-94405-339-0 01 1 9611- ●
123 04.265 GASKET; VLV BODY CVR,LWR,VLV LWR 8-94405-338-0 01 1 9611- ●
125 04.265 COVER; VLV LWR BODY,A/T 8-94405-340-0 01 1 9611- ●
126 04.265 BOLT; CVR,VLV LWR,A/T
M5X17.5 		8-94473-608-0 07 1 9611- ●
126 04.265 BOLT; CVR,VLV LWR,A/T
04.115 		8-00117-461-0 02 1 9712- ●
252 04.265 PLUG; LOCKUP SIGNAL VALVE 8-94405-325-0 01 1 9611- ●

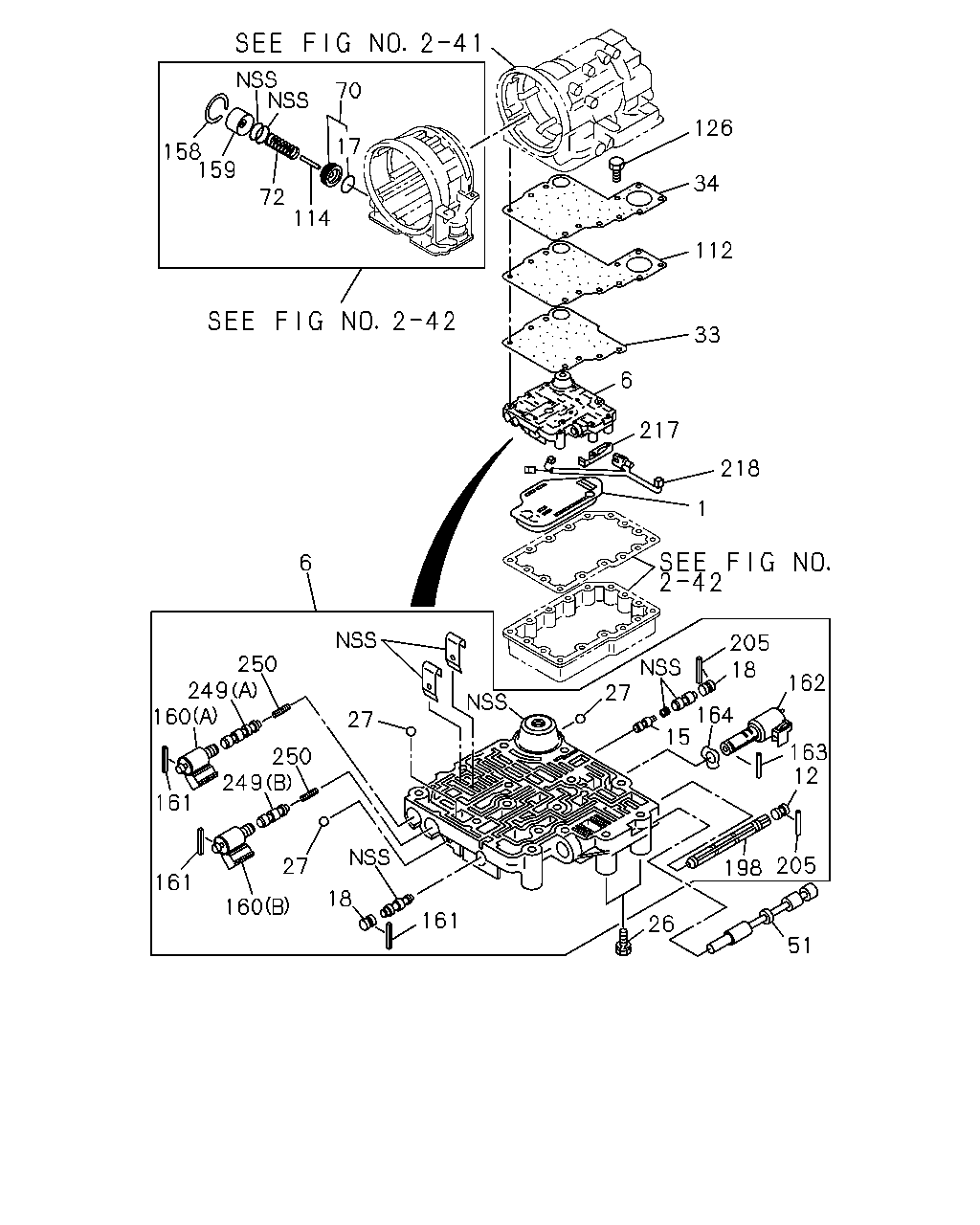

çizim 19472
51 205 198 26 161 18 27 160 161 161 249 250 27 250 249 160 6 27 15 164 12 163 162 18 205 1 218 217 6 33 112 34 126 70 17 114 72 159 158
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.197 STRAINER ASM; OIL,A/T 8-94405-362-0 01 1 9611- ●
1 04.197 STRAINER ASM; OIL,A/T 8-96015-062-0 01 1 9712- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-94323-520-0 01 1 9611- ●
6 04.265 BODY ASM; VLV LWR,A/T 8-96017-636-0 01 1 9712- ●
12 04.265 PLUG; LWR BODY 8-96014-439-0 01 1 9712- ●
15 04.265 VALVE; ACCUMLATOR CONT 8-96014-434-0 01 1 9712- ●
17 04.265 RETAINER; ACCUMLATOR CONT VALVE 8-96014-566-0 01 1 9712- ●
18 04.265 PLUG; PRESSURE 8-05258-333-0 02 1 9712- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X30 		8-94473-623-0 04 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X25 		8-94473-624-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(F) M6X40 		8-94473-625-0 01 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X36 		8-94473-630-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(G) M6X64 		8-94473-663-0 01 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X55 		8-94473-664-0 05 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X20 		8-94479-922-0 02 1 9611- ●
26 04.265 BOLT; BODY FIX,VLV LWR,A/T 8-00179-826-0 12 1 9712- ●
27 04.265 BALL; STEEL,VLV,A/T
(A) OD=5.56 		5-34535-002-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T
(B) OD=6.35 		8-94364-913-0 01 1 9611- ●
27 04.265 BALL; STEEL,VLV,A/T 8-11066-201-0 05 1 9712- ●
33 04.265 GASKET; LWR,VLV BODY,A/T 8-94405-349-0 01 1 9611- ●
33 04.265 GASKET; LWR,VLV BODY,A/T 8-96015-417-0 01 1 9712- ●
34 04.265 GASKET; UPR,VLV BODY,A/T 8-94405-348-0 01 1 9611- ●
34 04.265 GASKET; UPR,VLV BODY,A/T 8-96018-338-0 01 1 9712- ●
51 04.265 VALVE; MANUAL,A/T 5-34531-017-0 01 1 9611- ●
51 04.265 VALVE; MANUAL,A/T 8-96014-445-0 01 1 9712- ●
70 04.241 PISTON; ACCUMLATOR 8-96016-916-0 01 1 9712- ●
72 04.233 SPRING; ACCUMLATOR PISTON 8-96016-972-0 01 1 9712- ●
112 04.265 PLATE; VLV BODY CVR,VLV LWR,A/T 8-94473-645-0 01 1 9611- ●
112 04.265 PLATE; VLV BODY CVR,VLV LWR,A/T 8-96017-628-0 01 1 9712- ●
114 04.164 PIN; ACCUMLATOR PISTON (B-2) 8-96017-098-0 01 1 9712- ●
126 04.265 BOLT; CVR,VLV LWR,A/T
M5X17.5 		8-94473-608-0 07 1 9611- ●
126 04.265 BOLT; CVR,VLV LWR,A/T
04.115 		8-00117-461-0 02 1 9712- ●
158 04.265 RING; SNAP,ADAPTER 8-96015-714-0 01 1 9712- ●
159 04.265 COVER; PISTON 8-96017-093-0 01 1 9712- ●
160 04.265 SOLENOID; ON-OFF
(B) 		8-96014-224-0 01 1 9712- ●
160 04.265 SOLENOID; ON-OFF
(A) 		8-96014-593-0 01 1 9712- ●
161 04.265 PIN; SPRING,SOLENOID 8-96014-443-0 02 1 9712- ●
162 04.265 SOLENOID; BAND CONT 8-96042-006-0 01 1 9712- ●
163 04.265 PIN; SOLENOID 8-96014-440-0 01 1 9712- ●
164 04.265 WASHER; SOLENOID 8-96014-555-0 01 1 9712- ●
198 04.265 STRAINER 8-96041-012-0 01 1 9712- ●
205 04.054 PIN; SPRING 8-05258-849-0 03 1 9712- ●
217 04.262 ROLLER ASM; SPR,DETENT
04.226 		8-96015-354-0 01 1 9712- ●
218 04.115 HARNESS; SOLENOID WIRE 8-96014-855-0 01 1 9712- ●
249 04.265 VALVE; SHIFT
(A) 		8-96014-427-0 01 1 9712- ●
249 04.265 VALVE; SHIFT
(B) 		8-96014-429-0 01 1 9712- ●
250 04.265 SPRING; SHIFT VALVE 8-96014-428-0 02 1 9712- ●
