◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#40586) — 67 parça

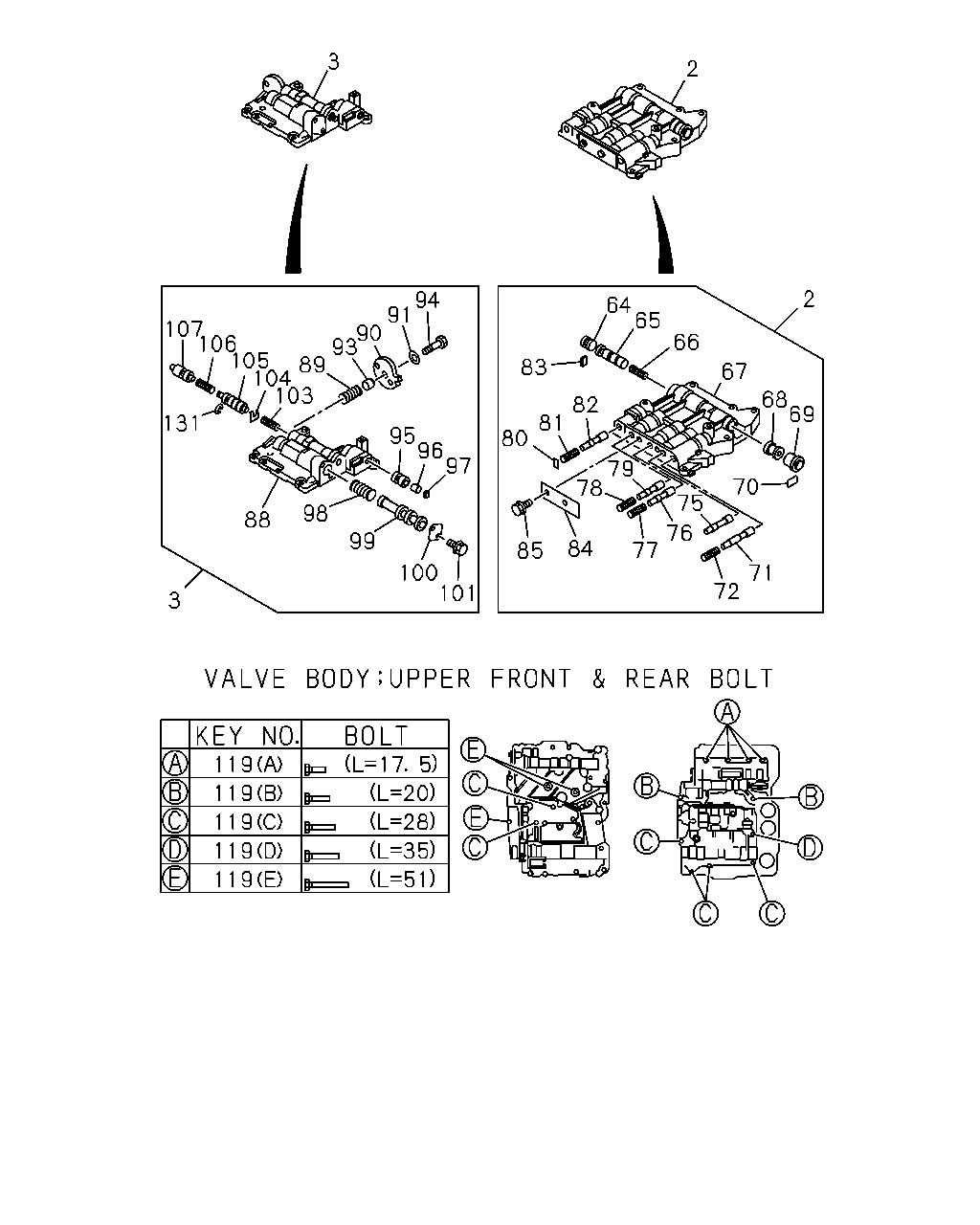

çizim 18915
3 2 2 67 66 65 64 83 68 69 70 71 76 75 77 84 85 78 79 82 81 80 72 101 100 99 98 88 3 95 89 96 97 93 90 91 94 106 107 131 103 104 105 119 119 119 119 119
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.265 BODY ASM; VLV UPR RR,A/T 8-94323-521-0 01 1 9611- ●
3 04.265 BODY ASM; VLV UPR FRT,A/T 8-94473-650-0 01 1 9611- ●
64 04.265 PLUG; VLV,2-3 SHIFT,VLV UPR RR,A 5-34538-007-0 01 1 9611- ●
65 04.265 VALVE; 2-3 SHIFT,VLV UPR RR,A/T 5-34531-010-0 01 1 9611- ●
66 04.265 SPRING; VLV,2-3 SHIFT,VLV UPR RR 5-34533-010-0 01 1 9611- ●
67 04.265 BODY; VLV UPR RR,A/T 8-94250-397-0 01 1 9611- ●
68 04.265 VALVE; INTERMEDIATE,VLV UPR RR,A 5-34531-009-0 01 1 9611- ●
69 04.265 PLUG; INTERMEDIATE,VLV UPR RR,A/ 5-34538-005-0 01 1 9611- ●
70 04.159 RETAINER; INTERMEDIATE,VLV UPR R
04.265 		5-34538-006-0 01 1 9611- ●
71 04.265 VALVE; LOW,VLV UPR RR,A/T 5-34531-007-0 01 1 9611- ●
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T 5-34533-008-0 01 1 9611- ●
75 04.265 PLUG; GOV MODULATOR 8-94405-342-0 01 1 9611- ●
76 04.265 VALVE; REV CLU,A/T 5-34531-018-0 01 1 9611- ●
77 04.265 SPRING; VLV,REV,A/T 8-94105-482-0 01 1 9611- ●
78 04.265 SPRING; INTERMEDIATE,VLV UPR RR, 8-94166-021-0 01 1 9611- ●
79 04.265 VALVE; INTERMEDIATE,VLV UPR RR,A 5-34531-005-0 01 1 9611- ●
80 04.265 RETAINER; VLV UPR RR,A/T 5-34538-004-0 01 1 9611- ●
81 04.265 SPRING; VLV DETENT,VLV UPR RR,A/ 8-94473-649-0 01 1 9611- ●
82 04.265 VALVE; DETENT,VLV UPR RR,A/T 5-34531-008-0 01 1 9611- ●
83 04.265 RETAINER; VLV,VLV UPR RR,A/T 5-34538-008-0 01 1 9611- ●
84 04.265 COVER; VLV UPR RR,A/T 5-34521-002-0 01 1 9611- ●
85 04.265 BOLT; COVER TO VLV,A/T
04.197 M5X12 		8-94405-335-0 02 1 9611- ●
88 04.265 BODY; VLV,VLV UPR FRT,A/T 8-94405-344-0 01 1 9611- ●
89 04.265 SPRING; THROTTLE CAM RETURN,A/T 5-34533-014-0 01 1 9611- ●
90 04.265 CAM; VLV,KICK DOWN & THROTTLE,A/ 8-94247-526-0 01 1 9611- ●
91 04.265 COLLAR; CAM,A/T 5-34539-004-0 01 1 9611- ●
93 04.265 PIECE; DIST,CAM,A/T 5-34538-014-0 01 1 9611- ●
94 04.265 BOLT; CAM,KICK DOWN,A/T
M6X28 		8-94473-611-0 01 1 9611- ●
95 04.265 VALVE; CUT BACK,VLV UPR FRT,A/T 5-34531-011-0 01 1 9611- ●
96 04.265 PLUG; VLV,CUT BACK,VLV UPR FRT,A 5-34538-009-0 01 1 9611- ●
97 04.265 RETAINER; VLV,VLV UPR FRT,A/T 5-34538-003-0 01 1 9611- ●
98 04.265 SPRING; SECONDARY,A/T 8-94250-400-0 01 1 9611- ●
99 04.265 VALVE; SECONDARY,A/T 8-94473-662-0 01 1 9611- ●
100 04.265 COVER; VLV,FRT END,A/T 5-34521-003-0 01 1 9611- ●
101 04.265 BOLT; VLV COVER,A/T
04.197 M5X12 		8-94405-335-0 02 1 9611- ●
103 04.265 SPRING; THROTTLE BODY,SECONDARY,
NATURAL 		5-34533-012-0 01 1 9611- ●
103 04.265 SPRING; THROTTLE BODY,SECONDARY,
RED 		8-97200-218-0 01 1 9611- ●
104 04.265 PLATE; THROTTLE BODY,A/T 5-34538-010-0 01 1 9611- ●
105 04.265 VALVE; THROTTLE,A/T 5-34531-013-0 01 1 9611- ●
106 04.265 SPRING; THROTTLE BODY,PRIMARY,A/ 8-94405-346-0 01 1 9611- ●
107 04.265 VALVE ASM; KICK DOWN,A/T 8-94405-347-0 01 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(A) M5X17.5 		8-94473-608-0 04 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(C) M5X28 		8-94473-616-0 06 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(D) M5X35 		8-94473-617-0 01 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(E) M5X51 		8-94473-618-0 03 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(B) M5X20 		8-94473-620-0 02 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T 8-96017-270-0 07 1 9712- ●
131 04.265 RING; THROTTLE BODY,A/T 5-34538-011-0 AR 1 9611- ●

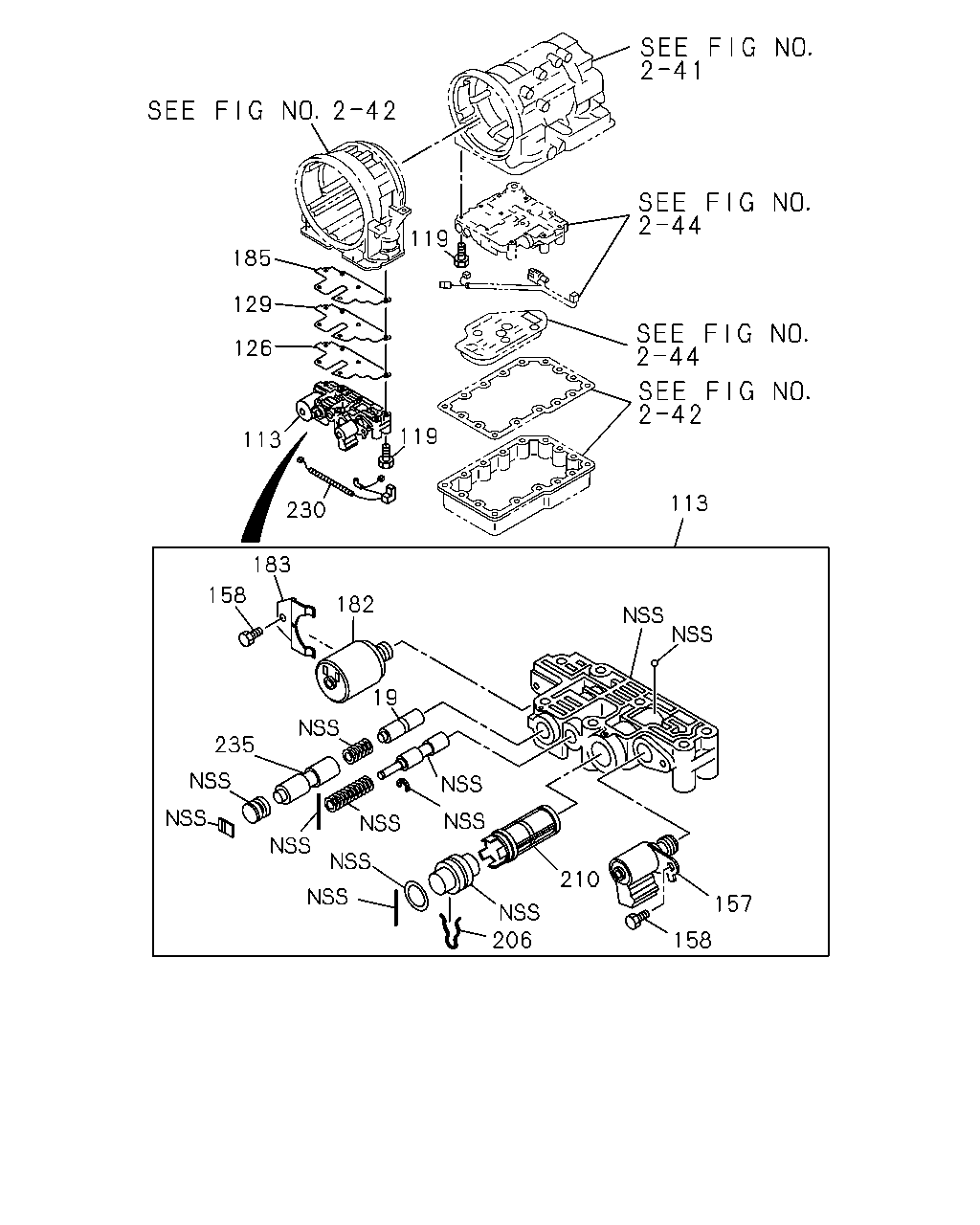

çizim 70209
157 158 210 19 182 183 158 113 119 230 113 126 129 185 119 206 235
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.265 VALVE; ACCUMLATOR CONT,UPR VLV 8-96014-338-0 01 1 9712- ●
113 04.265 VALVE ASM; CONT,A/T 8-96017-360-0 01 1 9712- ●
119 04.265 BOLT; VLV BODY,A/T
(A) M5X17.5 		8-94473-608-0 04 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(C) M5X28 		8-94473-616-0 06 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(D) M5X35 		8-94473-617-0 01 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(E) M5X51 		8-94473-618-0 03 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T
(B) M5X20 		8-94473-620-0 02 1 9611- ●
119 04.265 BOLT; VLV BODY,A/T 8-96017-270-0 07 1 9712- ●
126 04.265 GASKET; VALVE BODY 8-96017-399-0 01 1 9712- ●
129 04.265 PLATE; SEPARATOR,SIDE 8-96017-395-0 01 1 9712- ●
157 04.115 SOLENOID; CONV CLU 8-96014-183-0 01 1 9712- ●
158 04.115 BOLT; SOLENOID 8-00117-461-0 02 1 9712- ●
182 04.115 SOLENOID; FORCE MOTOR 8-08677-314-0 01 1 9712- ●
183 04.115 RETAINER; FORCE MOTOR 8-96016-954-0 01 1 9712- ●
185 04.265 GASKET; ADAPTER TO TRANSFER PLAT 8-96017-400-0 01 1 9712- ●
206 04.265 RING; SNAP
04.233 		8-05258-185-0 01 1 9712- ●
210 04.265 STRAINER 8-96041-009-0 01 1 9712- ●
230 04.115 HARNESS ASM; CABLE,A/T CONT 8-96018-278-0 01 1 9712- ●
235 04.265 VALVE; ACCUMULATOR 8-05258-806-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
