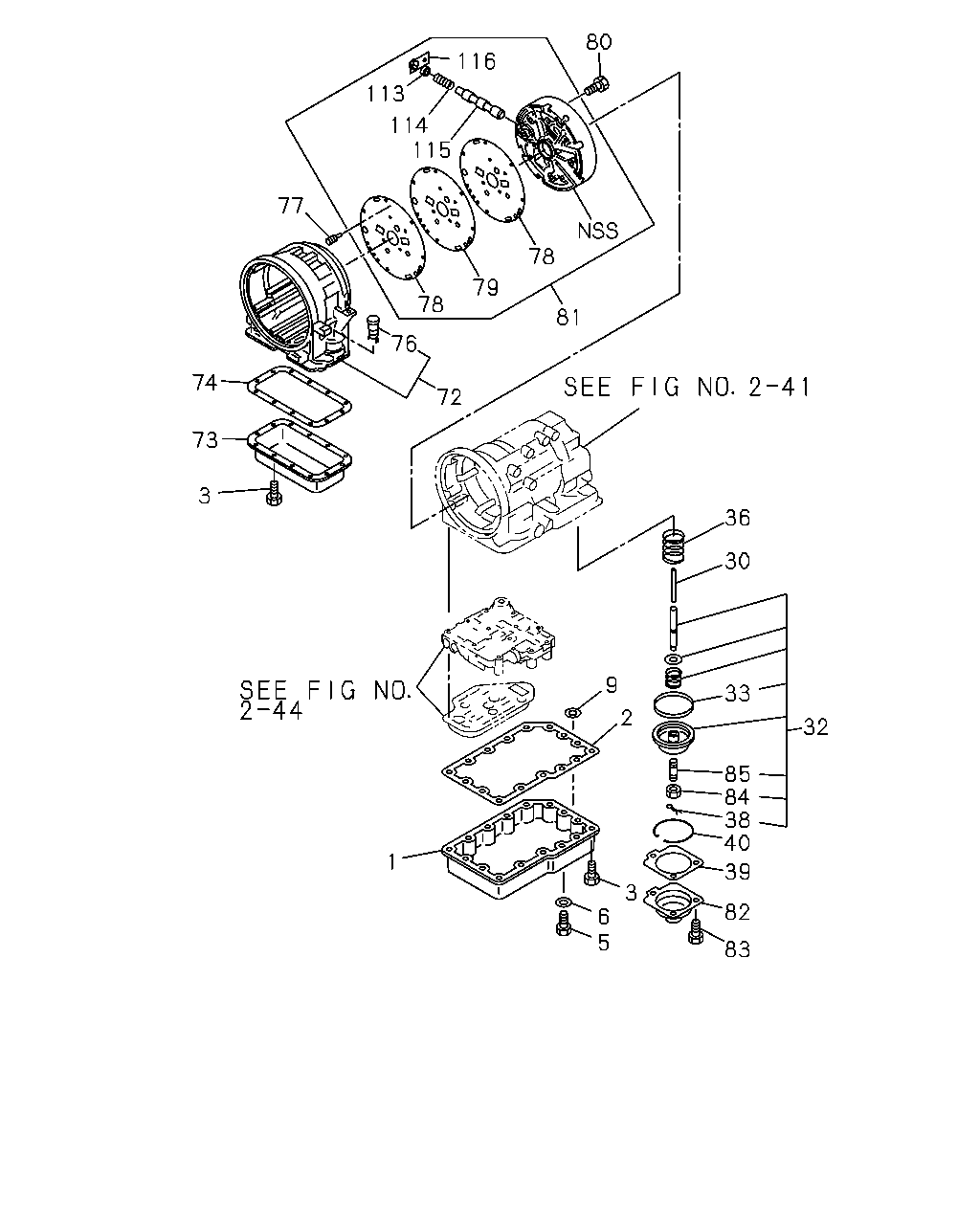

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#40585) — 51 parça
Tümü
A - A/T AISIN
B - A/T THM
◀
[242A] A/T THM (36 parça)
[242A] A/T AISIN (15 parça)
▶
83
39
82
3
6
5
1
9
2
33
32
85
84
38
40
30
36
72
76
78
79
78
81
115
114
113
116
80
77
74
73
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.195 PAN ASM; OIL,A/T
8-94323-524-0
01
1
9611-
●
1
04.195 PAN ASM; OIL,A/T
8-96017-876-0
01
1
9712-
●
2
04.196 GASKET; OIL PAN,A/T
5-34132-001-0
01
1
9611-
●
2
04.196 GASKET; OIL PAN,A/T
8-96014-234-0
01
1
9712-
●
3
04.196 BOLT; OIL PAN TO CASE
M6
5-34139-001-0
14
1
9611-
●
3
04.196 BOLT; OIL PAN TO CASE
8-96017-023-0
28
1
9712-
●
5
04.195 PLUG; OIL PAN
5-34132-003-0
01
1
9611-
●
5
04.195 PLUG; OIL PAN
8-96015-481-0
02
1
9712-
●
6
04.195 GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
01
1
9611-
●
6
04.195 GASKET; OIL PAN TO PLUG
8-01638-257-0
02
1
9712-
●
9
04.195 MAGNET; OIL PAN
5-34138-004-0
02
1
9611-
●
9
04.195 MAGNET; OIL PAN
8-96013-938-0
01
1
9712-
●
30
04.265 ROD; VAC DIAPH,A/T
8-05258-182-0
01
1
9712-
●
32
04.228 PISTON ASM; SERVO,A/T
8-96017-601-0
01
1
9712-
●
33
04.229 SEAL; RING,SERVO PISTON,A/T
8-05258-159-0
01
1
9712-
●
36
04.233 SPRING; RETURN,SERVO PISTON,A/T
8-08958-931-0
01
1
9712-
●
38
04.233 RING; SNAP,SERVO PISTON,A/T
8-05258-185-0
01
1
9712-
●
39
04.212 GASKET; SERVO COVER
8-96014-414-0
01
1
9712-
●
40
04.233 RETAINER; SERVO PISTON,A/T
8-05258-121-0
01
1
9712-
●
72
04.195 CASE ASM; ADAPTER
8-96017-512-0
01
1
9712-
●
73
04.195 PAN ASM; ADAPTER
8-96014-186-0
01
1
9712-
●
74
04.195 GASKET; ADAPTER PAN
8-96014-235-0
01
1
9712-
●
76
04.195 CONNECTOR; ADAPTER CASE
8-96015-408-0
01
1
9712-
●
77
04.195 RESTRICTOR; OIL
8-96014-353-0
01
1
9712-
●
78
04.195 GASKET; ADAPTER PLATE
8-96016-514-0
02
1
9712-
●
79
04.195 PLATE; ADAPTER,CTR SUPPORT
8-96016-833-0
01
1
9712-
●
80
04.195 SCREW; CTR SUPPORT
8-96013-316-0
08
1
9712-
●
81
04.233 SUPPORT ASM; CENTER
8-96041-282-0
01
1
9712-
●
82
04.233 COVER; SERVO PISTON
8-96014-413-0
01
1
9712-
●
83
04.233 SCREW; SERVO COVER
04.195
8-96013-316-0
04
1
9712-
●
84
04.233 NUT; SERVO SCREW
8-96017-231-0
01
1
9712-
●
85
04.233 SCREW; SERVO PISTON
8-96018-235-0
01
1
9712-
●
113
04.105 PLUG; LOCKOUT
04.052
8-96017-027-0
01
1
9712-
●
114
04.256 SPRING; LOCKOUT
04.052
8-96014-961-0
01
1
9712-
●
115
04.256 VALVE; LOCKOUT
04.052
8-96014-967-0
01
1
9712-
●
116
04.256 PLATE; RETAINER
04.052
8-96017-026-0
01
1
9712-
●
10
11
12
9
6
3
5
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.195 PAN ASM; OIL,A/T
8-94323-524-0
01
1
9611-
●
1
04.195 PAN ASM; OIL,A/T
8-96017-876-0
01
1
9712-
●
2
04.196 GASKET; OIL PAN,A/T
5-34132-001-0
01
1
9611-
●
2
04.196 GASKET; OIL PAN,A/T
8-96014-234-0
01
1
9712-
●
3
04.196 BOLT; OIL PAN TO CASE
M6
5-34139-001-0
14
1
9611-
●
3
04.196 BOLT; OIL PAN TO CASE
8-96017-023-0
28
1
9712-
●
5
04.195 PLUG; OIL PAN
5-34132-003-0
01
1
9611-
●
5
04.195 PLUG; OIL PAN
8-96015-481-0
02
1
9712-
●
6
04.195 GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
01
1
9611-
●
6
04.195 GASKET; OIL PAN TO PLUG
8-01638-257-0
02
1
9712-
●
9
04.195 MAGNET; OIL PAN
5-34138-004-0
02
1
9611-
●
9
04.195 MAGNET; OIL PAN
8-96013-938-0
01
1
9712-
●
10
04.197 GAUGE; OIL LEVEL
8-94479-567-5
01
1
9611-
●
11
04.197 TUBE; OIL FILLER
8-97106-639-2
01
1
9611-
●
12
04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8
9-09561-110-0
01
1
9611-
●
