2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#40584) — 124 parça

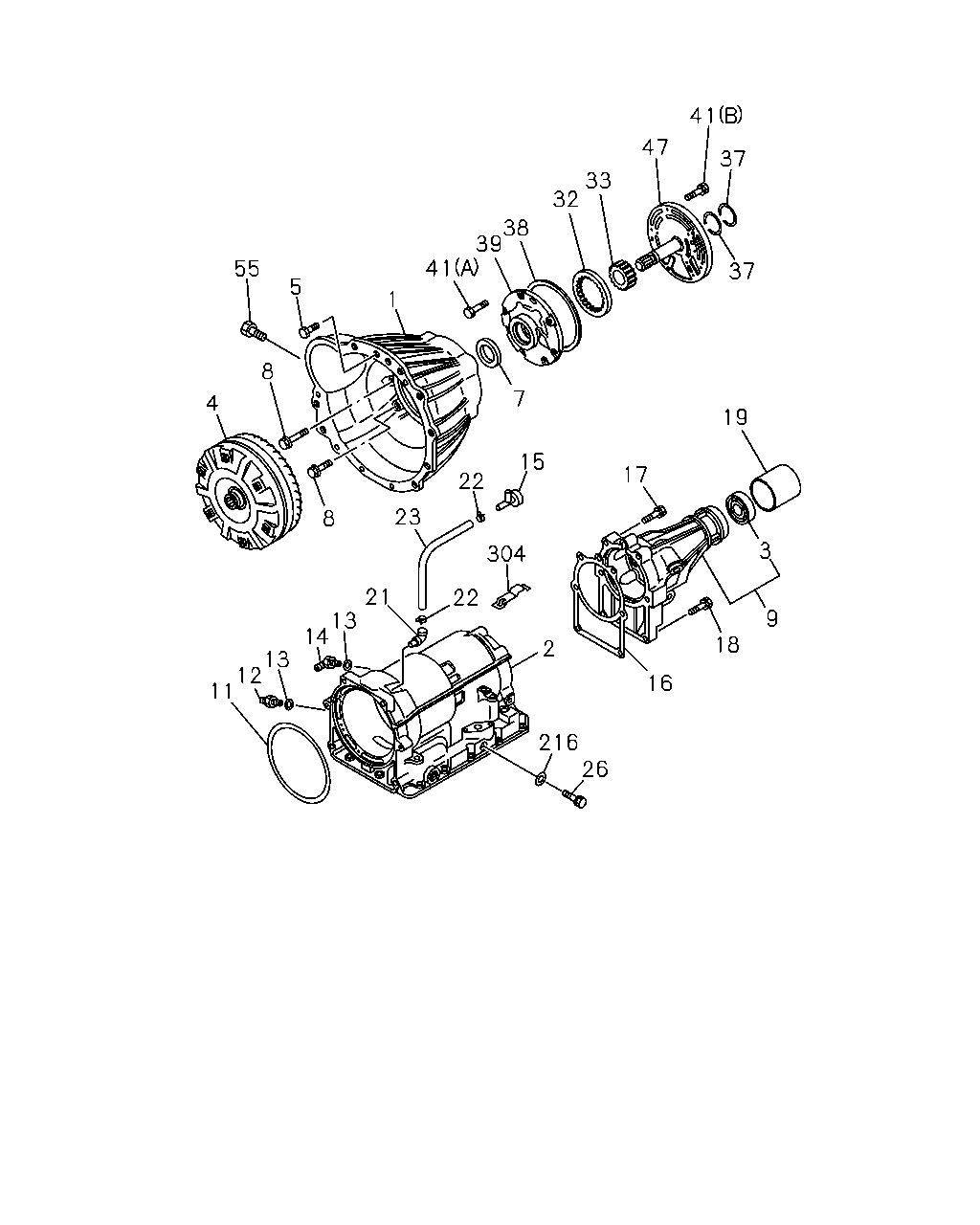

çizim 19466
55 1 5 8 4 41 39 38 32 33 47 41 37 37 19 17 15 7 22 23 8 21 304 22 2 16 9 3 18 26 216 13 14 13 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T 8-94474-054-0 01 1 9611- ●
1 04.103 HOUSING; CONV,A/T 8-96042-233-0 01 1 9712- ●
2 04.103 CASE ASM; A/T 8-94235-346-0 01 1 9611- ●
2 04.103 CASE ASM; A/T 8-96041-374-0 01 1 9712- ●
3 04.241 SEAL; OIL,RR COVER,A/T 8-94473-633-0 01 1 9611- ●
3 04.241 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9712- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-94377-149-0 01 1 9611- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-24210-868-0 01 1 9712- ●
5 04.008 BOLT; RR PLATE TO TORQUE CONV
M8X10 		8-94460-742-0 06 1 9611- ●
7 04.226 SEAL; OIL,LIP,A/T 8-94165-955-0 01 1 9611- ●
8 04.217 BOLT; HSG TO CASE
M10X118 		8-94473-572-0 04 1 9611- ●
8 04.217 BOLT; HSG TO CASE
M12X97 		8-94473-573-0 02 1 9611- ●
8 04.217 BOLT; HSG TO CASE
(A) 		8-96013-210-0 05 1 9712- ●
8 04.217 BOLT; HSG TO CASE
(B) 		8-96016-795-0 07 1 9712-9802 ●
8 04.217 BOLT; HSG TO CASE
(B) 		8-96018-559-0 07 1 9803- ●
9 04.317 COVER ASM; RR,A/T 8-94155-669-0 01 1 9611- ●
9 04.317 COVER ASM; RR,A/T 8-96042-232-0 01 1 9712- ●
11 04.104 RING; SEALING,TRANS CASE 8-94250-604-0 01 1 9611- ●
11 04.104 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9712- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-94256-727-0 01 1 9611- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-96015-476-0 01 1 9712- ●
13 04.205 GASKET; OIL COOLER PIPE
04.128 		5-34588-001-0 02 1 9611- ●
14 04.205 UNION; OIL COOLER RETURN PIPE 8-94256-728-0 01 1 9611- ●
15 04.104 BREATHER; A/T CASE 8-94479-729-0 01 1 9611- ●
15 04.104 BREATHER; A/T CASE
(A) 		8-96015-793-0 01 1 9712- ●
15 04.104 BREATHER; A/T CASE
(B) 		8-97164-362-0 01 1 9712- ●
16 04.318 GASKET; EXT HSG 8-97032-928-0 01 1 9611- ●
16 04.318 GASKET; EXT HSG 8-96014-417-0 01 1 9712- ●
17 04.319 BOLT; REAR COVER TO CASE
M10X45 		8-94473-632-0 04 1 9611- ●
17 04.319 BOLT; REAR COVER TO CASE 8-00179-843-0 07 1 9712- ●
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
M10X35 		8-94479-951-0 02 1 9611- ●
19 04.241 COVER; DUST,REAR COVER
04.318 		5-33138-007-0 01 1 9611- ●
21 04.104 PLUG; BREATHER,A/T 8-94479-727-0 01 1 9611- ●
22 04.101 CLIP; BREATHER HOSE,A/T 8-94479-730-0 02 1 9611- ●
23 04.101 HOSE; BREATHER,A/T 8-97069-455-0 01 1 9611- ●
26 04.195 PLUG; TRANS CASE
04.103 		5-34119-002-0 02 1 9611- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T 8-97100-794-0 01 1 9611- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T 8-97176-139-0 01 1 9611- ●
37 04.226 RING; SEAL,OIL PUMP,A/T 8-97128-812-0 02 1 9611- ●
38 04.226 GASKET; OIL PUMP,A/T 5-34165-003-0 01 1 9611- ●
38 04.226 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9712- ●
39 04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94405-299-0 01 1 9611- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M8X135 		8-94473-574-0 07 1 9611- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 06 1 9611- ●
47 04.226 SHAFT; OIL PUMP,A/T 8-94405-302-0 01 1 9611- ●
55 04.226 BOLT; COVER
04.265 		8-94450-753-0 01 1 9611- ●
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 02 1 9611- ●
304 04.205 SPRING; LEAF,A/T 8-97200-141-0 01 1 9611- ●

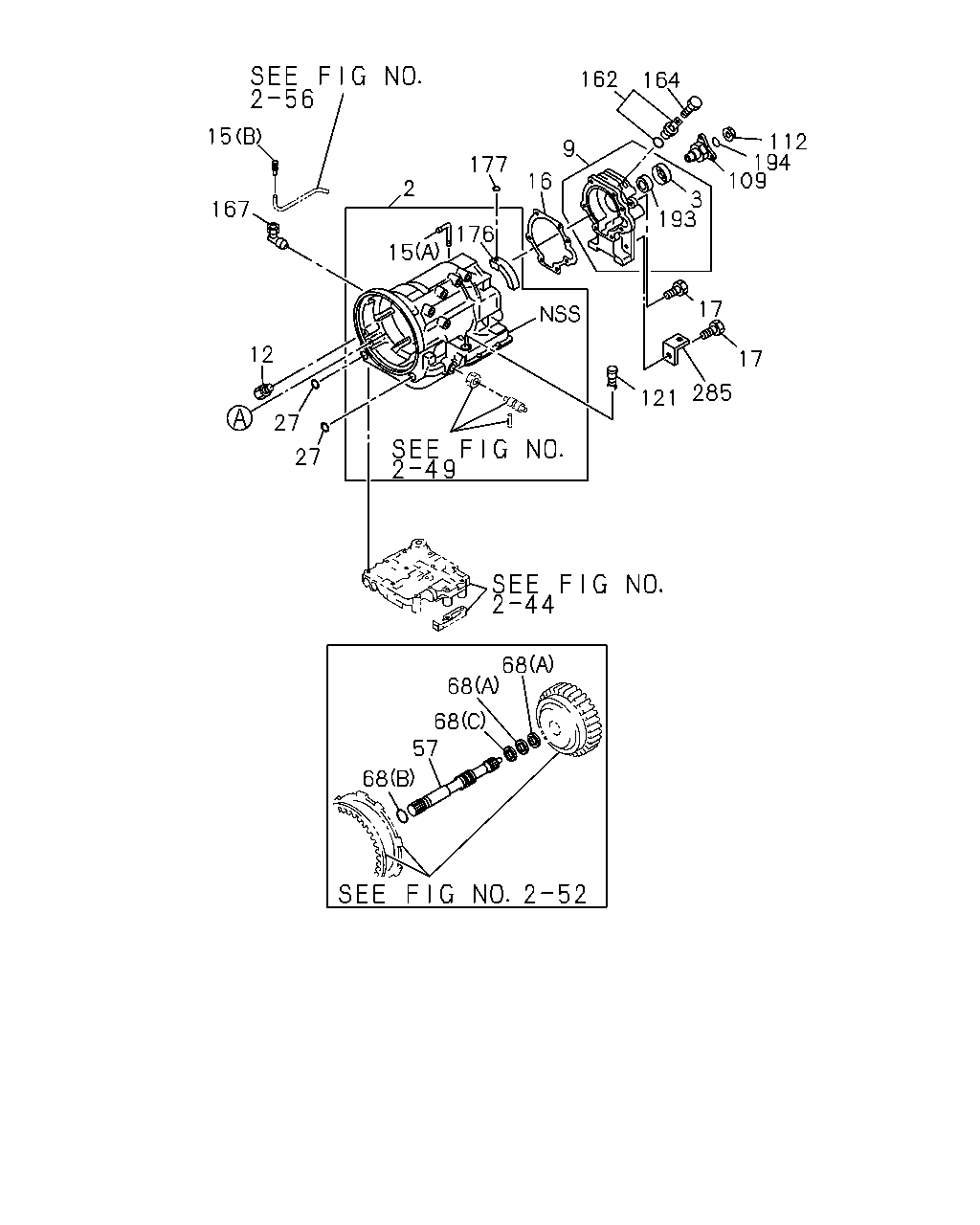

çizim 69985
68 68 68 57 68 27 27 12 15 176 177 16 9 193 17 285 17 121 109 194 112 164 3 162 2 15 167
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.103 CASE ASM; A/T 8-94235-346-0 01 1 9611- ●
2 04.103 CASE ASM; A/T 8-96041-374-0 01 1 9712- ●
3 04.241 SEAL; OIL,RR COVER,A/T 8-94473-633-0 01 1 9611- ●
3 04.241 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9712- ●
9 04.317 COVER ASM; RR,A/T 8-94155-669-0 01 1 9611- ●
9 04.317 COVER ASM; RR,A/T 8-96042-232-0 01 1 9712- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-94256-727-0 01 1 9611- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-96015-476-0 01 1 9712- ●
15 04.104 BREATHER; A/T CASE 8-94479-729-0 01 1 9611- ●
15 04.104 BREATHER; A/T CASE
(A) 		8-96015-793-0 01 1 9712- ●
15 04.104 BREATHER; A/T CASE
(B) 		8-97164-362-0 01 1 9712- ●
16 04.318 GASKET; EXT HSG 8-97032-928-0 01 1 9611- ●
16 04.318 GASKET; EXT HSG 8-96014-417-0 01 1 9712- ●
17 04.319 BOLT; REAR COVER TO CASE
M10X45 		8-94473-632-0 04 1 9611- ●
17 04.319 BOLT; REAR COVER TO CASE 8-00179-843-0 07 1 9712- ●
27 04.217 GASKET; HSG TO CASE 8-96014-270-0 02 1 9712- ●
57 04.175 SHAFT; TURBINE,A/T 8-96018-034-0 01 1 9712- ●
68 04.175 RING; OIL SEAL,TURBINE SHAFT
(B) 		8-96013-953-0 01 1 9712- ●
68 04.175 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96017-484-0 02 1 9712- ●
68 04.175 RING; OIL SEAL,TURBINE SHAFT
(C) 		8-96041-327-0 01 1 9712- ●
109 04.175 DRIVER; COUPLING,A/T 8-96018-182-0 01 1 9712- ●
112 04.176 NUT; COUPLING DRIVER,A/T 8-90446-832-0 01 1 9712- ●
121 04.226 CONNECTOR; ELEC 8-96015-409-0 01 1 9712- ●
162 04.054 SENSOR; REVOLUTION,A/T CONT 8-96014-422-0 01 1 9712- ●
164 04.054 BOLT; REV SENSOR,A/T 8-96014-809-0 01 1 9712- ●
167 04.052 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9712- ●
176 04.052 RESERVOIR; MAIN CASE 8-96014-865-0 01 1 9712- ●
177 04.052 SEAL; MAIN CASE 8-96017-547-0 01 1 9712- ●
193 04.205 BEARING; OUTPUT SHAFT 8-96014-732-0 01 1 9712- ●
194 04.205 GASKET; COUPLING DRIVE 8-96014-418-0 01 1 9712- ●
285 04.226 BRACKET; HARNESS 8-96018-455-0 01 1 9712- ●

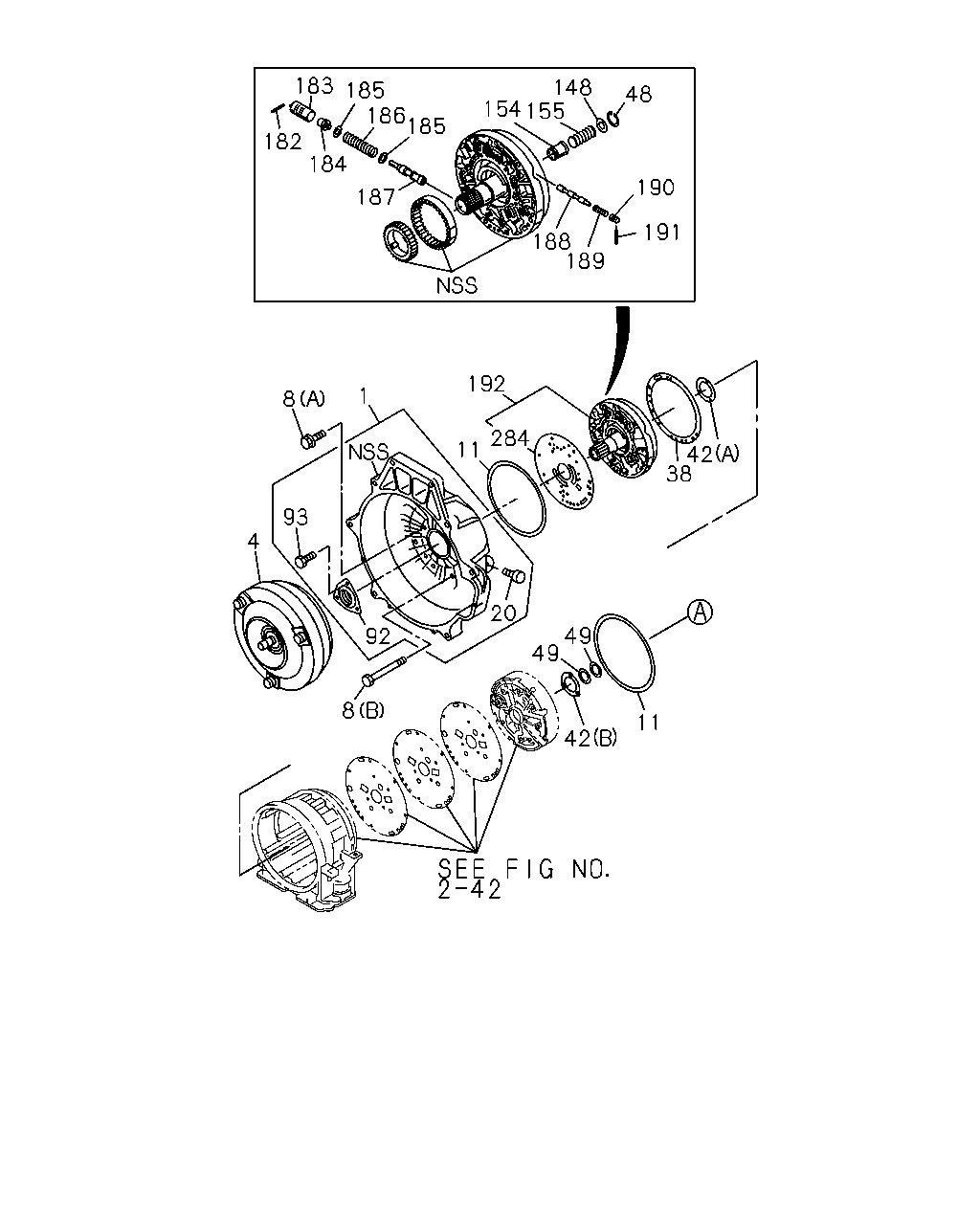

çizim 70287
11 42 49 49 8 92 20 93 4 8 1 192 11 284 38 42 191 190 189 188 48 148 155 154 185 186 185 183 182 184 187
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T 8-94474-054-0 01 1 9611- ●
1 04.103 HOUSING; CONV,A/T 8-96042-233-0 01 1 9712- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-94377-149-0 01 1 9611- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-24210-868-0 01 1 9712- ●
8 04.217 BOLT; HSG TO CASE
M10X118 		8-94473-572-0 04 1 9611- ●
8 04.217 BOLT; HSG TO CASE
M12X97 		8-94473-573-0 02 1 9611- ●
8 04.217 BOLT; HSG TO CASE
(A) 		8-96013-210-0 05 1 9712- ●
8 04.217 BOLT; HSG TO CASE
(B) 		8-96016-795-0 07 1 9712-9802 ●
8 04.217 BOLT; HSG TO CASE
(B) 		8-96018-559-0 07 1 9803- ●
11 04.104 RING; SEALING,TRANS CASE 8-94250-604-0 01 1 9611- ●
11 04.104 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9712- ●
20 04.105 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9712- ●
38 04.226 GASKET; OIL PUMP,A/T 5-34165-003-0 01 1 9611- ●
38 04.226 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) YELLOW 		8-96013-761-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) RED 		8-96013-762-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) BLACK 		8-96013-763-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) NATURAL 		8-96013-764-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) GREEN 		8-96013-765-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(A) BLUE 		8-96013-766-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) YELLOW 		8-96017-289-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) RED 		8-96017-290-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) BLACK 		8-96017-291-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) WHITE 		8-96017-292-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) GREEN 		8-96017-293-0 01 1 9712- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
(B) BLUE 		8-96017-294-0 01 1 9712- ●
48 04.175 RING; SNAP,OIL PUMP,A/T 8-96014-406-0 01 1 9712- ●
49 04.226 RING; OIL SEAL 8-96017-553-0 02 1 9712- ●
92 04.226 COVER ASM; A/T 8-96015-187-0 01 1 9712- ●
93 04.226 BOLT; COVER & BUSHING,A/T 8-96015-215-0 03 1 9712- ●
148 04.226 RETAINER; SPRING,CAM RING,OIL PU 8-96014-405-0 01 1 9712- ●
154 04.166 PISTON; ACCUMLATOR,OIL PUMP 8-96014-403-0 01 1 9712- ●
155 04.164 SPRING; SERVO,ACCUMLATOR PISTON, 8-96014-404-0 01 1 9712- ●
182 04.052 PIN; BOOST VALVE SLEEVE 8-08958-824-0 01 1 9712- ●
183 04.052 SLEEVE; BOOST VALVE 8-96016-067-0 01 1 9712- ●
184 04.205 VALVE; BOOST 8-96016-071-0 01 1 9712- ●
185 04.205 SEAT; SPR,REG VALVE 8-05258-219-0 02 1 9712- ●
186 04.205 SPRING; REG VALVE 8-96017-526-0 01 1 9712- ●
187 04.205 VALVE; PRESSURE REG 8-96016-072-0 01 1 9712- ●
188 04.205 VALVE; CONV CLU CONT 8-96014-396-0 01 1 9712- ●
189 04.205 SPRING; CONV CLU CONT VALVE 8-96014-397-0 01 1 9712- ●
190 04.205 PLUG; CONV CLU CONT VALVE 8-96013-218-0 01 1 9712- ●
191 04.205 PIN; SPR,PLUG 8-96013-658-0 01 1 9712- ●
192 04.200 PUMP KIT; OIL 8-96041-284-0 01 1 9712- ●
284 04.224 PLATE; WEAR,OIL PUMP
04.226 		8-96017-926-0 01 1 9712- ●
