◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40 - AUTO TRANS ASM AND REPAIR KIT ▶
2-40 — AUTO TRANS ASM AND REPAIR KIT (#40583) — 13 parça

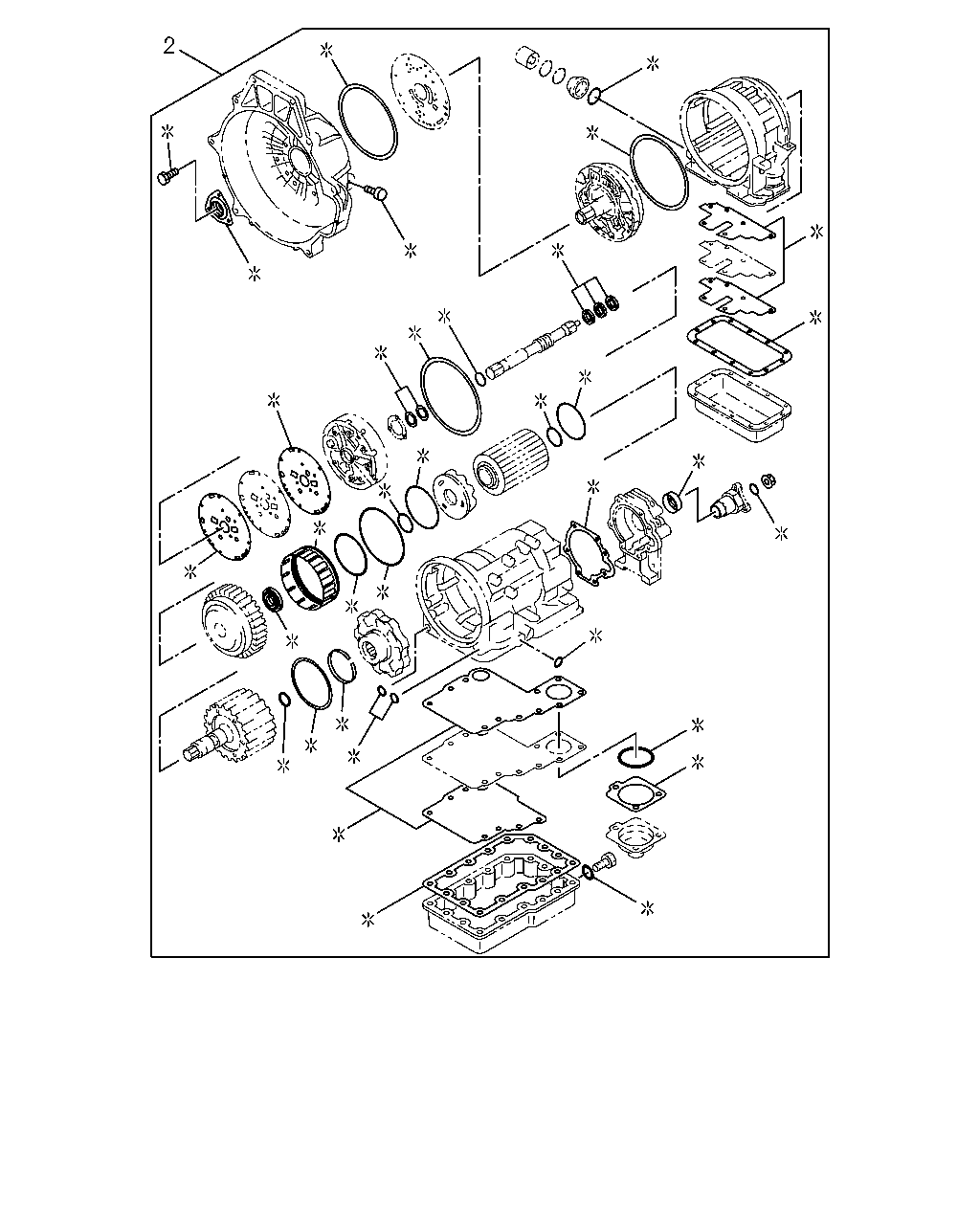

çizim 19232
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.005 REPAIR KIT; A/T
OVERHAUL 		8-97204-055-0 01 1 9611- ●
2 04.005 REPAIR KIT; A/T
GASKET 		8-97204-056-0 01 1 9611- ●
2 04.005 REPAIR KIT; A/T 8-96041-118-0 01 1 9712- ●
çizim 20756
17 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 04.003 TRANSMISSION ASM; AUTO 8-97113-281-1 01 1 9611- ●
5 04.003 TRANSMISSION ASM; AUTO 8-97179-724-0 01 1 9712-9801 ●
5 04.003 TRANSMISSION ASM; AUTO 8-96018-434-1 01 1 9802- ●
17 04.008 BOLT; PLATE TO CONV
M10X14.7 		8-94157-666-2 06 1 9712- ●

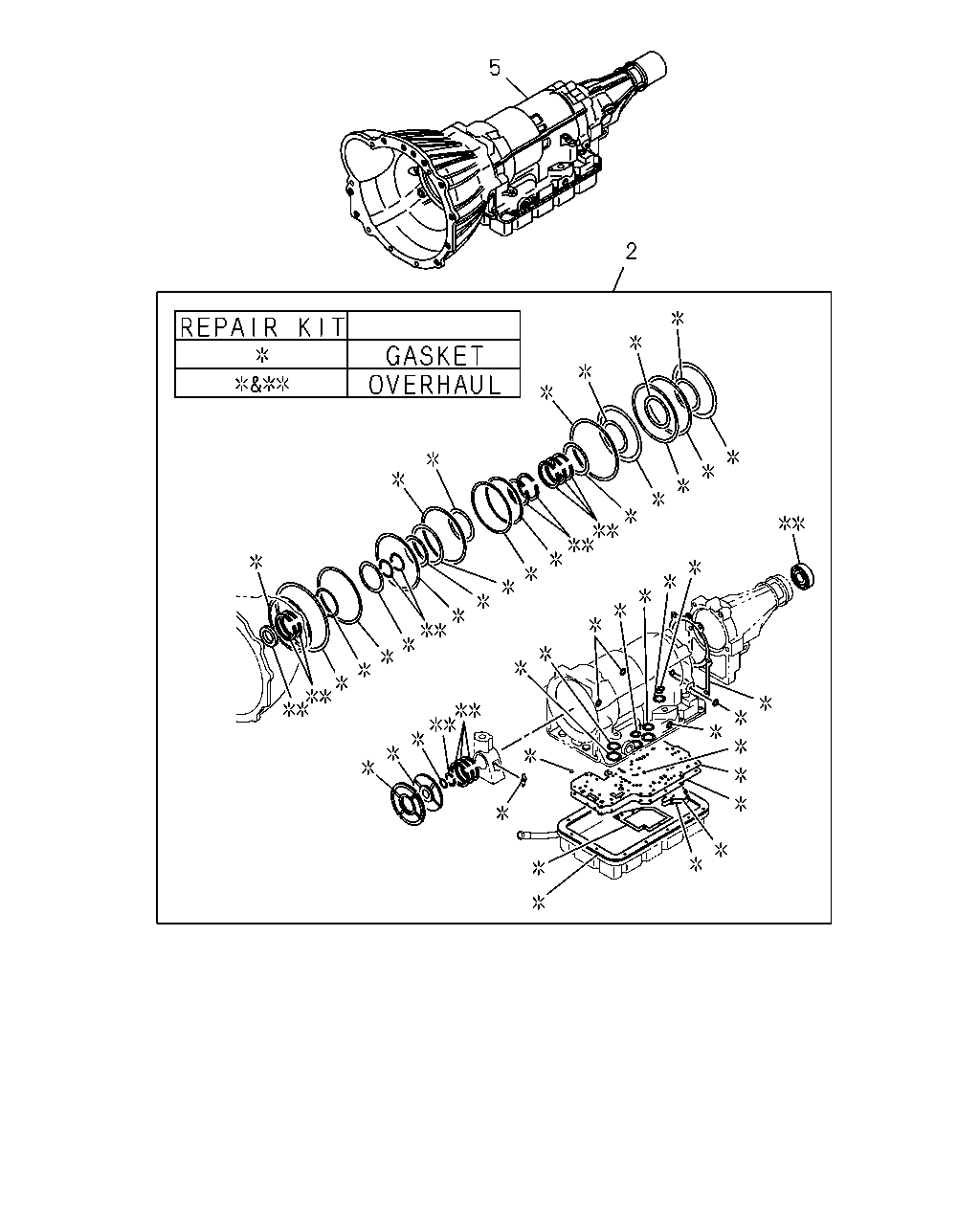

çizim 20843
2 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.005 REPAIR KIT; A/T
OVERHAUL 		8-97204-055-0 01 1 9611- ●
2 04.005 REPAIR KIT; A/T
GASKET 		8-97204-056-0 01 1 9611- ●
2 04.005 REPAIR KIT; A/T 8-96041-118-0 01 1 9712- ●
5 04.003 TRANSMISSION ASM; AUTO 8-97113-281-1 01 1 9611- ●
5 04.003 TRANSMISSION ASM; AUTO 8-97179-724-0 01 1 9712-9801 ●
5 04.003 TRANSMISSION ASM; AUTO 8-96018-434-1 01 1 9802- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
