2-30 — GEAR SHIFTER AND QUADRANT BOX (#40581) — 123 parça

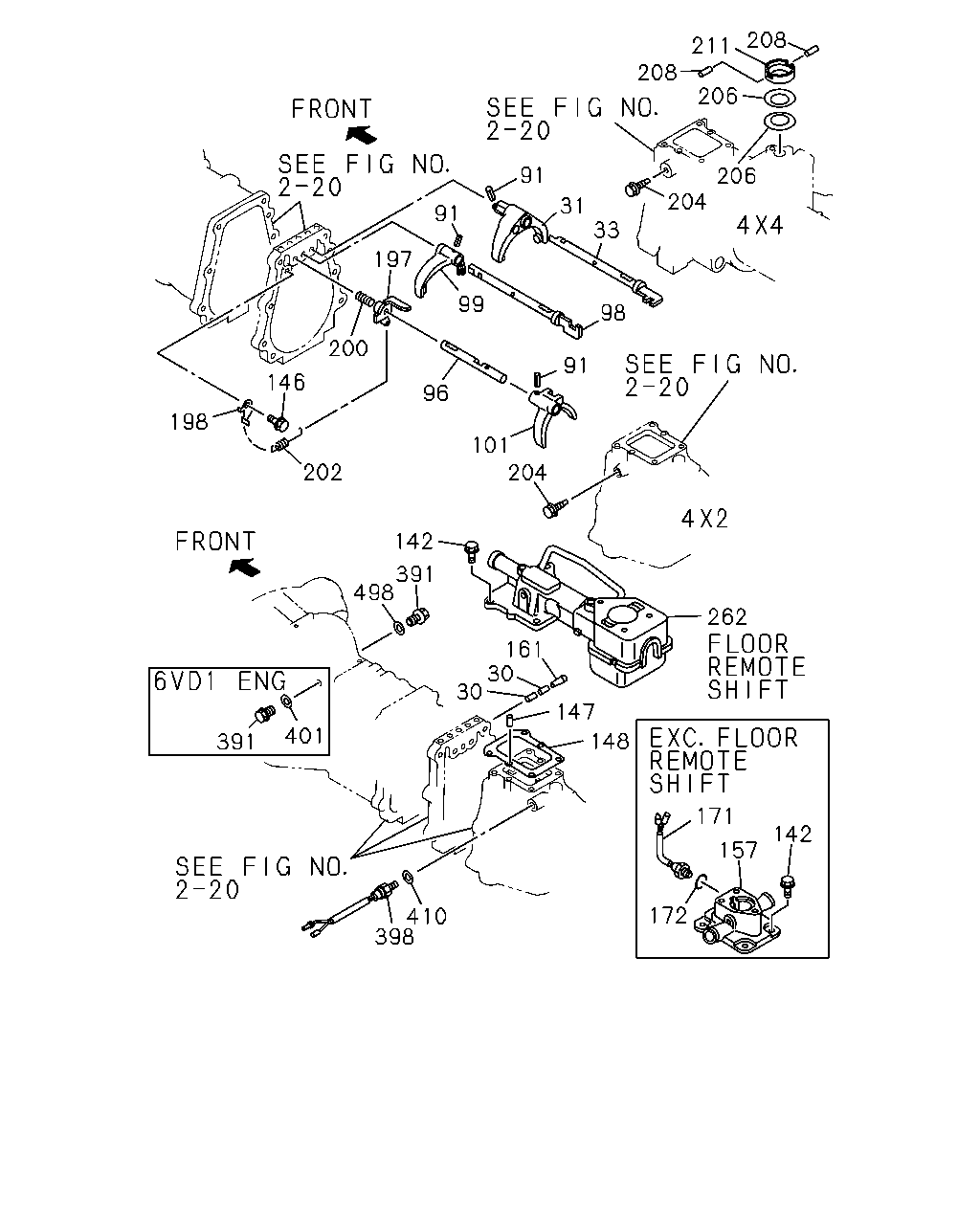

208 211 208 206 204 33 31 91 91 197 200 146 96 99 98 91 101 142 204 262 147 161 30 30 148 171 157 142 172 410 398 401 391 498 391 202 198 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9611-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9611-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-4	01	1	9611-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9611-	●	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-4	01	1	9611-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9611-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9611-9705		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9706-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9611-	●	●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9611-		●
147	04.020 PIN; KNOCK 4X2(TFB***) 04.510 OD=6 L=12	9-08150-612-0	02	1	9611-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94462-113-0	01	1	9611-9709	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9710-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9611-		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-143-5	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9611-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9611-	●	●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9611-		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3),4JA1 ENG(RLE)	8-97138-631-0	01	1	9701-	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3)	8-97138-631-0	01	1	9701-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZC1 ENG(LR9),4ZD1 ENG(LW3). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-		●
197	04.309 INHIBITOR; REV SHIFT 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-94448-753-0	01	1	9611-		●
197	04.309 INHIBITOR; REV SHIFT 4X2(TFB***) 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94448-201-1	01	1	9611-9705		●
197	04.309 INHIBITOR; REV SHIFT 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94448-201-1	01	1	9706-		●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9611-		●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9611-		●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9611-		●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9611-		●
206	04.307 SPRING; BALL SEAT 4X4(TFS***) 04.570	9-33619-632-0	02	1	9611-9707		●
208	04.307 PIN; BALL SEAT 4X4(TFS***)	8-94204-186-0	02	1	9611-9707		●
211	04.307 SEAT; BALL 4X4(TFS***) 04.570	5-33619-042-0	01	1	9611-9707		●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9611-9711		●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M14X11	8-94252-142-0	01	1	9712-		●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9611-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9611-		●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-		●

261 289 271 274 268 459 459 271 430 172 171 195 186 511 132 22 479 22 174 479 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.307 CAP; RETURN SPR,SHIFT BLOCK FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9611-	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9611-	●	●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9611-		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3),4JA1 ENG(RLE)	8-97138-631-0	01	1	9701-	●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3)	8-97138-631-0	01	1	9701-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZC1 ENG(LR9),4ZD1 ENG(LW3). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-		●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9611-	●	●
186	04.105 PLUG; SHIFTER ROD FLOOR REMOTE SHIFT<M11> 00.253 OD=16	9-11129-081-0	01	1	9611-	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9611-	●	●
261	04.309 ROD; GEAR CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9611-	●
261	04.309 ROD; GEAR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9611-	●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9611-		●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9611-	●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9611-		●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9611-	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9611-	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9611-	●	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> D=4.2 L=25	8-97103-142-0	02	1	9611-	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9611-	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9611-	●	●
479	04.307 PLATE; SELECT FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9611-	●	●
511	04.302 PIPE; AIR FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9611-	●	●

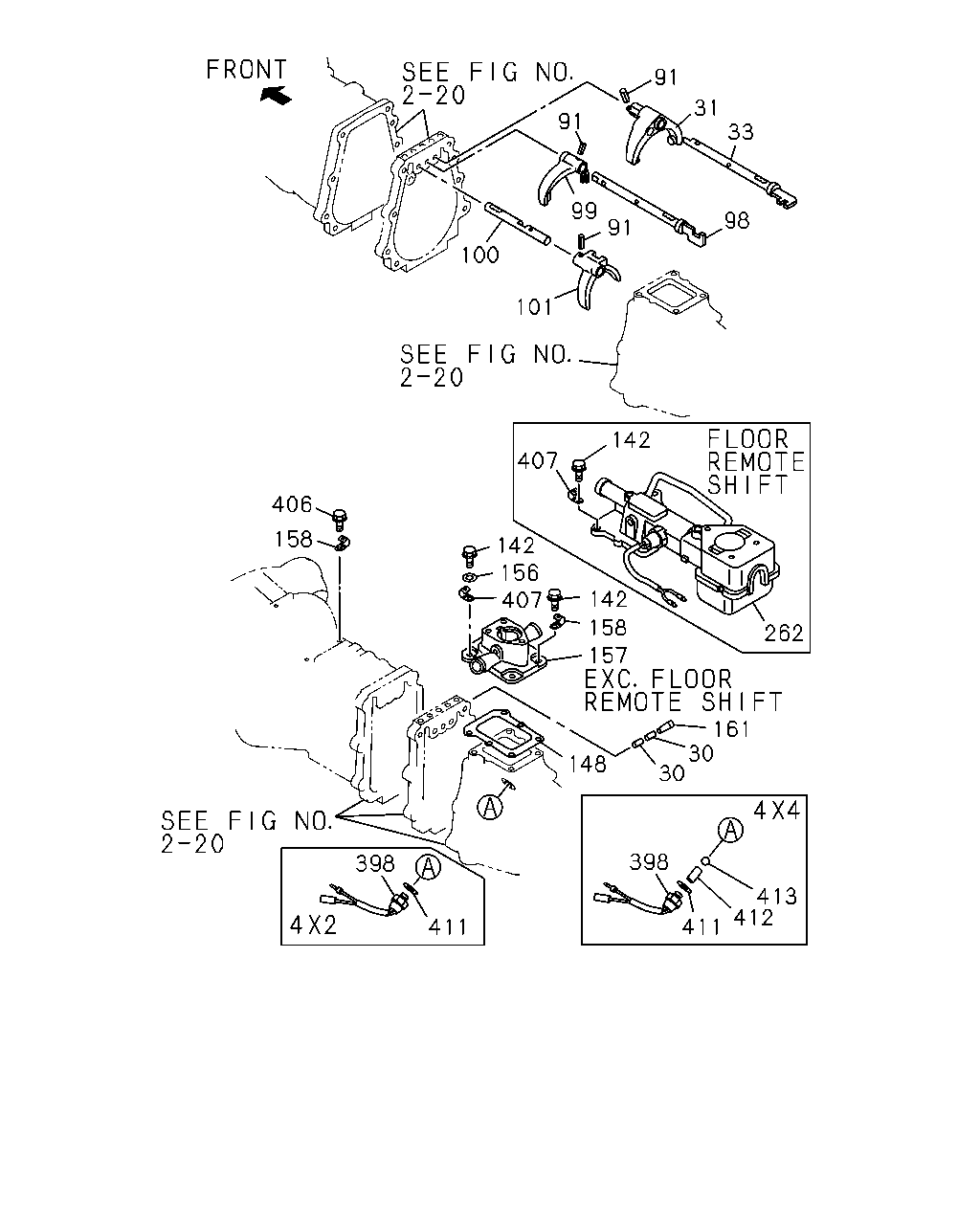

33 31 91 91 99 98 91 100 101 142 407 262 142 407 156 142 158 157 161 30 30 148 398 413 412 411 411 398 158 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9611-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9611-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9611-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-97019-061-2	01	1	9611-		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-4	01	1	9611-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9611-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9611-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-97019-060-3	01	1	9611-		●
98	04.309 ROD; SHIFT,TOP & 3RD 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-4	01	1	9611-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9611-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9611-		●
100	04.309 ROD; SHIFT,REV & 5TH	8-97115-185-0	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9611-	●
101	04.302 ARM; SHIFT,REV & 5TH 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9611-		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) 4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9611-9705		●
101	04.302 ARM; SHIFT,REV & 5TH 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9706-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9611-	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94462-113-0	01	1	9611-9709	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	9710-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9611-		●
156	00.349 WASHER; PL,HARNESS CLIP 4X4(TFS***) 16.674 ID=8.4	9-09160-508-0	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-143-5	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9611-		●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9611-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9611-	●	●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9611-		●
262	04.105 BOX ASM; SHIFT CONT 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-409-4	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-081-5	01	1	9611-	●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-4	01	1	9611-		●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9611-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9611-		●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
406	02.559 BOLT; HARNESS CLIP 4X4(TFS***) 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9611-	●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9611-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9611-	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 04.302 D=5.5 L=26.7	8-94161-122-0	01	1	9611-	●
413	04.307 BALL; BACK SW 4X4(TFS***)	9-00097-517-0	01	1	9611-	●
