Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#40580) — 612 parça

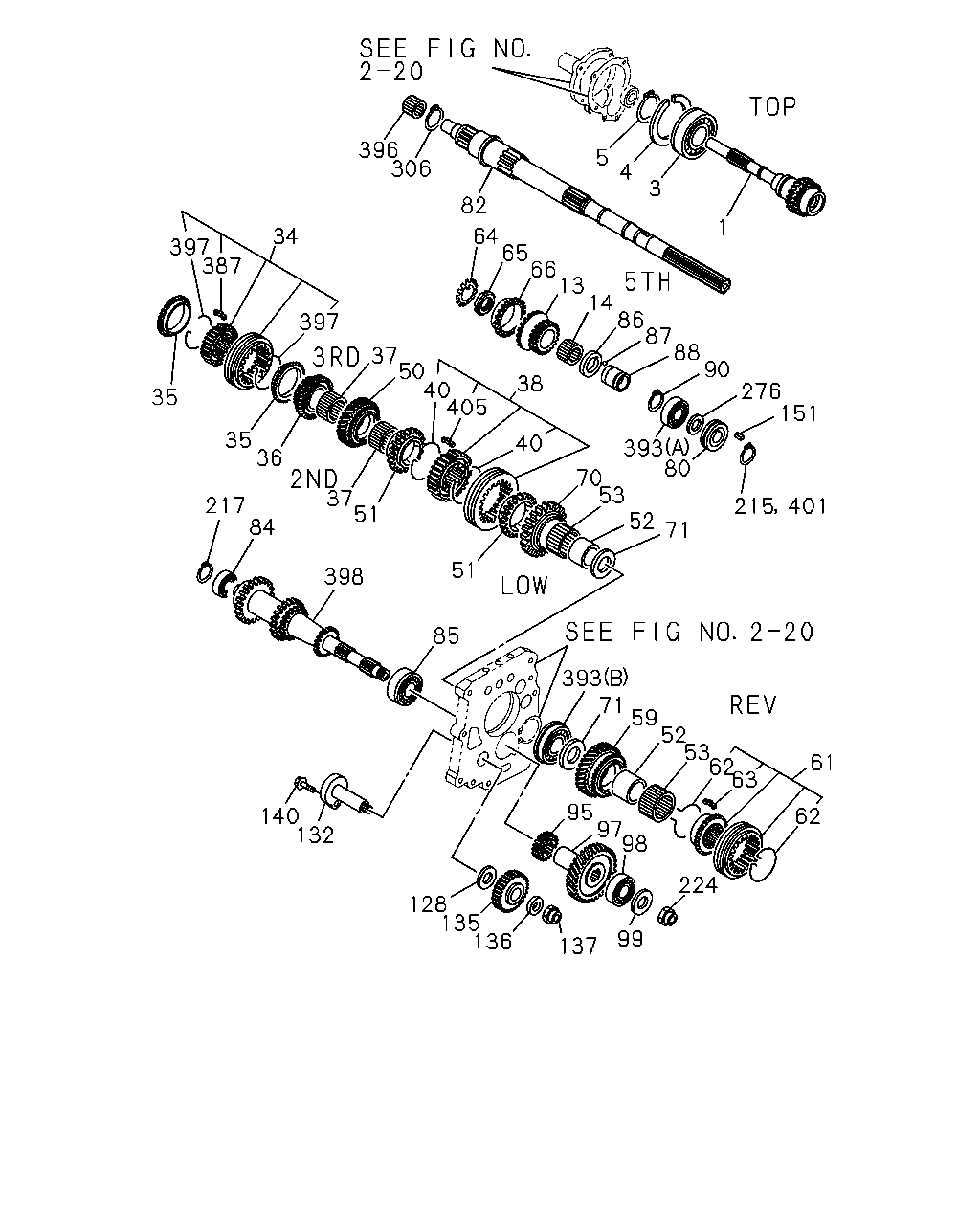

396 5 4 3 1 14 13 66 65 64 82 306 86 87 151 276 90 88 393 215 401 80 38 40 405 40 50 37 397 34 387 397 70 71 52 53 51 51 37 36 35 35 217 398 84 85 393 59 52 53 62 63 62 61 71 224 98 97 95 132 140 128 135 136 137 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9611-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9611-9709		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-		●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	9611-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9611-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	9611-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9611-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9611-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	9611-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9611-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9611-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9611-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9611-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9611-		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	9611-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=29	8-94161-137-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=29	8-94161-139-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=29	8-97104-022-2	01	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=31	8-97104-021-2	01	1	9611-		●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9611-		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9611-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94311-564-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=27	8-94435-135-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=33	8-97025-872-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=34	8-94374-497-0	01	1	9611-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9611-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9611-		●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	9611-	●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=40	8-97104-024-2	01	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=41	8-97104-025-2	01	1	9611-		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9611-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9611-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9611-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9611-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	9611-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9611-		●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9611-		●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=41	8-94310-154-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=40	8-94310-153-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=43	8-94363-057-0	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=45	8-94374-498-0	01	1	9611-		●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94161-086-0	01	1	9611-9711	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94161-086-0	01	1	9712-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=5	8-94443-095-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94443-094-1	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=5	8-94472-606-1	01	1	9611-9712		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=5	8-94472-606-1	01	1	9801-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=6	8-94333-535-2	01	1	9712-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=26-24-27	8-94435-162-3	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=26-24-18-27-20	8-94435-163-1	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	9611-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	9611-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	9611-	●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9611-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9611-	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	9611-	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	9611-		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9611-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9611-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	9611-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9611-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9611-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9611-		●
99	04.429 WASHER; PL,COUNTER 5TH GEAR 04.027 ID=17	9-09160-516-0	01	1	9611-	●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9611-		●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9611-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9611-		●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	9611-	●
137	04.429 NUT; REV GEAR M16	9-09844-195-0	01	1	9611-	●
140	04.435 BOLT; LK PIECE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	9611-	●
215	04.416 RING; SNAP,BALL BRG 4X2(TFB***) ID=27.9	9-09180-030-0	01	1	9611-	●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	9611-	●
224	04.429 NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	9611-	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4X2(TFB***) 04.423	8-94161-087-0	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.50	5-09588-020-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.55	5-09588-021-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.60	5-09588-022-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.65	5-09588-023-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	9611-		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	9611-	●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	9611-	●
393	04.352 BEARING; MAINSHAFT END 4X2(TFB***) 04.422 (A) NSK	8-94173-863-0	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9611-		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	9611-	●
398	04.421 GEAR; COUNTER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=37-31-20-16	8-94469-524-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=37-33-20-17	8-94435-143-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=46-38-27-21	8-97100-912-0	01	1	9611-9711		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=46-38-27-21	8-97100-912-0	01	1	9712-		●
398	04.421 GEAR; COUNTER 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=46-38-25-19	8-97104-161-0	01	1	9611-		●
401	04.345 RING; SNAP,SPD DRIVE GEAR 4X2(TFB***) 04.416 ID=27.9	9-09180-030-0	01	1	9611-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9611-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9611-		●

92 143 144 141 145 146 147 151 154 155 148 157 157 160 149 150 152 153 156 158 80 159 35 36 37 82 37 50 51 405 38 71 71 53 51 53 63 61 64 66 87 90 52 393 70 52 40 40 387 35 306 59 62 62 65 14 13 88 91 224 99 98 97 95 164 164 162 86 85 398 84 217 397 397 34 161 163 162 165 396 1 3 4 5 128 136 135 137 168 179 167 166 140 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9611-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9611-9709		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-		●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	9611-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9611-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	9611-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9611-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9611-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	9611-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9611-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9611-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9611-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9611-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9611-		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	9611-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=29	8-94161-137-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=29	8-94161-139-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=29	8-97104-022-2	01	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=31	8-97104-021-2	01	1	9611-		●
37	04.352 BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9611-		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9611-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94311-564-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=27	8-94435-135-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=33	8-97025-872-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=34	8-94374-497-0	01	1	9611-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9611-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9611-		●
52	04.419 COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	9611-	●
53	04.419 BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=40	8-97104-024-2	01	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=41	8-97104-025-2	01	1	9611-		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9611-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9611-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9611-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9611-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	9611-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9611-		●
64	04.419 WASHER; LK,LOW 04.412	8-94238-095-0	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9611-		●
66	04.383 RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=41	8-94310-154-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=40	8-94310-153-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=43	8-94363-057-0	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=45	8-94374-498-0	01	1	9611-		●
71	04.406 WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94161-086-0	01	1	9611-9711	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94161-086-0	01	1	9712-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=5	8-94443-095-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94443-094-1	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=5	8-94472-606-1	01	1	9611-9712		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=5	8-94472-606-1	01	1	9801-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=6	8-94333-535-2	01	1	9712-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=26-24-27	8-94435-162-3	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=26-24-18-27-20	8-94435-163-1	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	9611-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	9611-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	9611-	●
85	04.422 BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9611-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9611-	●	●
88	04.416 RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	9611-	●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	9611-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT 4X4(TFS***) ID=27.9	9-09180-030-0	02	1	9611-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9611-		●
92	04.408 BEARING; MAINSHAFT,CENTER 4X4(TFS***) NSK	8-94435-339-0	01	1	9611-	●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9611-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9611-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	9611-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9611-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9611-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9611-		●
99	04.429 WASHER; PL,COUNTER 5TH GEAR 04.027 ID=17	9-09160-516-0	01	1	9611-	●
128	04.437 WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9611-		●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9611-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9611-		●
136	04.437 WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	9611-	●
137	04.429 NUT; REV GEAR M16	9-09844-195-0	01	1	9611-	●
140	04.435 BOLT; LK PIECE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●
141	04.535 GEAR; INPUT,TRANSFER 4X4(TFS***) Z=21	8-94435-148-1	01	1	9611-	●
141	04.535 GEAR; INPUT,TRANSFER 4X4(TFS***) Z=34	8-97141-878-0	01	1	9611-		●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER 4X4(TFS***)	8-94435-169-1	01	1	9611-	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER 4X4(TFS***)	8-94482-579-1	01	1	9611-		●
144	04.525 BEARING; NEEDLE,INPUT GEAR 4X4(TFS***) 04.352 NSK	8-94161-989-0	01	1	9611-	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 4X4(TFS***) 04.419 NSK	1-09811-028-1	01	1	9611-		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-94429-579-3	01	1	9611-	●
146	04.419 HUB; CLU,TRANSFER 4X4(TFS***)	8-97114-289-0	01	1	9611-	●
147	04.412 NUT; INPUT GEAR TO MAINSHAFT 4X4(TFS***) M24	5-09449-014-1	01	1	9611-	●
148	04.412 SPACER; PILOT BRG,MAINSHAFT,RR 4X4(TFS***) 04.525	5-36215-003-0	01	1	9611-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X4(TFS***) JTEKT	9-00096-100-1	01	1	9611-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	9611-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) Z=27	8-94449-188-1	01	1	9611-	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***)	8-97141-880-0	01	1	9611-9703		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=49	8-97166-157-0	01	1	9704-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=49	8-97166-156-0	01	1	9712-		●
151	04.345 KEY; FEATHER,SPD DRIVE GEAR 08.960	9-08020-510-0	01	1	9611-	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	5-36262-003-4	01	1	9611-	●
153	04.520 BEARING; NEEDLE,OUTPUT GEAR 4X4(TFS***) NTN	5-09811-027-1	01	1	9611-	●
154	04.535 GEAR; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) Z=32	8-94435-165-1	01	1	9611-	●
155	04.525 WASHER; THRUST,OUTPUT GEAR 4X4(TFS***) ID=35 OD=59	5-36379-002-1	01	1	9611-	●
156	04.525 RING; SNAP,OUTPUT SHAFT BRG 4X4(TFS***) 04.317	5-09589-011-0	01	1	9611-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) (A) NSK	5-09800-046-0	01	1	9611-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) (B) NSK	5-09800-055-1	01	1	9611-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) NSK	8-94422-170-0	01	1	9611-		●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) 6VD1 ENG(RLV) NSK	8-94422-050-1	01	1	9712-		●
158	04.525 PIECE; DIST,OUTPUT BRG,RR 4X4(TFS***)	5-36355-005-0	01	1	9611-	●
159	04.345 SPACER; SPD DRIVE GEAR 4X4(TFS***)	5-36355-006-0	01	1	9611-	●
160	04.525 NUT; OUTPUT SHAFT END 4X4(TFS***) M32	5-09409-018-1	01	1	9611-	●
161	04.428 SHAFT; COUNTER,TRANSFER 4X4(TFS***)	8-94161-126-2	01	1	9611-	●
162	04.525 WASHER; THRUST,COUNTER GEAR,TRAN 4X4(TFS***) ID=35 OD=52	5-36279-003-0	02	1	9611-	●
163	04.535 GEAR; COUNTER,TRANSFER 4X4(TFS***) Z=27-22	8-94435-166-1	01	1	9611-	●
163	04.535 GEAR; COUNTER,TRANSFER 4X4(TFS***) Z=37-26	8-97165-317-0	01	1	9611-		●
164	04.520 BEARING; NEEDLE,COUNTER GEAR,TRA 4X4(TFS***) NTN	5-09811-025-1	02	1	9611-	●
165	04.422 GASKET; COUNTER SHAFT,TRANSFER 4X4(TFS***) 04.515 ID=30.7	5-09623-022-0	01	1	9611-	●
166	04.435 PIECE; DIST 4X4(TFS***) 04.515 T=3.60	8-94161-981-0	01	1	9611-	●
166	04.435 PIECE; DIST 4X4(TFS***) 04.515 T=3.80	8-94161-982-0	01	1	9611-	●
166	04.435 PIECE; DIST 4X4(TFS***) 04.515 T=4.00	8-94161-983-0	01	1	9611-	●
166	04.435 PIECE; DIST 4X4(TFS***) 04.515 T=4.20	8-94161-984-0	01	1	9611-	●
166	04.435 PIECE; DIST 4X4(TFS***) 04.515 T=4.30	8-94161-985-0	01	1	9611-	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER 4X4(TFS***) 04.535	8-94161-127-1	01	1	9611-	●
168	04.422 BOLT; LOCK PLATE,COUNTER SHAFT,T 4X4(TFS***) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9611-	●
179	04.435 BOLT; TRANSFER SHAFT 4X4(TFS***) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9611-	●
217	04.376 RING; SNAP,COUNTER FRT BRG 04.422 ID=18.5	9-09180-020-0	01	1	9611-	●
224	04.429 NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.50	5-09588-020-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.55	5-09588-021-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.60	5-09588-022-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.65	5-09588-023-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	9611-		●
387	04.384 INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	9611-	●
393	04.352 BEARING; MAINSHAFT END 04.408 (B) NSK	8-94173-866-0	01	1	9611-	●
393	04.352 BEARING; MAINSHAFT END 4X2(TFB***) 04.422 (A) NSK	8-94173-863-0	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9611-		●
397	04.384 SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	9611-	●
398	04.421 GEAR; COUNTER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=37-31-20-16	8-94469-524-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=37-33-20-17	8-94435-143-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=46-38-27-21	8-97100-912-0	01	1	9611-9711		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=46-38-27-21	8-97100-912-0	01	1	9712-		●
398	04.421 GEAR; COUNTER 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=46-38-25-19	8-97104-161-0	01	1	9611-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9611-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9611-		●

132 386 95 135 226 189 398 219 97 98 110 82 33 36 35 377 377 306 246 292 93 1 396 35 323 34 392 211 313 70 391 51 390 306 80 40 40 392 391 50 49 5 4 3 51 405 404 38 14 65 62 62 421 59 314 91 72 60 63 61 421 13 87 86 404 89 399 90 306 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9611-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9611-9709		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-		●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	9611-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9611-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	9611-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9611-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9611-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	9611-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9611-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9611-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9611-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9611-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9611-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9611-		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	9611-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=29	8-94161-137-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=29	8-94161-139-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=29	8-97104-022-2	01	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=31	8-97104-021-2	01	1	9611-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9611-		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9611-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9611-		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94311-564-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=27	8-94435-135-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=33	8-97025-872-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=34	8-94374-497-0	01	1	9611-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9611-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=40	8-97104-024-2	01	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=41	8-97104-025-2	01	1	9611-		●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	9611-		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9611-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9611-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9611-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9611-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	9611-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9611-		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=41	8-94310-154-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=40	8-94310-153-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=43	8-94363-057-0	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=45	8-94374-498-0	01	1	9611-		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94161-086-0	01	1	9611-9711	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94161-086-0	01	1	9712-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=5	8-94443-095-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94443-094-1	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=5	8-94472-606-1	01	1	9611-9712		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=5	8-94472-606-1	01	1	9801-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=6	8-94333-535-2	01	1	9712-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=26-24-27	8-94435-162-3	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=26-24-18-27-20	8-94435-163-1	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	9611-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9611-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9611-	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9611-		●
90	04.416 RING; SNAP,THRUST RING 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	9611-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT 4X4(TFS***) ID=27.9	9-09180-030-0	02	1	9611-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9611-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9611-		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9611-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9611-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	9611-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9611-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9611-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9611-		●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9611-		●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9611-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9611-		●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X4(TFS***) JTEKT	9-00096-100-1	01	1	9611-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9611-		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9611-		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9611-		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9611-		●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-3	01	1	9611-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.50	5-09588-020-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.55	5-09588-021-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.60	5-09588-022-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.65	5-09588-023-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	9611-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9611-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9611-		●
323	04.384 INSERT	8-94448-202-1	03	1	9611-		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9611-		●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9611-		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	9611-		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-0	02	1	9611-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9611-		●
398	04.421 GEAR; COUNTER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=37-31-20-16	8-94469-524-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=37-33-20-17	8-94435-143-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=46-38-27-21	8-97100-912-0	01	1	9611-9711		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=46-38-27-21	8-97100-912-0	01	1	9712-		●
398	04.421 GEAR; COUNTER 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=46-38-25-19	8-97104-161-0	01	1	9611-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	9611-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	9611-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9611-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9611-		●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9611-		●

262 150 264 399 263 263 157 80 266 265 261 260 421 65 86 87 404 89 13 14 404 394 254 38 430 253 143 255 141 144 277 61 63 62 62 421 60 72 91 211 70 391 51 405 391 50 49 392 51 40 40 390 5 3 4 392 313 246 93 292 396 306 323 314 59 34 82 33 36 35 377 377 35 1 132 386 95 219 110 98 97 135 226 189 398 273 270 268 375 275 274 163 269 271 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9611-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9611-9709		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-		●
3	04.403 BEARING; TOP GEAR SHAFT 04.355 NSK	8-94167-637-0	01	1	9611-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9611-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.376 NSK	8-94206-485-0	01	1	9611-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9611-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9611-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9611-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	9611-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9611-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9611-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9611-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9611-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9611-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9611-		●
35	04.383 RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	9611-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=29	8-94161-137-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=29	8-94161-139-1	01	1	9611-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=29	8-97104-022-2	01	1	9611-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=31	8-97104-021-2	01	1	9611-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9611-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9611-		●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9611-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9611-		●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94311-564-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=27	8-94435-135-1	01	1	9611-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=33	8-97025-872-0	01	1	9611-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=34	8-94374-497-0	01	1	9611-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9611-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9611-	●
59	04.417 GEAR; REV MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=40	8-97104-024-2	01	1	9611-		●
59	04.417 GEAR; REV MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=41	8-97104-025-2	01	1	9611-		●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	9611-		●
61	04.380 SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9611-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9611-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9611-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9611-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	9611-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9611-		●
65	04.356 NUT; MAINSHAFT M32	8-94238-094-1	01	1	9611-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=41	8-94310-154-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=40	8-94310-153-1	01	1	9611-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=43	8-94363-057-0	01	1	9611-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=45	8-94374-498-0	01	1	9611-		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94161-086-0	01	1	9611-9711	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94161-086-0	01	1	9712-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=6	8-94322-520-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) Z=5	8-94322-519-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=5	8-94443-095-0	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=6	8-94443-094-1	01	1	9611-	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	9611-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=5	8-94472-606-1	01	1	9611-9712		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=5	8-94472-606-1	01	1	9801-		●
80	04.343 GEAR; SPD DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=6	8-94333-535-2	01	1	9712-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=26-24-27	8-94435-162-3	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=26-24-18-27-20	8-94435-163-1	01	1	9611-	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97120-040-0	01	1	9611-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97120-039-0	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9611-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9611-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9611-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9611-	●	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9611-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT 4X4(TFS***) ID=27.9	9-09180-030-0	02	1	9611-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9611-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9611-		●
95	04.417 GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9611-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9611-		●
97	04.415 GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	9611-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9611-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9611-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9611-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9611-		●
132	04.433 SHAFT; REV	8-94435-146-0	01	1	9611-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9611-		●
135	04.430 GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9611-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9611-		●
141	04.535 GEAR; INPUT,TRANSFER 4X4(TFS***) Z=21	8-94435-148-1	01	1	9611-	●
141	04.535 GEAR; INPUT,TRANSFER 4X4(TFS***) Z=34	8-97141-878-0	01	1	9611-		●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER 4X4(TFS***)	8-94435-169-1	01	1	9611-	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER 4X4(TFS***)	8-94482-579-1	01	1	9611-		●
144	04.525 BEARING; NEEDLE,INPUT GEAR 4X4(TFS***) 04.352 NSK	8-94161-989-0	01	1	9611-	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 4X4(TFS***) 04.419 NSK	1-09811-028-1	01	1	9611-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) Z=27	8-94449-188-1	01	1	9611-	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***)	8-97141-880-0	01	1	9611-9703		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=49	8-97166-157-0	01	1	9704-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4X4(TFS***) 6VD1 ENG(RLV) Z=49	8-97166-156-0	01	1	9712-		●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) (A) NSK	5-09800-046-0	01	1	9611-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) (B) NSK	5-09800-055-1	01	1	9611-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) NSK	8-94422-170-0	01	1	9611-		●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4X4(TFS***) 6VD1 ENG(RLV) NSK	8-94422-050-1	01	1	9712-		●
163	04.535 GEAR; COUNTER,TRANSFER 4X4(TFS***) Z=27-22	8-94435-166-1	01	1	9611-	●
163	04.535 GEAR; COUNTER,TRANSFER 4X4(TFS***) Z=37-26	8-97165-317-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9611-		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9611-		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9611-		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9611-		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9611-		●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-3	01	1	9611-		●
253	04.535 BALL; INPUT 4X4(TFS***) 04.416	8-94201-356-0	01	1	9611-		●
254	04.525 COLLAR; TRANSFER 4X4(TFS***)	8-94483-030-2	01	1	9611-		●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS 4X4(TFS***)	8-97141-885-1	01	1	9611-		●
260	04.412 NUT; MAINSHAFT END 4X4(TFS***) M30	8-94422-072-1	01	1	9611-		●
261	04.525 BEARING; PILOT,OUTPUT SHAFT 4X4(TFS***) NSK	8-94422-176-0	01	1	9611-		●
262	04.525 RING; SNAP,PILOT BRG 4X4(TFS***) 08.934 ID=23.2	9-09180-025-0	01	1	9611-		●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.416 ID=27.9	9-09180-030-0	02	1	9611-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT 4X4(TFS***) NSK	8-94422-054-1	01	1	9611-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT 4X4(TFS***) JTEKT	8-94422-055-1	01	1	9611-		●
265	04.525 RING; SNAP,BRG OUTER 4X4(TFS***) OD=95.0	8-94422-091-0	01	1	9611-		●
266	04.525 RING; SNAP,BRG INNER 4X4(TFS***) ID=37.0 OD=53.0	8-94422-093-0	01	1	9611-		●
268	04.537 PLATE; ANTI LASH,COUNTER 4X4(TFS***)	8-97164-348-0	01	1	9611-		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER 4X4(TFS***)	8-94482-469-1	01	1	9611-		●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 4X4(TFS***) 04.537	8-94482-498-0	01	1	9611-		●
271	04.520 BEARING; COUNTER GEAR,FRT 4X4(TFS***) NSK	8-94422-050-1	01	1	9611-		●
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.50 WHITE	8-94448-808-0	01	1	9611-		●
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.55 YELLOW	8-94448-809-0	01	1	9611-		●
272	04.525 RING; SNAP,BRG INNER 4X4(TFS***) T=1.60 BLUE	8-94448-810-0	01	1	9611-		●
273	04.525 RING; SNAP,BRG OUTER 4X4(TFS***) OD=77.0	8-94422-092-0	01	1	9611-		●
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) NSK	8-97113-429-0	01	1	9611-9706		●
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) NSK	8-97080-184-0	01	1	9707-		●
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) JTEKT	8-97113-430-0	01	1	9611-9706		●
274	04.520 BEARING; COUNTER GEAR,RR 4X4(TFS***) JTEKT	8-97080-185-0	01	1	9707-		●
275	04.525 RING; SNAP,COUNTER GEAR BRG 4X4(TFS***) 08.934 ID=23.2	9-09180-025-0	01	1	9611-		●
277	04.345 BALL; SPD DRIVE GEAR 4X4(TFS***) 6VD1 ENG(RLV) 04.416	8-94201-356-0	01	1	9712-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.50	5-09588-020-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.55	5-09588-021-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.60	5-09588-022-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT 04.399 T=1.65	5-09588-023-1	01	1	9611-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9611-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	9611-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9611-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9611-		●
323	04.384 INSERT	8-94448-202-1	03	1	9611-		●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4X4(TFS***)	8-97104-026-0	01	1	9611-		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9611-		●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9611-		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9611-		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	9611-		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-0	02	1	9611-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	9611-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT JTEKT	9-00096-100-1	01	1	9611-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9611-		●
398	04.421 GEAR; COUNTER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) REAR AXLE LOW GEARED(6ST) UNITED KINGDOM EQUIPMENT(EK3) Z=37-31-20-16	8-94469-524-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST),M/T LOW GEARED(6WF) Z=37-33-20-17	8-94435-143-1	01	1	9611-	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ) Z=46-38-27-21	8-97100-912-0	01	1	9611-9711		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) Z=46-38-27-21	8-97100-912-0	01	1	9712-		●
398	04.421 GEAR; COUNTER 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) Z=46-38-25-19	8-97104-161-0	01	1	9611-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	9611-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	9611-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9611-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9611-		●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9611-		●
430	04.525 PLATE; OIL SEAL,TRANSFER 4X4(TFS***) 04.537	8-94482-379-2	01	1	9611-		●

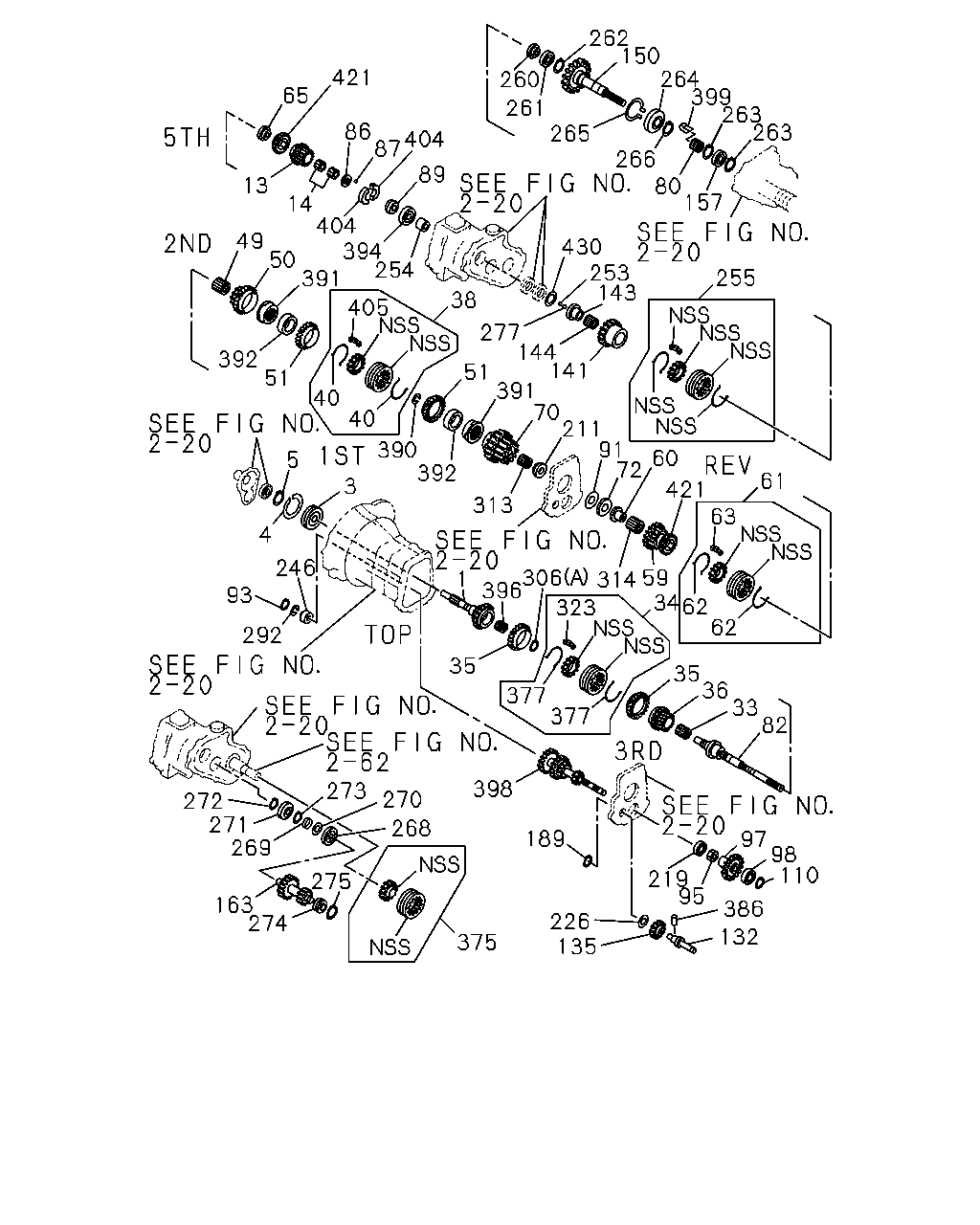

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
