2-25 — SPEEDOMETER DRIVEN GEAR (#40579) — 368 parça

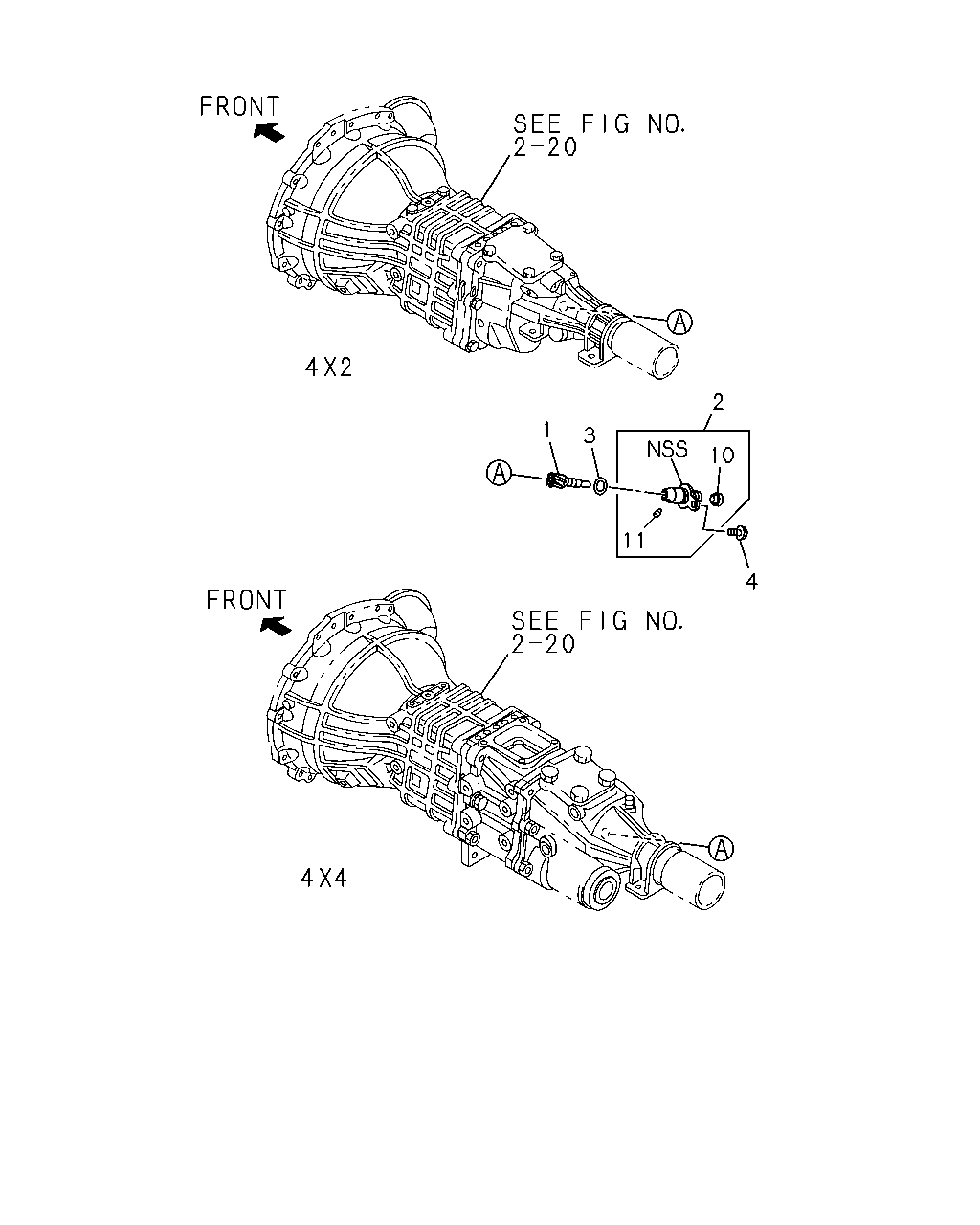

çizim 18004
1 3 2 10 11 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) Z=18 		8-97012-086-1 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 215R15 105S 6JJX15 STYLED(AWB) Z=18 		8-97012-086-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
Z=21 		8-97144-659-0 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
6VD1 ENG(RLV) Z=20 		8-97135-938-0 01 1 9803- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 		8-94367-985-4 01 1 9712- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 04.107 		9-09561-218-0 01 1 9712- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
12.809 M6X16 FLANGE 		0-28280-616-0 01 1 9712- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611-9711 ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9712- ● ● ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9611- ● ● ●

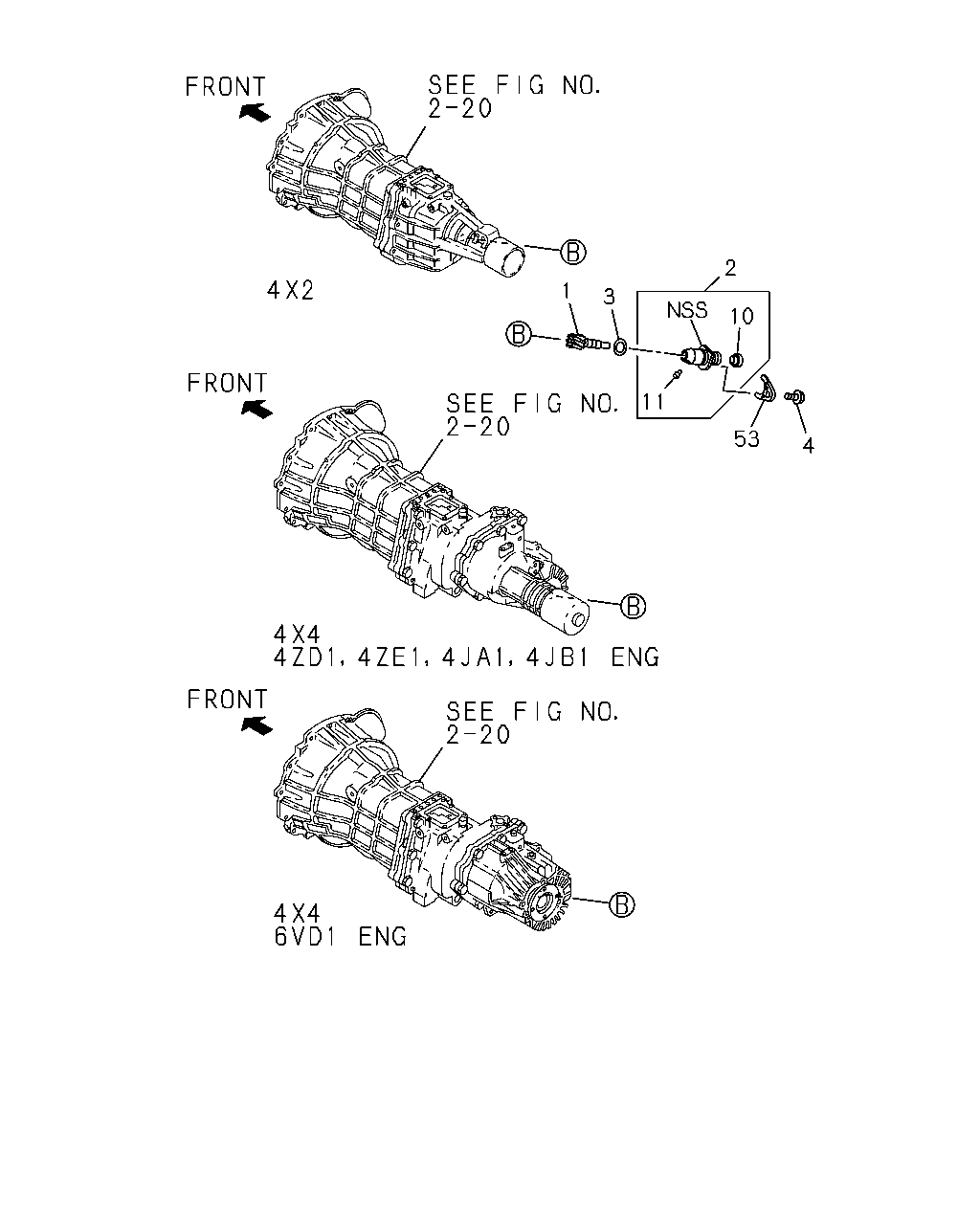

çizim 18207
53 4 11 10 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) Z=18 		8-97012-086-1 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 215R15 105S 6JJX15 STYLED(AWB) Z=18 		8-97012-086-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
Z=21 		8-97144-659-0 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
6VD1 ENG(RLV) Z=20 		8-97135-938-0 01 1 9803- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 		8-94367-985-4 01 1 9712- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 04.107 		9-09561-218-0 01 1 9712- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
12.809 M6X16 FLANGE 		0-28280-616-0 01 1 9712- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611-9711 ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9712- ● ● ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9611- ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9611- ●

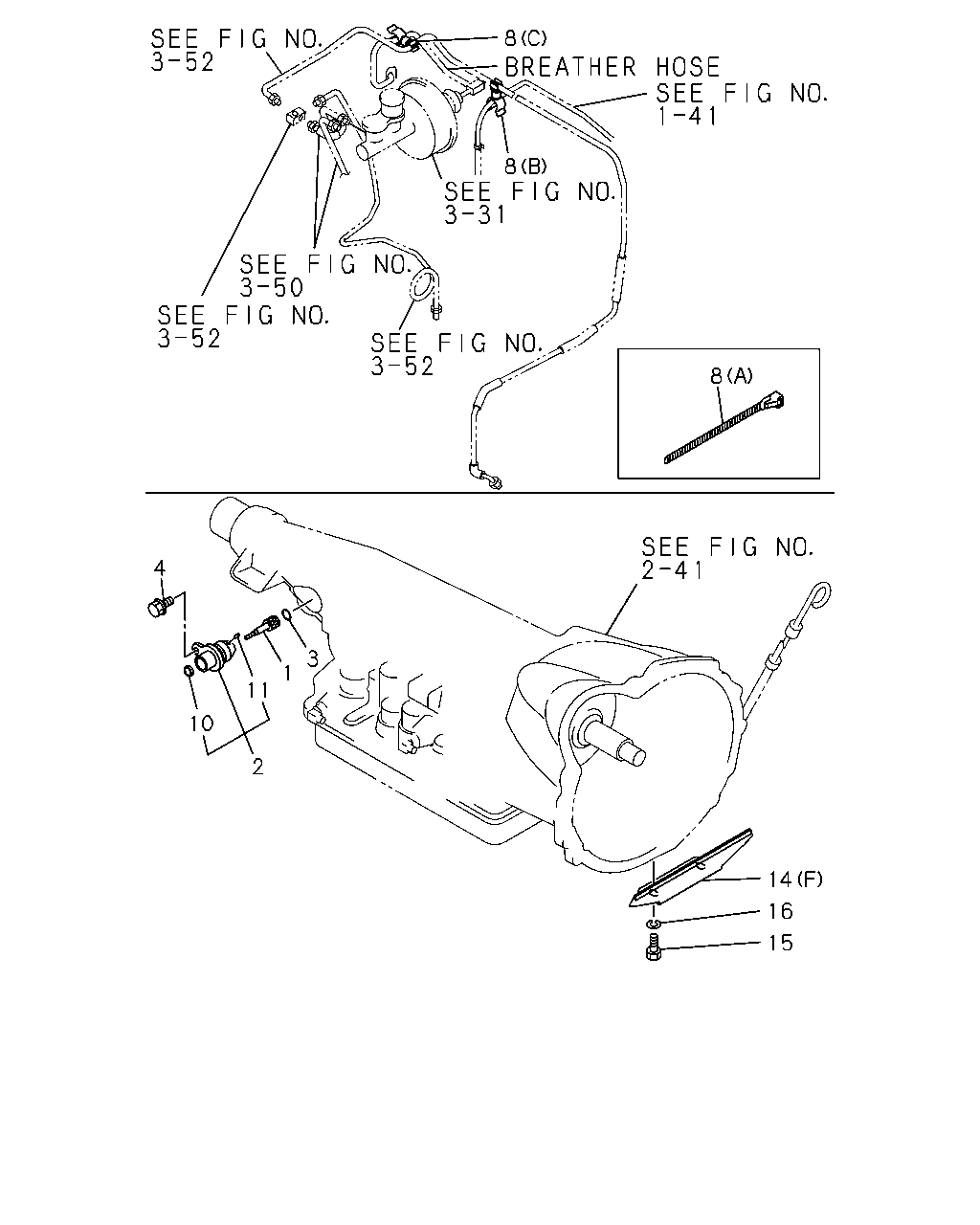

çizim 71040
15 16 14 2 10 4 11 1 3 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) Z=18 		8-97012-086-1 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 215R15 105S 6JJX15 STYLED(AWB) Z=18 		8-97012-086-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
Z=21 		8-97144-659-0 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
6VD1 ENG(RLV) Z=20 		8-97135-938-0 01 1 9803- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 		8-94367-985-4 01 1 9712- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 04.107 		9-09561-218-0 01 1 9712- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
12.809 M6X16 FLANGE 		0-28280-616-0 01 1 9712- ●
8 04.338 CLIP
03.163 (C) ID=13 & 4.75 		8-94447-856-0 01 1 9611- ●
8 04.338 CLIP
03.162 (A) L=140 		5-09707-031-1 01 1 9612- ●
8 04.338 CLIP
03.120 (B) ID=6 & 13 		8-94459-564-0 01 1 9612- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611-9711 ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9712- ● ● ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9611- ● ● ●
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(F) 		8-94460-733-4 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(C) 		8-97164-521-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(B) 		8-97164-547-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (D) M6X10 FLANGE 		0-28080-610-0 08 1 9712- ●
16 00.685 WASHER; LK,UNDER COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●

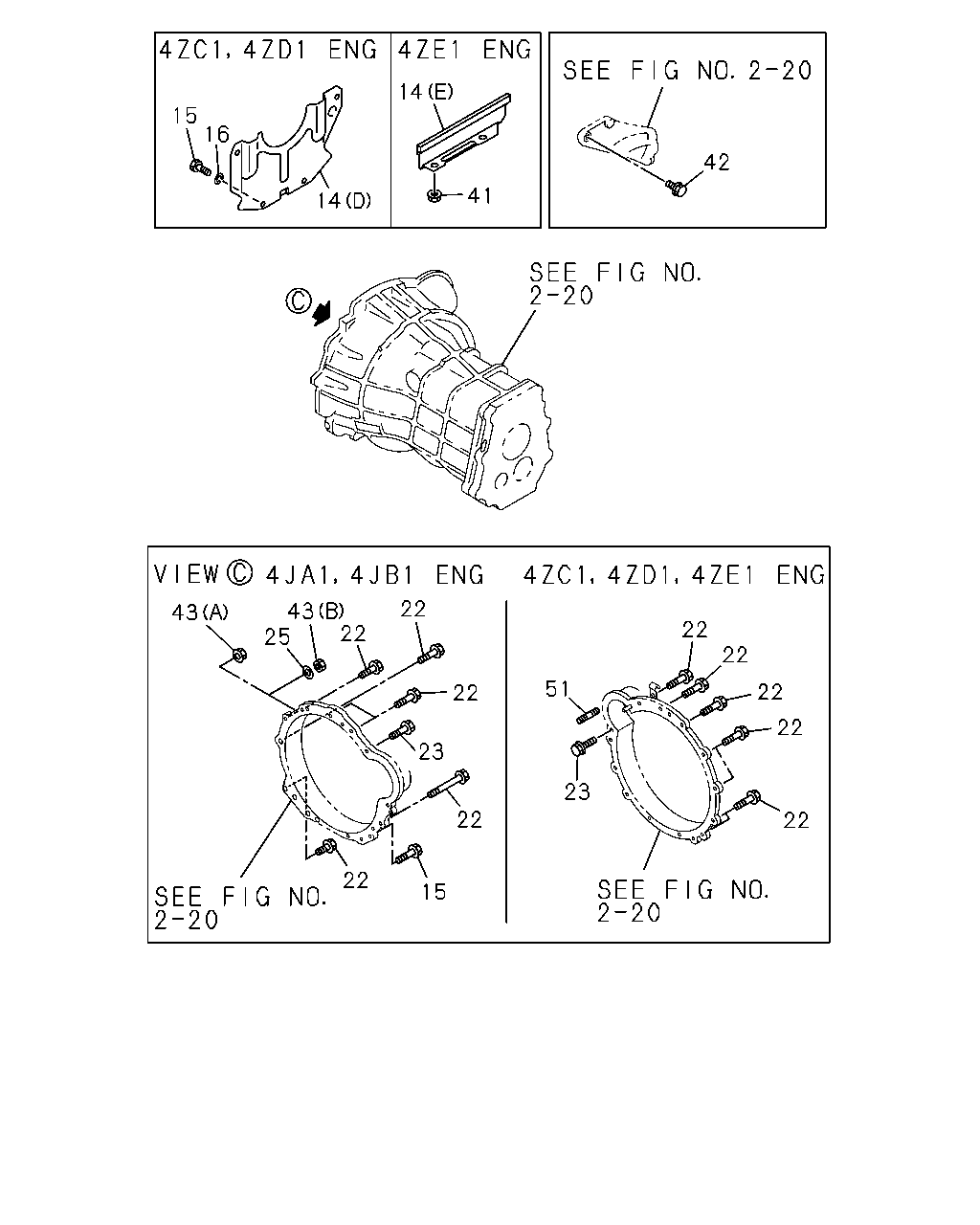

çizim 71261
22 22 22 22 22 51 23 22 23 22 22 22 43 25 15 22 43 42 41 14 15 16 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(F) 		8-94460-733-4 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(C) 		8-97164-521-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(B) 		8-97164-547-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (D) M6X10 FLANGE 		0-28080-610-0 08 1 9712- ●
16 00.685 WASHER; LK,UNDER COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
4ZD1 ENG(LW3) 00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
16 00.685 WASHER; LK,UNDER COVER
00.206 ID=6.1 		9-09150-506-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X60 FLANGE 		0-28081-060-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) 02.042 (A) M12X80 		0-28081-280-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9803- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) M12X50 FLANGE 		0-28181-250-0 01 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 01 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9803- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 05 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9801-9802 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M10X35 FLANGE 		0-28781-035-0 01 1 9611- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28781-035-0 01 1 9611- ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) M12X68 FLANGE 		8-94480-344-1 02 1 9611-9801 ●
23 00.685 BOLT; STARTER TO TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) M12X70 FLANGE 		0-28081-270-0 02 1 9802- ●
23 00.685 BOLT; STARTER TO TRANS CASE
04.510 M10X35 FLANGE 		0-28181-035-0 01 1 9611- ●
25 00.685 WASHER; PL,TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.430 ID=12.5 		9-09160-512-0 01 1 9611- ●
41 04.105 NUT; UNDER COVER
4ZE1 ENG(RLJ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M10X72 FLANGE 		8-94475-057-1 02 1 9611-9705 ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.706 M10X70 FLANGE 		0-28081-070-0 02 1 9706- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
6VD1 ENG(RLV) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9611- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.586 (B) M12 FLANGE 		0-91150-112-0 02 1 9611- ●
43 00.685 NUT; TRANS CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) 05.816 (B) M12 		9-99110-412-0 01 1 9611- ●
51 00.685 STUD; STARTER SETTING
02.042 M10X33 L=53 		8-94207-236-0 01 1 9611- ●
çizim 71262
15 15 15 15 14 22 22 22 22 22 22 27 15 14 15 15 14 15 1 3 10 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.337 GEAR; DRIVEN,SPD
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=18 		8-94473-304-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) REAR AXLE LOW GEARED(6ST) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 185R14-8 5.5JJX14(APE), FRT&RR 185R14-8 5.5JJX14(9PE) Z=18 		8-94473-306-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9611-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) EXC. UNITED KINGDOM EQUIPMENT(EK3), REARAXLE LOW GEARED(6ST) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 6VD1 ENG(RLV) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG) Z=19 		8-94473-303-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4JA1 ENG(RLE) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) REAR AXLE LOW GEARED(6ST) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3) FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP), FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&R R 6.5-14-8 5JX14(9NY) Z=17 		8-94473-307-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) Z=16 		8-94473-308-1 01 1 9611- ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) Z=18 		8-97012-086-1 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
4X2(TFB***) 6VD1 ENG(RLV) FRT&RR 215R15 105S 6JJX15 STYLED(AWB) Z=18 		8-97012-086-1 01 1 9803- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9611-9711 ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT&RR 185R14-8 5.5JJX14(APE),FR T&RR 185R14-8 5.5JJX14(9PE) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
4X2 LONG(TFB**F) 4ZE1 ENG(RLJ) Z=20 		8-94473-302-1 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
Z=21 		8-97144-659-0 01 1 9712-9802 ●
1 04.337 GEAR; DRIVEN,SPD
6VD1 ENG(RLV) Z=20 		8-97135-938-0 01 1 9803- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9611- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9611- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 		8-94367-985-4 01 1 9712- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9611- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 04.107 		9-09561-218-0 01 1 9712- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9611- ●
4 04.338 BOLT; RET,DRIVEN GEAR
08.900 M8X18 FLANGE 		0-28080-818-0 01 1 9611-9705 ●
4 04.338 BOLT; RET,DRIVEN GEAR
12.809 M6X16 FLANGE 		0-28280-616-0 01 1 9712- ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9611-9711 ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-0 01 1 9712- ● ● ● ●
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(F) 		8-94460-733-4 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(C) 		8-97164-521-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(B) 		8-97164-547-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (D) M6X10 FLANGE 		0-28080-610-0 08 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X60 FLANGE 		0-28081-060-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) 02.042 (A) M12X80 		0-28081-280-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9803- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) M12X50 FLANGE 		0-28181-250-0 01 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 01 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9803- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 05 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9801-9802 ●
27 00.685 NUT; CLU HSG TO TRANS
6VD1 ENG(RLV) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9712- ● ●
çizim 71268
15 22 14 15 15 42 14 15 15 14 27 15 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 00.679 COVER; UNDER,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (D) 		8-97074-336-1 01 1 9611- ● ●
14 00.679 COVER; UNDER,TRANS
4ZE1 ENG(RLJ) (E) 		8-94310-655-2 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (A) 		8-97164-174-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (B) 		8-97164-175-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
6VD1 ENG(RLV) (C) 		8-97164-176-2 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(F) 		8-94460-733-4 01 1 9611- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(C) 		8-97164-521-0 01 1 9712- ●
14 00.679 COVER; UNDER,TRANS
(B) 		8-97164-547-2 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> M10X30 FLANGE 		0-28081-030-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4ZD1 ENG(LW3) 05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
05.815 M6X10 		0-20800-610-0 02 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF) M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
6VD1 ENG(RLV) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9712- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (D) M6X10 FLANGE 		0-28080-610-0 08 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
04.525 M10X40 FLANGE 		0-28081-040-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 07.068 M12X35 FLANGE 		0-28081-235-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) M12X90 		8-94475-060-1 01 1 9611-9703 ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) 00.780 M12X90 		0-28081-290-0 01 1 9704- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> 04.317 M10X55 FLANGE 		8-94473-959-1 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.162 M10X35 FLANGE 		0-28681-035-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4JA1 ENG(RLE) TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.525 M10X40 FLANGE 		0-28081-040-0 03 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X60 FLANGE 		0-28081-060-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28081-030-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X35 FLANGE 		0-28081-035-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M10X45 FLANGE 		0-28081-045-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) 02.042 (A) M12X80 		0-28081-280-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 04 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9803- ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) M12X50 FLANGE 		0-28181-250-0 01 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 01 1 9801-9802 ●
22 00.685 BOLT; TRANS CASE TO ENG
6VD1 ENG(RLV) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9803- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
LONG(TF***F) 4ZE1 ENG(RLJ) M10X50 FLANGE 		0-28081-050-0 02 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 05 1 9611- ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9712-9712 ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9712- ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9801-9802 ●
27 00.685 NUT; CLU HSG TO TRANS
6VD1 ENG(RLV) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9712- ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9611- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M10X72 FLANGE 		8-94475-057-1 02 1 9611-9705 ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 03.706 M10X70 FLANGE 		0-28081-070-0 02 1 9706- ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
6VD1 ENG(RLV) M12X45 FLANGE 		0-28181-245-0 02 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
