◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#40576) — 51 parça

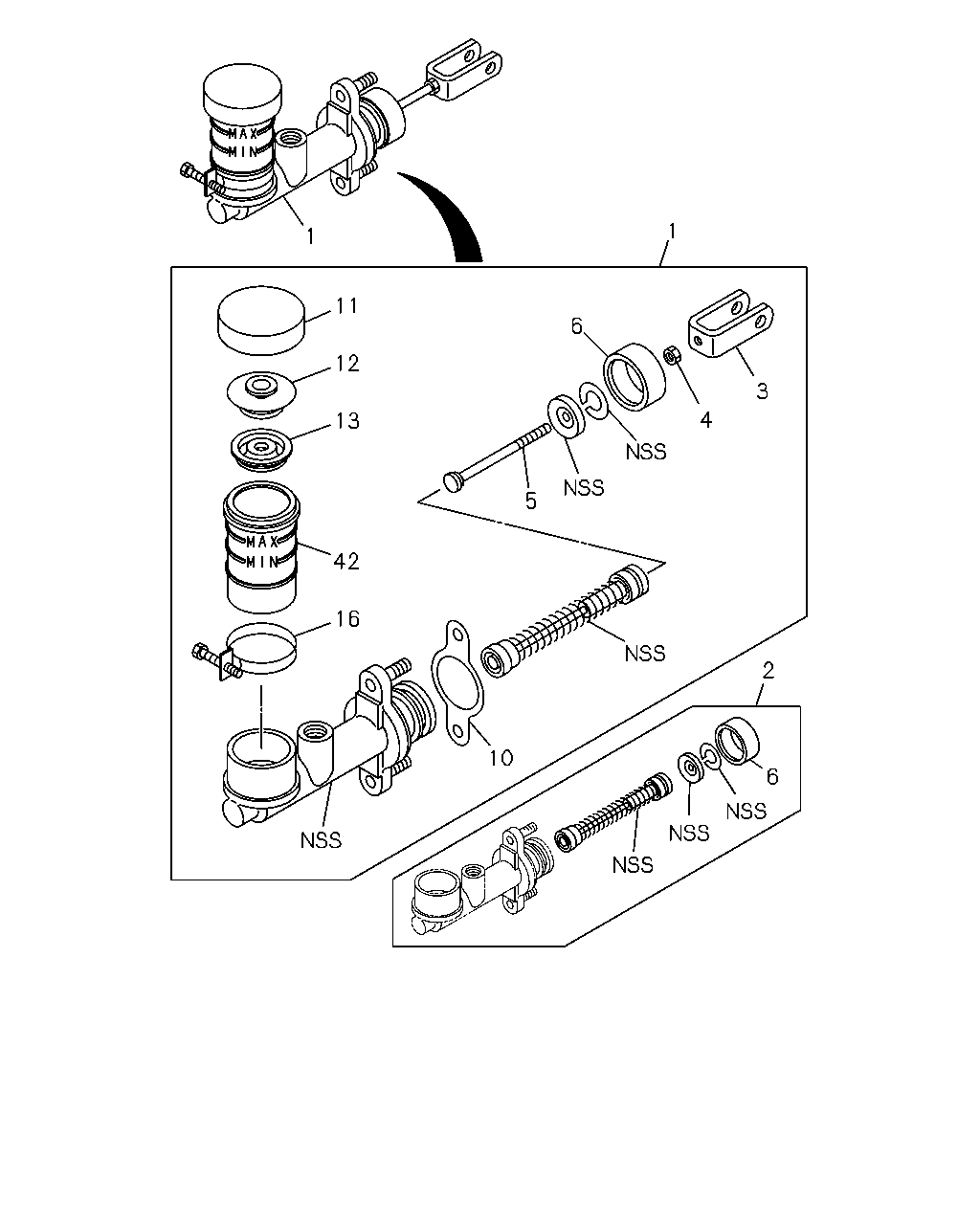

çizim 70335
1 3 4 6 5 1 11 12 13 42 16 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97136-445-0 01 1 9611-9708 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97185-018-0 01 1 9709-9802 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97201-007-0 01 1 9803- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
6VD1 ENG(RLV) 		8-97192-669-1 01 1 9712- ●
2 00.775 REPAIR KIT; CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-486-1 01 1 9611-9708 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-659-0 01 1 9709-9802 ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-197-2 01 1 9611-9708 ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97183-494-0 01 1 9709-9802 ● ●
6 00.775 BOOT; CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-200-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-202-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
6VD1 ENG(RLV) 		8-97192-550-0 01 1 9712- ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ●
çizim 72110
3 4 10 83 16 42 13 12 11 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97136-445-0 01 1 9611-9708 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97185-018-0 01 1 9709-9802 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97201-007-0 01 1 9803- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
6VD1 ENG(RLV) 		8-97192-669-1 01 1 9712- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611- ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-202-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
6VD1 ENG(RLV) 		8-97192-550-0 01 1 9712- ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97213-040-0 01 1 9803- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
6VD1 ENG(RLV) 		8-97213-040-0 01 1 9712- ●
çizim 72111
1 1 11 12 13 42 16 83 10 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97136-445-0 01 1 9611-9708 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97185-018-0 01 1 9709-9802 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97201-007-0 01 1 9803- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
6VD1 ENG(RLV) 		8-97192-669-1 01 1 9712- ●
3 00.777 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9611- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9611- ● ●
10 00.777 GASKET; CLU M/CYL 8-94427-298-0 01 1 9611-9802 ● ●
10 00.777 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803- ● ●
11 00.777 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9611- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9611- ● ●
13 00.777 GASKET; OIL TANK 8-94412-205-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-202-0 01 1 9611- ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
6VD1 ENG(RLV) 		8-97192-550-0 01 1 9712- ●
42 00.777 TANK; OIL,CLU 8-97037-335-0 01 1 9611- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97213-040-0 01 1 9803- ● ●
83 00.775 CYLINDER SUB ASM; CLUTCH MASTER
6VD1 ENG(RLV) 		8-97213-040-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
