1-57 — EXHAUST THROTTLE BODY (#40571) — 18 parça

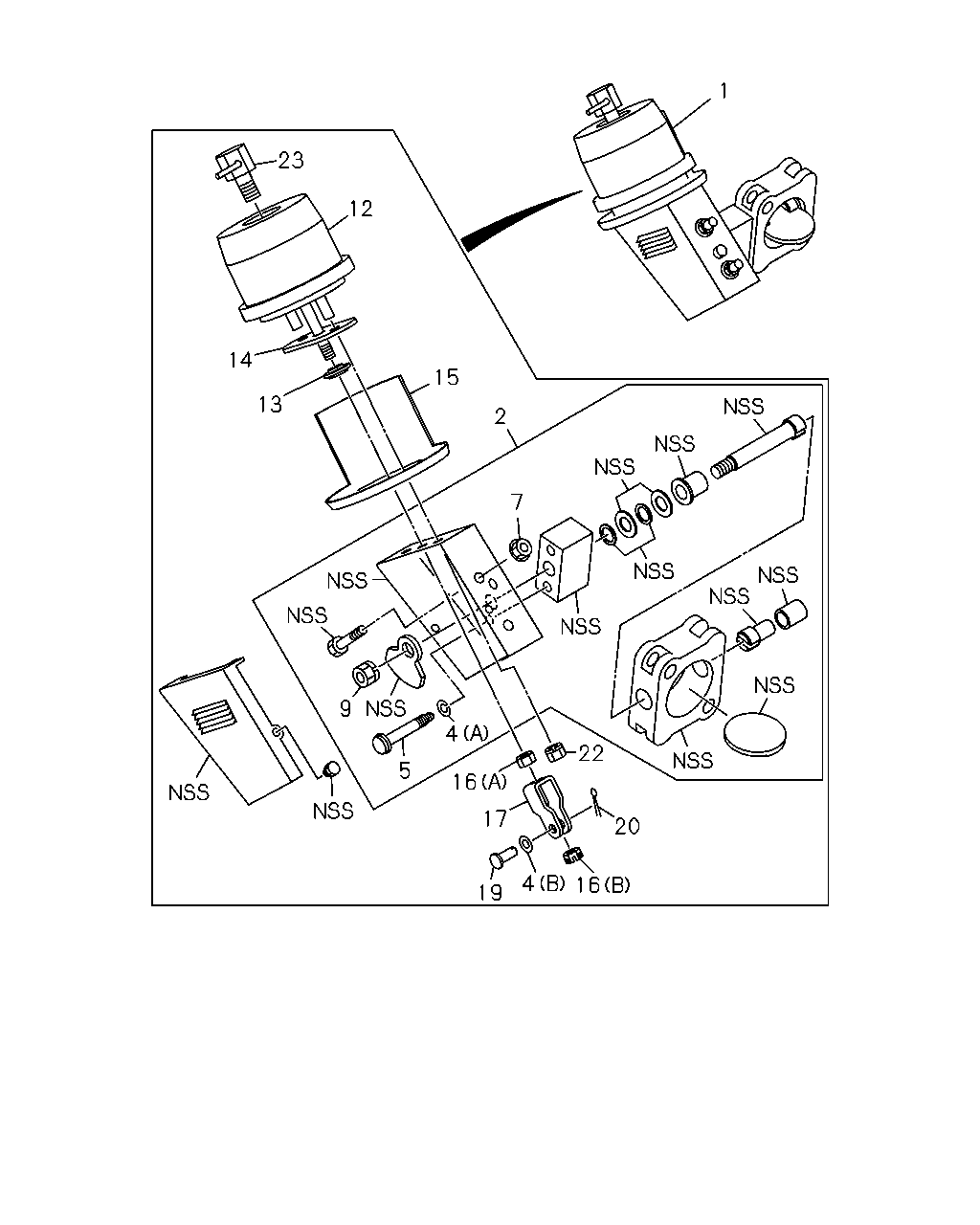

çizim 69717
20 16 4 19 17 16 4 5 9 22 7 2 15 13 14 12 23 1
BalonParca AdiParca NoAdetTipApplied Date
1 03.440 BODY ASM; EXH THROTTLE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97128-894-0 01 1 9611-
2 03.440 BODY; EXH THROTTLE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97131-329-0 01 1 9611-
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
UNITED KINGDOM EQUIPMENT(EK3) 00.002 (A) ID=8.2 		9-09150-508-0 02 1 9611-
4 03.440 WASHER; LEVER,EXH THROTTLE BODY
UNITED KINGDOM EQUIPMENT(EK3) 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 9611-
5 03.444 BOLT; BRKT TO VLV
UNITED KINGDOM EQUIPMENT(EK3) 04.027 M5X8 		0-20800-508-0 02 1 9611-
7 03.444 NUT; LOCK,BOLT
UNITED KINGDOM EQUIPMENT(EK3) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9611-
9 03.440 NUT; LEVER,EXH THROTTLE BODY
UNITED KINGDOM EQUIPMENT(EK3) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 9611-
12 03.440 CHAMBER; POWER,EXH THROTTLE BODY
UNITED KINGDOM EQUIPMENT(EK3) 03.634 		8-97039-374-0 01 1 9611-
13 03.440 BEARING; POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 03.634 		8-94383-629-0 01 1 9611-
14 03.440 GASKET; POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 03.634 		8-94328-234-0 01 1 9611-
15 03.440 INSULATOR; POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 03.634 		8-94383-633-0 01 1 9611-
16 03.440 NUT; LK,POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 05.122 (A) 		8-94311-428-0 01 1 9611-
16 03.440 NUT; LK,POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94388-225-0 01 1 9611-
17 03.440 CLEVIS; EXH THROTTLE BODY
UNITED KINGDOM EQUIPMENT(EK3) 03.636 		8-97039-375-0 01 1 9611-
19 03.440 PIN; LEVER
UNITED KINGDOM EQUIPMENT(EK3) 03.636 		8-94311-452-0 01 1 9611-
20 03.440 PIN; SPLIT,LEVER
UNITED KINGDOM EQUIPMENT(EK3) 03.636 		8-97028-428-0 01 1 9611-
22 03.440 NUT; BRKT TO POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9611-
23 03.440 ELBOW; CONNECTOR,POWER CHAMBER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97018-078-0 01 1 9611-
