◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#40568) — 688 parça

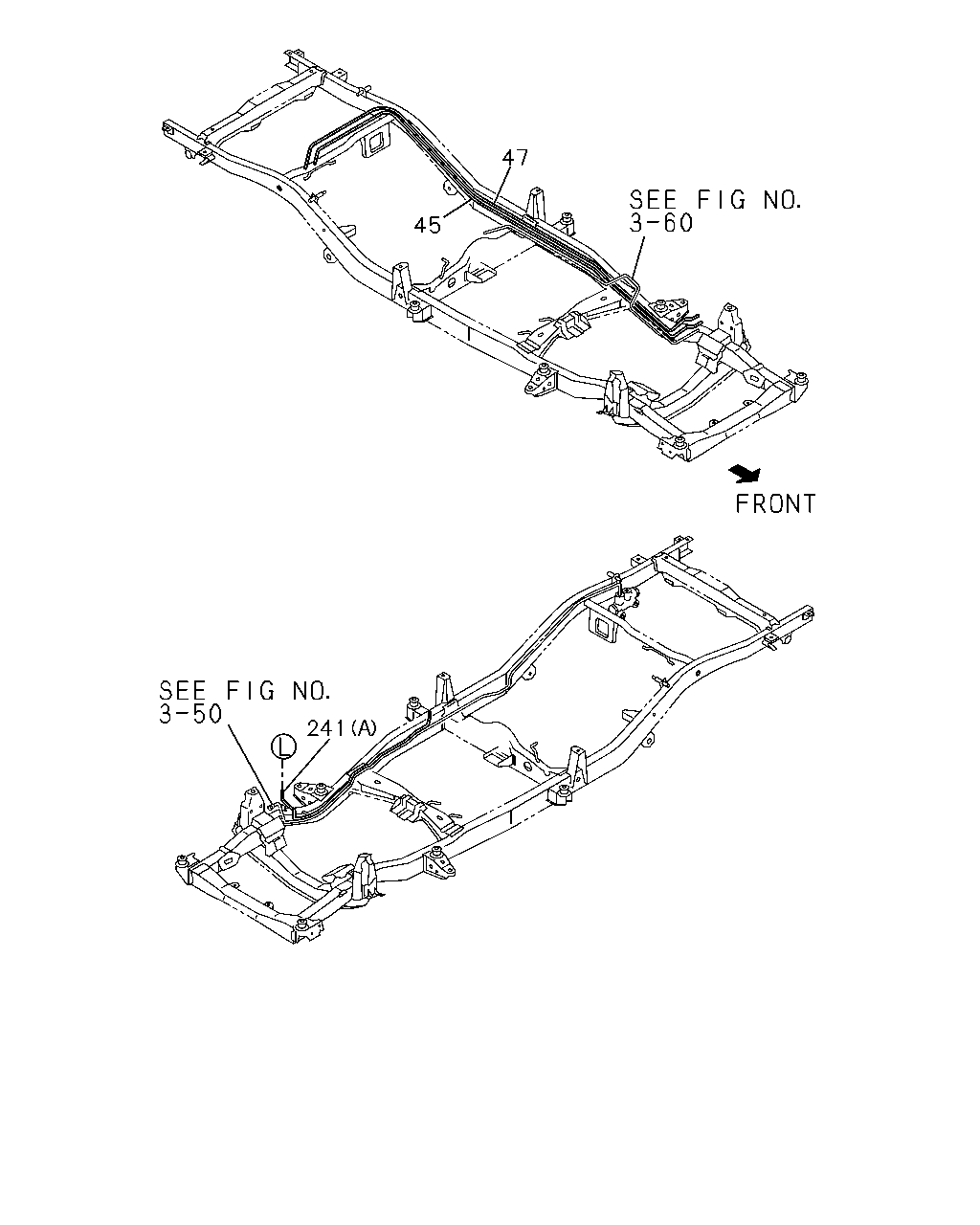

çizim 18482
241 45 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-758-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-759-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-226-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
A/T THM(RMQ) 		8-97179-633-1 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MUA 5 SPEED(RMN) 		8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 		8-97132-336-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SPACE CAB(TFS*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-342-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-760-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-761-2 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-227-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
A/T THM(RMQ) 		8-97179-636-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
M/T MUA 5 SPEED(RMN) 		8-97179-634-1 01 1 9712- ●
241 03.163 PIPE; EVAP
M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97084-634-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 LONG(TFB**F) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) (B) 		8-94338-334-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-328-1 01 1 9611-9711 ●
241 03.163 PIPE; EVAP
SINGLE CAB LONG(TF**SF) (A) 		8-97179-630-0 01 1 9712- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97179-637-2 01 1 9712- ●

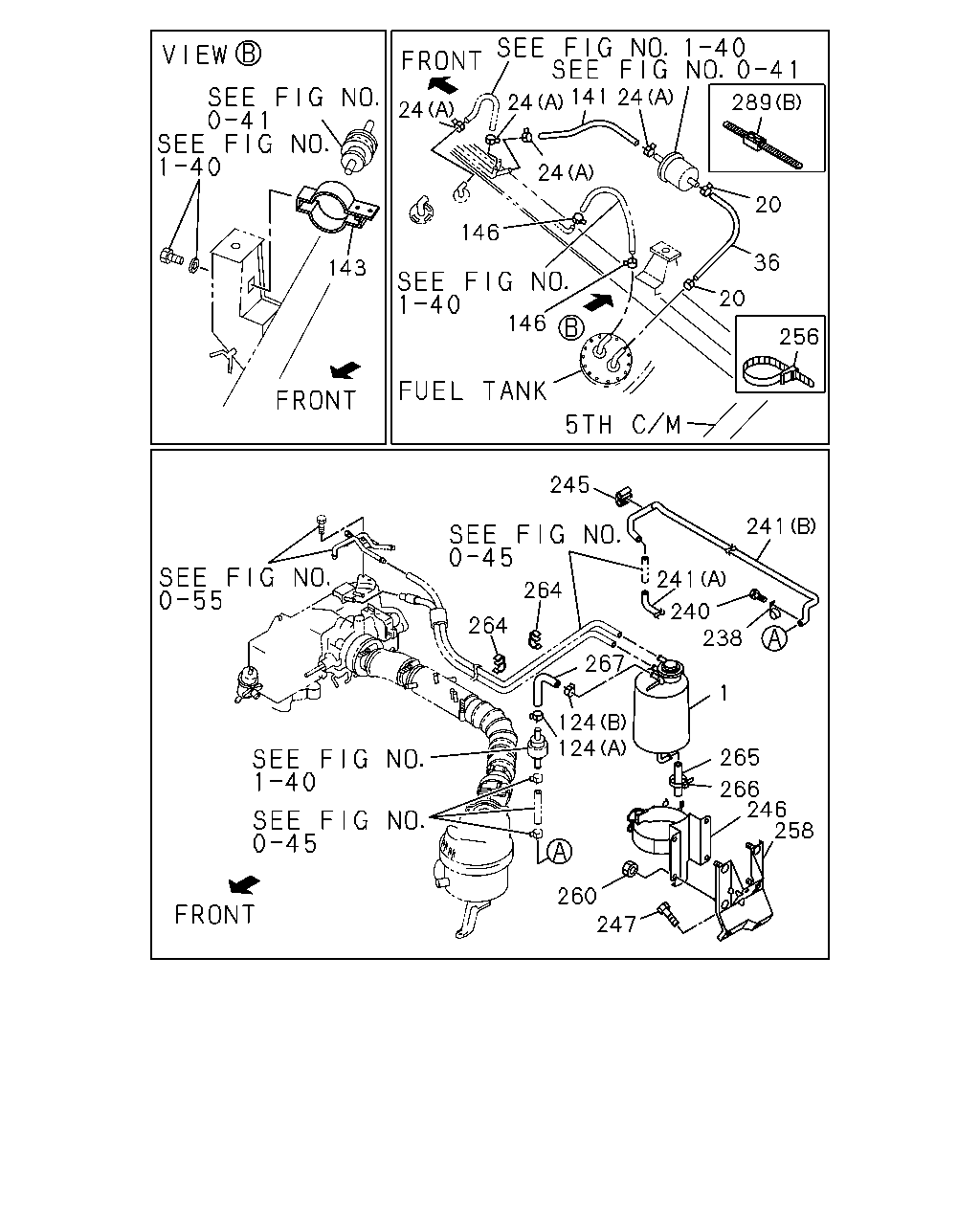

çizim 67204
143 146 146 256 20 36 20 289 24 141 24 24 24 245 241 241 240 238 1 265 266 246 258 247 260 124 124 267 264 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.130 CANISTER; FUEL
ELECTRIC FUEL INJECTION<6GG> 		8-17090-120-0 01 1 9611- ●
1 03.130 CANISTER; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-17087-023-0 01 1 9712- ●
20 03.162 CLIP; HOSE,FUEL TANK
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ●
20 03.162 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 9712- ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611-9711 ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> ID=12 		8-97148-892-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=380 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=380 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
36 03.163 HOSE; FUEL,FILTER TO TANK
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 L=300 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
36 03.163 HOSE; FUEL,FILTER TO TANK
CREW CAB(TF**W*) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=300 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
36 03.163 HOSE; FUEL,FILTER TO TANK
ELECTRIC FUEL INJECTION<6GG> 03.901 L=300 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ●
124 03.162 CLIP; HOSE
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 01 1 9611- ●
124 03.162 CLIP; HOSE
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 01.219 (B) ID=12 		8-94238-610-0 01 1 9611- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SHORT(TF***C) 08.962 L=170 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 08.962 L=250 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=250 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
4X2 SPACE CAB(TFB*C*) 08.962 L=240 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
SPACE CAB(TF**C*) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=240 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
ELECTRIC FUEL INJECTION<6GG> 03.901 L=240 SERVICED BY L=3000 		0-01458-300-0 01 1 9611- ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9611- ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9611- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-94238-570-0 02 1 9611-9711 ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-94238-570-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-97173-219-0 02 1 9712- ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●
238 03.145 CLIP; FUEL EVAP PIPE
AUSTRALIA EQUIPMENT(RR3) 04.686 ID=7 L=20 		9-09524-632-0 01 1 9611- ●
240 03.145 BOLT; EVAP PIPE CLIP
AUSTRALIA EQUIPMENT(RR3) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9611-9711 ●
240 03.145 BOLT; EVAP PIPE CLIP
AUSTRALIA EQUIPMENT(RR3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9712- ●
241 03.163 PIPE; EVAP
M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97084-634-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 LONG(TFB**F) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) (B) 		8-94338-334-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-328-1 01 1 9611-9711 ●
241 03.163 PIPE; EVAP
SINGLE CAB LONG(TF**SF) (A) 		8-97179-630-0 01 1 9712- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97179-637-2 01 1 9712- ●
245 03.162 CLIP; EVAP HOSE
AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 6.35 		8-94474-113-0 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-94238-570-0 02 1 9611-9711 ●
245 03.162 CLIP; EVAP HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-97173-219-0 02 1 9712- ●
246 03.130 BRACKET; CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 		8-97088-704-0 01 1 9611- ●
246 03.130 BRACKET; CANISTER
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97089-947-0 01 1 9712- ●
246 03.130 BRACKET; CANISTER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97176-968-0 01 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 03 1 9611-9711 ●
247 03.130 BOLT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
AUSTRALIA EQUIPMENT(RR3) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
AUSTRALIA EQUIPMENT(RR3) 04.930 (B) M6X20 FLANGE 		0-28680-620-0 03 1 9712- ●
256 03.162 CLIP; BAND,FUEL HOSE
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) L=140 		5-09707-031-1 01 1 9611- ●
258 03.130 STAY; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 		8-94340-062-0 01 1 9611- ●
260 03.130 NUT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9611-9711 ●
260 03.130 NUT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 01.271 M8 FLANGE 		8-94178-701-0 02 1 9712- ●
264 01.166 CLIP; HOSE,CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 03.675 		8-94152-396-0 03 1 9611- ●
265 03.145 HOSE; DRAIN,CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) L=540 		8-97088-858-1 01 1 9611- ●
266 03.162 CLIP; DRAIN HOSE,CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 02.587 L=112 		8-94232-618-0 02 1 9611- ●
267 03.145 HOSE; CONT VALVE TO CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) L=115 ID=5.4 & 7.0 		8-94335-689-1 01 1 9611- ●
289 03.008 CLIP; BAND,HOSE
(B) L=330 		5-09709-118-0 02 1 9611- ● ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
ELECTRIC FUEL INJECTION<6GG> 02.559 (A) L=250 		5-09707-030-1 01 1 9611- ●

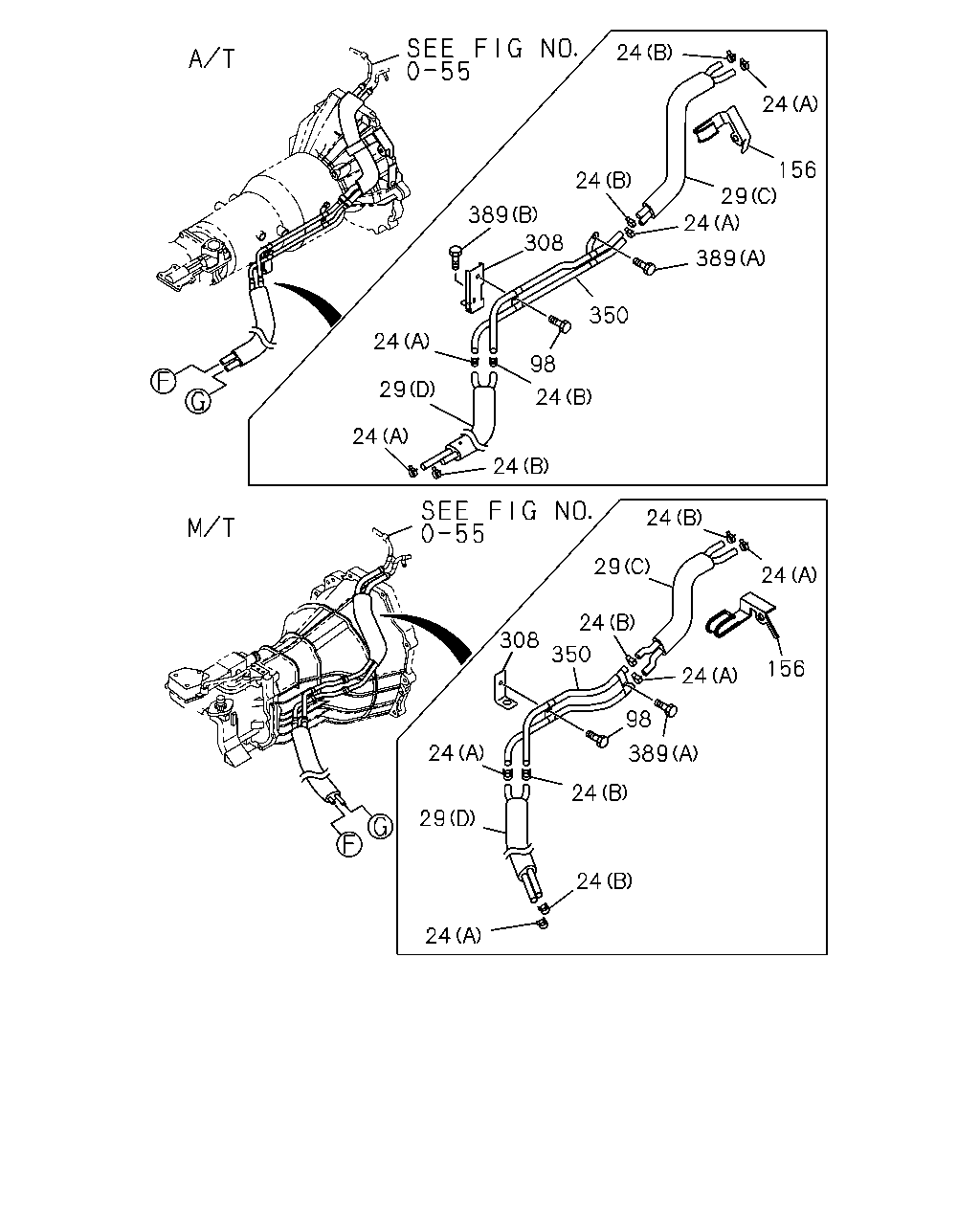

çizim 67234
24 24 24 29 308 350 98 389 24 24 24 24 156 29 24 24 24 98 350 389 24 29 156 24 24 24 389 24 24 29 308
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
29 03.163 HOSE; FUEL
(A) 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=300 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
A/T THM(RMQ) (C) 		8-97174-384-2 01 1 9712- ●
29 03.163 HOSE; FUEL
A/T THM(RMQ) (D) 		8-97175-638-2 01 1 9712- ●
29 03.163 HOSE; FUEL
M/T MUA 5 SPEED(RMN) (C) 		8-97175-635-1 01 1 9712- ●
29 03.163 HOSE; FUEL
M/T MUA 5 SPEED(RMN) (D) 		8-97175-636-1 01 1 9712- ●
29 03.163 HOSE; FUEL
SINGLE CAB LONG(TF**SF) (E) L=400 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
CREW CAB(TF**W*) (E) L=500 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
98 03.162 BOLT; BRKT,FUEL PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
156 03.162 BRACKET; FUEL HOSE
A/T THM(RMQ) 		8-97170-282-0 01 1 9712- ●
156 03.162 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) 		8-97179-620-0 01 1 9802- ●
308 03.162 BRACKET; FUEL PIPE
A/T THM(RMQ) 		8-97175-938-1 01 1 9712- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED(RMN) 		8-97179-620-0 01 1 9712-9801 ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED(RMN) 		8-97190-828-0 01 1 9712- ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM(RMQ) 		8-97175-674-2 01 1 9712- ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) 		8-97190-827-1 01 1 9712- ●
389 03.162 BOLT; PIPE FIX T/M
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
389 03.162 BOLT; PIPE FIX T/M
A/T THM(RMQ) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9712- ●

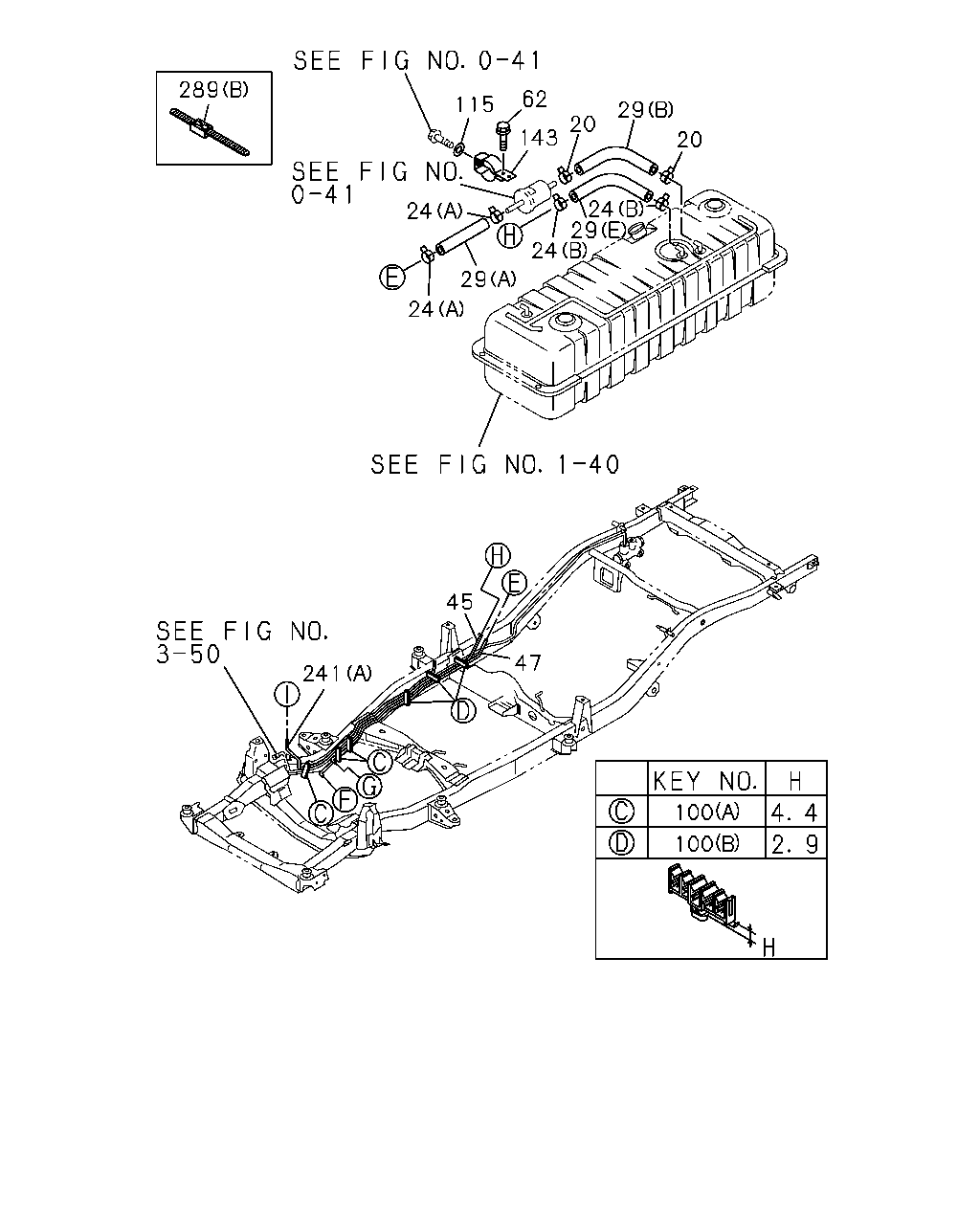

çizim 69499
289 24 24 115 62 20 29 20 143 24 29 24 29 45 47 241 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 03.162 CLIP; HOSE,FUEL TANK
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ●
20 03.162 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 9712- ● ●
20 03.162 CLIP; HOSE,FUEL TANK
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> 00.034 ID=12 WO/PVC COATING 		8-94123-526-0 02 1 9611-9711 ●
20 03.162 CLIP; HOSE,FUEL TANK
ELECTRIC FUEL INJECTION<6GG> ID=12 		8-97148-892-0 02 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
29 03.163 HOSE; FUEL
(A) 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
(B) L=300 		0-01509-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
A/T THM(RMQ) (C) 		8-97174-384-2 01 1 9712- ●
29 03.163 HOSE; FUEL
A/T THM(RMQ) (D) 		8-97175-638-2 01 1 9712- ●
29 03.163 HOSE; FUEL
M/T MUA 5 SPEED(RMN) (C) 		8-97175-635-1 01 1 9712- ●
29 03.163 HOSE; FUEL
M/T MUA 5 SPEED(RMN) (D) 		8-97175-636-1 01 1 9712- ●
29 03.163 HOSE; FUEL
SINGLE CAB LONG(TF**SF) (E) L=400 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
29 03.163 HOSE; FUEL
CREW CAB(TF**W*) (E) L=500 SERVICED BY L=3000 		0-01755-300-0 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-758-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-759-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-226-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
A/T THM(RMQ) 		8-97179-633-1 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MUA 5 SPEED(RMN) 		8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 		8-97132-336-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SPACE CAB(TFS*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-342-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-760-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-761-2 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-227-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
A/T THM(RMQ) 		8-97179-636-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
M/T MUA 5 SPEED(RMN) 		8-97179-634-1 01 1 9712- ●
62 03.162 BOLT; CLIP FIX
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 03 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 03 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 09 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9702- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) 		8-97061-372-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (E) 		8-97061-373-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9703- ● ●
115 03.162 WASHER; PL,CLIP
02.334 ID=6.4 OD=22 		9-09164-806-0 01 1 9712- ●
143 03.162 CLAMP; FUEL FILTER
ELECTRIC FUEL INJECTION<6GG> 		8-97049-810-1 01 1 9611- ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9611- ●
241 03.163 PIPE; EVAP
M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97084-634-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 LONG(TFB**F) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) (B) 		8-94338-334-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-328-1 01 1 9611-9711 ●
241 03.163 PIPE; EVAP
SINGLE CAB LONG(TF**SF) (A) 		8-97179-630-0 01 1 9712- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97179-637-2 01 1 9712- ●
289 03.008 CLIP; BAND,HOSE
(B) L=330 		5-09709-118-0 02 1 9611- ● ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
ELECTRIC FUEL INJECTION<6GG> 02.559 (A) L=250 		5-09707-030-1 01 1 9611- ●

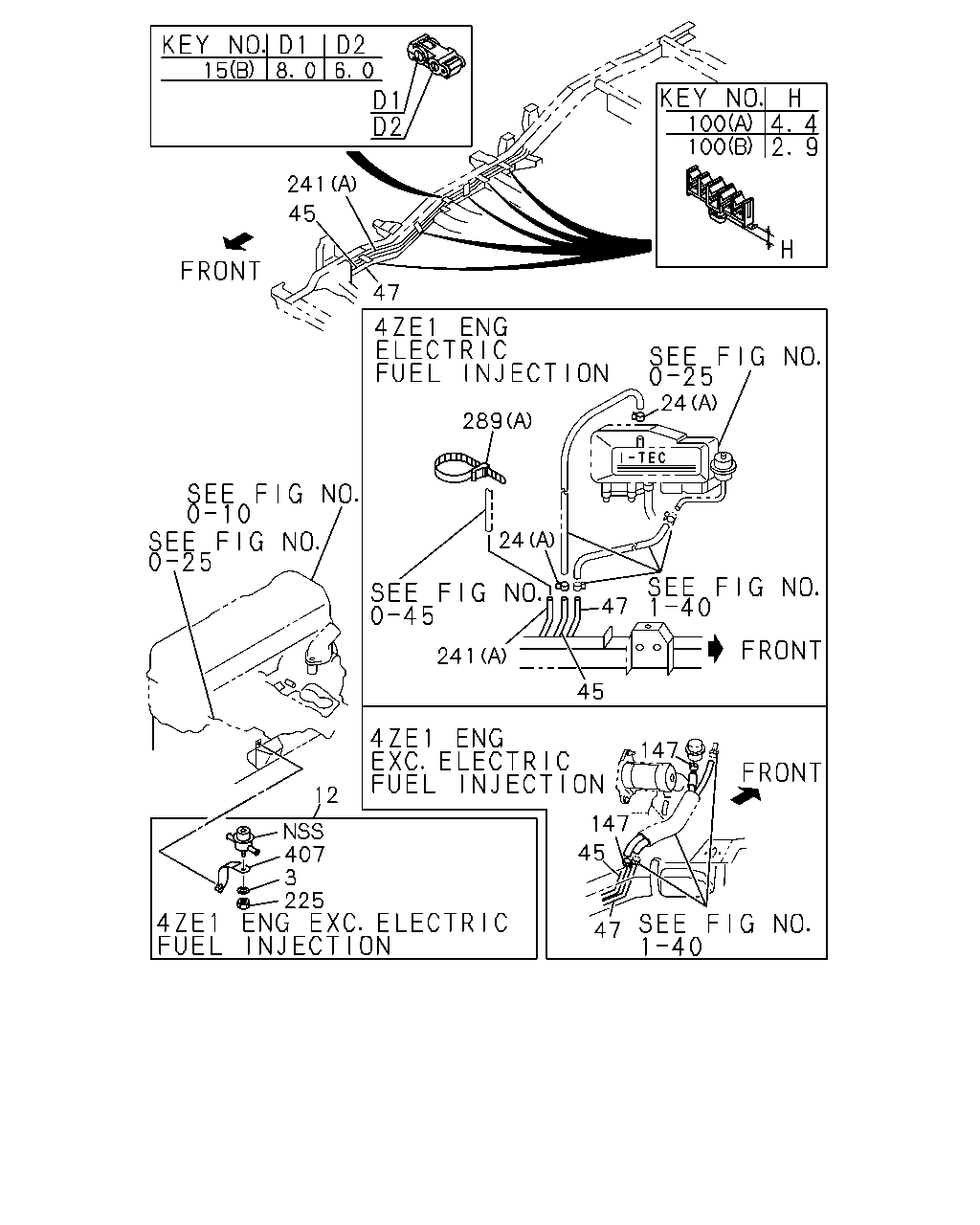

çizim 70168
15 241 45 47 100 100 24 289 24 47 45 241 12 407 3 225 47 45 147 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.162 WASHER; LK,BRKT
00.002 ID=8.2 		9-09150-608-0 01 1 9611- ● ●
3 03.162 WASHER; LK,BRKT
EXC. ELECTRIC FUEL INJECTION<6GG> 00.002 ID=8.2 		9-09150-608-0 01 1 9611- ●
12 03.163 DAMPER ASM; FUEL 8-97094-929-0 01 1 9611- ●
12 03.163 DAMPER ASM; FUEL 8-94407-633-0 01 1 9611- ●
12 03.163 DAMPER ASM; FUEL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94407-633-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) BLUE 		8-94455-380-1 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
SPACE CAB(TF**C*) (B) BLUE 		8-94455-380-1 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) EXC. TURBOCHARGER<K51> (D) BLACK 		8-94222-876-0 05 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (D) BLACK 		8-94222-876-0 05 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) EXC. TURBOCHARGER<K51> (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (D) BLACK 		8-94222-876-0 07 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) BLUE 		8-94455-380-1 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (D) BLACK 		8-94222-876-0 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) BLUE 		8-94455-380-1 05 1 9611- ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-758-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-759-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-226-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
A/T THM(RMQ) 		8-97179-633-1 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MUA 5 SPEED(RMN) 		8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 		8-97132-336-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SPACE CAB(TFS*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-342-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-760-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-761-2 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-227-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
A/T THM(RMQ) 		8-97179-636-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
M/T MUA 5 SPEED(RMN) 		8-97179-634-1 01 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 03 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 03 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 09 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9702- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) 		8-97061-372-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (E) 		8-97061-373-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9703- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ●
147 03.162 CLIP; FUEL PIPE TO HOSE
ID=14 		8-97173-221-0 02 1 9712- ● ●
147 03.162 CLIP; FUEL PIPE TO HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=14 		8-97173-221-0 02 1 9712- ●
225 03.162 NUT; FUEL DAMPER
00.002 M8 		9-09110-508-0 01 1 9611- ● ●
225 03.162 NUT; FUEL DAMPER
EXC. ELECTRIC FUEL INJECTION<6GG> 00.002 M8 		9-09110-508-0 01 1 9611- ●
241 03.163 PIPE; EVAP
M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97084-634-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 LONG(TFB**F) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) (B) 		8-94338-334-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-328-1 01 1 9611-9711 ●
241 03.163 PIPE; EVAP
SINGLE CAB LONG(TF**SF) (A) 		8-97179-630-0 01 1 9712- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97179-637-2 01 1 9712- ●
289 03.008 CLIP; BAND,HOSE
(B) L=330 		5-09709-118-0 02 1 9611- ● ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
ELECTRIC FUEL INJECTION<6GG> 02.559 (A) L=250 		5-09707-030-1 01 1 9611- ●
407 03.162 BRACKET; FUEL DAMPER
03.163 		8-94407-411-0 01 1 9611- ●
407 03.162 BRACKET; FUEL DAMPER
03.163 		8-94407-343-0 01 1 9611- ●
407 03.162 BRACKET; FUEL DAMPER
EXC. ELECTRIC FUEL INJECTION<6GG> 03.163 		8-94407-343-0 01 1 9611- ●

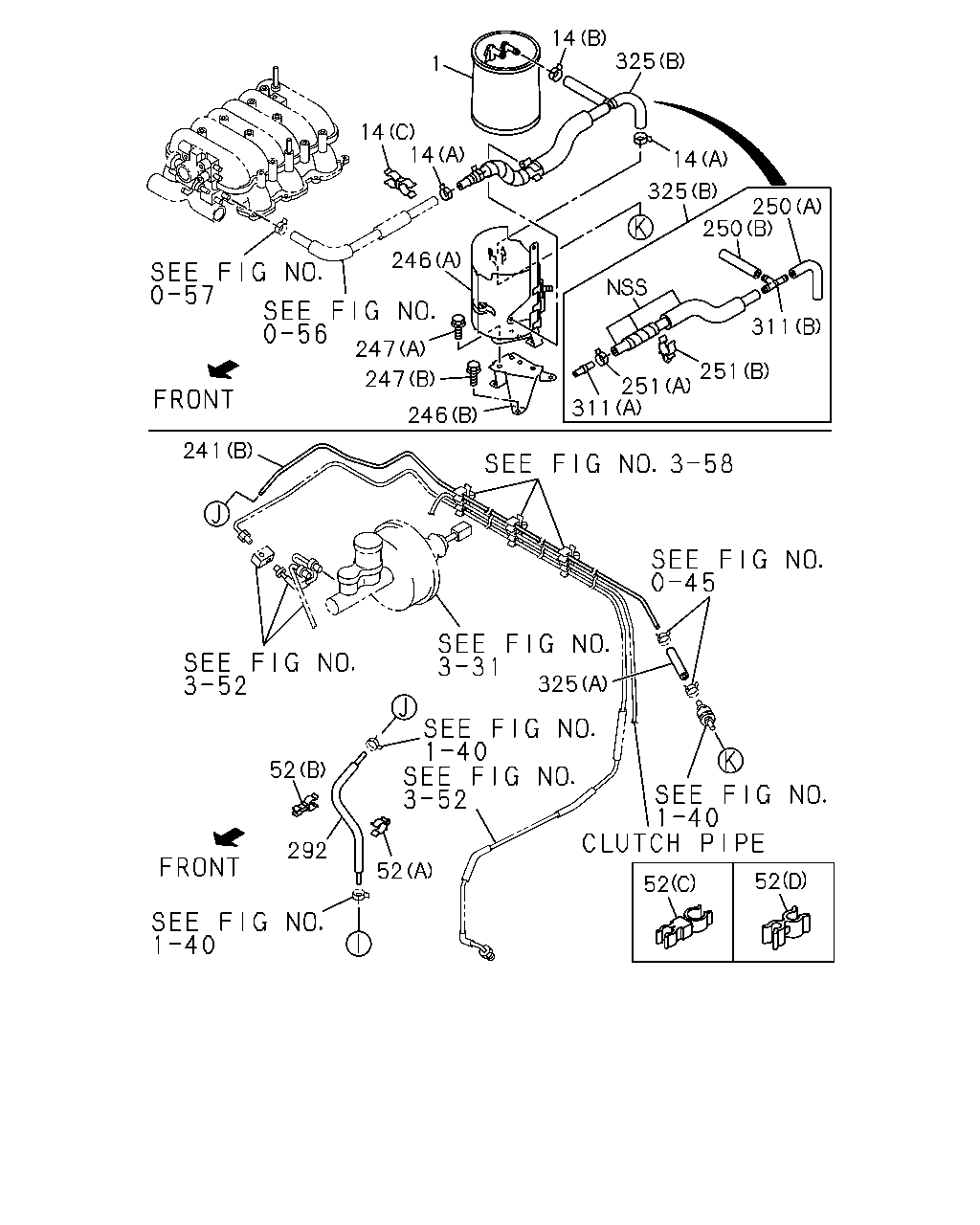

çizim 70239
1 14 14 14 14 325 325 311 250 250 251 251 311 246 247 247 246 241 52 292 52 325 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.130 CANISTER; FUEL
ELECTRIC FUEL INJECTION<6GG> 		8-17090-120-0 01 1 9611- ●
1 03.130 CANISTER; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-17087-023-0 01 1 9712- ●
14 03.162 CLIP; HOSE
AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11 		8-94238-570-0 02 1 9712- ●
14 03.162 CLIP; HOSE
AUSTRALIA EQUIPMENT(RR3) 01.219 (B) ID=12 		8-94238-610-0 01 1 9712- ●
14 03.162 CLIP; HOSE
AUSTRALIA EQUIPMENT(RR3) 02.559 (C) ID=16.5 & 16.5 		8-94473-320-0 01 1 9712- ●
52 03.145 CLIP; EVAP PIPE
TURBOCHARGER<K51> 06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
TURBOCHARGER<K51> 04.104 (B) ID=12 & 16.5 		8-94400-865-0 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 9712- ●
52 03.145 CLIP; EVAP PIPE
03.425 (C) ID=6 & 8.3 		8-94167-742-0 01 1 9801- ●
52 03.145 CLIP; EVAP PIPE
04.686 (D) ID=6.4 & 4.8 		8-94257-329-0 01 1 9801- ●
241 03.163 PIPE; EVAP
M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97084-634-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 LONG(TFB**F) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) (B) 		8-94338-334-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97122-655-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-97132-327-1 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-328-1 01 1 9611-9711 ●
241 03.163 PIPE; EVAP
SINGLE CAB LONG(TF**SF) (A) 		8-97179-630-0 01 1 9712- ●
241 03.163 PIPE; EVAP
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97132-326-2 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-652-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-653-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97132-330-0 01 1 9611- ●
241 03.163 PIPE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A) 		8-97122-654-0 01 1 9611- ●
241 03.163 PIPE; EVAP
CREW CAB(TF**W*) (A) 		8-97187-680-0 01 1 9712- ●
241 03.163 PIPE; EVAP
(B) 		8-97179-637-2 01 1 9712- ●
246 03.130 BRACKET; CANISTER
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 		8-97088-704-0 01 1 9611- ●
246 03.130 BRACKET; CANISTER
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97089-947-0 01 1 9712- ●
246 03.130 BRACKET; CANISTER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97176-968-0 01 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 03 1 9611-9711 ●
247 03.130 BOLT; CANISTER BRKT
LONG(TF***F) AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
AUSTRALIA EQUIPMENT(RR3) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
247 03.130 BOLT; CANISTER BRKT
AUSTRALIA EQUIPMENT(RR3) 04.930 (B) M6X20 FLANGE 		0-28680-620-0 03 1 9712- ●
250 03.163 HOSE; RUBBER
AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 9712- ●
250 03.163 HOSE; RUBBER
AUSTRALIA EQUIPMENT(RR3) (B) L=60 		8-94389-595-0 01 1 9712- ●
251 03.162 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=10 		8-94381-273-0 01 1 9712- ●
251 03.162 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) (B) ID=11 		8-97061-673-0 01 1 9712- ●
292 03.163 HOSE; EVAP,FUEL PIPE 8-97179-678-1 01 1 9712- ●
311 03.163 JOINT; HOSE
AUSTRALIA EQUIPMENT(RR3) 03.302 (A) 2WAY 		8-94404-119-0 01 1 9712- ●
311 03.163 JOINT; HOSE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97061-674-0 01 1 9712- ●
325 03.163 HOSE; EVAPO
08.962 (A) L=280 SERVICED BY L=3000 		0-04750-300-0 01 1 9712- ●
325 03.163 HOSE; EVAPO
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97177-028-1 01 1 9712- ●
çizim 71052
146 47 136 45 136 146 135 47 146 45 136 146 135 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97122-659-0 01 1 9611-9802 ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-97203-823-0 01 1 9803- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97122-658-1 01 1 9611-9802 ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		8-97203-826-0 01 1 9803- ● ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97132-331-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SPACE CAB(TFB*C*) 		8-97132-333-1 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-97132-332-3 01 1 9611- ● ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SPACE CAB(TFS*C*) 		8-97132-334-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SHORT(TFB**C) 		8-94450-582-4 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 LONG(TFB**F) 		8-97134-737-2 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-758-1 01 1 9611- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-94450-584-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SHORT(TFS**C) 		8-97172-158-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-94450-583-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 LONG(TFS**F) 		8-97172-157-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-759-3 01 1 9611-9702 ●
45 03.163 PIPE; FUEL,DELIVERY
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-226-0 01 1 9703- ●
45 03.163 PIPE; FUEL,DELIVERY
A/T THM(RMQ) 		8-97179-633-1 01 1 9712- ●
45 03.163 PIPE; FUEL,DELIVERY
M/T MUA 5 SPEED(RMN) 		8-97179-631-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97122-657-0 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97203-824-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 		8-97132-336-2 01 1 9611- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-336-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-339-1 01 1 9611-9802 ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-828-0 01 1 9803- ● ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB(TFS*S*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-335-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97132-340-1 01 1 9611-9802 ● ●
47 03.163 PIPE; FUEL,RETURN
4X4 CREW CAB(TFS*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97203-829-0 01 1 9803- ● ●
47 03.163 PIPE; FUEL,RETURN
4X2 SPACE CAB(TFB*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-341-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97122-656-1 01 1 9611-9802 ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97203-827-0 01 1 9803- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SPACE CAB(TFS*C*) ELECTRIC FUEL INJECTION<6GG> 		8-97132-342-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) ELECTRIC FUEL INJECTION<6GG> 		8-97132-338-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SHORT(TFB**C) 		8-97085-678-1 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) EXC. TURBOCHARGER<K51> 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 LONG(TFB**F) 		8-97134-738-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-760-2 01 1 9611- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97085-680-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SHORT(TFS**C) 		8-97172-160-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97085-679-0 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 LONG(TFS**F) 		8-97172-159-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97070-761-2 01 1 9611-9702 ●
47 03.163 PIPE; FUEL,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97173-227-0 01 1 9703- ●
47 03.163 PIPE; FUEL,RETURN
A/T THM(RMQ) 		8-97179-636-1 01 1 9712- ●
47 03.163 PIPE; FUEL,RETURN
M/T MUA 5 SPEED(RMN) 		8-97179-634-1 01 1 9712- ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
CREW CAB(TF**W*) 08.962 L=400 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ●
135 03.163 HOSE; FUEL TANK TO FUEL PIPE
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=560 SERVICED BY L=3000 		0-01258-300-0 01 1 9611- ● ●
136 03.162 CLIP; HOSE,FUEL TANK
01.166 ID=14 		8-94238-572-0 02 1 9611-9711 ● ●
136 03.162 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 9712- ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-94238-570-0 02 1 9611-9711 ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-94238-570-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-94238-570-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-97173-219-0 02 1 9712- ● ● ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. ELECTRIC FUEL INJECTION<6GG> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
EXC. TURBOCHARGER<K51> ID=11 		8-97173-219-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13 		8-94238-571-0 02 1 9611-9711 ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
ELECTRIC FUEL INJECTION<6GG> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●
146 03.163 CLIP; HOSE,FUEL RETURN PIPE
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.162 ID=13 		8-97173-220-0 02 1 9712- ●
çizim 71264
100 210 289 100 15 15 94 52 49 52 100 100 100 15 15 153 245 245 82 24 24 82 82 82 295 295
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) BLUE 		8-94455-380-1 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
SPACE CAB(TF**C*) (B) BLUE 		8-94455-380-1 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) EXC. TURBOCHARGER<K51> (D) BLACK 		8-94222-876-0 05 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (D) BLACK 		8-94222-876-0 05 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) EXC. TURBOCHARGER<K51> (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
LONG(TF***F) (C) BLUE 		8-94328-836-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (D) BLACK 		8-94222-876-0 07 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) BLUE 		8-94455-380-1 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (D) BLACK 		8-94222-876-0 04 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) EXC. TURBOCHARGER<K51> (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (E) 		8-94466-385-0 01 1 9611- ●
15 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) BLUE 		8-94455-380-1 05 1 9611- ●
24 03.162 CLIP; FUEL HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> 01.166 (A) ID=14 		8-94238-572-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 9712- ● ● ● ●
24 03.162 CLIP; FUEL HOSE
EXC. ELECTRIC FUEL INJECTION<6GG> (A) ID=14 		8-97173-221-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> 00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-0 04 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
ELECTRIC FUEL INJECTION<6GG> (A) ID=12 		8-97148-892-0 04 1 9712- ● ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-94238-570-0 02 1 9611-9711 ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) EXC. TURBOCHARGER<K51> 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
SHORT(TF***C) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
LONG(TF***F) 03.163 (B) ID=11 		8-97173-219-0 02 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 06 1 9712- ●
24 03.162 CLIP; FUEL HOSE
(A) ID=12 		8-97148-892-0 02 1 9712- ●
49 03.162 CLIP; PIPE TO FRAME
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.430 D=6.35 & 8.0 		8-94168-480-0 01 1 9611-9711 ●
49 03.162 CLIP; PIPE TO FRAME
TURBOCHARGER<K51> 03.425 ID=6 & 8.3 		8-94167-742-0 01 1 9712- ●
49 03.162 CLIP; PIPE TO FRAME
LONG(TF***F) EXC. TURBOCHARGER<K51> 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9611- ●
49 03.162 CLIP; PIPE TO FRAME
SHORT(TF***C) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9611- ●
49 03.162 CLIP; PIPE TO FRAME
LONG(TF***F) 04.686 ID=8 & 4.8 		8-94430-297-0 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
TURBOCHARGER<K51> 06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
06.672 (A) ID=17 		8-94382-792-1 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
TURBOCHARGER<K51> 04.104 (B) ID=12 & 16.5 		8-94400-865-0 01 1 9611- ●
52 03.145 CLIP; EVAP PIPE
03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 9712- ●
52 03.145 CLIP; EVAP PIPE
03.425 (C) ID=6 & 8.3 		8-94167-742-0 01 1 9801- ●
52 03.145 CLIP; EVAP PIPE
04.686 (D) ID=6.4 & 4.8 		8-94257-329-0 01 1 9801- ●
82 03.163 CLIP; FUEL HOSE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14 		8-94238-572-0 02 1 9611- ● ●
82 03.163 CLIP; FUEL HOSE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14 		8-94238-572-0 02 1 9611- ● ●
94 03.890 CLIP; HOSE,FILTER
POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9611- ●
94 03.890 CLIP; HOSE,FILTER
LONG(TF***F) POWER STEERING<N40> 01.166 ID=21 BLACK 		8-94422-733-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9712- ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 07 1 9611- ● ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ● ● ● ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (A) L=8.9 		8-94435-551-1 01 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 02 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (B) L=7.4 		8-94435-550-0 05 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 06 1 9703- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 03 1 9611- ● ●
100 03.162 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 03 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9611-9701 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SHORT(TFB**C) (B) L=7.4 		8-94435-550-0 09 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 03 1 9702- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SHORT(TFS**C) (B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 03 1 9702- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 13 1 9611-9701 ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) (B) L=7.4 		8-94435-550-0 11 1 9702-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X2 SPACE CAB(TFB*C*) TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9703-9711 ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. TURBOCHARGER<K51> (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4 		8-94435-550-0 12 1 9712- ●
100 03.162 CLIP; FUEL PIPE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) 		8-97061-372-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (A) L=8.9 		8-94435-551-1 04 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4(TFS***) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 LONG(TFS**F) (C) L=8.5 		8-97014-423-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (E) 		8-97061-373-0 01 1 9611- ●
100 03.162 CLIP; FUEL PIPE
4X4 SPACE CAB(TFS*C*) (B) L=7.4 		8-94435-550-0 04 1 9703- ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9611-9702 ● ●
100 03.162 CLIP; FUEL PIPE
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4 		8-94435-550-0 05 1 9703- ● ●
153 03.162 HOSE; RUBBER,PIPE TO ACL
TURBOCHARGER<K51> 		8-97109-401-1 01 1 9611- ●
210 03.162 CLIP; FEED PIPE
TURBOCHARGER<K51> 		8-97069-378-0 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 6.35 		8-94474-113-0 01 1 9611- ●
245 03.162 CLIP; EVAP HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-94238-570-0 02 1 9611-9711 ●
245 03.162 CLIP; EVAP HOSE
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-97173-219-0 02 1 9712- ●
289 03.008 CLIP; BAND,HOSE
(B) L=330 		5-09709-118-0 02 1 9611- ● ● ● ● ● ●
289 03.008 CLIP; BAND,HOSE
ELECTRIC FUEL INJECTION<6GG> 02.559 (A) L=250 		5-09707-030-1 01 1 9611- ●
295 03.003 CLIP; HOSE,EVAP
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-94238-570-0 02 1 9611-9711 ●
295 03.003 CLIP; HOSE,EVAP
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-97173-219-0 02 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
