Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#40567) — 219 parça

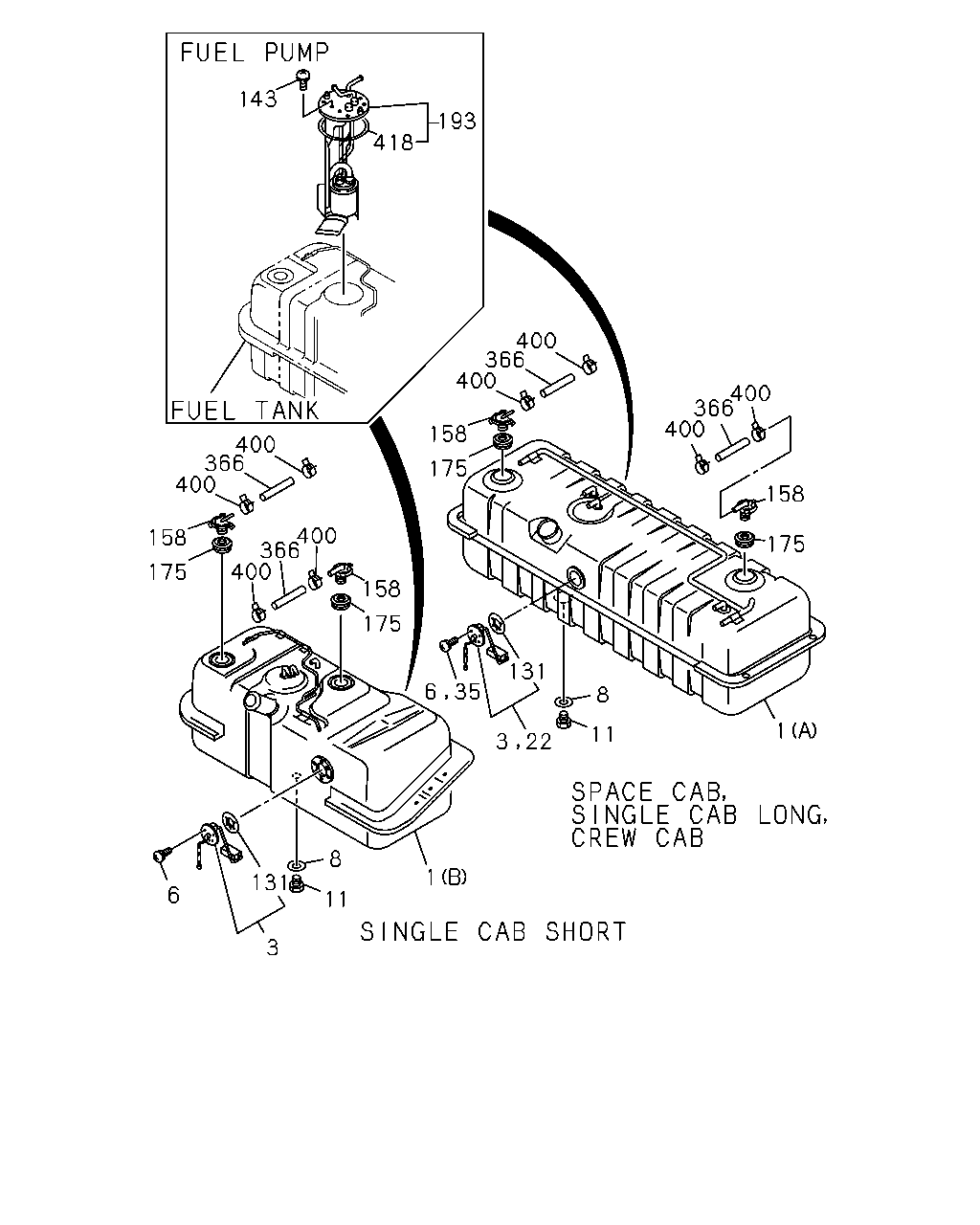

143 418 193 400 366 400 158 175 400 366 400 158 175 175 158 400 366 400 400 366 400 158 175 1 8 11 22 3 131 35 6 1 8 11 3 131 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL CREW CAB(TF*W) (A)	8-97112-496-1	01	1	9611-	●
1	03.001 TANK; FUEL CREW CAB(TF*W) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> (A)	8-97112-496-1	01	1	9611-		●	●	●
1	03.001 TANK; FUEL CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97112-496-1	01	1	9611-					●	●
1	03.001 TANK; FUEL 4X2 SHORT(TFB**C) (B)	8-94460-722-4	01	1	9611-	●
1	03.001 TANK; FUEL SHORT(TF***C) (B)	8-94460-722-4	01	1	9611-		●			●
1	03.001 TANK; FUEL 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> (A)	8-94328-157-5	01	1	9611-	●	●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94328-157-5	01	1	9611-					●	●
1	03.001 TANK; FUEL CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> (B)	8-97112-520-1	01	1	9611-9711			●
1	03.001 TANK; FUEL CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> (B)	8-97112-520-2	01	1	9712-			●	●
1	03.001 TANK; FUEL 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) ELECTRIC FUEL INJECTION<6GG> (A)	8-94334-505-6	01	1	9611-			●	●
1	03.001 TANK; FUEL SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97061-427-1	01	1	9611-					●
1	03.001 TANK; FUEL CREW CAB(TF*W) TURBOCHARGER<K51> (B)	8-97112-519-2	01	1	9611-					●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 03.001	8-94318-398-0	01	1	9611-	●	●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB(TFB5CF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3) 03.001	8-94318-398-0	01	1	9611-			●
3	03.107 UNIT; FUEL TANK,SUB 4X2 SPACE CAB(TFB5CF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 03.001	8-94318-398-0	01	1	9611-				●	●	●
3	03.107 UNIT; FUEL TANK,SUB SHORT(TF***C) 03.001	8-94318-396-0	01	1	9611-	●	●			●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> 03.001	8-94318-396-0	01	1	9611-			●	●
3	03.107 UNIT; FUEL TANK,SUB CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 03.001	8-94318-396-0	01	1	9611-					●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN SINGLE CAB(TF*S) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-	●	●				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN ELECTRIC FUEL INJECTION<6GG> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-				●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9611-9711	●	●	●		●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9712-	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9711	●	●	●		●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●	●	●	●
22	03.107 UNIT; FUEL TANK CREW CAB(TF*W) 03.001	8-94318-396-0	01	1	9611-	●
22	03.107 UNIT; FUEL TANK CREW CAB(TF*W) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 03.001	8-94318-396-0	01	1	9611-		●	●	●
22	03.107 UNIT; FUEL TANK CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.001	8-94318-396-0	01	1	9611-					●	●
35	03.107 SCREW; FUEL TANK UNIT CREW CAB(TF*W) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-	●
35	03.107 SCREW; FUEL TANK UNIT CREW CAB(TF*W) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-		●	●	●
35	03.107 SCREW; FUEL TANK UNIT CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9611-					●	●
131	03.164 GASKET; SAFETY VENT 03.112 ID=42 OD=71	5-83148-001-0	01	1	9611-	●	●	●		●	●
143	03.107 SCREW; FUEL PUMP ELECTRIC FUEL INJECTION<6GG> 03.485 M5X10 W/LK WASHER	9-03910-510-0	08	1	9611-			●	●
158	03.164 VALVE; ROLL OVER & FLOAT ELECTRIC FUEL INJECTION<6GG> 03.130	8-94173-276-0	02	1	9611-9711			●
158	03.164 VALVE; ROLL OVER & FLOAT UNITED KINGDOM EQUIPMENT(EK3) 03.130	8-94173-276-0	02	1	9611-9711					●
158	03.164 VALVE; ROLL OVER & FLOAT ELECTRIC FUEL INJECTION<6GG> 03.130	8-94173-276-0	02	1	9712-			●	●
158	03.164 VALVE; ROLL OVER & FLOAT UNITED KINGDOM EQUIPMENT(EK3) 03.130	8-94173-276-0	02	1	9712-					●
175	03.675 SEAL; VALVE ELECTRIC FUEL INJECTION<6GG> 03.163	8-94246-338-2	02	1	9611-9711			●
175	03.675 SEAL; VALVE UNITED KINGDOM EQUIPMENT(EK3) 03.163	8-94246-338-2	02	1	9611-9711					●
175	03.675 SEAL; VALVE ELECTRIC FUEL INJECTION<6GG> 03.163	8-94246-338-2	02	1	9712-			●	●
175	03.675 SEAL; VALVE UNITED KINGDOM EQUIPMENT(EK3) 03.163	8-94246-338-2	02	1	9712-					●
193	03.107 PUMP; FUEL ELECTRIC FUEL INJECTION<6GG>	8-97131-843-0	01	1	9611-			●	●
366	03.145 HOSE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) ELECTRIC FUEL INJECTION<6GG> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9611-9711			●
366	03.145 HOSE; EVAP TURBOCHARGER<K51> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9611-9711					●
366	03.145 HOSE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) ELECTRIC FUEL INJECTION<6GG> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9712-			●	●
366	03.145 HOSE; EVAP TURBOCHARGER<K51> 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9712-					●
366	03.145 HOSE; EVAP CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> 03.163 L=60 SERVICED BY L=3000	8-94128-826-0	02	1	9611-			●	●
400	03.162 CLIP; HOSE,EVAP ELECTRIC FUEL INJECTION<6GG> ID=8.5	8-94166-071-0	04	1	9611-9711			●
400	03.162 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	04	1	9611-9711					●
400	03.162 CLIP; HOSE,EVAP EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.5	8-94166-071-0	03	1	9611-	●	●	●	●
400	03.162 CLIP; HOSE,EVAP EXC. UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	03	1	9611-					●	●
400	03.162 CLIP; HOSE,EVAP ELECTRIC FUEL INJECTION<6GG> ID=8.5	8-94166-071-0	04	1	9712-			●	●
400	03.162 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	04	1	9712-					●
418	03.107 GASKET; FUEL PUMP ELECTRIC FUEL INJECTION<6GG>	8-94386-449-0	01	1	9611-			●	●

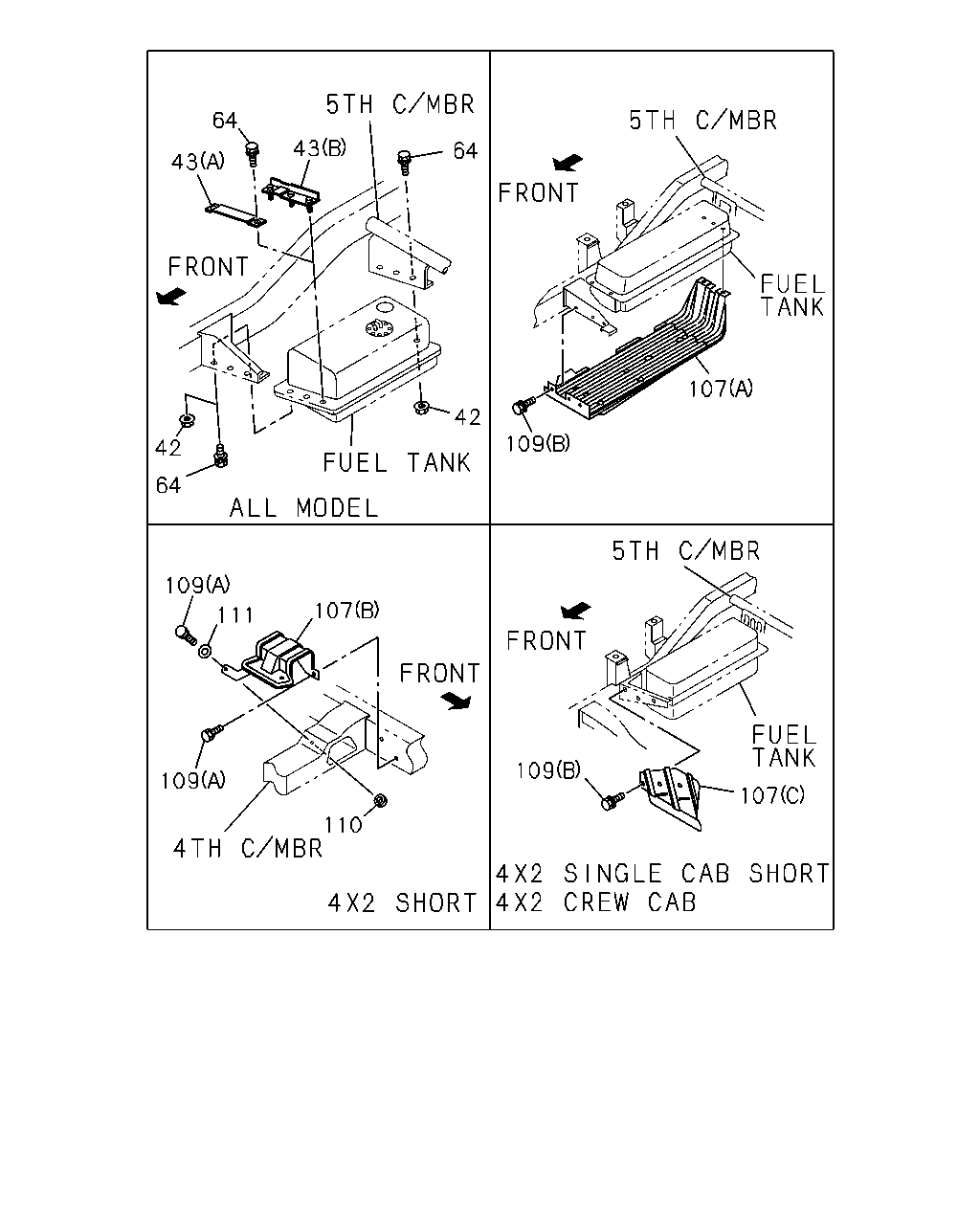

107 109 110 109 107 111 109 64 42 43 64 43 64 107 109 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
42	03.023 NUT; SUPPORT BELT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) M8 FLANGE	8-94328-243-0	05	1	9611-	●	●	●	●	●	●
42	03.023 NUT; SUPPORT BELT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) M8 FLANGE	8-94328-243-0	06	1	9611-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A)	8-94328-269-0	01	1	9611-	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) (B)	8-94318-376-1	01	1	9611-	●	●	●	●	●	●
64	03.023 BOLT; FUEL TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 01.276 M8X24	8-97034-130-0	05	1	9611-	●	●	●	●	●	●
64	03.023 BOLT; FUEL TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 01.276 M8X24	8-97034-130-0	03	1	9611-	●	●	●	●	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) FUEL TANK GUARD<6LM> (A)	8-94434-723-1	01	1	9611-	●	●	●		●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A)	8-94434-723-1	01	1	9611-		●	●		●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) (C)	8-94313-765-0	01	1	9611-	●	●	●	●	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 SHORT(TFS**C) UNDER GUARD<ES7> (A)	8-94434-724-1	01	1	9611-	●	●	●	●	●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X4 CREW CAB(TFSW) (A)	8-97160-116-0	01	1	9611-		●	●		●	●
107	03.602 PROTECTOR; HEAT,FUEL TANK 4X2 SHORT(TFB**C) (B)	8-94331-703-0	01	1	9611-					●
109	03.015 BOLT; HEAT PROTECTOR 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) FUEL TANK GUARD<6LM> (B) M8X18	0-28480-818-0	03	1	9611-9711	●	●	●		●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) M8X18	0-28480-818-0	03	1	9611-9711	●	●	●		●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) FUEL TANK GUARD<6LM> 04.595 (B) M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 04.595 (B) M8X20 FLANGE	0-28480-820-0	03	1	9712-	●	●	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 4X2 SHORT(TFB**C) 04.686 (A) M6X16 W/LK WASHER	0-50040-616-0	03	1	9611-					●
110	03.602 NUT; PROTECTOR 4X2 SHORT(TFB**C) 16.176 M6	9-09110-406-0	01	1	9611-					●
111	03.015 WASHER; PL,HEAT PROTECTOR 4X2 SHORT(TFB**C) 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	9611-					●

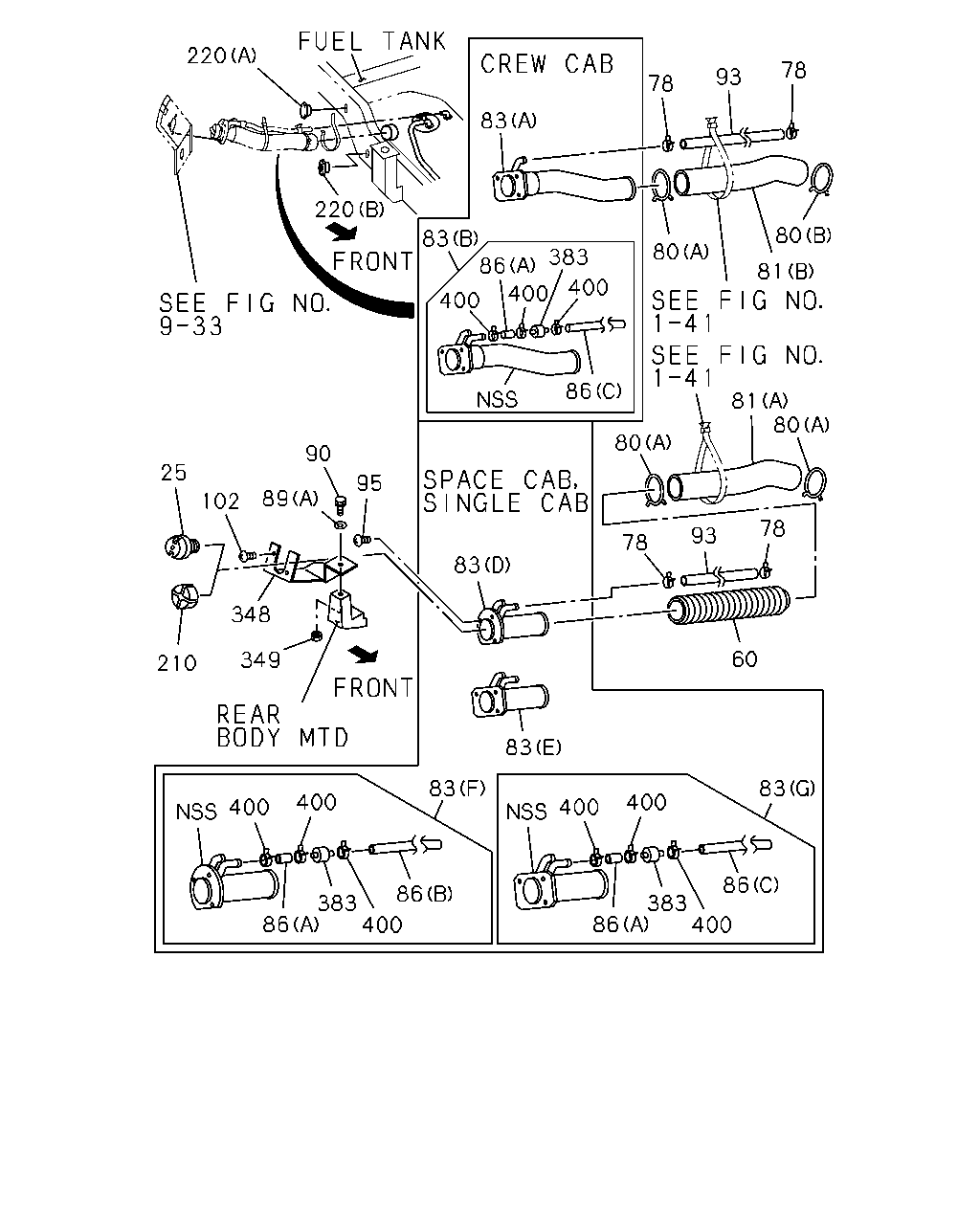

220 220 83 78 93 78 80 80 400 383 86 83 400 400 86 81 81 80 80 78 93 78 60 83 83 83 86 400 383 400 400 86 86 400 383 86 400 83 400 210 349 348 89 90 102 25 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-94310-199-4	01	1	9611-9711	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM)	8-94310-199-4	01	1	9712-	●	●	●	●	●	●
60	03.008 PROTECTOR; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM)	8-94318-424-0	01	1	9611-			●	●	●	●
78	03.003 CLIP; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14	8-94238-572-0	02	1	9611-9711	●	●	●		●	●
78	03.003 CLIP; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 ID=14	8-97173-221-0	02	1	9712-	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.930 ID=16	8-94238-568-0	02	1	9611-9711					●
78	03.003 CLIP; BREATHER HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.681 ID=16	8-97173-222-0	02	1	9712-					●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 03.003 (A) ID=59	8-94435-876-0	01	1	9611-	●	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE CREW CAB(TF*W) 01.166 (B) ID=54	9-09915-412-1	01	1	9611-	●	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 03.003 (A) ID=59	8-94435-876-0	02	1	9611-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) (B)	8-97132-227-1	01	1	9611-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) (A)	8-97117-704-0	01	1	9611-	●	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (A)	8-94468-249-1	01	1	9611-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (G) W/VALVE	8-97122-701-2	01	1	9611-	●	●	●	●	●	●
83	03.003 NECK; FUEL FILLER SHORT(TF***C) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (G) W/VALVE	8-97122-701-2	01	1	9611-	●	●			●
83	03.003 NECK; FUEL FILLER SPACE CAB(TF*C) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. AUSTRALIA EQUIPMENT(RR3) (G) W/VALVE	8-97122-701-2	01	1	9611-		●	●
83	03.003 NECK; FUEL FILLER SPACE CAB(TF*C) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) (G) W/VALVE	8-97122-701-2	01	1	9611-					●	●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) ,RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (F) W/VALVE	8-97081-013-2	01	1	9611-	●	●	●	●
83	03.003 NECK; FUEL FILLER SHORT(TF***C) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (F) W/VALVE	8-97081-013-2	01	1	9611-	●	●			●
83	03.003 NECK; FUEL FILLER SPACE CAB(TF*C) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (F) W/VALVE	8-97081-013-2	01	1	9611-		●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL SIDE LOCK OUTER HOO K(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LO CK INNER & OUTER HOOK(7TM) (F) W/VALVE	8-97081-013-2	01	1	9611-					●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. AUSTRALIA EQUIPMENT(RR3) (B) W/VALVE	8-97117-684-1	01	1	9611-	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) W/VALVE	8-97117-684-1	01	1	9611-					●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) ,RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (B) W/VALVE	8-97117-685-1	01	1	9611-	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL SIDE LOCK OUTER HOO K(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LO CK INNER & OUTER HOOK(7TM) (B) W/VALVE	8-97117-685-1	01	1	9611-					●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) (A) WO/DEFLECTOR	8-97117-682-0	01	1	9611-			●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) (E) W/DEFLECTOR	8-97167-648-0	01	1	9611-			●	●
83	03.003 NECK; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) (D) W/DEFLECTOR	8-94460-705-5	01	1	9611-			●	●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (E) WO/DEFLECTOR	8-97122-699-0	01	1	9611-					●
83	03.003 NECK; FUEL FILLER SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (D) WO/DEFLECTOR	8-94460-704-4	01	1	9611-					●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) W/DEFLECTOR	8-97117-683-0	01	1	9611-					●
86	03.163 HOSE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) L=380 SERVICED BY L=3000	8-94128-826-0	01	1	9611-	●	●	●	●	●	●
86	03.163 HOSE; EVAP CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) L=380 SERVICED BY L=3000	8-94128-826-0	01	1	9611-	●	●	●	●
86	03.163 HOSE; EVAP EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9611-	●	●	●	●
86	03.163 HOSE; EVAP EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9611-					●	●
86	03.163 HOSE; EVAP SINGLE CAB LONG(TF**SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) ,RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (B) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	9611-	●	●	●	●
86	03.163 HOSE; EVAP SHORT(TF***C) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) (B) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	9611-	●	●			●
86	03.163 HOSE; EVAP SPACE CAB(TF*C) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HO OK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) (B) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	9611-		●	●
86	03.163 HOSE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL SIDE LOCK OUTER HOO K(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LO CK INNER & OUTER HOOK(7TM) (B) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	9611-					●	●
89	03.028 WASHER; PL,FILLER NECK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 06.760 (A) ID=8.4 OD=22	9-09160-708-0	01	1	9611-		●	●	●	●	●
89	03.028 WASHER; PL,FILLER NECK ELECTRIC FUEL INJECTION<6GG> 02.334 (B) ID=6.4 OD=22	9-09164-806-0	01	1	9712-			●
90	03.008 BOLT; FILLER TO BODY 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9611-		●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	9611-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=660 SERVICED BY L=3000	0-04790-300-0	01	1	9611-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL SIDE LOCK OUTER HOO K(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LO CK INNER & OUTER HOOK(7TM) 08.962 L=560 SERVICED BY L=3000	0-04790-300-0	01	1	9611-	●	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDELOCK INNER & OUTER HOOK(7TM) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-					●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	9611-					●
93	03.003 HOSE; BREATHER,FUEL TANK SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9611-					●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9611-	●	●	●	●	●	●
102	03.008 SCREW; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 12.182 M6X16	8-94381-646-0	02	1	9611-		●	●	●	●	●
210	03.023 CAP; FUEL TANK EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SID E LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM)	8-97034-131-0	01	1	9611-	●	●	●	●	●	●
220	03.120 GROMMET; BREATHER HOSE,FUEL TANK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94482-493-1	01	1	9611-	●	●	●	●
220	03.120 GROMMET; BREATHER HOSE,FUEL TANK EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94482-493-1	01	1	9611-					●	●
220	03.120 GROMMET; BREATHER HOSE,FUEL TANK EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94482-494-1	01	1	9611-	●	●	●	●
220	03.120 GROMMET; BREATHER HOSE,FUEL TANK EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94482-494-1	01	1	9611-					●	●
348	03.028 BRACKET; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM)	8-94313-471-1	01	1	9611-		●	●	●	●	●
349	03.023 NUT; FUEL FILLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 02.559 M8	9-09110-408-0	01	1	9611-		●	●	●	●	●
383	03.162 VALVE; 2 WAY EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-391-0	01	1	9611-9711	●	●	●
383	03.162 VALVE; 2 WAY EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97076-391-0	01	1	9611-9711					●	●
383	03.162 VALVE; 2 WAY EXC. AUSTRALIA EQUIPMENT(RR3)	8-97178-373-0	01	1	9712-	●	●	●	●
383	03.162 VALVE; 2 WAY EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97178-373-0	01	1	9712-					●	●
400	03.162 CLIP; HOSE,EVAP ELECTRIC FUEL INJECTION<6GG> ID=8.5	8-94166-071-0	04	1	9611-9711			●
400	03.162 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	04	1	9611-9711					●
400	03.162 CLIP; HOSE,EVAP EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.5	8-94166-071-0	03	1	9611-	●	●	●	●
400	03.162 CLIP; HOSE,EVAP EXC. UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	03	1	9611-					●	●
400	03.162 CLIP; HOSE,EVAP ELECTRIC FUEL INJECTION<6GG> ID=8.5	8-94166-071-0	04	1	9712-			●	●
400	03.162 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) ID=8.5	8-94166-071-0	04	1	9712-					●

301 301 299 300 301 299 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E	F
299	03.162 BRACKET; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-691-0	01	1	9611-	●
299	03.162 BRACKET; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94320-730-0	01	1	9611-9612	●
299	03.162 BRACKET; FUEL FILTER (B)	8-94320-730-0	01	1	9611-9612		●
299	03.162 BRACKET; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94320-730-0	01	1	9701-	●	●
299	03.162 BRACKET; FUEL FILTER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97940-028-3	01	1	9701-		●
300	03.162 BOLT; BRKT TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9611-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER UNITED KINGDOM EQUIPMENT(EK3) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9611-	●
301	03.162 BOLT; BRKT TO SEDIMENTER EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9611-	●
301	03.162 BOLT; BRKT TO SEDIMENTER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9611-		●
301	03.162 BOLT; BRKT TO SEDIMENTER EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) M10X35 FLANGE	0-28681-035-0	02	1	9611-	●
301	03.162 BOLT; BRKT TO SEDIMENTER (B) M10X35 FLANGE	0-28681-035-0	02	1	9611-		●

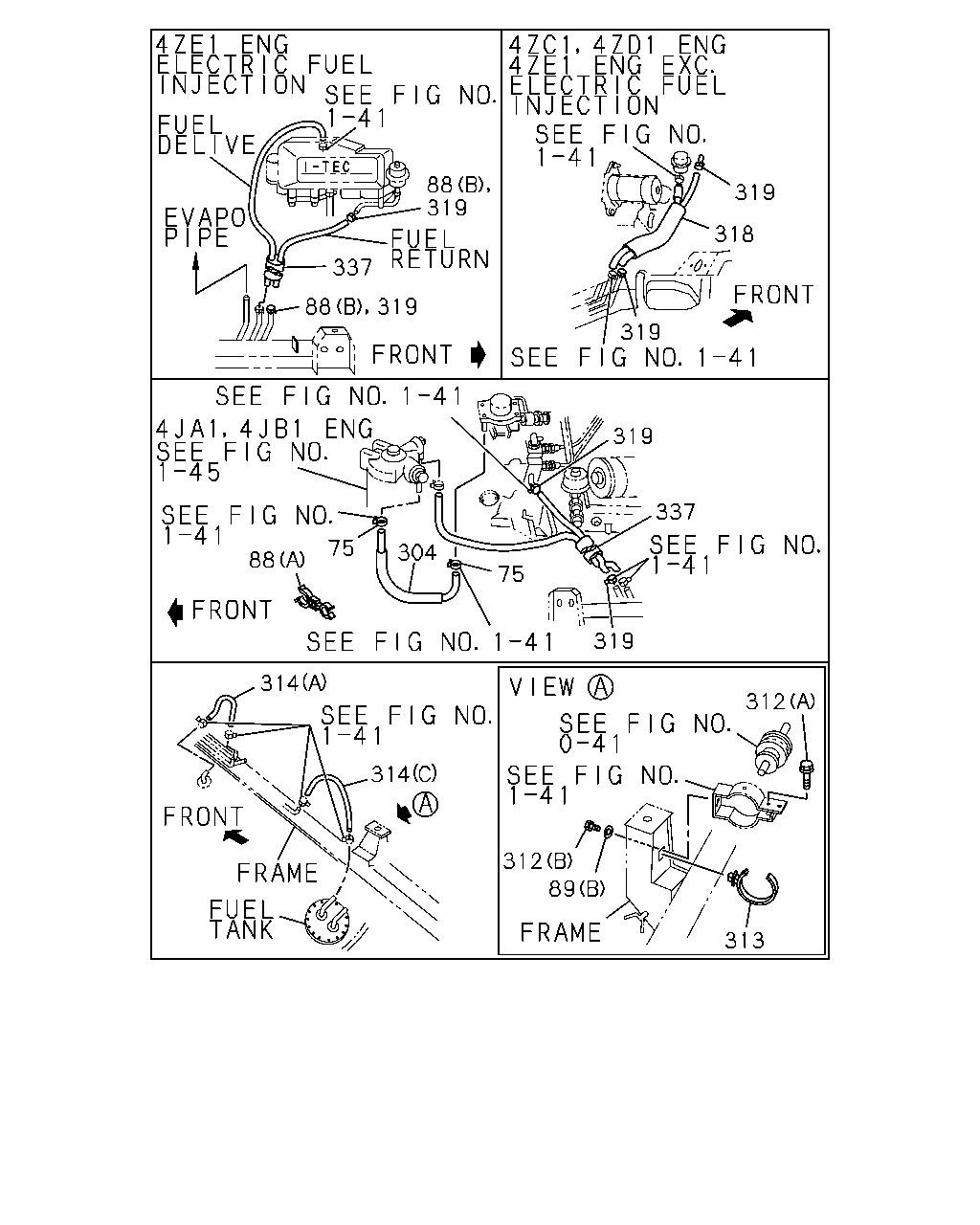

313 312 312 89 314 314 88 75 304 75 319 337 319 319 318 319 88 319 337 88 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
75	03.162 CLIP; RUB HOSE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14	8-94238-572-0	02	1	9611-9711					●
75	03.162 CLIP; RUB HOSE 01.166 ID=14	8-94238-572-0	02	1	9712-					●	●
88	03.162 CLIP; FUEL HOSE LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.163 (B) ID=11	8-94238-570-0	02	1	9701-9711			●
88	03.162 CLIP; FUEL HOSE LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.163 (B) ID=11	8-97173-219-0	02	1	9712-			●
88	03.162 CLIP; FUEL HOSE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 03.163 (B) ID=11	8-97173-219-0	02	1	9712-				●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9611-					●	●
89	03.028 WASHER; PL,FILLER NECK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),R R BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 06.760 (A) ID=8.4 OD=22	9-09160-708-0	01	1	9611-		●	●	●	●	●
89	03.028 WASHER; PL,FILLER NECK ELECTRIC FUEL INJECTION<6GG> 02.334 (B) ID=6.4 OD=22	9-09164-806-0	01	1	9712-			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ L=440	8-94133-604-2	01	1	9611-					●	●
312	03.704 BOLT; FUEL FILTER CLAMP ELECTRIC FUEL INJECTION<6GG> 04.686 (A) FILTER FIX M6X16 W/LK WASHER	0-50040-616-0	01	1	9611-9711			●
312	03.704 BOLT; FUEL FILTER CLAMP ELECTRIC FUEL INJECTION<6GG> 04.439 (A),(B) M6X16 FLANGE	0-28680-616-0	02	1	9712-			●
312	03.704 BOLT; FUEL FILTER CLAMP ELECTRIC FUEL INJECTION<6GG> 08.143 (B) CLAMP FIX M6X14 W/PL WASHER	8-94174-953-0	01	1	9611-9711			●
313	03.890 CLIP; FUEL FILTER ID=40 NYLON	8-94223-523-0	01	1	9611-	●	●
313	03.890 CLIP; FUEL FILTER EXC. ELECTRIC FUEL INJECTION<6GG> ID=40 NYLON	8-94223-523-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SHORT(TF***C) 08.962 (C) L=620 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) 08.962 (C) L=500 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (C) L=500 SERVICED BY L=3000	0-01254-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (A) L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SPACE CAB(TF*C) ELECTRIC FUEL INJECTION<6GG> (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB LONG(TF**SF) ELECTRIC FUEL INJECTION<6GG> (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SHORT(TF***C) 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) EXC. TURBOCHARGER<K51> 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-						●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. TURBOCHARGER<K51> 08.962 (B) L=1060 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000	0-01254-300-0	01	1	9611-						●
318	03.163 HOSE ASM; FUEL,DELIVERY,RETURN	8-97139-312-1	01	1	9611-	●	●
318	03.163 HOSE ASM; FUEL,DELIVERY,RETURN EXC. ELECTRIC FUEL INJECTION<6GG>	8-97139-312-1	01	1	9611-			●
319	03.163 CLIP; RUBBER HOSE ID=11	8-94238-570-0	02	1	9611-9711	●	●
319	03.163 CLIP; RUBBER HOSE EXC. ELECTRIC FUEL INJECTION<6GG> ID=11	8-94238-570-0	02	1	9611-9711			●
319	03.163 CLIP; RUBBER HOSE ID=11	8-97173-219-0	02	1	9712-	●	●
319	03.163 CLIP; RUBBER HOSE EXC. ELECTRIC FUEL INJECTION<6GG> ID=11	8-97173-219-0	02	1	9712-			●
319	03.163 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13	8-94238-571-0	02	1	9611-9711			●
319	03.163 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13	8-94238-571-0	02	1	9611-9711					●
319	03.163 CLIP; RUBBER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 ID=13	8-97173-220-0	02	1	9712-			●
319	03.163 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.162 ID=13	8-97173-220-0	02	1	9712-					●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN ELECTRIC FUEL INJECTION<6GG>	8-94318-977-2	02	1	9611-			●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN TURBOCHARGER<K51>	8-97109-425-1	01	1	9611-					●
337	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-333-3	01	1	9611-					●	●

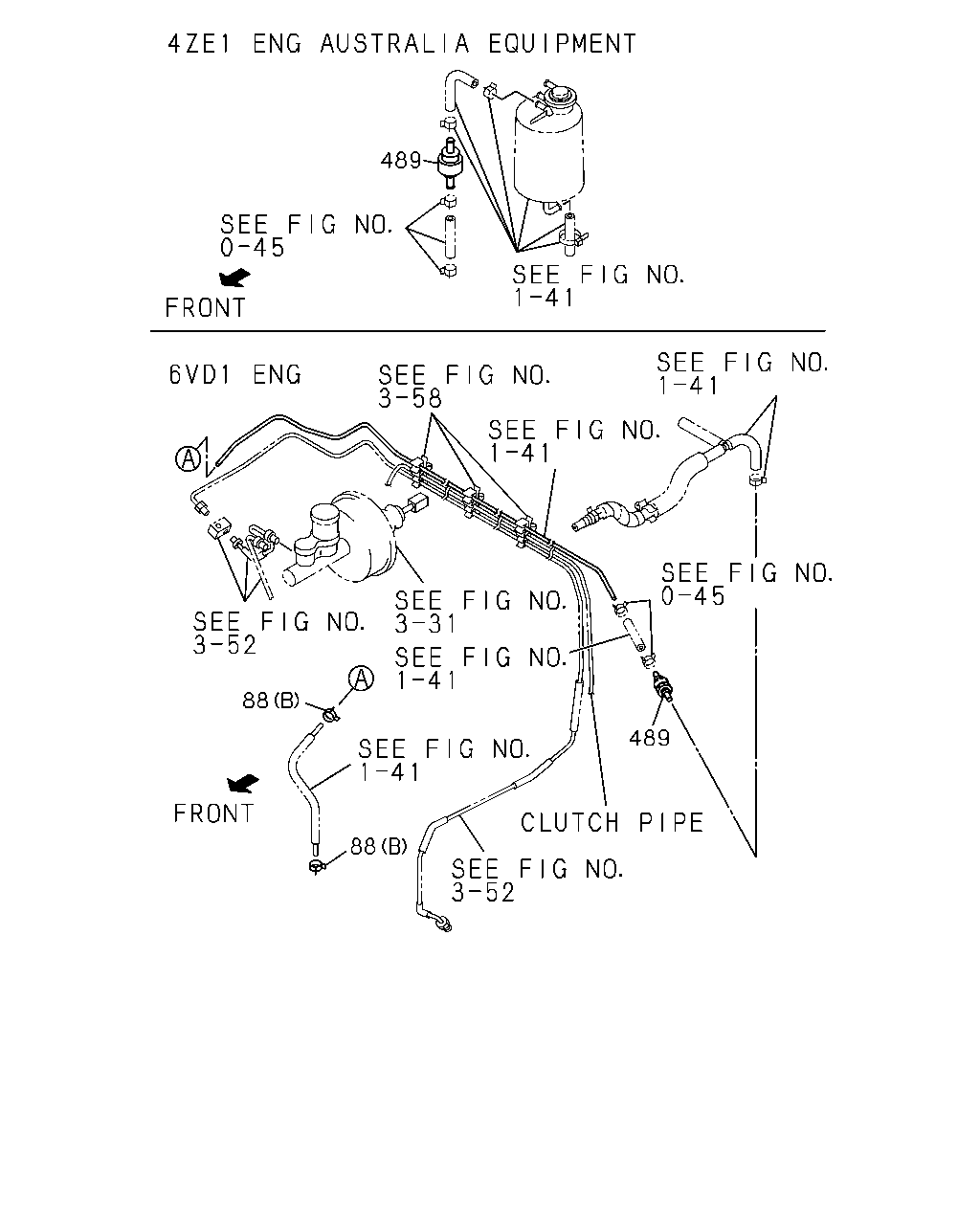

489 88 88 489

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
88	03.162 CLIP; FUEL HOSE LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.163 (B) ID=11	8-94238-570-0	02	1	9701-9711	●
88	03.162 CLIP; FUEL HOSE LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 03.163 (B) ID=11	8-97173-219-0	02	1	9712-	●
88	03.162 CLIP; FUEL HOSE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 03.163 (B) ID=11	8-97173-219-0	02	1	9712-		●
88	03.162 CLIP; FUEL HOSE 04.661 (A) ID=14.5 & 6	8-94312-791-0	01	1	9611-			●	●
489	03.164 VALVE; CONT AUSTRALIA EQUIPMENT(RR3) 03.162	8-97076-391-0	01	1	9611-	●	●
489	03.164 VALVE; CONT UNITED KINGDOM EQUIPMENT(EK3)	8-94222-045-0	01	1	9611-			●

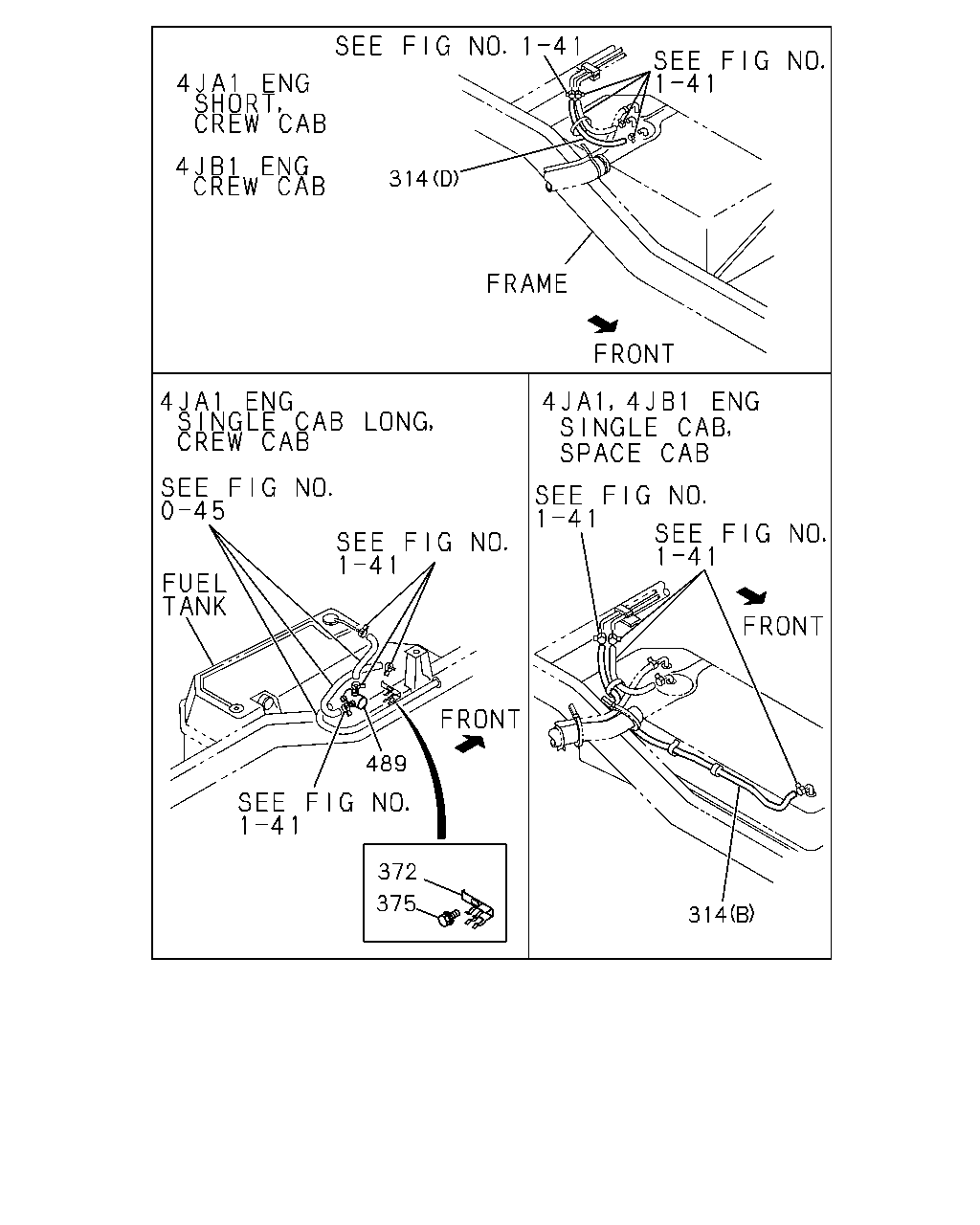

314 375 489 372 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
314	03.163 HOSE; RUBBER,FUEL RETURN SHORT(TF***C) 08.962 (C) L=620 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) 08.962 (C) L=500 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (C) L=500 SERVICED BY L=3000	0-01254-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (A) L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9611-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 (A) L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SPACE CAB(TF*C) ELECTRIC FUEL INJECTION<6GG> (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB LONG(TF**SF) ELECTRIC FUEL INJECTION<6GG> (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) ELECTRIC FUEL INJECTION<6GG> (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	9611-			●
314	03.163 HOSE; RUBBER,FUEL RETURN SHORT(TF***C) 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) EXC. TURBOCHARGER<K51> 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) 08.962 (D) L=440 SERVICED BY L=3000	0-01254-300-0	01	1	9611-						●
314	03.163 HOSE; RUBBER,FUEL RETURN SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. TURBOCHARGER<K51> 08.962 (B) L=1060 SERVICED BY L=3000	0-01254-300-0	01	1	9611-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000	0-01254-300-0	01	1	9611-						●
372	03.164 CLIP; CONT VALVE UNITED KINGDOM EQUIPMENT(EK3)	8-94413-704-0	01	1	9611-					●
375	03.164 BOLT; CONT VALVE UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-					●
489	03.164 VALVE; CONT AUSTRALIA EQUIPMENT(RR3) 03.162	8-97076-391-0	01	1	9611-			●	●
489	03.164 VALVE; CONT UNITED KINGDOM EQUIPMENT(EK3)	8-94222-045-0	01	1	9611-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
