◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#40565) — 141 parça
çizim 67203
166 165 123 122 124 125 164 165 167 47 46 166 165 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 03.417 COLLAR; MTG RUBBER,ACL
03.405 		8-94209-014-0 01 1 9611- ● ●
46 03.417 COLLAR; MTG RUBBER,ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 03.405 		8-94209-014-0 01 1 9611- ●
47 03.417 CUSHION; ACL 8-94319-428-0 01 1 9611- ● ●
47 03.417 CUSHION; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94319-428-0 01 1 9611- ●
122 03.403 COLLAR; PRE ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94326-667-0 02 1 9611- ●
123 03.403 STAY; PRE ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94326-668-0 01 1 9611- ●
124 03.403 BOLT; PRE ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94326-669-0 02 1 9611- ●
125 03.403 GASKET; PRE ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94326-670-0 01 1 9611- ●
164 03.402 CLEANER ASM; AIR,SUB
(A) 		8-97131-844-0 01 1 9611- ● ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97131-844-0 01 1 9611- ●
164 03.402 CLEANER ASM; AIR,SUB
ELECTRIC FUEL INJECTION<6GG> (B) 		8-94479-553-1 01 1 9611- ●
165 03.417 BOLT; SUB ACL
02.559 M6X35 W/LK WASHER 		0-50040-635-0 02 1 9611-9711 ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 M6X35 W/LK WASHER 		0-50040-635-0 02 1 9611-9711 ●
165 03.417 BOLT; SUB ACL
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712- ●
165 03.417 BOLT; SUB ACL
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611-9711 ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9611-9711 ●
165 03.417 BOLT; SUB ACL
01.531 M6X35 FLANGE 		0-28680-635-0 02 1 9712- ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 01.531 M6X35 FLANGE 		0-28680-635-0 02 1 9712- ●
165 03.417 BOLT; SUB ACL
01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611-9711 ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9611-9711 ●
165 03.417 BOLT; SUB ACL
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
165 03.417 BOLT; SUB ACL
ELECTRIC FUEL INJECTION<6GG> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ●
165 03.417 BOLT; SUB ACL
ELECTRIC FUEL INJECTION<6GG> EXC. POWER STEERING<N40> 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9611- ●
166 03.403 WASHER; LK,SUB ACL
02.334 ID=8.4 OD=26 		9-09164-808-0 03 1 9611- ● ●
166 03.403 WASHER; LK,SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 02.334 ID=8.4 OD=26 		9-09164-808-0 03 1 9611- ●
166 03.403 WASHER; LK,SUB ACL
ELECTRIC FUEL INJECTION<6GG> 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9611- ●
167 03.405 BRACKET; SUB ACL 8-94340-458-0 01 1 9611- ● ●
167 03.405 BRACKET; SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94340-458-0 01 1 9611- ●
çizim 70060
137 6 11 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9611-9711 ● ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 01 1 9611-9711 ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9712- ● ●
6 03.410 FILTER; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94473-708-0 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 02 1 9712- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9712- ●
11 03.403 BOLT; ACL
08.077 M6X18 		8-94408-386-1 01 1 9712- ●
11 03.403 BOLT; ACL
M8X32 W/PL WASHER 		8-97035-378-0 02 1 9712- ●
20 03.406 CASE ASM; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-97088-732-0 01 1 9611- ●
20 03.406 CASE ASM; ACL 8-97160-824-2 01 1 9712- ●
137 03.402 CAP; ACL 8-97160-825-0 01 1 9712- ●

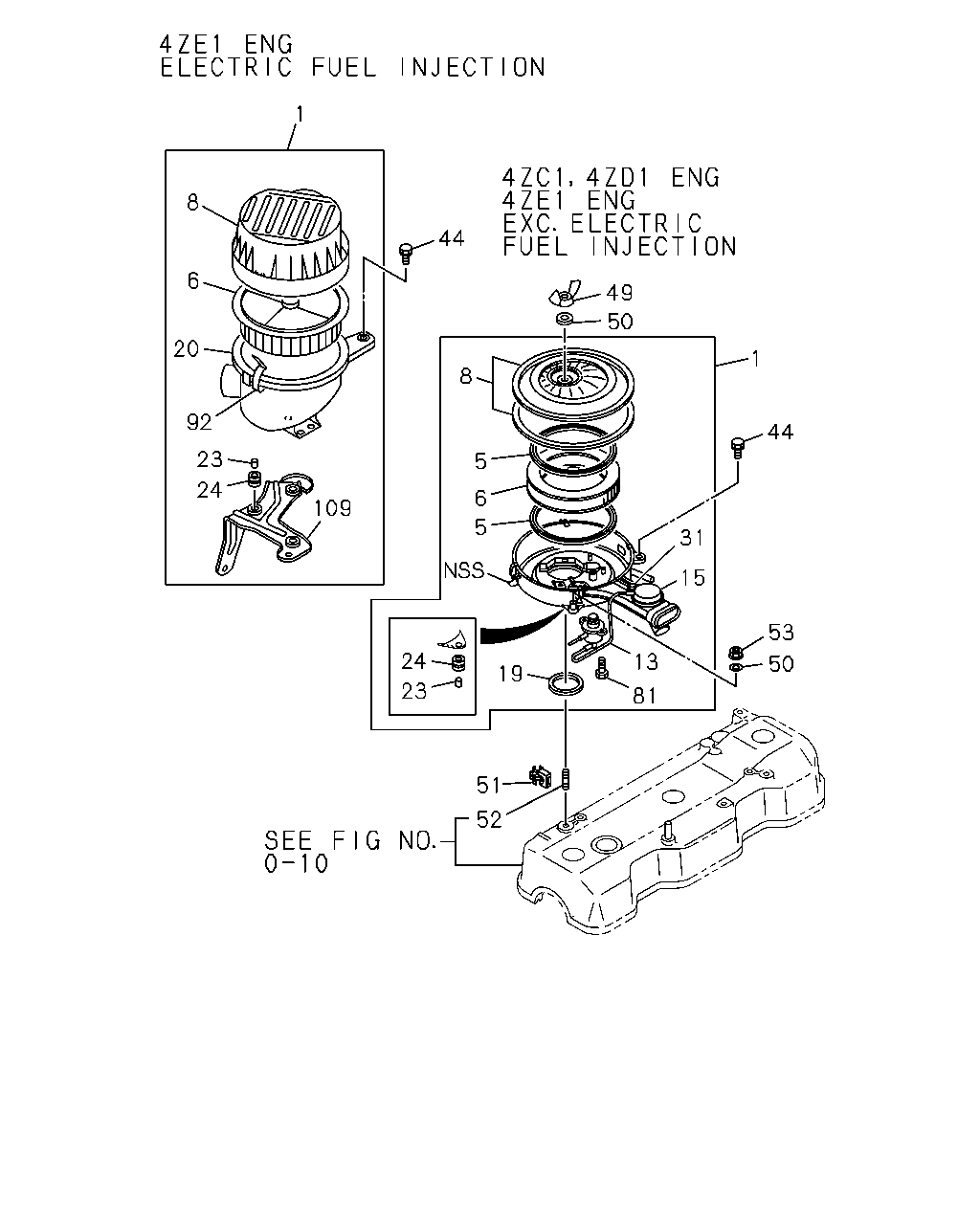

çizim 70208
1 8 6 20 92 109 24 23 44 50 49 8 5 6 5 1 44 15 31 81 19 13 24 23 50 53 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR 8-94422-864-1 01 1 9611- ● ●
1 03.402 CLEANER ASM; AIR
ELECTRIC FUEL INJECTION<6GG> 		8-97088-461-0 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94475-047-2 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-0 01 1 9611- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-0 01 1 9611- ●
5 03.403 GASKET; ELEMENT 8-94141-431-0 02 1 9611- ● ●
5 03.403 GASKET; ELEMENT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94141-431-0 02 1 9611- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9611- ● ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9611-9711 ● ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 01 1 9611-9711 ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9712- ● ●
6 03.410 FILTER; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94473-708-0 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 02 1 9712- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9712- ●
8 03.410 COVER ASM; ACL 8-94407-304-0 01 1 9611- ● ●
8 03.410 COVER ASM; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94407-304-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-97074-800-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9611- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9611- ●
13 03.415 VALVE; THERMO,ACL 8-94237-155-0 01 1 9611- ● ●
13 03.415 VALVE; THERMO,ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94237-155-0 01 1 9611- ●
15 03.415 DIAPHRAGM; VAC,ACL 8-94402-439-0 01 1 9611- ● ●
15 03.415 DIAPHRAGM; VAC,ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94402-439-0 01 1 9611- ●
19 03.403 GASKET; ACL TO CARB 8-94237-154-0 01 1 9611- ● ●
19 03.403 GASKET; ACL TO CARB
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94237-154-0 01 1 9611- ●
20 03.406 CASE ASM; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-97088-732-0 01 1 9611- ●
20 03.406 CASE ASM; ACL 8-97160-824-2 01 1 9712- ●
23 03.405 COLLAR; ACL STAY
03.417 		8-94407-303-0 02 1 9611- ● ●
23 03.405 COLLAR; ACL STAY
EXC. ELECTRIC FUEL INJECTION<6GG> 03.417 		8-94407-303-0 02 1 9611- ●
23 03.405 COLLAR; ACL STAY
ELECTRIC FUEL INJECTION<6GG> 		8-97090-015-0 03 1 9611- ●
24 03.406 GROMMET; ACL STAY
03.403 		8-94407-302-0 02 1 9611- ● ●
24 03.406 GROMMET; ACL STAY
EXC. ELECTRIC FUEL INJECTION<6GG> 03.403 		8-94407-302-0 02 1 9611- ●
24 03.406 GROMMET; ACL STAY
ELECTRIC FUEL INJECTION<6GG> 		8-97090-016-0 03 1 9611- ●
31 03.406 SCREW; ACL 1-81229-488-0 02 1 9611- ● ●
31 03.406 SCREW; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		1-81229-488-0 02 1 9611- ●
44 03.403 BOLT; ACL
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611-9611 ● ●
44 03.403 BOLT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611-9611 ●
44 03.403 BOLT; ACL
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9612- ● ●
44 03.403 BOLT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9612- ●
44 03.403 BOLT; ACL
ELECTRIC FUEL INJECTION<6GG> M8X32 W/PL WASHER 		8-97035-378-0 03 1 9611- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9611- ● ●
49 03.403 NUT; ACL
M8 WING 		8-94111-617-0 01 1 9611- ● ●
49 03.403 NUT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> M8 WING 		8-94111-617-0 01 1 9611- ●
50 03.403 WASHER; PL,ACL
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9611- ● ●
50 03.403 WASHER; PL,ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9611- ●
51 03.403 CLIP; CABLE 8-94132-800-0 01 1 9611- ● ●
51 03.403 CLIP; CABLE
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94132-800-0 01 1 9611- ●
52 03.403 STUD; ACL
03.275 M8X28 L=40 		9-04110-828-0 01 1 9611- ● ●
52 03.403 STUD; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M8X28 L=40 		9-04110-828-0 01 1 9611- ●
53 03.403 NUT; ACL
00.854 M8 FLANGE 		5-09440-005-0 01 1 9611-9711 ● ●
53 03.403 NUT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9611-9711 ●
53 03.403 NUT; ACL
01.271 M8 FLANGE 		8-94178-701-0 01 1 9712- ● ●
53 03.403 NUT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 01.271 M8 FLANGE 		8-94178-701-0 01 1 9712- ●
81 03.415 SCREW; ACL
02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9611- ● ●
81 03.415 SCREW; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9611- ●
92 03.405 CLIP; WIRE,ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94377-310-0 03 1 9611- ●
109 03.405 STAY; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-97070-193-0 02 1 9611- ●
çizim 70272
145 145 25 44 1 8 4 6 5 94 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR 8-94422-864-1 01 1 9611- ● ●
1 03.402 CLEANER ASM; AIR
ELECTRIC FUEL INJECTION<6GG> 		8-97088-461-0 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94475-047-2 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9611- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-0 01 1 9611- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-0 01 1 9611- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9611- ● ●
5 03.403 GASKET; ELEMENT 8-94141-431-0 02 1 9611- ● ●
5 03.403 GASKET; ELEMENT
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94141-431-0 02 1 9611- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9611- ● ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9611-9711 ● ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 01 1 9611-9711 ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9712- ● ●
6 03.410 FILTER; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-94473-708-0 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94459-945-0 02 1 9712- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9611- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9611- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9712- ●
8 03.410 COVER ASM; ACL 8-94407-304-0 01 1 9611- ● ●
8 03.410 COVER ASM; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94407-304-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
ELECTRIC FUEL INJECTION<6GG> 		8-97074-800-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9611- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9611- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9611- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9611- ● ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9611- ● ●
44 03.403 BOLT; ACL
01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611-9611 ● ●
44 03.403 BOLT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 01.540 M8X28 W/LK WASHER 		0-50040-828-0 01 1 9611-9611 ●
44 03.403 BOLT; ACL
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9612- ● ●
44 03.403 BOLT; ACL
EXC. ELECTRIC FUEL INJECTION<6GG> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9612- ●
44 03.403 BOLT; ACL
ELECTRIC FUEL INJECTION<6GG> M8X32 W/PL WASHER 		8-97035-378-0 03 1 9611- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9611- ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9611- ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
