1-11 — RADIATOR HOSE AND SUB TANK (#40564) — 73 parça

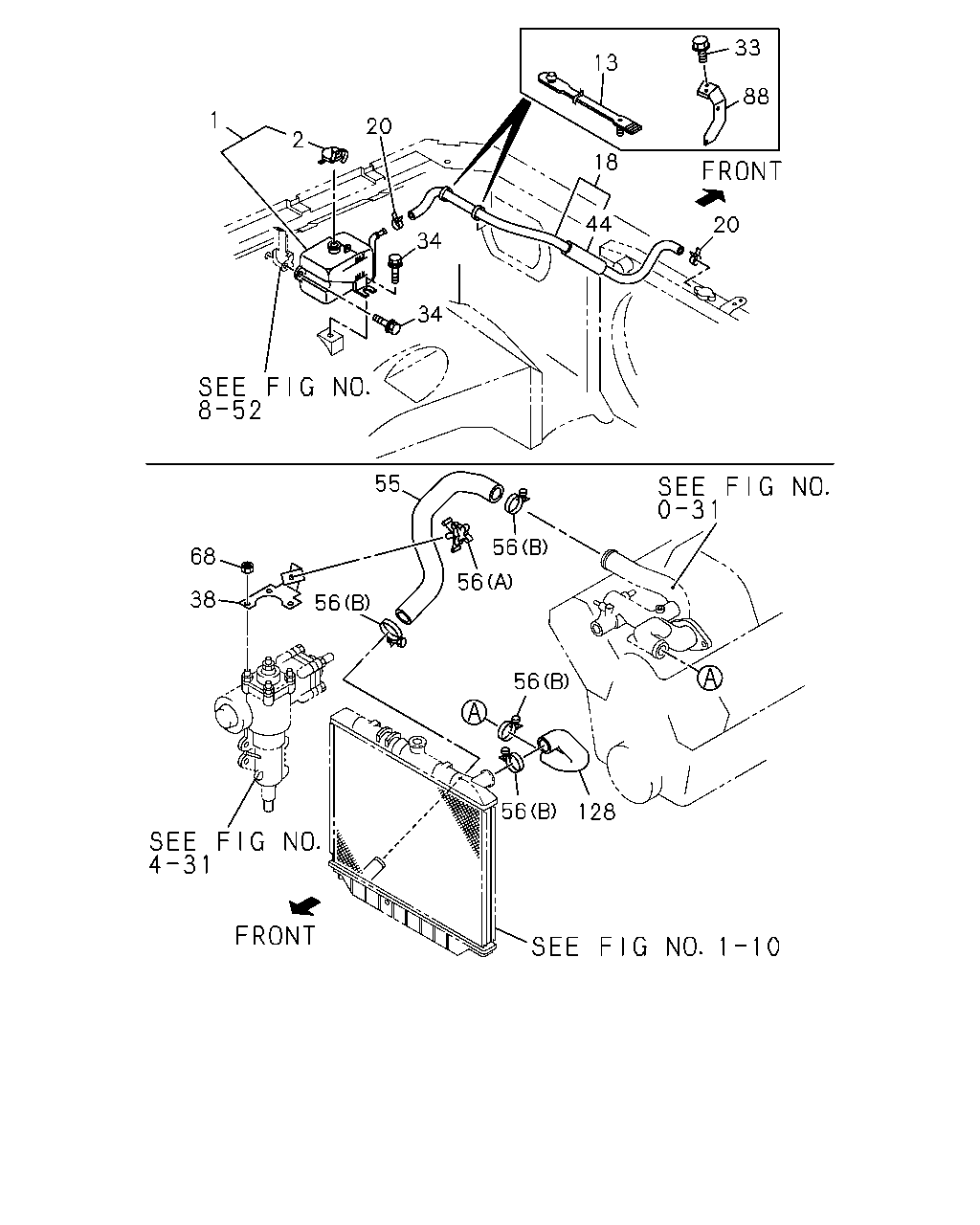

2 1 20 13 88 33 18 44 20 34 34 55 56 68 56 56 38 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9611-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9611-	●	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9611-	●	●	●	●		●
13	01.240 CLIP; HOSE,SURGE TANK EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103	8-94239-339-0	02	1	9611-					●
13	01.240 CLIP; HOSE,SURGE TANK ELECTRIC FUEL INJECTION<6GG> 02.559 L=103	8-94239-339-0	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK L=930	8-97016-104-1	01	1	9611-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46> L=930	8-97016-104-1	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> L=930	8-97016-104-1	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK ELECTRIC FUEL INJECTION<6GG> L=930	8-97161-787-0	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9712-						●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9611-	●	●	●	●	●	●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9611-9703	●	●			●
33	01.277 BOLT; BRKT EXC. ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9611-9703		●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9704-9711			●	●
33	01.277 BOLT; BRKT HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9712-	●	●			●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9712-					●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9712-			●	●		●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9611-	●	●	●	●	●	●
38	01.219 BRACKET; RUBBER HOSE	8-97162-981-0	01	1	9712-						●
44	01.240 INSULATOR; HOSE	8-97031-890-1	01	1	9712-						●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9611-	●	●			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9611-			●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9712-						●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9611-	●	●			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9611-	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9611-			●	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9712-						●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9712-						●
68	01.219 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	9712-						●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9611-	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. ELECTRIC FUEL INJECTION<6GG> (A)	8-94473-988-3	01	1	9611-					●
88	01.219 BRACKET; SUB TANK HOSE ELECTRIC FUEL INJECTION<6GG> (B)	8-94473-989-1	01	1	9611-					●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9712-						●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9611-	●	●
128	01.159 HOSE; WATER,RAD INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94389-481-0	01	1	9611-					●
128	01.159 HOSE; WATER,RAD INL ELECTRIC FUEL INJECTION<6GG>	8-94447-549-1	01	1	9611-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9611-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9712-						●

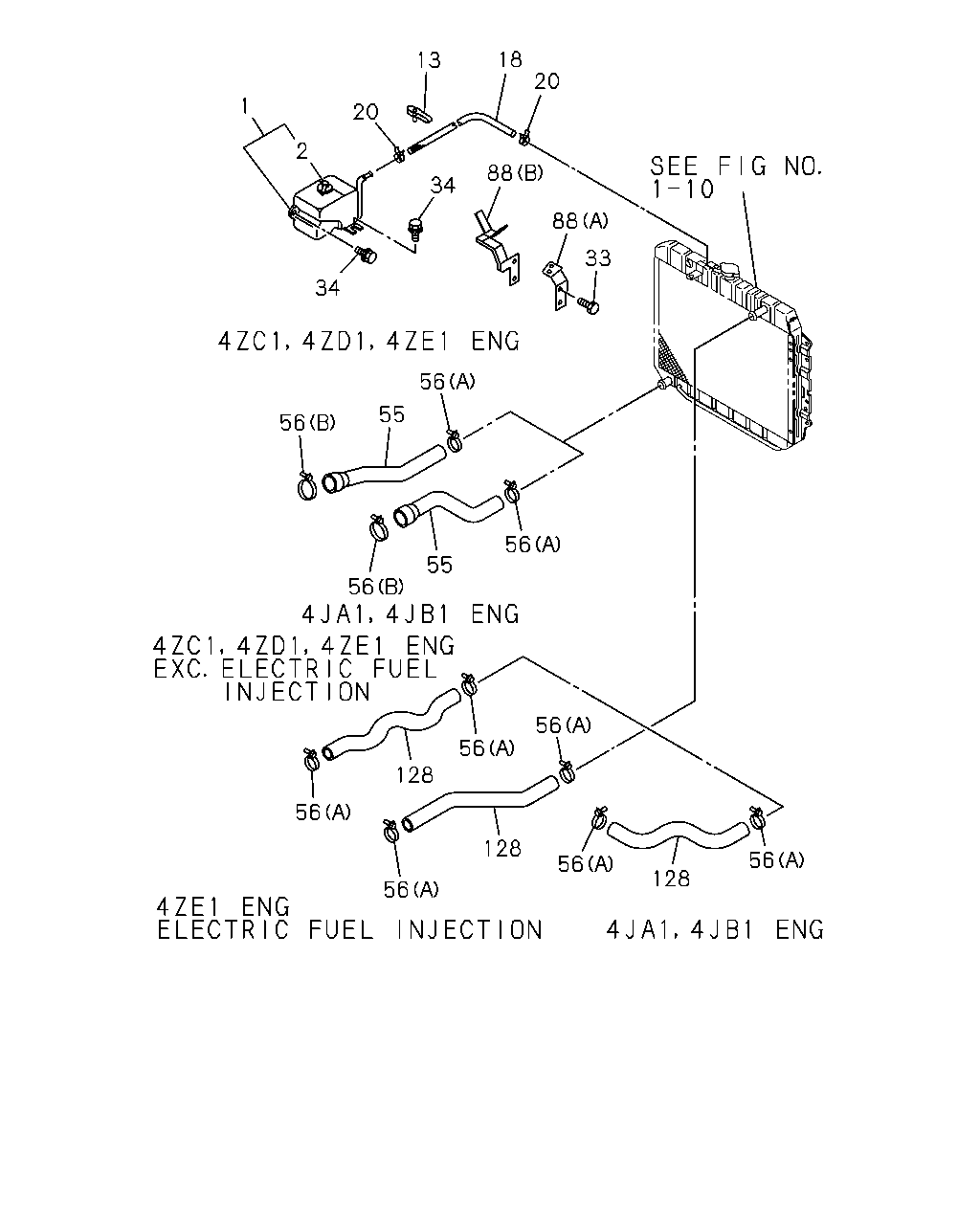

56 128 56 128 56 56 128 56 56 56 55 56 56 55 56 34 2 1 20 13 18 20 88 34 88 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9611-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9611-	●	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9611-	●	●	●	●		●
13	01.240 CLIP; HOSE,SURGE TANK EXC. ELECTRIC FUEL INJECTION<6GG> 02.559 L=103	8-94239-339-0	02	1	9611-					●
13	01.240 CLIP; HOSE,SURGE TANK ELECTRIC FUEL INJECTION<6GG> 02.559 L=103	8-94239-339-0	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK L=930	8-97016-104-1	01	1	9611-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46> L=930	8-97016-104-1	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. ELECTRIC FUEL INJECTION<6GG> L=930	8-97016-104-1	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK ELECTRIC FUEL INJECTION<6GG> L=930	8-97161-787-0	01	1	9611-					●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9712-						●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9611-	●	●	●	●	●	●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9611-9703	●	●			●
33	01.277 BOLT; BRKT EXC. ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9611-9703		●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9704-9711			●	●
33	01.277 BOLT; BRKT HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9712-	●	●			●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9712-					●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9712-			●	●		●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9611-	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9611-	●	●			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9611-			●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9712-						●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9611-	●	●			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9611-	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9611-			●	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9712-						●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9712-						●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9611-	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. ELECTRIC FUEL INJECTION<6GG> (A)	8-94473-988-3	01	1	9611-					●
88	01.219 BRACKET; SUB TANK HOSE ELECTRIC FUEL INJECTION<6GG> (B)	8-94473-989-1	01	1	9611-					●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9712-						●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9611-	●	●
128	01.159 HOSE; WATER,RAD INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94389-481-0	01	1	9611-					●
128	01.159 HOSE; WATER,RAD INL ELECTRIC FUEL INJECTION<6GG>	8-94447-549-1	01	1	9611-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9611-			●	●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9712-						●
