1-10 — RADIATOR (#40563) — 79 parça

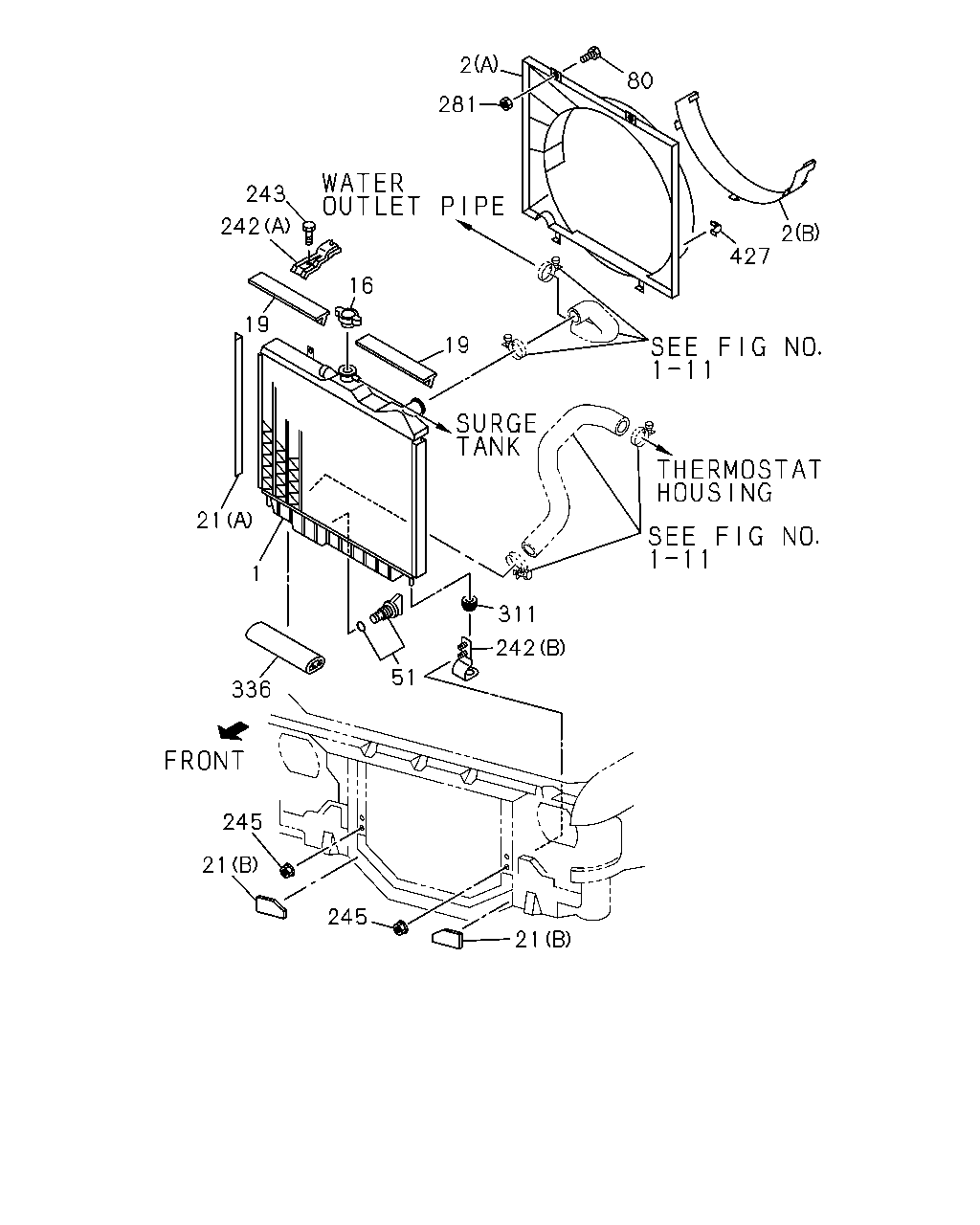

çizim 69573
21 245 21 336 245 51 242 1 21 311 427 2 19 16 19 242 243 281 2 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9611- ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97091-298-1 01 1 9611- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97091-299-1 01 1 9611- ●
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9611- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9611- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9712- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9712- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9611-9612 ● ● ●
2 01.277 GUIDE; FAN
HEAVY DUTY AIR CLEANER<K46> 		8-97161-424-0 01 1 9701-9701 ● ● ●
2 01.277 GUIDE; FAN
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97161-424-0 01 1 9702- ● ● ●
2 01.277 GUIDE; FAN
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97161-424-0 01 1 9702- ●
2 01.277 GUIDE; FAN
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97173-993-0 01 1 9701-9701 ● ● ●
2 01.277 GUIDE; FAN
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97173-993-0 01 1 9702- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9611- ● ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9712- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9712- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9611- ● ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9712- ●
19 01.270 SEAL; RAD UPR
4X2 LONG(TFB**F) A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
LONG(TF***F) L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9712- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9712- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9712- ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9712- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9712- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9611- ● ● ● ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9712- ●
80 01.277 BOLT; FAN GUIDE 8-52468-044-0 02 1 9712- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9611- ● ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9611- ● ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9712- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-636-1 01 1 9712- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9611- ● ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ●
281 01.277 NUT; FAN GUIDE 8-52460-824-0 02 1 9712- ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9712- ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9712- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9611- ● ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9712- ●

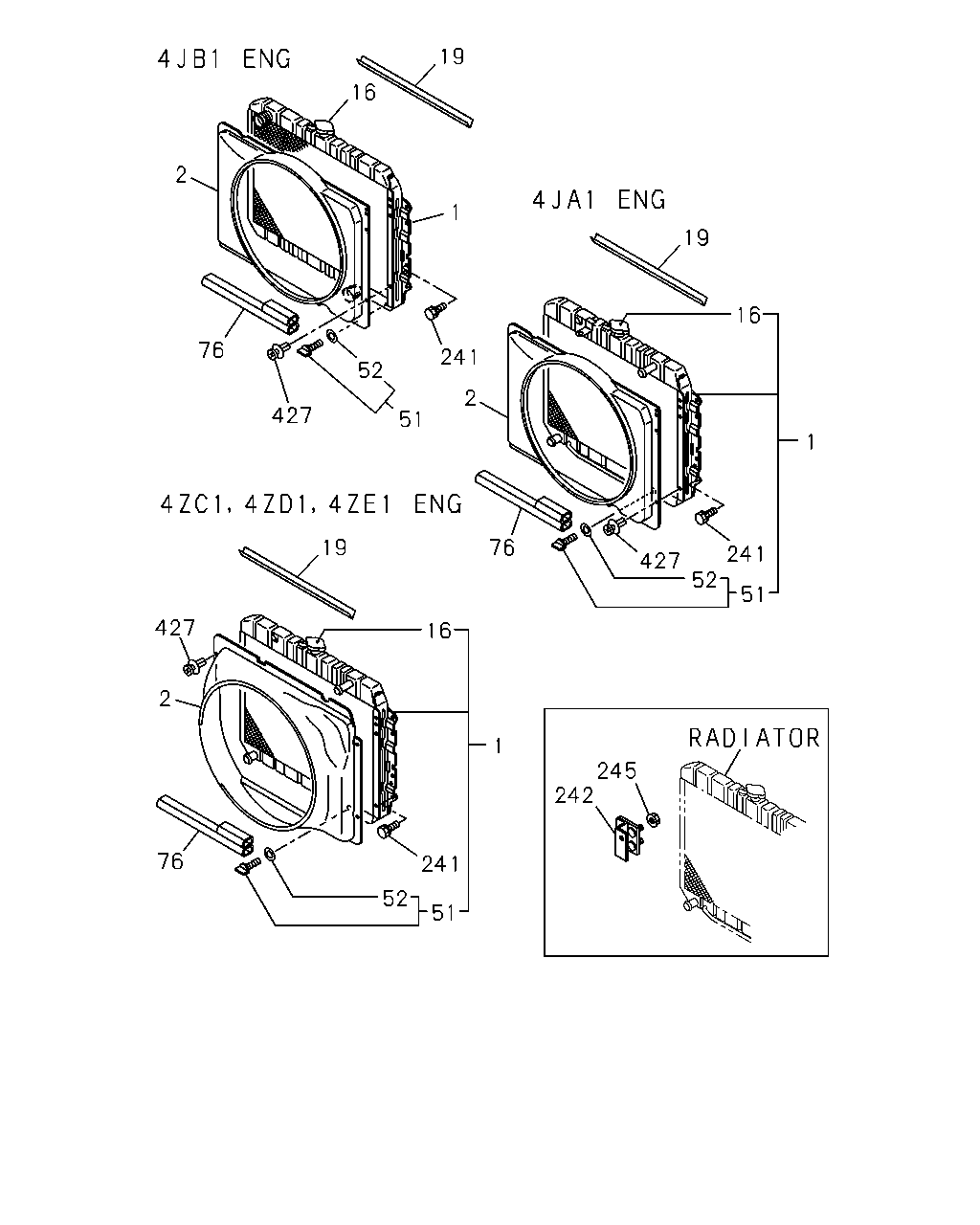

çizim 70068
19 16 1 241 2 51 52 427 76 2 19 16 1 241 51 52 427 76 19 16 427 2 76 52 51 241 1 242 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97091-298-1 01 1 9611- ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97091-298-1 01 1 9611- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97091-299-1 01 1 9611- ●
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9611- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9611- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9712- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9712- ●
2 01.277 GUIDE; FAN 8-97161-424-0 01 1 9611-9612 ● ● ●
2 01.277 GUIDE; FAN
HEAVY DUTY AIR CLEANER<K46> 		8-97161-424-0 01 1 9701-9701 ● ● ●
2 01.277 GUIDE; FAN
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97161-424-0 01 1 9702- ● ● ●
2 01.277 GUIDE; FAN
HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG> 		8-97161-424-0 01 1 9702- ●
2 01.277 GUIDE; FAN
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97173-993-0 01 1 9701-9701 ● ● ●
2 01.277 GUIDE; FAN
ELECTRIC FUEL INJECTION<6GG> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97173-993-0 01 1 9702- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9611- ● ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9712- ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9712- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9611- ● ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9712- ●
19 01.270 SEAL; RAD UPR
4X2 LONG(TFB**F) A/T AISIN(RMD) L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
LONG(TF***F) L=540 		8-94468-115-1 01 1 9611- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9712- ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9712- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9611- ● ● ● ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9712- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9611- ● ● ● ● ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9611- ● ● ● ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9611- ● ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9611- ● ● ● ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9611- ● ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9712- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-636-1 01 1 9712- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9611- ● ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9611- ● ● ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9712- ●
