◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82B - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#40556) — 107 parça

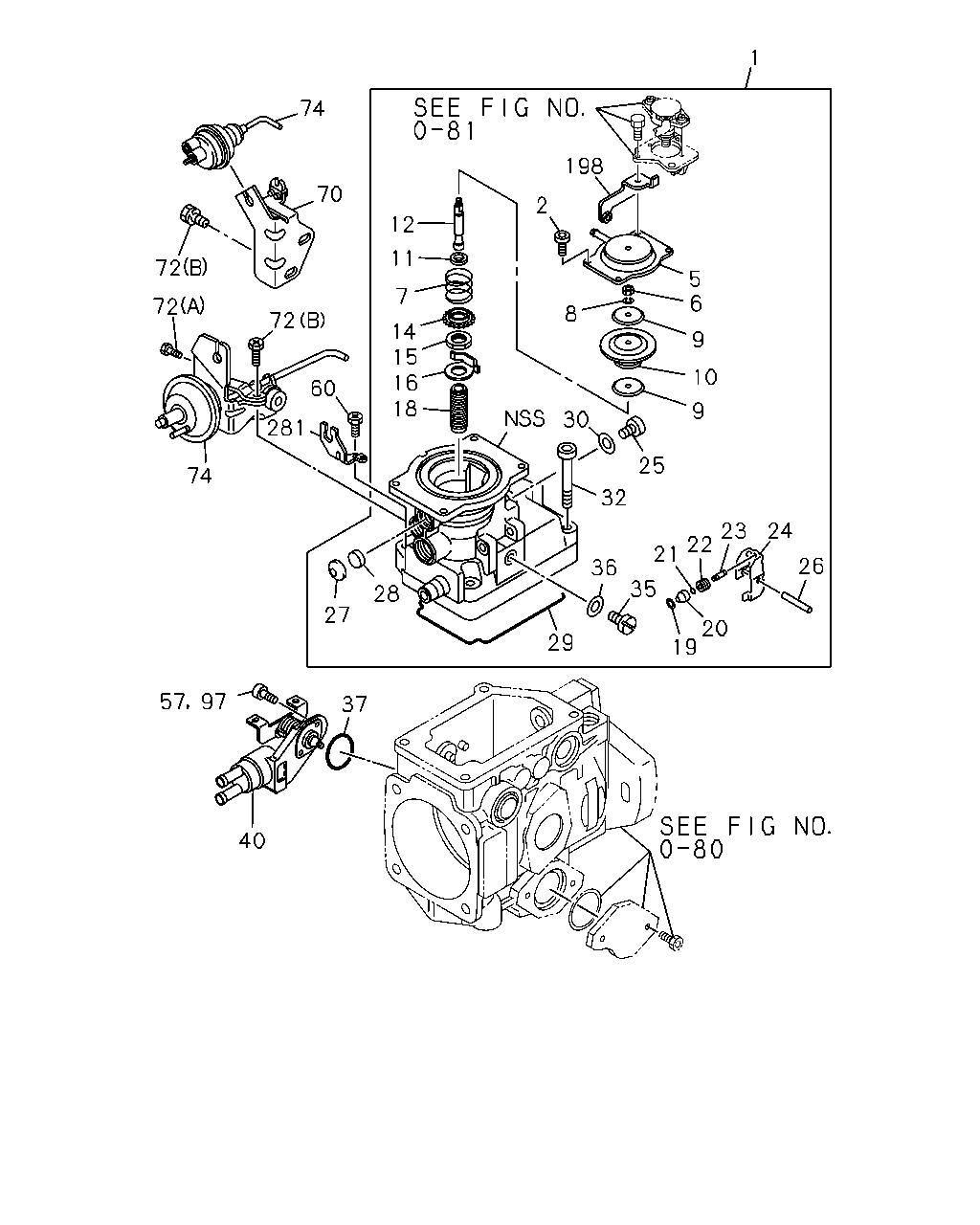

çizim 15960
19 20 26 24 23 22 21 35 36 29 37 40 97 57 27 28 32 25 9 30 10 9 6 5 8 2 198 1 12 11 7 14 15 16 18 60 281 74 72 72 72 70 74
BalonParca AdiParca NoAdetTipApplied Date
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: D = 8-97132-678-2, 97132678 		8-97163-176-1 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: E = 8-97132-679-2, 97132679 		8-97163-177-2 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: F = 8-97132-680-2, 97132680 		8-97163-178-2 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: G = 8-97132-681-2, 97132681 		8-97163-179-1 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: J = 8-97172-536-0, 97172536 		8-97166-966-0 01 1 -
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: I = 8-97172-535-0, 97172535 		8-97181-513-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681 		8-94313-203-0 03 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
M6X14 ASM PART: D = 8-97132-678-2, 97132678, F = 8-97132-680-2, 97132680 		8-94331-551-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
M6X14 ASM PART: I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94331-551-0 03 1 -
5 03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94151-394-0 01 1 -
6 03.320 NUT; DIAPH,BOOST COMPENSATOR
08.845 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		9-88410-525-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97026-775-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681 		8-97100-554-0 01 1 -
8 03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-725-0 01 1 -
9 03.318 PLATE; DIAPH,BOOST COMPENSATOR
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-723-0 02 1 -
10 03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-724-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-729-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-730-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-731-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-732-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-733-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-734-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-735-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-736-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-737-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-738-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-739-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-740-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-741-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-742-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-743-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-744-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-745-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-746-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-747-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-748-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-749-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-750-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-751-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-752-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-753-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-754-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-755-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-756-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-757-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-758-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-510-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-511-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-512-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-513-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-514-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-515-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-516-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-517-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94169-518-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-102-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-103-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-104-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-105-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-106-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-107-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-108-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-109-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-110-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-111-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-112-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-113-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-114-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97046-115-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97169-970-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97169-971-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97169-972-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97169-973-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97169-974-0 01 1 -
12 03.318 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97120-314-0 01 1 -
14 03.318 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-726-0 01 1 -
15 03.320 NUT; BUSHING LK,BOOST COMPENSATO
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-720-0 01 1 -
16 03.330 PLATE; BUSHING,ADJ
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94122-719-0 01 1 -
18 03.320 BUSHING; ADJ PIN,BOOST COMPENSAT
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94151-391-0 01 1 -
19 03.320 GASKET; BUSHING,BOOST COMPENSATO
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-686-0 01 1 -
20 03.320 BUSHING; CONT PIN,BOOST COMPENSA
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-685-0 01 1 -
21 03.320 GASKET; CONT PIN,BOOST COMPENSAT
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-684-0 01 1 -
22 03.320 NUT; BUSHING,CONT PIN,BOOST COMP
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-683-0 01 1 -
23 03.320 PIN; CONT,BOOST COMPENSATOR
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94151-392-0 01 1 -
24 03.320 LEVER; BOOST COMPENSATOR,GOV
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94177-918-0 01 1 -
25 03.306 PLUG; HSG,BOOST COMPENSATOR
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-687-0 01 1 -
26 03.320 PIN; CONT LEVER,BOOST COMPENSATO
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-693-0 01 1 -
27 03.320 PLUG; ELEMENT
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94151-395-0 01 1 -
28 03.320 ELEMENT; BOOST COMPENSATOR
03.314 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94159-096-0 01 1 -
29 03.306 GASKET; HSG,BOOST COMPENSATOR
03.308 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97136-413-0 01 1 -
30 03.306 GASKET; HSG PLUG,BOOST COMPENSAT
ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94144-588-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.330 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94242-298-0 04 1 -
35 03.320 PLUG; CONT LEVER PIN,BOOST COMPE
03.318 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94257-694-0 02 1 -
36 03.320 GASKET; LEVER PIN,BOOST COMPENSA
09.170 ASM PART: D = 8-97132-678-2, 97132678, E = 8-97132-679-2, 97132679, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681, I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		5-15729-099-0 02 1 -
37 03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321, C = 8-97132-322-1, 97132322, E = 8-97132-679-2, 97132679, G = 8-97132-681-2, 97132681, J = 8-97172-536-0, 97172536 		8-94227-491-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321, C = 8-97132-322-1, 97132322, E = 8-97132-679-2, 97132679, G = 8-97132-681-2, 97132681, J = 8-97172-536-0, 97172536 		8-97065-836-3 01 1 -
57 03.308 BOLT; START ADVANCE
ASM PART: A = 8-97132-320-1, 97132320, C = 8-97132-322-1, 97132322, E = 8-97132-679-2, 97132679, G = 8-97132-681-2, 97132681, J = 8-97172-536-0, 97172536 		1-15619-276-0 02 1 -
60 03.330 BOLT; BRKT
03.308, M6X12 ASM PART: I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-94313-267-0 01 1 -
70 03.314 BRACKET; ACTUATOR,FAST IDLE,INJ
ASM PART: H = 8-97133-440-1, 97133440 		8-94313-226-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
03.308, (A) ASM PART: C = 8-97132-322-1, 97132322, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681 		8-94313-254-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
03.306, (B) ASM PART: C = 8-97132-322-1, 97132322, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681 		8-94331-551-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: H = 8-97133-440-1, 97133440 		8-97071-946-0 02 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: H = 8-97133-440-1, 97133440 		8-94313-225-0 01 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: C = 8-97132-322-1, 97132322, F = 8-97132-680-2, 97132680, G = 8-97132-681-2, 97132681 		8-97126-378-1 01 1 -
97 03.306 BOLT; PLATE,START ADVANCE
03.308 ASM PART: B = 8-97132-321-1, 97132321 		1-15619-276-0 02 1 -
198 03.340 BRACKET; DIAPH
03.485 ASM PART: D = 8-97132-678-2, 97132678, F = 8-97132-680-2, 97132680 		8-97028-890-0 01 1 -
281 03.314 BRACKET; CONNECTOR
03.308 ASM PART: I = 8-97172-535-0, 97172535, J = 8-97172-536-0, 97172536 		8-97126-371-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
