1 |

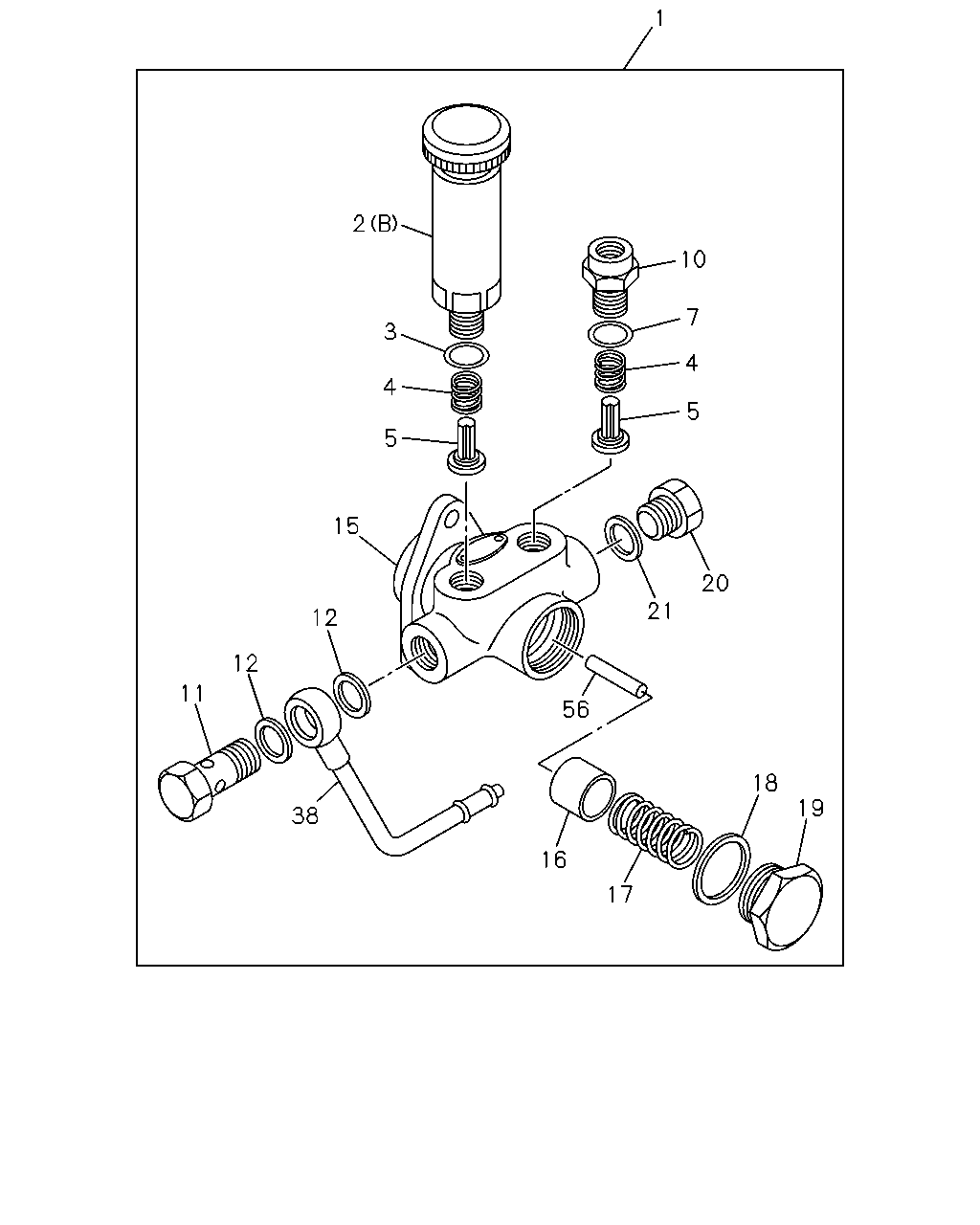

03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
8-97117-944-0 |
01 |
1 |
- |
| |
2 |
03.910 PUMP; PRIMING,FUEL FEED PUMP
(B) ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15761-006-0 |
01 |
1 |
- |
| |
3 |
03.904 GASKET; PRIMING PUMP,FUEL FEED P
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-19623-016-0 |
01 |
1 |
- |
| |
4 |
03.901 SPRING; VLV,FUEL FEED PUMP
03.927
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
9-81351-702-0 |
02 |
1 |
- |
| |
5 |
03.927 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15755-002-0 |
02 |
1 |
- |
| |
7 |
03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-19623-016-0 |
01 |
1 |
- |
| |
10 |
03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15759-003-0 |
01 |
1 |
- |
| |
11 |
03.162 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15759-029-0 |
01 |
1 |
- |
| |
12 |
03.162 GASKET; EYE BOLT,INL,FUEL FEED P
03.163, ID=14.2 OD=19.2
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-09630-085-0 |
02 |
1 |
- |
| |
15 |
03.900 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
8-97115-989-0 |
01 |
1 |
- |
| |
16 |
03.925 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15752-001-0 |
01 |
1 |
- |
| |
17 |
03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
9-81351-302-0 |
01 |
1 |
- |
| |
18 |
03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15759-042-0 |
01 |
1 |
- |
| |
19 |
03.901 PLUG; PISTON SPRING,FUEL FEED PU
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
8-94171-185-0 |
01 |
1 |
- |
| |
20 |
03.901 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15759-004-0 |
01 |
1 |
- |
| |
21 |
03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
1-15759-007-0 |
01 |
1 |
- |
| |
38 |
03.163 PIPE; FEED PUMP
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
8-97093-411-0 |
01 |
1 |
- |
| |
56 |
03.901 PUSH ROD
ASM PART: A = 8-97170-504-0, 97170504, B = 8-97170-505-0, 97170505,
C = 8-97170-506-1, 97170506, D = 8-97170-507-1, 97170507,
E = 8-97170-508-0, 97170508
|
8-97115-990-0 |
01 |
1 |
- |
