Sayfa 0-84F - Isuzu EPC

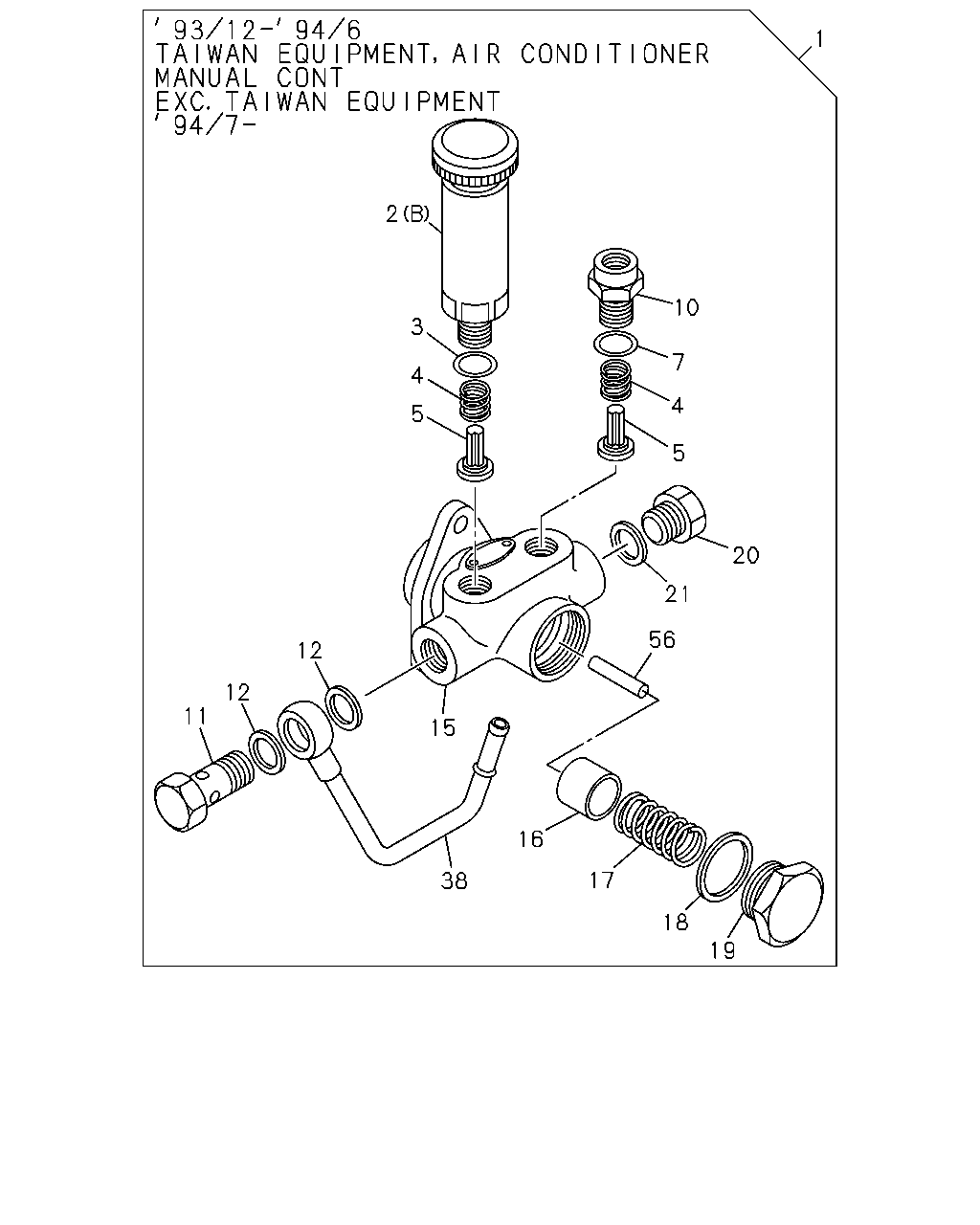

0-84F — FEED PUMP; INJECTION PUMP (#40552) — 50 parça

1 2 10 3 7 4 4 5 5 20 21 56 12 12 11 15 16 17 38 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97100-837-1, 97100837	8-97093-761-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97114-351-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-19623-016-0	01	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-029-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-09630-085-0	02	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	8-94472-292-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: E = 8-97114-005-0, 97114005	1-15725-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-042-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-007-0	01	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97093-411-0	01	1	-
56	03.901 PUSH ROD ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97115-991-0	01	1	-

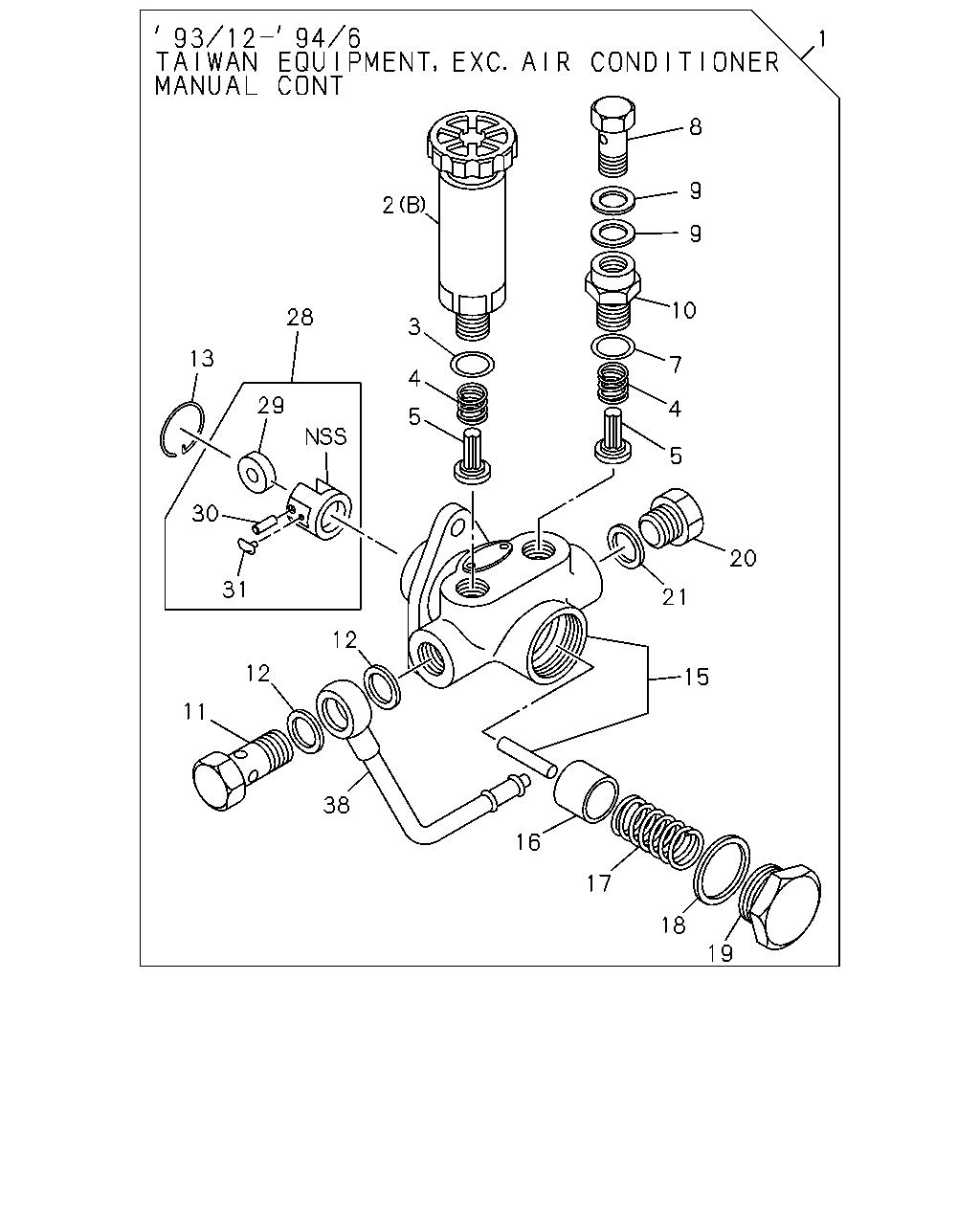

1 8 9 2 9 10 28 3 13 7 4 29 4 5 5 30 20 31 21 12 12 15 11 38 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-97100-837-1, 97100837	8-97093-761-0	01	1	-
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97114-351-0	01	1	-
2	03.910 PUMP; PRIMING,FUEL FEED PUMP (B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15761-006-0	01	1	-
3	03.904 GASKET; PRIMING PUMP,FUEL FEED P ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-19623-016-0	01	1	-
4	03.901 SPRING; VLV,FUEL FEED PUMP 03.927 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	9-81351-702-0	02	1	-
5	03.927 VALVE; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15755-002-0	02	1	-
7	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-19623-016-0	01	1	-
8	03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	1-15759-011-0	01	1	-
9	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 03.163, ID=14.2 OD=19.2 ASM PART: C = 8-97100-837-1, 97100837	1-09630-085-0	02	1	-
10	03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-003-0	01	1	-
11	03.162 BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-029-0	01	1	-
12	03.162 GASKET; EYE BOLT,INL,FUEL FEED P 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-09630-085-0	02	1	-
13	03.901 RING; SNAP,TAPPET,FUEL FEED PUMP 03.904 ASM PART: C = 8-97100-837-1, 97100837	9-81355-025-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	8-94472-292-0	01	1	-
15	03.900 HOUSING; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97115-989-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: E = 8-97114-005-0, 97114005	1-15725-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, D = 8-97114-004-0, 97114004, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15752-001-0	01	1	-
16	03.925 PISTON; FUEL FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	9-81351-205-0	01	1	-
17	03.901 SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	9-81351-302-0	01	1	-
18	03.904 GASKET; PISTON PLUG,FUEL FEED PU ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-042-0	01	1	-
19	03.901 PLUG; PISTON SPRING,FUEL FEED PU ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-94171-185-0	01	1	-
20	03.901 PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-004-0	01	1	-
21	03.904 GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	1-15759-007-0	01	1	-
28	03.935 TAPPET ASM; FUEL FEED PUMP ASM PART: C = 8-97100-837-1, 97100837	5-15754-001-0	01	1	-
29	03.901 ROLLER; TAPPET,FUEL FEED PUMP 03.935 ASM PART: C = 8-97100-837-1, 97100837	9-81351-403-0	01	1	-
30	03.901 PIN; TAPPET ROLLER,FUEL FEED PUM 03.935 ASM PART: C = 8-97100-837-1, 97100837	9-81351-410-0	01	1	-
31	03.901 GUIDE; TAPPET,FUEL FEED PUMP 03.935 ASM PART: C = 8-97100-837-1, 97100837	1-15759-002-0	02	1	-
38	03.163 PIPE; FEED PUMP ASM PART: A = 8-97075-397-2, 97075397, B = 8-97075-399-2, 97075399, C = 8-97100-837-1, 97100837, D = 8-97114-004-0, 97114004, E = 8-97114-005-0, 97114005, F = 8-97114-013-0, 97114013, G = 8-97114-014-0, 97114014, H = 8-97122-357-1, 97122357, I = 8-97136-658-0, 97136658, J = 8-97136-661-0, 97136661, K = 8-97139-557-0, 97139557, L = 8-97146-780-0, 97146780, M = 8-97146-783-0, 97146783, N = 8-97146-785-0, 97146785	8-97093-411-0	01	1	-
