◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#4055) — 264 parça

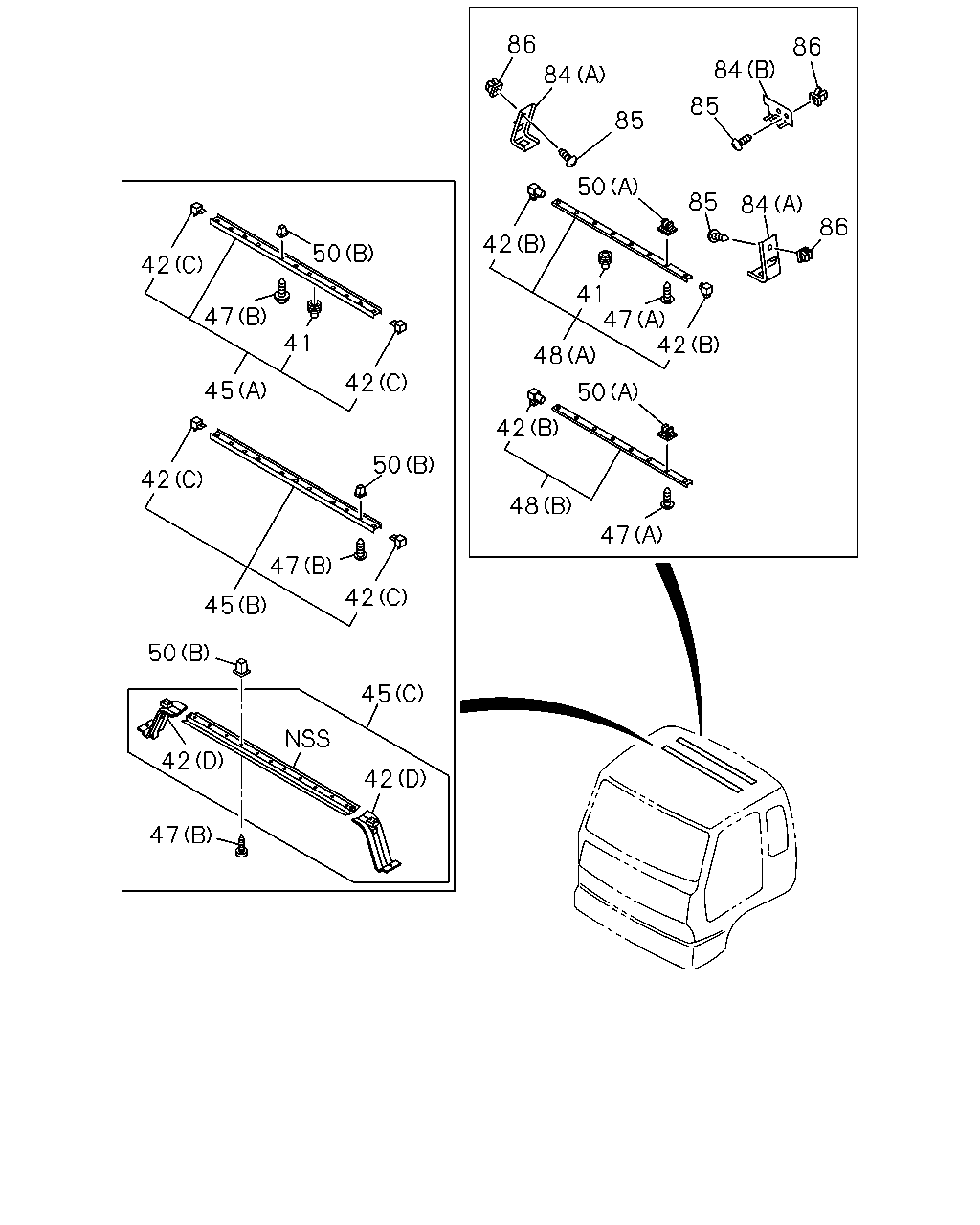

çizim 115804
86 86 84 84 85 85 50 85 84 86 42 50 42 41 47 47 42 41 48 42 45 50 42 50 42 48 47 47 42 45 50 45 42 42 47
BalonParca AdiParca NoAdetTipApplied Date A B
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9802 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9803-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9802 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9803-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9510-0004 ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9510-9802 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-303-3 01 1 9803-0004 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9510-0004 ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-4 01 1 9510-9802 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73908-262-0 01 1 9803-0004 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0005- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9510- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9802 ● ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 9803- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 9803- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9510-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0005- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9510-0004 ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0005- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0212- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9510- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9510-9802 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9803- ● ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9510-9802 ● ●
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9510-9802 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9803- ● ●
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9510-9802 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9510-9708 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9709-9802 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9803- ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9510-9708 ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9802 ● ●

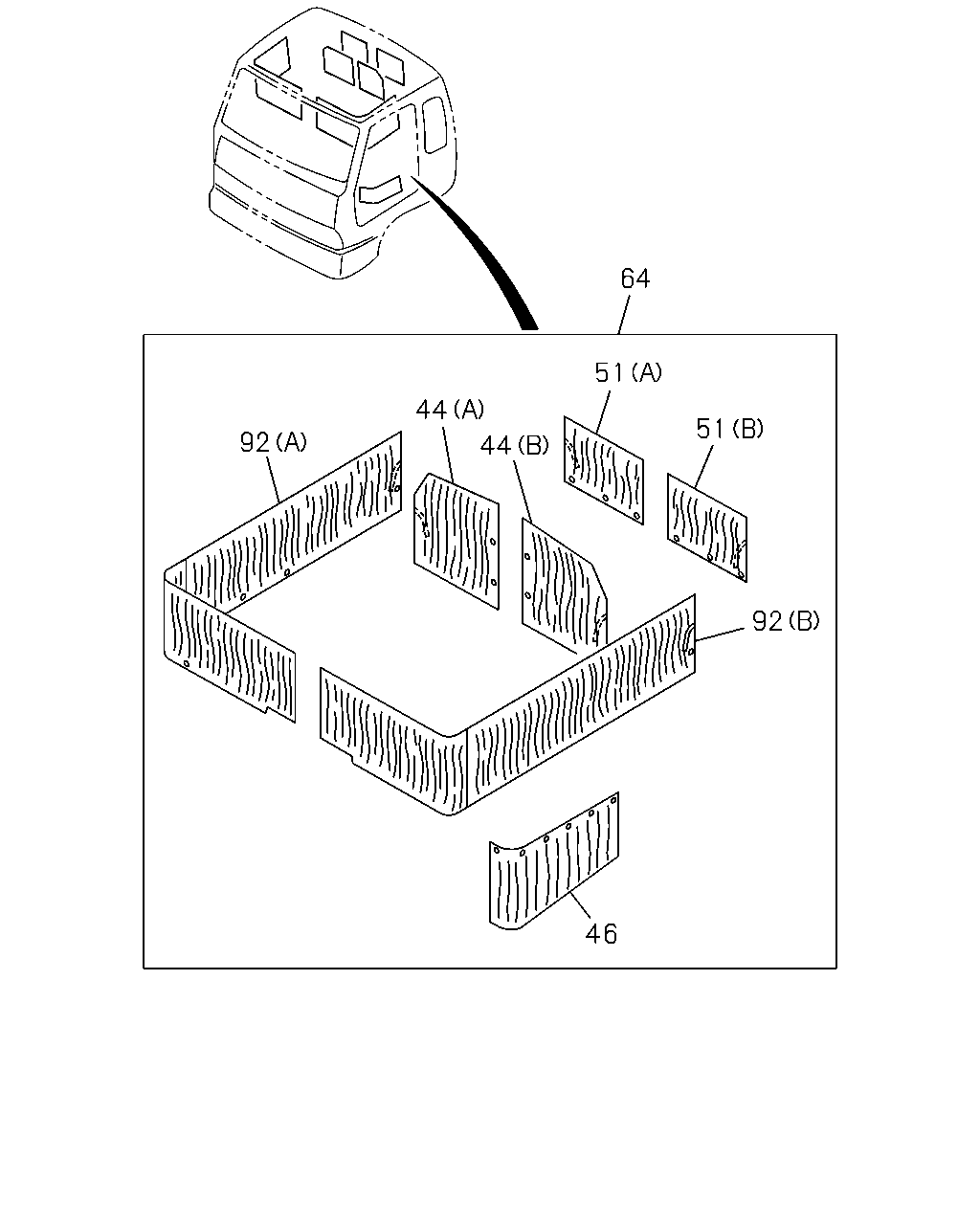

çizim 116125
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-208-1 01 1 9510- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73908-207-1 01 1 9510- ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-303-0 01 1 9510- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-212-1 01 1 9510- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-211-1 01 1 9510- ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73908-205-1 01 1 9510- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-216-1 01 1 9510- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-215-1 01 1 9510- ● ●

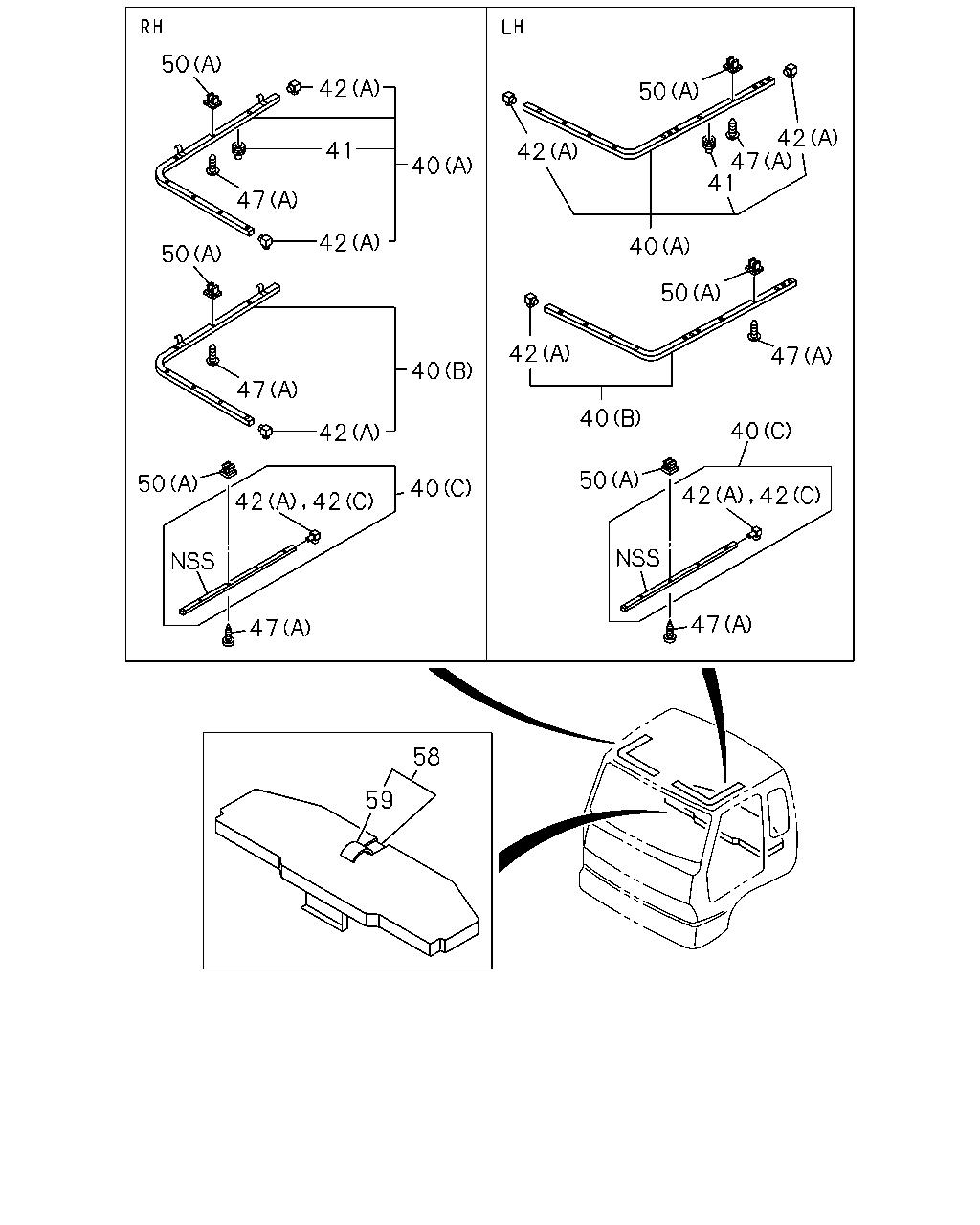

çizim 116139
50 42 50 42 47 41 41 42 40 47 42 40 50 50 42 47 40 47 40 40 42 50 50 40 42 42 42 42 47 47 58 59
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9510-9802 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9510-9802 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-334-1 02 1 9803-0004 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-204-0 02 1 9510-9512 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-219-0 01 1 9601-0004 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-220-0 01 1 9601-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9510-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9510-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0005- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9802 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9803-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9802 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9803-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9510- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9802 ● ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 9803- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 9803- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0212- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-226-1 01 1 9510-0003 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-521-0 01 1 0004-0004 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-1 01 1 0005- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-231-0 01 1 9510-0003 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-668-0 01 1 0004-0004 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-1 01 1 0005- ● ●

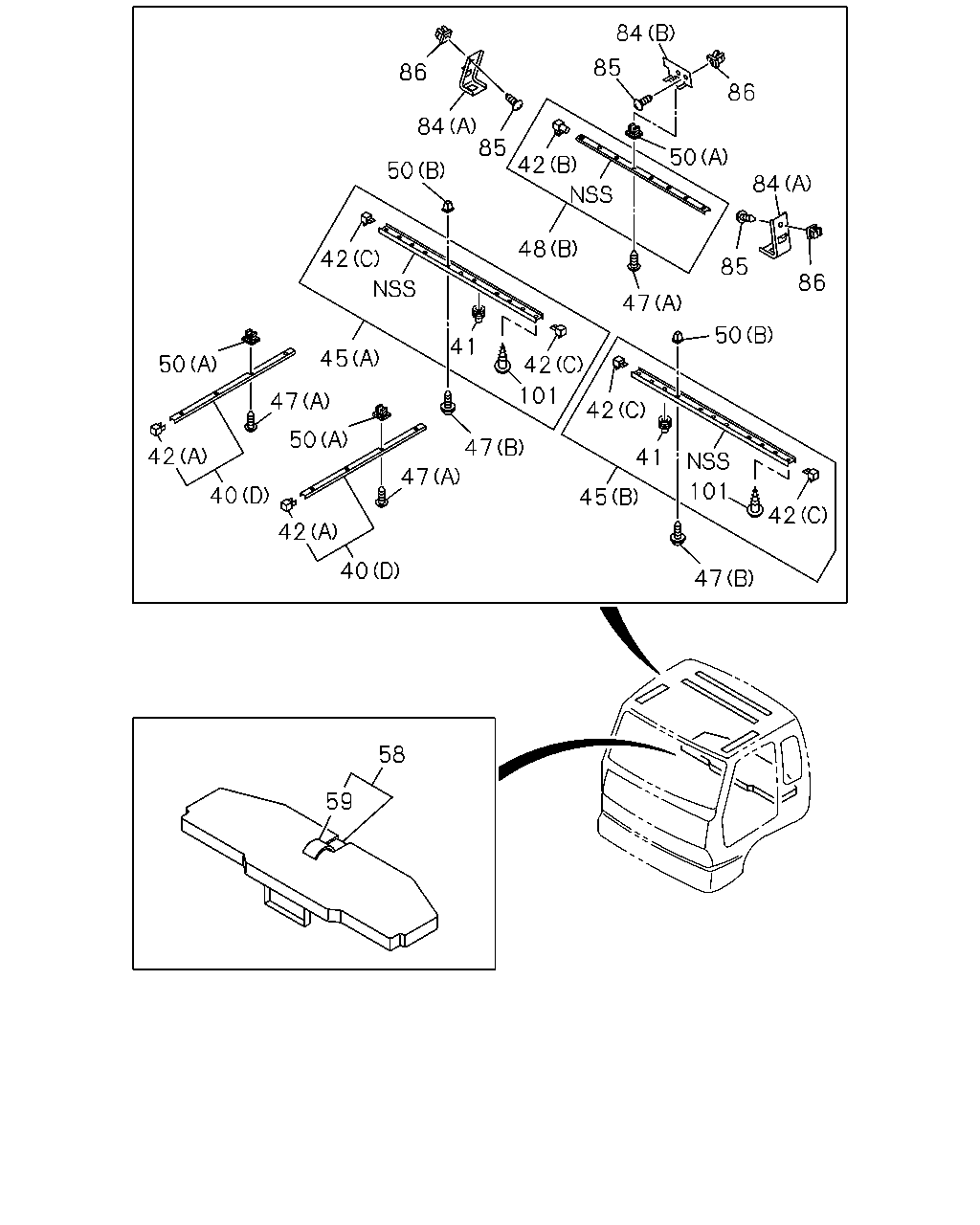

çizim 116166
84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 41 45 50 42 101 47 42 50 47 42 41 47 101 40 45 42 42 40 47 58 59
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-380-1 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-109-1 01 1 9510-9802 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73908-108-1 01 1 9510-9802 ● ●
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-334-1 02 1 9803-0004 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-204-0 02 1 9510-9512 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-219-0 01 1 9601-0004 ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73996-379-0 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (D) 		1-73908-220-0 01 1 9601-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-154-1 01 1 9510-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0005- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-153-1 01 1 9510-0004 ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0005- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0005- ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9510-9704 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY 		1-73996-105-0 13 1 9705-0004 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 13 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY 		1-73996-105-0 08 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9510-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0005- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 12 1 9705-9802 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY 		1-73996-105-0 14 1 9803-0004 ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0005-0006 ● ●
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0007- ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-279-2 02 1 9510-9802 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73907-449-2 02 1 9803-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9510-9512 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73908-193-0 02 1 9601-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-403-1 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 02 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73908-193-0 04 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0005- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-146-2 01 1 9510-0004 ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-150-0 01 1 9510-0004 ● ●
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-110-0 01 1 9510-9802 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-303-3 01 1 9803-0004 ● ●
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-148-0 01 1 9510-0004 ● ●
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0005- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73996-101-4 01 1 9510-9802 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73908-262-0 01 1 9803-0004 ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0005- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 9510- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 21 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 30 1 9704-9802 ● ●
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 9803- ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> (B) M5X25 		5-09981-093-0 09 1 9510-9703 ● ●
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 9803- ● ●
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 9510- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-106-3 01 1 9510-0004 ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0005- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		8-94265-811-0 01 1 9510-0004 ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0005- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 09 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 21 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 21 1 9709-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 11 1 9803- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 07 1 9510-9802 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 9803-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5 		1-09983-159-0 15 1 0212- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 17 1 9510-9708 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 9709-0211 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0212-0212 ● ●
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0212- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-226-1 01 1 9510-0003 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-521-0 01 1 0004-0004 ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-522-1 01 1 0005- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-231-0 01 1 9510-0003 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-668-0 01 1 0004-0004 ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-669-1 01 1 0005- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 9510- ● ●
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 02 1 9510-9802 ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9803- ● ●
84 BRACKET; CURTAIN RAIL
LOW ROOF<6XQ> (B) 		1-73998-987-4 07 1 9510-9802 ● ●
85 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 04 1 9510-9802 ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 9803- ● ●
85 SCREW; BRKT
LOW ROOF<6XQ> M5X20 		5-09981-059-0 09 1 9510-9802 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9510-9708 ● ●
86 GROMMET; SCREW,BRKT
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9709-9802 ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9803- ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 09 1 9510-9708 ● ●
86 GROMMET; SCREW,BRKT
LOW ROOF<6XQ> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 9709-9802 ● ●
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
