◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84A - FEED PUMP; INJECTION PUMP ▶
0-84A — FEED PUMP; INJECTION PUMP (#40547) — 14 parça

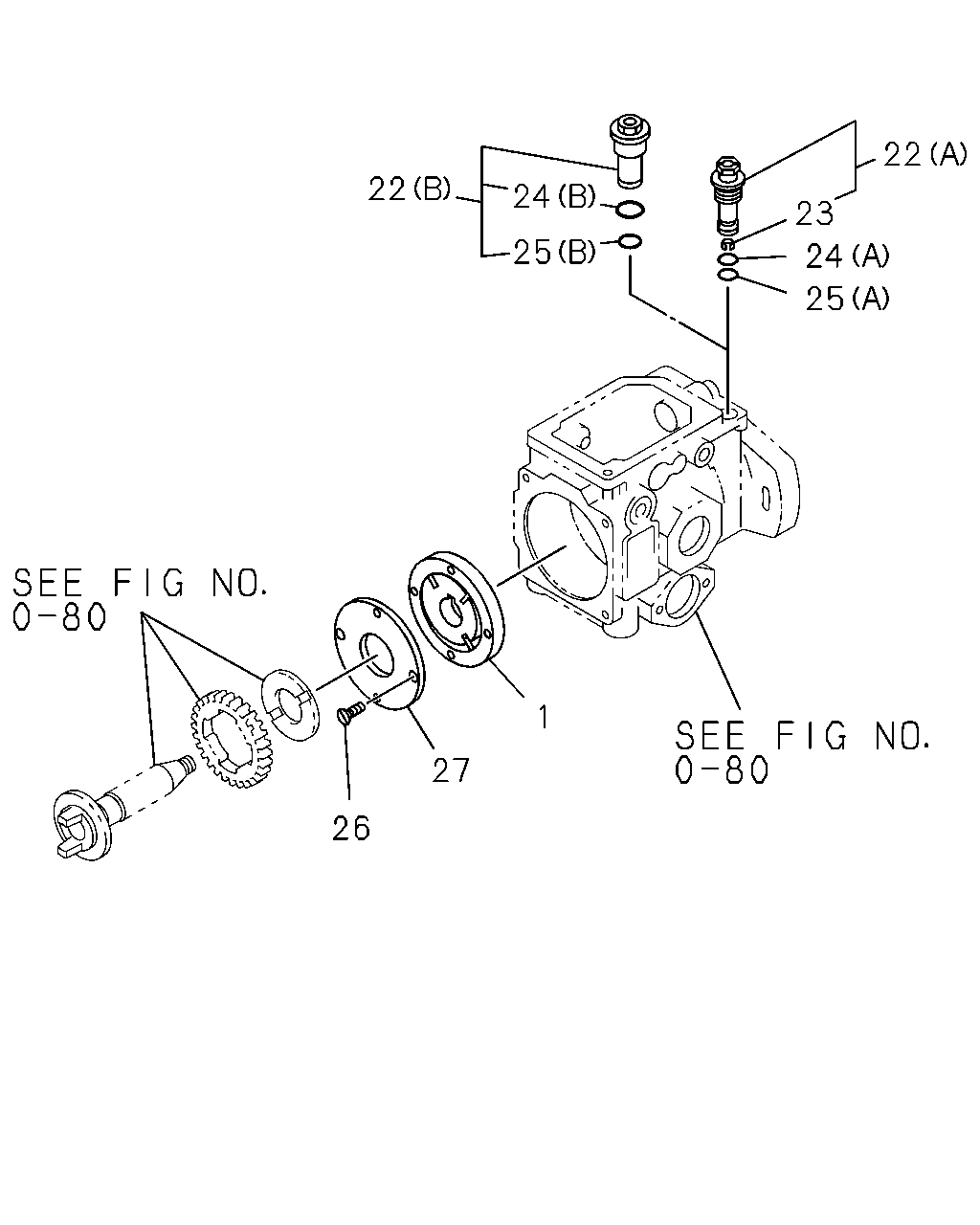

çizim 67370
22 22 24 23 25 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340 ASM PART: A = 8-97091-744-0, 97091744 		8-94227-477-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-97138-842-2, 97138842 		8-97140-765-0 01 1 -
22 03.901 VALVE; REGULATING,INJ PUMP
(A) ASM PART: A = 8-97091-744-0, 97091744 		8-94424-194-0 01 1 -
22 03.901 VALVE; REGULATING,INJ PUMP
(B) ASM PART: B = 8-97138-842-2, 97138842 		8-97161-916-0 01 1 -
23 03.901 RING; SPRING,REGULATING VLV,INJ
03.320 ASM PART: A = 8-97091-744-0, 97091744 		8-94227-643-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330, (A) ASM PART: A = 8-97091-744-0, 97091744 		8-94227-641-0 01 1 -
24 03.904 GASKET; REGULATING VLV,INJ PUMP
(B) ASM PART: B = 8-97138-842-2, 97138842 		8-97141-212-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
03.330, (A) ASM PART: A = 8-97091-744-0, 97091744 		8-94227-640-0 01 1 -
25 03.904 GASKET; REGULATING VLV,INJ PUMP
(B) ASM PART: B = 8-97138-842-2, 97138842 		8-97141-213-0 01 1 -9607
25 03.904 GASKET; REGULATING VLV,INJ PUMP
(B) ASM PART: B = 8-97138-842-2, 97138842 		8-97209-534-0 01 1 9608-
26 03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330 ASM PART: A = 8-97091-744-0, 97091744 		8-94227-479-0 02 1 -
26 03.901 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: B = 8-97138-842-2, 97138842 		8-97141-184-0 02 1 -
27 03.910 COVER; FUEL FEED PUMP
03.322 ASM PART: A = 8-97091-744-0, 97091744 		8-94227-478-0 01 1 -
27 03.910 COVER; FUEL FEED PUMP
ASM PART: B = 8-97138-842-2, 97138842 		8-97140-932-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
