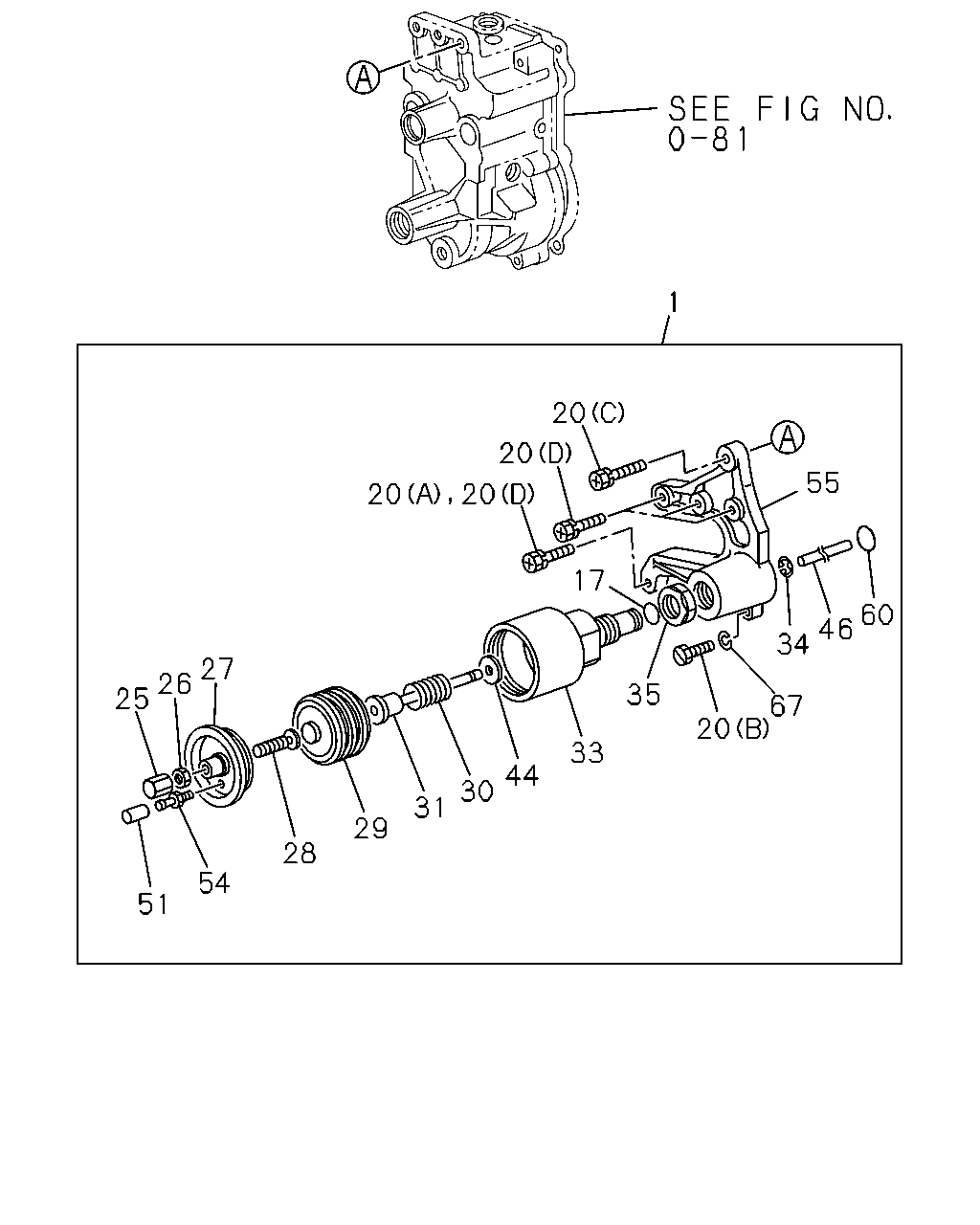

0-83B — ANEROID COMPENSATOR; INJECTION GOVERNOR (#40543) — 44 parça

1 20 20 55 20 20 17 60 46 34 27 26 25 35 67 20 33 44 30 31 29 28 54 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: C = 8-97117-563-0, 97117563	8-97044-269-0	01	1	-
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: A = 8-97093-496-0, 97093496	8-97063-451-0	01	1	-
1	03.320 COMPENSATOR ASM; ANEROID,INJ PUM ASM PART: B = 8-97093-497-0, 97093497, D = 8-97117-564-0, 97117564	8-97088-700-0	01	1	-
17	03.308 GASKET; HSG,ANEROID COMPENSATOR ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-343-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS (A), M6X25 ASM PART: A = 8-97093-496-0, 97093496, C = 8-97117-563-0, 97117563	1-15729-242-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS 03.306, (C) ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-243-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS (B), M6X24 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-383-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS (D), M6X20 ASM PART: B = 8-97093-497-0, 97093497	9-81325-187-0	03	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS 03.306, (D) ASM PART: B = 8-97093-497-0, 97093497	9-88410-094-0	01	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS 03.306, (D) ASM PART: A = 8-97093-496-0, 97093496, C = 8-97117-563-0, 97117563	9-88410-094-0	03	1	-
20	03.485 BOLT; SPACER FIX,ANEROID COMPENS 03.306, (D) ASM PART: D = 8-97117-564-0, 97117564	9-88410-094-0	04	1	-
25	03.330 NUT; CAP,SET BOLT,ANEROID COMPEN CAP NUT ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-093-0	01	1	-
26	03.308 NUT; SET BOLT,ANEROID COMPENSATO ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	9-81325-081-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR 03.330 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563	1-15721-103-0	01	1	-
27	03.320 COVER; HSG,ANEROID COMPENSATOR ASM PART: D = 8-97117-564-0, 97117564	1-15724-103-0	01	1	-
28	03.330 BOLT; BELLOWS SET,ANEROID COMPEN 03.306 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-342-0	01	1	-
29	03.320 BELLOWS; ANEROID COMPENSATOR ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-622-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: C = 8-97117-563-0, 97117563	5-15723-196-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: A = 8-97093-496-0, 97093496	8-94344-421-0	01	1	-
30	03.320 SPRING; PUSH ROD,ANEROID COMPENS ASM PART: B = 8-97093-497-0, 97093497, D = 8-97117-564-0, 97117564	8-94413-736-0	01	1	-
31	03.320 ROD; PUSH,BELLOWS,ANEROID COMPEN ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-341-0	01	1	-
33	03.320 HOUSING; ANEROID COMPENSATOR ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15721-150-0	01	1	-
34	03.330 RING; SNAP,PUSH ROD,ANEROID COMP ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	8-94244-599-0	01	1	-
35	03.308 NUT; HSG LOCK,ANEROID COMPENSATO ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-344-0	01	1	-
44	03.306 SHIM; SPRING,ANEROID COMPENSATOR 03.322 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	9-81393-301-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM L=95 ASM PART: D = 8-97117-564-0, 97117564	1-15729-065-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 01.531, L=96 ASM PART: D = 8-97117-564-0, 97117564	1-15729-066-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=102.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-346-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=102.5 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-347-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=103.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-348-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=103.5 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-623-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=104.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-624-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=97.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-631-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=98.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-632-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=99.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-633-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=100.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-634-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM 03.320, L=101.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-635-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM L=95.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563	1-15779-065-0	01	1	-
46	03.330 ROD; PUSH,LEVER SIDE,ANEROID COM L=96.0 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563	1-15779-066-0	01	1	-
51	03.320 CAP; HOSE JOINT,ANEROID COMPENSA ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	8-94424-221-0	01	1	-
54	03.320 JOINT; HOSE,ANEROID COMPENSATOR ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-360-0	01	1	-
55	03.320 SPACER; HSG,ANEROID COMPENSATOR ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	1-15729-620-0	01	1	-
60	03.485 RING; SPACER,GOV ASM PART: B = 8-97093-497-0, 97093497, D = 8-97117-564-0, 97117564	8-94424-220-0	01	1	-
67	03.330 WASHER; LK,SPACER,ANEROID COMPEN 00.206, ID=6.1 ASM PART: A = 8-97093-496-0, 97093496, B = 8-97093-497-0, 97093497, C = 8-97117-563-0, 97117563, D = 8-97117-564-0, 97117564	9-09150-506-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
