1 |

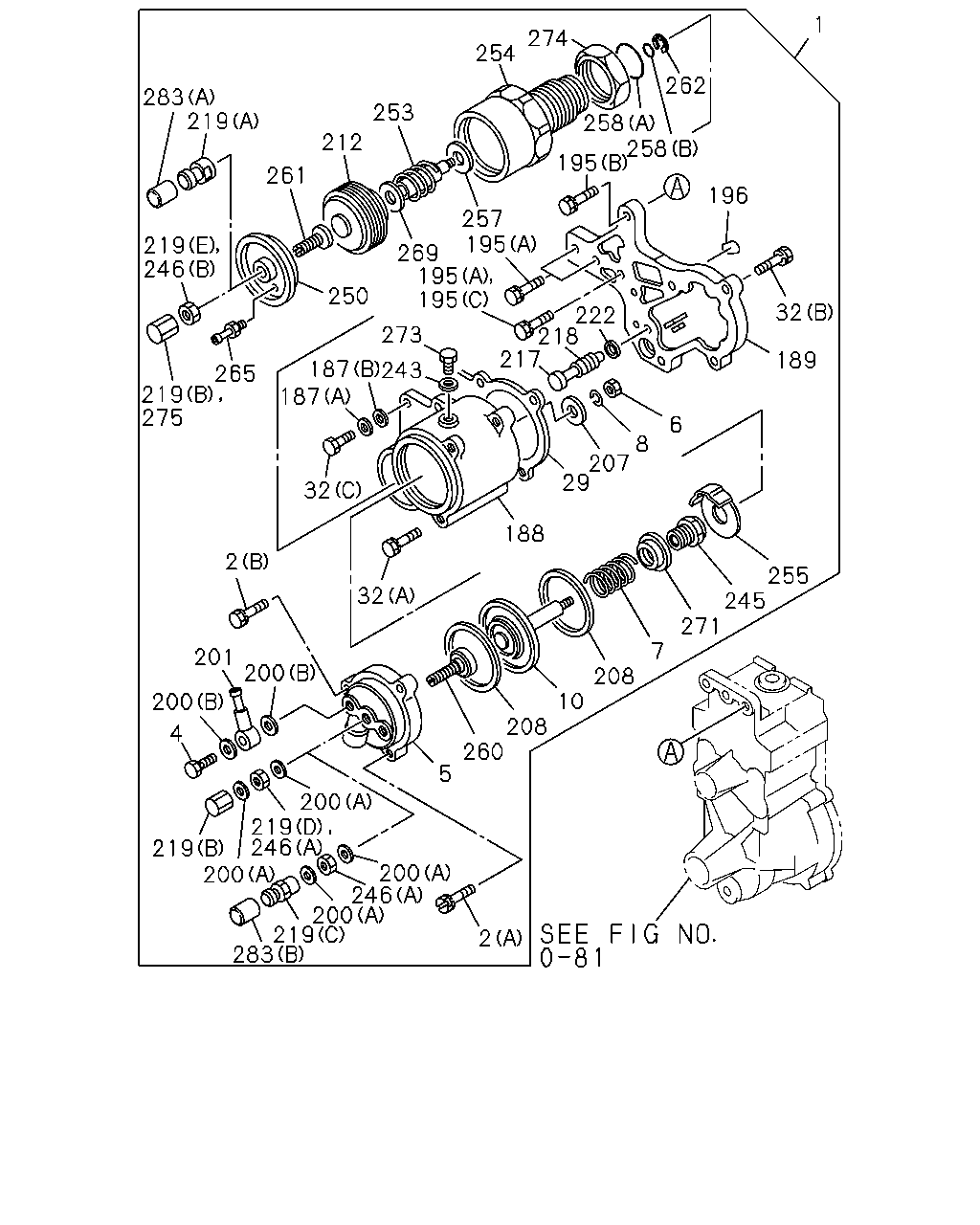

03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565
|
8-97104-944-0 |
01 |
1 |
- |
| |
1 |
03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: D = 8-97117-785-0, 97117785
|
8-97105-346-0 |
01 |
1 |
- |
| |
1 |
03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: E = 8-97132-050-2, 97132050
|
8-97137-791-0 |
01 |
1 |
- |
| |
1 |
03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: F = 8-97132-051-2, 97132051
|
8-97137-800-0 |
01 |
1 |
- |
| |
1 |
03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: G = 8-97168-312-2, 97168312
|
8-97173-885-1 |
01 |
1 |
- |
| |
2 |
03.306 BOLT; COVER FIX,BOOST COMPENSATO
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785
|
5-15729-297-0 |
02 |
1 |
- |
| |
2 |
03.306 BOLT; COVER FIX,BOOST COMPENSATO
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785
|
8-97029-204-0 |
01 |
1 |
- |
| |
2 |
03.306 BOLT; COVER FIX,BOOST COMPENSATO
(A),(B)
ASM PART: E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-321-0 |
03 |
1 |
- |
| |
4 |
03.485 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-325-0 |
01 |
1 |
- |
| |
5 |
03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15619-283-0 |
01 |
1 |
- |
| |
6 |
03.320 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-249-0 |
01 |
1 |
- |
| |
7 |
03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051
|
8-97104-949-0 |
01 |
1 |
- |
| |
7 |
03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: G = 8-97168-312-2, 97168312
|
8-97173-886-0 |
01 |
1 |
- |
| |
8 |
03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
00.206, ID=6.1
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-09150-506-0 |
01 |
1 |
- |
| |
10 |
03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-286-0 |
01 |
1 |
- |
| |
29 |
03.306 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97104-950-0 |
01 |
1 |
- |
| |
32 |
03.485 BOLT; BOOST COMPENSATOR FIX,INJ
08.900, (C)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-02050-616-0 |
01 |
1 |
- |
| |
32 |
03.485 BOLT; BOOST COMPENSATOR FIX,INJ
(A), M6X20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-187-0 |
02 |
1 |
- |
| |
32 |
03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.306, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-88410-094-0 |
03 |
1 |
- |
| |
187 |
03.485 WASHER; LK,BOOST COMPENSATOR FIX
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-295-0 |
01 |
1 |
- |
| |
187 |
03.485 WASHER; LK,BOOST COMPENSATOR FIX
02.183, (A)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-09160-606-0 |
01 |
1 |
- |
| |
188 |
03.485 HOUSING; BOOST COMPENSATOR,INJ P
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-281-1 |
01 |
1 |
- |
| |
189 |
03.485 SPACER; BOOST COMPENSATOR HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-282-1 |
01 |
1 |
- |
| |
195 |
03.306 BOLT; SPACER FIX,BOOST COMPENSAT
03.485, (C)
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
1-15729-242-0 |
01 |
1 |
- |
| |
195 |
03.306 BOLT; SPACER FIX,BOOST COMPENSAT
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-283-0 |
01 |
1 |
- |
| |
195 |
03.306 BOLT; SPACER FIX,BOOST COMPENSAT
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
G = 8-97168-312-2, 97168312
|
9-88410-094-0 |
03 |
1 |
- |
| |
195 |
03.306 BOLT; SPACER FIX,BOOST COMPENSAT
(A) ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
9-88410-094-0 |
02 |
1 |
- |
| |
196 |
03.306 GASKET; SPACER,BOOST COMPENSATOR
03.485
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94424-220-0 |
01 |
1 |
- |
| |
200 |
03.306 GASKET; EYE BOLT,BOOST COMPENSAT
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-849-0 |
02 |
1 |
- |
| |
200 |
03.306 GASKET; EYE BOLT,BOOST COMPENSAT
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-868-0 |
02 |
1 |
- |
| |
201 |
03.306 JOINT; HOSE
03.326
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-178-0 |
01 |
1 |
- |
| |
207 |
03.320 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-248-0 |
01 |
1 |
- |
| |
208 |
03.320 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15779-129-0 |
02 |
1 |
- |
| |
212 |
03.320 BELLOWS; BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-622-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=125.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-245-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
03.308, L=127.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-282-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=128.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-283-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=127.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-284-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=126.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-285-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=129.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-286-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=128.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-287-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=125.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-288-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=126.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-289-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=119.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-290-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=120.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-291-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=120.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-292-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=121.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-293-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=121.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-294-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=122.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-295-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=122.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-296-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=123.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-297-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=123.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94172-298-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
16.081, L=130.0
ASM PART: B = 8-97103-319-1, 97103319
|
8-94434-436-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=129.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-435-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=130.0
ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
8-94443-436-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=130.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-437-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=131.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-438-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=131.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-439-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=132.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-440-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=132.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-441-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=133.0
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-442-0 |
01 |
1 |
- |
| |
217 |
03.320 ROD; PUSH,BOOST COMPENSATOR
L=133.5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94443-443-0 |
01 |
1 |
- |
| |
218 |
03.320 SPRING; PUSH ROD,BOOST COMPENSAT
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-176-0 |
01 |
1 |
- |
| |
219 |
03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
03.330, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565
|
1-15729-093-0 |
01 |
1 |
- |
| |
219 |
03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
(A) ASM PART: E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051
|
8-17137-793-0 |
01 |
1 |
- |
| |
219 |
03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
(C) ASM PART: E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97137-792-0 |
01 |
1 |
- |
| |
219 |
03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
03.308, (E)
ASM PART: D = 8-97117-785-0, 97117785
|
9-81325-081-0 |
01 |
1 |
- |
| |
219 |
03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS
08.845, (D)
ASM PART: D = 8-97117-785-0, 97117785
|
9-88410-525-0 |
01 |
1 |
- |
| |
222 |
03.330 WASHER; PUSH ROD,BOOST COMPENSAT
09.190
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-83539-045-0 |
01 |
1 |
- |
| |
243 |
03.306 GASKET; HSG
01.531, L=96
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-066-0 |
01 |
1 |
- |
| |
245 |
03.306 BUSHING; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97104-945-0 |
01 |
1 |
- |
| |
246 |
03.306 NUT; SET BOLT
03.485, (B)
ASM PART: G = 8-97168-312-2, 97168312
|
8-17137-793-0 |
01 |
1 |
- |
| |
246 |
03.306 NUT; SET BOLT
03.308, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565
|
9-81325-081-0 |
01 |
1 |
- |
| |
246 |
03.306 NUT; SET BOLT
08.845, (A)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
9-88410-525-0 |
01 |
1 |
- |
| |
250 |
03.306 COVER; HSG
03.330
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15721-103-0 |
01 |
1 |
- |
| |
253 |
03.306 SPRING; PUSH ROD
03.320
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051
|
1-15723-258-0 |
01 |
1 |
- |
| |
253 |
03.306 SPRING; PUSH ROD
03.320
ASM PART: G = 8-97168-312-2, 97168312
|
5-15723-196-0 |
01 |
1 |
- |
| |
254 |
03.485 HOUSING; BOOST COMPENSATOR
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-289-1 |
01 |
1 |
- |
| |
255 |
03.306 PLATE; DIAPHRAGM
03.314
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94122-719-0 |
01 |
1 |
- |
| |
257 |
03.306 SHIM; SPRING
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-292-0 |
01 |
1 |
- |
| |
258 |
03.306 GASKET; HSG
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-290-0 |
01 |
1 |
- |
| |
258 |
03.306 GASKET; HSG
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-291-0 |
01 |
1 |
- |
| |
260 |
03.320 SCREW; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-287-0 |
01 |
1 |
- |
| |
261 |
03.320 BOLT; SET,BELLOWS
03.306
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-342-0 |
01 |
1 |
- |
| |
262 |
03.306 RING; SNAP,HSG
03.330
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94244-599-0 |
01 |
1 |
- |
| |
265 |
03.306 JOINT; HOSE
03.320
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-360-0 |
01 |
1 |
- |
| |
269 |
03.306 ROD; PUSH,BELLOWS
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-293-0 |
01 |
1 |
- |
| |
271 |
03.320 NUT; DIAPHRAGM
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97104-978-0 |
01 |
1 |
- |
| |
273 |
03.306 PLUG; HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-288-0 |
01 |
1 |
- |
| |
274 |
03.306 NUT; HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97037-294-0 |
01 |
1 |
- |
| |
275 |
03.306 NUT; CAP,SET BOLT
03.330, CAP NUT
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, G = 8-97168-312-2, 97168312
|
1-15729-093-0 |
01 |
1 |
- |
| |
283 |
03.320 CAP; NUT,ADJ SCREW
03.330, (A)
ASM PART: D = 8-97117-785-0, 97117785
|
1-15729-093-0 |
02 |
1 |
- |
| |
283 |
03.320 CAP; NUT,ADJ SCREW
(A) ASM PART: E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051
|
8-97137-794-0 |
01 |
1 |
- |
| |
283 |
03.320 CAP; NUT,ADJ SCREW
(B) ASM PART: E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051
|
8-97137-795-0 |
01 |
1 |
- |
