Sayfa 0-82A - Isuzu EPC

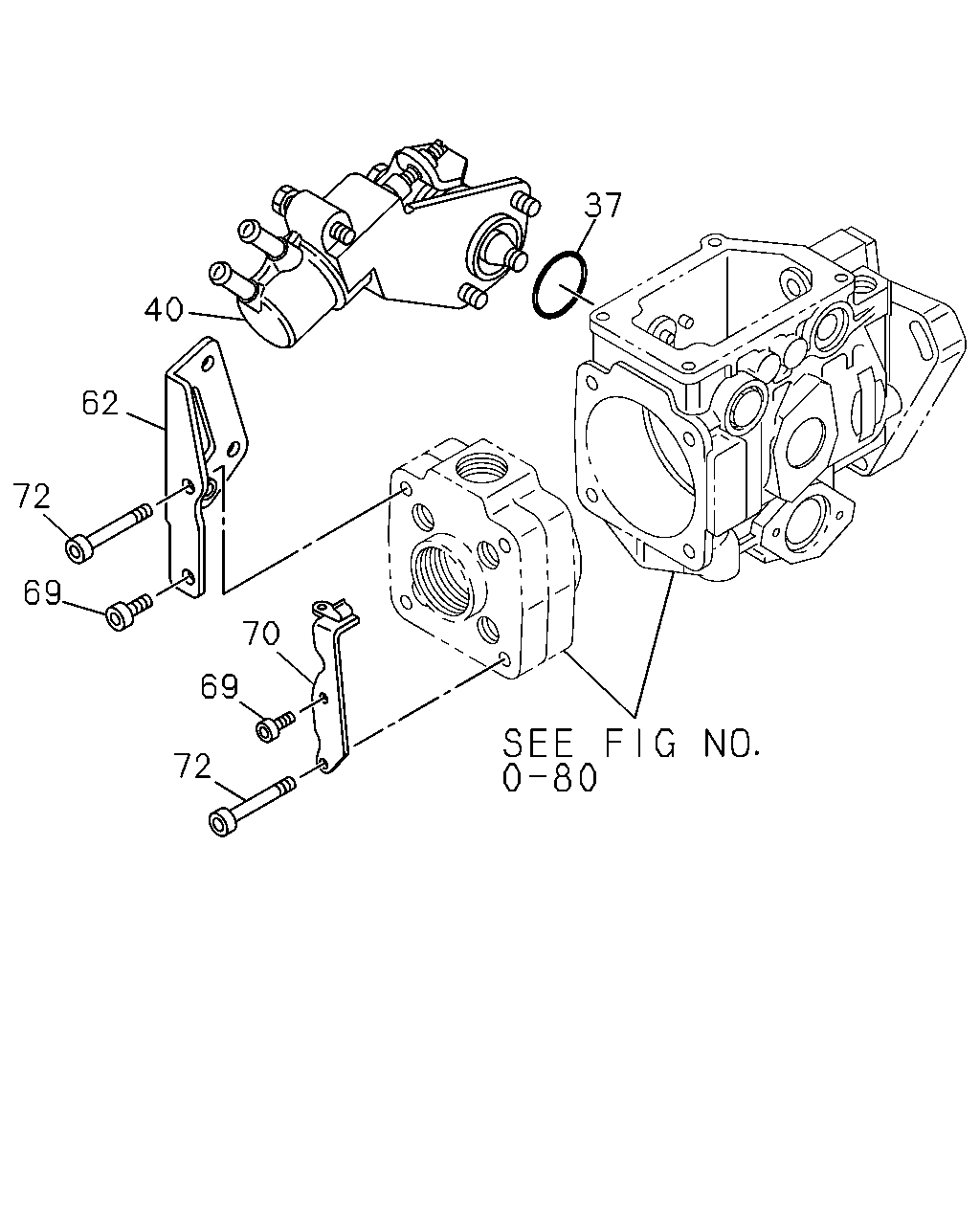

0-82A — BOOST COMPENSATOR; INJECTION GOVERNOR (#40538) — 6 parça

37 40 62 72 69 70 69 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.306 GASKET; STARTING ADVANCER,INJ PU ASM PART: A = 8-97091-744-0, 97091744	8-94227-491-0	01	1	-
40	03.308 ADVANCER ASM; STARTING,GOV ASM PART: A = 8-97091-744-0, 97091744	8-97086-131-0	01	1	-
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97091-744-0, 97091744	8-97086-129-0	01	1	-
69	03.330 SCREW; BRKT,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94325-497-0	02	1	-
70	03.314 BRACKET; ACTUATOR,FAST IDLE,INJ ASM PART: A = 8-97091-744-0, 97091744	8-94380-667-0	01	1	-
72	03.330 BOLT; BRKT FIX,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94242-278-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
