1 |

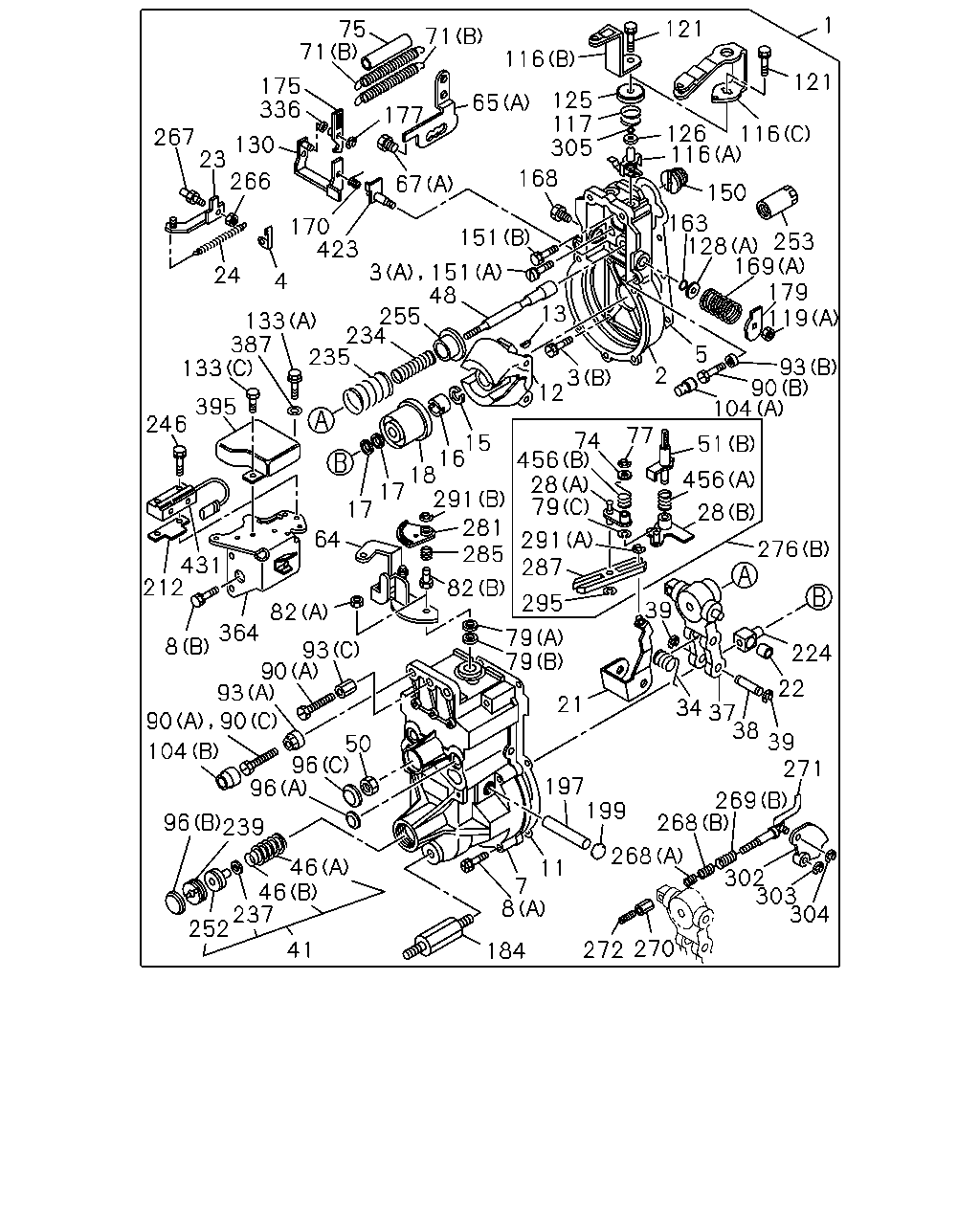

03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565
|
8-97105-125-2 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: D = 8-97117-785-0, 97117785
|
8-97105-803-2 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: E = 8-97132-050-2, 97132050
|
8-97137-782-0 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: F = 8-97132-051-2, 97132051
|
8-97137-783-0 |
01 |
1 |
- |
| |
1 |
03.308 GOVERNOR ASM; INJ PUMP
ASM PART: G = 8-97168-312-2, 97168312
|
8-97173-877-1 |
01 |
1 |
- |
| |
2 |
03.308 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15721-203-0 |
01 |
1 |
- |
| |
3 |
03.318 BOLT; GOV HSG,INJ PUMP
(B), M6X15
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-027-0 |
05 |
1 |
- |
| |
3 |
03.318 BOLT; GOV HSG,INJ PUMP
(A), M6X16
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-071-0 |
01 |
1 |
- |
| |
4 |
03.306 PLATE; START SPRING,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-795-0 |
01 |
1 |
- |
| |
5 |
03.308 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15779-093-0 |
01 |
1 |
- |
| |
7 |
03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94339-964-0 |
01 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
G = 8-97168-312-2, 97168312
|
5-15729-033-0 |
07 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
5-15729-033-0 |
06 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
03.308, (B)
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
5-15729-253-0 |
01 |
1 |
- |
| |
11 |
03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15779-107-0 |
01 |
1 |
- |
| |
12 |
03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15722-014-0 |
01 |
1 |
- |
| |
13 |
03.308 KEY; FLYWEIGHT,GOV
16MM ASM PART: B = 8-97103-319-1, 97103319
|
5-15619-049-0 |
01 |
1 |
- |
| |
13 |
03.308 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
5-19619-049-0 |
01 |
1 |
- |
| |
15 |
03.308 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-034-0 |
01 |
1 |
- |
| |
16 |
03.308 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-086-0 |
01 |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-891-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-892-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-893-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-286-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-287-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-088-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-551-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-552-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-553-0 |
AR |
1 |
- |
| |
18 |
03.308 SLEEVE; GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-372-0 |
01 |
1 |
- |
| |
21 |
03.308 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94339-977-0 |
01 |
1 |
- |
| |
22 |
03.308 COLLAR; LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94368-298-1 |
01 |
1 |
- |
| |
23 |
03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-483-0 |
01 |
1 |
- |
| |
24 |
03.308 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15723-291-0 |
01 |
1 |
- |
| |
28 |
03.308 LEVER; SUPPORTING,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-472-0 |
01 |
1 |
- |
| |
28 |
03.308 LEVER; SUPPORTING,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-485-0 |
01 |
1 |
- |
| |
34 |
03.308 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-140-1 |
01 |
1 |
- |
| |
37 |
03.308 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94339-965-0 |
01 |
1 |
- |
| |
38 |
03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-370-0 |
01 |
1 |
- |
| |
39 |
03.308 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-88410-201-0 |
02 |
1 |
- |
| |
41 |
03.308 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-143-0 |
01 |
1 |
- |
| |
46 |
03.308 SPRING; GOV,INJ PUMP
(A) ASM PART: C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15723-473-0 |
01 |
1 |
- |
| |
46 |
03.308 SPRING; GOV,INJ PUMP
(B) ASM PART: C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97115-987-0 |
01 |
1 |
- |
| |
48 |
03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-146-1 |
01 |
1 |
- |
| |
50 |
03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-147-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-876-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
G = 8-97168-312-2, 97168312
|
8-97037-278-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97037-302-0 |
01 |
1 |
- |
| |
65 |
03.306 BRACKET; RETURN SPRING,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94339-966-0 |
01 |
1 |
- |
| |
67 |
03.306 BOLT; SPRING BRKT,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-046-0 |
01 |
1 |
- |
| |
71 |
03.306 SPRING; CONT LEVER,GOV
03.308, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94418-209-0 |
02 |
1 |
- |
| |
74 |
03.330 WASHER; LEVER SPR
00.206, ID=6.4
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-09160-506-0 |
01 |
1 |
- |
| |
75 |
03.308 TUBE; RETURN SPRING,STOPPER LEVE
03.306
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-074-0 |
02 |
1 |
- |
| |
77 |
03.308 RING; SNAP,CONT LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-88410-201-0 |
01 |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(C) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-517-0 |
01 |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.30
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-565-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-702-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.40
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-703-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.35
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-826-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.25
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-827-0 |
AR |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-828-0 |
01 |
1 |
- |
| |
79 |
03.308 SHIM; LEVER SETTING,GOV
(B), T=0.60
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94344-427-0 |
AR |
1 |
- |
| |
82 |
03.308 NUT; CONT LEVER FIX,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
G = 8-97168-312-2, 97168312
|
1-15729-236-0 |
01 |
1 |
- |
| |
82 |
03.308 NUT; CONT LEVER FIX,GOV
(B) ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-94317-522-1 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(C), M8X62
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-642-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(A), M8X65
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-761-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X33
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-799-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X34
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-800-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X35
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-801-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X36
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-802-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X37
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-803-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X31
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-842-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X32
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-843-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97030-753-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (A)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-643-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
01.531, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-807-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (C)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97030-754-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-076-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-145-0 |
01 |
1 |
- |
| |
96 |
03.308 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-148-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97085-021-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97085-022-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319
|
1-15725-479-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
03.308, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, E = 8-97132-050-2, 97132050,
G = 8-97168-312-2, 97168312
|
8-94339-962-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
(C) ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97107-389-0 |
01 |
1 |
- |
| |
116 |
03.300 LEVER; ENG STOP,GOV
(A) ASM PART: C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97115-980-0 |
01 |
1 |
- |
| |
117 |
03.308 SPRING; STOP LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94336-925-0 |
01 |
1 |
- |
| |
119 |
03.308 NUT; ENG STOP LEVER,GOV
(A) ASM PART: B = 8-97103-319-1, 97103319
|
1-15729-236-0 |
01 |
1 |
9401- |
| |
119 |
03.308 NUT; ENG STOP LEVER,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
1-15729-236-0 |
01 |
1 |
- |
| |
121 |
03.308 BOLT; ENG STOP LEVER,GOV
16.341, M6X12 W/LK WASHER
ASM PART: C = 8-97117-565-0, 97117565
|
9-01900-612-0 |
01 |
1 |
- |
| |
121 |
03.308 BOLT; ENG STOP LEVER,GOV
09.211, M6X16 W/LK WASHER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319
|
9-01900-616-0 |
01 |
1 |
- |
| |
121 |
03.308 BOLT; ENG STOP LEVER,GOV
04.665, M6X12 W/LK WASHER
ASM PART: D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
9-01910-612-0 |
01 |
1 |
- |
| |
125 |
03.308 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94336-926-0 |
01 |
1 |
- |
| |
126 |
03.308 GASKET; STOP LEVER,GOV
03.306
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81391-906-0 |
01 |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.60
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-897-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.80
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-898-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.90
ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
1-15729-899-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.90
ASM PART: B = 8-97103-319-1, 97103319
|
1-15729-899-0 |
AR |
1 |
9401- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.50
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-556-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.30
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-557-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.40
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-558-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.25
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-559-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.35
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-560-0 |
AR |
1 |
- |
| |
128 |
03.306 SHIM; CONT SHAFT,GOV
(A), T=0.20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-88410-421-0 |
AR |
1 |
- |
| |
130 |
03.306 LEVER; CONT,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-496-0 |
01 |
1 |
- |
| |
133 |
03.308 BOLT; BRKT FIX,GOV
03.485, (A)
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
5-15729-280-0 |
02 |
1 |
- |
| |
133 |
03.308 BOLT; BRKT FIX,GOV
03.314, (C)
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-94121-627-0 |
01 |
1 |
- |
| |
150 |
03.308 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81315-065-0 |
01 |
1 |
- |
| |
151 |
03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP
(B), M8X18 W/LK WASHER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-01900-818-0 |
01 |
1 |
- |
| |
163 |
03.306 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-129-0 |
01 |
1 |
- |
| |
168 |
03.306 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-796-0 |
01 |
1 |
- |
| |
169 |
03.306 SPRING; LEVER SET,GOV
(A) ASM PART: B = 8-97103-319-1, 97103319
|
5-15723-032-0 |
01 |
1 |
9401- |
| |
169 |
03.306 SPRING; LEVER SET,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
5-15723-032-0 |
01 |
1 |
- |
| |
170 |
03.306 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15723-033-0 |
01 |
1 |
- |
| |
175 |
03.306 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-459-1 |
01 |
1 |
- |
| |
177 |
03.306 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-445-0 |
01 |
1 |
- |
| |
179 |
03.308 LEVER; SPD ADJ,GOV
ASM PART: B = 8-97103-319-1, 97103319
|
8-94171-132-0 |
01 |
1 |
9401- |
| |
179 |
03.308 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97093-684-2, 97093684, C = 8-97117-565-0, 97117565,
D = 8-97117-785-0, 97117785, E = 8-97132-050-2, 97132050,
F = 8-97132-051-2, 97132051, G = 8-97168-312-2, 97168312
|
8-94171-132-0 |
01 |
1 |
- |
| |
184 |
03.306 BOLT; GOV COVER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94325-502-0 |
01 |
1 |
- |
| |
197 |
03.308 SHAFT; LEVER,GOV COVER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15725-008-0 |
01 |
1 |
- |
| |
199 |
03.308 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-076-0 |
02 |
1 |
- |
| |
212 |
03.306 PLATE; GOV
03.314
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97037-304-0 |
01 |
1 |
- |
| |
224 |
03.308 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-142-0 |
01 |
1 |
- |
| |
234 |
03.308 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97048-695-0 |
01 |
1 |
- |
| |
235 |
03.308 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15723-194-0 |
01 |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-966-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-967-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-968-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94472-268-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94472-269-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94472-270-0 |
AR |
1 |
- |
| |
237 |
03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94472-271-0 |
AR |
1 |
- |
| |
239 |
03.308 SCREW; GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-144-0 |
01 |
1 |
- |
| |
246 |
03.306 BOLT; GOV
03.308
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97026-927-0 |
02 |
1 |
- |
| |
252 |
03.308 SCREW; GUIDE
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15779-003-1 |
01 |
1 |
- |
| |
253 |
03.308 LIMITTER; GOV CONT
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94167-792-0 |
01 |
1 |
- |
| |
255 |
03.308 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-173-0 |
01 |
1 |
- |
| |
266 |
03.308 NUT; PIN TO LINK,CONT RACK,GOV
17.185, M5
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-99110-405-0 |
01 |
1 |
- |
| |
267 |
03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-797-0 |
01 |
1 |
- |
| |
268 |
03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15723-056-0 |
01 |
1 |
- |
| |
268 |
03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15723-070-1 |
01 |
1 |
- |
| |
269 |
03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15723-290-0 |
01 |
1 |
- |
| |
270 |
03.308 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-051-0 |
01 |
1 |
- |
| |
271 |
03.308 ROD; TORQUE CAM,GOV
L=35 ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-810-2 |
01 |
1 |
- |
| |
272 |
03.308 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94171-138-0 |
01 |
1 |
- |
| |
276 |
03.308 LEVER ASM; LOAD CONT,GOV
(B) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-534-0 |
01 |
1 |
- |
| |
281 |
03.306 LEVER; GOV,INJ PUMP
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97102-859-0 |
01 |
1 |
- |
| |
285 |
03.306 SPRING; PLATE
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97037-303-0 |
01 |
1 |
- |
| |
287 |
03.308 LEVER; GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15725-542-0 |
01 |
1 |
- |
| |
291 |
03.308 RING; SNAP,CONT SHAFT,GOV
03.330, (B)
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-94244-599-0 |
01 |
1 |
- |
| |
291 |
03.308 RING; SNAP,CONT SHAFT,GOV
03.306, (A)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-445-0 |
01 |
1 |
- |
| |
295 |
03.308 RING; SNAP
03.306
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-81325-445-0 |
01 |
1 |
- |
| |
302 |
03.308 PLATE; CAM,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319
|
8-97104-943-0 |
01 |
1 |
-9312 |
| |
302 |
03.308 PLATE; CAM,GOV
ASM PART: C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-97113-221-0 |
01 |
1 |
- |
| |
302 |
03.308 PLATE; CAM,GOV
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319
|
8-97113-221-0 |
01 |
1 |
9401- |
| |
303 |
03.308 RING; SNAP,CAM PLATE,GOV
03.320
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-023-0 |
01 |
1 |
- |
| |
304 |
03.308 RING; SNAP,LINK TO CAM PLATE,GOV
04.040, ID=4
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
9-09185-404-0 |
01 |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.30
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-564-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.20
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-700-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.40
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-701-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.60
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94344-423-0 |
AR |
1 |
- |
| |
305 |
03.308 SHIM; STOP LEVER,GOV
T=0.90
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94362-696-0 |
AR |
1 |
- |
| |
336 |
03.308 COLLAR; LEVER
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
5-15729-181-0 |
01 |
1 |
- |
| |
364 |
03.485 BRACKET; GOV
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-97037-305-0 |
01 |
1 |
- |
| |
387 |
03.306 WASHER; COVER
03.320
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
1-09503-215-0 |
02 |
1 |
- |
| |
395 |
03.308 COVER; BRKT
03.485
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-94336-930-0 |
01 |
1 |
- |
| |
423 |
03.306 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15729-820-0 |
01 |
1 |
- |
| |
431 |
03.308 SWITCH; MICRO,GOV
03.910
ASM PART: D = 8-97117-785-0, 97117785, F = 8-97132-051-2, 97132051
|
8-94336-320-0 |
01 |
1 |
- |
| |
456 |
03.308 SPRING; LEVER,GOV
03.306, (B)
ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
1-15723-295-0 |
01 |
1 |
- |
| |
456 |
03.308 SPRING; LEVER,GOV
(A) ASM PART: A = 8-97093-684-2, 97093684, B = 8-97103-319-1, 97103319,
C = 8-97117-565-0, 97117565, D = 8-97117-785-0, 97117785,
E = 8-97132-050-2, 97132050, F = 8-97132-051-2, 97132051,
G = 8-97168-312-2, 97168312
|
8-94413-728-0 |
01 |
1 |
- |
