Sayfa 0-81A - Isuzu EPC

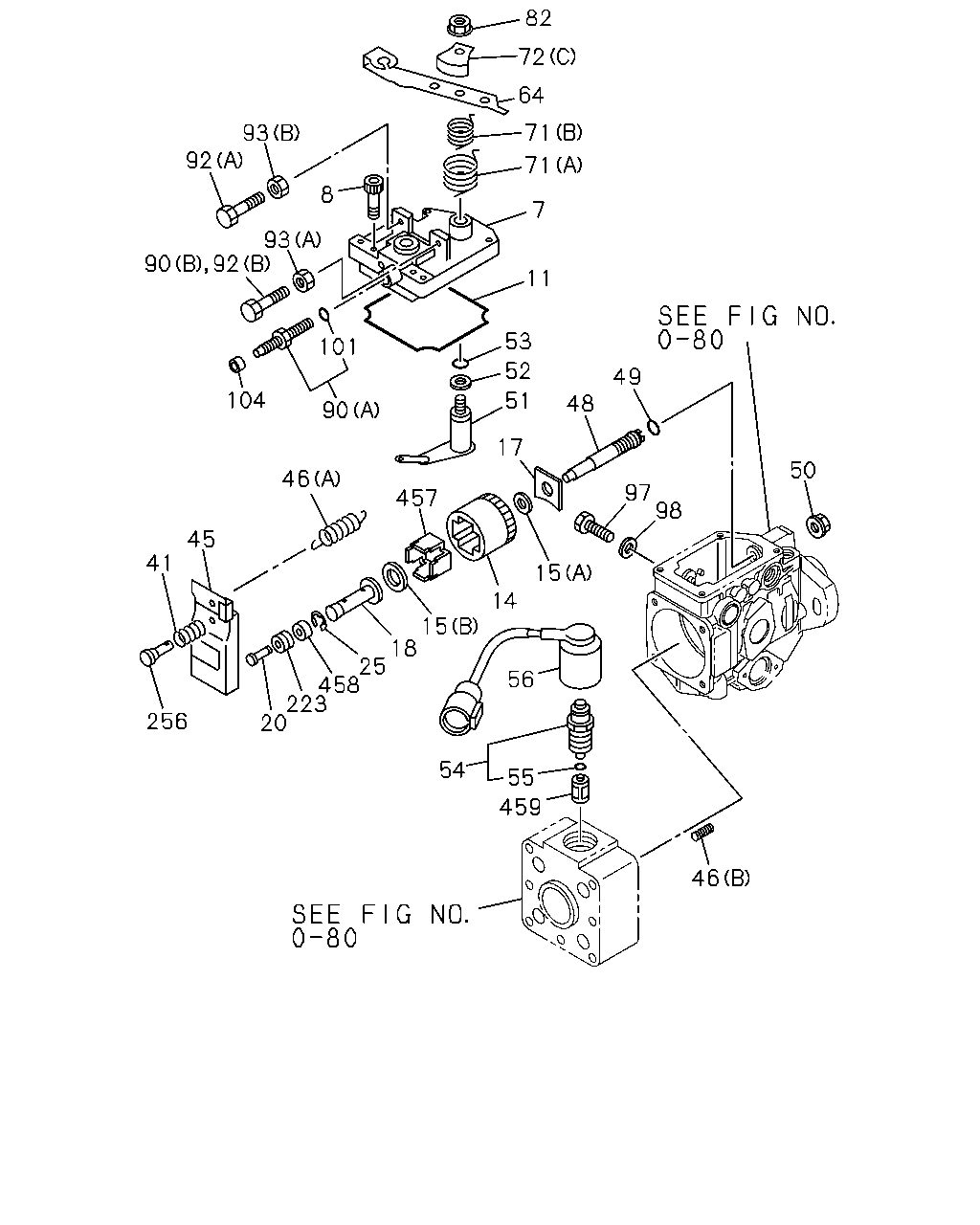

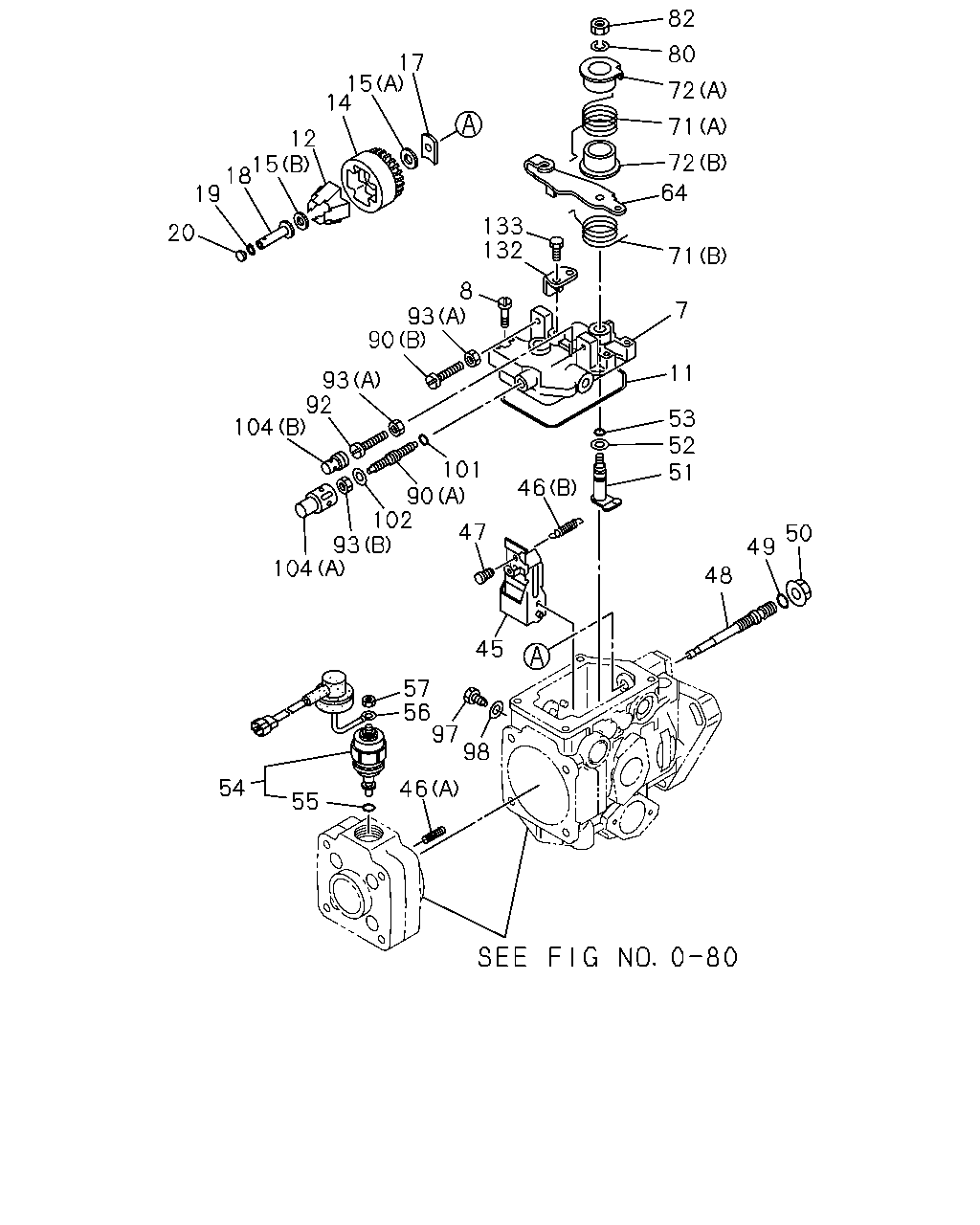

0-81A — GOVERNOR; INJECTION PUMP (#40530) — 379 parça

82 80 17 15 14 72 71 12 15 18 19 72 64 133 132 20 71 8 7 93 90 11 93 92 104 53 52 51 101 90 102 93 104 46 47 50 49 48 45 57 56 97 98 54 46 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94327-336-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-743-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: A = 8-97091-744-0, 97091744	8-94227-636-0	04	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97141-178-0	04	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-599-0	01	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-201-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94227-613-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-921-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97091-744-0, 97091744	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94227-614-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97140-828-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97140-830-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97091-744-0, 97091744	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97091-744-0, 97091744	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97091-744-0, 97091744	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97091-744-0, 97091744	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97091-744-0, 97091744	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	01	1	9604-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97091-744-0, 97091744	8-97102-532-0	01	1	-
18	03.308 SLEEVE; GOV D=0.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-861-0	01	1	-
18	03.308 SLEEVE; GOV D=0.45 ASM PART: B = 8-97138-842-2, 97138842	8-97161-862-0	01	1	-
18	03.308 SLEEVE; GOV D=0.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-863-0	01	1	-
18	03.308 SLEEVE; GOV D=0.55 ASM PART: B = 8-97138-842-2, 97138842	8-97212-361-0	01	1	9604-
18	03.308 SLEEVE; GOV D=0.60 ASM PART: B = 8-97138-842-2, 97138842	8-97212-362-0	01	1	9604-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97091-744-0, 97091744	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97091-744-0, 97091744	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97091-744-0, 97091744	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97091-744-0, 97091744	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97091-744-0, 97091744	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97091-744-0, 97091744	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97091-744-0, 97091744	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97091-744-0, 97091744	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97091-744-0, 97091744	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97091-744-0, 97091744	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97091-744-0, 97091744	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97091-744-0, 97091744	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97091-744-0, 97091744	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97091-744-0, 97091744	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97091-744-0, 97091744	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97091-744-0, 97091744	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97091-744-0, 97091744	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: B = 8-97138-842-2, 97138842	8-97141-381-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: B = 8-97138-842-2, 97138842	8-97141-384-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: B = 8-97138-842-2, 97138842	8-97141-386-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: B = 8-97138-842-2, 97138842	8-97141-387-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: B = 8-97138-842-2, 97138842	8-97141-388-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-389-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-390-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-923-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-925-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-926-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-927-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-928-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-929-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-930-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-931-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-932-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-933-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-934-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: B = 8-97138-842-2, 97138842	8-97161-935-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: B = 8-97138-842-2, 97138842	8-97161-936-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-937-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-938-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-939-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-940-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-941-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-942-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-943-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-944-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97138-842-2, 97138842	8-97161-945-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97138-842-2, 97138842	8-97161-946-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-947-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-948-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-949-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-950-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-951-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-952-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-953-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-97095-334-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-859-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97091-744-0, 97091744	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97091-744-0, 97091744	8-97086-126-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-159-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-908-0	01	1	-
47	03.308 PIN; RET ASM PART: A = 8-97091-744-0, 97091744	8-94313-234-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94473-130-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-865-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94227-606-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-848-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94473-129-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-864-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94450-997-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97161-860-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-590-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-264-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97091-744-0, 97091744	8-94227-585-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-190-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97091-744-0, 97091744	8-94242-275-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-781-0	01	1	-9701
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97202-042-0	01	1	9702-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94239-373-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-785-0	01	1	-9701
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97202-044-0	01	1	9702-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94470-582-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97141-439-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97091-744-0, 97091744	8-94473-135-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 042 ASM PART: A = 8-97091-744-0, 97091744	8-97086-120-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 043 ASM PART: A = 8-97091-744-0, 97091744	8-97086-121-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 605 ASM PART: B = 8-97138-842-2, 97138842	8-97161-912-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 606 ASM PART: B = 8-97138-842-2, 97138842	8-97161-913-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 607 ASM PART: B = 8-97138-842-2, 97138842	8-97161-914-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97091-744-0, 97091744	8-97086-122-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-97086-123-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-909-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97161-910-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-94389-432-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: A = 8-97091-744-0, 97091744	8-94389-434-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (C) ASM PART: B = 8-97138-842-2, 97138842	8-97161-907-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97091-744-0, 97091744	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-567-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97091-744-0, 97091744	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94426-049-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	9602-9603
90	03.308 SCREW; FULL LOAD ADJ,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-873-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: A = 8-97091-744-0, 97091744	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	9604-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	-9601
92	03.308 BOLT; FULL LOAD STOPPER,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97141-438-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-94426-047-1	02	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-177-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97141-216-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97091-744-0, 97091744	8-94227-601-0	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-250-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97091-744-0, 97091744	8-94227-602-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-149-0	02	1	-9603
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-149-0	03	1	9604-9702
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97202-045-0	02	1	9703-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-598-0	01	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-162-0	01	1	-9607
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97209-533-0	01	1	9608-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97091-744-0, 97091744	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-266-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW ID=7.9 L=8 ASM PART: B = 8-97138-842-2, 97138842	8-97141-372-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97091-744-0, 97091744	8-97100-914-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.306 ASM PART: A = 8-97091-744-0, 97091744	8-94313-203-0	01	1	-

82 72 64 71 93 92 71 8 7 93 92 90 11 53 101 52 49 104 51 48 90 17 50 46 97 98 457 45 41 15 14 15 18 25 458 223 20 56 256 54 55 459 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94327-336-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-743-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: A = 8-97091-744-0, 97091744	8-94227-636-0	04	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97141-178-0	04	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-599-0	01	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-201-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94227-613-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-921-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97091-744-0, 97091744	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94227-614-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97140-828-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97140-830-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97091-744-0, 97091744	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97091-744-0, 97091744	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97091-744-0, 97091744	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97091-744-0, 97091744	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97091-744-0, 97091744	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-308-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97138-842-2, 97138842	8-97141-311-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97138-842-2, 97138842	8-97141-313-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97138-842-2, 97138842	8-97141-314-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97138-842-2, 97138842	8-97141-316-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97138-842-2, 97138842	8-97141-318-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97138-842-2, 97138842	8-97141-319-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: B = 8-97138-842-2, 97138842	8-97141-320-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-323-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	01	1	9604-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 8-97138-842-2, 97138842	8-97141-325-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	AR	1	9602-9603
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	01	1	-9601
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: B = 8-97138-842-2, 97138842	8-97141-326-0	01	1	9604-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97091-744-0, 97091744	8-97102-532-0	01	1	-
18	03.308 SLEEVE; GOV D=0.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-861-0	01	1	-
18	03.308 SLEEVE; GOV D=0.45 ASM PART: B = 8-97138-842-2, 97138842	8-97161-862-0	01	1	-
18	03.308 SLEEVE; GOV D=0.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-863-0	01	1	-
18	03.308 SLEEVE; GOV D=0.55 ASM PART: B = 8-97138-842-2, 97138842	8-97212-361-0	01	1	9604-
18	03.308 SLEEVE; GOV D=0.60 ASM PART: B = 8-97138-842-2, 97138842	8-97212-362-0	01	1	9604-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97091-744-0, 97091744	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97091-744-0, 97091744	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97091-744-0, 97091744	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97091-744-0, 97091744	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97091-744-0, 97091744	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97091-744-0, 97091744	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97091-744-0, 97091744	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97091-744-0, 97091744	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97091-744-0, 97091744	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97091-744-0, 97091744	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97091-744-0, 97091744	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97091-744-0, 97091744	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97091-744-0, 97091744	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97091-744-0, 97091744	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97091-744-0, 97091744	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97091-744-0, 97091744	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97091-744-0, 97091744	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: B = 8-97138-842-2, 97138842	8-97141-381-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: B = 8-97138-842-2, 97138842	8-97141-384-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: B = 8-97138-842-2, 97138842	8-97141-386-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: B = 8-97138-842-2, 97138842	8-97141-387-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: B = 8-97138-842-2, 97138842	8-97141-388-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: B = 8-97138-842-2, 97138842	8-97141-389-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: B = 8-97138-842-2, 97138842	8-97141-390-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-923-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-925-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-926-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-927-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-928-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-929-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-930-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-931-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-932-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-933-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-934-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: B = 8-97138-842-2, 97138842	8-97161-935-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: B = 8-97138-842-2, 97138842	8-97161-936-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-937-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-938-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-939-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-940-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-941-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-942-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-943-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97138-842-2, 97138842	8-97161-944-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97138-842-2, 97138842	8-97161-945-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97138-842-2, 97138842	8-97161-946-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: B = 8-97138-842-2, 97138842	8-97161-947-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: B = 8-97138-842-2, 97138842	8-97161-948-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: B = 8-97138-842-2, 97138842	8-97161-949-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: B = 8-97138-842-2, 97138842	8-97161-950-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: B = 8-97138-842-2, 97138842	8-97161-951-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: B = 8-97138-842-2, 97138842	8-97161-952-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: B = 8-97138-842-2, 97138842	8-97161-953-0	01	1	-
25	03.308 RING; SNAP ASM PART: B = 8-97138-842-2, 97138842	8-97141-563-0	01	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97161-904-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-97095-334-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-859-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97091-744-0, 97091744	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97091-744-0, 97091744	8-97086-126-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-159-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-908-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94473-130-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-865-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94227-606-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-848-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94473-129-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97161-864-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94450-997-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97161-860-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-590-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-264-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97091-744-0, 97091744	8-94227-585-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-190-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97091-744-0, 97091744	8-94242-275-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-781-0	01	1	-9701
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97202-042-0	01	1	9702-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744	8-94239-373-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97140-785-0	01	1	-9701
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97202-044-0	01	1	9702-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94470-582-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: B = 8-97138-842-2, 97138842	8-97141-439-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 042 ASM PART: A = 8-97091-744-0, 97091744	8-97086-120-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 043 ASM PART: A = 8-97091-744-0, 97091744	8-97086-121-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 605 ASM PART: B = 8-97138-842-2, 97138842	8-97161-912-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 606 ASM PART: B = 8-97138-842-2, 97138842	8-97161-913-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 607 ASM PART: B = 8-97138-842-2, 97138842	8-97161-914-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97091-744-0, 97091744	8-97086-122-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-97086-123-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-909-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97161-910-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-94389-432-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: A = 8-97091-744-0, 97091744	8-94389-434-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV (C) ASM PART: B = 8-97138-842-2, 97138842	8-97161-907-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-567-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97091-744-0, 97091744	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94426-049-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	9602-9603
90	03.308 SCREW; FULL LOAD ADJ,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97161-873-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: A = 8-97091-744-0, 97091744	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	9604-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-437-0	01	1	-9601
92	03.308 BOLT; FULL LOAD STOPPER,GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97141-438-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (B) ASM PART: A = 8-97091-744-0, 97091744	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97091-744-0, 97091744	8-94426-047-1	02	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-97138-842-2, 97138842	8-97141-177-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-97138-842-2, 97138842	8-97141-216-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97091-744-0, 97091744	8-94227-601-0	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-250-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97091-744-0, 97091744	8-94227-602-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-149-0	02	1	-9603
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97141-149-0	03	1	9604-9702
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97138-842-2, 97138842	8-97202-045-0	02	1	9703-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97091-744-0, 97091744	8-94227-598-0	01	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97141-162-0	01	1	-9607
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97209-533-0	01	1	9608-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97091-744-0, 97091744	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97091-744-0, 97091744	8-94316-266-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW ID=7.9 L=8 ASM PART: B = 8-97138-842-2, 97138842	8-97141-372-0	01	1	-
223	03.308 BEARING; SLEEVE ASM PART: B = 8-97138-842-2, 97138842	8-97141-564-0	01	1	-
256	03.308 SEAT; GOV SPRING ASM PART: B = 8-97138-842-2, 97138842	8-97161-905-0	01	1	-
457	03.308 FLYWEIGHT; GOV ASM PART: B = 8-97138-842-2, 97138842	8-97140-822-0	04	1	-
458	03.308 RING; SLEEVE,GOV ASM PART: B = 8-97138-842-2, 97138842	8-97140-859-0	01	1	-
459	03.300 FILTER; SOLENOID ASM PART: B = 8-97138-842-2, 97138842	8-97141-571-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
