1 |

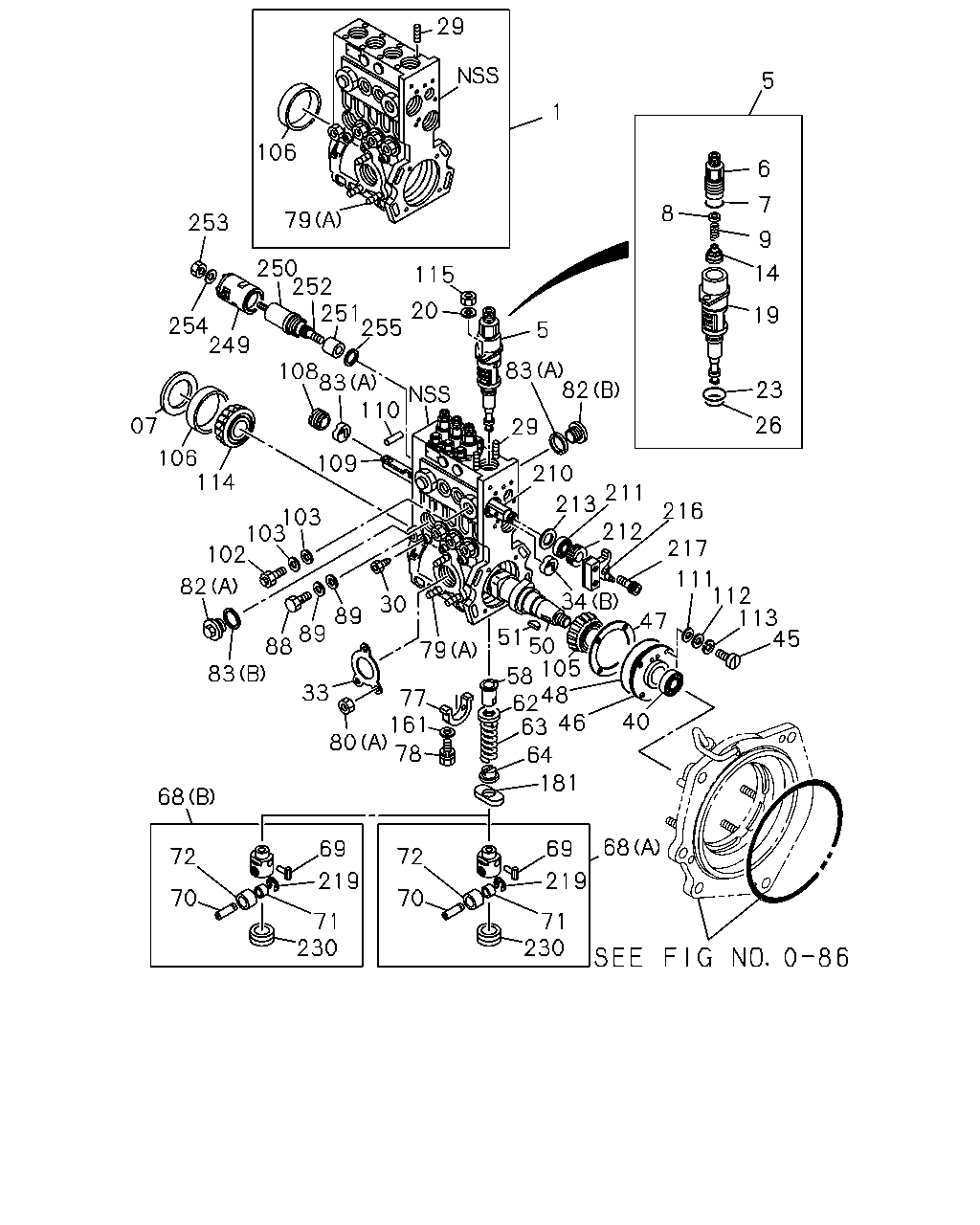

03.330 HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-040-0 |
01 |
1 |
- |
| |
5 |
03.330 PLUNGER COMPL; INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-331-0 |
04 |
1 |
- |
| |
6 |
03.306 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15644-018-0 |
04 |
1 |
- |
| |
7 |
03.306 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-09623-052-0 |
04 |
1 |
- |
| |
8 |
03.302 STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-104-0 |
04 |
1 |
- |
| |
9 |
03.302 SPRING; DELIVERY VLV
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-333-0 |
04 |
1 |
- |
| |
14 |
03.302 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15641-043-0 |
04 |
1 |
- |
| |
19 |
03.330 PLUNGER ASM; INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-332-0 |
04 |
1 |
- |
| |
20 |
03.330 WASHER; PLUNGER BARREL
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-020-0 |
08 |
1 |
- |
| |
23 |
03.306 GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-131-0 |
04 |
1 |
- |
| |
26 |
03.306 GASKET; PLUNGER UPR
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-132-0 |
04 |
1 |
- |
| |
29 |
03.302 STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-426-0 |
08 |
1 |
- |
| |
30 |
03.302 PLUG; SCREW,INJ PUMP HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-130-0 |
04 |
1 |
- |
| |
33 |
03.904 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: B = 8-97147-642-3, 97147642
|
1-15619-320-0 |
02 |
1 |
- |
| |
33 |
03.904 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, C = 8-97184-243-1, 97184243,
D = 8-97184-244-2, 97184244, E = 8-97210-050-1, 97210050,
F = 8-97210-054-1, 97210054, G = 8-97210-056-1, 97210056,
H = 8-97210-057-1, 97210057, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15619-320-0 |
01 |
1 |
- |
| |
34 |
03.320 BUSHING; CONT RACK,INJ PUMP
(A) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-429-0 |
01 |
1 |
- |
| |
34 |
03.320 BUSHING; CONT RACK,INJ PUMP
(B) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-123-0 |
01 |
1 |
- |
| |
40 |
03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-084-0 |
01 |
1 |
- |
| |
45 |
03.302 BOLT; FRT COVER TO HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97085-000-0 |
04 |
1 |
- |
| |
46 |
03.300 COVER; FRT,PUMP HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-049-0 |
01 |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.10
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-166-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.12
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-167-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.14
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-168-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.16
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-169-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.18
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-170-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.30
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-171-0 |
AR |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
T=0.50
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-172-0 |
AR |
1 |
- |
| |
48 |
03.306 GASKET; FRT COVER TO HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-128-0 |
01 |
1 |
- |
| |
50 |
03.306 CAMSHAFT; INJ PUMP
ASM PART: C = 8-97184-243-1, 97184243, L = 8-97212-188-0, 97212188
|
8-97201-047-0 |
01 |
1 |
- |
| |
50 |
03.306 CAMSHAFT; INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
D = 8-97184-244-2, 97184244, E = 8-97210-050-1, 97210050,
F = 8-97210-054-1, 97210054, G = 8-97210-056-1, 97210056,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186
|
8-97201-048-0 |
01 |
1 |
- |
| |
51 |
03.340 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15629-009-0 |
01 |
1 |
- |
| |
58 |
03.330 SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15635-006-0 |
04 |
1 |
- |
| |
62 |
03.320 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15634-020-0 |
04 |
1 |
- |
| |
63 |
03.302 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15634-022-0 |
04 |
1 |
- |
| |
64 |
03.320 SEAT; PLUNGER SPRING LWR,INJ PUM
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15634-021-0 |
04 |
1 |
- |
| |
68 |
03.300 TAPPET; CM/SHF,INJ PUMP
(A) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15622-014-0 |
02 |
1 |
- |
| |
68 |
03.300 TAPPET; CM/SHF,INJ PUMP
(B) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15622-015-0 |
02 |
1 |
- |
| |
69 |
03.300 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-134-0 |
04 |
1 |
- |
| |
70 |
03.300 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-431-0 |
04 |
1 |
- |
| |
71 |
03.300 BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-133-0 |
04 |
1 |
- |
| |
72 |
03.300 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-430-0 |
04 |
1 |
- |
| |
77 |
03.306 BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-433-0 |
02 |
1 |
- |
| |
78 |
03.306 BOLT; CENTER BRG,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15619-434-0 |
04 |
1 |
- |
| |
79 |
03.302 STUD; FUEL FEED PUMP TO HSG
03.901, (A)
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
03.901 NUT; FUEL FEED PUMP FIX
(A) ASM PART: B = 8-97147-642-3, 97147642
|
8-94171-110-0 |
06 |
1 |
- |
| |
80 |
03.901 NUT; FUEL FEED PUMP FIX
(A) ASM PART: A = 8-97147-640-3, 97147640, C = 8-97184-243-1, 97184243,
D = 8-97184-244-2, 97184244, E = 8-97210-050-1, 97210050,
F = 8-97210-054-1, 97210054, G = 8-97210-056-1, 97210056,
H = 8-97210-057-1, 97210057, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
03.306 PLUG; HSG,INJ PUMP
(A) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-436-0 |
04 |
1 |
- |
| |
82 |
03.306 PLUG; HSG,INJ PUMP
(B) ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-437-0 |
05 |
1 |
- |
| |
83 |
03.306 GASKET; HSG PLUG
03.901, (A)
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-102-0 |
05 |
1 |
- |
| |
83 |
03.306 GASKET; HSG PLUG
03.308, (B)
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
5-15729-021-0 |
04 |
1 |
- |
| |
88 |
01.531 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, C = 8-97184-243-1, 97184243,
D = 8-97184-244-2, 97184244, E = 8-97210-050-1, 97210050,
F = 8-97210-054-1, 97210054, G = 8-97210-056-1, 97210056,
H = 8-97210-057-1, 97210057, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15619-092-0 |
01 |
1 |
- |
| |
88 |
01.531 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: B = 8-97147-642-3, 97147642
|
1-15619-092-0 |
02 |
1 |
- |
| |
89 |
01.531 GASKET; OIL FEED BOLT,INJ PUMP
03.306
ASM PART: B = 8-97147-642-3, 97147642
|
1-15639-009-0 |
04 |
1 |
- |
| |
89 |
01.531 GASKET; OIL FEED BOLT,INJ PUMP
03.306
ASM PART: A = 8-97147-640-3, 97147640, C = 8-97184-243-1, 97184243,
D = 8-97184-244-2, 97184244, E = 8-97210-050-1, 97210050,
F = 8-97210-054-1, 97210054, G = 8-97210-056-1, 97210056,
H = 8-97210-057-1, 97210057, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15639-009-0 |
02 |
1 |
- |
| |
102 |
03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
1-15619-321-0 |
01 |
1 |
- |
| |
103 |
03.332 GASKET; OVERFLOW VLV,INJ PUMP
03.163, ID=14.2 OD=19.2
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244
|
1-09630-085-0 |
02 |
1 |
- |
| |
105 |
03.306 BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81225-068-0 |
01 |
1 |
- |
| |
106 |
03.306 RING; HSG,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81225-064-0 |
01 |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.60
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-019-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=1.50
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-176-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=1.80
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-177-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=2.00
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-178-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=1.20
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-88410-441-0 |
AR |
1 |
- |
| |
108 |
03.320 BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81215-125-0 |
01 |
1 |
- |
| |
109 |
03.300 RACK; CONT,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, I = 8-97212-182-0, 97212182,
J = 8-97212-185-0, 97212185, K = 8-97212-186-0, 97212186,
L = 8-97212-188-0, 97212188
|
8-97201-046-1 |
01 |
1 |
- |
| |
110 |
03.320 PIN; CONT RACK,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-88410-440-0 |
01 |
1 |
- |
| |
111 |
03.306 GASKET; FRT COVER FIX
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-024-0 |
04 |
1 |
- |
| |
112 |
03.302 SHIM; FRT COVER FIX
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81315-216-0 |
04 |
1 |
- |
| |
113 |
03.302 WASHER; LK,FRT COVER TO HSG
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-94128-928-0 |
04 |
1 |
- |
| |
114 |
03.306 BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-81225-068-0 |
01 |
1 |
- |
| |
115 |
03.320 NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-337-0 |
08 |
1 |
- |
| |
161 |
03.306 GASKET; SCREW,CENTER BRG
09.170
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
5-15729-099-0 |
04 |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.500
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-106-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.525
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-107-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.550
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-108-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.575
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-109-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.600
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-110-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.625
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-111-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.650
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-112-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.675
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-113-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.700
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-114-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.725
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-115-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.750
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-116-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.775
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-117-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.800
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-118-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.825
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-119-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.850
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-120-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.875
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-121-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.900
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-122-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.925
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-123-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.950
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-124-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.975
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-125-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.000
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-126-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.025
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-127-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.050
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-128-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.075
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-129-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.100
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-130-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.125
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-131-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.150
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-132-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.175
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-133-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.200
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-134-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.225
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-135-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.250
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-136-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.275
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-137-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.300
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-138-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.325
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-139-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.350
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-140-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.375
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-141-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.400
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-142-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.425
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-143-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.450
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-144-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.475
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-145-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.500
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-146-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.525
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-147-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.550
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-148-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.575
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-149-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.600
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-150-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.625
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-151-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.650
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-152-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.675
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-153-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.700
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-154-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.725
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-155-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.750
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-156-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.775
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-157-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.800
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-158-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.825
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-159-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.850
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-160-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.875
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-161-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.900
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-162-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.925
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-163-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.950
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-164-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.975
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15639-165-0 |
AR |
1 |
- |
| |
210 |
03.320 ROD; CONT
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-044-0 |
01 |
1 |
- |
| |
211 |
03.320 BEARING; CONT ROD
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15629-098-0 |
01 |
1 |
- |
| |
212 |
03.320 BUSHING; CONT ROD
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-330-0 |
01 |
1 |
- |
| |
213 |
03.320 WASHER; CONT ROD
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-336-0 |
01 |
1 |
- |
| |
216 |
03.320 CONNECTOR; CONT ROD
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-045-1 |
01 |
1 |
- |
| |
217 |
03.320 BOLT; CONT ROD
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-335-0 |
01 |
1 |
- |
| |
219 |
03.320 RING; SNAP,ROLLER
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-432-0 |
04 |
1 |
- |
| |
230 |
03.306 PLUG; TAPPET
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
1-15619-435-0 |
04 |
1 |
- |
| |
249 |
03.320 YOKE ASM; INJ PUMP
STAMP 2
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-337-0 |
01 |
1 |
- |
| |
249 |
03.320 YOKE ASM; INJ PUMP
STAMP 0
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-338-0 |
01 |
1 |
- |
| |
249 |
03.320 YOKE ASM; INJ PUMP
STAMP 1
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-339-0 |
01 |
1 |
- |
| |
249 |
03.320 YOKE ASM; INJ PUMP
STAMP 3
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-340-0 |
01 |
1 |
- |
| |
249 |
03.320 YOKE ASM; INJ PUMP
STAMP 4
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-341-0 |
01 |
1 |
- |
| |
250 |
03.320 SHAFT; YOKE,INJ PUMP
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-054-0 |
01 |
1 |
- |
| |
251 |
03.320 YOKE; SHAFT
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97202-336-0 |
01 |
1 |
- |
| |
252 |
03.320 BOLT; YOKE
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-053-0 |
01 |
1 |
- |
| |
253 |
03.320 NUT; YOKE
08.845
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-88410-525-0 |
01 |
1 |
- |
| |
254 |
03.320 WASHER; YOKE
00.206, ID=6.4
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
9-09160-506-0 |
01 |
1 |
- |
| |
255 |
03.320 GASKET; YOKE
ASM PART: A = 8-97147-640-3, 97147640, B = 8-97147-642-3, 97147642,
C = 8-97184-243-1, 97184243, D = 8-97184-244-2, 97184244,
E = 8-97210-050-1, 97210050, F = 8-97210-054-1, 97210054,
G = 8-97210-056-1, 97210056, H = 8-97210-057-1, 97210057,
I = 8-97212-182-0, 97212182, J = 8-97212-185-0, 97212185,
K = 8-97212-186-0, 97212186, L = 8-97212-188-0, 97212188
|
8-97201-051-0 |
01 |
1 |
- |
