Sayfa 0-66 - Isuzu EPC

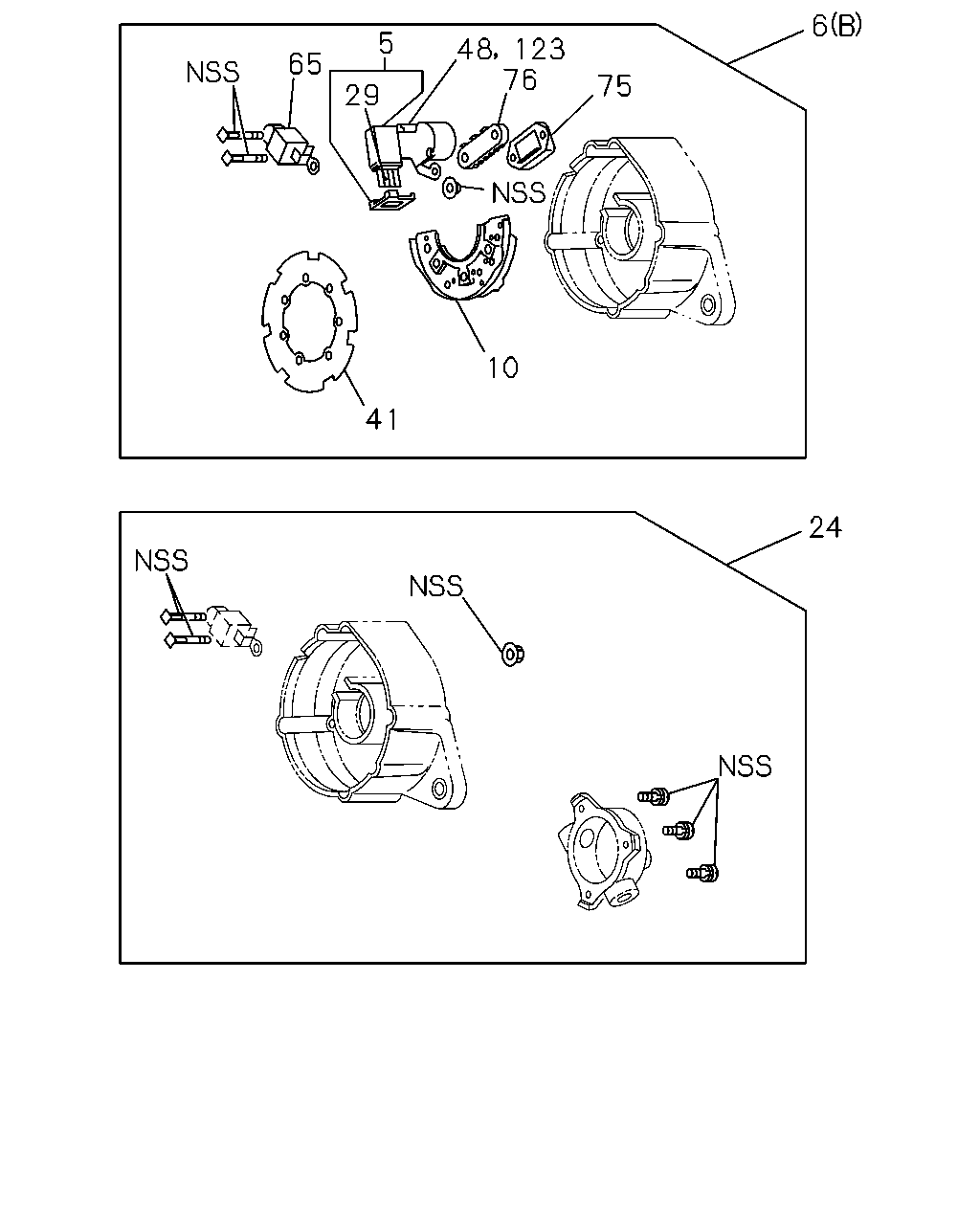

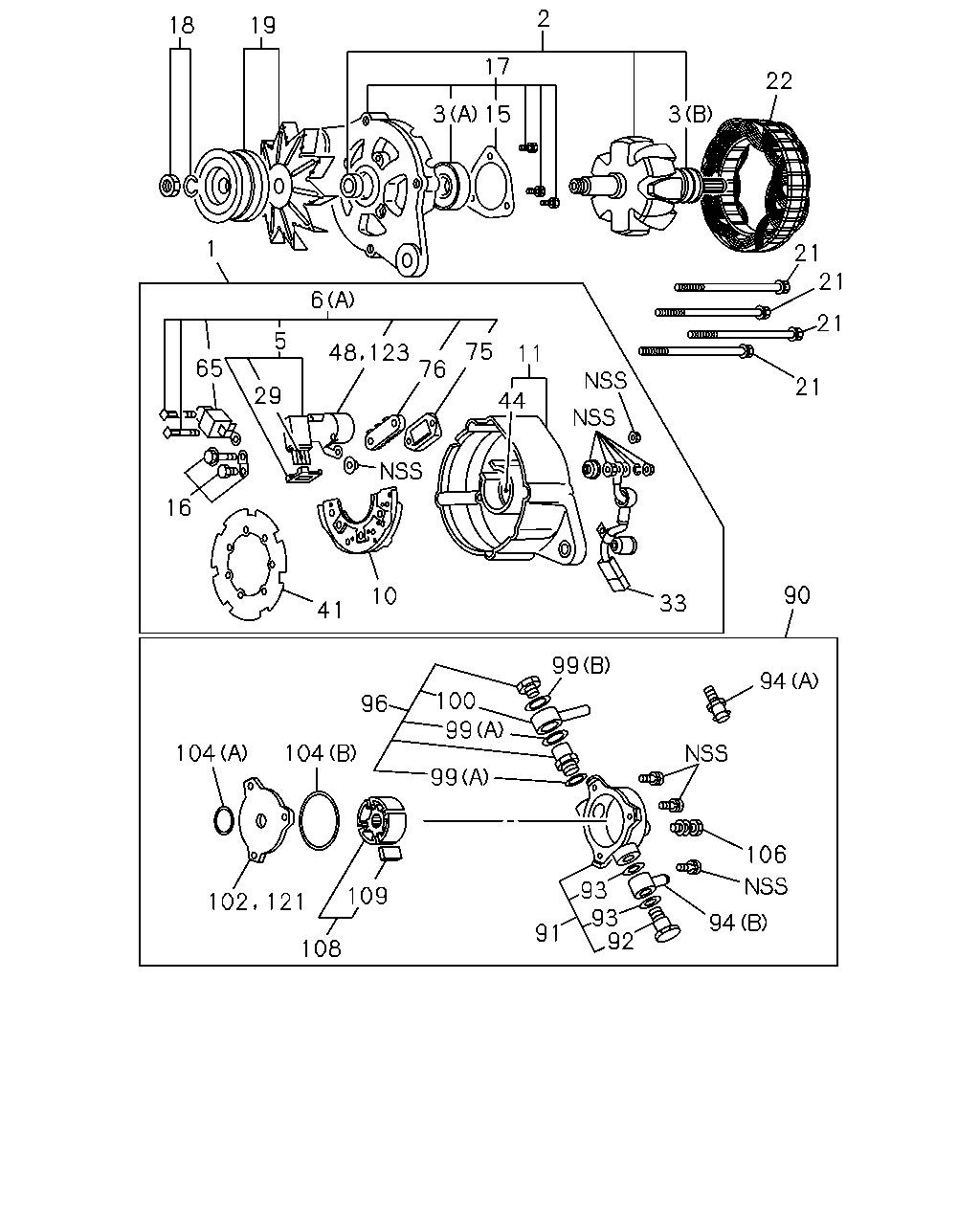

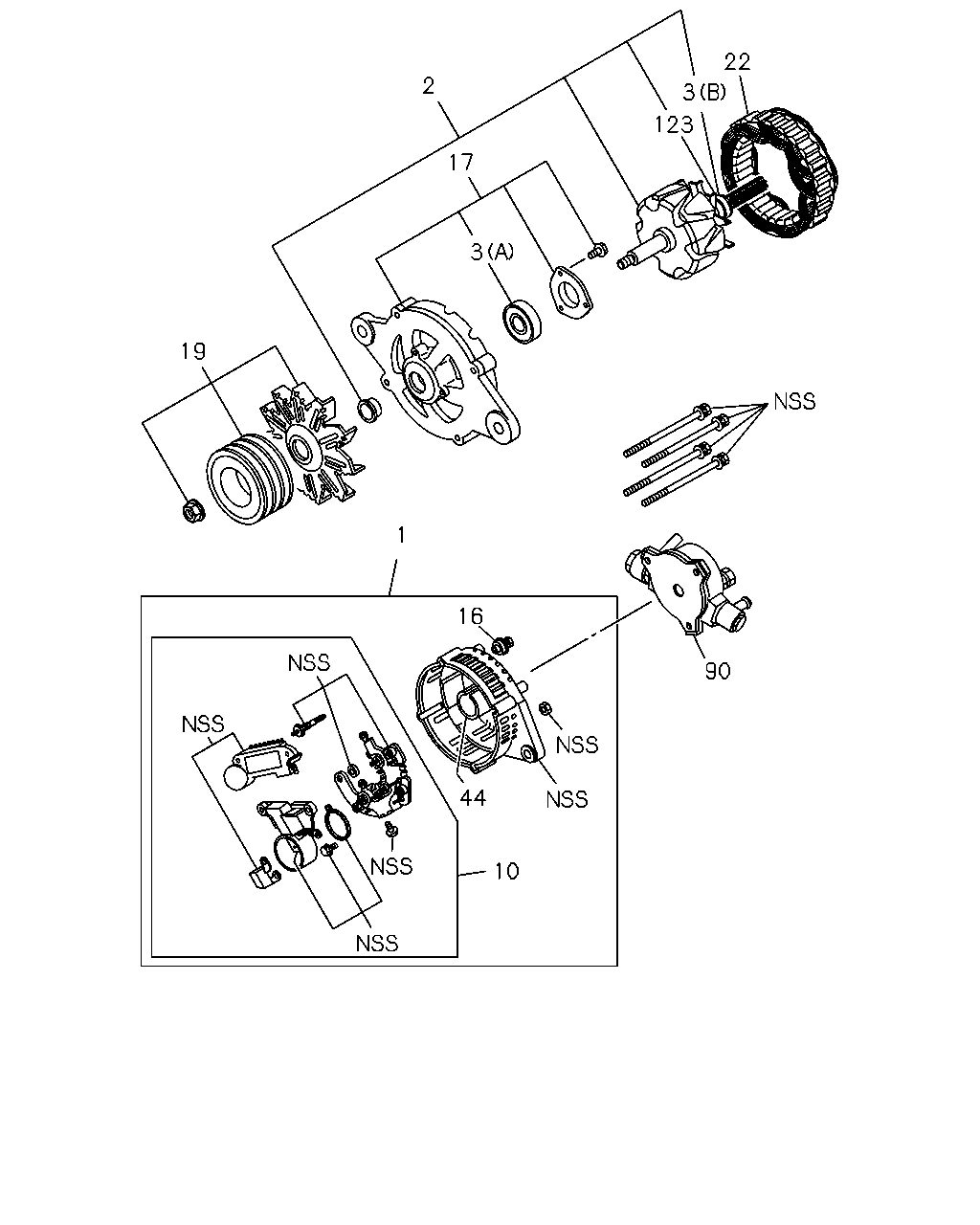

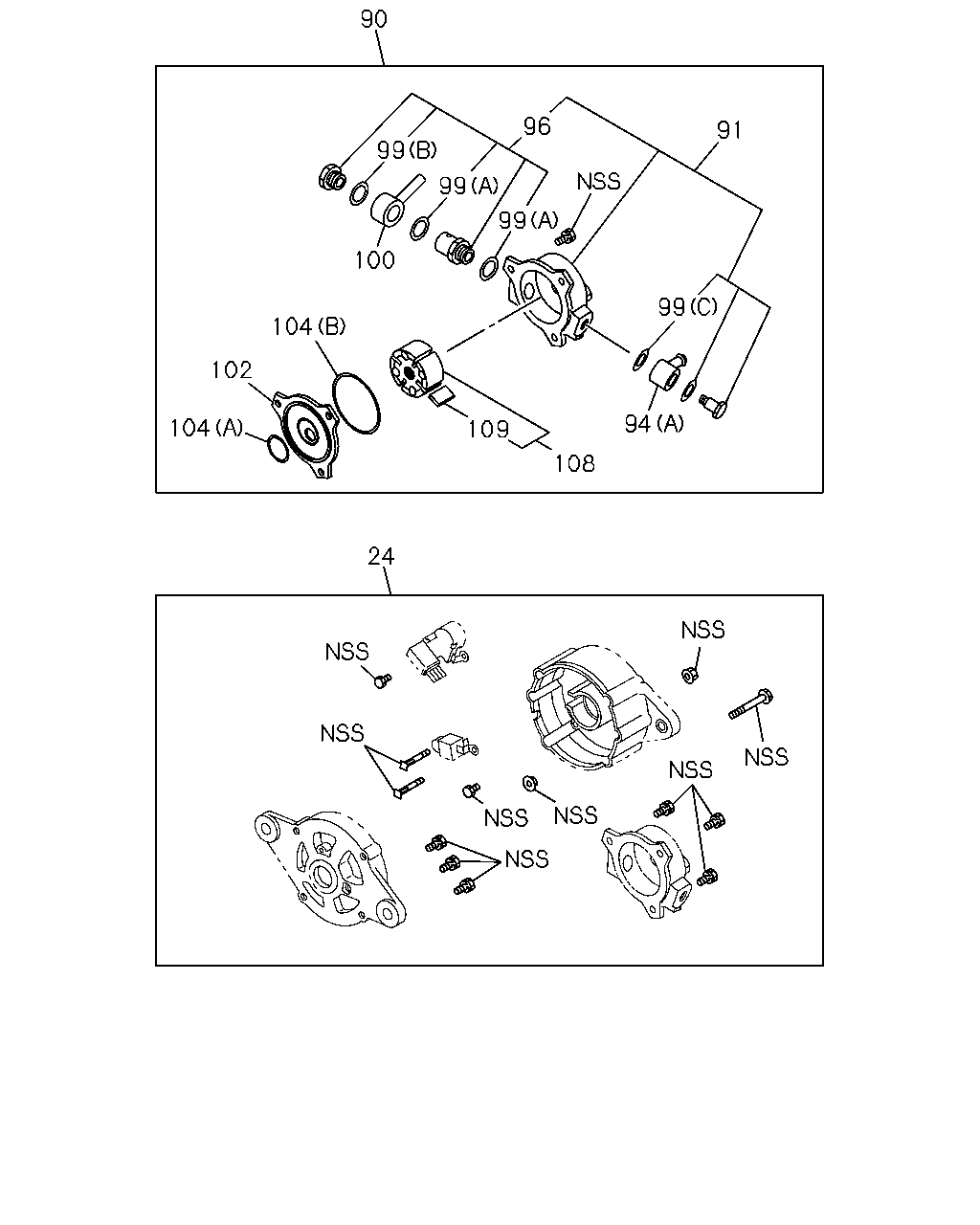

0-66 — GENERATOR (#40521) — 395 parça

2 18 19 17 22 3 15 3 1 21 21 6 21 5 75 48 123 76 11 65 21 29 44 16 90 10 33 41 99 94 100 96 99 104 104 99 106 93 93 92 109 102 121 94 91 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-869-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97023-733-1, 97023733	8-97029-984-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94389-772-1, 94389772	8-97080-470-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97073-924-1, 97073924	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-277-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97075-883-2, 97075883	8-97083-278-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97111-260-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97075-883-2, 97075883	8-97111-261-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97148-496-0, 97148496	8-97111-261-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97143-011-0, 97143011	8-97147-623-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97147-623-0	01	1	-9804
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-97171-178-0, 97171178	8-97173-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-823-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97211-162-0	01	1	9805-
2	02.279 ROTOR; GEN ASM PART: A = 8-94389-772-1, 94389772	8-97016-299-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-876-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97023-733-1, 97023733, L = 8-97171-178-0, 97171178	8-97029-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-271-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: G = 8-97075-883-2, 97075883	8-97083-272-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: H = 8-97143-011-0, 97143011, M = 8-97175-390-1, 97175390	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97148-496-0, 97148496	8-97161-468-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97075-883-2, 97075883	8-97161-468-0	01	1	9512-
2	02.279 ROTOR; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-891-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97073-924-1, 97073924	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-290-0	01	1	-9511
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97143-011-0, 97143011	8-97083-290-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97161-473-0	01	1	9512-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97161-473-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-590-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: C = 8-97023-733-1, 97023733, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-282-0	01	1	-9402
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: F = 8-97075-882-2, 97075882	8-97111-262-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: G = 8-97075-883-2, 97075883	8-97111-263-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97111-264-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97073-924-1, 97073924	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97023-733-1, 97023733	8-94410-397-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94475-472-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-97171-178-0, 97171178	8-97115-182-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: N = 8-97187-657-0, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-825-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226	8-97018-870-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: A = 8-94389-772-1, 94389772	8-97027-778-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-899-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94116-433-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94389-772-1, 94389772	8-94156-599-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-289-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-111-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94389-772-1, 94389772	8-97016-300-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97023-733-1, 97023733, L = 8-97171-178-0, 97171178	8-97018-872-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-879-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-113-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, L = 8-97171-178-0, 97171178	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94389-772-1, 94389772, E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97168-206-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94156-586-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97073-924-1, 97073924	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94336-729-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97023-733-1, 97023733	8-94410-394-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97075-883-2, 97075883, J = 8-97148-496-0, 97148496	8-97083-276-0	01	1	-
22	02.310 STATOR; GEN ASM PART: L = 8-97171-178-0, 97171178	8-97111-313-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97143-011-0, 97143011, M = 8-97175-390-1, 97175390	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-821-0	01	1	-
22	02.310 STATOR; GEN ASM PART: N = 8-97187-657-0, 97187657	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97084-356-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: K = 8-97170-163-1, 97170163	8-97136-584-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97178-244-0	01	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94237-727-0	01	1	-
48	02.319 DIODE; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-110-1	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-595-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97023-733-1, 97023733, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-284-0	01	1	-9402
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97111-267-0	01	1	9403-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-267-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94389-772-1, 94389772, D = 8-97029-226-0, 97029226	8-97018-881-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97023-733-1, 97023733	8-97029-985-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97038-505-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-296-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97148-114-1	01	1	9805-
90	03.280 PUMP ASM; VAC,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-895-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: L = 8-97171-178-0, 97171178	8-97173-600-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97183-173-0	01	1	-9804
91	03.280 BODY; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97018-874-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-97080-472-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-300-0	01	1	-9804
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97148-117-0	01	1	9805-
91	03.280 BODY; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-117-0	01	1	-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	5-19619-031-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	5-19679-004-2	01	1	-9402
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	5-19679-004-2	02	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-94389-772-1, 94389772, E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: A = 8-94389-772-1, 94389772, E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	5-19619-034-0	01	1	-9402
94	03.280 CONNECTOR; VAC PUMP 04.830, (B) ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94156-640-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97018-875-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-301-0	01	1	-9804
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-118-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: M = 8-97175-390-1, 97175390	8-97148-118-0	01	1	9805-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: M = 8-97175-390-1, 97175390	5-19679-002-0	01	1	-9804
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: M = 8-97175-390-1, 97175390	5-19679-002-0	02	1	9805-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=16 OD=22 ASM PART: O = 8-97189-649-0, 97189649	5-19679-004-2	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: M = 8-97175-390-1, 97175390	8-97083-302-0	01	1	-9804
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	5-19619-033-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	5-19619-040-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: J = 8-97148-496-0, 97148496, O = 8-97189-649-0, 97189649	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-94455-974-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, M = 8-97175-390-1, 97175390	8-97083-303-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226	8-97016-305-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-299-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: L = 8-97171-178-0, 97171178	8-97173-601-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97183-175-0	01	1	-9804
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94462-877-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, M = 8-97175-390-1, 97175390, O = 8-97189-649-0, 97189649	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97016-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-297-0	01	1	-9804
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-97137-333-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97148-115-1	01	1	9805-
109	03.280 VANE; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94462-883-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-298-0	04	1	-9804
109	03.280 VANE; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-298-0	03	1	9805-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-298-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-116-0	01	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97148-116-0	01	1	9805-
123	02.291 GUIDE; BRUSH ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-274-0	01	1	-

22 2 3 123 17 3 19 1 16 90 44 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-869-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97023-733-1, 97023733	8-97029-984-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94389-772-1, 94389772	8-97080-470-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97073-924-1, 97073924	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-277-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97075-883-2, 97075883	8-97083-278-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97111-260-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97075-883-2, 97075883	8-97111-261-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97148-496-0, 97148496	8-97111-261-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97143-011-0, 97143011	8-97147-623-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97147-623-0	01	1	-9804
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-97171-178-0, 97171178	8-97173-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-823-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97211-162-0	01	1	9805-
2	02.279 ROTOR; GEN ASM PART: A = 8-94389-772-1, 94389772	8-97016-299-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-876-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97023-733-1, 97023733, L = 8-97171-178-0, 97171178	8-97029-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-271-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: G = 8-97075-883-2, 97075883	8-97083-272-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: H = 8-97143-011-0, 97143011, M = 8-97175-390-1, 97175390	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97148-496-0, 97148496	8-97161-468-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97075-883-2, 97075883	8-97161-468-0	01	1	9512-
2	02.279 ROTOR; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-891-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97073-924-1, 97073924	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-290-0	01	1	-9511
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: H = 8-97143-011-0, 97143011	8-97083-290-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97161-473-0	01	1	9512-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97161-473-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97073-924-1, 97073924	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97023-733-1, 97023733	8-94410-397-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94475-472-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-97171-178-0, 97171178	8-97115-182-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: N = 8-97187-657-0, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-825-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-899-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94116-433-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94389-772-1, 94389772	8-94156-599-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-289-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-111-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94389-772-1, 94389772	8-97016-300-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97023-733-1, 97023733, L = 8-97171-178-0, 97171178	8-97018-872-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-97018-879-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97148-113-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94156-586-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97073-924-1, 97073924	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94336-729-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97023-733-1, 97023733	8-94410-394-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97075-883-2, 97075883, J = 8-97148-496-0, 97148496	8-97083-276-0	01	1	-
22	02.310 STATOR; GEN ASM PART: L = 8-97171-178-0, 97171178	8-97111-313-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97143-011-0, 97143011, M = 8-97175-390-1, 97175390	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-821-0	01	1	-
22	02.310 STATOR; GEN ASM PART: N = 8-97187-657-0, 97187657	8-97203-864-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94389-772-1, 94389772, D = 8-97029-226-0, 97029226	8-97018-881-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97023-733-1, 97023733	8-97029-985-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97038-505-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-296-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97148-114-1	01	1	9805-
90	03.280 PUMP ASM; VAC,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-895-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: L = 8-97171-178-0, 97171178	8-97173-600-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97183-173-0	01	1	-9804
123	02.291 GUIDE; BRUSH ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-274-0	01	1	-

6 5 48 76 65 75 29 10 41 24 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-590-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: C = 8-97023-733-1, 97023733, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-282-0	01	1	-9402
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: F = 8-97075-882-2, 97075882	8-97111-262-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: G = 8-97075-883-2, 97075883	8-97111-263-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97111-264-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97073-924-1, 97073924	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97023-733-1, 97023733	8-94410-397-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94475-472-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: L = 8-97171-178-0, 97171178	8-97115-182-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: N = 8-97187-657-0, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: O = 8-97189-649-0, 97189649	8-97190-825-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97016-302-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-295-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97144-392-1, 97144392, O = 8-97189-649-0, 97189649	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: K = 8-97170-163-1, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97084-356-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-288-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94237-727-0	01	1	-
48	02.319 DIODE; GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-110-1	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, D = 8-97029-226-0, 97029226	8-94156-595-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97023-733-1, 97023733, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97083-284-0	01	1	-9402
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	8-97111-267-0	01	1	9403-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97111-267-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, L = 8-97171-178-0, 97171178, N = 8-97187-657-0, 97187657	8-94156-591-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, O = 8-97189-649-0, 97189649	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496, M = 8-97175-390-1, 97175390	8-97083-274-0	01	1	-

90 96 91 99 99 99 100 99 104 102 94 104 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97016-302-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97075-882-2, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-295-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97144-392-1, 97144392, O = 8-97189-649-0, 97189649	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: K = 8-97170-163-1, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94389-772-1, 94389772, D = 8-97029-226-0, 97029226	8-97018-881-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97023-733-1, 97023733	8-97029-985-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97038-505-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-296-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97148-114-1	01	1	9805-
90	03.280 PUMP ASM; VAC,GEN ASM PART: O = 8-97189-649-0, 97189649	8-97167-895-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: N = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: L = 8-97171-178-0, 97171178	8-97173-600-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: M = 8-97175-390-1, 97175390	8-97183-173-0	01	1	-9804
91	03.280 BODY; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97018-874-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-97080-472-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-300-0	01	1	-9804
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97148-117-0	01	1	9805-
91	03.280 BODY; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-117-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: A = 8-94389-772-1, 94389772, E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883	5-19619-034-0	01	1	-9402
94	03.280 CONNECTOR; VAC PUMP 04.830, (B) ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94156-640-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97018-875-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-301-0	01	1	-9804
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-118-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: M = 8-97175-390-1, 97175390	8-97148-118-0	01	1	9805-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: M = 8-97175-390-1, 97175390	5-19679-002-0	01	1	-9804
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: M = 8-97175-390-1, 97175390	5-19679-002-0	02	1	9805-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=16 OD=22 ASM PART: O = 8-97189-649-0, 97189649	5-19679-004-2	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: M = 8-97175-390-1, 97175390	8-97083-302-0	01	1	-9804
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	5-19619-033-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	5-19619-040-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: J = 8-97148-496-0, 97148496, O = 8-97189-649-0, 97189649	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-94455-974-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163, M = 8-97175-390-1, 97175390	8-97083-303-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226	8-97016-305-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-299-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: L = 8-97171-178-0, 97171178	8-97173-601-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97183-175-0	01	1	-9804
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, E = 8-97073-924-1, 97073924, F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, L = 8-97171-178-0, 97171178, M = 8-97175-390-1, 97175390, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94462-877-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, I = 8-97144-392-1, 97144392, J = 8-97148-496-0, 97148496, K = 8-97170-163-1, 97170163, M = 8-97175-390-1, 97175390, O = 8-97189-649-0, 97189649	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-97016-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-297-0	01	1	-9804
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-97137-333-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97148-115-1	01	1	9805-
109	03.280 VANE; VAC PUMP ASM PART: E = 8-97073-924-1, 97073924, N = 8-97187-657-0, 97187657, O = 8-97189-649-0, 97189649	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97023-733-1, 97023733, D = 8-97029-226-0, 97029226, L = 8-97171-178-0, 97171178	8-94462-883-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: I = 8-97144-392-1, 97144392, K = 8-97170-163-1, 97170163	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-298-0	04	1	-9804
109	03.280 VANE; VAC PUMP ASM PART: M = 8-97175-390-1, 97175390	8-97083-298-0	03	1	9805-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97075-882-2, 97075882, G = 8-97075-883-2, 97075883, H = 8-97143-011-0, 97143011, J = 8-97148-496-0, 97148496	8-97083-298-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
