0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#40519) — 530 parça

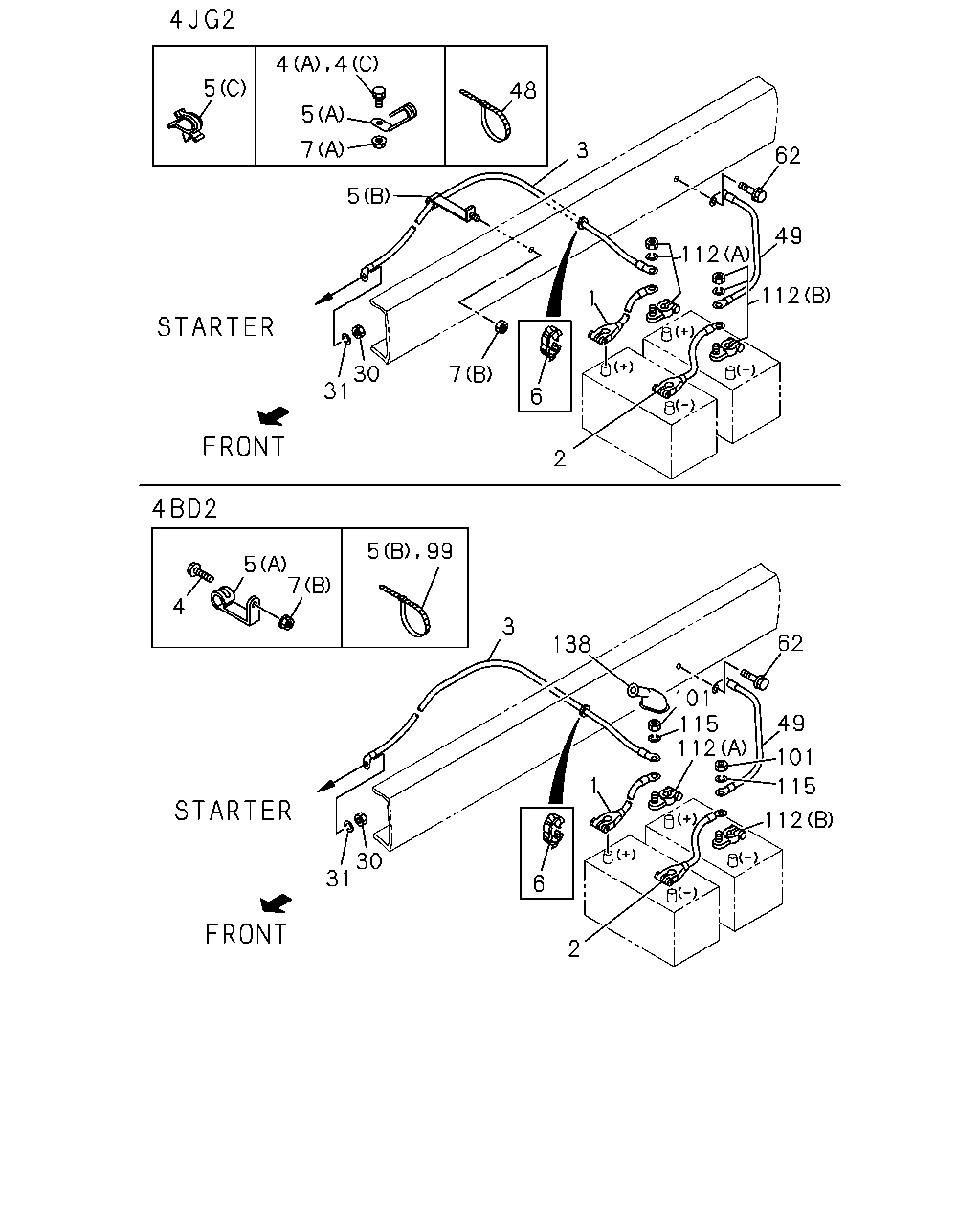

çizim 18389
4 4 5 48 5 7 3 62 5 49 112 112 1 30 31 7 6 2 5 99 5 7 4 3 62 138 101 115 112 49 101 1 115 112 30 31 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
L=180 		9-82932-233-1 01 1 9312-9407 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9408-9510 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9511-9711 ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9712-9801 ● ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9802- ● ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9312- ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9312-9801 ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9802- ●
1 02.341 CABLE; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9802- ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9312- ●
2 02.341 CABLE; BATTERY
L=200 		8-94171-824-2 01 1 9312-9801 ●
2 02.341 CABLE; BATTERY
L=200 		8-94171-824-2 01 1 9802- ●
2 02.341 CABLE; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9802- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97102-979-0 01 1 9312-9404 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9405-9408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-728-2 01 1 9409-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EURO2 SPECIFICATION<7AF> 		8-97068-728-2 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EURO2 SPECIFICATION<7AF> 		8-97068-729-1 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
L=1030 		8-94472-886-3 01 1 9312-9403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97112-678-0 01 1 9404-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9603-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-413-0 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-JATCO(RMK) 		8-97079-013-4 01 1 9505-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> 		8-97122-347-1 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9511-9511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9511-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97147-412-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9802- ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9602 ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9603-9710 ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9711-9711 ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9712-9801 ● ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9802- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9802- ● ● ●
4 02.559 BOLT; BATTERY CABLE
01.531 (B) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9406 ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 03 1 9407-9510 ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 03 1 9511-9602 ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 03 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
03.275 (B) M8X30 FLANGE 		0-28080-830-0 01 1 9312-9410 ● ●
4 02.559 BOLT; BATTERY CABLE
03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9406 ●
4 02.559 BOLT; BATTERY CABLE
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9404-9409 ●
4 02.559 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 01 1 9410-9602 ●
4 02.559 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 01 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(D) 		8-94404-035-0 01 1 9312-9405 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9410 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9411-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9511-9710 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9711- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9312- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9312-9602 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> 03.162 (B) L=140 		5-09707-031-1 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 06.602 (A) ID=15 H=24 L=20 		1-09700-606-0 03 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 02 1 9312-9406 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9407-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9312-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (C) ID=13 L=32 		9-09525-265-0 01 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9603-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) 		8-94165-399-0 01 1 9803- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (H) ID=16 		8-97040-812-0 01 1 9802- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (C) ID=16 L=28 		9-09525-556-0 03 1 9802- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9312-9510 ● ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9312-9510 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9511-9602 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9511-9602 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9603-9711 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9603-9711 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9712- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9712- ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9511-9710 ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9711-9711 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9312-9406 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9407-9510 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9403 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9404-9602 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9707-9801 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9707- ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9312-9711 ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9712-9801 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9406-9510 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9511-9711 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9406-9510 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9511-9711 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9312-9711 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9712-9801 ● ● ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 01 1 9802- ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9312-9510 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9511-9711 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9712-9801 ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9802-9805 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> L=200 30BY 		9-82933-456-0 01 1 9802-9805 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9806- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9806- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=600 		8-97039-369-1 01 1 9312-9404 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9405- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
02.341 		8-94400-154-1 01 1 9312- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9803- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9312-9510 ● ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9511-9702 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9712- ● ●
99 02.343 CLIP; BATTERY CABLE
03.162 L=140 		5-09707-031-1 02 1 9312- ●
101 02.343 NUT; BATTERY CABLE CLIP
09.011 M10 		9-09110-410-0 02 1 9312-9801 ●
101 02.343 NUT; BATTERY CABLE CLIP
09.011 M10 		9-09110-410-0 02 1 9802- ●
101 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 09.011 M10 		9-09110-410-0 02 1 9802- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9312- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9312- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		1-82695-003-0 01 1 9312-9801 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		1-82695-003-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		1-82695-004-0 01 1 9312-9801 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		1-82695-004-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9802- ●
115 02.343 WASHER; LK,CABLE,BATTERY
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9312-9405 ● ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9312-9801 ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
115 02.343 WASHER; LK,CABLE,BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
138 02.343 CAP; BATTERY CABLE 8-94400-153-2 01 1 9404- ●

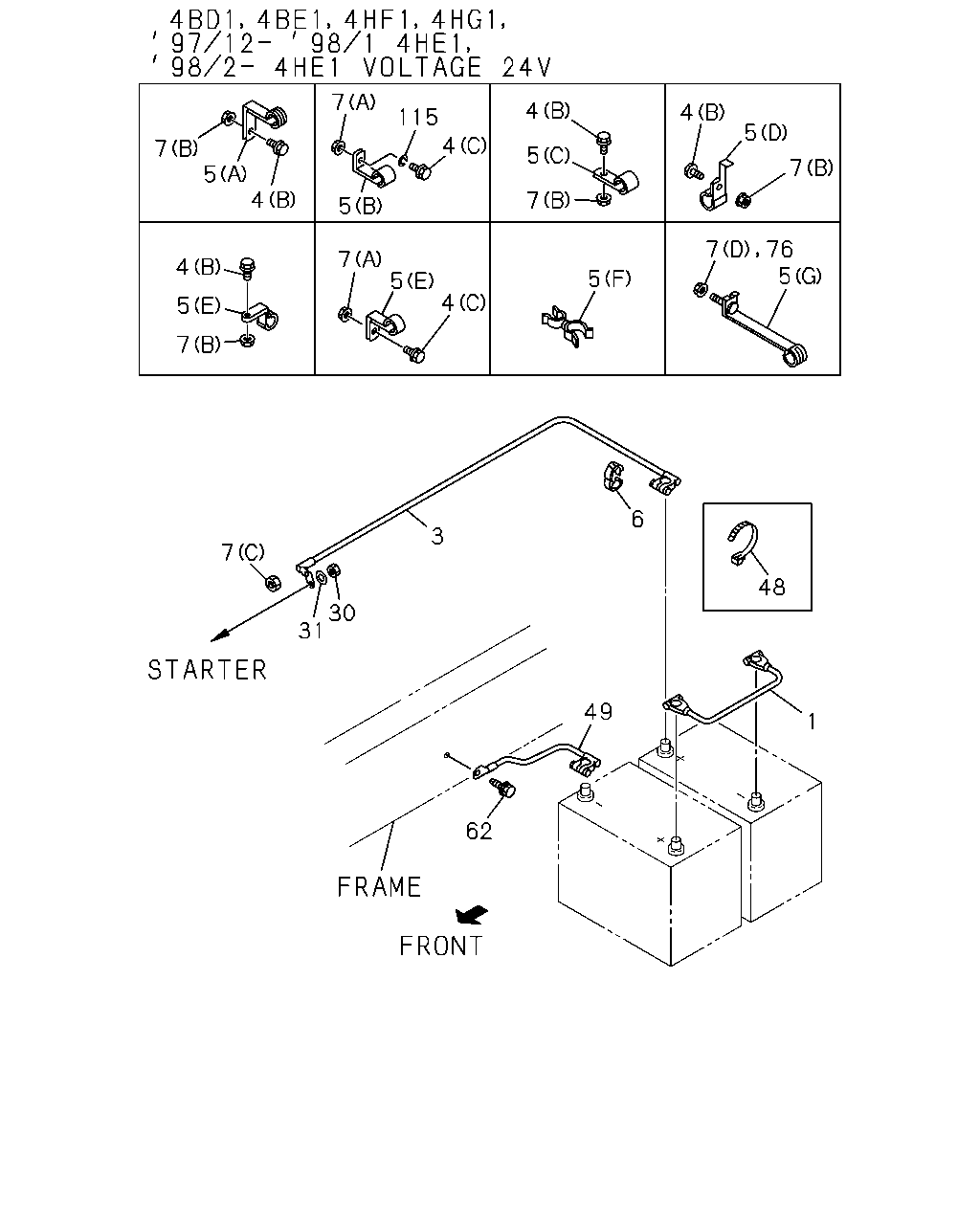

çizim 66890
7 4 4 115 4 5 7 5 5 7 4 7 5 7 76 5 7 5 4 4 5 5 7 6 3 7 48 30 31 49 1 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
L=180 		9-82932-233-1 01 1 9312-9407 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9408-9510 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9511-9711 ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9712-9801 ● ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9802- ● ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9312- ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9312-9801 ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9802- ●
1 02.341 CABLE; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9802- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97102-979-0 01 1 9312-9404 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9405-9408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-728-2 01 1 9409-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EURO2 SPECIFICATION<7AF> 		8-97068-728-2 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EURO2 SPECIFICATION<7AF> 		8-97068-729-1 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
L=1030 		8-94472-886-3 01 1 9312-9403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97112-678-0 01 1 9404-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9603-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-413-0 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-JATCO(RMK) 		8-97079-013-4 01 1 9505-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> 		8-97122-347-1 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9511-9511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9511-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97147-412-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9802- ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9602 ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9603-9710 ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9711-9711 ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9712-9801 ● ● ● ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9802- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9802- ● ● ●
4 02.559 BOLT; BATTERY CABLE
01.531 (B) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9406 ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 03 1 9407-9510 ● ●
4 02.559 BOLT; BATTERY CABLE
04.686 (C) M6X25 FLANGE 		0-28080-625-0 03 1 9511-9602 ●
4 02.559 BOLT; BATTERY CABLE
02.334 (C) M6X25 FLANGE 		0-28680-625-0 03 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
03.275 (B) M8X30 FLANGE 		0-28080-830-0 01 1 9312-9410 ● ●

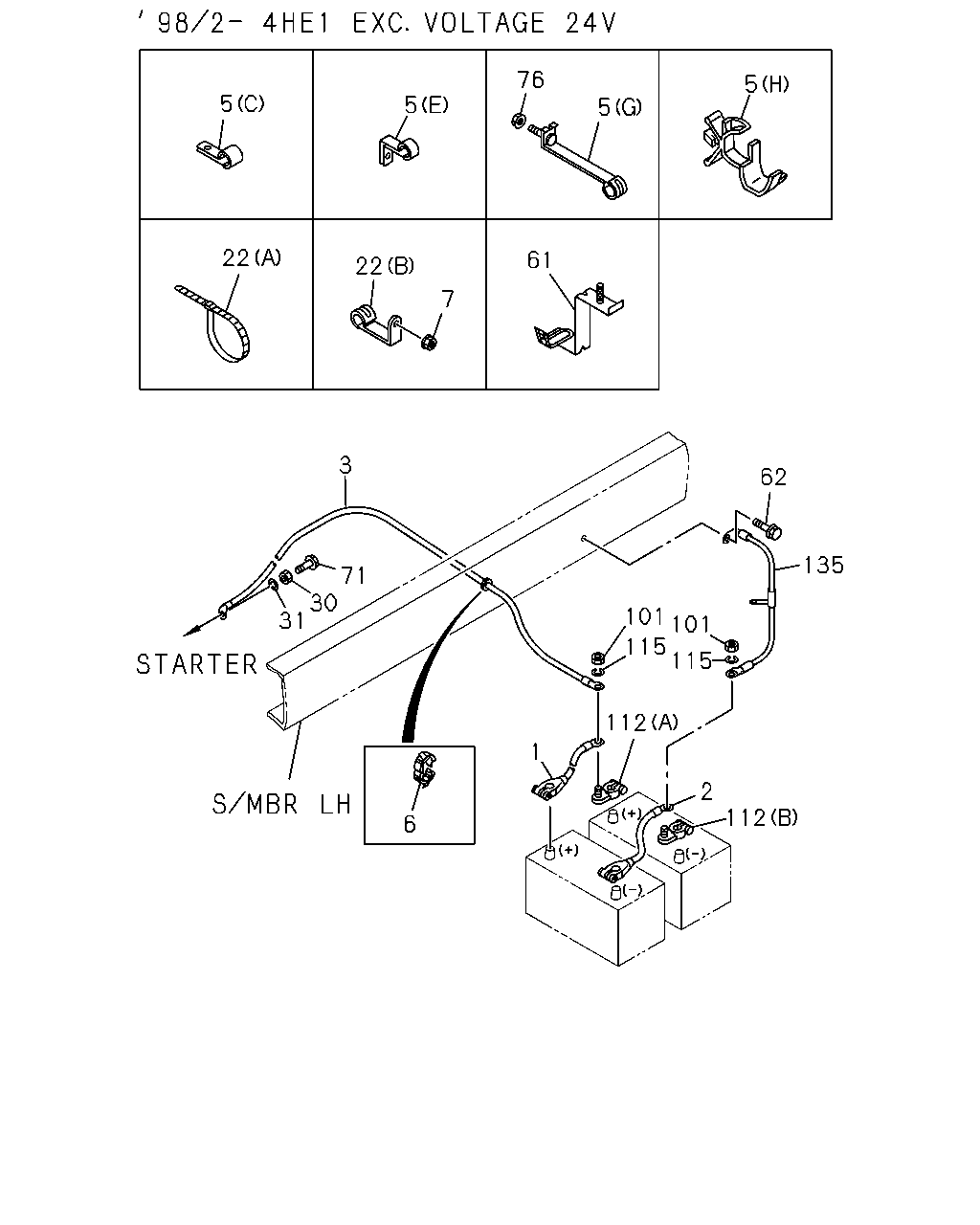

4 02.559 BOLT; BATTERY CABLE
03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9406 ●
4 02.559 BOLT; BATTERY CABLE
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9404-9409 ●
4 02.559 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 01 1 9410-9602 ●
4 02.559 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 01 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9603- ●
4 02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(D) 		8-94404-035-0 01 1 9312-9405 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9410 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9411-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9511-9710 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9711- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9312- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9312-9602 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> 03.162 (B) L=140 		5-09707-031-1 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 06.602 (A) ID=15 H=24 L=20 		1-09700-606-0 03 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 02 1 9312-9406 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9407-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9312-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (C) ID=13 L=32 		9-09525-265-0 01 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9603-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) 		8-94165-399-0 01 1 9803- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (H) ID=16 		8-97040-812-0 01 1 9802- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (C) ID=16 L=28 		9-09525-556-0 03 1 9802- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9312-9510 ● ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9312-9510 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9511-9602 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9511-9602 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9603-9711 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9603-9711 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9712- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9712- ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9511-9710 ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9711-9711 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9312-9406 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9407-9510 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9403 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9404-9602 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9707-9801 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9707- ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9312-9711 ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9712-9801 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9406-9510 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9511-9711 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9406-9510 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9511-9711 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9312-9711 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9712-9801 ● ● ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 01 1 9802- ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9312-9510 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9511-9711 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9712-9801 ● ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9802-9805 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> L=200 30BY 		9-82933-456-0 01 1 9802-9805 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 9806- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9806- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=600 		8-97039-369-1 01 1 9312-9404 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9405- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
02.341 		8-94400-154-1 01 1 9312- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9803- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9312-9510 ● ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9511-9702 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9712- ● ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9602 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9603-9711 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ● ●
76 02.343 NUT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ●
76 02.343 NUT; BATTERY CABLE
NQR EXTEND LONG(NP***N) M/T MXA5R(RMT) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ●
76 02.343 NUT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NQR SGL CAB&EXTEND LONG(NPC6SN) MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9603-9711 ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9712-9801 ● ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ●
115 02.343 WASHER; LK,CABLE,BATTERY
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9312-9405 ● ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9312-9801 ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
115 02.343 WASHER; LK,CABLE,BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
çizim 70810
76 5 5 5 5 22 61 22 7 3 62 135 71 30 31 101 101 115 115 112 1 2 112 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.341 CABLE; BATTERY
L=180 		9-82932-233-1 01 1 9312-9407 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9408-9510 ● ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9511-9711 ● ●
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9712-9801 ● ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9802- ● ● ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9312- ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9312-9801 ●
1 02.341 CABLE; BATTERY
02.342 L=200 		8-94171-823-2 01 1 9802- ●
1 02.341 CABLE; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9802- ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9312- ●
2 02.341 CABLE; BATTERY
L=200 		8-94171-824-2 01 1 9312-9801 ●
2 02.341 CABLE; BATTERY
L=200 		8-94171-824-2 01 1 9802- ●
2 02.341 CABLE; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9802- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> 		8-97102-963-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9312-9510 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97106-691-0 01 1 9511- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97102-979-0 01 1 9312-9404 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9405-9408 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-728-2 01 1 9409-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EURO2 SPECIFICATION<7AF> 		8-97068-728-2 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EURO2 SPECIFICATION<7AF> 		8-97068-729-1 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
L=1030 		8-94472-886-3 01 1 9312-9403 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97112-678-0 01 1 9404-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9603-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B> 		8-97127-552-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-413-0 01 1 9603- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-JATCO(RMK) 		8-97079-013-4 01 1 9505-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> 		8-97122-347-1 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97122-347-1 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 		8-97092-834-0 01 1 9511-9602 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9312-9510 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B> 		8-97065-467-3 01 1 9511-9511 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9511-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9603-9711 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97147-412-0 01 1 9712-9801 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 		8-97147-412-0 01 1 9802- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9802- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) 		8-94167-740-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.589 (F) ID=13 & 16.5 		8-94169-028-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=17.5 		8-94318-404-0 01 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(D) 		8-94404-035-0 01 1 9312-9405 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9312-9510 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
01.516 (C) ID=13 L=20 		9-09525-235-0 02 1 9511- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9410 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9411-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9511-9710 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (C) ID=14-12 		8-94379-592-0 01 1 9711- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9312- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9312-9602 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (A) ID=17.5 		8-94455-485-0 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> 03.162 (B) L=140 		5-09707-031-1 01 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 06.602 (A) ID=15 H=24 L=20 		1-09700-606-0 03 1 9603- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 02 1 9312-9406 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9407-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 H=15 L=25 		1-09700-888-0 01 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (G) ID=13 L=90 		8-97015-782-1 02 1 9712- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9312-9510 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9511-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> (C) ID=13 L=32 		9-09525-265-0 01 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (C) ID=13 L=32 		9-09525-265-0 01 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9603-9711 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9712-9801 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 01.166 (C) ID=13 L=40 		9-09525-276-0 02 1 9802- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) 		8-94165-399-0 01 1 9803- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (H) ID=16 		8-97040-812-0 01 1 9802- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (C) ID=16 L=28 		9-09525-556-0 03 1 9802- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9312-9510 ● ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9312-9510 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9511-9602 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> ID=17 		8-94128-319-2 01 1 9511-9602 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9603-9711 ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9603-9711 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9712- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9712- ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9511-9710 ● ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9711-9711 ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9312-9406 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9407-9510 ● ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ●
7 02.343 NUT; (+) CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9802- ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9403 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9404-9602 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9707-9801 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9802- ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9707- ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9312-9711 ●
7 02.343 NUT; (+) CABLE
00.002 (C) M8 		9-09110-508-0 01 1 9712-9801 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9802- ● ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (D) M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (A) L=140 		5-09707-031-1 03 1 9802- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (B) ID=14 H=50 L=20 		1-09700-843-0 01 1 9802- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9406-9510 ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9511-9711 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9312-9405 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9406-9510 ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9511-9711 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9312-9405 ●
61 02.333 BRACKET; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97202-141-1 01 1 9802- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9312-9510 ● ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9511-9702 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9712- ● ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9703-9711 ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9712- ● ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9802- ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9802- ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9602 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9603-9711 ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ● ●
76 02.343 NUT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ●
76 02.343 NUT; BATTERY CABLE
NQR EXTEND LONG(NP***N) M/T MXA5R(RMT) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ●
76 02.343 NUT; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NQR SGL CAB&EXTEND LONG(NPC6SN) MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9603-9711 ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9712-9801 ● ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ●
101 02.343 NUT; BATTERY CABLE CLIP
09.011 M10 		9-09110-410-0 02 1 9312-9801 ●
101 02.343 NUT; BATTERY CABLE CLIP
09.011 M10 		9-09110-410-0 02 1 9802- ●
101 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 09.011 M10 		9-09110-410-0 02 1 9802- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9312- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9312- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		1-82695-003-0 01 1 9312-9801 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		1-82695-003-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		1-82695-004-0 01 1 9312-9801 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		1-82695-004-0 01 1 9802- ●
112 02.343 TERMINAL; BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9802- ●
115 02.343 WASHER; LK,CABLE,BATTERY
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9312-9405 ● ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9312-9801 ●
115 02.343 WASHER; LK,CABLE,BATTERY
00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
115 02.343 WASHER; LK,CABLE,BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 9802- ●
135 02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> L=2350 		8-97203-769-0 01 1 9802- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
