Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#40518) — 998 parça

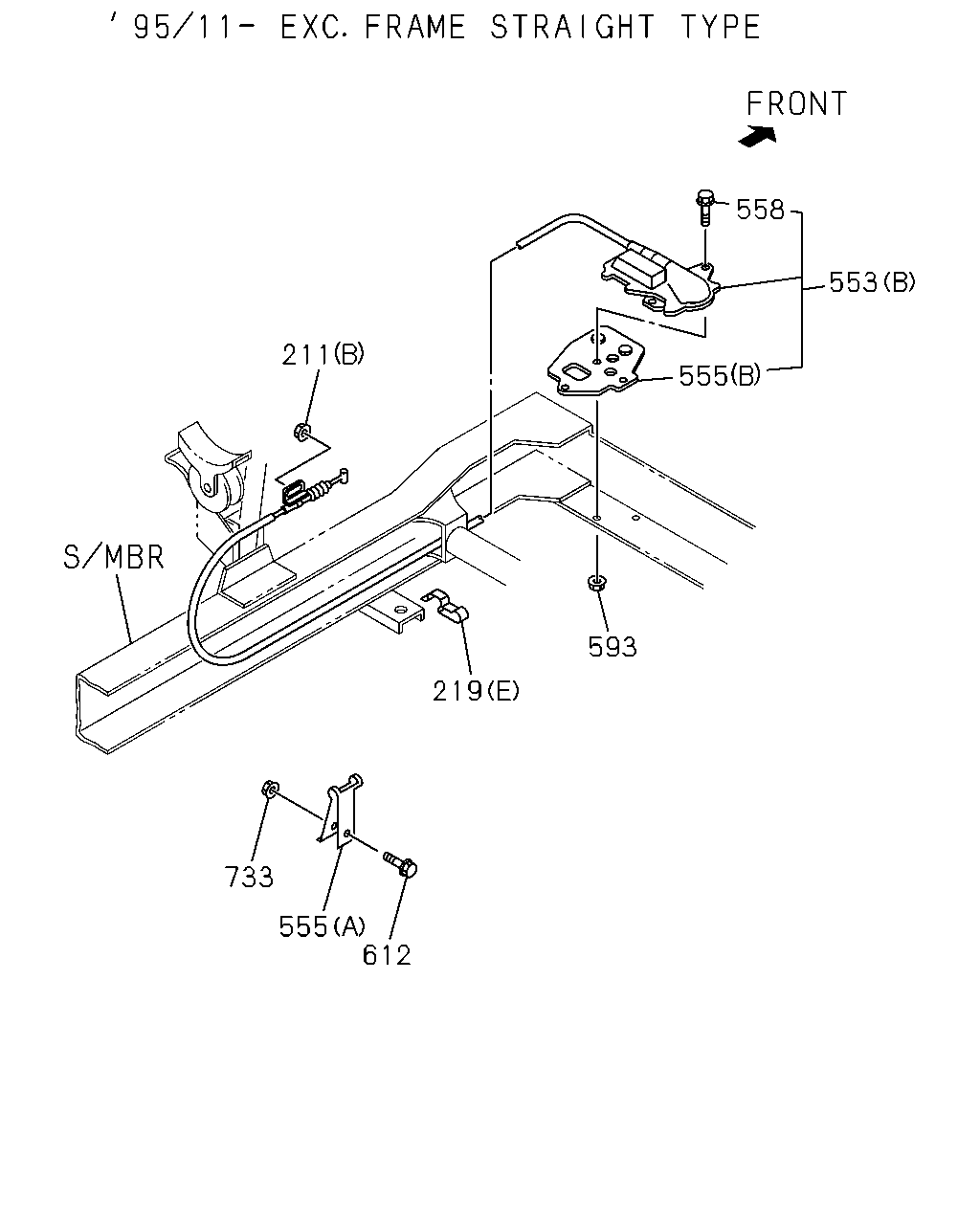

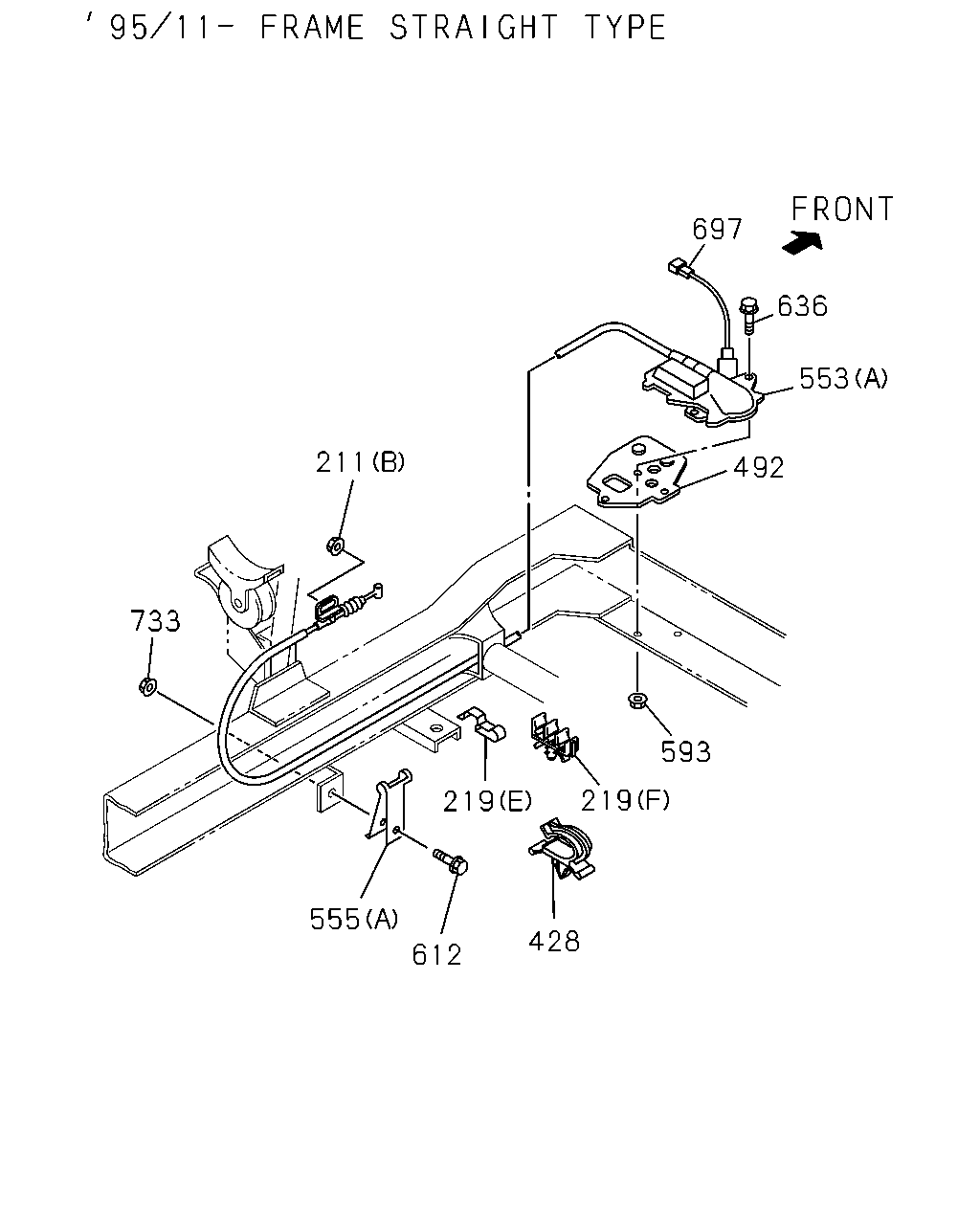

697 636 553 211 492 733 593 219 219 555 428 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	02	1	9312-9403	●	●	●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	01	1	9404-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE 03.430 (B) ID=17	8-94449-734-1	01	1	9312-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9511-9704		●	●
219	03.483 CLIP; ENG STOP CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9705-		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	02	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-0	01	1	9511-9711		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9511-9706				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9707-9711				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9712-				●	●	●
428	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 04.342 ID=14-12	8-94379-592-0	01	1	9511-9711				●
428	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 04.342 ID=14-12	8-94379-592-0	01	1	9712-9712				●	●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	9511-		●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	9511-9711			●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	9712-			●	●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97065-453-1	01	1	9312-9510	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97122-820-2	01	1	9511-9706				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9707-9711				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9712-9801				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97183-914-0	01	1	9802-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97189-552-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97073-522-1	01	1	9312-9510			●
553	03.485 MOTOR ASM; ENG STOP	8-97116-800-0	01	1	9511-			●
553	03.485 MOTOR ASM; ENG STOP	8-97065-454-2	01	1	9312-9510		●
553	03.485 MOTOR ASM; ENG STOP	8-97122-819-0	01	1	9511-		●
553	03.485 MOTOR ASM; ENG STOP DUMP CHASSIS(V4D)	8-97063-958-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP MINI BUS CHASSIS<V4B>	8-97063-950-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D)	8-97063-951-1	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9511-9711				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9712-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97189-550-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9712-9801						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9802-						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97149-018-2	01	1	9802-9806						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97189-532-0	01	1	9807-						●
555	03.485 BRACKET; ENG STOP (A)	8-97121-595-0	01	1	9511-9701				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9702-9711				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9511-9711				●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97188-280-0	01	1	9712-						●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●	●	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●	●	●	●	●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-9512				●
612	02.510 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9601-9701				●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9702-9711				●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9712-				●	●	●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711		●	●
636	02.510 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711				●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-		●	●
636	02.510 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-				●	●	●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97126-038-0	01	1	9511-9711				●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97126-038-0	01	1	9712-9712				●	●	●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97203-779-0	01	1	9801-9804				●	●	●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97126-038-0	01	1	9805-				●	●	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-				●	●	●

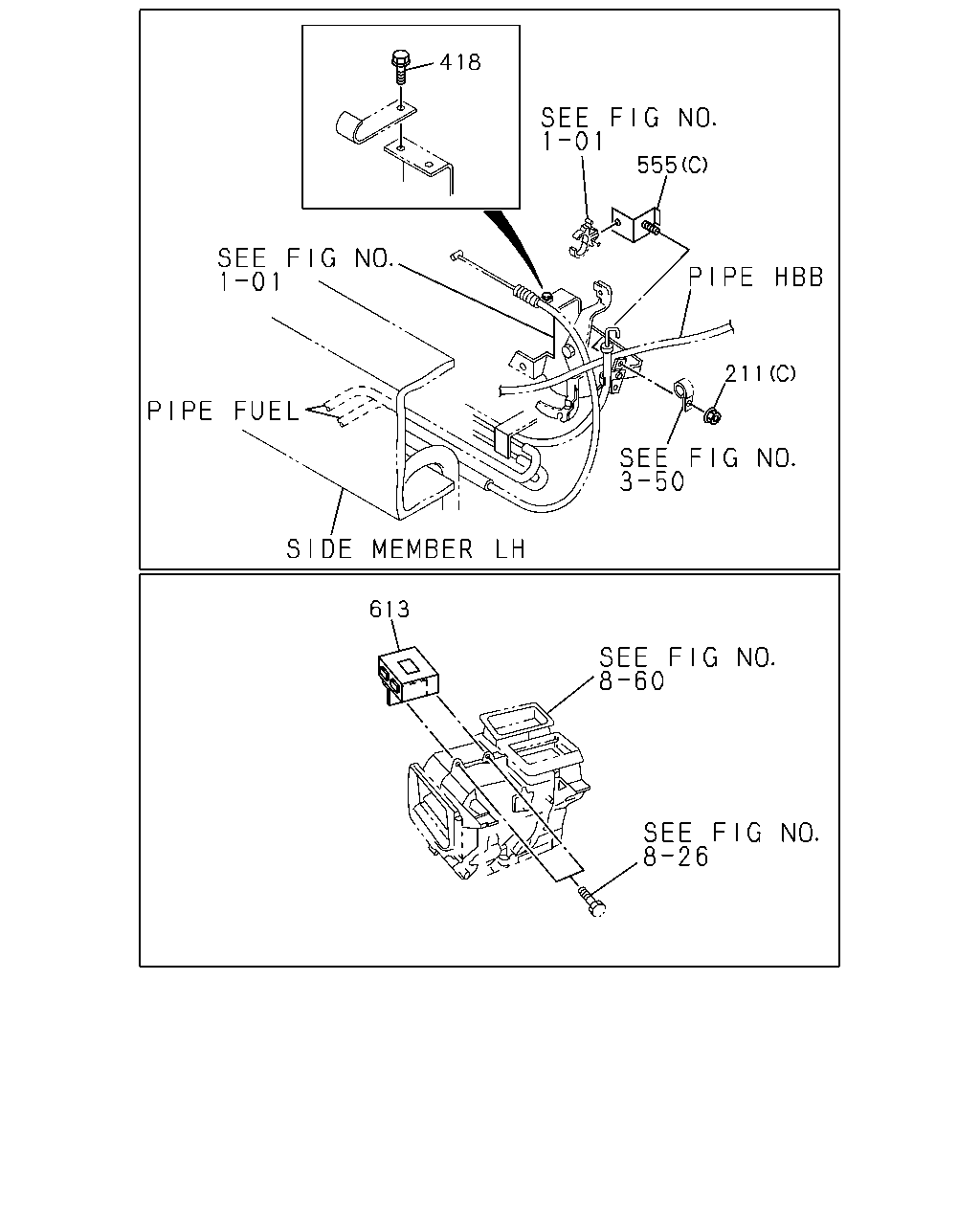

418 555 211 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
418	02.559 BOLT; CLIP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	9712-						●
555	03.485 BRACKET; ENG STOP (A)	8-97121-595-0	01	1	9511-9701				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9702-9711				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9511-9711				●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97188-280-0	01	1	9712-						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97193-509-0	01	1	9712-9712						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97203-991-0	01	1	9801-9801						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97203-991-1	01	1	9802-9804						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97209-710-1	01	1	9805-9809						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB)	8-97212-112-0	01	1	9810-						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97193-503-0	01	1	9712-9712						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97203-987-1	01	1	9801-9803						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97203-987-2	01	1	9804-9809						●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97212-109-0	01	1	9810-						●
613	03.670 CONTROL UNIT; ENG VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97193-496-0	01	1	9802-9804						●
613	03.670 CONTROL UNIT; ENG VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97209-708-1	01	1	9805-9809						●
613	03.670 CONTROL UNIT; ENG VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97212-107-0	01	1	9810-						●

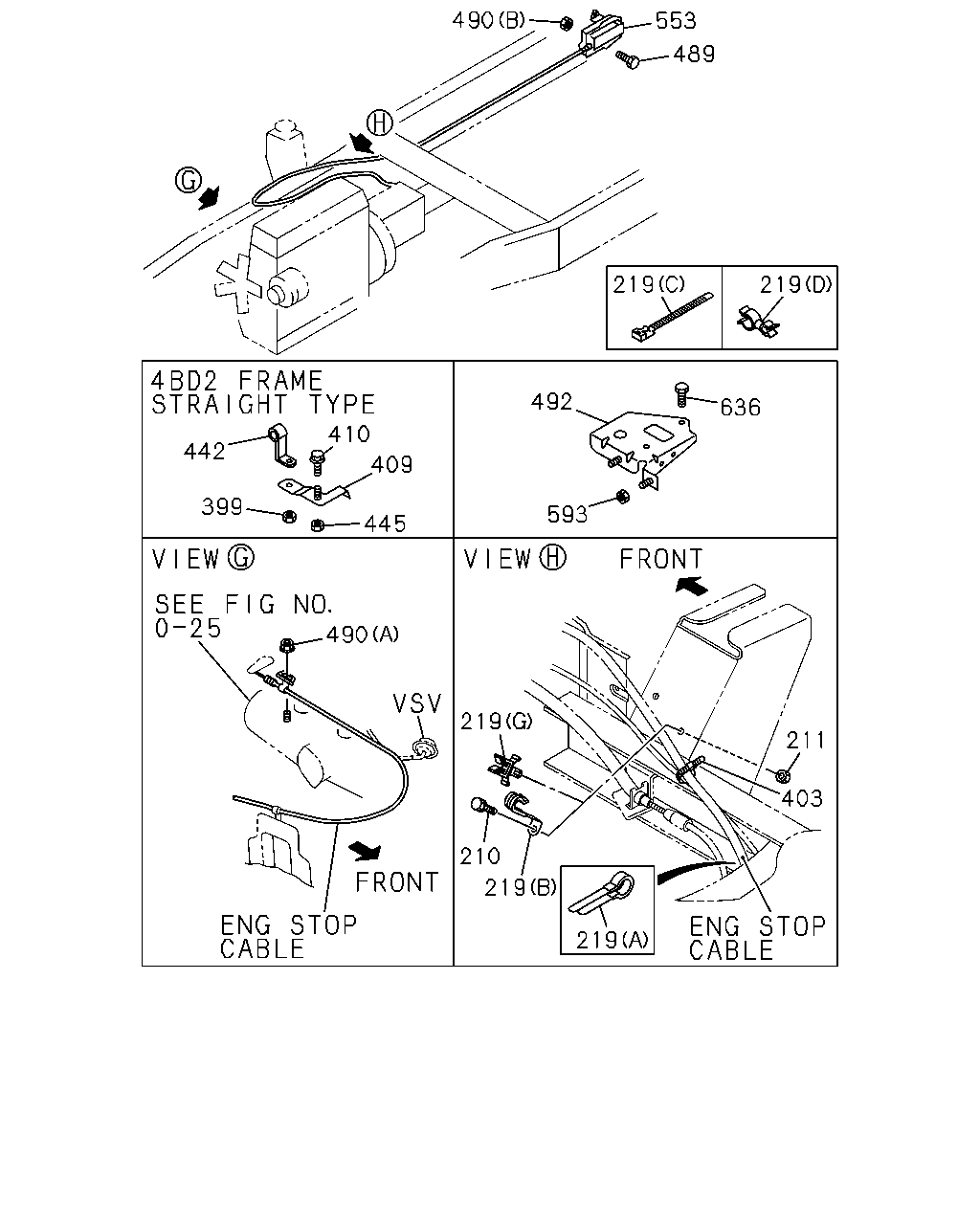

211 553 489 490 211 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
403	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	02	1	9312-9510	●	●
403	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	02	1	9511-		●
403	02.343 CLIP; CABLE	8-97093-555-2	01	1	9312-9502				●
403	02.343 CLIP; CABLE	8-97125-981-0	01	1	9503-9510				●
489	03.483 BOLT; ENG STOPPER 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9312-9510	●	●	●	●
490	03.485 NUT; ENG STOP 07.829 (A) M6 FLANGE	5-09440-004-0	01	1	9312-9510	●	●	●
490	03.485 NUT; ENG STOP 07.829 (A) M6 FLANGE	5-09440-004-0	01	1	9511-		●	●
490	03.485 NUT; ENG STOP 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97065-453-1	01	1	9312-9510	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97122-820-2	01	1	9511-9706				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9707-9711				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9712-9801				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97183-914-0	01	1	9802-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97189-552-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97073-522-1	01	1	9312-9510			●
553	03.485 MOTOR ASM; ENG STOP	8-97116-800-0	01	1	9511-			●
553	03.485 MOTOR ASM; ENG STOP	8-97065-454-2	01	1	9312-9510		●
553	03.485 MOTOR ASM; ENG STOP	8-97122-819-0	01	1	9511-		●
553	03.485 MOTOR ASM; ENG STOP DUMP CHASSIS(V4D)	8-97063-958-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP MINI BUS CHASSIS<V4B>	8-97063-950-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D)	8-97063-951-1	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9511-9711				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9712-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97189-550-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9712-9801						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9802-						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97149-018-2	01	1	9802-9806						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97189-532-0	01	1	9807-						●

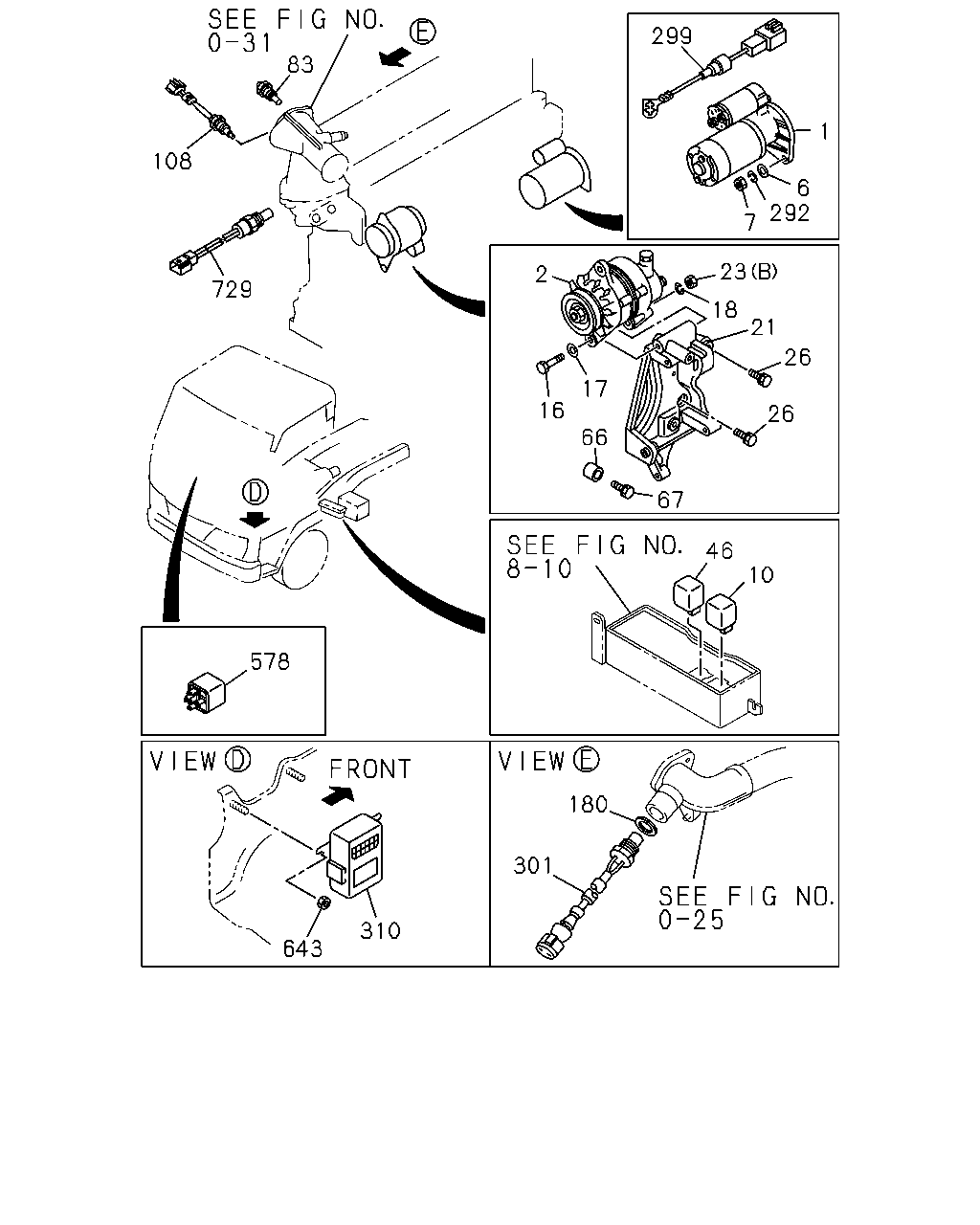

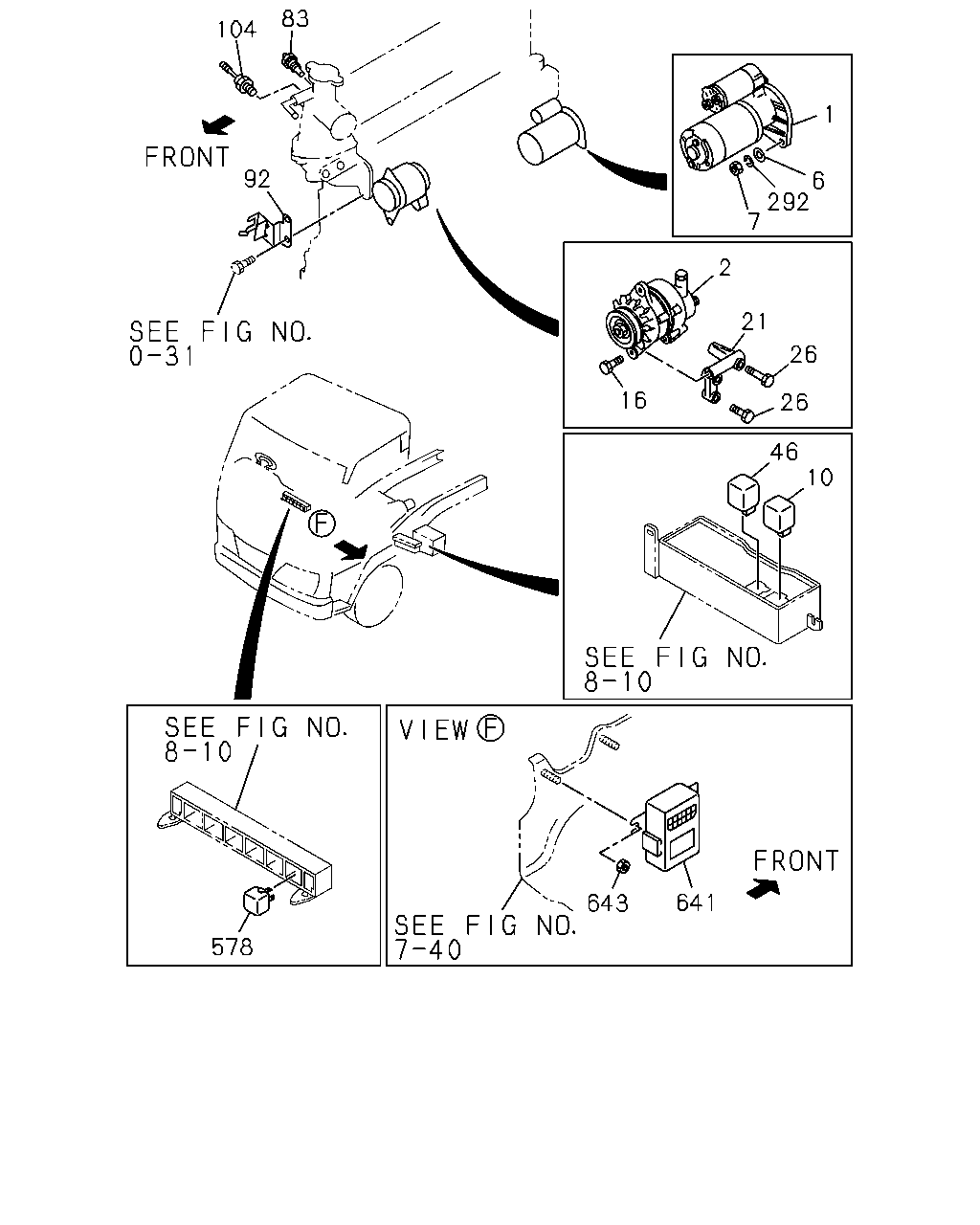

299 83 104 1 6 292 7 2 21 26 16 26 46 10 641 643 578

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9312-9510	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9511-		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-0	01	1	9312-9511							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO	8-97042-997-0	01	1	9512-9604							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW	8-97120-356-0	01	1	9512-9603							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9604-							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	1-81100-234-1	01	1	9312-9409			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97119-749-0	01	1	9410-9701			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97174-043-0	01	1	9702-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9312-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97065-526-0	01	1	9312-9404				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9405-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) 12V 3.0KW	8-97147-778-3	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI	8-97029-226-0	01	1	9312-9510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97073-924-1	01	1	9312-9802							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-0	01	1	9803-							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97023-733-1	01	1	9312-9611			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97171-178-0	01	1	9612-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 24V40A(6MN) 24V 40A HITACHI	8-97013-171-2	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 24V40A(6MN) 24V 25A HITACHI	8-94389-772-1	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9312-9510				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9312-9604				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9604-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97170-163-0	01	1	9712-9801						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. VOLTAGE 24V<7AE> 24V 50A	8-97170-163-1	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 12V 80A	8-97189-649-0	01	1	9802-						●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9312-9510	●	●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9511-		●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	03	1	9312-			●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9511-9511		●
7	02.042 NUT; STARTER EURO2 SPECIFICATION<7AF> 05.816 M12	9-99110-412-0	02	1	9512-9711							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9512-9711		●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-		●					●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	03	1	9312-			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9712-		●	●	●	●	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9312-9510	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9511-		●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9312-9612							●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-							●
16	02.277 BOLT; GEN M10X134	8-94314-385-1	01	1	9312-9501			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9502-9502			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9312-9502				●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9503-9605			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9606-9711			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9712-			●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9604-9711				●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9712-				●	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9312-9510	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9511-9610		●
21	02.277 BRACKET; GEN	8-97162-519-0	01	1	9611-		●
21	02.277 BRACKET; GEN	8-97073-122-1	01	1	9312-			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9312-9711				●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9312-9510	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9511-		●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9511-		●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9511-		●
26	02.277 BOLT; GEN BRKT M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 09.171 M10X30 W/LK WASHER	0-50041-030-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 00.004 M10X40 W/LK WASHER	0-50041-040-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9712-				●	●	●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9312-9406	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9407-9510	●	●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9511-9705		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 24V 50A	8-97173-947-0	01	1	9705-9711		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9312-9510	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9511-9705		●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9705-9711		●	●	●			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9712-			●				●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	01	1	9802-						●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT	8-94400-370-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502				●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502				●
104	01.150 SWITCH; THERMO,GLOW PLUG	8-94121-152-1	01	1	9312-9510	●	●
104	01.150 SWITCH; THERMO,GLOW PLUG	8-94121-152-1	01	1	9511-		●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9312-9510	●	●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9511-		●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	03	1	9312-			●
299	02.341 CABLE; STARTER NPR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK)	8-94159-038-0	01	1	9312-9510	●
299	02.341 CABLE; STARTER NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) A/T 4 SPEED-JATCO(RMK)	8-97075-013-0	01	1	9505-9510			●
299	02.341 CABLE; STARTER	8-97075-013-0	01	1	9511-			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-1	01	1	9712-		●		●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9712-		●	●	●	●	●	●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9312-9510	●	●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9511-9711		●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97047-028-0	01	1	9712-9809		●		●	●	●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97215-648-0	01	1	9810-		●		●	●	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9606	●	●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9607-9704		●	●	●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●				●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●		●	●	●

558 553 211 555 593 219 733 555 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	02	1	9312-9403	●	●	●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	01	1	9404-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE 03.430 (B) ID=17	8-94449-734-1	01	1	9312-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9511-9704		●	●
219	03.483 CLIP; ENG STOP CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9705-		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	02	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-0	01	1	9511-9711		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9511-9706				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9707-9711				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9712-				●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97065-453-1	01	1	9312-9510	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97122-820-2	01	1	9511-9706				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9707-9711				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9712-9801				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97183-914-0	01	1	9802-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97189-552-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97073-522-1	01	1	9312-9510			●
553	03.485 MOTOR ASM; ENG STOP	8-97116-800-0	01	1	9511-			●
553	03.485 MOTOR ASM; ENG STOP	8-97065-454-2	01	1	9312-9510		●
553	03.485 MOTOR ASM; ENG STOP	8-97122-819-0	01	1	9511-		●
553	03.485 MOTOR ASM; ENG STOP DUMP CHASSIS(V4D)	8-97063-958-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP MINI BUS CHASSIS<V4B>	8-97063-950-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D)	8-97063-951-1	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9511-9711				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9712-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97189-550-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9712-9801						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9802-						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97149-018-2	01	1	9802-9806						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97189-532-0	01	1	9807-						●
555	03.485 BRACKET; ENG STOP (A)	8-97121-595-0	01	1	9511-9701				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9702-9711				●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9511-9711				●
555	03.485 BRACKET; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97113-497-1	01	1	9712-				●	●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97188-280-0	01	1	9712-						●
558	03.485 SCREW; BRKT TO MOTOR EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9807-				●	●	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●	●	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●	●	●	●	●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-9512				●
612	02.510 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9601-9701				●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9702-9711				●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9712-				●	●	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711				●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-				●	●	●

299 83 1 108 6 292 7 23 2 729 18 21 26 17 16 26 66 67 46 10 578 180 301 310 643

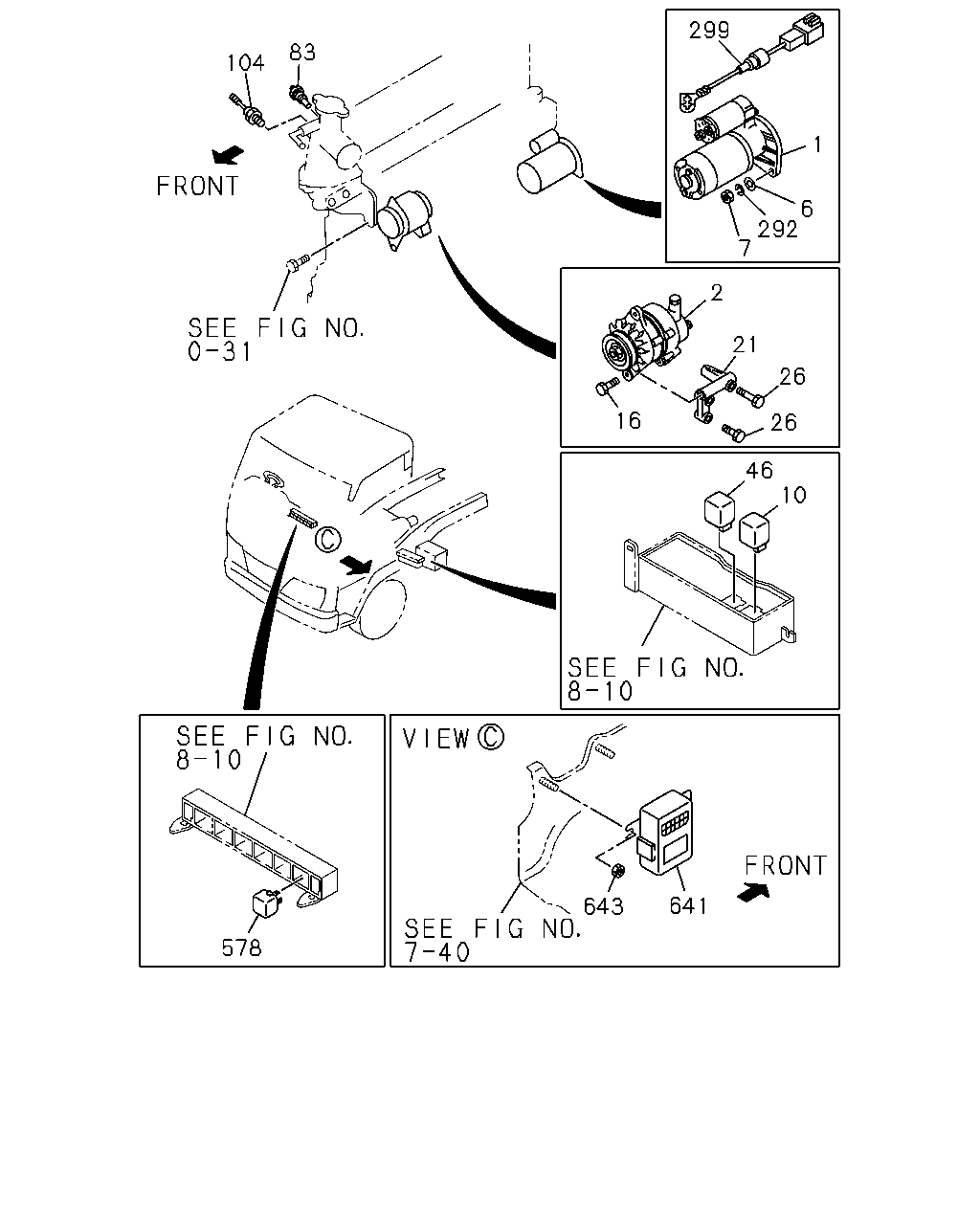

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9312-9510	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9511-		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-0	01	1	9312-9511							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO	8-97042-997-0	01	1	9512-9604							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW	8-97120-356-0	01	1	9512-9603							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9604-							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	1-81100-234-1	01	1	9312-9409			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97119-749-0	01	1	9410-9701			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97174-043-0	01	1	9702-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9312-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97065-526-0	01	1	9312-9404				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9405-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) 12V 3.0KW	8-97147-778-3	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI	8-97029-226-0	01	1	9312-9510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97073-924-1	01	1	9312-9802							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-0	01	1	9803-							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97023-733-1	01	1	9312-9611			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97171-178-0	01	1	9612-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 24V40A(6MN) 24V 40A HITACHI	8-97013-171-2	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 24V40A(6MN) 24V 25A HITACHI	8-94389-772-1	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9312-9510				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9312-9604				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9604-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97170-163-0	01	1	9712-9801						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. VOLTAGE 24V<7AE> 24V 50A	8-97170-163-1	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 12V 80A	8-97189-649-0	01	1	9802-						●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9312-9510	●	●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9511-		●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	03	1	9312-			●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9511-9511		●
7	02.042 NUT; STARTER EURO2 SPECIFICATION<7AF> 05.816 M12	9-99110-412-0	02	1	9512-9711							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9512-9711		●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-		●					●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	03	1	9312-			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9712-		●	●	●	●	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9312-9510	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9511-		●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9312-9612							●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-							●
16	02.277 BOLT; GEN M10X134	8-94314-385-1	01	1	9312-9501			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9502-9502			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9312-9502				●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9503-9605			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9606-9711			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9712-			●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9604-9711				●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9712-				●	●	●
17	02.277 WASHER; PL,GEN 16.682 ID=10.5 OD=22	9-09160-610-0	02	1	9312-9612							●
17	02.277 WASHER; PL,GEN 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9312-9501			●
18	02.317 WASHER; LK,GEN 00.002 ID=10.2	9-09150-510-0	01	1	9312-9501			●				●
18	02.317 WASHER; LK,GEN 00.002 ID=10.2	9-09150-510-0	01	1	9502-9612							●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9312-9510	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9511-9610		●
21	02.277 BRACKET; GEN	8-97162-519-0	01	1	9611-		●
21	02.277 BRACKET; GEN	8-97073-122-1	01	1	9312-			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9312-9711				●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9712-				●	●	●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9312-9501			●				●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9502-9612							●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9502-9502			●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9312-9711				●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9712-				●	●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9312-9502				●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9503-9511			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9511-9701			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9701-9711			●	●			●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9712-			●	●	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9312-9510	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9511-		●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9511-		●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9511-		●
26	02.277 BOLT; GEN BRKT M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 09.171 M10X30 W/LK WASHER	0-50041-030-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 00.004 M10X40 W/LK WASHER	0-50041-040-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9712-				●	●	●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9312-9406	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9407-9510	●	●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9511-9705		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 24V 50A	8-97173-947-0	01	1	9705-9711		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9312-9510	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9511-9705		●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9705-9711		●	●	●			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9712-			●				●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	01	1	9802-						●
66	02.500 SPACER; STAY,CMPR BRKT	8-94320-815-0	01	1	9312-			●
67	02.317 BOLT; STAY 00.004 M10X40 W/LK WASHER	0-50041-040-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT	8-94400-370-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502				●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502				●
108	01.150 SWITCH; THERMO	8-97025-469-0	01	1	9312-			●
108	01.150 SWITCH; THERMO	8-97021-507-1	01	1	9312-9511				●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97189-295-0	01	1	9712-9801						●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97189-295-0	01	1	9802-9804						●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-295-0	01	1	9805-						●
108	01.150 SWITCH; THERMO EXC. CHARGE AIR COOLER<6PL>	8-97021-507-1	01	1	9712-9802						●
180	02.510 GASKET; DROPPING RESISTOR ID=30.5 OD=38.0	9-09571-430-0	01	1	9312-			●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9312-9510	●	●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9511-		●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	03	1	9312-			●
299	02.341 CABLE; STARTER NPR SGL CAB&SHORT(NPC6SC) NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK)	8-94159-038-0	01	1	9312-9510	●
299	02.341 CABLE; STARTER NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) A/T 4 SPEED-JATCO(RMK)	8-97075-013-0	01	1	9505-9510			●
299	02.341 CABLE; STARTER	8-97075-013-0	01	1	9511-			●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9312-9711							●
301	02.510 RESISTOR; DROPPING NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE>	8-94389-802-1	01	1	9712-							●
301	02.510 RESISTOR; DROPPING NPR/NQR SGL CAB&MIDDLE(NP**SF) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE>	8-94389-802-1	01	1	9712-							●
301	02.510 RESISTOR; DROPPING	8-97047-956-0	01	1	9312-			●
310	02.510 CONTROLLER; QOS NPR/NQR SGL CAB&MIDDLE(NP**SF)	8-97047-029-0	01	1	9312-9506							●
310	02.510 CONTROLLER; QOS	8-97047-029-0	01	1	9507-							●
310	02.510 CONTROLLER; QOS NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK)	8-97070-393-0	01	1	9312-9510			●
310	02.510 CONTROLLER; QOS	8-97070-393-0	01	1	9511-			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-1	01	1	9712-		●		●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9712-		●	●	●	●	●	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9606	●	●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9607-9704		●	●	●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●				●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●		●	●	●
729	01.150 SENSOR; QOS THERMO	8-97018-064-0	01	1	9312-							●
729	01.150 SENSOR; QOS THERMO	8-97032-870-1	01	1	9312-			●

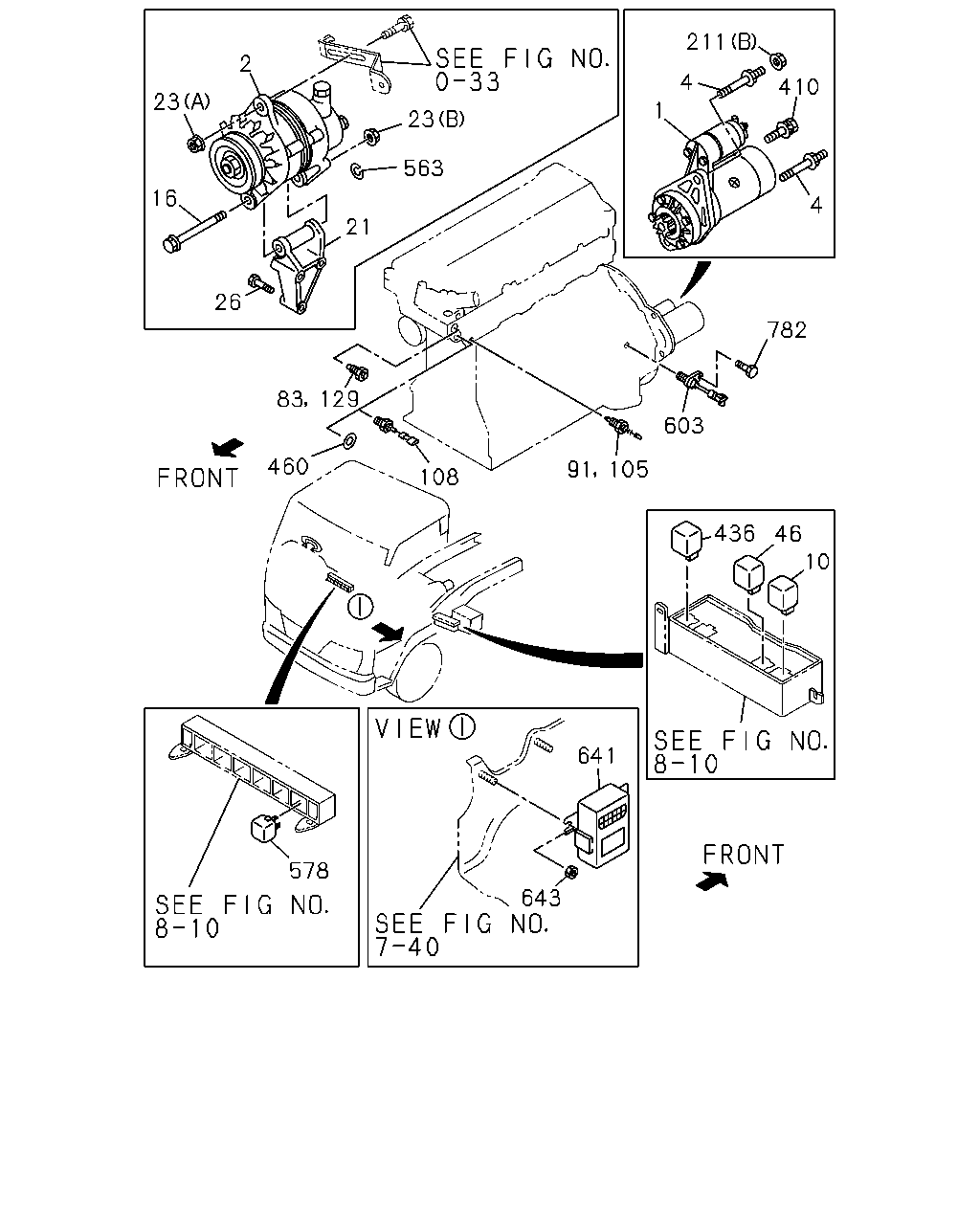

211 2 4 410 23 1 23 563 16 4 21 26 782 83 129 603 460 91 105 108 436 46 10 641 578 643

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9312-9510	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9511-		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-0	01	1	9312-9511							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO	8-97042-997-0	01	1	9512-9604							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW	8-97120-356-0	01	1	9512-9603							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9604-							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	1-81100-234-1	01	1	9312-9409			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97119-749-0	01	1	9410-9701			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97174-043-0	01	1	9702-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9312-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97065-526-0	01	1	9312-9404				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9405-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) 12V 3.0KW	8-97147-778-3	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI	8-97029-226-0	01	1	9312-9510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97073-924-1	01	1	9312-9802							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-0	01	1	9803-							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97023-733-1	01	1	9312-9611			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97171-178-0	01	1	9612-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 24V40A(6MN) 24V 40A HITACHI	8-97013-171-2	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 24V40A(6MN) 24V 25A HITACHI	8-94389-772-1	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9312-9510				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9312-9604				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9604-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97170-163-0	01	1	9712-9801						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. VOLTAGE 24V<7AE> 24V 50A	8-97170-163-1	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 12V 80A	8-97189-649-0	01	1	9802-						●
4	02.042 BOLT; STARTER 00.002 M12X84	8-94107-769-2	02	1	9312-9703							●
4	02.042 BOLT; STARTER M12X80	0-28081-280-0	02	1	9704-							●
4	02.042 BOLT; STARTER EURO2 SPECIFICATION<7AF> 04.898 M12X50	0-10806-250-0	02	1	9512-9711							●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9712-							●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9312-9711				●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9712-9808				●	●	●
4	02.042 BOLT; STARTER NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) A/T 4 SPEED-JATCO(RMK) M10X15,M14X75 L=103	8-97072-825-1	02	1	9809-				●	●	●
4	02.042 BOLT; STARTER NQR EXTEND LONG(NP***N) A/T 4 SPEED-AISIN(RNJ) M10X15,M14X75 L=103	8-97072-825-1	02	1	9809-					●	●
4	02.042 BOLT; STARTER FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103	8-97212-602-0	02	1	9809-				●	●	●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9712-		●	●	●	●	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9312-9510	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9511-		●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9312-9612							●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-							●
16	02.277 BOLT; GEN M10X134	8-94314-385-1	01	1	9312-9501			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9502-9502			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9312-9502				●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9503-9605			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9606-9711			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9712-			●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9604-9711				●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9712-				●	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9312-9510	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9511-9610		●
21	02.277 BRACKET; GEN	8-97162-519-0	01	1	9611-		●
21	02.277 BRACKET; GEN	8-97073-122-1	01	1	9312-			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9312-9711				●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9712-				●	●	●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9312-9501			●				●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9502-9612							●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9502-9502			●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9312-9711				●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9712-				●	●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9312-9502				●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9503-9511			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9511-9701			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9701-9711			●	●			●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9712-			●	●	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9312-9510	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9511-		●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9511-		●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9511-		●
26	02.277 BOLT; GEN BRKT M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 09.171 M10X30 W/LK WASHER	0-50041-030-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 00.004 M10X40 W/LK WASHER	0-50041-040-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9712-				●	●	●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9312-9406	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9407-9510	●	●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9511-9705		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 24V 50A	8-97173-947-0	01	1	9705-9711		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9312-9510	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9511-9705		●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9705-9711		●	●	●			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9712-			●				●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	01	1	9802-						●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT	8-94400-370-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502				●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502				●
91	01.150 SWITCH; THERMO HTR CHARGE AIR COOLER<6PL> 03.883	8-97038-625-0	01	1	9712-9801						●
91	01.150 SWITCH; THERMO HTR FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 03.883	8-97038-625-0	01	1	9802-						●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	9312-9711				●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	9712-				●	●
105	01.150 SWITCH; THERMO,QOS EXC. CHARGE AIR COOLER<6PL>	8-94121-152-1	01	1	9712-						●
108	01.150 SWITCH; THERMO	8-97025-469-0	01	1	9312-			●
108	01.150 SWITCH; THERMO	8-97021-507-1	01	1	9312-9511				●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97189-295-0	01	1	9712-9801						●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97189-295-0	01	1	9802-9804						●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-295-0	01	1	9805-						●
108	01.150 SWITCH; THERMO EXC. CHARGE AIR COOLER<6PL>	8-97021-507-1	01	1	9712-9802						●
129	01.150 SENSOR; GLOW PLUG,THERMO CHARGE AIR COOLER<6PL> UNISIA JECS	8-97167-008-0	01	1	9712-						●
129	01.150 SENSOR; GLOW PLUG,THERMO CHARGE AIR COOLER<6PL> TRANSTRON	8-97170-327-0	01	1	9712-						●
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
410	02.343 BOLT; BRKT,GRAND FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-			●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-9711				●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9712-				●	●	●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-9801						●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A JIDECO	8-97062-815-1	01	1	9802-						●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	02	1	9802-						●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-						●
460	02.363 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	9512-9604				●
460	02.363 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2	1-09630-086-0	01	1	9712-						●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-1	01	1	9712-		●		●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9712-		●	●	●	●	●	●
603	02.510 SENSOR; TACHO TACHOMETER<U16> 09.750	8-94370-581-0	01	1	9312-9406				●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9312-9510	●	●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9511-9711		●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97047-028-0	01	1	9712-9809		●		●	●	●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97215-648-0	01	1	9810-		●		●	●	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9606	●	●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9607-9704		●	●	●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●				●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●		●	●	●
782	02.510 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9603				●

18 729 17 83 23 17 16 2 4 7 1 46 10 770 578 381 301 314 643 310 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9312-9510	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9511-		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-0	01	1	9312-9511							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO	8-97042-997-0	01	1	9512-9604							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW	8-97120-356-0	01	1	9512-9603							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9604-							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	1-81100-234-1	01	1	9312-9409			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97119-749-0	01	1	9410-9701			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97174-043-0	01	1	9702-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9312-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97065-526-0	01	1	9312-9404				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9405-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) 12V 3.0KW	8-97147-778-3	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI	8-97029-226-0	01	1	9312-9510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97073-924-1	01	1	9312-9802							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-0	01	1	9803-							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97023-733-1	01	1	9312-9611			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97171-178-0	01	1	9612-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 24V40A(6MN) 24V 40A HITACHI	8-97013-171-2	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 24V40A(6MN) 24V 25A HITACHI	8-94389-772-1	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9312-9510				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9312-9604				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9604-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97170-163-0	01	1	9712-9801						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. VOLTAGE 24V<7AE> 24V 50A	8-97170-163-1	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 12V 80A	8-97189-649-0	01	1	9802-						●
4	02.042 BOLT; STARTER 00.002 M12X84	8-94107-769-2	02	1	9312-9703							●
4	02.042 BOLT; STARTER M12X80	0-28081-280-0	02	1	9704-							●
4	02.042 BOLT; STARTER EURO2 SPECIFICATION<7AF> 04.898 M12X50	0-10806-250-0	02	1	9512-9711							●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9712-							●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9312-9711				●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9712-9808				●	●	●
4	02.042 BOLT; STARTER NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) A/T 4 SPEED-JATCO(RMK) M10X15,M14X75 L=103	8-97072-825-1	02	1	9809-				●	●	●
4	02.042 BOLT; STARTER NQR EXTEND LONG(NP***N) A/T 4 SPEED-AISIN(RNJ) M10X15,M14X75 L=103	8-97072-825-1	02	1	9809-					●	●
4	02.042 BOLT; STARTER FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103	8-97212-602-0	02	1	9809-				●	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9511-9511		●
7	02.042 NUT; STARTER EURO2 SPECIFICATION<7AF> 05.816 M12	9-99110-412-0	02	1	9512-9711							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9512-9711		●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-		●					●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	03	1	9312-			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9712-		●	●	●	●	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9312-9510	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9511-		●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9312-9612							●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-							●
16	02.277 BOLT; GEN M10X134	8-94314-385-1	01	1	9312-9501			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9502-9502			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9312-9502				●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9503-9605			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9606-9711			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9712-			●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9604-9711				●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9712-				●	●	●
17	02.277 WASHER; PL,GEN 16.682 ID=10.5 OD=22	9-09160-610-0	02	1	9312-9612							●
17	02.277 WASHER; PL,GEN 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9312-9501			●
18	02.317 WASHER; LK,GEN 00.002 ID=10.2	9-09150-510-0	01	1	9312-9501			●				●
18	02.317 WASHER; LK,GEN 00.002 ID=10.2	9-09150-510-0	01	1	9502-9612							●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9312-9501			●				●
23	02.277 NUT; GEN 00.002 (B) M10	9-09110-510-0	01	1	9502-9612							●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9502-9502			●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9312-9711				●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9712-				●	●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9312-9502				●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9503-9511			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9511-9701			●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9701-9711			●	●			●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9712-			●	●	●	●	●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9312-9406	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9407-9510	●	●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9511-9705		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 24V 50A	8-97173-947-0	01	1	9705-9711		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9312-9510	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9511-9705		●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9705-9711		●	●	●			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9712-			●				●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	01	1	9802-						●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT	8-94400-370-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502				●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502				●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9312-9711							●
301	02.510 RESISTOR; DROPPING NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE>	8-94389-802-1	01	1	9712-							●
301	02.510 RESISTOR; DROPPING NPR/NQR SGL CAB&MIDDLE(NP**SF) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE>	8-94389-802-1	01	1	9712-							●
301	02.510 RESISTOR; DROPPING	8-97047-956-0	01	1	9312-			●
310	02.510 CONTROLLER; QOS NPR/NQR SGL CAB&MIDDLE(NP**SF)	8-97047-029-0	01	1	9312-9506							●
310	02.510 CONTROLLER; QOS	8-97047-029-0	01	1	9507-							●
310	02.510 CONTROLLER; QOS NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK)	8-97070-393-0	01	1	9312-9510			●
310	02.510 CONTROLLER; QOS	8-97070-393-0	01	1	9511-			●
314	02.500 BRACKET; DROPPING RESISTOR	8-97061-910-2	01	1	9312-							●
381	02.183 BOLT; DROPPING RESISTOR 04.686 M6X25 FLANGE	0-28080-625-0	02	1	9312-9702							●
381	02.183 BOLT; DROPPING RESISTOR 02.334 M6X25 FLANGE	0-28680-625-0	02	1	9703-							●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-1	01	1	9712-		●		●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9712-		●	●	●	●	●	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9606	●	●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9607-9704		●	●	●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●				●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●		●	●	●
729	01.150 SENSOR; QOS THERMO	8-97018-064-0	01	1	9312-							●
729	01.150 SENSOR; QOS THERMO	8-97032-870-1	01	1	9312-			●
770	02.183 NUT; DROPPING REGISTER 04.594 M6 FLANGE	0-91150-106-0	04	1	9312-							●

490 553 489 219 219 492 636 410 442 409 399 593 445 490 219 211 403 210 219 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
210	02.510 BOLT; CABLE FIX 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9312-9312	●	●	●
210	02.510 BOLT; CABLE FIX 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	9312-9312	●	●	●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510	●	●	●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9401-9406				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9407-9711				●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9712-				●	●	●
211	02.343 NUT; CABLE FIX 01.062 (A) M6 FLANGE	0-91150-206-0	01	1	9312-9312				●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	02	1	9312-9403	●	●	●
219	03.483 CLIP; ENG STOP CABLE 03.630 (A) ID=18 L=51	5-09700-320-0	01	1	9404-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE 03.430 (B) ID=17	8-94449-734-1	01	1	9312-9510	●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9511-9704		●	●
219	03.483 CLIP; ENG STOP CABLE POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10	8-94176-792-0	01	1	9705-		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250	5-09707-030-1	02	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40	8-94462-219-0	01	1	9511-			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	9511-		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-0	01	1	9511-9711		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	9712-						●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE 02.525 (E) T=4.5 & 9	5-09709-023-0	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9511-9706				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9707-9711				●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9712-				●	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9511-9711				●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5	8-97041-091-0	01	1	9712-				●	●	●
399	02.559 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-			●
403	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	02	1	9312-9510	●	●
403	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	02	1	9511-		●
403	02.343 CLIP; CABLE	8-97093-555-2	01	1	9312-9502				●
403	02.343 CLIP; CABLE	8-97125-981-0	01	1	9503-9510				●
409	02.343 BRACKET; GRAND,ENG FRAME STRAIGHT TYPE<7KJ>	8-97091-887-0	01	1	9511-			●
410	02.343 BOLT; BRKT,GRAND FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-			●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9312-9711				●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9712-				●	●	●
442	02.559 CLIP; GRAND FRAME STRAIGHT TYPE<7KJ> 04.439 ID=13 H=75 L=25	1-09700-601-0	01	1	9511-			●
445	02.483 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-			●
489	03.483 BOLT; ENG STOPPER 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9312-9510	●	●	●	●
490	03.485 NUT; ENG STOP 07.829 (A) M6 FLANGE	5-09440-004-0	01	1	9312-9510	●	●	●
490	03.485 NUT; ENG STOP 07.829 (A) M6 FLANGE	5-09440-004-0	01	1	9511-		●	●
490	03.485 NUT; ENG STOP 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●	●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	9511-		●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	9511-9711			●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	9712-			●	●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97065-453-1	01	1	9312-9510	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97122-820-2	01	1	9511-9706				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9707-9711				●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> (A)	8-97183-914-0	01	1	9712-9801				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97183-914-0	01	1	9802-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97189-552-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP	8-97073-522-1	01	1	9312-9510			●
553	03.485 MOTOR ASM; ENG STOP	8-97116-800-0	01	1	9511-			●
553	03.485 MOTOR ASM; ENG STOP	8-97065-454-2	01	1	9312-9510		●
553	03.485 MOTOR ASM; ENG STOP	8-97122-819-0	01	1	9511-		●
553	03.485 MOTOR ASM; ENG STOP DUMP CHASSIS(V4D)	8-97063-958-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP MINI BUS CHASSIS<V4B>	8-97063-950-0	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D)	8-97063-951-1	01	1	9312-9510				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9511-9711				●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97119-552-0	01	1	9712-9806				●	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97189-550-0	01	1	9807-				●	●	●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9712-9801						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97170-348-2	01	1	9802-						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97149-018-2	01	1	9802-9806						●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>	8-97189-532-0	01	1	9807-						●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●	●	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●	●	●	●	●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711		●	●
636	02.510 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711				●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-		●	●
636	02.510 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-				●	●	●

83 104 1 92 6 292 7 2 21 26 16 26 46 10 641 643 578

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9312-9510	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW	8-94333-438-0	01	1	9511-		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO	8-97042-997-0	01	1	9312-9511							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO	8-97042-997-0	01	1	9512-9604							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW	8-97120-356-0	01	1	9512-9603							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9604-							●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	1-81100-234-1	01	1	9312-9409			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97119-749-0	01	1	9410-9701			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW	8-97174-043-0	01	1	9702-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9312-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97100-926-1	01	1	9712-9801						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI	8-97100-926-2	01	1	9802-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97065-526-0	01	1	9312-9404				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9405-9711				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) 12V 3.0KW	8-97147-778-3	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI	8-97029-226-0	01	1	9312-9510	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97073-924-1	01	1	9312-9802							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-0	01	1	9803-							●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97023-733-1	01	1	9312-9611			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97171-178-0	01	1	9612-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 24V40A(6MN) 24V 40A HITACHI	8-97013-171-2	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 24V40A(6MN) 24V 25A HITACHI	8-94389-772-1	01	1	9312-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9312-9510				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9312-9604				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9604-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97170-163-0	01	1	9712-9801						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. VOLTAGE 24V<7AE> 24V 50A	8-97170-163-1	01	1	9802-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. VOLTAGE 24V<7AE> 12V 80A	8-97189-649-0	01	1	9802-						●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9312-9510	●	●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	02	1	9511-		●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	03	1	9312-			●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9312-9510	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9511-9511		●
7	02.042 NUT; STARTER EURO2 SPECIFICATION<7AF> 05.816 M12	9-99110-412-0	02	1	9512-9711							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9512-9711		●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-		●					●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-							●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	03	1	9312-			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE>	8-97036-359-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER VOLTAGE 24V<7AE> 02.510 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9312-9510	●	●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 12V 80A	8-97036-358-1	01	1	9511-9705		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9705-9711		●	●	●			●
10	02.100 RELAY; STARTER EXC. VOLTAGE 24V<7AE> 02.510 12V 80A	8-97173-951-0	01	1	9712-		●	●	●	●	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9312-9510	●	●
16	02.277 BOLT; GEN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9511-		●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9312-9612							●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-							●
16	02.277 BOLT; GEN M10X134	8-94314-385-1	01	1	9312-9501			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9502-9502			●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9312-9502				●
16	02.277 BOLT; GEN M10X127	8-97065-159-1	01	1	9503-9605			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9606-9711			●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	9712-			●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9604-9711				●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER	8-97011-792-4	01	1	9712-				●	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9312-9510	●	●
21	02.277 BRACKET; GEN	8-94334-346-0	01	1	9511-9610		●
21	02.277 BRACKET; GEN	8-97162-519-0	01	1	9611-		●
21	02.277 BRACKET; GEN	8-97073-122-1	01	1	9312-			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9312-9711				●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9312-9510	●	●	●
26	02.277 BOLT; GEN BRKT 09.008 M10X90 W/LK WASHER	0-50041-090-0	01	1	9511-		●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 01.652 M10X25 W/LK WASHER	0-50041-025-0	01	1	9511-		●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9312-9510	●	●
26	02.277 BOLT; GEN BRKT 00.724 M10X55	5-09030-038-1	01	1	9511-		●
26	02.277 BOLT; GEN BRKT M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 09.171 M10X30 W/LK WASHER	0-50041-030-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 00.004 M10X40 W/LK WASHER	0-50041-040-0	01	1	9312-			●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9712-				●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9312-9711				●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9712-				●	●	●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9312-9406	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9407-9510	●	●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 02.100	8-97036-359-1	01	1	9511-9705		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> 24V 50A	8-97173-947-0	01	1	9705-9711		●		●
46	02.510 RELAY; GLOW PLUG VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	9712-		●		●	●	●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9312-9510	●	●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 02.100 12V 80A	8-97036-358-1	02	1	9511-9705		●	●	●			●
46	02.510 RELAY; GLOW PLUG EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9705-9711		●	●	●			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	02	1	9712-			●				●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A	8-97173-951-0	01	1	9802-						●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9312-9406	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502	●	●					●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9510	●	●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9511-9601		●		●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9602-9711		●	●	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-		●		●	●		●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	9712-						●
83	01.150 THERMOMETER UNIT	8-94400-370-0	01	1	9312-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9407-9502				●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9407-9502				●
92	01.251 CLIP; SENSOR CONNECTOR TACHOMETER<U16>	8-97021-314-0	01	1	9312-		●
104	01.150 SWITCH; THERMO,GLOW PLUG	8-94121-152-1	01	1	9312-9510	●	●
104	01.150 SWITCH; THERMO,GLOW PLUG	8-94121-152-1	01	1	9511-		●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9312-9510	●	●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9511-		●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	03	1	9312-			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-0	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING VOLTAGE 24V<7AE>	8-97063-440-1	01	1	9712-		●		●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-0	01	1	9312-9510	●	●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9511-9711		●	●	●			●
578	02.510 RELAY; CHARGE WARNING EXC. VOLTAGE 24V<7AE> 12V	8-97063-441-1	01	1	9712-		●	●	●	●	●	●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9312-9510	●	●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97047-028-0	01	1	9511-9711		●		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97047-028-0	01	1	9712-9809		●		●	●	●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL>	8-97215-648-0	01	1	9810-		●		●	●	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9312-9606	●	●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9607-9704		●	●	●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●	●			●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●				●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
