Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#40517) — 270 parça

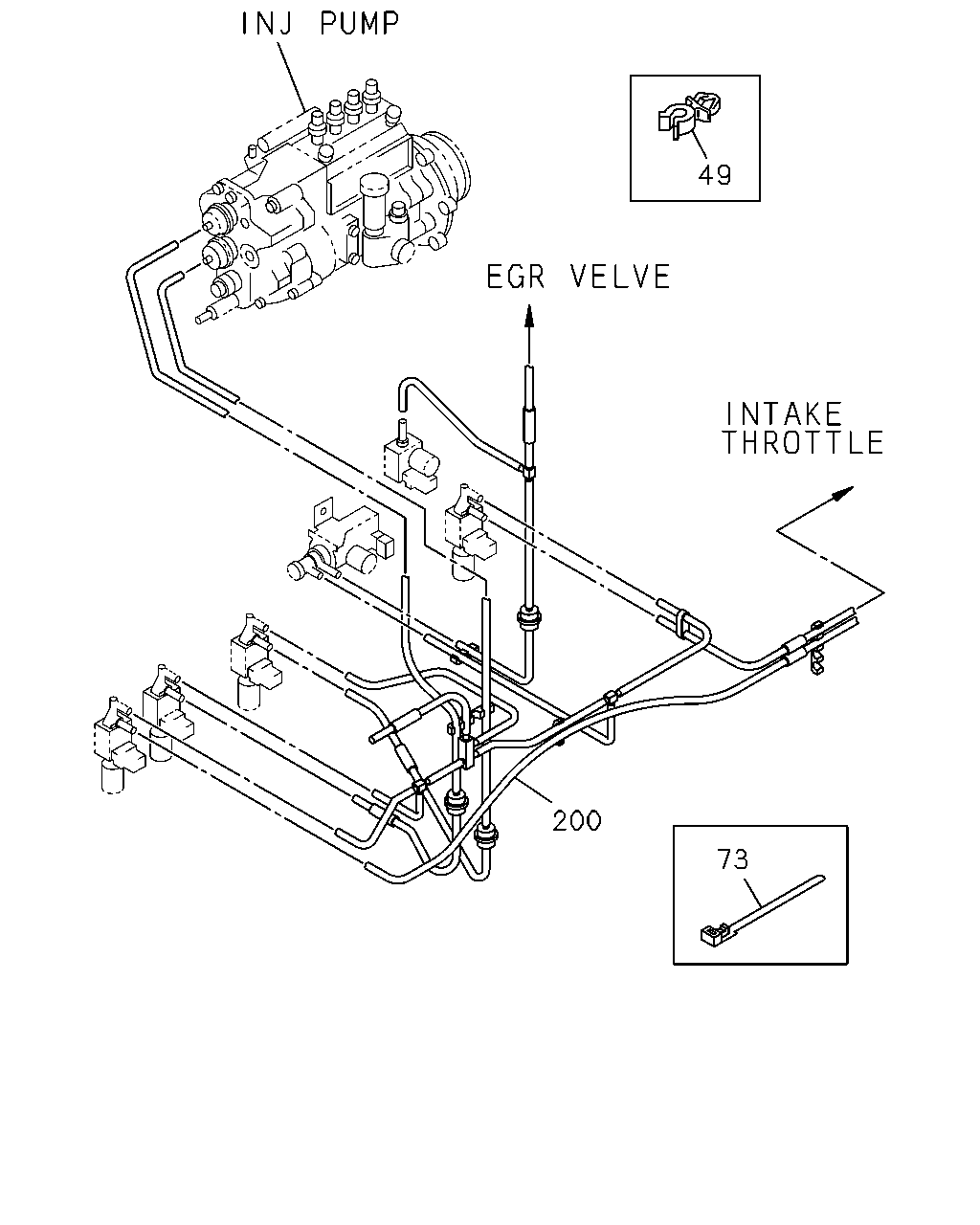

49 200 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	03.680 CLIP; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	9712-9801	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162	8-94253-984-0	01	1	9802-9804	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162	8-94253-984-0	01	1	9805-	●
49	03.680 CLIP; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 4XID=6.7	8-94315-422-0	01	1	9712-9801	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 4XID=6.7	8-94315-422-0	01	1	9802-9804	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 4XID=6.7	8-94315-422-0	01	1	9805-	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	9312-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-		●	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	9712-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	02	1	9712-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
200	03.675 HOSE; VAC L=30	0-04241-030-0	01	1	9312-9406				●
200	03.675 HOSE; VAC 08.962 L=30 SERVICED BY L=3000	0-04740-300-0	01	1	9407-9408				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97182-890-3	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-890-4	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9805-	●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97182-709-4	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-709-5	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9805-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●

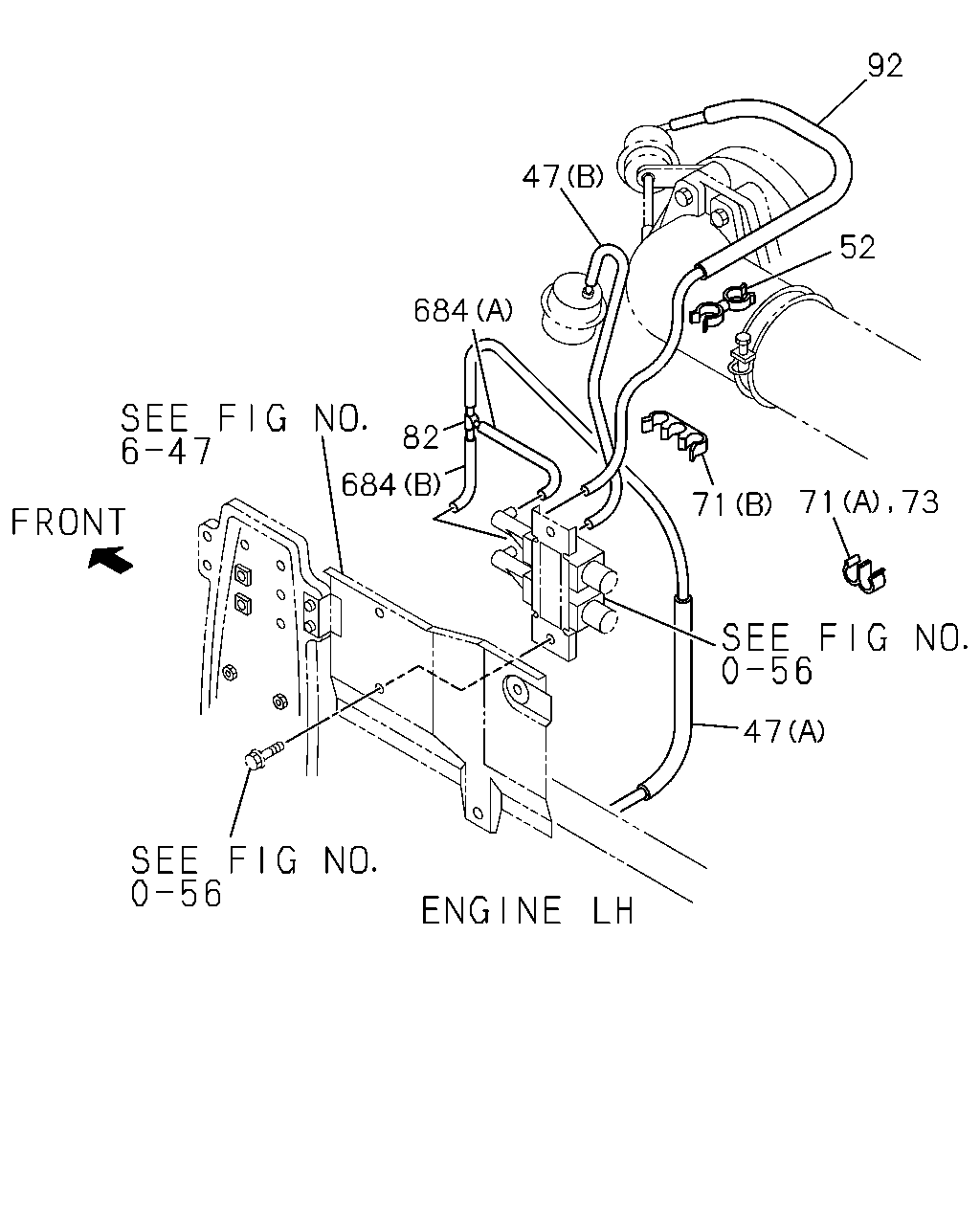

92 47 52 684 82 684 71 73 71 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV 08.962 L=500 SERVICED BY L=3000	0-04730-300-0	01	1	9312-				●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9401-9711		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9712-		●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-1	01	1	9312-9711		●
47	03.675 HOSE; VAC,VSV (A) L=310	8-97037-962-1	01	1	9712-		●	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8>	8-97022-016-0	01	1	9312-9504		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	9505-9711		●
52	03.680 CLIP; VSV HOSE ID=7.5 & 7.5	8-97019-084-0	01	1	9712-		●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9401-9711		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9712-		●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9511-9711		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9712-		●	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	9312-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-		●	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	9712-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	02	1	9712-	●
82	03.680 JOINT; 3 WAY 3WAY	8-94210-631-0	01	1	9312-9408				●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	9401-9711		●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	9712-	●	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8>	8-97106-645-2	01	1	9312-9711		●
92	03.675 HOSE; VAC,THROTTLE BODY	8-97106-645-3	01	1	9712-		●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	9712-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9401-9711		●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9401-9711		●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-		●	●

685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
685	03.680 CASE; INLET,EGR EURO1 SPECIFICATION<6YW>	8-97112-968-1	01	1	9505-9508		●
685	03.680 CASE; INLET,EGR EURO1 SPECIFICATION<6YW>	8-97136-372-0	01	1	9509-9510		●
685	03.680 CASE; INLET,EGR	8-97136-372-0	01	1	9511-9606		●
685	03.680 CASE; INLET,EGR	8-97146-873-0	01	1	9607-9711		●
685	03.680 CASE; INLET,EGR	8-97146-873-0	01	1	9712-		●	●

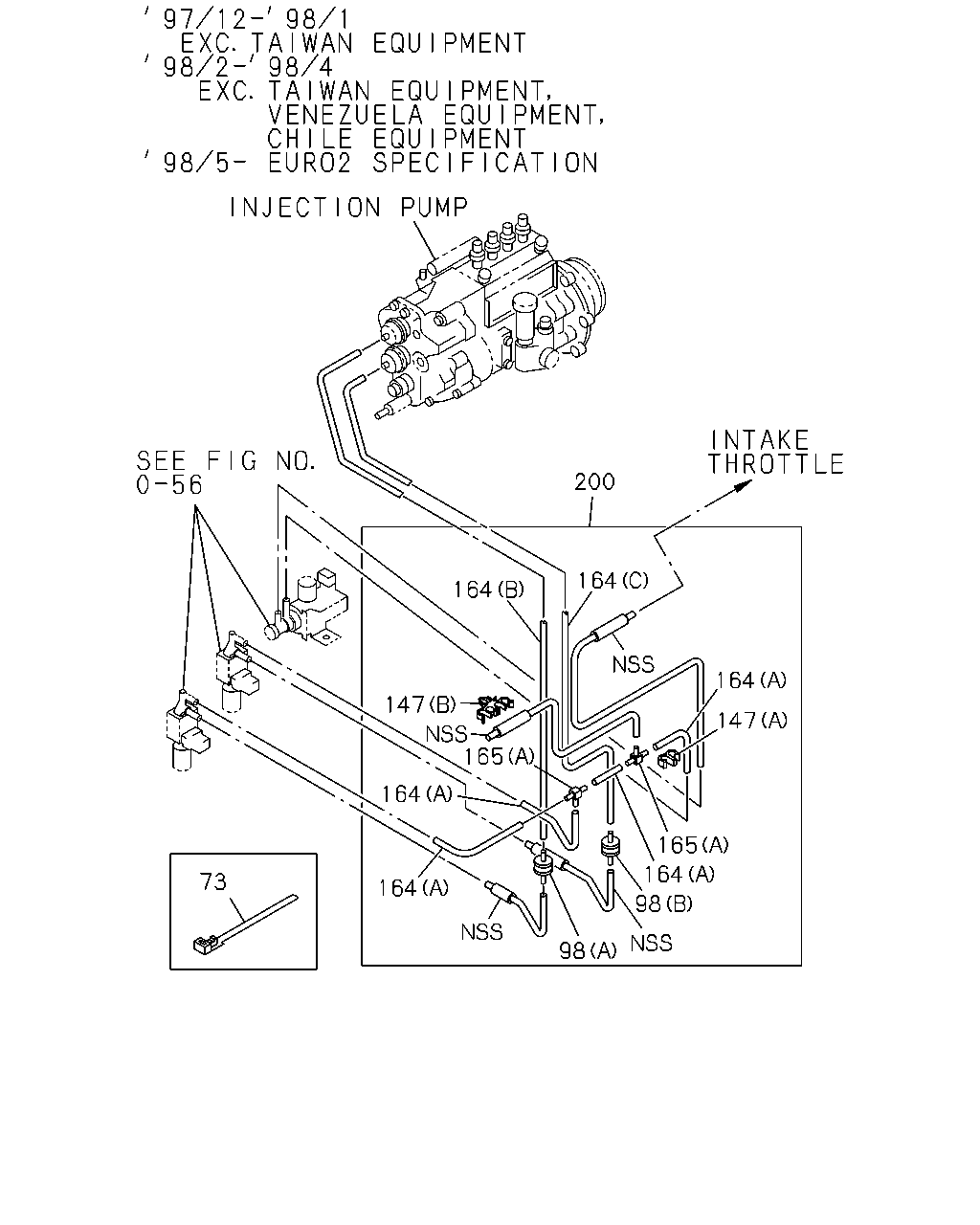

200 164 164 164 147 147 165 164 165 164 73 164 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	9312-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-		●	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	9712-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	02	1	9712-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL>	8-94110-978-0	01	1	9712-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 PINK	8-94145-108-0	01	1	9712-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9805-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) (B) 4XID=6.7	8-94315-422-0	01	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (B) 4XID=6.7	8-94315-422-0	01	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9805-	●
147	03.680 CLIP; RUBBER HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9805-	●
147	03.680 CLIP; RUBBER HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (B) 4XID=6.7	8-94315-422-0	02	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9712-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=50 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=80 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9712-	●
165	03.680 JOINT; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	9712-9801	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.670 (B) 4WAY	8-94100-256-0	01	1	9802-9804	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9805-	●
165	03.680 JOINT; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	9712-9801	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.145 (C) 3WAY	8-94237-690-0	01	1	9802-9804	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9805-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
200	03.675 HOSE; VAC L=30	0-04241-030-0	01	1	9312-9406				●
200	03.675 HOSE; VAC 08.962 L=30 SERVICED BY L=3000	0-04740-300-0	01	1	9407-9408				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97182-890-3	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-890-4	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9805-	●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97182-709-4	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-709-5	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9805-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●

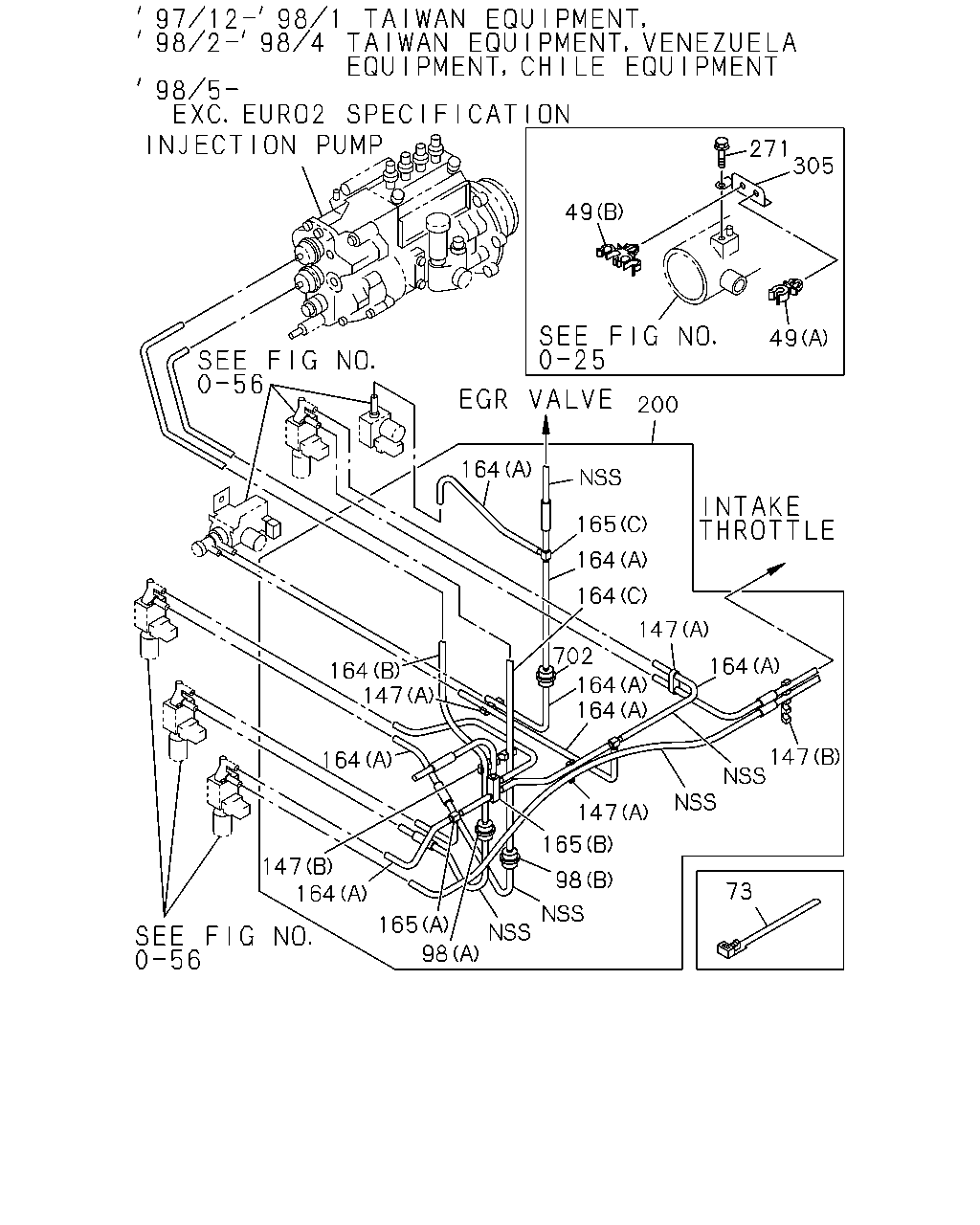

271 305 49 49 200 164 165 164 164 147 702 164 147 164 164 164 147 164 147 165 147 164 98 73 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	03.680 CLIP; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	9712-9801	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162	8-94253-984-0	01	1	9802-9804	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162	8-94253-984-0	01	1	9805-	●
49	03.680 CLIP; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 4XID=6.7	8-94315-422-0	01	1	9712-9801	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 4XID=6.7	8-94315-422-0	01	1	9802-9804	●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 4XID=6.7	8-94315-422-0	01	1	9805-	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	9312-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-		●	●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-	●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 ID=6.8X2	8-94126-636-0	02	1	9712-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 L=250	5-09707-030-1	02	1	9712-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL>	8-94110-978-0	01	1	9712-	●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 PINK	8-94145-108-0	01	1	9712-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9805-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) (B) 4XID=6.7	8-94315-422-0	01	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (B) 4XID=6.7	8-94315-422-0	01	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9805-	●
147	03.680 CLIP; RUBBER HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9805-	●
147	03.680 CLIP; RUBBER HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	9712-9801	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (B) 4XID=6.7	8-94315-422-0	02	1	9802-9804	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9712-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (A) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (B) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (C) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (B) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=50 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 (A) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (A) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
164	03.675 HOSE; RUBBER TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.962 (A) L=80 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9801	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.962 L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9802-9804	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9805-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9712-	●
165	03.680 JOINT; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	9712-9801	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.670 (B) 4WAY	8-94100-256-0	01	1	9802-9804	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9805-	●
165	03.680 JOINT; HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	9712-9801	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.145 (C) 3WAY	8-94237-690-0	01	1	9802-9804	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9805-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
200	03.675 HOSE; VAC L=30	0-04241-030-0	01	1	9312-9406				●
200	03.675 HOSE; VAC 08.962 L=30 SERVICED BY L=3000	0-04740-300-0	01	1	9407-9408				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97182-890-3	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-890-4	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9805-	●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97182-709-4	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-709-5	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9805-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
271	03.675 BOLT; BRKT TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9801	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9802-9804	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9805-	●
305	03.675 BRACKET; RUBBER HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97182-758-0	01	1	9712-9801	●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-758-0	01	1	9802-9804	●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-758-0	01	1	9805-	●
702	03.670 VALVE; DERIVERY TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97145-713-0	01	1	9712-9801	●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97145-713-0	01	1	9802-9804	●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97145-713-0	01	1	9805-	●

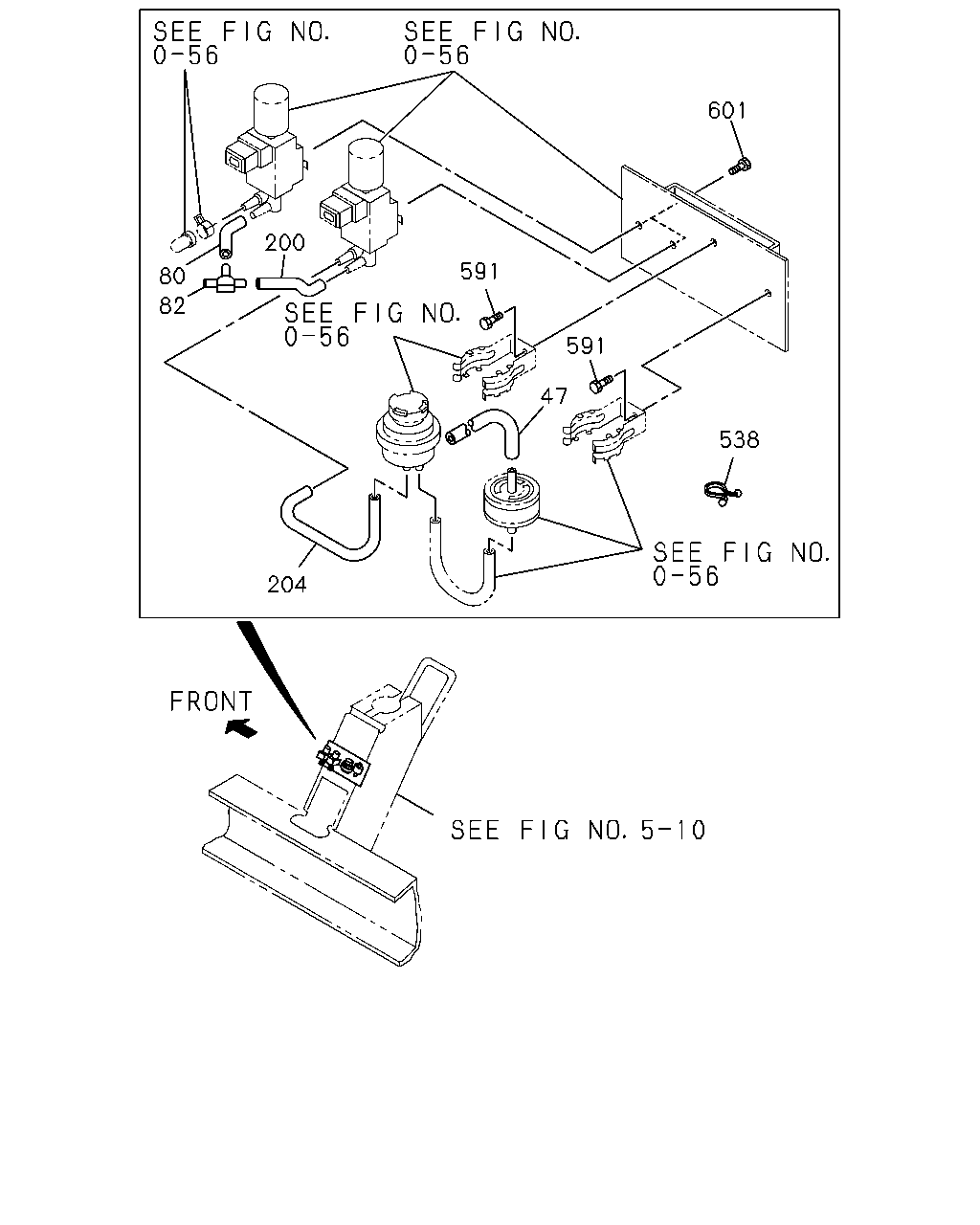

601 200 591 80 82 591 47 538 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV 08.962 L=500 SERVICED BY L=3000	0-04730-300-0	01	1	9312-				●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9401-9711		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9712-		●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-1	01	1	9312-9711		●
47	03.675 HOSE; VAC,VSV (A) L=310	8-97037-962-1	01	1	9712-		●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
80	03.163 HOSE; CONN TO VSV 08.962 L=30 SERVICED BY L=3000	0-04741-300-0	01	1	9312-9406				●
80	03.163 HOSE; CONN TO VSV 08.962 L=30 SERVICED BY L=3000	0-04740-300-0	01	1	9407-9408				●
82	03.680 JOINT; 3 WAY 3WAY	8-94210-631-0	01	1	9312-9408				●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	9401-9711		●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	9712-	●	●	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
200	03.675 HOSE; VAC L=30	0-04241-030-0	01	1	9312-9406				●
200	03.675 HOSE; VAC 08.962 L=30 SERVICED BY L=3000	0-04740-300-0	01	1	9407-9408				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97182-890-3	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-890-4	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9805-	●
200	03.675 HOSE; VAC TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97182-709-4	01	1	9712-9801	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97182-709-5	01	1	9802-9804	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-5	01	1	9805-	●
204	03.675 HOSE; VSV TO PIPE 08.962 L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9312-				●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
538	03.430 CLIP; PURSE LOCK,RUB HOSE 09.663 ID=15	1-09709-003-0	01	1	9312-				●
538	03.430 CLIP; PURSE LOCK,RUB HOSE 16.065 ID=20	1-09709-068-0	01	1	9312-				●
538	03.430 CLIP; PURSE LOCK,RUB HOSE 02.480 ID=25	8-94120-831-0	01	1	9312-				●
591	03.675 SCREW; BRKT 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9312-				●
601	03.417 SCREW; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9312-9502				●
601	03.417 SCREW; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	01	1	9503-				●

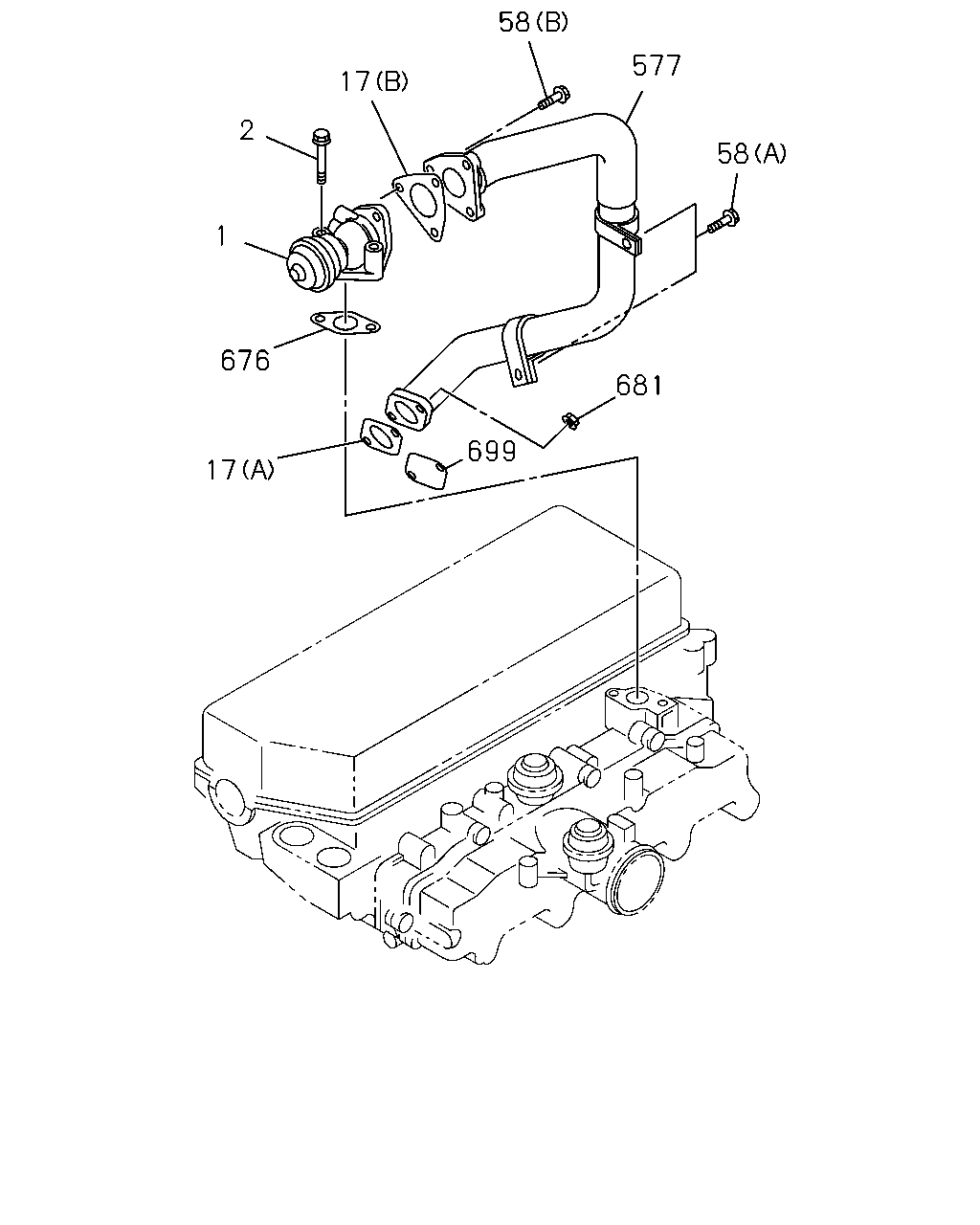

58 577 17 2 58 1 676 681 699 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97135-088-2	01	1	9712-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	9712-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9712-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) (B)	8-97166-993-0	01	1	9712-	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9712-	●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9712-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9712-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-	●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-1	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-952-1	01	1	9712-	●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97190-508-0	01	1	9712-9801	●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L)	8-97190-508-0	01	1	9802-	●
676	03.417 GASKET; PIPE CHILE EQUIPMENT(6KB)	8-97170-683-0	01	1	9802-	●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9712-	●
699	03.680 PLATE; BOSS,EXH MANIFOLD CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97136-006-0	01	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
