Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#40516) — 159 parça

3 2 3 14 1 349 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL>	8-97023-544-0	01	1	9712-9801	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97023-544-0	01	1	9802-9804	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-0	01	1	9805-	●
1	03.670 VALVE; VAC SW,EGR VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 03.130	8-94384-336-0	01	1	9802-9804	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130	8-94384-336-0	01	1	9805-	●
2	03.671 BRACKET; VSV	8-97042-701-0	01	1	9312-		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97192-228-0	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97192-228-0	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9805-	●
2	03.671 BRACKET; VSV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97171-198-3	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9805-	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	9712-	●
3	03.670 BOLT; VSV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9712-9801	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9802-9804	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9805-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9801	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97023-543-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-	●
14	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B)	8-97023-544-0	01	1	9712-9801	●
14	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> (B)	8-97023-544-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97023-544-0	01	1	9805-	●
14	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A)	8-94384-335-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-	●
14	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 03.130 (B)	8-94384-336-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130 (B)	8-94384-336-0	01	1	9805-	●
15	03.670 VALVE; VAC SW 03.130	8-94384-336-0	01	1	9312-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97023-543-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A)	8-94384-335-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97137-812-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9805-	●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●

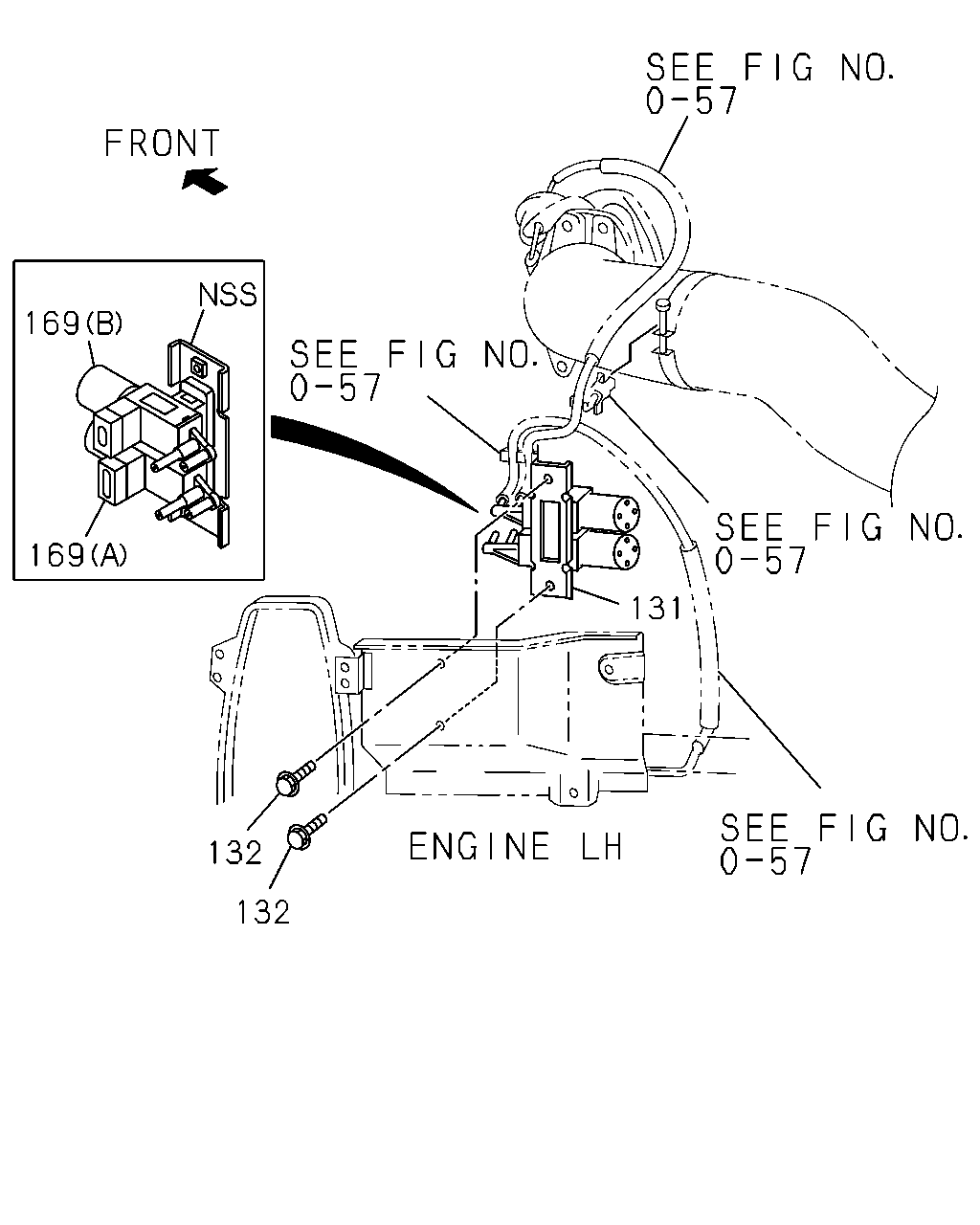

169 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9801	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97182-889-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9312-9711		●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9312-9407		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9408-9711		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	9312-9711		●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9712-	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-94381-403-0	01	1	9312-9510		●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER FRAME STRAIGHT TYPE<7KJ> L=378	8-97016-031-1	01	1	9611-9703	●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-97016-031-1	01	1	9704-	●

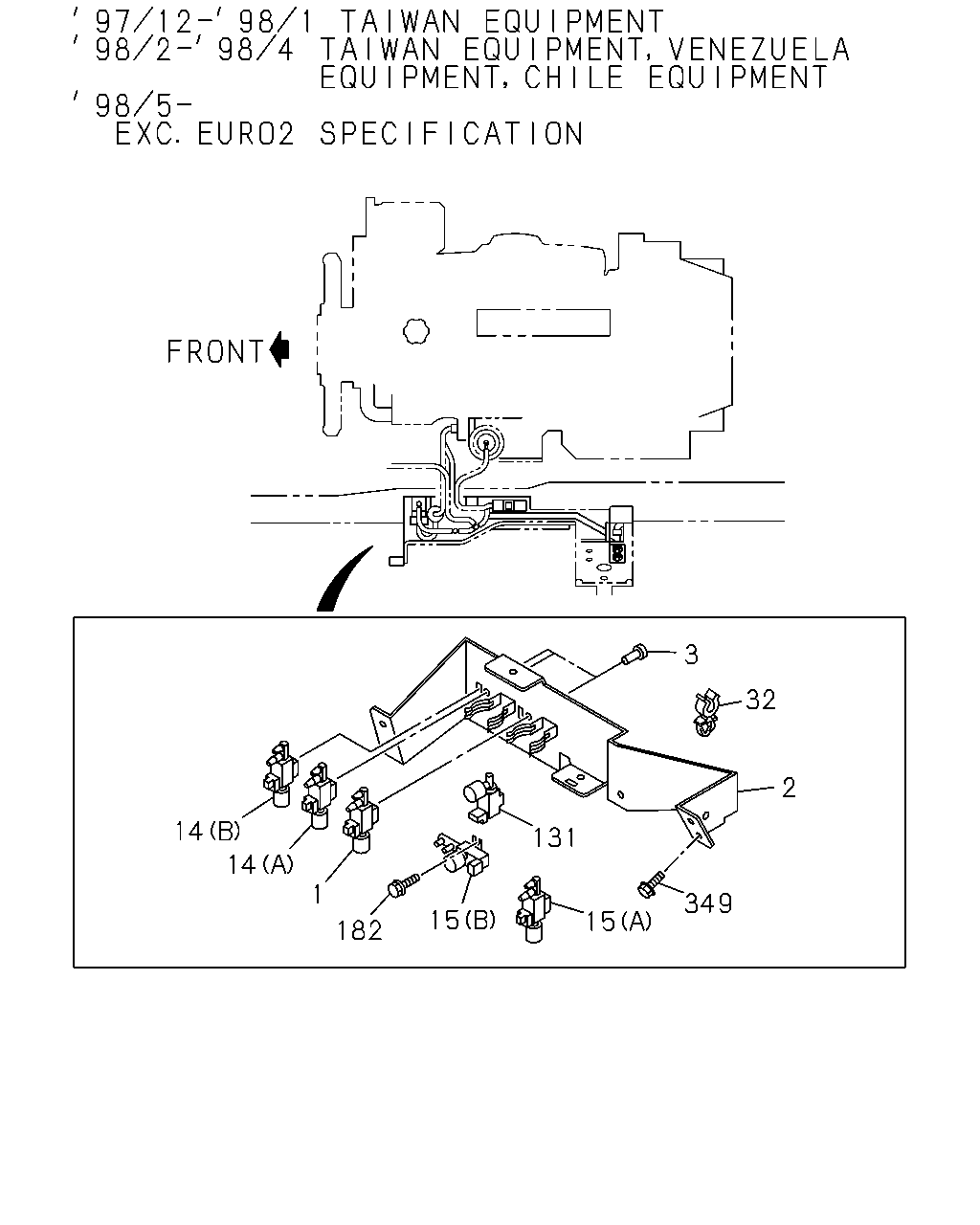

3 32 2 14 131 14 1 349 15 15 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL>	8-97023-544-0	01	1	9712-9801	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L)	8-97023-544-0	01	1	9802-9804	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-0	01	1	9805-	●
1	03.670 VALVE; VAC SW,EGR VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 03.130	8-94384-336-0	01	1	9802-9804	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130	8-94384-336-0	01	1	9805-	●
2	03.671 BRACKET; VSV	8-97042-701-0	01	1	9312-		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97192-228-0	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97192-228-0	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9805-	●
2	03.671 BRACKET; VSV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97171-198-3	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9805-	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	9712-	●
3	03.670 BOLT; VSV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9712-9801	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9802-9804	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9805-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9801	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97023-543-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-	●
14	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B)	8-97023-544-0	01	1	9712-9801	●
14	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> (B)	8-97023-544-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97023-544-0	01	1	9805-	●
14	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A)	8-94384-335-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-	●
14	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 03.130 (B)	8-94384-336-0	01	1	9802-9804	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130 (B)	8-94384-336-0	01	1	9805-	●
15	03.670 VALVE; VAC SW 03.130	8-94384-336-0	01	1	9312-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97023-543-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A)	8-94384-335-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97137-812-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9805-	●
32	03.680 CLIP; EGR HOSE TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	9712-9801	●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 03.162	8-94253-984-0	01	1	9802-9804	●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162	8-94253-984-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407			●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711			●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-	●		●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711			●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-	●		●	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9801	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97182-889-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-	●
182	03.670 BOLT; VLV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-9801	●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9804	●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9805-	●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●

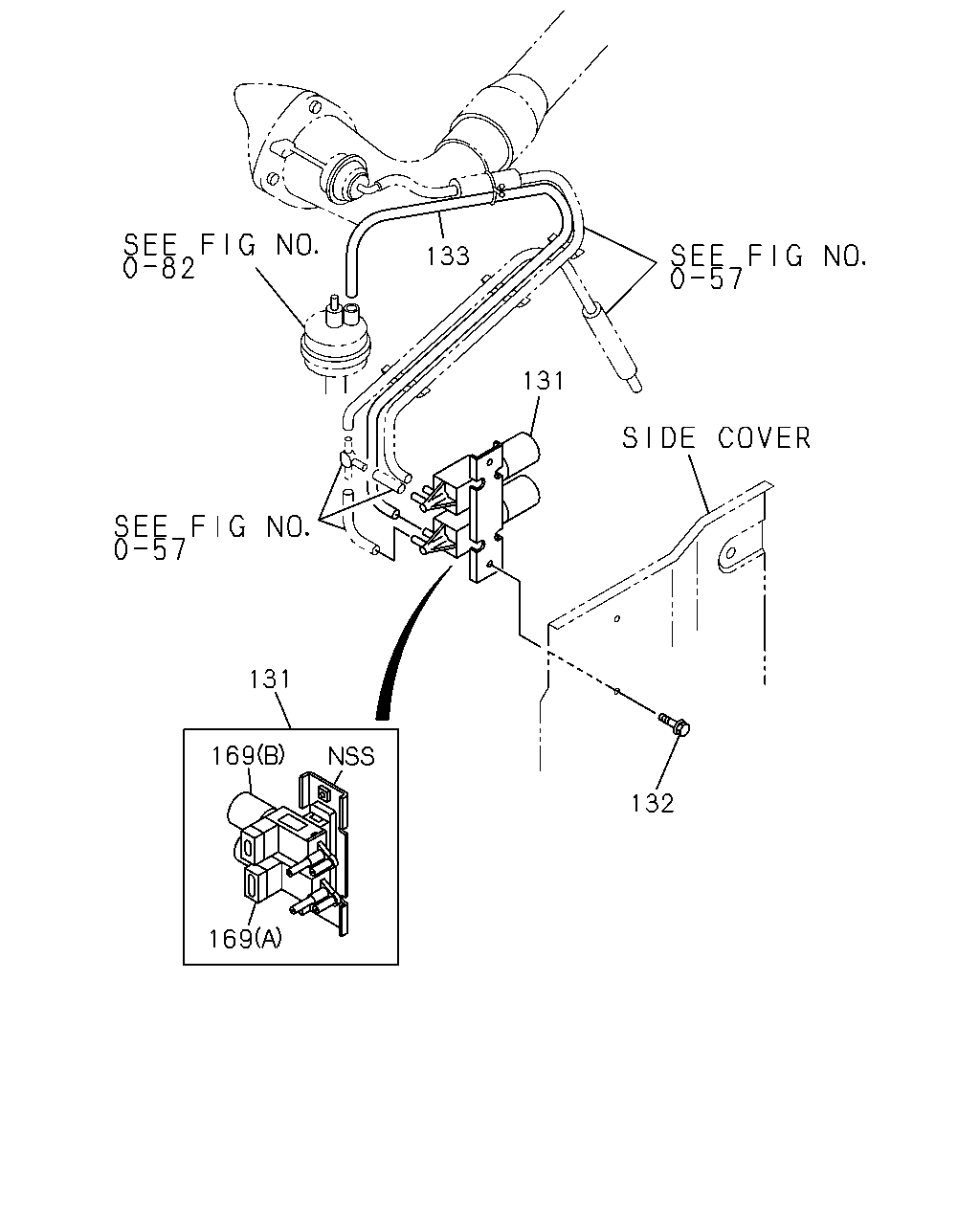

133 131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9801	●
131	03.670 VALVE; VAC SWITCHING TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL>	8-97182-889-0	01	1	9802-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9312-9711		●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●
133	03.675 HOSE; RUBBER,VSV TO INJ PUMP AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 L=490 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9312-9407		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9408-9711		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	9312-9711		●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9712-	●	●	●

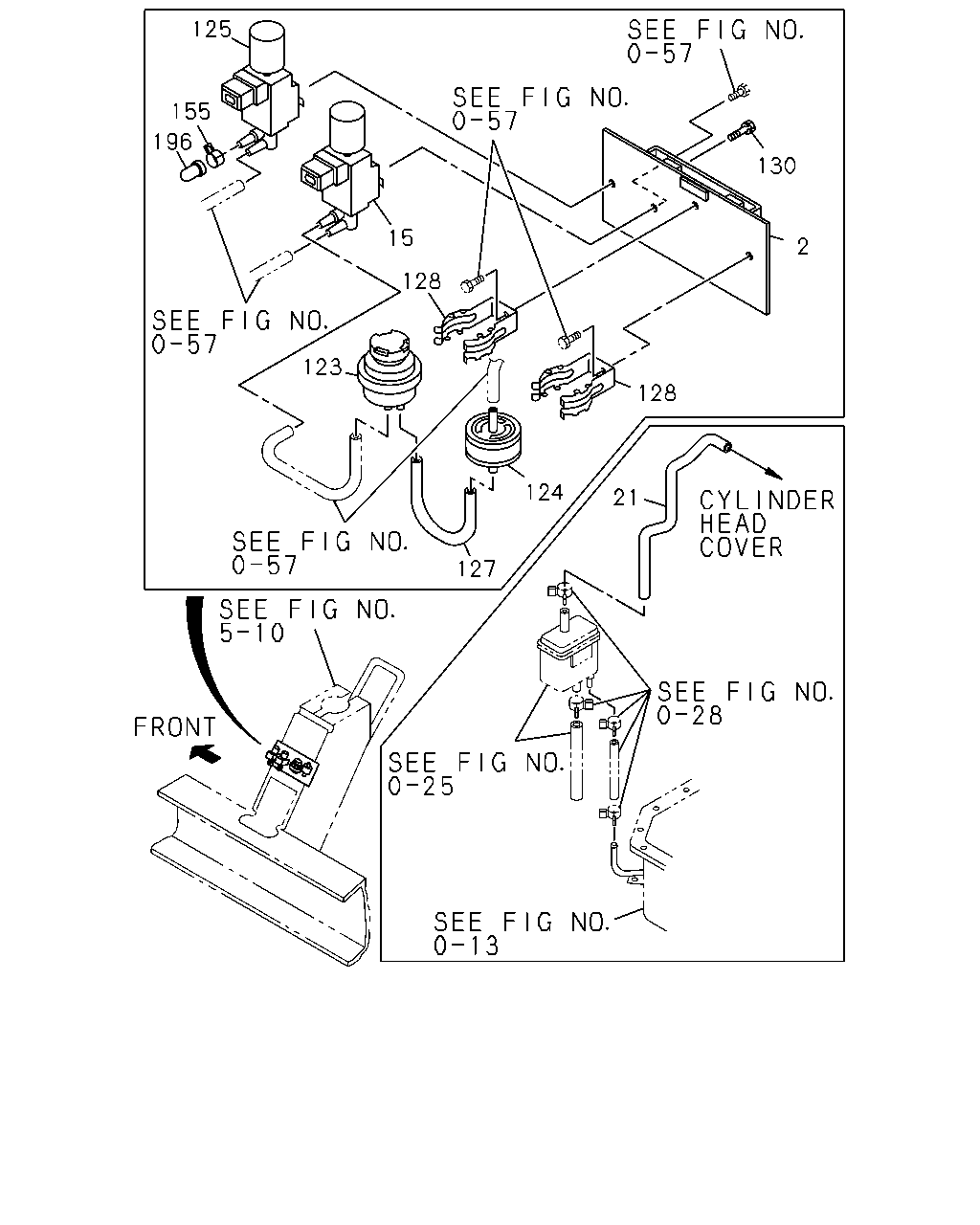

125 155 196 130 15 2 128 123 128 124 21 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E
2	03.671 BRACKET; VSV	8-97042-701-0	01	1	9312-		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV)	8-97192-228-0	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV), VENEZUELAEQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97192-228-0	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9805-	●
2	03.671 BRACKET; VSV TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	9712-9801	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB)	8-97171-198-3	01	1	9802-9804	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9805-	●
15	03.670 VALVE; VAC SW 03.130	8-94384-336-0	01	1	9312-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A)	8-97023-543-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9712-9801	●
15	03.670 VALVE; VAC SW TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A)	8-94384-335-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-	●
15	03.670 VALVE; VAC SW VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (B)	8-97137-812-0	01	1	9802-9804	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9805-	●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-94381-403-0	01	1	9312-9510			●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER FRAME STRAIGHT TYPE<7KJ> L=378	8-97016-031-1	01	1	9611-9703		●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-97016-031-1	01	1	9704-		●
123	03.682 REGULATOR; VAC	8-97025-458-0	01	1	9312-		●
124	03.670 VALVE; DELAY 03.415 PINK	8-94145-108-0	01	1	9312-		●
125	03.670 VALVE; VAC SW,FAST IDLE	8-94384-335-0	01	1	9312-9408		●
127	03.675 HOSE; RUBBER,VSV TO DELAY VLV,EX 08.962 L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9312-		●
128	03.672 BRACKET; VAC SW	8-94315-281-1	02	1	9312-		●
130	03.671 BOLT; VSV BRKT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-		●
155	03.675 CLIP; RUBBER HOSE,VSV 03.278	8-97015-188-0	01	1	9312-9405		●
196	03.417 CAP; RUBBER	8-94175-224-0	01	1	9312-9408		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
