◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#40515) — 339 parça
çizim 66801
68 71 38 63 71 68 71 38 258 22 63 71 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
22 01.531 SPACER; TURBOCHARGER OIL PIPE 8-94420-751-0 01 1 9312- ●
38 01.531 CONNECTOR; OIL PIPE
M16 & PT1/4 STRAIGHT 		9-09231-810-1 01 1 9312-9510 ● ●
38 01.531 CONNECTOR; OIL PIPE
M16 & PT1/4 STRAIGHT 		9-09231-810-1 01 1 9511- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-94382-465-0 01 1 9312-9510 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97046-163-0 01 1 9312- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97182-991-2 01 1 9712- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9712- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-94436-933-0 01 1 9312-9510 ● ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-94436-933-0 01 1 9511- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9712- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9712- ●
71 01.531 GASKET; OIL PIPE,HD TO TURBOCHAR
08.955 ID=12.2 		9-09571-412-0 02 1 9312-9510 ● ●
71 01.531 GASKET; OIL PIPE,HD TO TURBOCHAR
08.955 ID=12.2 		9-09571-412-0 02 1 9511- ●
258 03.358 BOLT; OIL PIPE CLIP,TC OIL DRAIN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 01 1 9312- ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9407-9510 ● ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9511-9711 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9712- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9712- ●

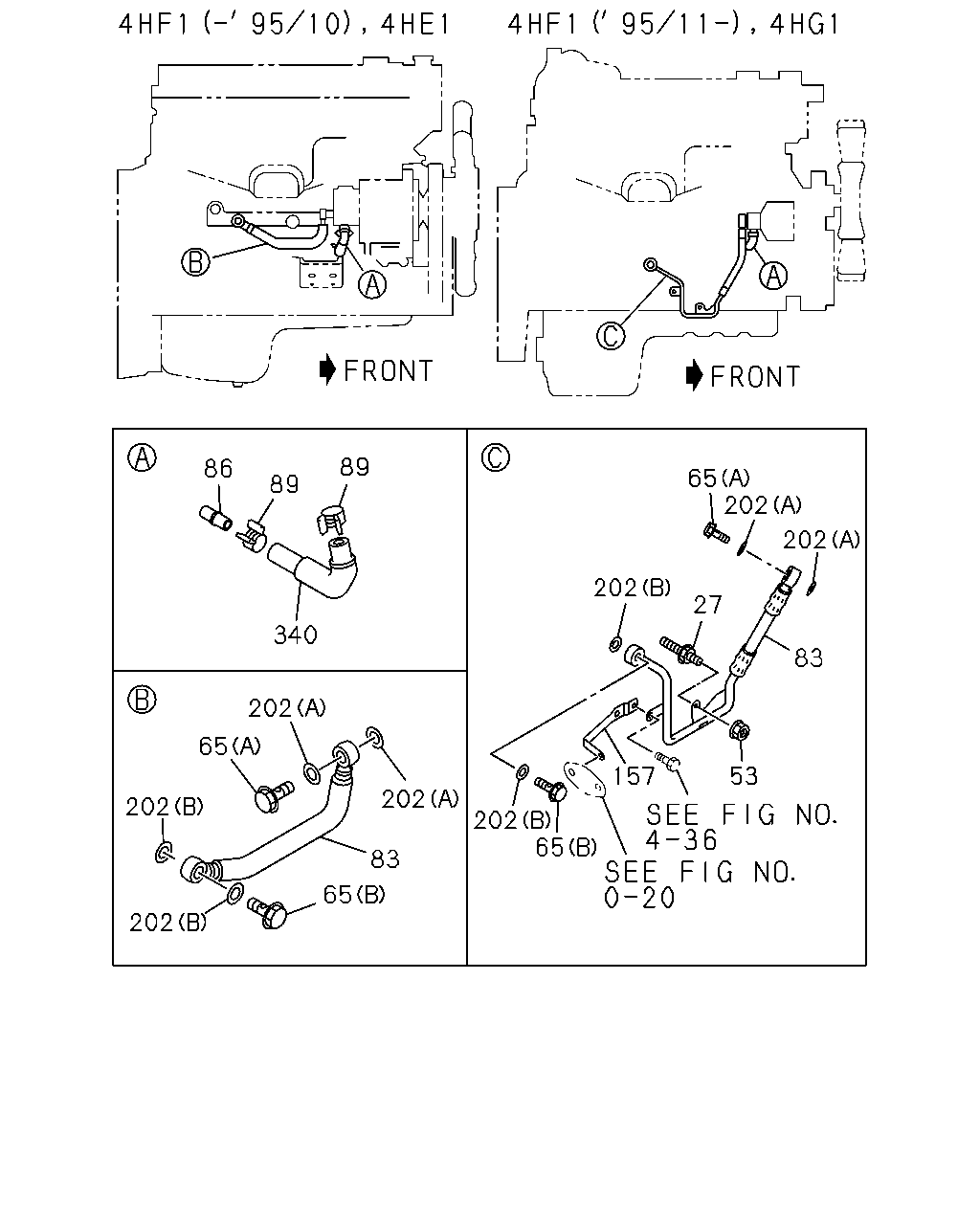

çizim 66810
89 86 65 202 89 202 202 27 340 83 202 65 157 53 202 202 202 65 83 65 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9312-9510 ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9511- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9511-9711 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712-9805 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9806- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9312-9711 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9712- ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(B) M14X33 FLANGE 		1-09675-088-0 01 1 9312-9711 ●
65 01.531 BOLT; JOINT,OIL PIPE
(B) M14X33 FLANGE 		1-09675-088-0 01 1 9712-9805 ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9806- ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9312-9510 ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9511- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9312-9510 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9511-9711 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9712- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9712- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9312-9711 ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9712- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 02 1 9312-9504 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9505-9711 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9505-9711 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9712- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9712- ● ● ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) 06.672 		8-97139-294-0 01 1 9511-9711 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 06.672 		8-97139-294-0 01 1 9712-9805 ● ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 		8-97209-355-0 01 1 9806- ● ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> 		8-97181-586-0 01 1 9712- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9312-9711 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9712- ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9312-9711 ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9712- ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9312-9711 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9712- ● ● ●

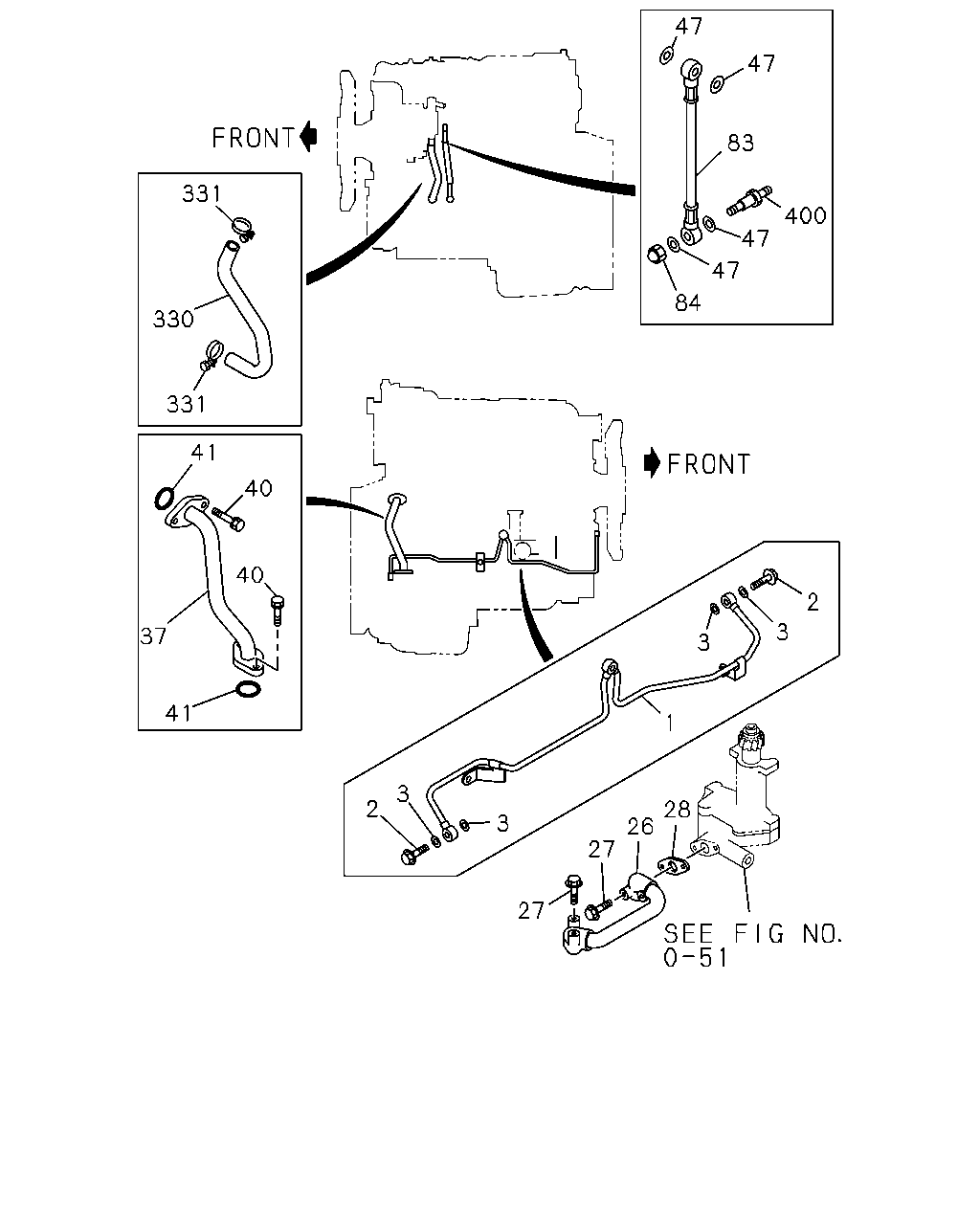

çizim 67136
47 47 83 331 400 47 47 84 330 331 41 40 40 2 3 37 3 41 1 3 2 28 26 3 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312-9510 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9511- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312-9711 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9712- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-2 01 1 9712- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312-9510 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312-9711 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE 		1-09675-077-0 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9712- ● ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24 		9-09906-205-1 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9801- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312-9711 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-083-0 04 1 9712- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9712- ●
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9312-9510 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9511- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9312-9510 ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9511- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9511-9711 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712-9805 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18 		9-09921-188-0 02 1 9312-9510 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18 		9-09921-188-0 02 1 9511- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9312- ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94169-775-1 01 1 9312-9510 ● ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94169-775-1 01 1 9511- ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94158-760-0 01 1 9312- ●
40 01.531 BOLT; OIL PIPE
M8X50 W/LK WASHER 		0-50040-850-0 02 1 9312-9404 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9405-9510 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ● ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9712- ●
41 01.531 GASKET; OIL COOLER
ID=25.4 		8-97026-590-0 02 1 9312-9510 ● ● ●
41 01.531 GASKET; OIL COOLER
ID=25.4 		8-97026-590-0 02 1 9511- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9312-9510 ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9511- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9312-9510 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9511-9711 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9712- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9712- ●
84 01.531 NUT; CAP,OIL PIPE
M10 		9-09844-022-0 01 1 9312-9510 ● ● ●
84 01.531 NUT; CAP,OIL PIPE
M10 		9-09844-022-0 01 1 9511- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9312-9510 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9312- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. AC GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9312- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312-9510 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9511- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403- ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-94107-560-0 01 1 9312-9510 ● ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-94107-560-0 01 1 9511- ●
400 01.531 NIPPLE; VAC PUMP,OIL
03.280 		5-09654-013-0 01 1 9312- ●
çizim 67381
2 3 3 3 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312-9510 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9511- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312-9711 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9712- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-2 01 1 9712- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312-9510 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312-9711 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE 		1-09675-077-0 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9712- ● ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24 		9-09906-205-1 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9801- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312-9711 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-083-0 04 1 9712- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9712- ●
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●

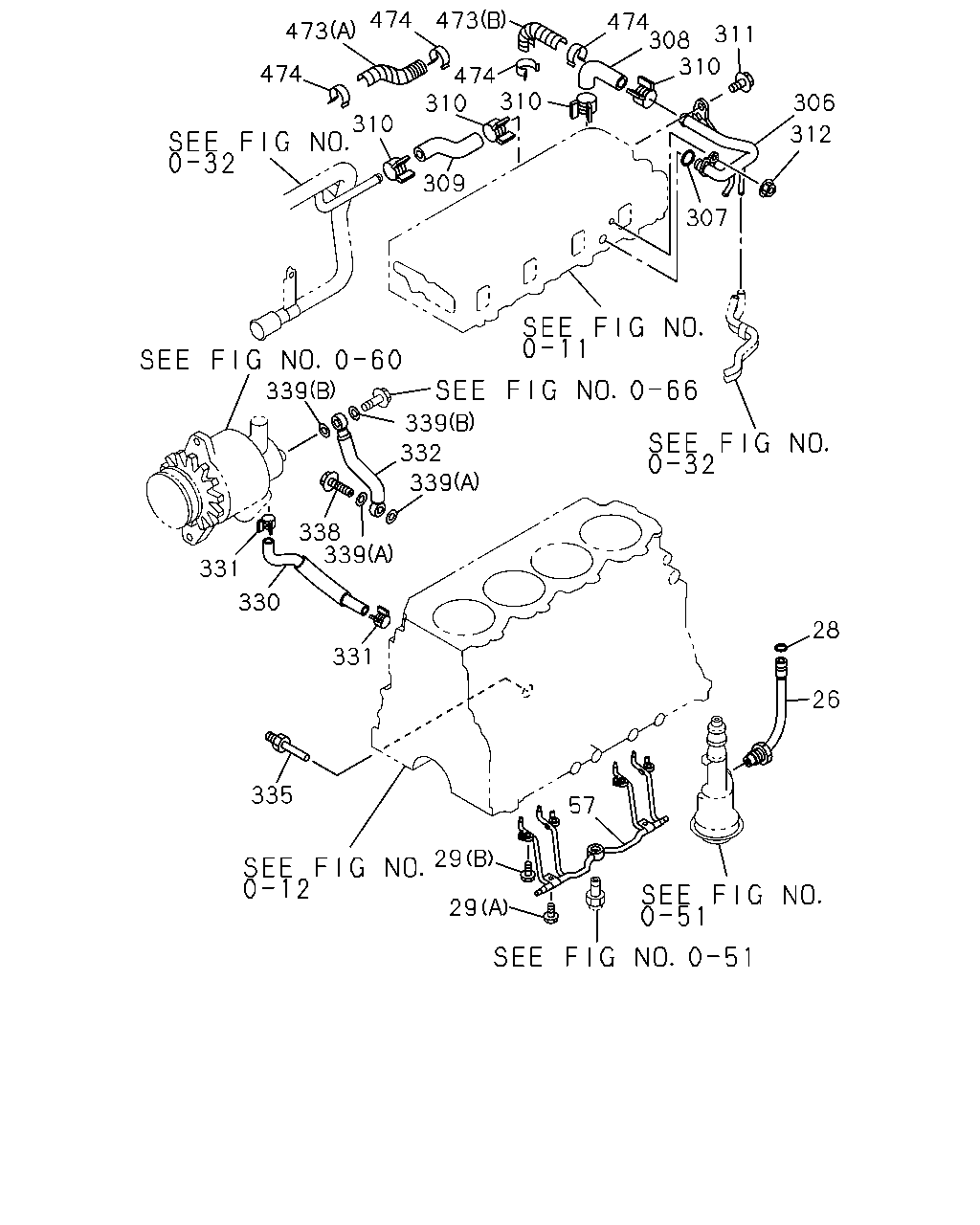

çizim 68852
474 473 474 308 310 47 311 474 474 310 310 306 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335 57 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9312-9510 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9511- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18 		9-09921-188-0 02 1 9312-9510 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18 		9-09921-188-0 02 1 9511- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9312- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9312-9804 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9805- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9312- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-0 01 1 9312- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97063-031-1 01 1 9312-9701 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9702- ●
307 01.531 GASKET; WATER PIPE
04.107 		9-09561-218-0 01 1 9312-9412 ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9501- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9312- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97080-197-1 01 1 9312-9701 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9702- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 04 1 9312- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9312- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9312- ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9312-9510 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9312- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. AC GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9312- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312-9510 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9511- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9312- ●
335 01.531 STOPPER; OIL PIPE 8-94443-643-0 01 1 9312-9804 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9805- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X24 		5-09675-024-0 01 1 9312-9404 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9405- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=8.2 OD=17 		9-09572-008-0 02 1 9312-9404 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9405- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=19 		9-09572-010-0 02 1 9312-9312 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9312- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9312- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9312- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9312- ●

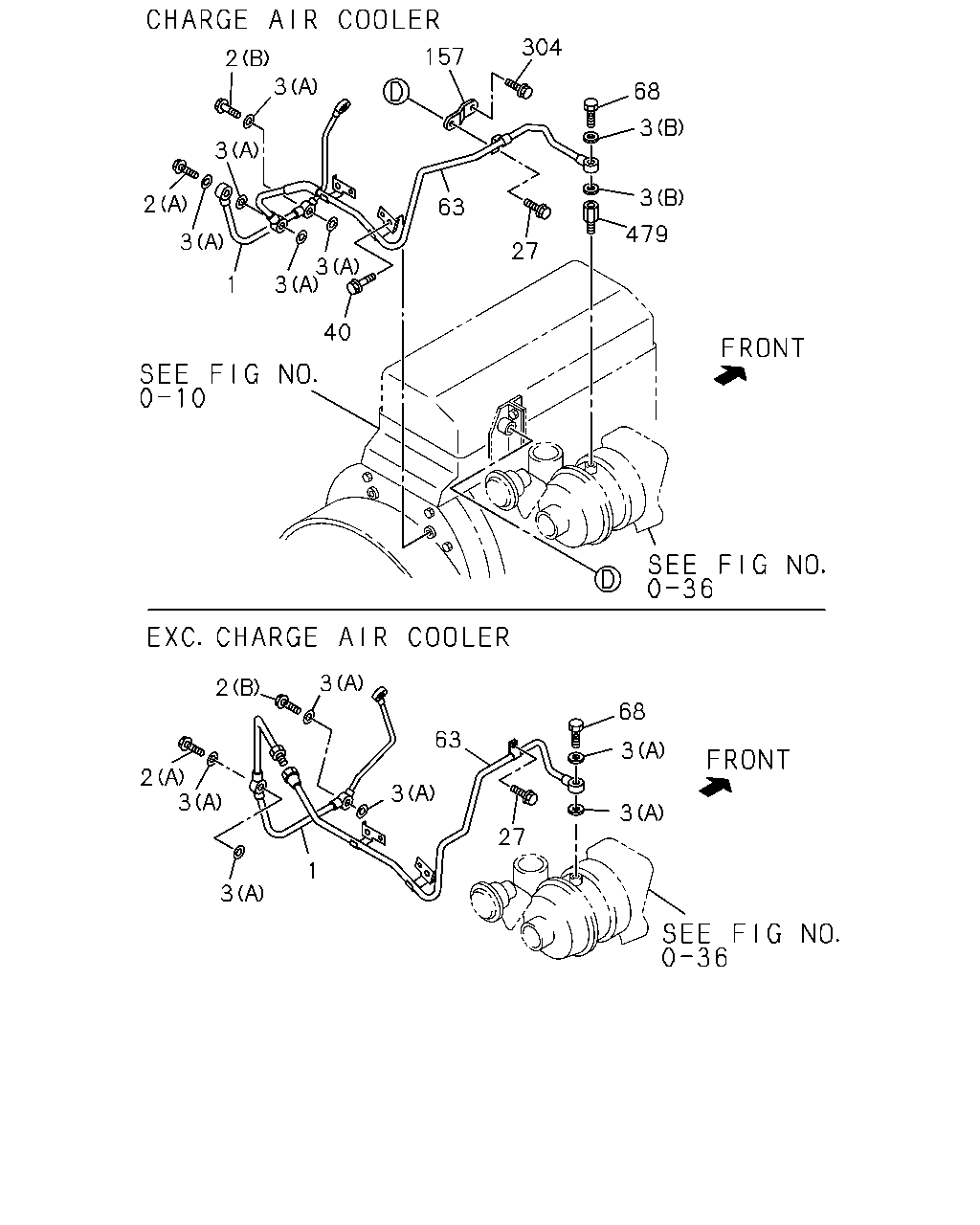

çizim 70754
304 157 2 3 68 3 3 3 2 63 479 3 27 3 3 1 40 3 2 68 63 3 2 3 3 3 27 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312-9510 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9511- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312-9711 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9712- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-2 01 1 9712- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312-9510 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312-9711 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE 		1-09675-077-0 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9712- ● ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24 		9-09906-205-1 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9801- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312-9711 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-083-0 04 1 9712- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9712- ●
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9312-9510 ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9511- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9511-9711 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712-9805 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ●
40 01.531 BOLT; OIL PIPE
M8X50 W/LK WASHER 		0-50040-850-0 02 1 9312-9404 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9405-9510 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ● ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9712- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-94382-465-0 01 1 9312-9510 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97046-163-0 01 1 9312- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97182-991-2 01 1 9712- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9712- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-94436-933-0 01 1 9312-9510 ● ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-94436-933-0 01 1 9511- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9712- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9712- ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMENT(X74) 06.672 		8-97139-294-0 01 1 9511-9711 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 06.672 		8-97139-294-0 01 1 9712-9805 ● ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 		8-97209-355-0 01 1 9806- ● ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> 		8-97181-586-0 01 1 9712- ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712- ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9407-9510 ● ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9511-9711 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 9712- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9712- ●

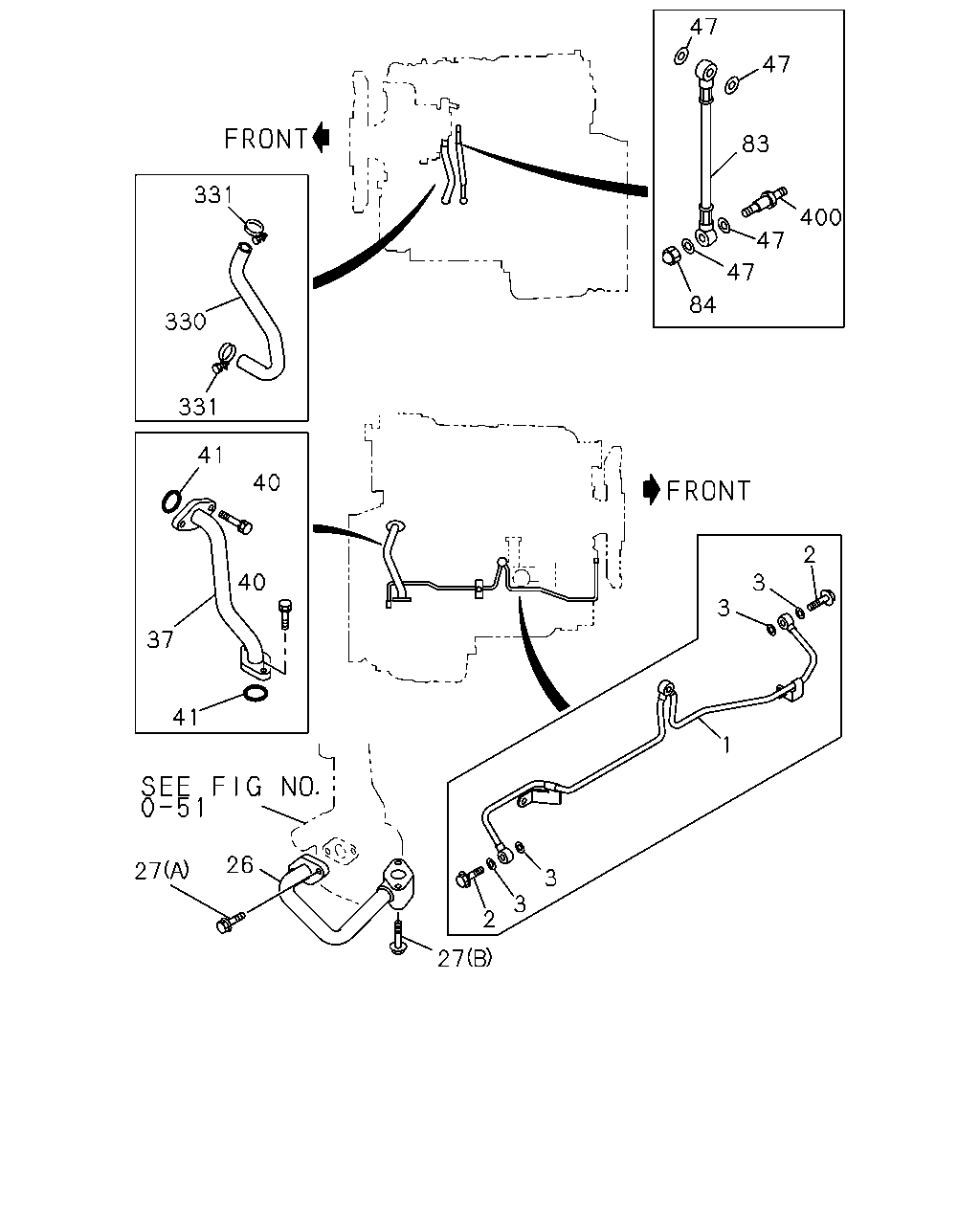

çizim 70878
47 47 83 331 400 47 47 84 330 331 41 40 2 40 3 3 37 41 1 26 27 3 3 2 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9312-9510 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97046-162-0 01 1 9511- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9312-9711 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-0 01 1 9712- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-2 01 1 9712- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-1 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9312-9510 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X22 		1-09675-028-0 02 1 9511- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9312-9711 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE 		1-09675-077-0 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9712- ● ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9712- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24 		9-09906-205-1 01 1 9712-9712 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9801- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9312-9711 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-083-0 04 1 9712- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9712- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9712- ●
17 01.531 CAP; OIL PIPE
03.407 ID=12 L=30 		8-94249-289-0 01 1 9801- ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9312-9510 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94131-060-2 01 1 9511- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9312- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94114-580-1 01 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9312-9510 ● ●
27 01.531 BOLT; OIL PIPE FIX
M8X45 W/LK&PL WASHER 		0-50140-845-0 04 1 9511- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
03.706 (B) M8X40 W/LK WASHER 		0-50040-840-0 02 1 9312- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9511-9711 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9712-9805 ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9806- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9805 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94169-775-1 01 1 9312-9510 ● ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94169-775-1 01 1 9511- ●
37 01.519 PIPE; OIL,FILTER TO COOLER 8-94158-760-0 01 1 9312- ●
40 01.531 BOLT; OIL PIPE
M8X50 W/LK WASHER 		0-50040-850-0 02 1 9312-9404 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9405-9510 ● ●
40 01.531 BOLT; OIL PIPE
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ● ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ● ●
40 01.531 BOLT; OIL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9712- ●
41 01.531 GASKET; OIL COOLER
ID=25.4 		8-97026-590-0 02 1 9312-9510 ● ● ●
41 01.531 GASKET; OIL COOLER
ID=25.4 		8-97026-590-0 02 1 9511- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9312-9510 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19 		9-09572-010-0 04 1 9511- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9312-9510 ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
L=240 		8-94159-048-1 01 1 9511- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9312-9510 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9511-9711 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9712- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9712- ●
84 01.531 NUT; CAP,OIL PIPE
M10 		9-09844-022-0 01 1 9312-9510 ● ● ●
84 01.531 NUT; CAP,OIL PIPE
M10 		9-09844-022-0 01 1 9511- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9312-9510 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9312-9510 ●
330 03.278 HOSE; VAC PUMP,RETURN
03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN
AC GENERATOR 24V40A(6MN) 03.280 		8-94454-709-0 01 1 9511- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9312- ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. AC GENERATOR 24V40A(6MN) 01.540 		8-94159-047-0 01 1 9312- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9312-9510 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
03.280 ID=17.1 		8-94122-679-0 02 1 9511- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9312-9402 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403- ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-94107-560-0 01 1 9312-9510 ● ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-94107-560-0 01 1 9511- ●
400 01.531 NIPPLE; VAC PUMP,OIL
03.280 		5-09654-013-0 01 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
