◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#40514) — 193 parça

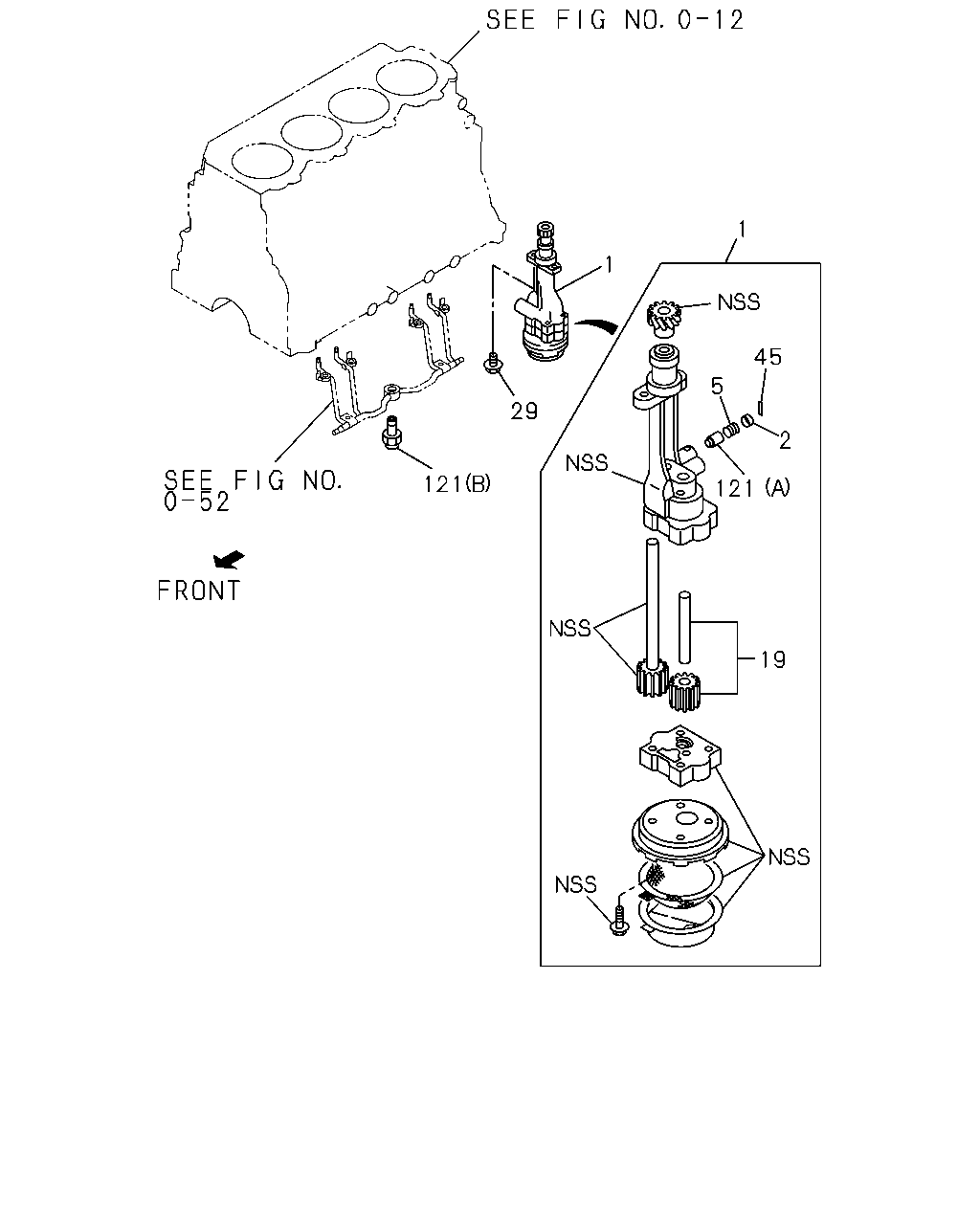

çizim 66860
1 1 45 5 29 2 121 121 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.652 PUMP ASM; OIL 8-94366-241-0 01 1 9312-9510 ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97025-461-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-94114-491-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97074-281-2 01 1 9312-9409 ●
1 01.652 PUMP ASM; OIL 8-97115-950-0 01 1 9410-9605 ●
1 01.652 PUMP ASM; OIL 8-97147-338-0 01 1 9606-9711 ●
1 01.652 PUMP ASM; OIL 8-97147-338-1 01 1 9712- ● ●
1 01.652 PUMP ASM; OIL 8-97075-283-1 01 1 9712- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9312-9510 ● ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9511-9711 ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9712- ● ● ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9312-9406 ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9510 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9511-9711 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9712- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9312-9502 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9409 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9606-9711 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9712- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9312- ●
19 01.639 GEAR SET; OIL PUMP 5-87810-274-1 01 1 9312- ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9312-9510 ● ● ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9511- ● ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9312-9612 ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 04 1 9312-9704 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9712- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9712- ● ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9312- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-94177-189-3 01 1 9312-9604 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-97145-612-0 01 1 9604- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9312-9502 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9503-9711 ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9712- ● ● ●

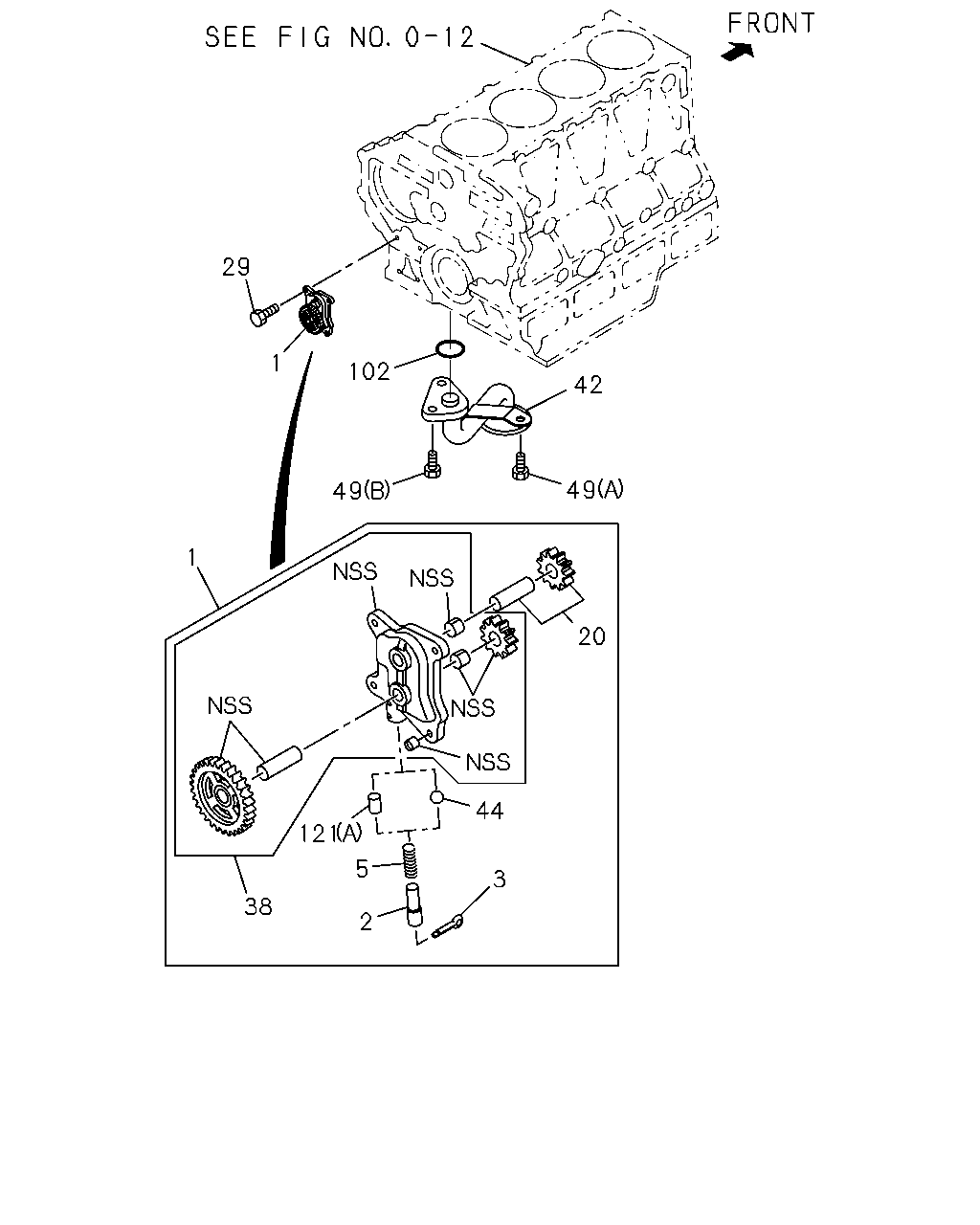

çizim 68791
29 1 102 42 49 49 1 20 44 121 5 3 38 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.652 PUMP ASM; OIL 8-94366-241-0 01 1 9312-9510 ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97025-461-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-94114-491-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97074-281-2 01 1 9312-9409 ●
1 01.652 PUMP ASM; OIL 8-97115-950-0 01 1 9410-9605 ●
1 01.652 PUMP ASM; OIL 8-97147-338-0 01 1 9606-9711 ●
1 01.652 PUMP ASM; OIL 8-97147-338-1 01 1 9712- ● ●
1 01.652 PUMP ASM; OIL 8-97075-283-1 01 1 9712- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9312-9510 ● ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9511-9711 ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9712- ● ● ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9312-9502 ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9503-9510 ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9511-9605 ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9606- ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9606-9711 ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9312-9406 ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9510 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9511-9711 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9712- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9312-9502 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9409 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9606-9711 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9712- ● ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-94130-416-0 01 1 9312-9406 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-97100-372-0 01 1 9312-9605 ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9606-9711 ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9712- ● ● ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9312-9510 ● ● ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9511- ● ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9312-9612 ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 04 1 9312-9704 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9712- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9712- ● ● ●
38 01.657 CASE; OIL STRAINER 8-94130-423-0 01 1 9312- ●
38 01.657 CASE; OIL STRAINER 8-97115-915-0 01 1 9503-9605 ●
38 01.657 CASE; OIL STRAINER 8-97147-504-0 01 1 9606-9702 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9703-9711 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9712- ● ●
38 01.657 CASE; OIL STRAINER 8-97133-330-0 01 1 9712- ●
42 01.656 STRAINER; OIL,OIL PUMP 1-13140-079-0 01 1 9312-9510 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 1-13140-079-0 01 1 9511- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97036-410-0 01 1 9312-9405 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97108-510-0 01 1 9406-9711 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97108-510-0 01 1 9712-9801 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97182-909-0 01 1 9802- ● ● ●
44 01.609 BALL; RELIEF VLV 9-00097-531-0 01 1 9312- ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 9312-9502 ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 9712- ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9312-9711 ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9712- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X14 		8-97073-782-0 02 1 9312-9604 ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X14 		8-97073-782-0 01 1 9605-9711 ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X14 		8-97073-782-0 01 1 9712- ● ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.456 ID=24.4 		1-09623-183-0 01 1 9312-9701 ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 9702-9711 ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 9712- ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-94177-189-3 01 1 9312-9604 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-97145-612-0 01 1 9604- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9312-9502 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9503-9711 ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9712- ● ● ●

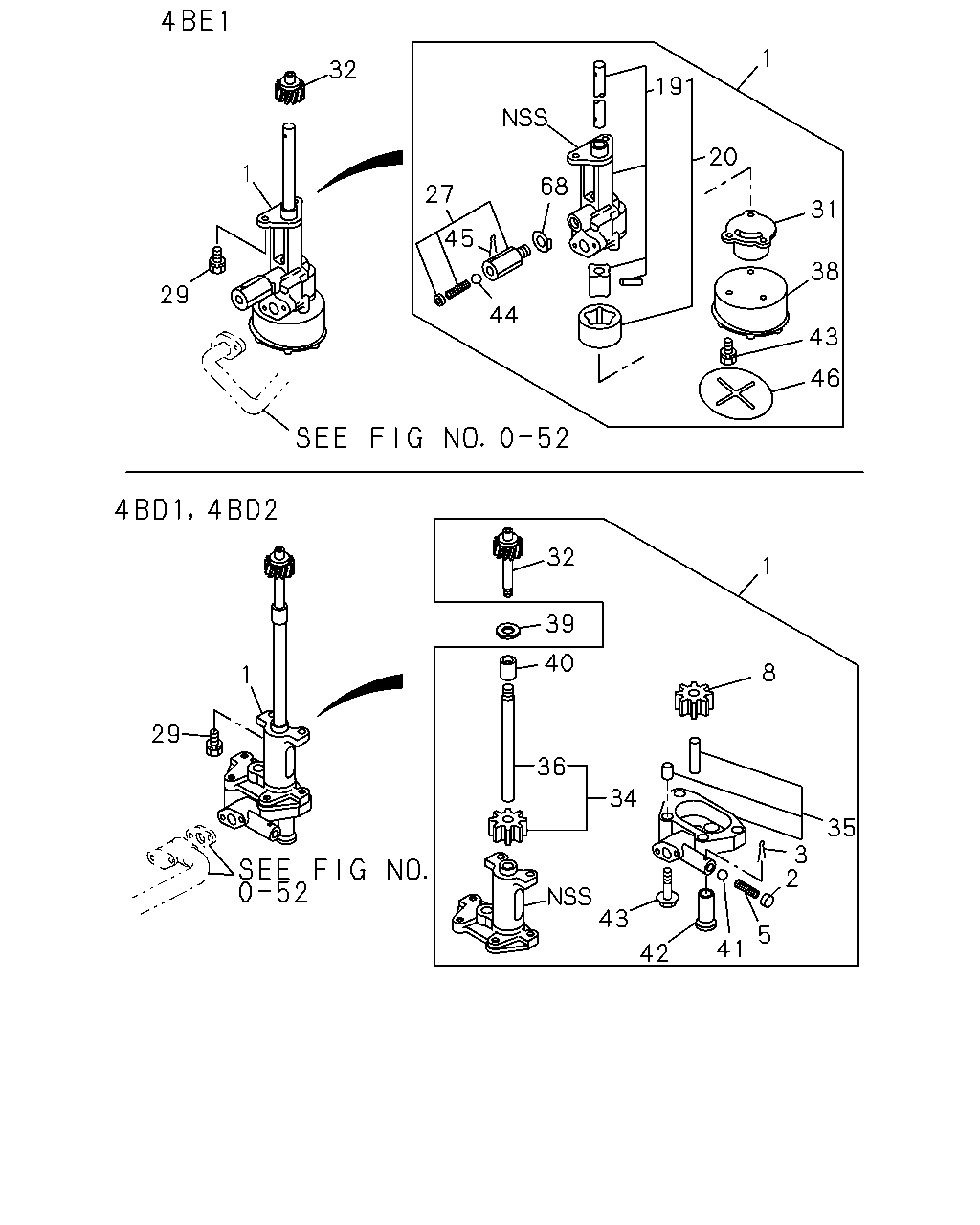

çizim 70862
1 32 19 20 1 68 27 31 45 38 29 44 43 46 32 1 39 40 8 1 29 36 34 35 3 2 43 5 41 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.652 PUMP ASM; OIL 8-94366-241-0 01 1 9312-9510 ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97025-461-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-94114-491-1 01 1 9312- ●
1 01.652 PUMP ASM; OIL 8-97074-281-2 01 1 9312-9409 ●
1 01.652 PUMP ASM; OIL 8-97115-950-0 01 1 9410-9605 ●
1 01.652 PUMP ASM; OIL 8-97147-338-0 01 1 9606-9711 ●
1 01.652 PUMP ASM; OIL 8-97147-338-1 01 1 9712- ● ●
1 01.652 PUMP ASM; OIL 8-97075-283-1 01 1 9712- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9312-9510 ● ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9511-9711 ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9712- ● ● ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9312-9502 ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9503-9510 ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9511-9605 ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 9606- ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9606-9711 ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9312-9406 ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9510 ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9511-9711 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9712- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9312-9502 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9503-9605 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9606- ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9407-9409 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9410-9502 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9606-9711 ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9712- ● ●
8 01.639 GEAR; DRIVEN,OIL PUMP 8-94163-595-0 01 1 9312-9510 ●
8 01.639 GEAR; DRIVEN,OIL PUMP 8-97030-425-0 01 1 9312- ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9312- ●
19 01.639 GEAR SET; OIL PUMP 5-87810-274-1 01 1 9312- ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-94130-416-0 01 1 9312-9406 ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-97100-372-0 01 1 9312-9605 ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9606-9711 ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9712- ● ● ●
27 01.609 VALVE ASM; OIL RELIEF 8-94130-421-0 01 1 9312- ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9312-9510 ● ● ●
29 01.652 BOLT; OIL PUMP
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9511- ● ●
29 01.652 BOLT; OIL PUMP
01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9312-9612 ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9701- ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 04 1 9312-9704 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9712- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9705-9711 ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9712- ● ● ●
31 01.657 COVER; OIL PUMP 8-94130-415-1 01 1 9312- ●
32 01.639 PINION; OIL PUMP DRIVING
01.652 		1-13128-016-0 01 1 9312-9510 ● ●
32 01.639 PINION; OIL PUMP DRIVING
01.652 		1-13128-016-0 01 1 9511- ●
32 01.639 PINION; OIL PUMP DRIVING 8-94130-420-0 01 1 9312- ●
34 01.639 SHAFT; OIL PUMP 8-94163-594-0 01 1 9312-9510 ●
34 01.639 SHAFT; OIL PUMP 8-97030-420-0 01 1 9312- ●
35 01.657 COVER; OIL PUMP 8-94163-597-0 01 1 9312-9510 ●
35 01.657 COVER; OIL PUMP 8-97030-423-1 01 1 9312- ●
36 01.639 SHAFT; DRIVEN GEAR,OIL PUMP 8-97030-422-0 01 1 9312- ●
38 01.657 CASE; OIL STRAINER 8-94130-423-0 01 1 9312- ●
38 01.657 CASE; OIL STRAINER 8-97115-915-0 01 1 9503-9605 ●
38 01.657 CASE; OIL STRAINER 8-97147-504-0 01 1 9606-9702 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9703-9711 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9712- ● ●
38 01.657 CASE; OIL STRAINER 8-97133-330-0 01 1 9712- ●
39 01.639 COLLAR; OIL PUMP PINION
01.652 		9-13119-010-0 01 1 9312-9510 ● ●
39 01.639 COLLAR; OIL PUMP PINION
01.652 		9-13119-010-0 01 1 9511- ●
40 01.639 COUPLING; PINION TO SHAFT
01.652 		1-13123-016-0 01 1 9312-9510 ● ●
40 01.639 COUPLING; PINION TO SHAFT
01.652 		1-13123-016-0 01 1 9511- ●
41 01.609 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9312-9510 ● ●
41 01.609 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9511- ●
42 01.656 STRAINER; OIL,OIL PUMP 1-13140-079-0 01 1 9312-9510 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 1-13140-079-0 01 1 9511- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97036-410-0 01 1 9312-9405 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97108-510-0 01 1 9406-9711 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97108-510-0 01 1 9712-9801 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97182-909-0 01 1 9802- ● ● ●
43 01.656 BOLT; CASE 8-94344-591-0 04 1 9312-9510 ● ●
43 01.656 BOLT; CASE 8-94344-591-0 04 1 9511- ●
43 01.656 BOLT; CASE
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9312- ●
44 01.609 BALL; RELIEF VLV 9-00097-531-0 01 1 9312- ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 9312-9502 ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 9712- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9312- ● ●
46 01.656 GAUZE; OIL STRAINER 9-13143-010-0 01 1 9312- ●
68 01.609 WASHER; RELIEF VLV
OD=34 		1-09530-004-0 01 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
