1 |

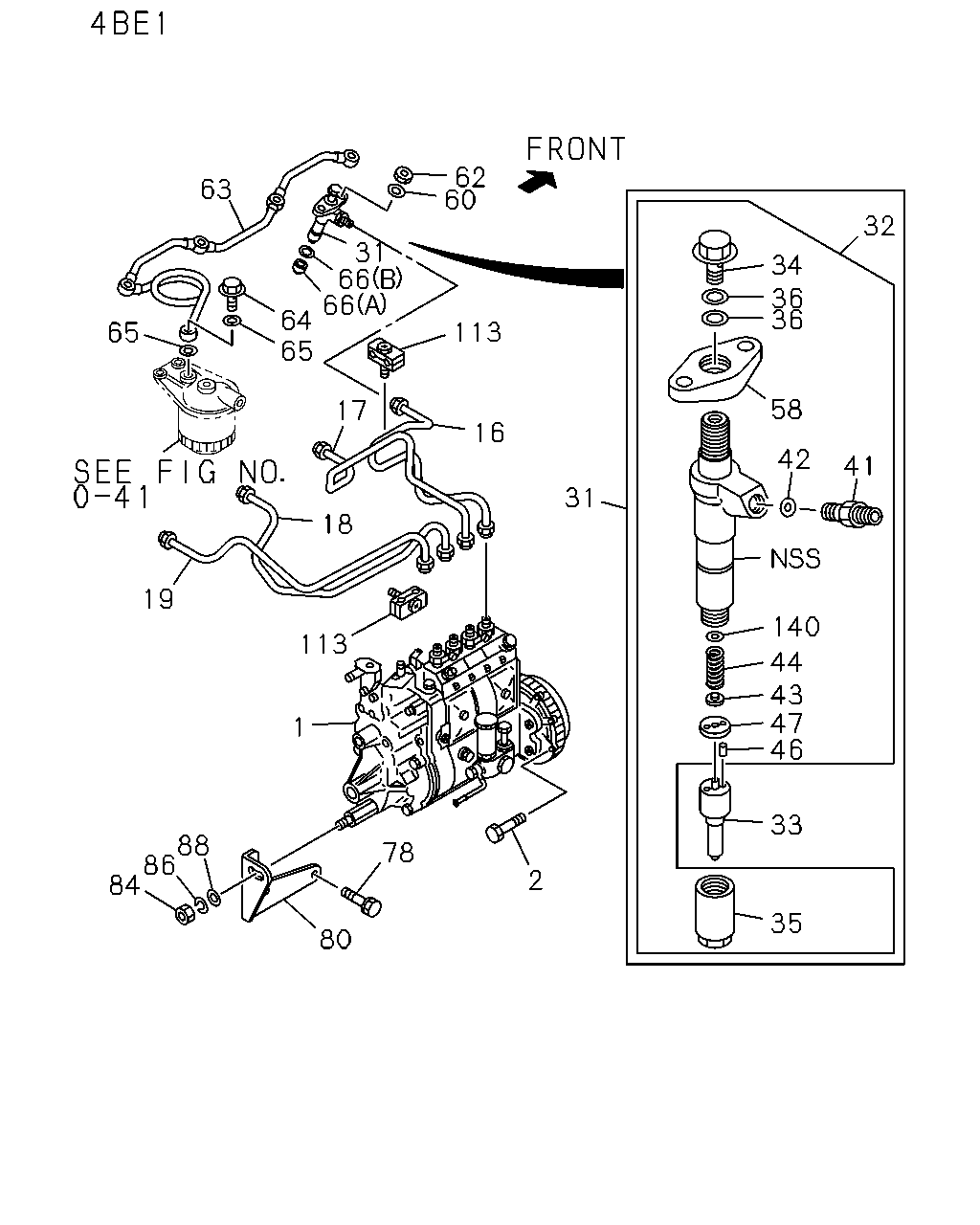

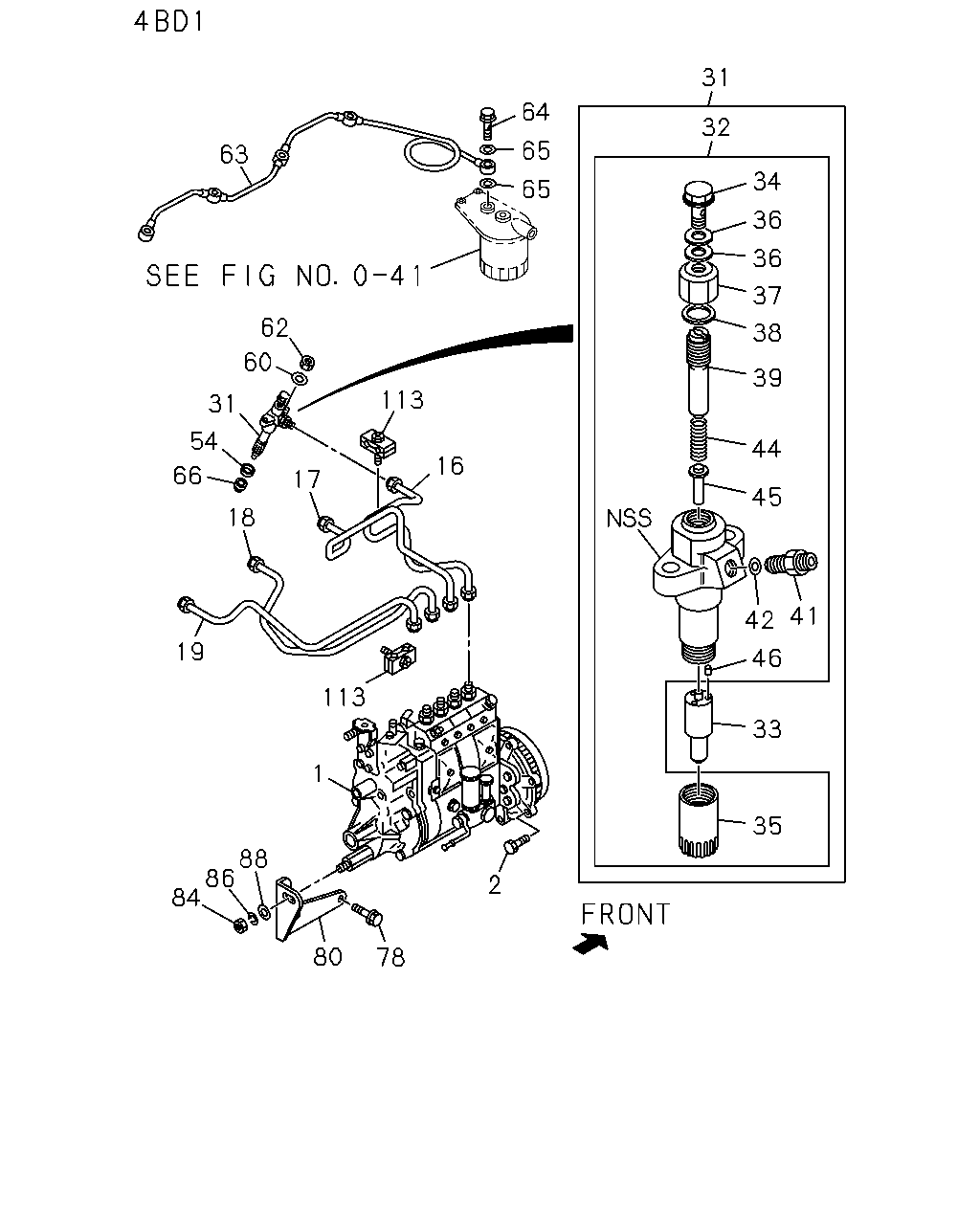

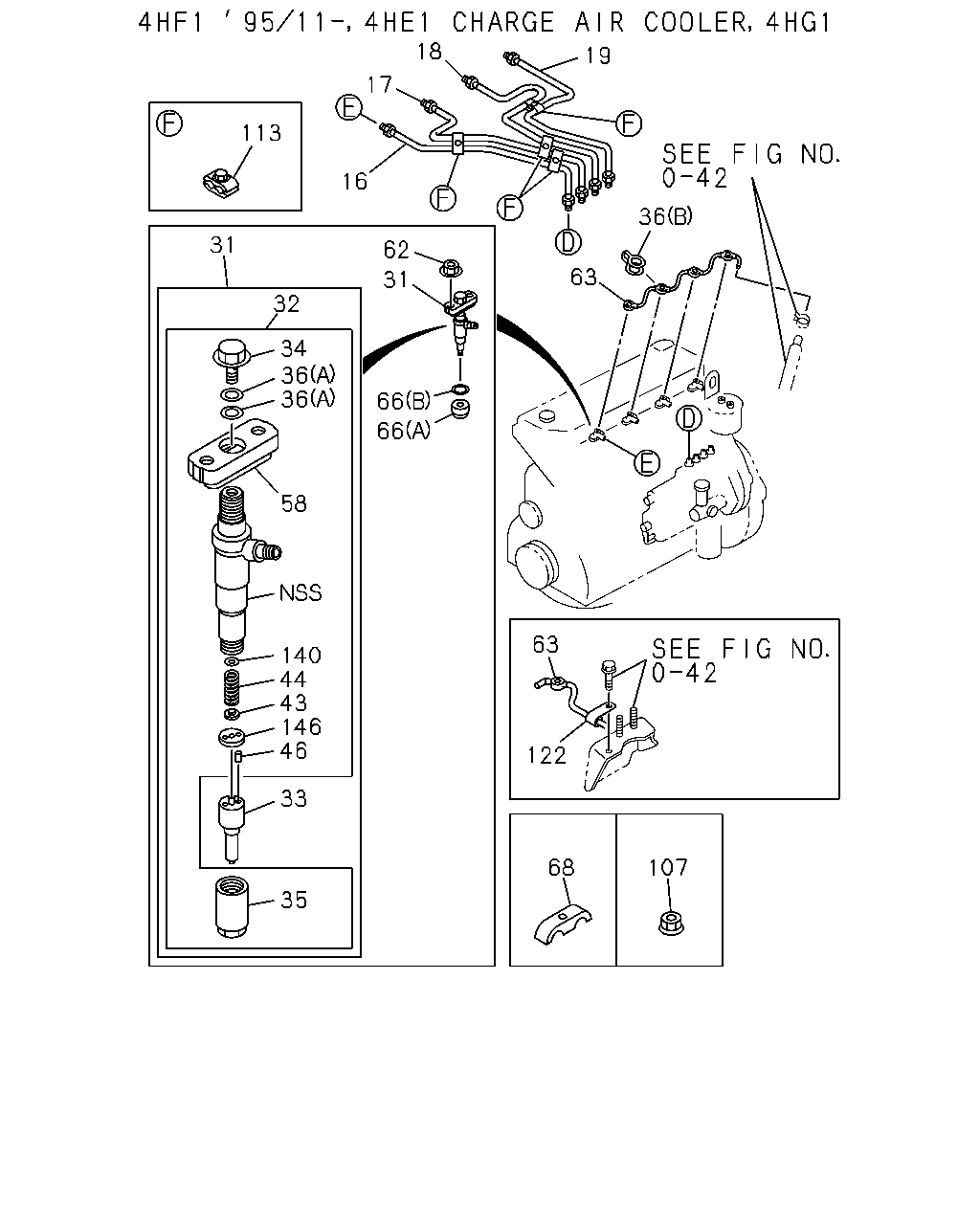

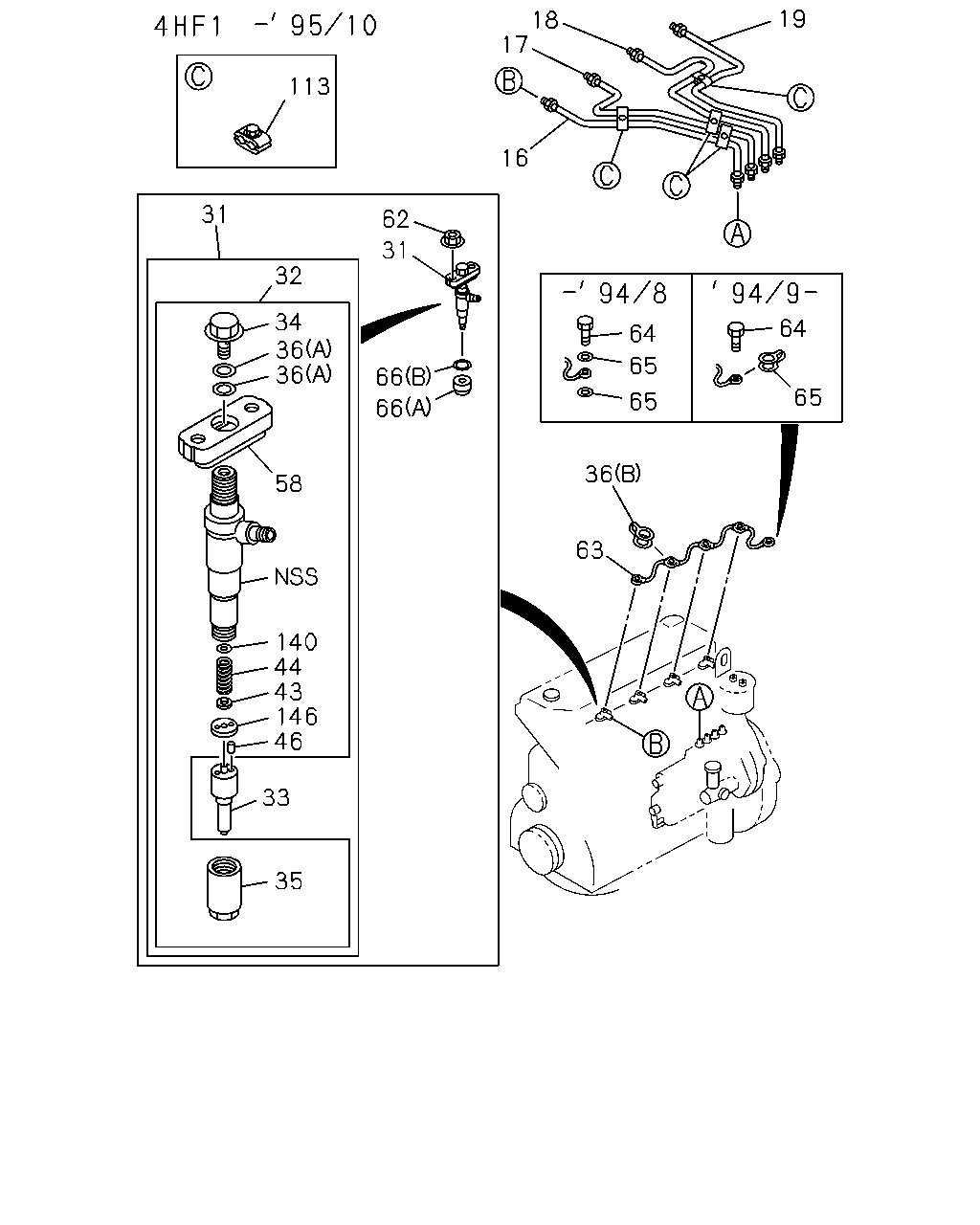

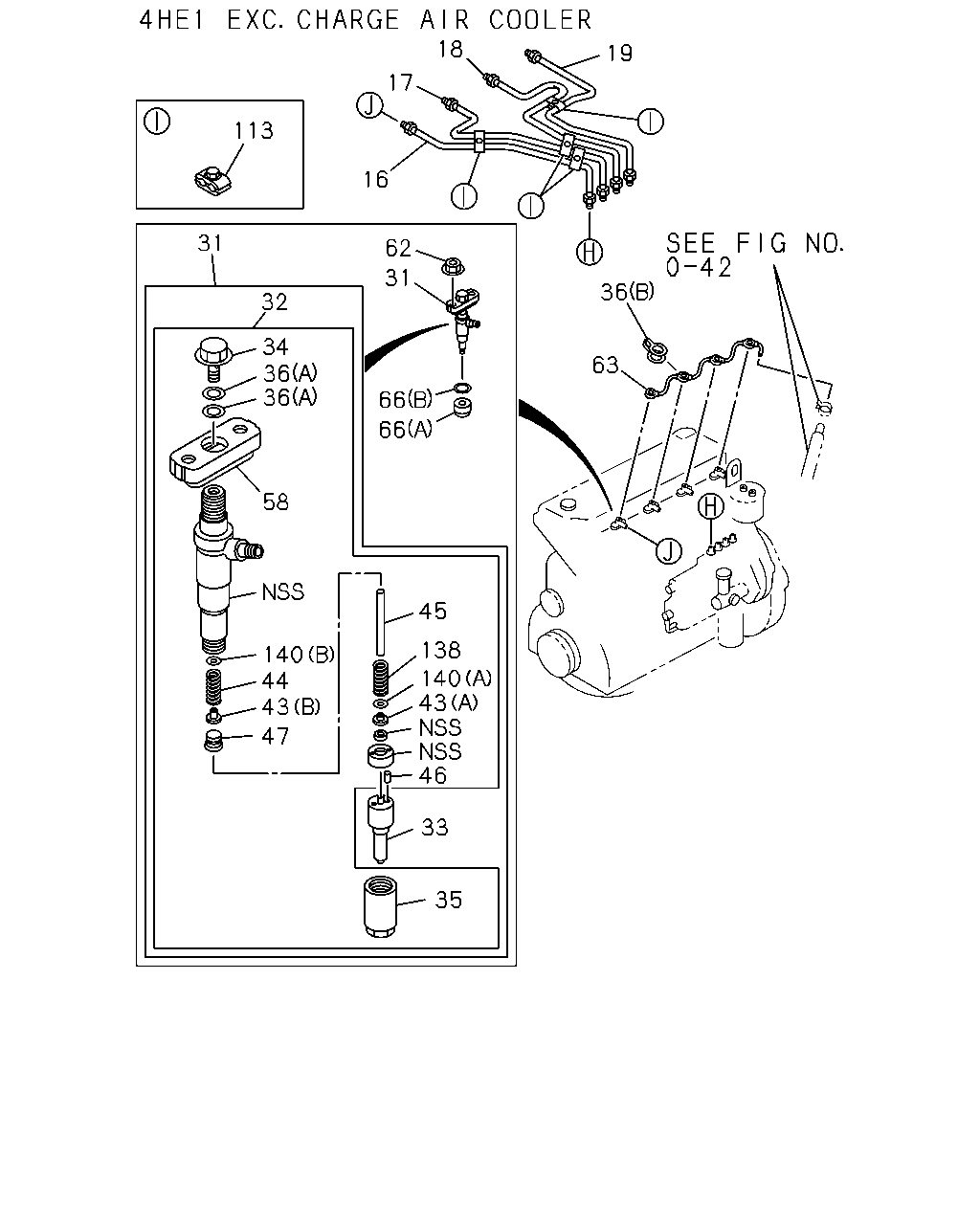

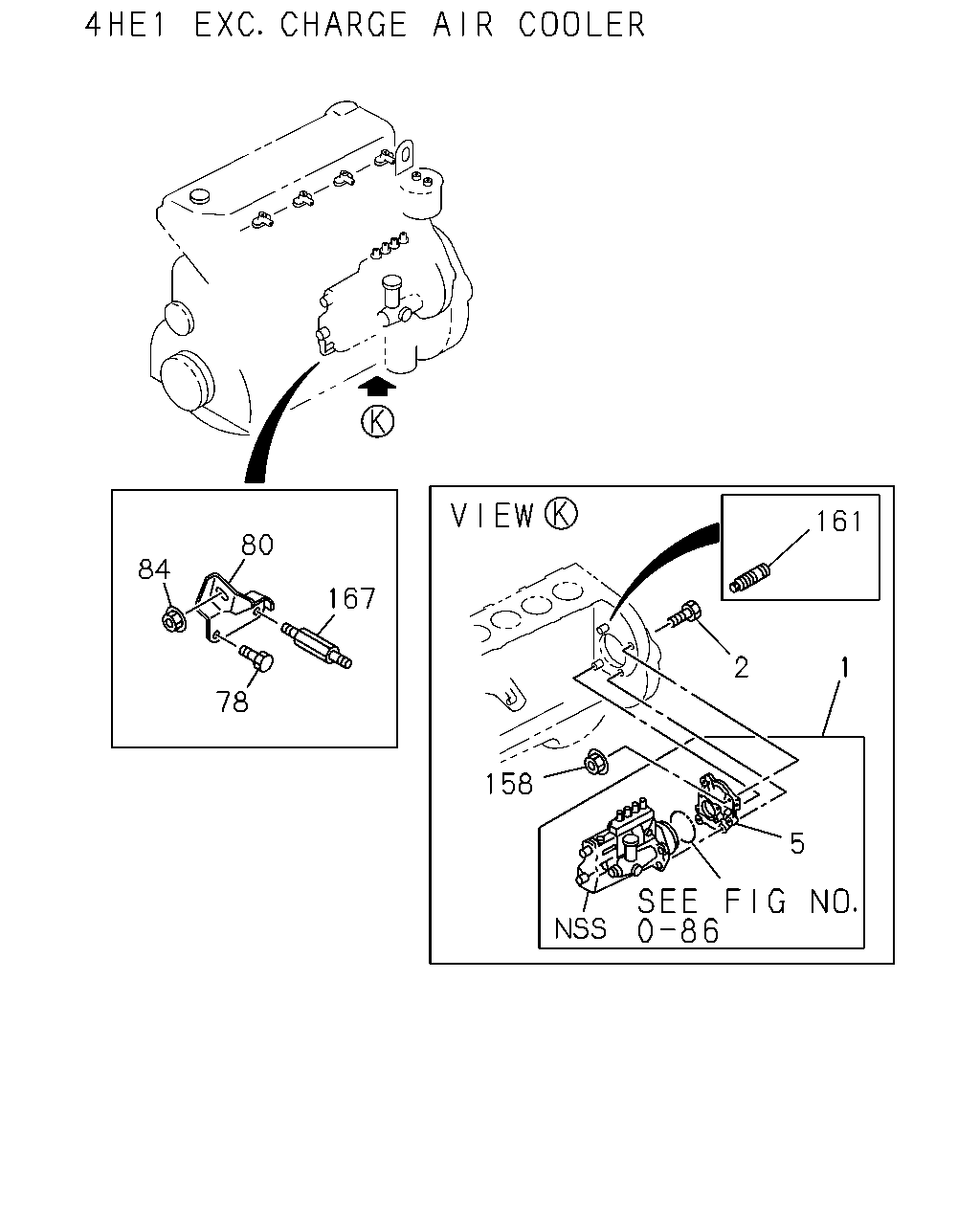

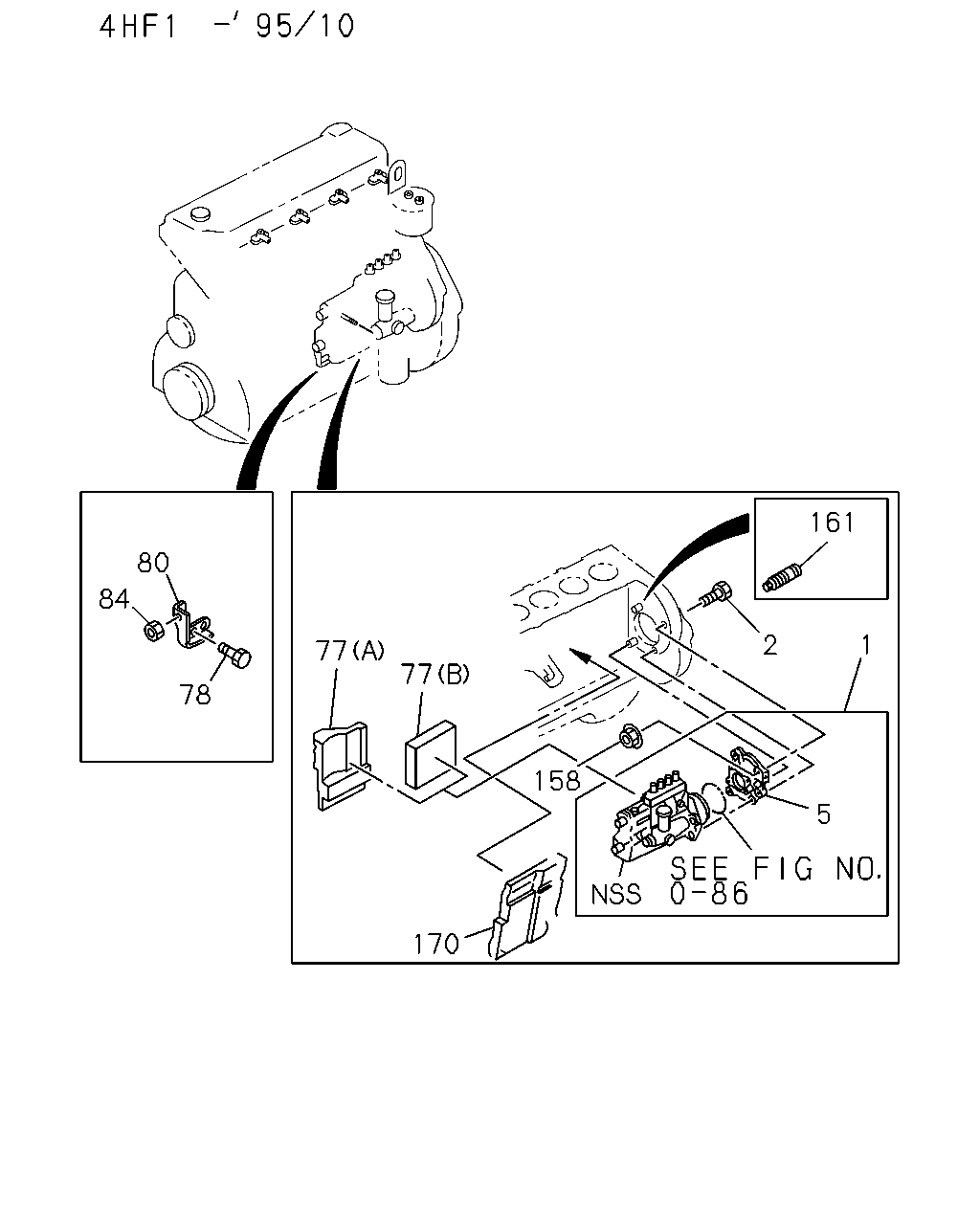

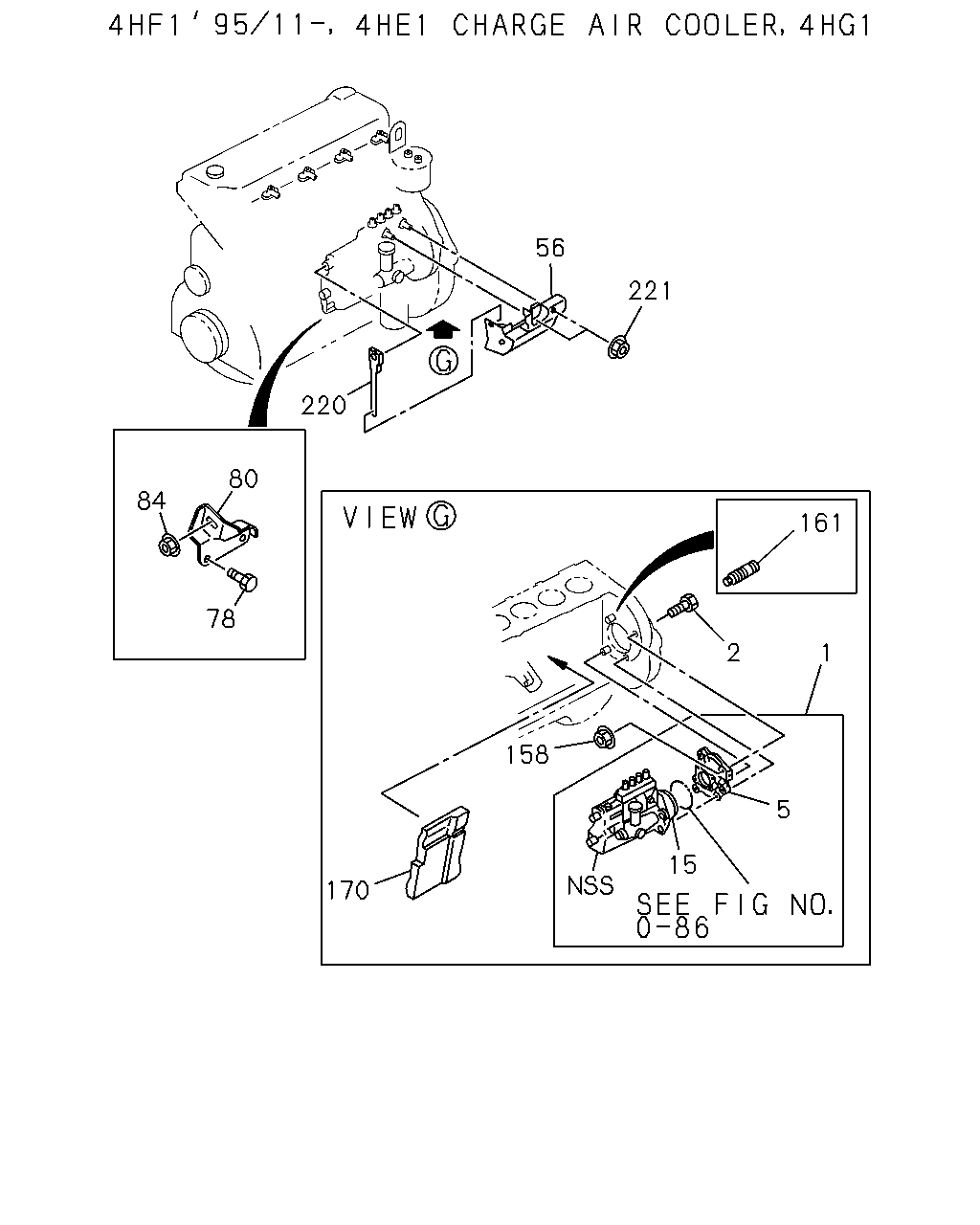

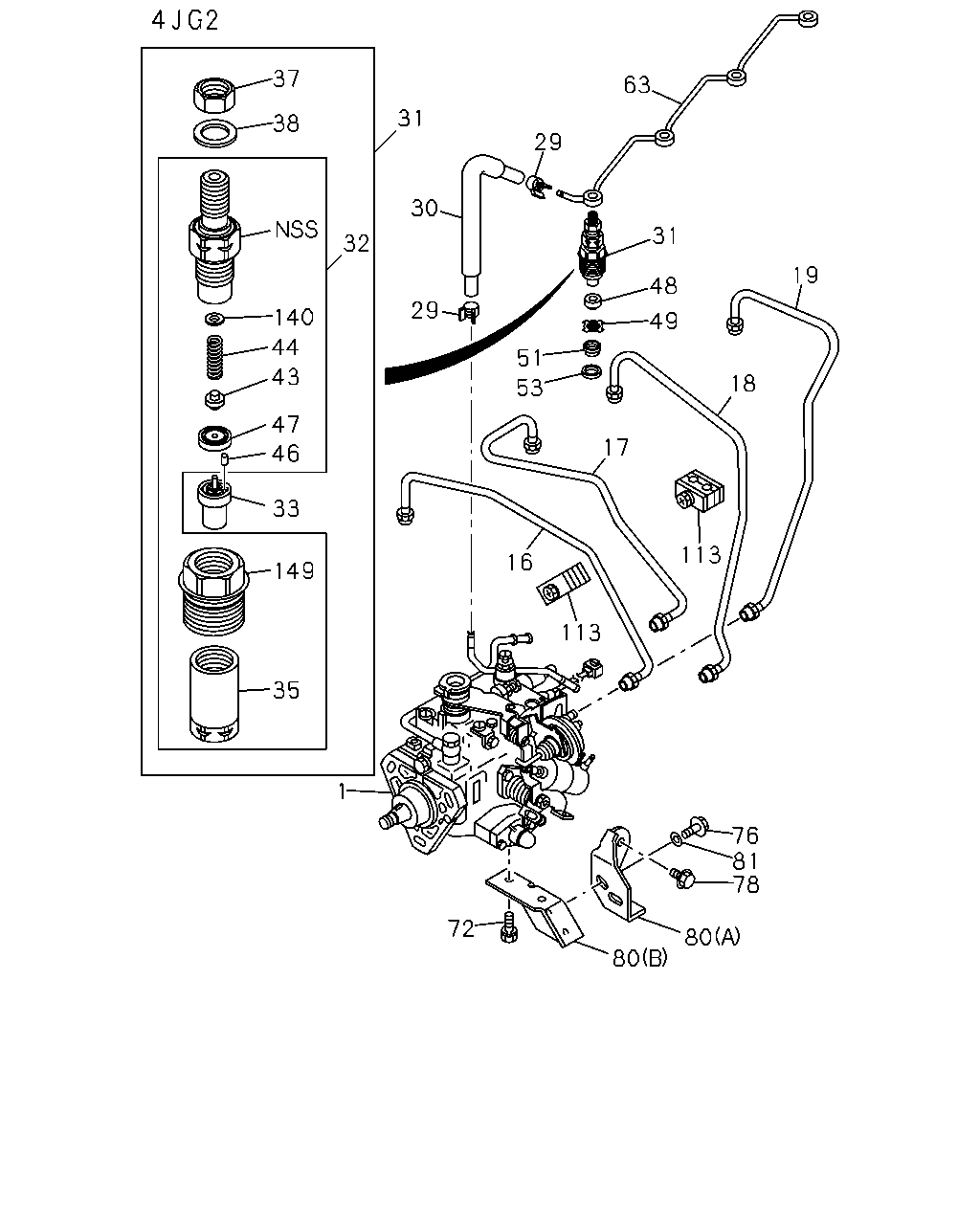

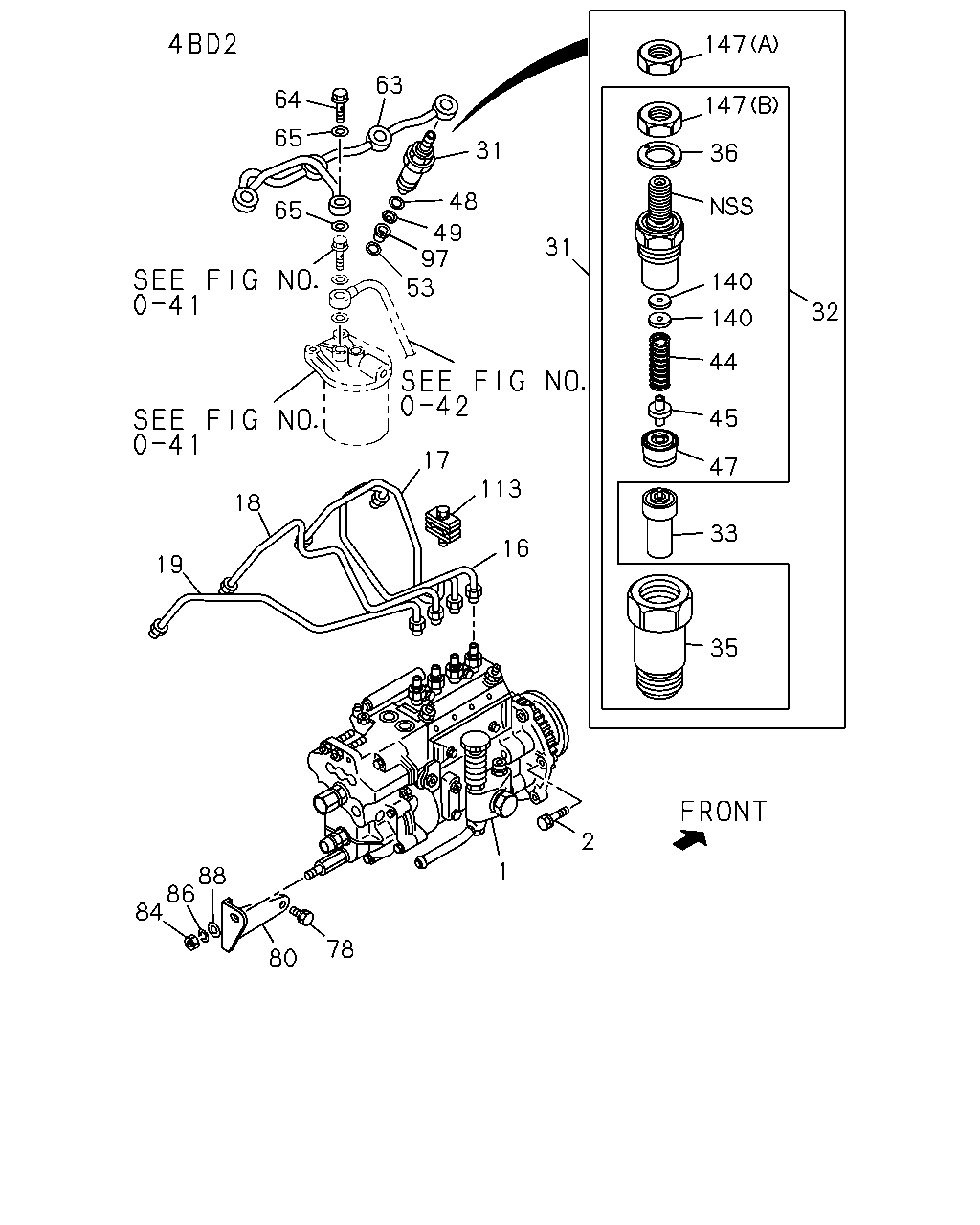

03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
COLOMBIA EQUIPMENT(X74)
|
8-97093-496-0 |
01 |
1 |
9312-9410 |
● |
|
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
COLOMBIA EQUIPMENT(X74)
|
8-97117-563-0 |
01 |
1 |
9411-9510 |
● |
|
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
|
8-97093-497-0 |
01 |
1 |
9312-9410 |
● |
|
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
|
8-97117-564-0 |
01 |
1 |
9411-9510 |
● |
|
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV),COLOMBIA EQU
IPMENT(X74)
|
8-97136-661-0 |
01 |
1 |
9511-9511 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV),COLOMBIA EQU
IPMENT(X74)
|
8-97136-661-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV),COLOMBIA EQU
IPMENT(X74)
|
8-97146-783-0 |
01 |
1 |
9604-9711 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV)
|
8-97146-783-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
|
8-97091-744-0 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. EURO2 SPECIFICATION<7AF>
|
8-97091-744-0 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97170-505-0 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
|
8-97138-842-2 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EURO2 SPECIFICATION<7AF>
|
8-97138-842-2 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
A/T 4 SPEED-JATCO(RMK)
|
8-97117-785-0 |
01 |
1 |
9505-9505 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
A/T 4 SPEED-JATCO(RMK)
|
8-97132-051-0 |
01 |
1 |
9506-9510 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
A/T 4 SPEED-JATCO(RMK)
|
8-97132-051-2 |
01 |
1 |
9701- |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FRAME STRAIGHT TYPE<7KJ>
|
8-97168-312-2 |
01 |
1 |
9611- |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
|
8-97103-319-1 |
01 |
1 |
9312-9401 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97093-684-2 |
01 |
1 |
9312-9401 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
|
8-97093-684-2 |
01 |
1 |
9402-9410 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
|
8-97117-565-0 |
01 |
1 |
9411-9504 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
|
8-97117-565-0 |
01 |
1 |
9505-9505 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
|
8-97132-050-0 |
01 |
1 |
9506-9510 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
|
8-97132-050-2 |
01 |
1 |
9511-9610 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97132-050-2 |
01 |
1 |
9611- |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97093-064-1 |
01 |
1 |
9312-9410 |
|
|
|
|
|
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97117-561-1 |
01 |
1 |
9411- |
|
|
|
|
|
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97085-067-2 |
01 |
1 |
9312-9410 |
|
|
|
|
|
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97117-560-1 |
01 |
1 |
9411- |
|
|
|
|
|
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EURO1 SPECIFICATION<6YW>
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97122-356-1 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EURO1 SPECIFICATION<6YW>
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97136-659-0 |
01 |
1 |
9511-9511 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV),COLOMBIA
EQUIPMENT(X74)
|
8-97136-659-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV),COLOMBIA
EQUIPMENT(X74)
|
8-97146-781-0 |
01 |
1 |
9604-9711 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV)
|
8-97146-781-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
TAIWAN EQUIPMENT(RWV)
|
8-97107-649-0 |
01 |
1 |
9312-9406 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
TAIWAN EQUIPMENT(RWV)
|
8-97114-051-0 |
01 |
1 |
9407-9504 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
AIR CONDITIONER MANUAL CONT(C60)
TAIWAN EQUIPMENT(RWV)
|
8-97114-051-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
TAIWAN EQUIPMENT(RWV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97139-558-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
TAIWAN EQUIPMENT(RWV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97146-786-0 |
01 |
1 |
9604- |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97107-650-0 |
01 |
1 |
9312-9406 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97114-052-0 |
01 |
1 |
9407-9504 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
AIR CONDITIONER MANUAL CONT(C60)
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97114-052-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FRAME STRAIGHT TYPE<7KJ>
|
8-97122-789-0 |
01 |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV)
|
8-97075-399-2 |
01 |
1 |
9312-9406 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV)
|
8-97114-005-0 |
01 |
1 |
9407-9504 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),TAI
WAN EQUIPMENT(RWV)
|
8-97114-005-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97139-557-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97146-785-0 |
01 |
1 |
9604- |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV)
|
8-97114-013-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EURO1 SPECIFICATION<6YW>
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97122-357-1 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EURO1 SPECIFICATION<6YW>
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97136-658-0 |
01 |
1 |
9511-9511 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMEN
T(X74)
|
8-97136-658-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV),COLOMBIA EQUIPMEN
T(X74)
|
8-97146-780-0 |
01 |
1 |
9604-9711 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
TAIWAN EQUIPMENT(RWV)
|
8-97146-780-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV)
|
8-97075-397-2 |
01 |
1 |
9312-9406 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV)
|
8-97114-004-0 |
01 |
1 |
9407-9504 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. AIR CONDITIONER MANUAL
CONT(C60),TAIWAN EQUIPMENT(RWV)
|
8-97114-004-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
EXC. AIR CONDITIONER MANUAL
CONT(C60)
|
8-97100-837-1 |
01 |
1 |
9312-9406 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
TAIWAN EQUIPMENT(RWV)
EXC. AIR CONDITIONER MANUAL
CONT(C60)
|
8-97114-014-0 |
01 |
1 |
9407-9504 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
FLOOR REMOTE SHIFT<M11>
TAIWAN EQUIPMENT(RWV)
EXC. AIR CONDITIONER MANUAL
CONT(C60)
|
8-97114-014-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
COLOMBIA EQUIPMENT(X74)
EXC. AIR CONDITIONER MANUAL
CONT(C60)
|
8-97136-660-0 |
01 |
1 |
9511-9604 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
COLOMBIA EQUIPMENT(X74)
EXC. AIR CONDITIONER MANUAL
CONT(C60)
|
8-97146-782-0 |
01 |
1 |
9604-9711 |
|
● |
|
|
|
|
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
COLOMBIA EQUIPMENT(X74)
EXC. AIR CONDITIONER MANUAL
CONT(C60),CHARGE AIR COOLER<6PL>
|
8-97170-508-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
AIR CONDITIONER MANUAL CONT(C60)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
COLOMBIA EQUIPMENT(X74),CHARGE AIR
COOLER<6PL>
|
8-97170-506-1 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
EXC. AIR CONDITIONER MANUAL
CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2),
COLOMBIA EQUIPMENT(X74),CHARGE AIR COOL
ER<6PL>
|
8-97170-507-1 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-97147-642-3 |
01 |
1 |
9712-9805 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-97210-054-1 |
01 |
1 |
9806-9809 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-97212-185-0 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
TAIWAN EQUIPMENT(RWV)
|
8-97184-244-2 |
01 |
1 |
9712-9805 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
TAIWAN EQUIPMENT(RWV)
|
8-97210-056-1 |
01 |
1 |
9806-9809 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHARGE AIR COOLER<6PL>
TAIWAN EQUIPMENT(RWV)
|
8-97212-186-0 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHILE EQUIPMENT(6KB)
|
8-97184-243-1 |
01 |
1 |
9802-9805 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHILE EQUIPMENT(6KB)
|
8-97210-057-1 |
01 |
1 |
9806-9809 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
CHILE EQUIPMENT(6KB)
|
8-97212-188-0 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
VENEZUELA EQUIPMENT(S2L)
|
8-97147-640-3 |
01 |
1 |
9802-9805 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
VENEZUELA EQUIPMENT(S2L)
|
8-97210-050-1 |
01 |
1 |
9806-9809 |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
VENEZUELA EQUIPMENT(S2L)
|
8-97212-182-0 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT
.
HIGH ALTITUDE COMPENSATOR(EE2)
|
8-97170-504-0 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
M8X55 W/LK WASHER
|
5-09000-084-1 |
06 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
M8X55 W/LK WASHER
|
5-09000-084-1 |
06 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
M8X22
|
5-09000-222-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
M8X22
|
5-09000-222-1 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
03.162
M14X29 EYE-BOLT
|
9-09906-325-1 |
02 |
1 |
9411-9510 |
● |
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
03.162
M14X29 EYE-BOLT
|
9-09906-325-1 |
02 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
2 |
03.330 BOLT; INJ PUMP
03.890
M10X70 FLANGE
|
0-28181-070-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
03.890
M10X70 FLANGE
|
0-28181-070-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
M12X70 FLANGE
|
0-28181-270-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
M12X70 FLANGE
|
0-28181-270-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
00.685
M12X88.5
|
8-94312-794-1 |
01 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
00.685
M12X88.5
|
8-94312-794-1 |
01 |
1 |
9712-9809 |
|
● |
|
● |
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL>
00.685
M12X88.5
|
8-94312-794-1 |
01 |
1 |
9712-9809 |
|
|
|
|
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
M12X90 FLANGE
|
0-28181-290-0 |
01 |
1 |
9810- |
|
● |
|
● |
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL>
M12X90 FLANGE
|
0-28181-290-0 |
01 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
03.162
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
03.162
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
9712-9801 |
|
● |
|
● |
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL>
03.162
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9802- |
|
|
|
|
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
03.162
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
9802- |
|
● |
|
● |
|
|
|
| |
2 |
03.330 BOLT; INJ PUMP
EXC. CHARGE AIR COOLER<6PL>
03.162
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
9802- |
|
|
|
|
|
|
● |
| |
2 |
03.330 BOLT; INJ PUMP
CHARGE AIR COOLER<6PL>
M12X110
|
0-28186-211-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
16 |
03.330 PIPE; INJ NO.1
|
8-94132-875-2 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97101-873-1 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
EXC. EURO2 SPECIFICATION<7AF>
|
8-97101-873-2 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-932-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
16 |
03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION<7AF>
|
8-97140-421-1 |
01 |
1 |
9512-9703 |
|
|
● |
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION<7AF>
|
8-97169-365-0 |
01 |
1 |
9704-9711 |
|
|
● |
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97169-365-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97010-633-3 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97027-349-1 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97071-712-3 |
01 |
1 |
9312-9502 |
|
● |
|
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97123-374-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97123-374-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
16 |
03.330 PIPE; INJ NO.1
CHARGE AIR COOLER<6PL>
|
8-97148-963-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
17 |
03.330 PIPE; INJ NO.2
|
8-94132-876-2 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97094-688-1 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
EXC. EURO2 SPECIFICATION<7AF>
|
8-97094-688-2 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-933-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
17 |
03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION<7AF>
|
8-97140-422-1 |
01 |
1 |
9512-9703 |
|
|
● |
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION<7AF>
|
8-97169-366-0 |
01 |
1 |
9704-9711 |
|
|
● |
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97169-366-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97010-634-2 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97027-350-1 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97071-713-3 |
01 |
1 |
9312-9502 |
|
● |
|
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97123-375-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97123-375-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
17 |
03.330 PIPE; INJ NO.2
CHARGE AIR COOLER<6PL>
|
8-97148-964-2 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
18 |
03.330 PIPE; INJ NO.3
|
8-94132-877-2 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97094-689-1 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
EXC. EURO2 SPECIFICATION<7AF>
|
8-97094-689-2 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-934-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
18 |
03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION<7AF>
|
8-97140-423-1 |
01 |
1 |
9512-9703 |
|
|
● |
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION<7AF>
|
8-97169-367-0 |
01 |
1 |
9704-9711 |
|
|
● |
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97169-367-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97010-635-2 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97027-351-1 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97071-714-3 |
01 |
1 |
9312-9502 |
|
● |
|
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97123-376-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97123-376-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
18 |
03.330 PIPE; INJ NO.3
CHARGE AIR COOLER<6PL>
|
8-97148-965-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
19 |
03.330 PIPE; INJ NO.4
|
8-94132-878-2 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97094-690-1 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
EXC. EURO2 SPECIFICATION<7AF>
|
8-97094-690-2 |
01 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
EXC. CHARGE AIR COOLER<6PL>
|
8-97065-935-3 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
19 |
03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION<7AF>
|
8-97140-424-1 |
01 |
1 |
9512-9703 |
|
|
● |
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION<7AF>
|
8-97169-368-0 |
01 |
1 |
9704-9711 |
|
|
● |
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97169-368-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97010-636-2 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97027-352-1 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97071-715-3 |
01 |
1 |
9312-9502 |
|
● |
|
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97123-377-1 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97123-377-1 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
19 |
03.330 PIPE; INJ NO.4
CHARGE AIR COOLER<6PL>
|
8-97148-966-2 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
31 |
03.332 NOZZLE ASM; INJ
COLOMBIA EQUIPMENT(X74)
|
8-94117-023-1 |
04 |
1 |
9312-9412 |
● |
|
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
COLOMBIA EQUIPMENT(X74)
|
1-15300-170-1 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
TAIWAN EQUIPMENT(RWV)
|
1-15300-142-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97088-673-0 |
04 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
EXC. EURO2 SPECIFICATION<7AF>
|
8-97088-673-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97119-811-0 |
04 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
EURO2 SPECIFICATION<7AF>
|
8-97143-196-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97143-196-0 |
04 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97025-466-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-94476-375-2 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
31 |
03.332 NOZZLE ASM; INJ
EURO1 SPECIFICATION<6YW>
|
8-97119-812-0 |
04 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97119-812-0 |
04 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
TAIWAN EQUIPMENT(RWV)
|
8-97107-779-0 |
04 |
1 |
9312-9407 |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
TAIWAN EQUIPMENT(RWV)
|
8-97114-018-0 |
04 |
1 |
9408-9510 |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97094-799-0 |
04 |
1 |
9312-9407 |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97114-017-0 |
04 |
1 |
9408-9510 |
|
● |
|
|
|
|
|
| |
31 |
03.332 NOZZLE ASM; INJ
CHARGE AIR COOLER<6PL>
|
8-97148-960-1 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
31 |
03.332 NOZZLE ASM; INJ
EXC. CHARGE AIR COOLER<6PL>
|
8-97115-503-1 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
32 |
03.332 HOLDER ASM; NOZZLE
COLOMBIA EQUIPMENT(X74)
|
8-94129-748-0 |
04 |
1 |
9312-9412 |
● |
|
|
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
COLOMBIA EQUIPMENT(X74)
|
1-15330-087-1 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
TAIWAN EQUIPMENT(RWV)
|
1-15330-053-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-97089-066-0 |
04 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
EXC. EURO2 SPECIFICATION<7AF>
|
8-97089-066-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
EXC. CHARGE AIR COOLER<6PL>
|
8-97078-783-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
32 |
03.332 HOLDER ASM; NOZZLE
EURO2 SPECIFICATION<7AF>
|
8-94368-247-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94368-247-0 |
04 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94106-276-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94476-377-1 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94311-966-2 |
04 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94311-966-2 |
04 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
CHARGE AIR COOLER<6PL>
|
8-94311-966-2 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
33 |
03.332 NOZZLE; INJ
COLOMBIA EQUIPMENT(X74)
|
5-15311-020-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
TAIWAN EQUIPMENT(RWV)
|
1-15311-143-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-97081-158-1 |
04 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-158-1 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-97119-809-0 |
04 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
33 |
03.332 NOZZLE; INJ
EURO2 SPECIFICATION<7AF>
|
8-97143-190-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-97143-190-0 |
04 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-94476-623-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-94476-376-0 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
33 |
03.332 NOZZLE; INJ
EURO1 SPECIFICATION<6YW>
|
8-97119-810-0 |
04 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
|
8-97119-810-0 |
04 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
TAIWAN EQUIPMENT(RWV)
|
8-97107-780-0 |
04 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
EXC. TAIWAN EQUIPMENT(RWV)
|
8-97094-803-0 |
04 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
33 |
03.332 NOZZLE; INJ
CHARGE AIR COOLER<6PL>
|
8-97148-961-1 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
33 |
03.332 NOZZLE; INJ
EXC. CHARGE AIR COOLER<6PL>
|
8-97115-508-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
COLOMBIA EQUIPMENT(X74)
03.332
|
5-15349-001-0 |
04 |
1 |
9312-9412 |
● |
|
|
|
|
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
COLOMBIA EQUIPMENT(X74)
|
1-15339-009-0 |
04 |
1 |
9501-9502 |
● |
|
|
|
|
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
TAIWAN EQUIPMENT(RWV)
03.332
M8X19 FLANGE
|
1-09675-139-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
03.332
M8X19 FLANGE
|
1-09675-139-0 |
04 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
03.332
M8X19 FLANGE
|
1-09675-139-0 |
04 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
|
1-15339-009-0 |
04 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
|
1-15339-009-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
03.332
|
5-15332-007-0 |
04 |
1 |
9312-9412 |
● |
|
|
|
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
TAIWAN EQUIPMENT(RWV)
03.332
|
5-15332-007-0 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
COLOMBIA EQUIPMENT(X74)
|
1-15332-017-0 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94482-217-0 |
04 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94125-794-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
9312-9406 |
|
● |
|
|
|
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
9407-9502 |
|
|
|
|
|
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
|
8-94174-184-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
9407-9502 |
|
● |
|
|
|
|
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-041-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
COLOMBIA EQUIPMENT(X74)
|
1-15339-010-0 |
08 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9312-9412 |
● |
|
|
|
|
● |
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
TAIWAN EQUIPMENT(RWV)
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9501-9510 |
|
|
|
|
|
● |
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
|
8-94220-086-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
|
1-15339-010-0 |
08 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
|
1-15339-010-0 |
08 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
ID=8.6
|
8-94395-214-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
|
|
| |
36 |
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
ID=8.6
|
8-94395-214-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
41 |
03.330 CONNECTOR; FUEL INL,NOZZLE HOLDE
03.332
|
5-15349-002-0 |
04 |
1 |
9312-9412 |
● |
|
|
|
|
|
|
| |
41 |
03.330 CONNECTOR; FUEL INL,NOZZLE HOLDE
TAIWAN EQUIPMENT(RWV)
03.332
|
5-15349-002-0 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
41 |
03.330 CONNECTOR; FUEL INL,NOZZLE HOLDE
COLOMBIA EQUIPMENT(X74)
|
5-15351-001-0 |
04 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
41 |
03.330 CONNECTOR; FUEL INL,NOZZLE HOLDE
|
8-94328-764-0 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
42 |
03.332 GASKET; INL CONNECTOR,NOZZLE HOL
|
5-15339-003-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
● |
|
| |
42 |
03.332 GASKET; INL CONNECTOR,NOZZLE HOL
|
5-15339-003-0 |
04 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94128-963-0 |
04 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94329-555-0 |
04 |
1 |
9312-9406 |
|
● |
|
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94329-555-0 |
04 |
1 |
9407-9502 |
|
|
|
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94329-555-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94329-555-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
|
8-94329-555-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
|
8-94329-555-0 |
04 |
1 |
9407-9502 |
|
● |
|
|
|
|
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
|
1-15341-090-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
|
1-15342-001-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
03.332
|
5-15343-005-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94128-964-0 |
04 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94246-531-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9312-9406 |
|
● |
|
|
|
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9407-9502 |
|
|
|
|
|
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
|
8-94174-141-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
9407-9502 |
|
● |
|
|
|
|
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15343-003-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
03.332
|
9-15347-003-0 |
04 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
03.332
|
9-15347-003-0 |
08 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
04 |
1 |
9312-9406 |
|
● |
|
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
04 |
1 |
9407-9502 |
|
|
|
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
08 |
1 |
9503-9511 |
|
● |
|
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
08 |
1 |
9512-9603 |
|
● |
● |
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
EURO2 SPECIFICATION<7AF>
|
8-94174-139-0 |
08 |
1 |
9604-9611 |
|
|
● |
|
|
|
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
08 |
1 |
9604-9611 |
|
● |
|
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
08 |
1 |
9612-9711 |
|
● |
● |
|
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
08 |
1 |
9712- |
|
● |
● |
● |
|
● |
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
CHARGE AIR COOLER<6PL>
|
8-94174-139-0 |
08 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
|
8-94174-139-0 |
04 |
1 |
9407-9502 |
|
● |
|
|
|
|
|
| |
46 |
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
EXC. CHARGE AIR COOLER<6PL>
|
1-15341-091-0 |
08 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-97086-141-0 |
04 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
EXC. EURO2 SPECIFICATION<7AF>
|
8-97086-141-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
EXC. CHARGE AIR COOLER<6PL>
|
1-15349-005-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
EURO2 SPECIFICATION<7AF>
|
8-97062-045-0 |
04 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-97062-045-0 |
04 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
9-15331-004-0 |
04 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-94174-183-0 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
58 |
03.332 FLANGE; INJ,NOZZLE HOLDER
03.330
|
8-94319-320-0 |
04 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
58 |
03.332 FLANGE; INJ,NOZZLE HOLDER
|
8-97065-713-0 |
04 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
58 |
03.332 FLANGE; INJ,NOZZLE HOLDER
|
8-97065-713-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
60 |
03.332 WASHER; NOZZLE HOLDER
00.002
ID=8.2
|
9-09150-508-0 |
08 |
1 |
9312-9510 |
● |
|
|
|
|
● |
|
| |
60 |
03.332 WASHER; NOZZLE HOLDER
00.002
ID=8.2
|
9-09150-508-0 |
08 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
62 |
03.332 NUT; NOZZLE HOLDER
02.559
M8
|
9-09110-408-0 |
08 |
1 |
9312-9510 |
● |
|
|
|
|
● |
|
| |
62 |
03.332 NUT; NOZZLE HOLDER
02.559
M8
|
9-09110-408-0 |
08 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
62 |
03.332 NUT; NOZZLE HOLDER
07.633
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
62 |
03.332 NUT; NOZZLE HOLDER
07.633
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
9712- |
|
● |
|
● |
|
|
● |
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-94479-575-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94479-575-0 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94479-575-0 |
01 |
1 |
9511- |
|
|
|
|
|
● |
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-94368-249-2 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97048-598-0 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
AIR INTAKE SYSTEM FRONT<6PC>
|
8-94129-564-0 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97027-985-1 |
01 |
1 |
9312-9504 |
|
● |
|
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. EURO1 SPECIFICATION<6YW>
|
8-97027-985-1 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
EURO1 SPECIFICATION<6YW>
|
8-97118-895-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97118-895-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97118-895-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. CHARGE AIR COOLER<6PL>
|
8-97118-895-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
CHARGE AIR COOLER<6PL>
|
8-97148-969-2 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
64 |
03.162 BOLT; JOINT,FUEL FILTER
|
9-09906-314-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
64 |
03.162 BOLT; JOINT,FUEL FILTER
|
9-09906-314-1 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
64 |
03.162 BOLT; JOINT,FUEL FILTER
M8X18 EYE-BOLT
|
1-09675-037-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
65 |
03.162 GASKET; FUEL FILTER
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
65 |
03.162 GASKET; FUEL FILTER
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
02 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
65 |
03.162 GASKET; FUEL FILTER
ID=8.2 OD=13.2
|
1-09630-082-0 |
02 |
1 |
9312-9408 |
|
● |
|
|
|
|
|
| |
65 |
03.162 GASKET; FUEL FILTER
ID=8.6
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9409-9504 |
|
● |
|
|
|
|
|
| |
65 |
03.162 GASKET; FUEL FILTER
03.332
ID=8.6
|
8-94395-214-0 |
01 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
ID=9.2 OD=19.0 T=7.3
|
5-15315-003-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9407-9412 |
● |
|
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
TAIWAN EQUIPMENT(RWV)
05.398
ID=8.2 OD=14.0 T=1.0
|
9-09571-408-0 |
08 |
1 |
9501-9510 |
● |
|
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
ID=7.2 OD=15.0 T=6.6
|
8-94125-859-1 |
04 |
1 |
9312-9504 |
|
|
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
ID=7.2 OD=15.0 T=6.6
|
8-94125-859-1 |
04 |
1 |
9505-9510 |
|
|
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
EURO1 SPECIFICATION<6YW>
(A)
ID=7.2 OD=15.0 T=6.6
|
8-94125-859-1 |
04 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
ID=7.2 OD=15.0 T=6.6
|
8-94125-859-1 |
04 |
1 |
9511-9703 |
|
● |
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
ID=7.2 OD=15.0 T=6.6
|
8-97171-331-0 |
04 |
1 |
9704-9711 |
|
● |
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
ID=7.2 OD=15.0 T=6.6
|
8-97171-331-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
|
8-94326-439-0 |
04 |
1 |
9312-9406 |
|
● |
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
|
8-94326-439-0 |
04 |
1 |
9407-9502 |
|
|
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
|
8-94326-439-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
|
8-94326-439-0 |
04 |
1 |
9712- |
|
● |
|
● |
|
● |
● |
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(A)
|
8-94377-623-0 |
04 |
1 |
9312-9504 |
|
● |
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
EXC. EURO1 SPECIFICATION<6YW>
(A)
|
8-94377-623-0 |
04 |
1 |
9505-9510 |
|
● |
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
(B)
|
8-94326-439-0 |
04 |
1 |
9407-9502 |
|
● |
|
|
|
|
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
CHARGE AIR COOLER<6PL>
(B)
|
8-97171-922-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & H
EAD)
EXC. CHARGE AIR COOLER<6PL>
07.003
(A)
|
8-97171-332-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
78 |
03.330 BOLT; BRKT TO C/BL
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
02 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
02.559
M8X22 W/LK&PL WASHER
|
0-50140-822-0 |
02 |
1 |
9312-9612 |
|
|
● |
|
|
|
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9701- |
|
|
● |
|
|
|
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
01.540
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
9312-9606 |
|
● |
|
|
|
|
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
04.785
M10X20 FLANGE
|
0-28781-020-0 |
02 |
1 |
9607-9711 |
|
● |
|
|
|
|
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
04.785
M10X20 FLANGE
|
0-28781-020-0 |
02 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
78 |
03.330 BOLT; BRKT TO C/BL
04.785
M10X20 FLANGE
|
0-28781-020-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
80 |
03.306 BRACKET; PUMP
|
5-19751-071-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
80 |
03.306 BRACKET; PUMP
|
5-19751-071-0 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
80 |
03.306 BRACKET; PUMP
03.330
(A)
|
8-94133-761-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
03.330
(B)
|
8-94133-762-2 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
03.330
|
8-94311-184-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
EXC. EURO1 SPECIFICATION<6YW>
03.330
|
8-94311-184-1 |
01 |
1 |
9511-9511 |
|
● |
|
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
EURO1 SPECIFICATION<6YW>
|
8-97136-677-0 |
01 |
1 |
9511-9511 |
|
● |
|
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
|
8-97136-677-0 |
01 |
1 |
9512-9711 |
|
● |
|
|
|
|
|
| |
80 |
03.306 BRACKET; PUMP
|
8-97136-677-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
80 |
03.306 BRACKET; PUMP
EXC. CHARGE AIR COOLER<6PL>
|
8-97136-677-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
80 |
03.306 BRACKET; PUMP
CHARGE AIR COOLER<6PL>
|
8-97148-958-1 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
84 |
03.330 NUT; BRKT TO BRKT
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
84 |
03.330 NUT; BRKT TO BRKT
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
84 |
03.330 NUT; BRKT TO BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
84 |
03.330 NUT; BRKT TO BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
84 |
03.330 NUT; BRKT TO BRKT
EXC. CHARGE AIR COOLER<6PL>
08.917
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
84 |
03.330 NUT; BRKT TO BRKT
CHARGE AIR COOLER<6PL>
07.243
M12 FLANGE
|
0-91150-212-0 |
01 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
86 |
03.330 WASHER; LK,BRKT TO BRKT,INJ PUMP
00.002
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
86 |
03.330 WASHER; LK,BRKT TO BRKT,INJ PUMP
00.002
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
88 |
03.330 WASHER; PL,PUMP & RR BRKT FIX
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
● |
● |
|
| |
88 |
03.330 WASHER; PL,PUMP & RR BRKT FIX
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
01 |
1 |
9511- |
|
|
|
|
● |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
03.330
|
5-15419-013-1 |
03 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
03.330
|
5-15419-013-1 |
02 |
1 |
9511- |
|
|
● |
|
● |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
03.330
|
5-15419-013-1 |
02 |
1 |
9312-9510 |
|
|
● |
|
● |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
|
8-94388-824-3 |
04 |
1 |
9312-9403 |
|
● |
|
|
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
|
8-97108-317-0 |
04 |
1 |
9404-9711 |
|
● |
|
|
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
|
8-97108-317-0 |
04 |
1 |
9712-9804 |
|
● |
|
● |
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
|
8-97191-409-0 |
04 |
1 |
9805- |
|
● |
|
● |
|
|
|
| |
113 |
03.162 CLIP; INJ PIPE
|
8-97108-317-0 |
05 |
1 |
9712-9804 |
|
|
|
|
|
|
● |
| |
113 |
03.162 CLIP; INJ PIPE
|
8-97191-409-0 |
05 |
1 |
9805-9809 |
|
|
|
|
|
|
● |
| |
113 |
03.162 CLIP; INJ PIPE
EXC. CHARGE AIR COOLER<6PL>
|
8-97191-409-0 |
05 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
113 |
03.162 CLIP; INJ PIPE
CHARGE AIR COOLER<6PL>
|
8-97213-050-0 |
05 |
1 |
9810- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.10
|
8-94176-962-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.10
|
8-94176-962-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=1.20
|
1-15349-004-0 |
04 |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.20
|
8-94176-963-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.20
|
8-94176-963-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.40
|
1-15349-042-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.30
|
8-94176-964-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.30
|
8-94176-964-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.50
|
1-15349-043-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.40
|
8-94176-965-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.40
|
8-94176-965-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.52
|
1-15349-044-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.50
|
8-94176-966-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.50
|
8-94176-966-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.54
|
1-15349-045-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.52
|
8-94176-967-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.52
|
8-94176-967-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.56
|
1-15349-046-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.54
|
8-94176-968-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.54
|
8-94176-968-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.58
|
1-15349-047-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.56
|
8-94176-969-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.56
|
8-94176-969-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.60
|
1-15349-048-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.58
|
8-94176-970-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.58
|
8-94176-970-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.70
|
1-15349-049-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
T=0.80
|
8-94176-971-0 |
AR |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. EURO2 SPECIFICATION<7AF>
T=0.80
|
8-94176-971-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(B)
T=0.50
|
8-97027-442-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.322
T=0.80
|
5-15339-010-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.322
T=0.80
|
5-15339-010-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.00
|
8-94176-886-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.00
|
8-94176-886-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.01
|
8-94176-887-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.01
|
8-94176-887-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.02
|
8-94176-888-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.02
|
8-94176-888-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.03
|
8-94176-889-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.03
|
8-94176-889-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.04
|
8-94176-890-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.04
|
8-94176-890-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.05
|
8-94176-891-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.05
|
8-94176-891-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.06
|
8-94176-892-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.06
|
8-94176-892-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.07
|
8-94176-893-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.07
|
8-94176-893-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.08
|
8-94176-894-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.08
|
8-94176-894-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.09
|
8-94176-895-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.09
|
8-94176-895-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.10
|
8-94176-896-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.10
|
8-94176-896-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.11
|
8-94176-897-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.11
|
8-94176-897-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.12
|
8-94176-898-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.12
|
8-94176-898-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.13
|
8-94176-899-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.13
|
8-94176-899-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.14
|
8-94176-900-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.14
|
8-94176-900-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.16
|
8-94176-902-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.16
|
8-94176-902-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.17
|
8-94176-903-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.17
|
8-94176-903-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.18
|
8-94176-904-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.18
|
8-94176-904-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.19
|
8-94176-905-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.19
|
8-94176-905-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.20
|
8-94176-906-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.20
|
8-94176-906-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.21
|
8-94176-907-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.21
|
8-94176-907-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.22
|
8-94176-908-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.22
|
8-94176-908-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.23
|
8-94176-909-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.23
|
8-94176-909-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.24
|
8-94176-910-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.24
|
8-94176-910-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.25
|
8-94176-911-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.25
|
8-94176-911-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.26
|
8-94176-912-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.26
|
8-94176-912-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.27
|
8-94176-913-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.27
|
8-94176-913-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.28
|
8-94176-914-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.28
|
8-94176-914-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.29
|
8-94176-915-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.29
|
8-94176-915-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.30
|
8-94176-916-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.30
|
8-94176-916-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.31
|
8-94176-917-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.31
|
8-94176-917-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.32
|
8-94176-918-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.32
|
8-94176-918-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.33
|
8-94176-919-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.33
|
8-94176-919-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.34
|
8-94176-920-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.34
|
8-94176-920-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.35
|
8-94176-921-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.35
|
8-94176-921-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.36
|
8-94176-922-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.36
|
8-94176-922-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.37
|
8-94176-923-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.37
|
8-94176-923-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.38
|
8-94176-924-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.38
|
8-94176-924-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.40
|
8-94176-925-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.40
|
8-94176-925-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.41
|
8-94176-926-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.41
|
8-94176-926-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.42
|
8-94176-927-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.42
|
8-94176-927-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.43
|
8-94176-928-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.43
|
8-94176-928-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.44
|
8-94176-929-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.44
|
8-94176-929-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.45
|
8-94176-930-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.45
|
8-94176-930-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.46
|
8-94176-931-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.46
|
8-94176-931-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.47
|
8-94176-932-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.47
|
8-94176-932-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.48
|
8-94176-933-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.48
|
8-94176-933-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.49
|
8-94176-934-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.49
|
8-94176-934-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.50
|
8-94176-935-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.50
|
8-94176-935-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.51
|
8-94176-936-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.51
|
8-94176-936-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.52
|
8-94176-937-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.52
|
8-94176-937-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.53
|
8-94176-938-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.53
|
8-94176-938-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.54
|
8-94176-939-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.54
|
8-94176-939-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.55
|
8-94176-940-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.55
|
8-94176-940-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.56
|
8-94176-941-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.56
|
8-94176-941-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.57
|
8-94176-942-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.57
|
8-94176-942-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.58
|
8-94176-943-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.58
|
8-94176-943-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.59
|
8-94176-944-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.59
|
8-94176-944-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.60
|
8-94176-945-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.60
|
8-94176-945-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.61
|
8-94176-946-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.61
|
8-94176-946-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.62
|
8-94176-947-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.62
|
8-94176-947-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.63
|
8-94176-948-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.63
|
8-94176-948-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.64
|
8-94176-949-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.64
|
8-94176-949-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.65
|
8-94176-950-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.65
|
8-94176-950-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.66
|
8-94176-951-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.66
|
8-94176-951-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.67
|
8-94176-952-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.67
|
8-94176-952-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.68
|
8-94176-953-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.68
|
8-94176-953-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.69
|
8-94176-954-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.69
|
8-94176-954-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.70
|
8-94176-955-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.70
|
8-94176-955-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.71
|
8-94176-956-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.71
|
8-94176-956-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.72
|
8-94176-957-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.72
|
8-94176-957-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.73
|
8-94176-958-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.73
|
8-94176-958-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.74
|
8-94176-959-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.74
|
8-94176-959-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.75
|
8-94176-960-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.75
|
8-94176-960-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EURO2 SPECIFICATION<7AF>
03.332
T=1.39
|
8-94178-796-0 |
AR |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.39
|
8-94178-796-0 |
AR |
1 |
9712- |
|
|
● |
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.50
|
5-15339-007-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.70
|
5-15339-009-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.90
|
5-15339-011-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.00
|
5-15339-012-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.54
|
5-15339-019-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.58
|
5-15339-021-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.62
|
5-15339-022-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.66
|
5-15339-024-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.74
|
5-15339-027-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.78
|
5-15339-029-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.82
|
5-15339-030-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.86
|
5-15339-032-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.94
|
5-15339-035-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.98
|
5-15339-037-0 |
AR |
1 |
9312-9510 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.50
|
5-15339-007-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.50
|
5-15339-007-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.70
|
5-15339-009-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.70
|
5-15339-009-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.90
|
5-15339-011-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.90
|
5-15339-011-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.00
|
5-15339-012-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.00
|
5-15339-012-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.54
|
5-15339-019-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.54
|
5-15339-019-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.58
|
5-15339-021-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.58
|
5-15339-021-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.62
|
5-15339-022-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.62
|
5-15339-022-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.66
|
5-15339-024-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.66
|
5-15339-024-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.74
|
5-15339-027-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.74
|
5-15339-027-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.78
|
5-15339-029-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.78
|
5-15339-029-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.82
|
5-15339-030-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.82
|
5-15339-030-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.86
|
5-15339-032-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.86
|
5-15339-032-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.94
|
5-15339-035-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.94
|
5-15339-035-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.98
|
5-15339-037-0 |
AR |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.98
|
5-15339-037-0 |
AR |
1 |
9511- |
|
|
|
|
● |
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.500
|
8-94174-142-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.525
|
8-94174-143-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.550
|
8-94174-144-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.575
|
8-94174-145-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.600
|
8-94174-146-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.625
|
8-94174-147-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.650
|
8-94174-148-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.675
|
8-94174-149-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.700
|
8-94174-150-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.725
|
8-94174-151-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.750
|
8-94174-152-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.775
|
8-94174-153-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.800
|
8-94174-154-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.825
|
8-94174-155-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.850
|
8-94174-156-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.875
|
8-94174-157-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.900
|
8-94174-158-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.925
|
8-94174-159-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.950
|
8-94174-160-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.975
|
8-94174-161-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.000
|
8-94174-162-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.025
|
8-94174-163-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.050
|
8-94174-164-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.075
|
8-94174-165-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.100
|
8-94174-166-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.125
|
8-94174-167-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.150
|
8-94174-168-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.175
|
8-94174-169-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.200
|
8-94174-170-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.225
|
8-94174-171-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.250
|
8-94174-172-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.275
|
8-94174-173-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.300
|
8-94174-174-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.325
|
8-94174-175-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.350
|
8-94174-176-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.375
|
8-94174-177-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.400
|
8-94174-178-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.425
|
8-94174-179-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.450
|
8-94174-180-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.475
|
8-94174-181-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=1.500
|
8-94174-182-0 |
AR |
1 |
9312- |
|
|
|
|
|
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.10
|
8-97027-432-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.10
|
8-97027-432-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.10
|
8-97027-432-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.20
|
8-97027-433-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.20
|
8-97027-433-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.20
|
8-97027-433-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.30
|
8-97027-434-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.30
|
8-97027-434-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.30
|
8-97027-434-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.40
|
8-97027-435-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.40
|
8-97027-435-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.40
|
8-97027-435-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.50
|
8-97027-436-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.50
|
8-97027-436-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.50
|
8-97027-436-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.52
|
8-97027-437-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.52
|
8-97027-437-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.52
|
8-97027-437-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.54
|
8-97027-438-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.54
|
8-97027-438-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.54
|
8-97027-438-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.56
|
8-97027-439-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.56
|
8-97027-439-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.56
|
8-97027-439-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.58
|
8-97027-440-0 |
AR |
1 |
9312-9711 |
|
● |
|
|
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332
T=0.58
|
8-97027-440-0 |
AR |
1 |
9712- |
|
● |
|
● |
|
|
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.58
|
8-97027-440-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.10
|
8-97027-432-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.20
|
8-97027-433-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.30
|
8-97027-434-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.40
|
8-97027-435-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.50
|
8-97027-436-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.52
|
8-97027-437-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.54
|
8-97027-438-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.56
|
8-97027-439-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
CHARGE AIR COOLER<6PL>
03.332
T=0.58
|
8-97027-440-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.52
|
8-97027-443-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.54
|
8-97027-444-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.56
|
8-97027-445-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.58
|
8-97027-446-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.60
|
8-97027-447-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.70
|
8-97027-448-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
EXC. CHARGE AIR COOLER<6PL>
(A)
T=0.40
|
8-97093-427-0 |
AR |
1 |
9712- |
|
|
|
|
|
|
● |
