◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#4051) — 200 parça
çizim 115794
24 24 24 26 14 121 26 33 24 14 33 121 34 23 23 34
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510- ● ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-157-1 01 1 0005- ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-1 01 1 0005- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (B) 		1-73138-145-0 02 1 9510- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-144-1 01 1 9510- ● ●
24 BRACKET; SUN VISOR
LOW ROOF<6XQ> (A) 		1-73138-143-1 01 1 9510- ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ● ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705- ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705- ● ●
121 SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510- ● ●

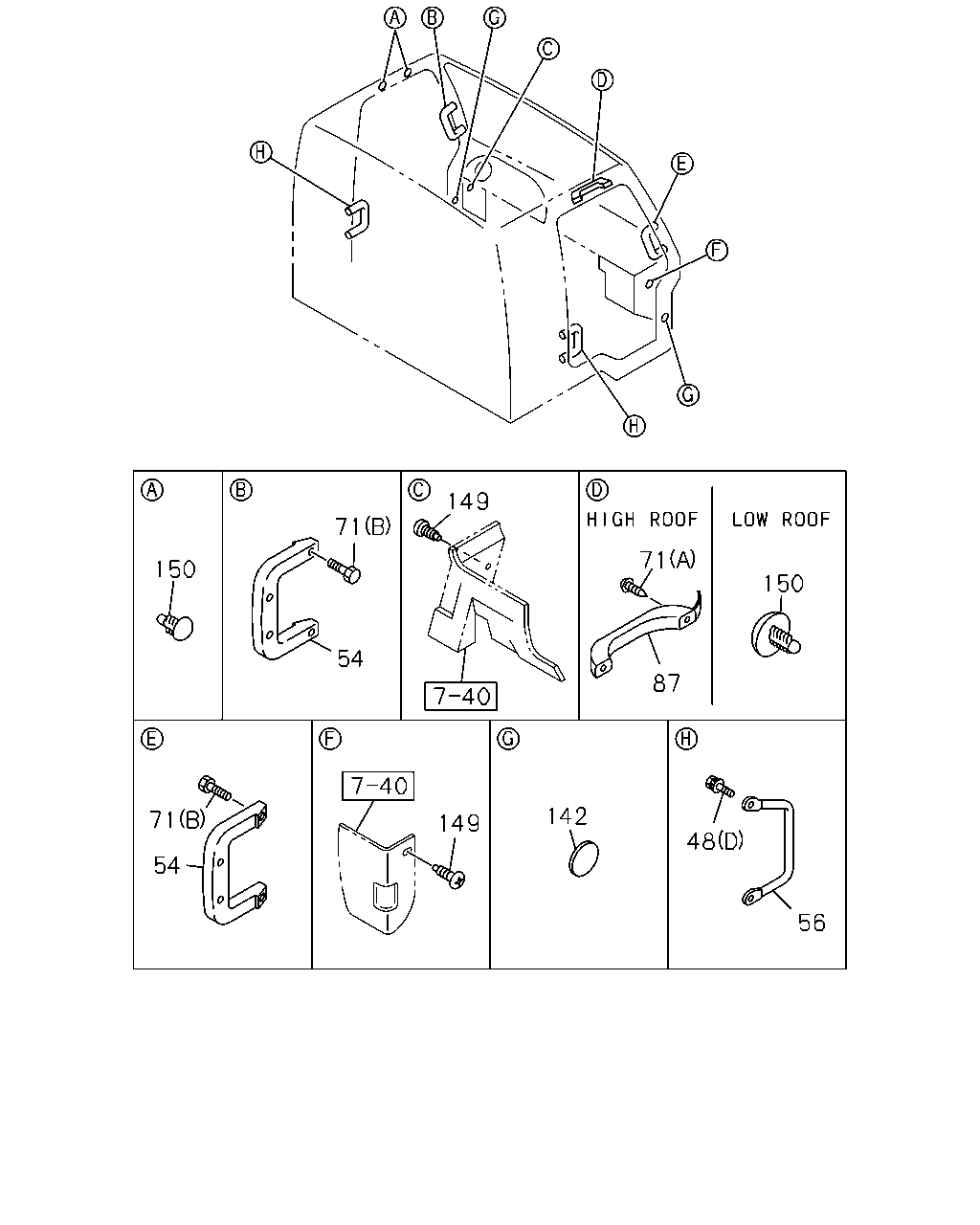

çizim 115796
149 71 71 150 150 54 87 142 71 149 48 54 56
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603- ● ●
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9510- ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510- ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER 		8-94279-215-0 02 1 9510-9603 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 02 1 9604- ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604- ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 9510-0211 ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-185-1 02 1 0212- ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 9510-0402 ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0211 ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0212 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601- ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> 		1-73618-170-0 01 1 9510-0004 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0005-0212 ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY 		8-97098-476-2 01 1 0301- ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 9510-0004 ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 9510-0302 ● ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0303- ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9510-9510 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9511-0004 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 9510-0212 ● ●
150 CLIP; ASSIST GRIP HOLE
HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●
150 CLIP; ASSIST GRIP HOLE
LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ●

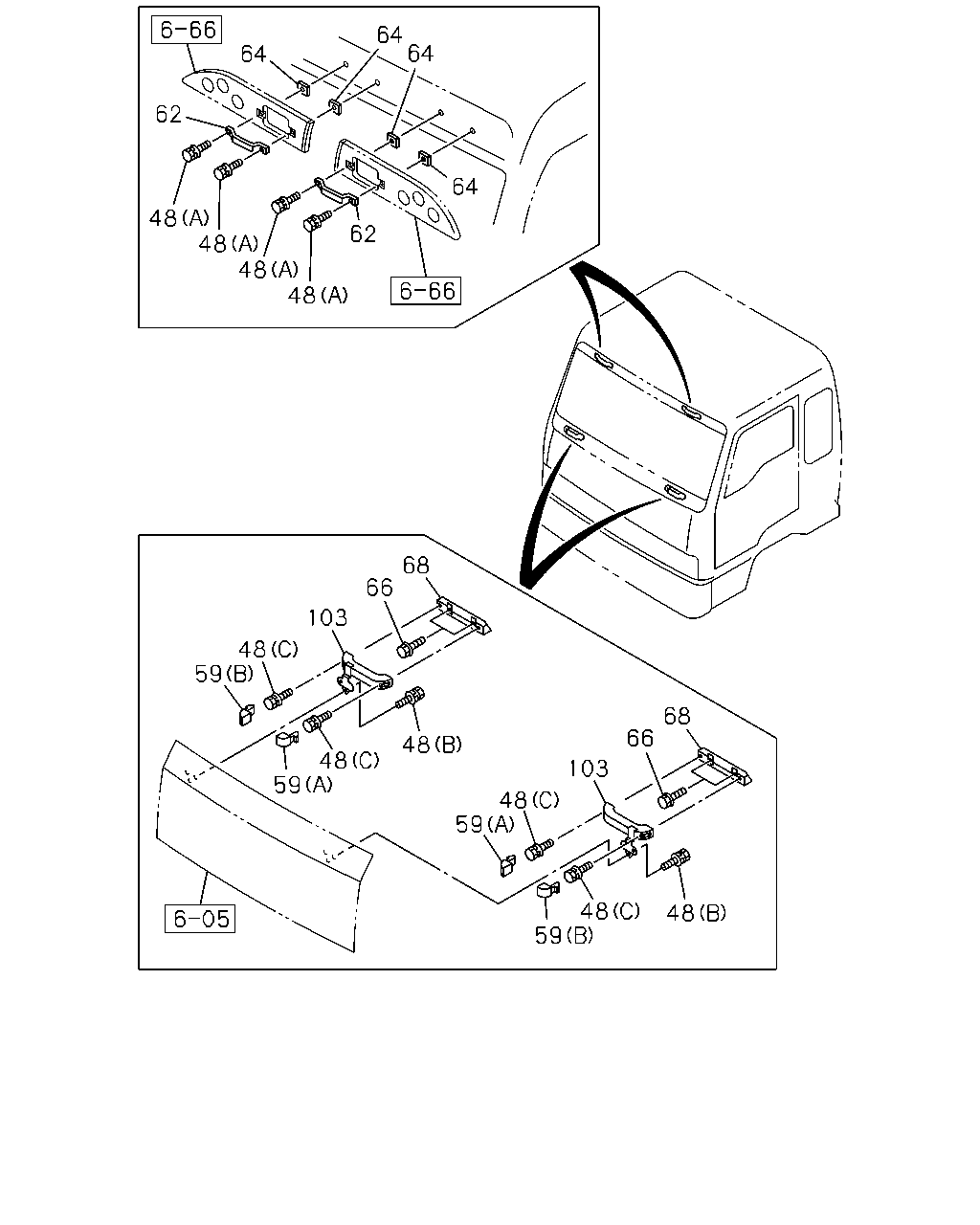

çizim 116122
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 06 1 9510-9602 ● ●
48 BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603- ● ●
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 9510- ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 9510- ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER 		8-94279-215-0 02 1 9510-9603 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 02 1 9604- ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER 		8-94279-215-0 04 1 9510-9603 ● ●
48 BOLT; ASSIST GRIP
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9604- ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 9510- ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 9510- ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> 		1-71997-895-1 01 1 9510-9610 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> 		1-71907-492-0 01 1 9611-0907 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> 		8-97630-819-0 01 1 0908- ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-71997-895-1 02 1 9510-9610 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-71907-492-0 02 1 9611-0907 ● ●
62 GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		8-97630-819-0 02 1 0908- ● ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> 25X25 		8-94272-533-0 02 1 9510-9810 ● ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25 		8-94272-533-0 04 1 9811- ● ●
64 SHEET; ASSIST GRIP
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 25X25 		8-94272-533-0 04 1 9510-9810 ● ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9510- ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 9510- ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 9510- ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 9510- ● ●

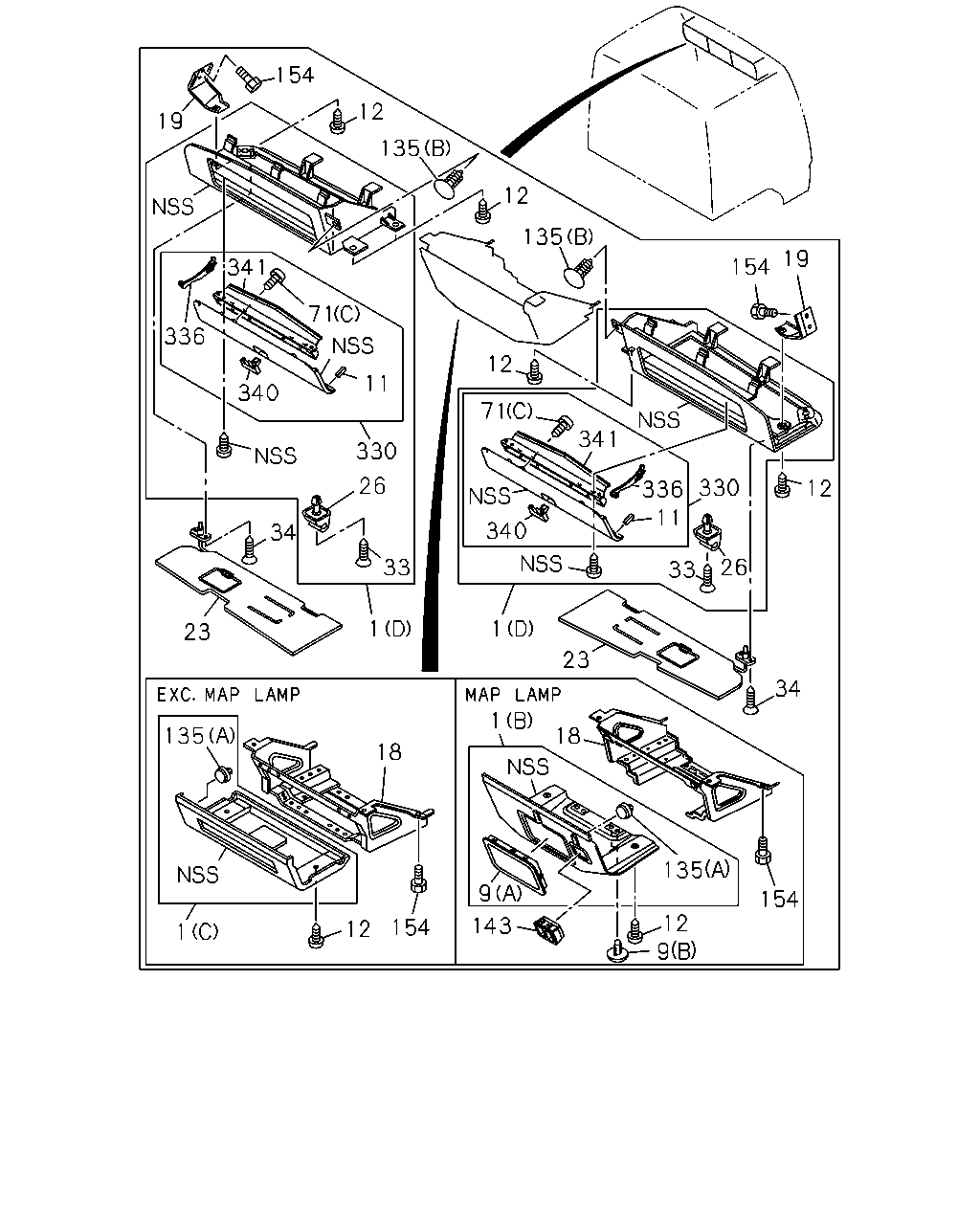

çizim 116130
154 12 19 135 12 135 19 154 341 71 336 12 11 340 71 341 330 26 330 12 336 11 340 34 26 33 33 1 1 23 23 34 1 135 18 18 135 9 154 12 9 143 154 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9510-9802 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-616-1 01 1 9803-0003 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-689-0 01 1 0004-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-691-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9510-9802 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73317-362-1 01 1 9803-0003 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-687-0 01 1 0004-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-690-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER 		1-72448-568-1 01 1 9510-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER 		1-72448-663-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER 		1-72448-573-1 01 1 9510-0004 ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER 		1-72448-702-0 01 1 0005- ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-72448-547-2 01 1 9510- ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0005- ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510- ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9802 ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9803- ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		1-72448-552-4 01 1 9510-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 9605- ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-574-2 01 1 9510-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-636-1 01 1 9605- ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510- ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510- ● ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-157-1 01 1 0005- ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-1 01 1 0005- ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ● ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705- ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705- ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0211 ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0212 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0005 ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0006- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0209 ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006- ● ●
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9510- ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510- ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-0004 ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510- ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510- ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510- ● ●

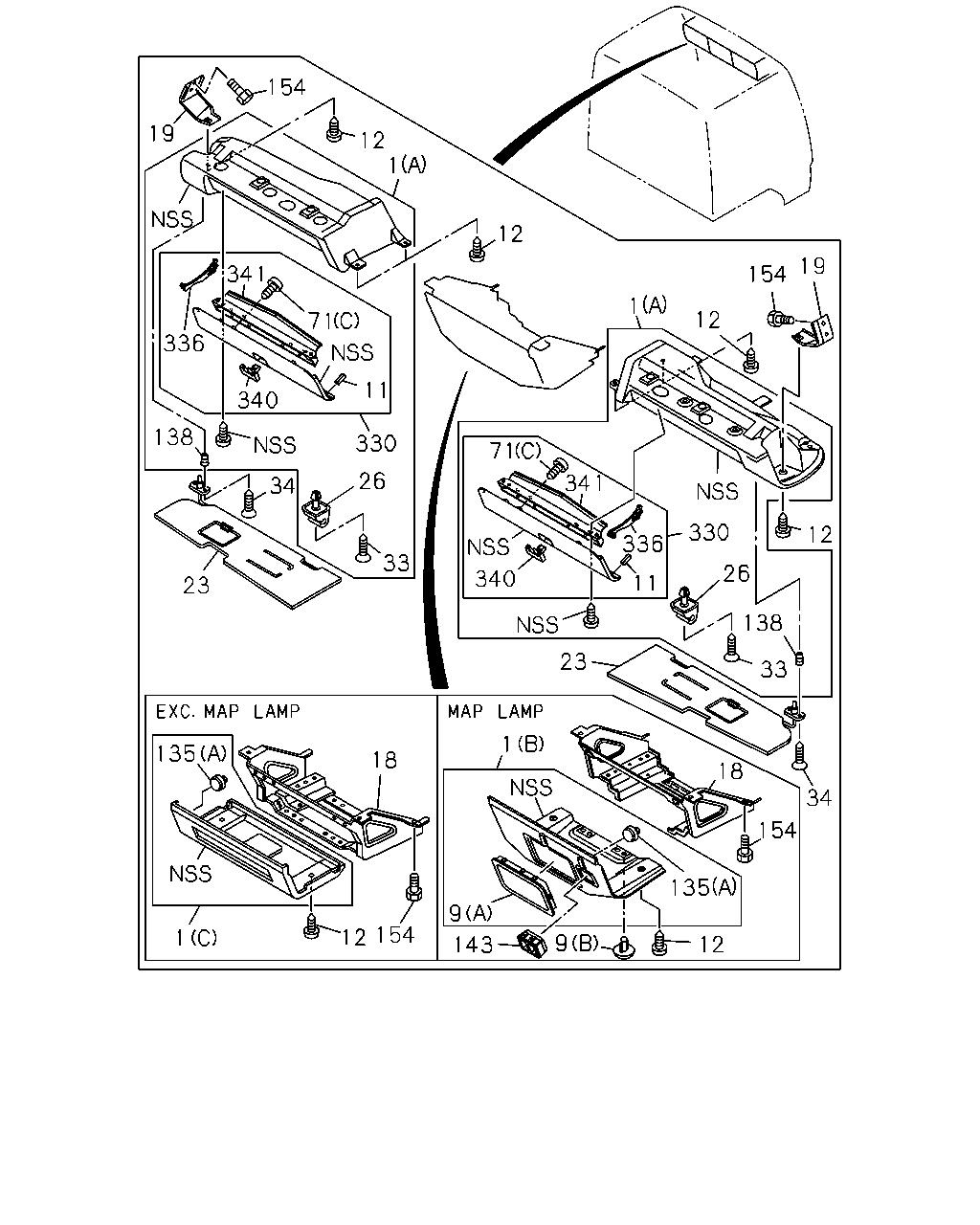

çizim 116170
154 19 12 1 12 19 154 341 1 12 71 336 11 340 138 330 71 26 341 34 330 12 336 33 26 340 11 23 138 23 33 1 135 18 18 34 154 135 9 154 12 1 9 12 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-597-2 01 1 9510-9802 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-616-1 01 1 9803-0003 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-689-0 01 1 0004-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-691-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (A) 		1-72448-596-2 01 1 9510-9802 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73317-362-1 01 1 9803-0003 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-687-0 01 1 0004-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (D) 		1-73318-690-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER 		1-72448-568-1 01 1 9510-0004 ● ●
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER 		1-72448-663-0 01 1 0005- ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER 		1-72448-573-1 01 1 9510-0004 ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER 		1-72448-702-0 01 1 0005- ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (A) 		1-72448-547-2 01 1 9510- ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 9510-0004 ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0005- ● ●
11 CAP; HEADER SHELF
HIGH ROOF<S2F> 		8-94270-538-0 04 1 9510- ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 14 1 9510-9802 ● ●
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 9803- ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		1-72448-552-4 01 1 9510-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 9605- ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-574-2 01 1 9510-9604 ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-636-1 01 1 9605- ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-324-1 01 1 9510- ● ●
19 SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-323-1 01 1 9510- ● ●
23 SUN VISOR 1-73138-150-1 01 1 9510-0004 ● ●
23 SUN VISOR 1-73138-157-1 01 1 0005- ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-148-1 01 1 9510-0004 ● ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-156-1 01 1 0005- ● ●
26 HOLDER; SUN VISOR 1-73138-142-0 02 1 9510-0004 ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9510-0101 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 02 1 0102-0603 ● ●
33 SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0604- ● ●
34 SCREW; SUN VISOR
HIGH ROOF<S2F> M6X25 		1-09981-441-0 04 1 9510-9704 ● ●
34 SCREW; SUN VISOR
LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25 		1-09981-441-0 02 1 9510-9704 ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 02 1 9705- ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9705- ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9510-0211 ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9510-9702 ● ●
71 SCREW
HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 9703-0212 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ●
71 SCREW
ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 		8-94279-325-0 06 1 9510-9512 ● ●
71 SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 9601- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 9510-0005 ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> HIGH ROOF<S2F> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0006- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 DARK GRAY 		1-09987-238-0 02 1 9803-0209 ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ● ●
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006- ● ●
138 NUT; BRKT,HEADER SHELF
HIGH ROOF<S2F> 		1-09984-166-0 04 1 9510-9802 ● ●
143 BEZEL
MAP LAMP<C85> HIGH ROOF<S2F> 		1-72448-532-0 01 1 9510- ● ●
154 BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510- ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-360-3 02 1 9510-0004 ● ●
330 LID; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-679-0 02 1 0005- ● ●
336 STAY; LID
HIGH ROOF<S2F> 		1-72448-379-3 04 1 9510- ● ●
340 LOCK; HEADER SHELF
HIGH ROOF<S2F> 		1-72448-376-0 02 1 9510- ● ●
341 HINGE; LID,HEADER SHELF
HIGH ROOF<S2F> 		1-72448-403-1 02 1 9510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
