Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#40508) — 421 parça

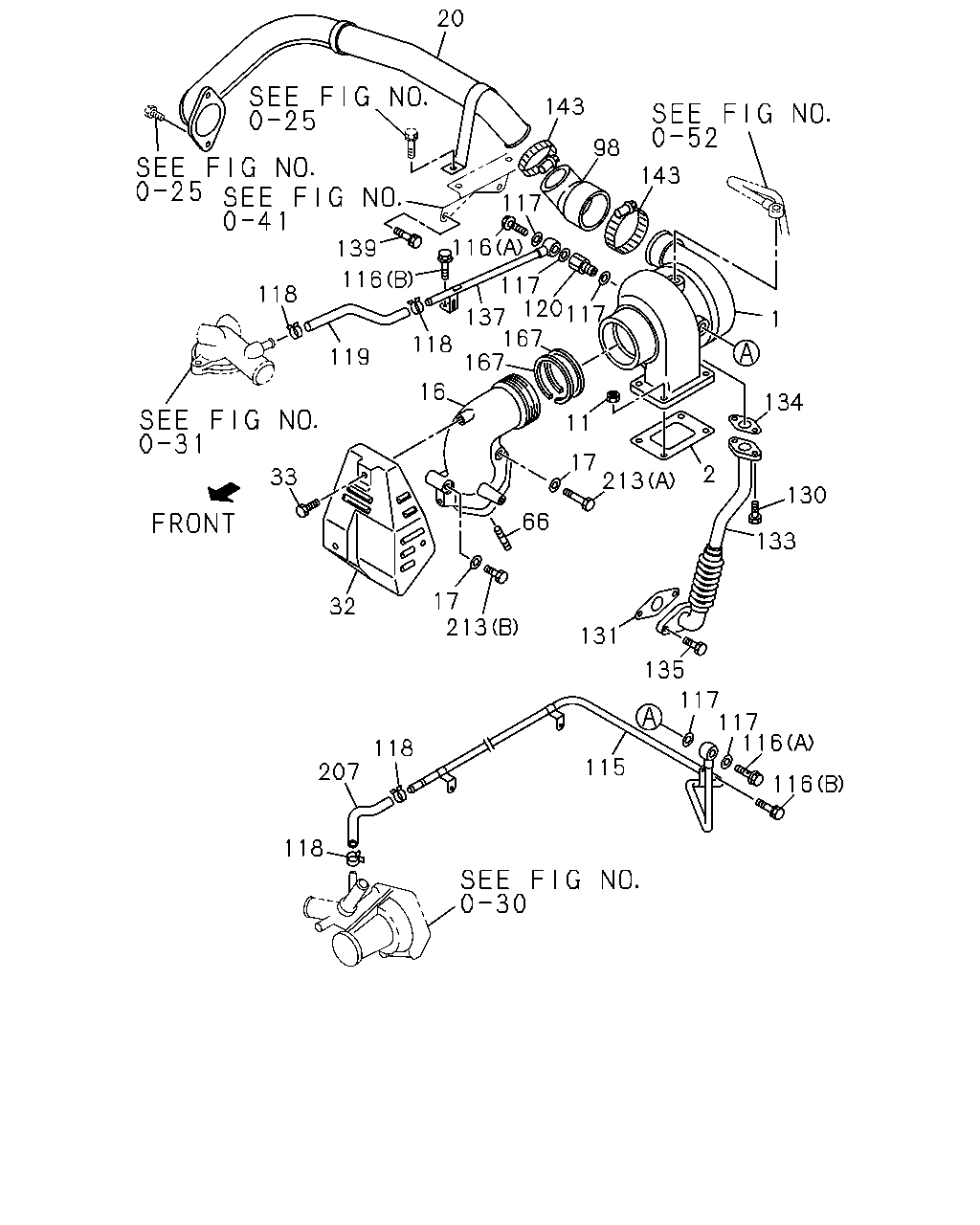

20 143 98 143 117 116 139 116 117 120 117 118 137 167 167 1 118 119 16 134 11 17 213 2 33 130 66 133 17 213 32 131 135 117 117 116 118 115 207 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94382-900-0	01	1	9312-9510	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97105-618-1	01	1	9312-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97189-452-0	01	1	9712-9806			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-1	01	1	9807-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9712-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94423-043-0	01	1	9312-9510	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94423-043-0	01	1	9511-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9312-9510	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9511-9711		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9712-		●	●
16	03.609 ADAPTER; EXH PIPE	8-94422-202-1	01	1	9312-9510	●
16	03.609 ADAPTER; EXH PIPE	8-97111-803-0	01	1	9312-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9712-			●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	02	1	9312-9510	●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9511-		●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9312-9510		●
20	03.407 PIPE; INL,TURBOCHARGER OUT	8-94381-353-0	01	1	9312-9510	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-94461-962-1	01	1	9312-9510	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97023-792-0	01	1	9312-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97190-590-0	01	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97064-417-0	01	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	03	1	9312-9510	●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9607		●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X10 FLANGE	0-28080-810-0	02	1	9608-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9712-			●
66	03.342 STUD; EXH PIPE 03.604 M10X38 L=53	8-97077-549-0	03	1	9407-9510	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-0	03	1	9312-9406	●	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-1	03	1	9407-		●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-94366-251-0	01	1	9312-9510	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97105-614-0	01	1	9312-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9312-9510	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9511-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9712-			●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9312-9510	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9511-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9712-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9312-9510	●	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9511-9612		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	03	1	9701-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	01	1	9609-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	9712-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97106-968-0	01	1	9312-9510	●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97106-968-0	01	1	9511-		●
120	01.097 ADAPTER; WATER	8-94461-965-1	01	1	9312-9510	●	●
120	01.097 ADAPTER; WATER	8-94461-965-1	01	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9712-			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9312-9510	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9511-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9312-9510	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9511-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9712-			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9312-9510	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9511-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9712-			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9312-9510	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9511-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97181-850-0	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-945-3	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9712-			●
139	03.417 BOLT; INL PIPE BRKT 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
139	03.417 BOLT; INL PIPE BRKT 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=48-68	8-94158-976-0	02	1	9312-9510	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9312-9711		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9712-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> ID=50-69	8-94316-991-0	02	1	9712-			●
167	03.613 RING	8-94423-015-1	02	1	9312-9510	●
207	03.342 HOSE; WATER,TURBOCHARGER RETURN	8-94321-737-0	01	1	9312-9510	●
207	03.342 HOSE; WATER,TURBOCHARGER RETURN	8-94338-876-2	01	1	9312-		●
213	03.613 BOLT; ADAPTER TO EXH MANIF (A) M8X72	1-09000-286-0	01	1	9312-9510	●
213	03.613 BOLT; ADAPTER TO EXH MANIF (B) M8X45	8-94449-246-0	01	1	9312-9510	●
213	03.613 BOLT; ADAPTER TO EXH MANIF 03.342 M8X30	1-09000-319-0	01	1	9312-		●

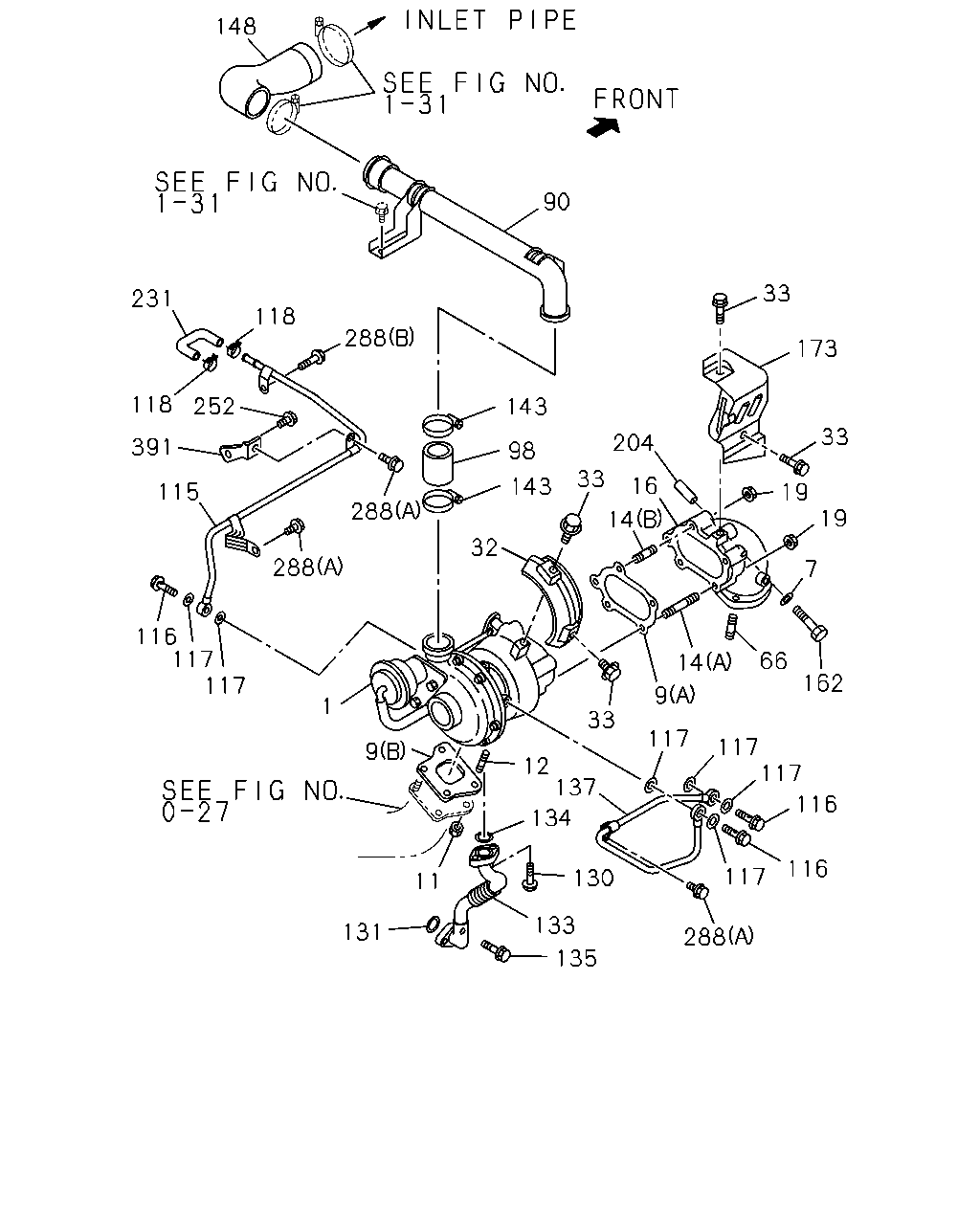

148 90 33 231 118 288 173 118 252 143 33 204 391 98 33 16 143 115 19 288 19 14 32 288 7 116 117 117 66 14 162 9 1 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94382-900-0	01	1	9312-9510	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97105-618-1	01	1	9312-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97189-452-0	01	1	9712-9806			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-1	01	1	9807-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9712-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9712-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97069-550-0	01	1	9312-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-0	01	1	9712-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	9712-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9312-9510	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9511-9711		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9712-		●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9712-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X72 L=86	8-94155-869-0	03	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X107 L=121	8-94343-048-0	02	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9712-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9712-			●
16	03.609 ADAPTER; EXH PIPE	8-94422-202-1	01	1	9312-9510	●
16	03.609 ADAPTER; EXH PIPE	8-97111-803-0	01	1	9312-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9712-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94111-638-0	05	1	9312-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-94461-962-1	01	1	9312-9510	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97023-792-0	01	1	9312-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97190-590-0	01	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97064-417-0	01	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	03	1	9312-9510	●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9607		●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X10 FLANGE	0-28080-810-0	02	1	9608-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9712-			●
66	03.342 STUD; EXH PIPE 03.604 M10X38 L=53	8-97077-549-0	03	1	9407-9510	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-0	03	1	9312-9406	●	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-1	03	1	9407-		●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9712-			●
90	03.407 PIPE; INL,TURBOCHARGER TO MANIF EXC. CHARGE AIR COOLER<6PL>	8-97173-981-0	01	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-94366-251-0	01	1	9312-9510	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97105-614-0	01	1	9312-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9312-9510	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9511-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9712-			●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9312-9510	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9511-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9712-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9312-9510	●	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9511-9612		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	03	1	9701-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	01	1	9609-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	9712-			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9712-			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9312-9510	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9511-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9312-9510	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9511-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9712-			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9312-9510	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9511-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9712-			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9312-9510	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9511-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97181-850-0	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-945-3	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=48-68	8-94158-976-0	02	1	9312-9510	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9312-9711		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9712-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> ID=50-69	8-94316-991-0	02	1	9712-			●
148	03.417 HOSE; TURBOCHARGER,INL EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	9712-			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9712-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97190-569-0	01	1	9712-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97039-752-0	01	1	9712-			●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9712-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97041-637-0	01	1	9712-9804			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9805-			●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9712-			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9712-			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-			●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9712-			●

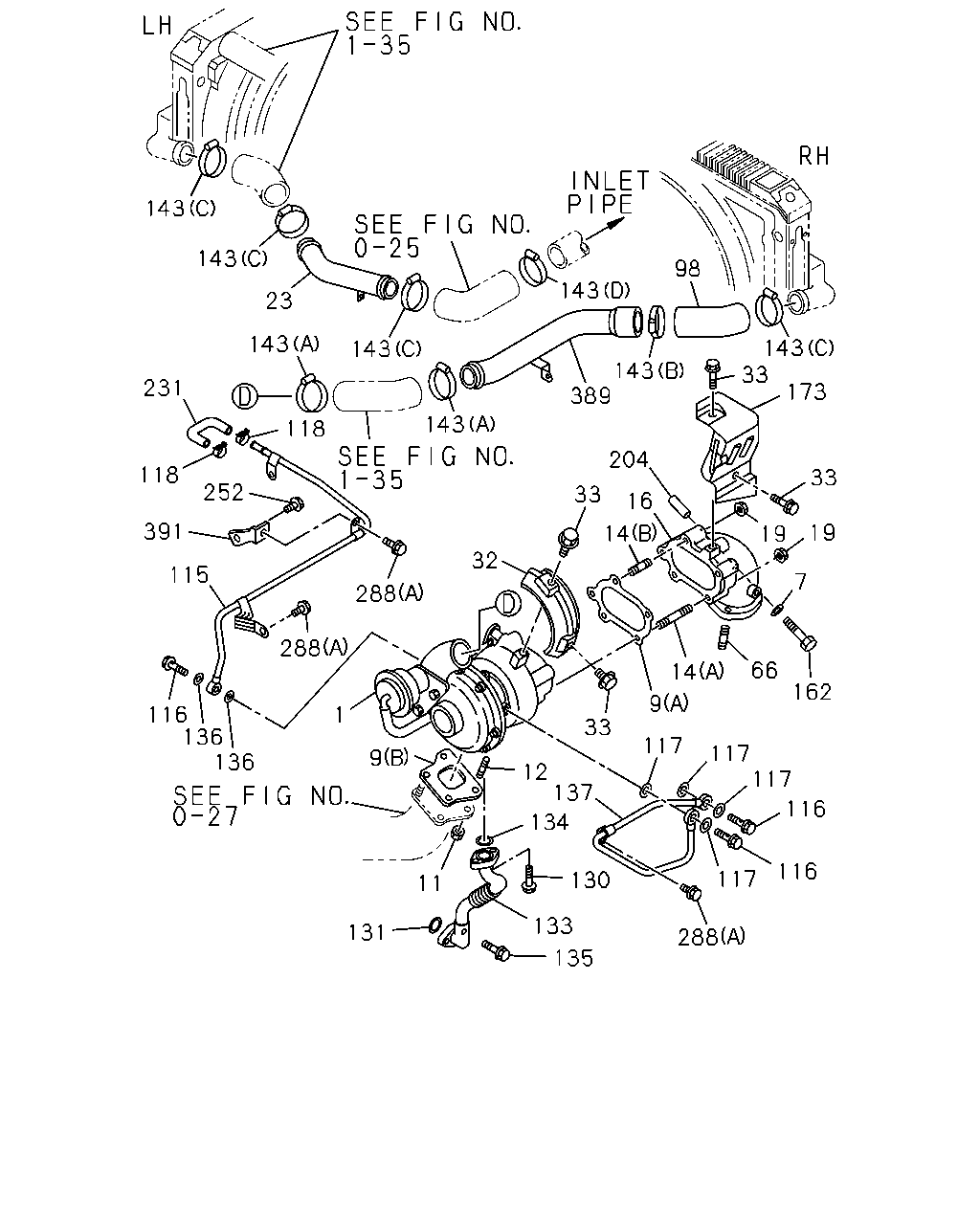

143 143 98 143 23 143 143 33 143 143 389 231 17 143 118 204 118 33 252 33 16 391 19 14 19 32 115 7 288 288 66 14 162 9 116 136 136 1 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94382-900-0	01	1	9312-9510	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97105-618-1	01	1	9312-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97189-452-0	01	1	9712-9806			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-1	01	1	9807-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9712-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9712-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97069-550-0	01	1	9312-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-0	01	1	9712-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	9712-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9312-9510	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9511-9711		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9712-		●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9712-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X72 L=86	8-94155-869-0	03	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X107 L=121	8-94343-048-0	02	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9712-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9712-			●
16	03.609 ADAPTER; EXH PIPE	8-94422-202-1	01	1	9312-9510	●
16	03.609 ADAPTER; EXH PIPE	8-97111-803-0	01	1	9312-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9712-			●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	02	1	9312-9510	●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9511-		●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9312-9510		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94111-638-0	05	1	9312-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9712-			●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-0	01	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-94461-962-1	01	1	9312-9510	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97023-792-0	01	1	9312-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97190-590-0	01	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97064-417-0	01	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	03	1	9312-9510	●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9607		●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X10 FLANGE	0-28080-810-0	02	1	9608-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9712-			●
66	03.342 STUD; EXH PIPE 03.604 M10X38 L=53	8-97077-549-0	03	1	9407-9510	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-0	03	1	9312-9406	●	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-1	03	1	9407-		●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-94366-251-0	01	1	9312-9510	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97105-614-0	01	1	9312-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9312-9510	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9511-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9712-			●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9312-9510	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9511-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9712-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9312-9510	●	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9511-9612		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	03	1	9701-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	01	1	9609-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	9712-			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9712-			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9312-9510	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9511-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9312-9510	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9511-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9712-			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9312-9510	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9511-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9712-			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9712-			●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9312-9510	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9511-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97181-850-0	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-945-3	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=48-68	8-94158-976-0	02	1	9312-9510	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9312-9711		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9712-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> ID=50-69	8-94316-991-0	02	1	9712-			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9712-			●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9712-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97041-637-0	01	1	9712-9804			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9805-			●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9712-			●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9712-			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97105-692-0	01	1	9312-9704		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-692-0	01	1	9705-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC FRAME STRAIGHT TYPE<7KJ>	8-97120-361-1	01	1	9705-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97201-037-0	01	1	9712-9712			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9801-			●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9712-			●

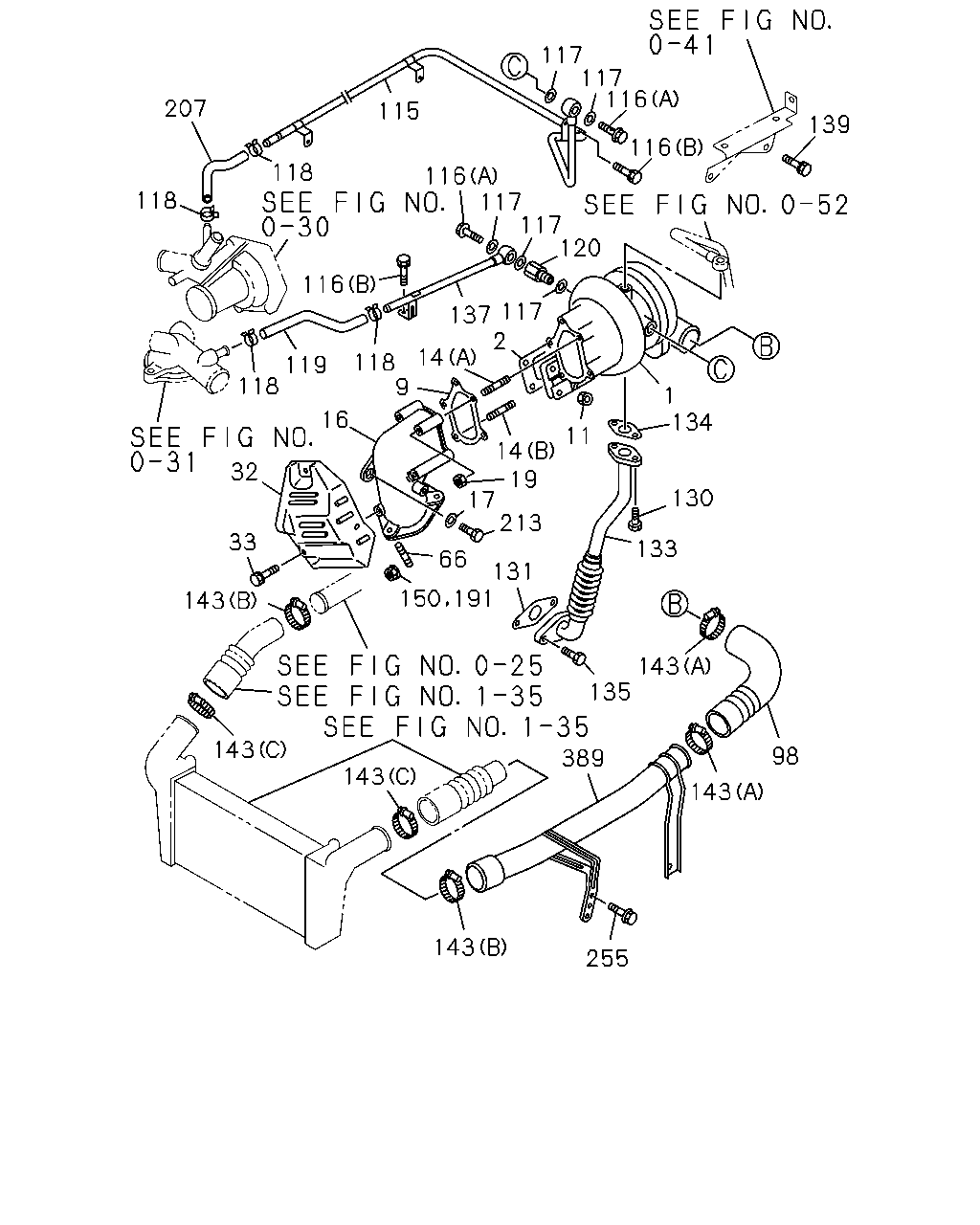

117 117 116 207 115 139 116 118 116 117 117 120 118 116 117 137 2 14 118 9 119 118 1 134 16 11 14 19 32 17 213 130 33 133 66 131 191 150 143 143 135 143 98 389 143 143 143 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94382-900-0	01	1	9312-9510	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97105-618-1	01	1	9312-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97189-452-0	01	1	9712-9806			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-1	01	1	9807-			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9712-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94423-043-0	01	1	9312-9510	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94423-043-0	01	1	9511-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97069-550-0	01	1	9312-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-0	01	1	9712-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	9712-			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9312-9510	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9511-9711		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9712-		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X72 L=86	8-94155-869-0	03	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X107 L=121	8-94343-048-0	02	1	9312-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9712-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9712-			●
16	03.609 ADAPTER; EXH PIPE	8-94422-202-1	01	1	9312-9510	●
16	03.609 ADAPTER; EXH PIPE	8-97111-803-0	01	1	9312-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9712-			●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	02	1	9312-9510	●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9511-		●
17	03.613 WASHER; PL,ADAPTER ID=8 OD=18 T=3	8-94174-537-0	01	1	9312-9510		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94111-638-0	05	1	9312-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-94461-962-1	01	1	9312-9510	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97023-792-0	01	1	9312-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97190-590-0	01	1	9712-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97064-417-0	01	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	03	1	9312-9510	●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9607		●
33	03.342 BOLT; HEAT PROTECTOR 00.206 M8X10 FLANGE	0-28080-810-0	02	1	9608-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9712-			●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9712-			●
66	03.342 STUD; EXH PIPE 03.604 M10X38 L=53	8-97077-549-0	03	1	9407-9510	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-0	03	1	9312-9406	●	●
66	03.342 STUD; EXH PIPE 03.604 M10X45 L=60 STAINLESS	8-97032-977-1	03	1	9407-		●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-94366-251-0	01	1	9312-9510	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97105-614-0	01	1	9312-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9712-			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9312-9510	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-94382-361-0	01	1	9511-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9712-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9712-			●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE 12.187 (B) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9312-9510	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	9511-		●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9312-9510	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	05	1	9511-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9712-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9712-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9312-9510	●	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	04	1	9511-9612		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	03	1	9701-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	01	1	9609-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	9712-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97106-968-0	01	1	9312-9510	●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97106-968-0	01	1	9511-		●
120	01.097 ADAPTER; WATER	8-94461-965-1	01	1	9312-9510	●	●
120	01.097 ADAPTER; WATER	8-94461-965-1	01	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9712-			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9312-9510	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-663-0	01	1	9511-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9312-9510	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97041-829-0	01	1	9511-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-0	01	1	9712-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9712-			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9312-9510	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97030-419-0	01	1	9511-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9712-			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9312-9510	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97102-622-0	01	1	9511-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97181-850-0	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> TAIWAN EQUIPMENT(RWV)	8-97148-945-3	01	1	9712-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9712-			●
139	03.417 BOLT; INL PIPE BRKT 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9510	●	●
139	03.417 BOLT; INL PIPE BRKT 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9511-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=48-68	8-94158-976-0	02	1	9312-9510	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9312-9711		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	9712-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-79	1-09707-136-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (B) ID=58-79	8-94126-771-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-89	1-09707-137-0	02	1	9312-9405		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	8-94320-428-0	02	1	9406-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9712-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. CHARGE AIR COOLER<6PL> ID=50-69	8-94316-991-0	02	1	9712-			●
150	03.417 NUT; INL DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-		●
191	03.342 NUT; HEAT PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-		●
207	03.342 HOSE; WATER,TURBOCHARGER RETURN	8-94321-737-0	01	1	9312-9510	●
207	03.342 HOSE; WATER,TURBOCHARGER RETURN	8-94338-876-2	01	1	9312-		●
213	03.613 BOLT; ADAPTER TO EXH MANIF (A) M8X72	1-09000-286-0	01	1	9312-9510	●
213	03.613 BOLT; ADAPTER TO EXH MANIF (B) M8X45	8-94449-246-0	01	1	9312-9510	●
213	03.613 BOLT; ADAPTER TO EXH MANIF 03.342 M8X30	1-09000-319-0	01	1	9312-		●
255	03.417 BOLT; INL PIPE M10X25 FLANGE	0-28081-025-0	02	1	9312-9502		●
255	03.417 BOLT; INL PIPE 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9312-		●
255	03.417 BOLT; INL PIPE M10X25 FLANGE	0-28081-025-0	02	1	9511-9511		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97105-692-0	01	1	9312-9704		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EXC. FRAME STRAIGHT TYPE<7KJ>	8-97105-692-0	01	1	9705-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC FRAME STRAIGHT TYPE<7KJ>	8-97120-361-1	01	1	9705-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97201-037-0	01	1	9712-9712			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9801-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
