◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#40507) — 46 parça

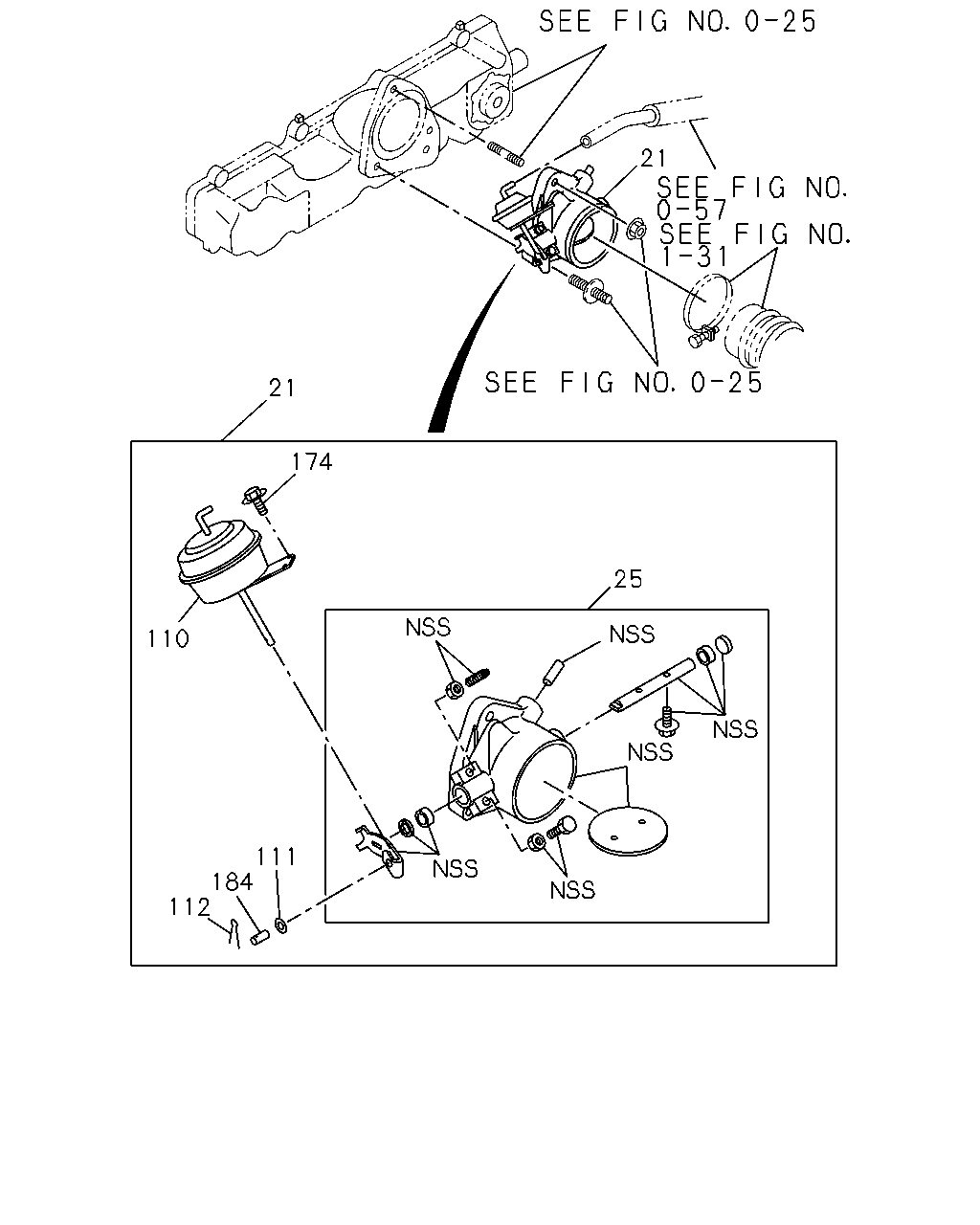

çizim 18209
21 21 174 25 110 111 184 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 03.440 VALVE ASM; THROTTLE 8-97042-996-0 01 1 9312- ●
21 03.440 VALVE ASM; THROTTLE 8-97093-529-0 01 1 9312-9510 ●
21 03.440 VALVE ASM; THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97135-660-1 01 1 9712- ●
25 03.440 BODY ASM; THROTTLE 8-97094-116-0 01 1 9312- ●
25 03.440 BODY ASM; THROTTLE 8-97022-146-3 01 1 9312-9510 ●
110 03.440 CHAMBER ASM; DIAPH 8-97019-267-0 01 1 9312- ●
110 03.440 CHAMBER ASM; DIAPH 8-97096-809-0 01 1 9312-9510 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9312-9406 ● ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9407-9502 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9503-9510 ● ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9511- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9407-9502 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9312- ●
112 03.440 PIN; SPLIT,LEVER 8-97079-213-0 01 1 9312-9510 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9312- ●
174 03.440 BOLT; CHAMBER
16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9312-9510 ●
184 03.440 PIN; LEVER 8-97022-150-1 01 1 9312-9510 ●
çizim 18214
242 252 252 245 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
242 03.431 LINK ASM 8-94338-420-0 01 1 9312-9510 ●
242 03.431 LINK ASM 8-94152-024-0 01 1 9312- ● ●
245 03.425 NUT; LINK
03.463 M5 LH THREAD 		9-09840-277-0 01 1 9312-9510 ● ● ●
245 03.425 NUT; LINK
03.463 M5 LH THREAD 		9-09840-277-0 01 1 9511- ● ●
245 03.425 NUT; LINK
02.664 RH THREAD 		9-99111-405-0 01 1 9312-9510 ● ● ●
245 03.425 NUT; LINK
02.664 RH THREAD M5 		9-99111-405-0 01 1 9511- ● ●
252 03.425 JOINT ASM; BALL
RH THREAD 		8-94151-299-0 01 1 9312-9510 ●
252 03.425 JOINT ASM; BALL
LH THREAD 		8-94151-300-0 01 1 9312-9510 ●
252 03.425 JOINT ASM; BALL
RH THREAD 		1-09760-002-0 01 1 9312- ● ●
252 03.425 JOINT ASM; BALL
LH THREAD 		1-09760-003-0 01 1 9312- ● ●
çizim 20249
21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 03.440 VALVE ASM; THROTTLE 8-97042-996-0 01 1 9312- ●
21 03.440 VALVE ASM; THROTTLE 8-97093-529-0 01 1 9312-9510 ●
21 03.440 VALVE ASM; THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97135-660-1 01 1 9712- ●

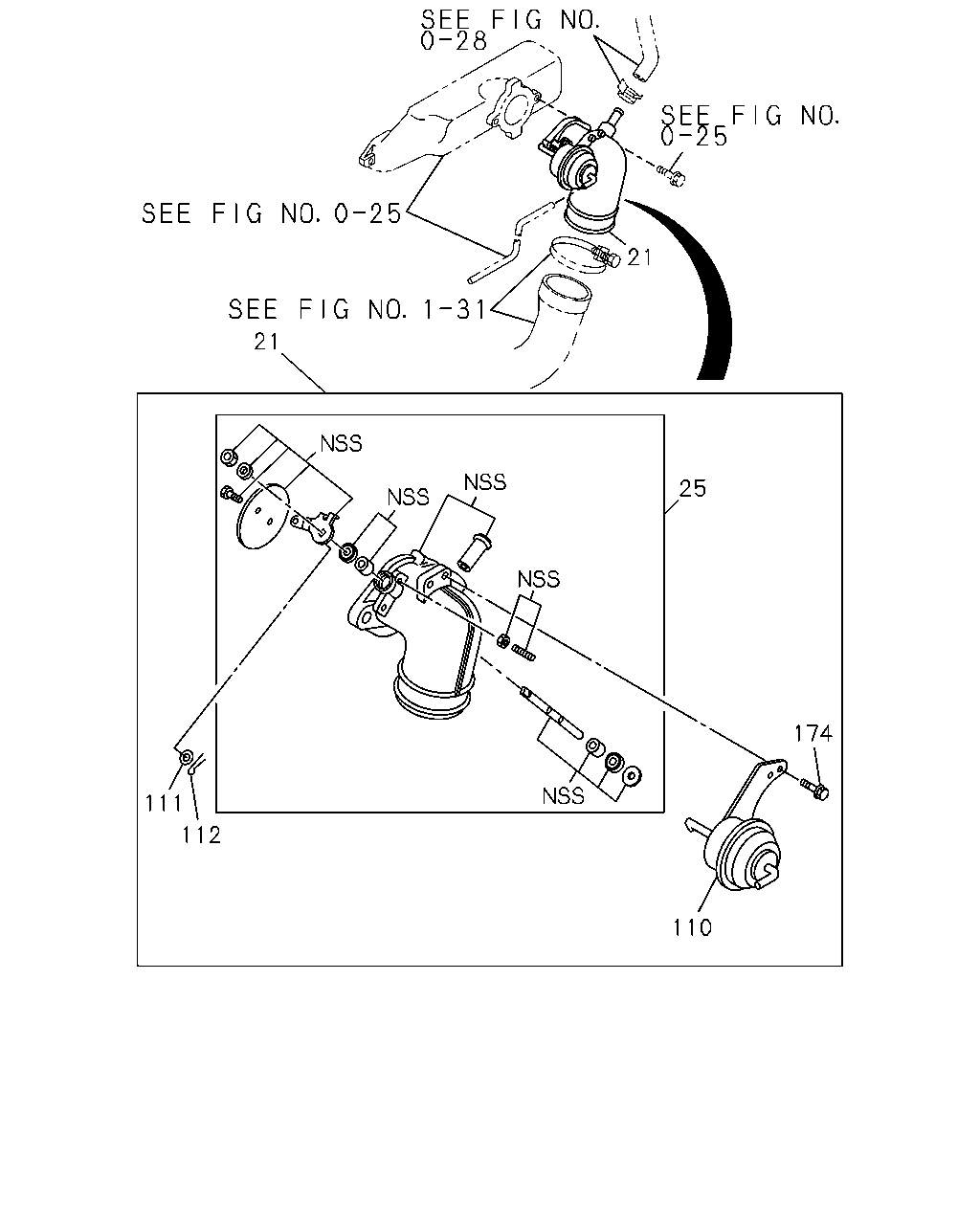

çizim 67045
21 21 25 174 111 112 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 03.440 VALVE ASM; THROTTLE 8-97042-996-0 01 1 9312- ●
21 03.440 VALVE ASM; THROTTLE 8-97093-529-0 01 1 9312-9510 ●
21 03.440 VALVE ASM; THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97135-660-1 01 1 9712- ●
25 03.440 BODY ASM; THROTTLE 8-97094-116-0 01 1 9312- ●
25 03.440 BODY ASM; THROTTLE 8-97022-146-3 01 1 9312-9510 ●
110 03.440 CHAMBER ASM; DIAPH 8-97019-267-0 01 1 9312- ●
110 03.440 CHAMBER ASM; DIAPH 8-97096-809-0 01 1 9312-9510 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9312-9406 ● ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9407-9502 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9503-9510 ● ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9511- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9407-9502 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9312- ●
112 03.440 PIN; SPLIT,LEVER 8-97079-213-0 01 1 9312-9510 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9312- ●
174 03.440 BOLT; CHAMBER
16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9312-9510 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
