◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#40505) — 55 parça
çizim 17181
59 2 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-94479-459-0 01 1 9312-9510 ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94132-490-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94129-649-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94313-455-3 01 1 9312-9501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9502-9711 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9712- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97115-456-0 01 1 9712-9805 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 9806- ●
59 01.150 CLIP; HARNESS,WATER OUTLET PIPE
02.698 ID=8 		8-94107-659-0 01 1 9312-9510 ●
59 01.150 CLIP; HARNESS,WATER OUTLET PIPE
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9312-9510 ● ● ●
59 01.150 CLIP; HARNESS,WATER OUTLET PIPE
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9511- ● ●
148 01.097 CLIP; BYPASS HOSE 8-97011-095-0 02 1 9312-9510 ● ● ●
148 01.097 CLIP; BYPASS HOSE 8-97011-095-0 02 1 9511- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9312-9711 ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9712- ● ● ●

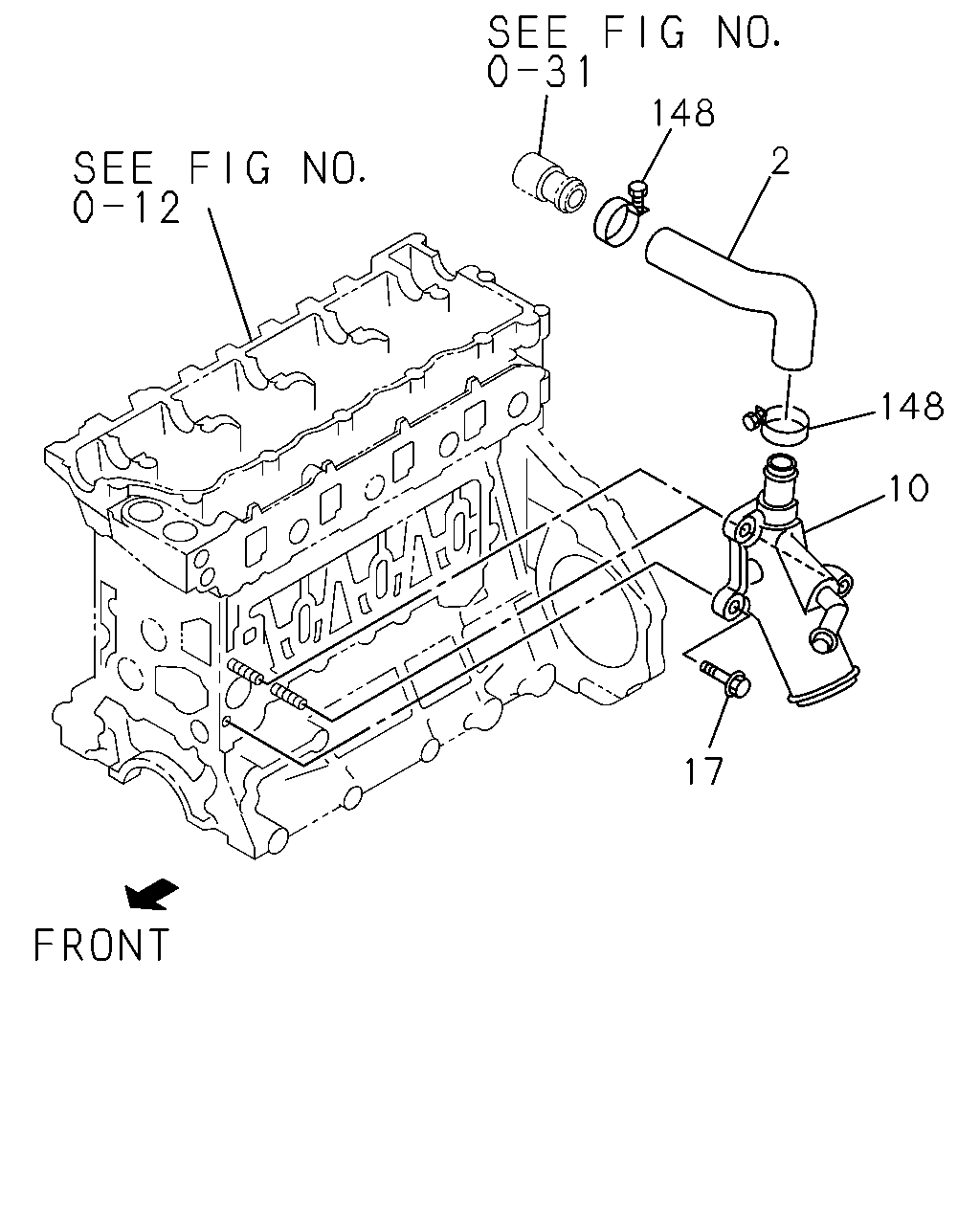

çizim 66929
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-94479-459-0 01 1 9312-9510 ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94132-490-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94129-649-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94313-455-3 01 1 9312-9501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9502-9711 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9712- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97115-456-0 01 1 9712-9805 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 9806- ●
10 01.153 PIPE; SUCTION 8-97033-717-3 01 1 9312-9501 ●
10 01.153 PIPE; SUCTION 8-97100-815-4 01 1 9502-9711 ●
10 01.153 PIPE; SUCTION 8-97100-815-5 01 1 9712-9808 ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 9809- ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 9312-9711 ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 9712- ● ● ●
148 01.097 CLIP; BYPASS HOSE 8-97011-095-0 02 1 9312-9510 ● ● ●
148 01.097 CLIP; BYPASS HOSE 8-97011-095-0 02 1 9511- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9312-9711 ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9712- ● ● ●
çizim 67452
74 73 72 72 23 11 102 85 85 2 102 85 171 30 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-94479-459-0 01 1 9312-9510 ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94132-490-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94129-649-0 01 1 9312- ●
2 01.097 HOSE; WATER,BY-PASS 8-94313-455-3 01 1 9312-9501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9502-9711 ●
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9712- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97115-456-0 01 1 9712-9805 ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 9806- ●
11 01.097 PIPE; INL,WATER PUMP 8-97063-639-2 01 1 9312- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9312- ●
30 01.150 CLIP; HARNESS
02.559 ID=12 		5-09700-331-0 01 1 9312- ●
72 00.206 BOLT; WATER PIPE
00.727 (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9312- ●
72 00.206 BOLT; WATER PIPE
01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9312- ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-0 01 1 9312- ●
74 01.097 BOLT; HEAT PROTECTOR FIX
12.187 M8X16 W/LK&PL WASHER 		0-50140-816-0 03 1 9312- ●
85 01.240 CLIP; RUBBER,WAX CSD
03.162 ID=15.5 		8-94221-519-0 04 1 9312- ●
102 01.252 CLIP; WATER HOSE
01.166 ID=20.8 		8-94125-862-0 02 1 9312- ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97089-269-0 01 1 9312-9710 ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97189-478-0 01 1 9711- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
