0-31 — THERMOSTAT AND HOUSING (#40504) — 547 parça

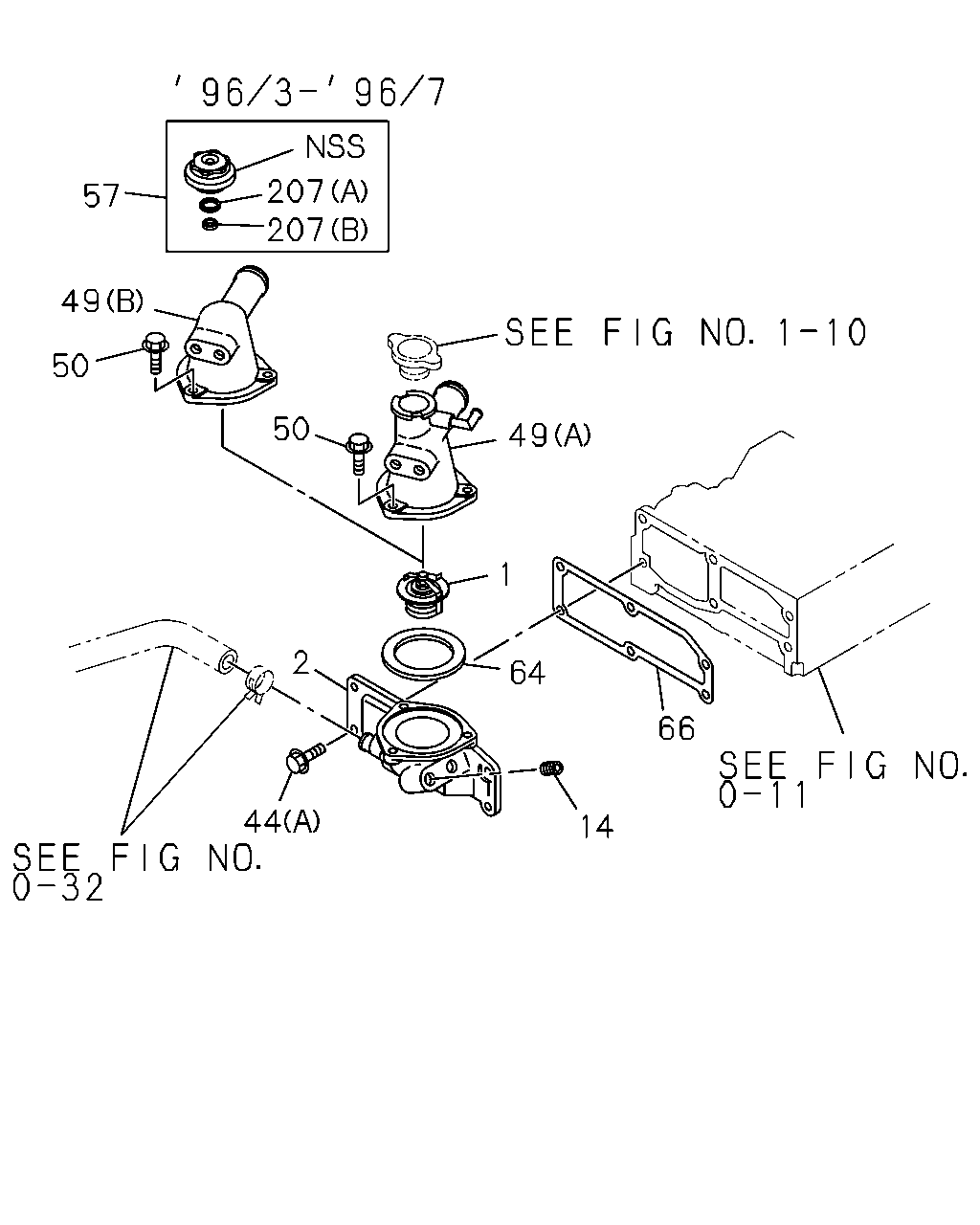

çizim 20754
207 207 57 49 50 50 49 1 2 64 66 44 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9312-9410 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9511-9704 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3> 82 CELSIUS 		8-97138-019-0 01 1 9705-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9712- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9312- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-0 01 1 9312-9410 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9507 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9508-9511 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9511-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9312-9409 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9610 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9712- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97137-953-0 01 1 9508-9610 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9312-9510 ● ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-2 01 1 9511- ●
2 01.251 HOUSING; THERMOSTAT 8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9607- ●
2 01.251 HOUSING; THERMOSTAT 8-97030-490-1 01 1 9312- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9608-9703 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9704-9711 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9312-9607 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9608-9703 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9704- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9512-9604 ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9712- ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312- ●
44 01.252 BOLT; HSG TO HD
(B) 		8-97044-231-0 02 1 9312- ●
49 01.153 PIPE; WATER OUTLET 8-97080-674-1 01 1 9312-9510 ● ●
49 01.153 PIPE; WATER OUTLET 8-94327-482-1 01 1 9511- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97034-445-0 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
EURO2 SPECIFICATION<7AF> (A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97078-283-1 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-313-1 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97045-152-0 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97061-513-3 01 1 9312-9504 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97121-587-0 01 1 9505-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97145-685-1 01 1 9603-9604 ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> (A) 		8-97145-685-1 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
COLOMBIA EQUIPMENT(X74) (A) 		8-97145-685-1 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
EXC. FAST GLOW SYSTEM<KM6> (B) 		8-97145-919-0 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97145-919-0 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97145-919-0 01 1 9712-9805 ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97200-620-0 01 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9312-9510 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9511- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9708 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 01.252 BOLT; OUTLET PIPE
03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9312-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9312-9504 ●
50 01.252 BOLT; OUTLET PIPE
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9505-9603 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9603-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> (B) M8X85 FLANGE 		8-97023-062-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) (B) M8X85 FLANGE 		8-97023-062-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9712-9805 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9712- ● ● ●
57 01.252 CAP 8-97146-740-0 01 1 9603-9607 ● ● ●
57 01.252 CAP 8-97146-740-0 01 1 9608-9711 ●
57 01.252 CAP
COLOMBIA EQUIPMENT(X74) 		8-97146-740-0 01 1 9608-9711 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9312-9510 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9511- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		8-94365-674-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9312-9510 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9511- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94365-675-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 02 1 9312-9507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 01 1 9508-9610 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9611-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9712- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.271 (C) 		8-97129-600-0 02 1 9603-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (A) 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (B) 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ●

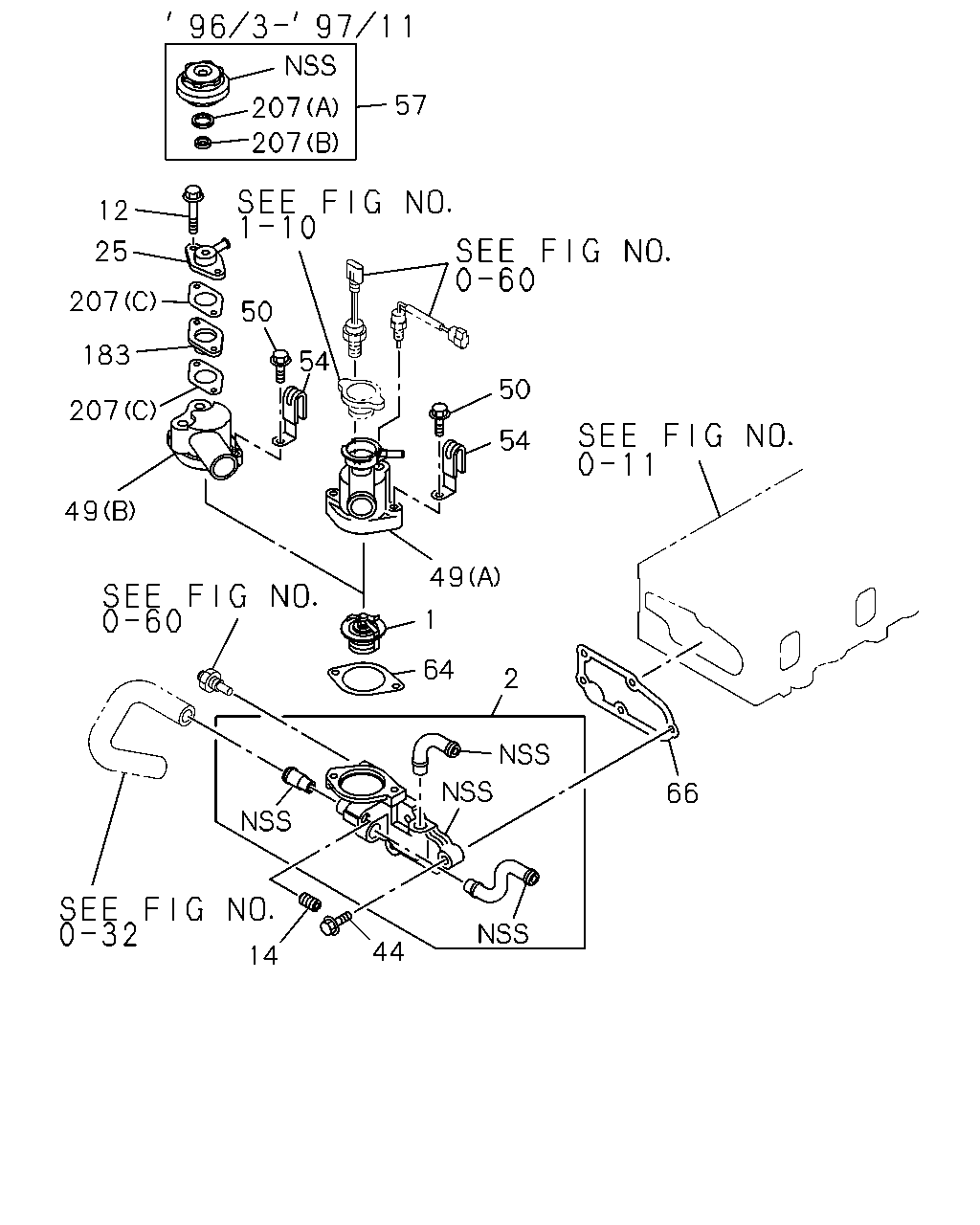

çizim 66781
57 207 207 12 25 207 50 183 54 50 207 54 49 49 1 64 2 66 44 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9312-9410 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9511-9704 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3> 82 CELSIUS 		8-97138-019-0 01 1 9705-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9712- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9312- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-0 01 1 9312-9410 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9507 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9508-9511 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9511-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9312-9409 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9610 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9712- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97137-953-0 01 1 9508-9610 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9312-9510 ● ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-2 01 1 9511- ●
2 01.251 HOUSING; THERMOSTAT 8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9607- ●
2 01.251 HOUSING; THERMOSTAT 8-97030-490-1 01 1 9312- ●
12 01.252 BOLT; HSG
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9603-9711 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9608-9703 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9704-9711 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9312-9607 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9608-9703 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9704- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9512-9604 ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9712- ●
25 01.240 VALVE; VENTILATION
01.271 		8-97129-063-0 01 1 9603-9711 ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312- ●
44 01.252 BOLT; HSG TO HD
(B) 		8-97044-231-0 02 1 9312- ●
49 01.153 PIPE; WATER OUTLET 8-97080-674-1 01 1 9312-9510 ● ●
49 01.153 PIPE; WATER OUTLET 8-94327-482-1 01 1 9511- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97034-445-0 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
EURO2 SPECIFICATION<7AF> (A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97078-283-1 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-313-1 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97045-152-0 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97061-513-3 01 1 9312-9504 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97121-587-0 01 1 9505-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97145-685-1 01 1 9603-9604 ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> (A) 		8-97145-685-1 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
COLOMBIA EQUIPMENT(X74) (A) 		8-97145-685-1 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
EXC. FAST GLOW SYSTEM<KM6> (B) 		8-97145-919-0 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97145-919-0 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97145-919-0 01 1 9712-9805 ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97200-620-0 01 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9312-9510 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9511- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9708 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 01.252 BOLT; OUTLET PIPE
03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9312-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9312-9504 ●
50 01.252 BOLT; OUTLET PIPE
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9505-9603 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9603-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> (B) M8X85 FLANGE 		8-97023-062-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) (B) M8X85 FLANGE 		8-97023-062-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9712-9805 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9712- ● ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 9312- ●
57 01.252 CAP 8-97146-740-0 01 1 9603-9607 ● ● ●
57 01.252 CAP 8-97146-740-0 01 1 9608-9711 ●
57 01.252 CAP
COLOMBIA EQUIPMENT(X74) 		8-97146-740-0 01 1 9608-9711 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9312-9510 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9511- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		8-94365-674-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9312-9510 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9511- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94365-675-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 02 1 9312-9507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 01 1 9508-9610 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9611-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9712- ●
183 08.845 FLANGE; WATER DUCT 8-97145-821-0 01 1 9603-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.271 (C) 		8-97129-600-0 02 1 9603-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (A) 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (B) 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ●
çizim 67416
49 50 1 64 2 66 44 14 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9312-9410 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9511-9704 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3> 82 CELSIUS 		8-97138-019-0 01 1 9705-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9712- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9312- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-0 01 1 9312-9410 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9507 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9508-9511 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9511-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9312-9409 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9610 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9712- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97137-953-0 01 1 9508-9610 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9312-9510 ● ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-2 01 1 9511- ●
2 01.251 HOUSING; THERMOSTAT 8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9607- ●
2 01.251 HOUSING; THERMOSTAT 8-97030-490-1 01 1 9312- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9608-9703 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9704-9711 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9312-9607 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9608-9703 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9704- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9512-9604 ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9712- ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312- ●
44 01.252 BOLT; HSG TO HD
(B) 		8-97044-231-0 02 1 9312- ●
49 01.153 PIPE; WATER OUTLET 8-97080-674-1 01 1 9312-9510 ● ●
49 01.153 PIPE; WATER OUTLET 8-94327-482-1 01 1 9511- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97034-445-0 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
EURO2 SPECIFICATION<7AF> (A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97078-283-1 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-313-1 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97045-152-0 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97061-513-3 01 1 9312-9504 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97121-587-0 01 1 9505-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97145-685-1 01 1 9603-9604 ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> (A) 		8-97145-685-1 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
COLOMBIA EQUIPMENT(X74) (A) 		8-97145-685-1 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
EXC. FAST GLOW SYSTEM<KM6> (B) 		8-97145-919-0 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97145-919-0 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97145-919-0 01 1 9712-9805 ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97200-620-0 01 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9312-9510 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9511- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9708 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 01.252 BOLT; OUTLET PIPE
03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9312-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9312-9504 ●
50 01.252 BOLT; OUTLET PIPE
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9505-9603 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9603-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> (B) M8X85 FLANGE 		8-97023-062-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) (B) M8X85 FLANGE 		8-97023-062-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9712-9805 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9712- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9312-9510 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9511- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		8-94365-674-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9312-9510 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9511- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94365-675-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 02 1 9312-9507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 01 1 9508-9610 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9611-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9712- ●
çizim 67459
50 49 1 2 64 66 44 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9312-9410 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9511-9704 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3> 82 CELSIUS 		8-97138-019-0 01 1 9705-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9712- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9312- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-0 01 1 9312-9410 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9507 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9508-9511 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9511-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9312-9409 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9610 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9712- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97137-953-0 01 1 9508-9610 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9712- ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-1 01 1 9312-9510 ● ●
2 01.251 HOUSING; THERMOSTAT 8-94403-314-2 01 1 9511- ●
2 01.251 HOUSING; THERMOSTAT 8-97034-443-3 01 1 9312-9606 ●
2 01.251 HOUSING; THERMOSTAT 8-97139-602-0 01 1 9607- ●
2 01.251 HOUSING; THERMOSTAT 8-97030-490-1 01 1 9312- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9608-9703 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9704-9711 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9312-9607 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9608-9703 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9704- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9512-9604 ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9712- ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 03 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9312-9510 ● ● ●
44 01.252 BOLT; HSG TO HD
03.613 (A) M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9511- ● ●
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 9312- ●
44 01.252 BOLT; HSG TO HD
(B) 		8-97044-231-0 02 1 9312- ●
49 01.153 PIPE; WATER OUTLET 8-97080-674-1 01 1 9312-9510 ● ●
49 01.153 PIPE; WATER OUTLET 8-94327-482-1 01 1 9511- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97034-445-0 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
EURO2 SPECIFICATION<7AF> (A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97078-283-1 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-313-1 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97045-152-0 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97061-513-3 01 1 9312-9504 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97121-587-0 01 1 9505-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97145-685-1 01 1 9603-9604 ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> (A) 		8-97145-685-1 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
COLOMBIA EQUIPMENT(X74) (A) 		8-97145-685-1 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
EXC. FAST GLOW SYSTEM<KM6> (B) 		8-97145-919-0 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97145-919-0 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97145-919-0 01 1 9712-9805 ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97200-620-0 01 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9312-9510 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9511- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9708 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 01.252 BOLT; OUTLET PIPE
03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9312-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9312-9504 ●
50 01.252 BOLT; OUTLET PIPE
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9505-9603 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9603-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> (B) M8X85 FLANGE 		8-97023-062-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) (B) M8X85 FLANGE 		8-97023-062-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9712-9805 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9712- ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9312-9510 ● ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		9-13743-013-0 01 1 9511- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.252 		8-94365-674-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9312-9510 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9511- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94365-675-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 02 1 9312-9507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 01 1 9508-9610 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9611-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9712- ●

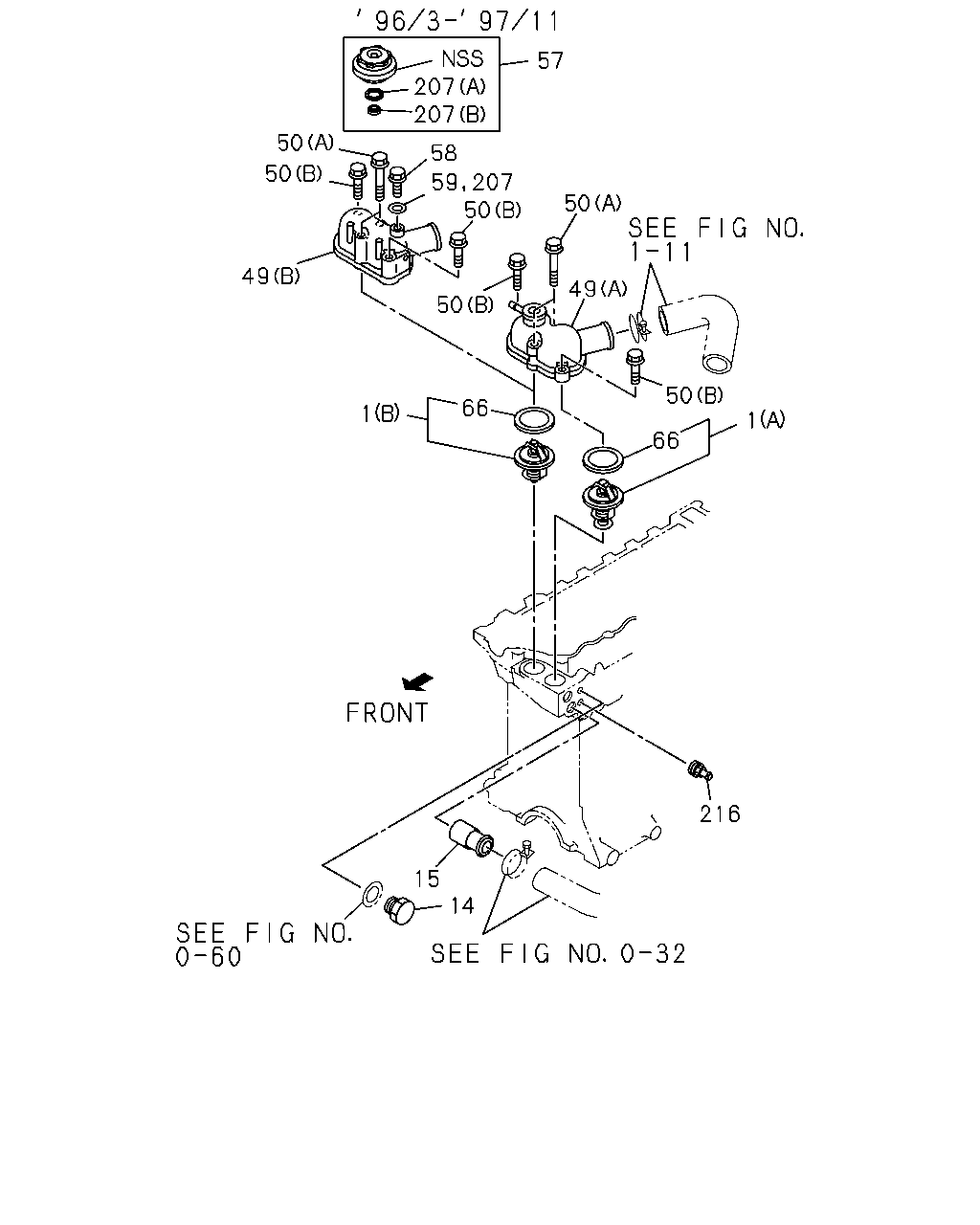

çizim 70806
207 207 57 50 58 50 59 50 50 49 49 50 50 66 1 1 66 216 15 14 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
82 CELSIUS 		5-13770-039-0 01 1 9312-9410 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9511-9704 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),FAN FLUID DRIVE<KA3> 82 CELSIUS 		8-97138-019-0 01 1 9705-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97138-019-0 01 1 9712- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-97089-891-0 01 1 9312- ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-0 01 1 9312-9410 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9411-9507 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ● ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9508-9510 ●
1 01.246 THERMOSTAT
82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94472-331-1 01 1 9511- ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97028-690-2 01 1 9312-9507 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9508-9511 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97028-690-2 01 1 9511-9608 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97164-569-0 01 1 9609-9610 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97091-806-0 01 1 9312-9409 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97116-057-0 01 1 9410-9610 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9712- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97137-953-0 01 1 9508-9610 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9611-9711 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9712- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9312-9510 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9511-9607 ●
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 01 1 9608-9703 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9704-9711 ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9312-9607 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9608-9703 ● ● ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 9704- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9512-9604 ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9712- ●
15 01.251 PIPE; BYPASS 8-97064-309-0 01 1 9312-9412 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 9501-9711 ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 9712- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97080-674-1 01 1 9312-9510 ● ●
49 01.153 PIPE; WATER OUTLET 8-94327-482-1 01 1 9511- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97034-445-0 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
EXC. EURO2 SPECIFICATION<7AF> (A) 		8-97034-445-0 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
EURO2 SPECIFICATION<7AF> (A) 		8-97147-001-2 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-94254-601-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97078-283-1 01 1 9312-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97147-313-1 01 1 9603-9607 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97045-152-0 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97061-513-3 01 1 9312-9504 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97121-587-0 01 1 9505-9602 ●
49 01.153 PIPE; WATER OUTLET
(A) 		8-97145-685-1 01 1 9603-9604 ●
49 01.153 PIPE; WATER OUTLET
FAST GLOW SYSTEM<KM6> (A) 		8-97145-685-1 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
COLOMBIA EQUIPMENT(X74) (A) 		8-97145-685-1 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
EXC. FAST GLOW SYSTEM<KM6> (B) 		8-97145-919-0 01 1 9604-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97145-919-0 01 1 9608-9711 ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97145-919-0 01 1 9712-9805 ● ● ●
49 01.153 PIPE; WATER OUTLET
(B) 		8-97200-620-0 01 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9312-9510 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 03 1 9511- ● ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X45 W/LK&PL WASHER 		0-50140-845-0 02 1 9312-9602 ●
50 01.252 BOLT; OUTLET PIPE
03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9603-9607 ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9608-9708 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9709- ●
50 01.252 BOLT; OUTLET PIPE
03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9312-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9312-9504 ●
50 01.252 BOLT; OUTLET PIPE
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9505-9603 ●
50 01.252 BOLT; OUTLET PIPE
(B) M8X85 FLANGE 		8-97023-062-0 02 1 9603-9603 ●
50 01.252 BOLT; OUTLET PIPE
FAST GLOW SYSTEM<KM6> (B) M8X85 FLANGE 		8-97023-062-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
COLOMBIA EQUIPMENT(X74) (B) M8X85 FLANGE 		8-97023-062-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.780 (A) M8X50 FLANGE 		0-28080-850-0 02 1 9712-9805 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9806- ● ● ●
50 01.252 BOLT; OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9604-9607 ●
50 01.252 BOLT; OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) 01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9608-9711 ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9712- ● ● ●
57 01.252 CAP 8-97146-740-0 01 1 9603-9607 ● ● ●
57 01.252 CAP 8-97146-740-0 01 1 9608-9711 ●
57 01.252 CAP
COLOMBIA EQUIPMENT(X74) 		8-97146-740-0 01 1 9608-9711 ●
58 00.073 PLUG; WATER OUTLET PIPE
EXC. FAST GLOW SYSTEM<KM6> M8X16 		8-97021-211-1 01 1 9604-9607 ●
58 00.073 PLUG; WATER OUTLET PIPE
EXC. COLOMBIA EQUIPMENT(X74) M8X16 		8-97021-211-1 01 1 9608-9711 ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 9712- ● ● ●
59 01.251 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. FAST GLOW SYSTEM<KM6> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9604-9607 ●
59 01.251 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. COLOMBIA EQUIPMENT(X74) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9608-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9312-9510 ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94370-673-0 01 1 9511- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-94365-675-1 01 1 9312- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 02 1 9312-9507 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97028-669-1 01 1 9508-9610 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9611-9711 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97167-477-0 01 1 9712- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9712- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.271 (C) 		8-97129-600-0 02 1 9603-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (A) 		8-97146-739-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 9603-9607 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(X74) (B) 		8-97146-741-0 01 1 9608-9711 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9712- ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97041-589-3 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
