◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#40501) — 26 parça

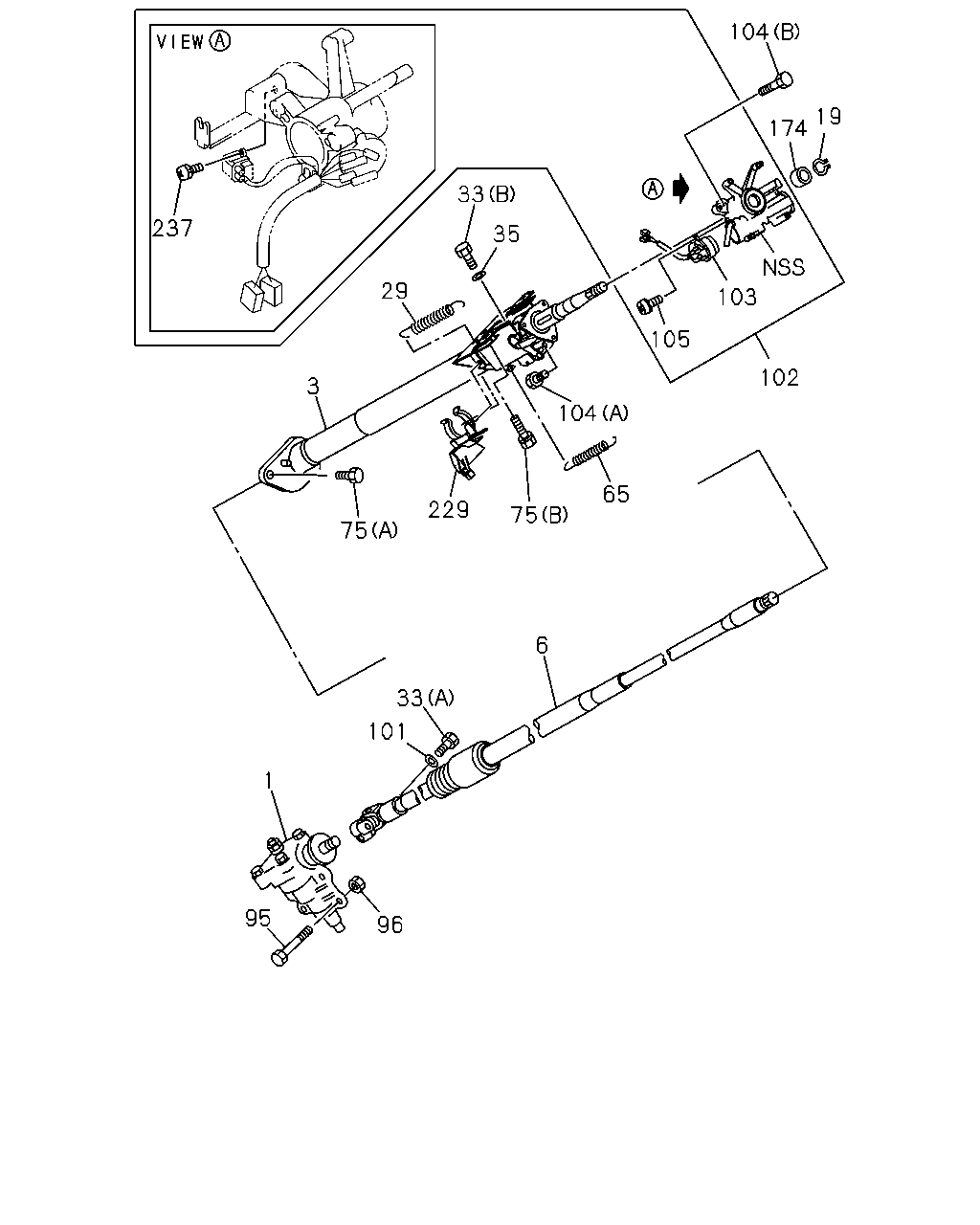

çizim 64091
104 19 174 33 237 35 103 29 105 102 3 104 65 229 75 75 6 33 101 1 95 96
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-986-5 01 1 9708-
3 SHAFT & COLUMN ASM; STRG 8-97170-397-0 01 1 9708-9907
3 SHAFT & COLUMN ASM; STRG 8-97228-369-0 01 1 9908-
6 SHAFT; STRG LWR 8-97124-163-0 01 1 9708-9907
6 SHAFT; STRG LWR 8-97232-676-0 01 1 9908-
19 RING; SNAP,STRG SHAFT 9-09180-022-0 01 1 9708-
29 SPRING; COLUMN 8-97069-501-1 01 1 9708-
33 BOLT; STRG SHAFT TO UNIT
(A) M8X30 		8-94247-692-0 01 1 9708-
33 BOLT; STRG SHAFT TO UNIT
(B) 		8-94477-976-1 01 1 9708-
35 WASHER; LK,STRG SHAFT 8-94477-979-0 01 1 9708-
65 SPRING; STRG COLUMN 8-97078-241-0 01 1 9708-
75 BOLT; STRG COLUMN
(A) M8X25 		8-94152-496-1 02 1 9708-
75 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 9708-
95 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9708-
96 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9708-
101 WASHER; LK,STRG SHAFT TO UNIT
ID=8.2 		9-09150-508-0 01 1 9708-
102 LOCK ASM; STRG
A/T THM(RMQ) 		8-97135-990-0 01 1 9708-9806
102 LOCK ASM; STRG 8-97135-990-1 01 1 9807-
102 LOCK ASM; STRG
M/T AR-5 5 SPEED(RNK) 		8-97135-988-0 01 1 9708-9806
103 SWITCH; IGNITION 8-97128-960-0 01 1 9708-
104 BOLT; STRG LOCK TO COLUMN
(A) M6X16 FLANGE 		0-28080-616-0 01 1 9708-
104 BOLT; STRG LOCK TO COLUMN
(B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9708-
105 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9708-
174 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9708-
229 PROTECTOR; STRG COLUMN 8-97109-627-2 01 1 9708-
237 SCREW; DOOR WARNING SW
M3X8 W/LK WASHER 		9-03910-308-0 01 1 9708-
